Dacia SuperNova (engine E7J). Service manual - part 147

89A

ELECTRICAL DIAGRAMS

89A - 36

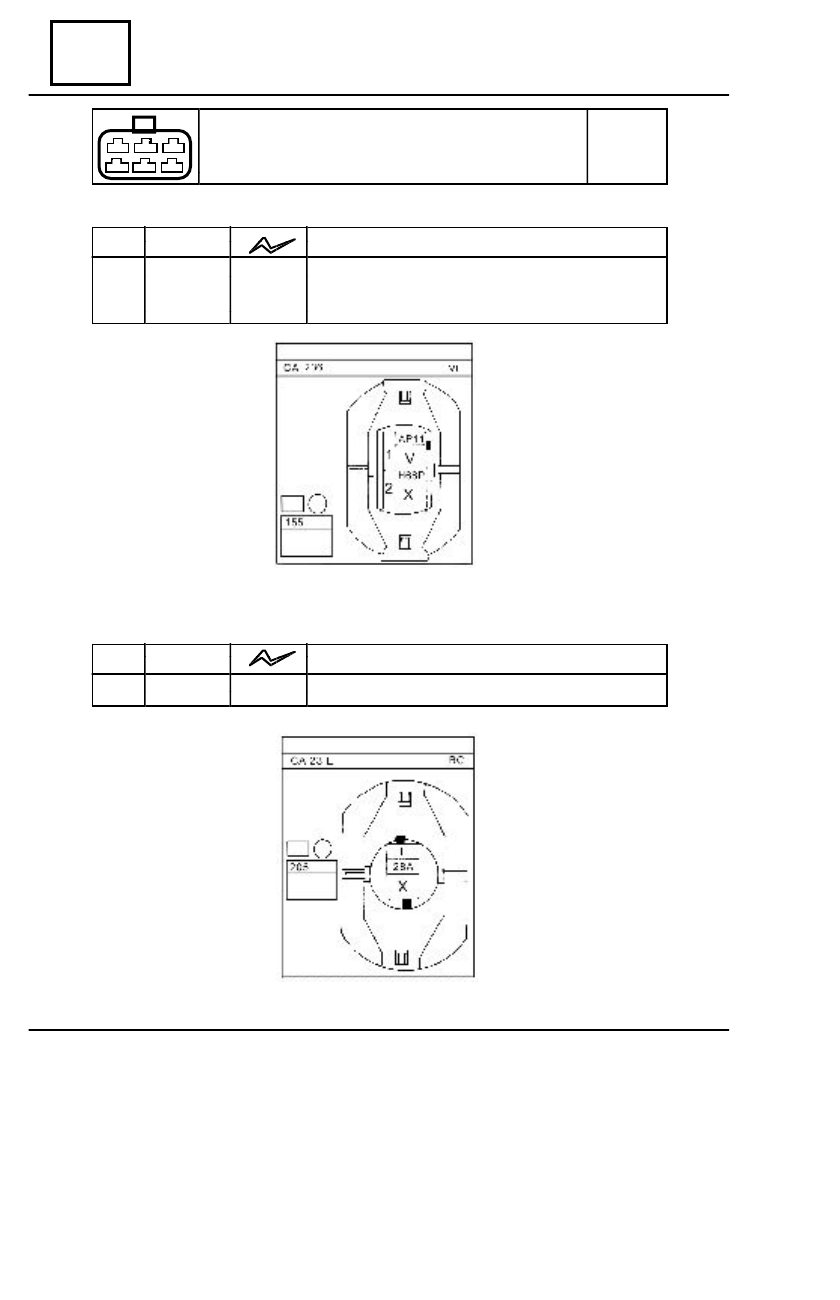

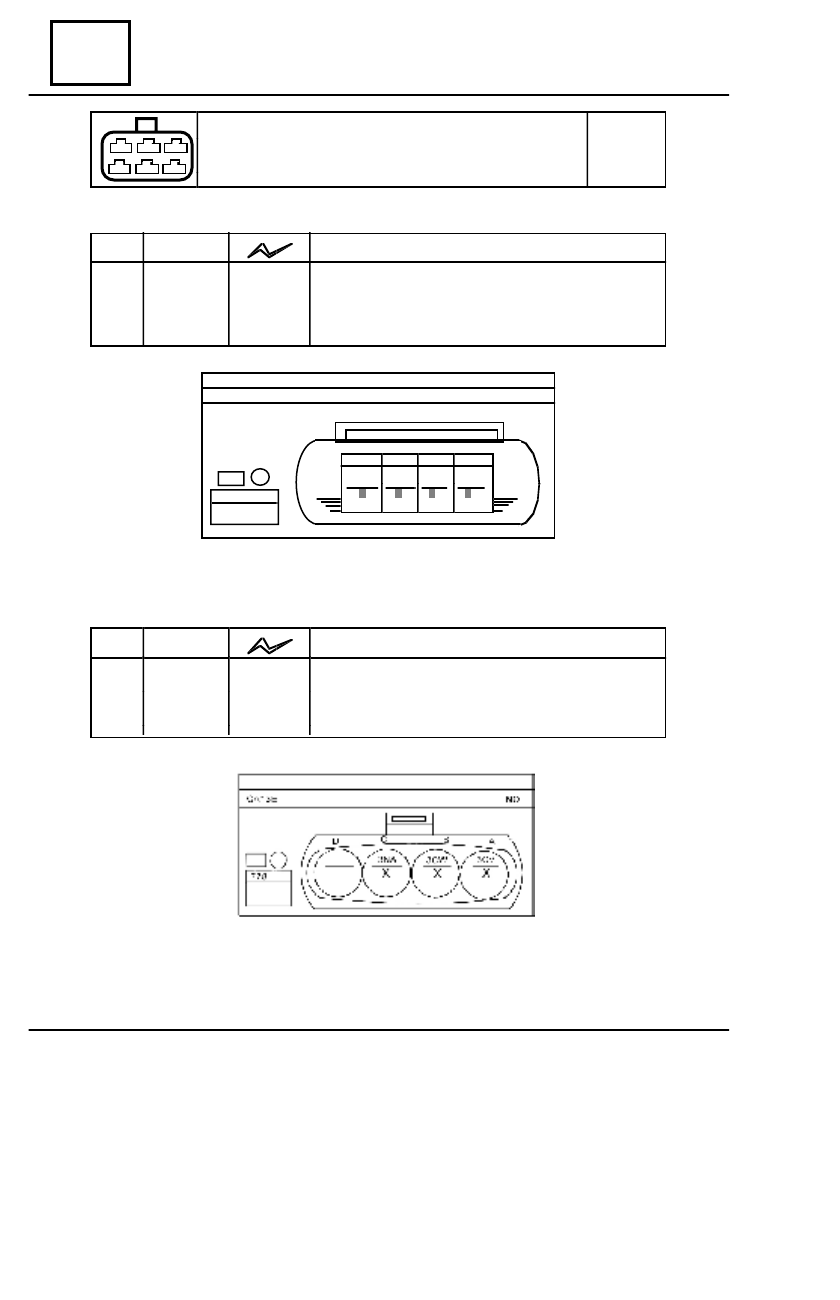

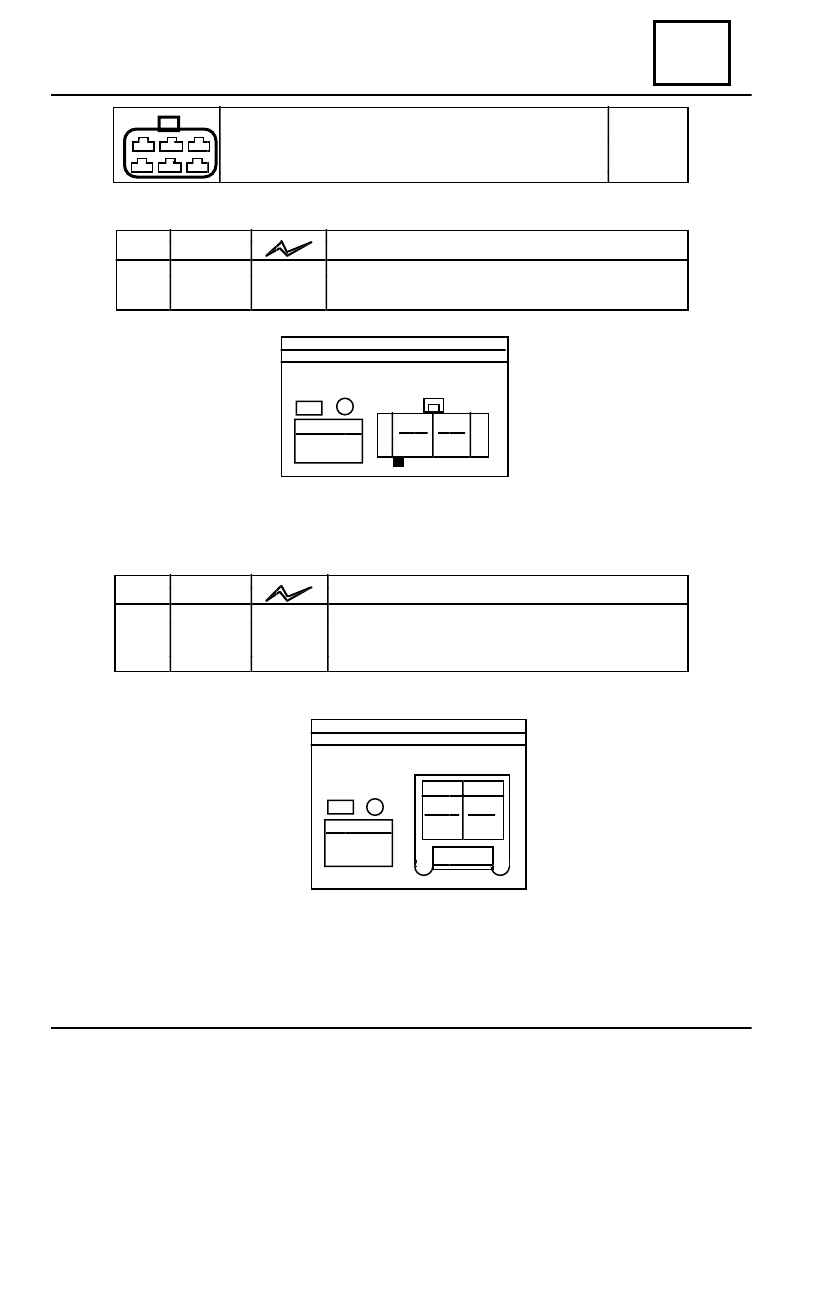

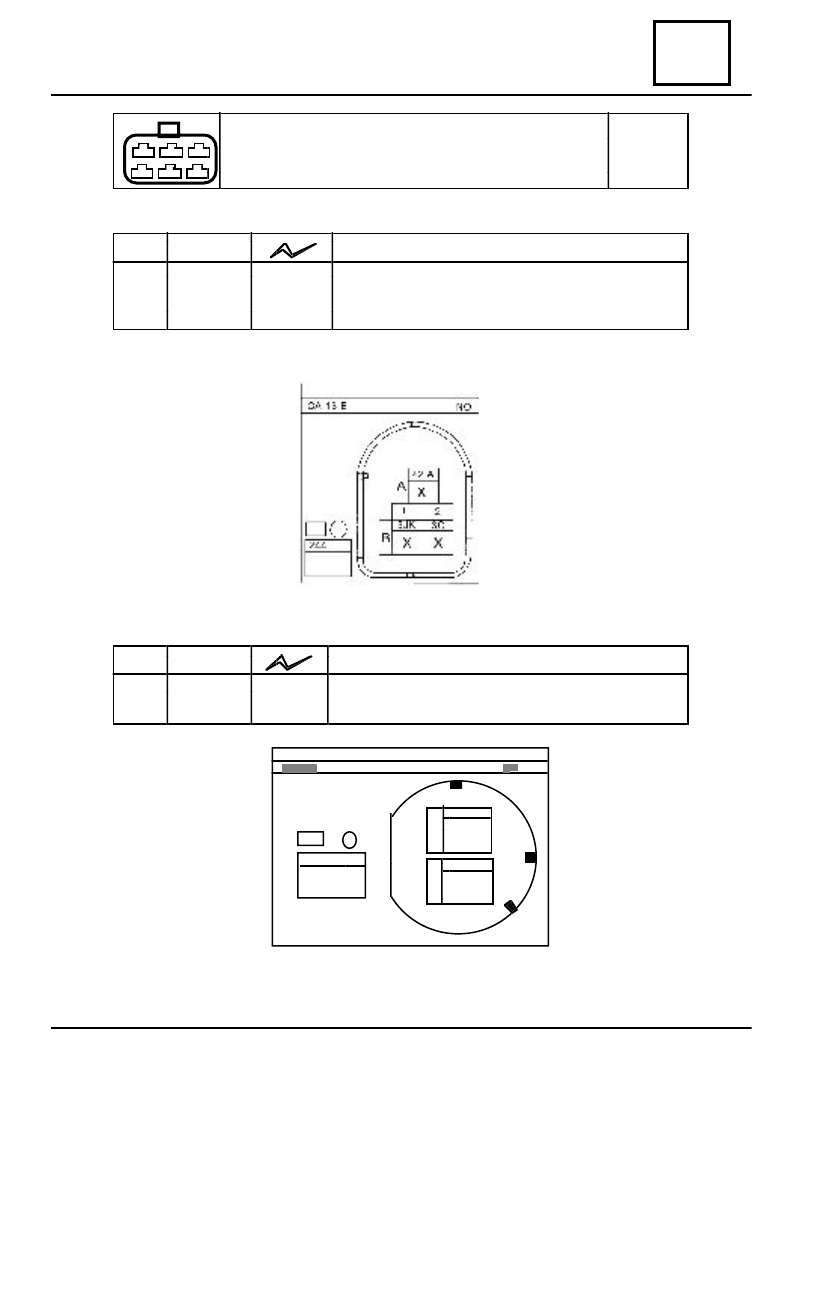

ENGINE WIRING

B41

01

REVERSE DRIVING CONTACT

OIL TRANSMITTER CONTACT

Pos. Sectioning

Destination

1

0,35

28A

OIL PRESSURE INDICA

TOR – CONTROL

Pos. Sectioning

Destination

1

0,60

AP11

+ AFTER PROTECTED CONTACT, REVERSE DRIVING
LIGHTS

2

0,60

H66P

CONTROL + REVERSE DRIVING LIGHTS > FUSE OUTLET F02

CONNECTORS AND CONNECTIONS WIRES FUNCTION

89A

ELECTRICAL DIAGRAMS

89A - 37

ENGINE WIRING

B41

01

WATER TEMPERATURE SENSOR

Pos. Sectioning

Destination

A

0,35

42A

SIGNAL + WATER TEMPERATURE

B1

0,60

3JK

- WATER TEMPERATURE

B2

0,60

3C

SIGNAL + WATER TEMPERATURE SENSOR

RPM SENSOR

Pos. Sectioning

Destination

A

0,60

3BG

ENGINE RPM SIGNAL > RPM SENSOR

B

0,60

3BL

ENGINE RPM - SIGNAL > RPM SENSOR

          149

3BG

   X

    X

B

3BL

A

CONNECTORS AND CONNECTIONS WIRES FUNCTION

89A

ELECTRICAL DIAGRAMS

89A - 38

ENGINE WIRING

B41

01



    CM1PE

                                          NO

     887

  3NR
   A

 3GF
  SA

 A               B               C            D

 3GK
    V

 3GH
A-VI

UPSTREAM OXYGEN SENSOR

Pos.

Sectioning

Destination

A

1,0

  3NR

+ INJECTORS > ACTUA

TORS RELAY OUTLET

B

1,0

  3GF

CONTROL - UPSTREAM OXYGEN SENSOR HEATING

C

0,60

  3GK

UPSTREAM OXYGEN SENSOR SIGNAL

D

0,60

  3GH

UPSTREAM OXYGEN SENSOR MASS

IGNITION COIL

Pos.

Sectioning

Destination

A

2,0

3CV

CONTROL – CYLINDERS 1-4 IGNITION COIL

B

2,0

3CW

CONTROL – CYLINDERS 2-3 IGNITION COIL

C

2,0

3NA

+ IGNITION COIL, CHOK

E3 SENSOR > FUEL

PUMP

RELAY

CONNECTORS AND CONNECTIONS WIRES FUNCTION

89A

ELECTRICAL DIAGRAMS

89A - 39

ENGINE WIRING

B41

01

1

0,50

3S

SIGNAL + DETONATION SENSOR

2

0,50

3DQ

DETONATION SENSOR MASS

4

0,50

TB1

DETONATION SENSOR SCREENING

CANISTER PURGING VALVE

Pos. Sectioning

Destination

1

0,60

  3NR

+ INJECTORS  >

ACTUATORS RELAY OUTLET

2

0,60

  3BB

CANISTER PURGING VALVE CONTROL

DETONATION SENSOR

Pos.

Sectioning

Destination

CY2AE



MA

      146

    3S
     X



1             2

3DQ
  X

CY13C

NO

      371

3NR
  X

3BB
  X

1

2

CONNECTORS AND CONNECTIONS WIRES FUNCTION
