LOWER INTERNAL ACCESSORIES

57

57 - 10

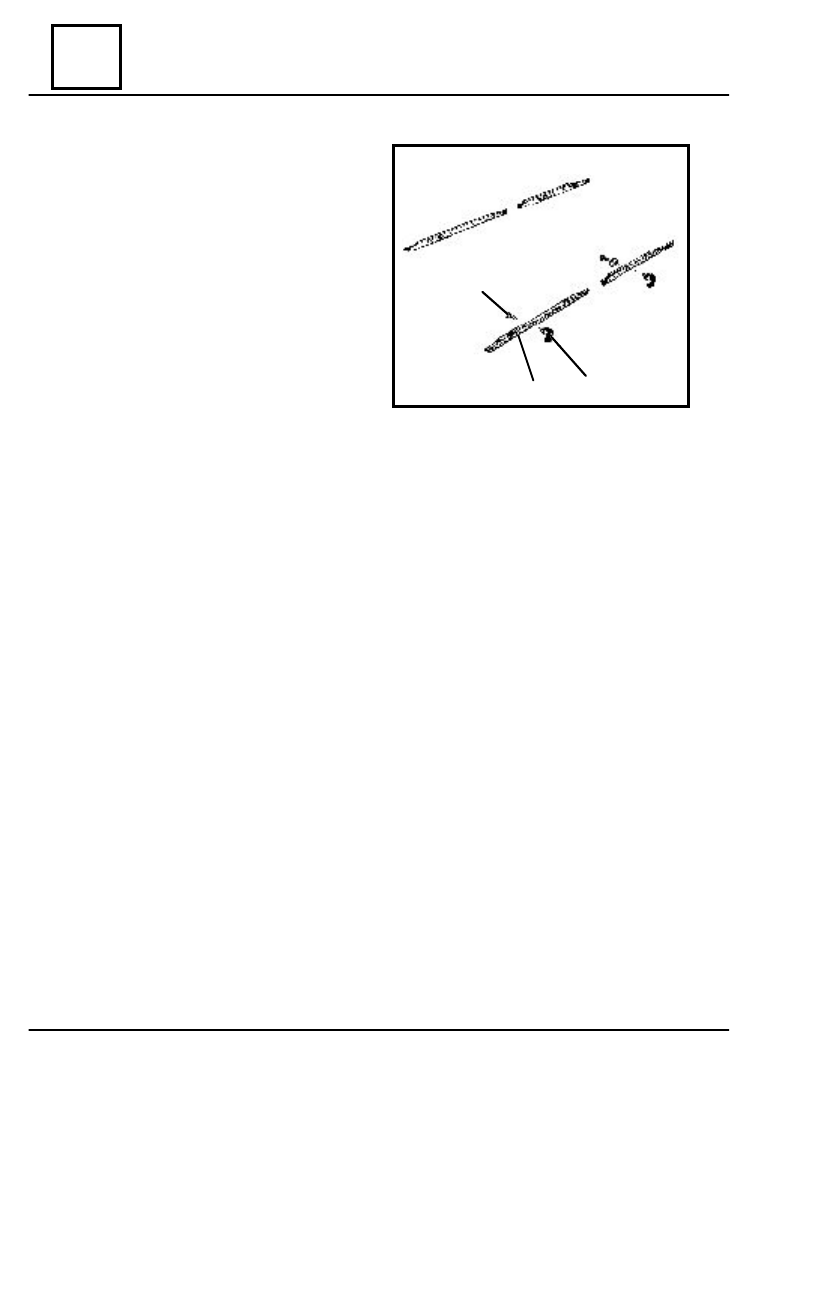

DOORS THRESHOLDS

DISMOUNTING

   Dismount the screws (1) from the cable
supports (3).
   Release the front doors (2) respectively
rear doors thresholds.

REMOUNTING



Perform the dismounting operations in the

reverse order.

1

3

2

59

SAFETY ELEMENTS

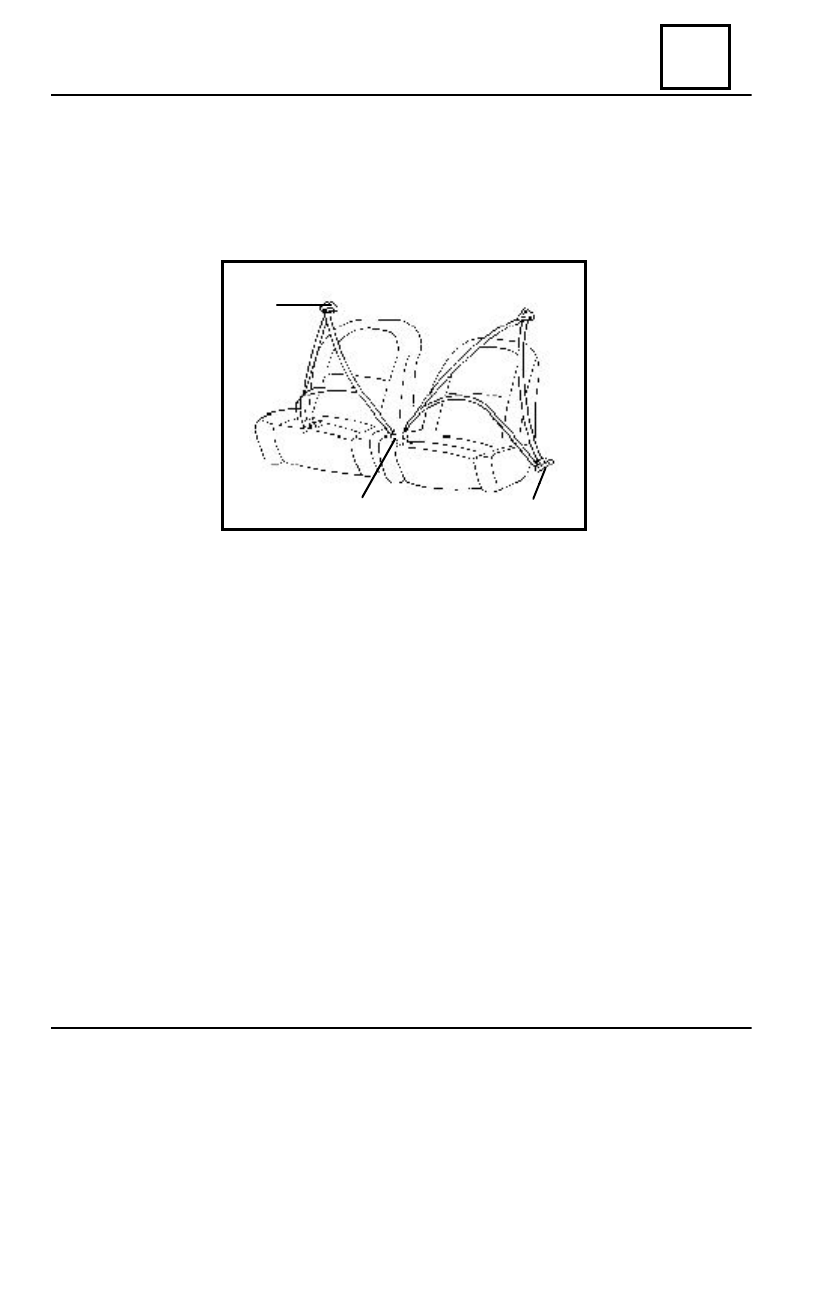

FRONT SAFETY BELTS

Dismount :

- the protector and attachments front safety belts screws on the upper middle pillar

(pos. 1);

- the attachments front safety belts screws on the lower middle pillar (pos.2);
- the attachment screw of lock front safety belts on the front plate protection (pos.3)

of fixing front belt on middle pillar – lower part;

- front safety belt.

R

EMO UNTING

Perform the dismounting operations in reverse order.

59 - 1

D

ISMO UNTING

1

3

2

SAFETY ELEMENTS

59

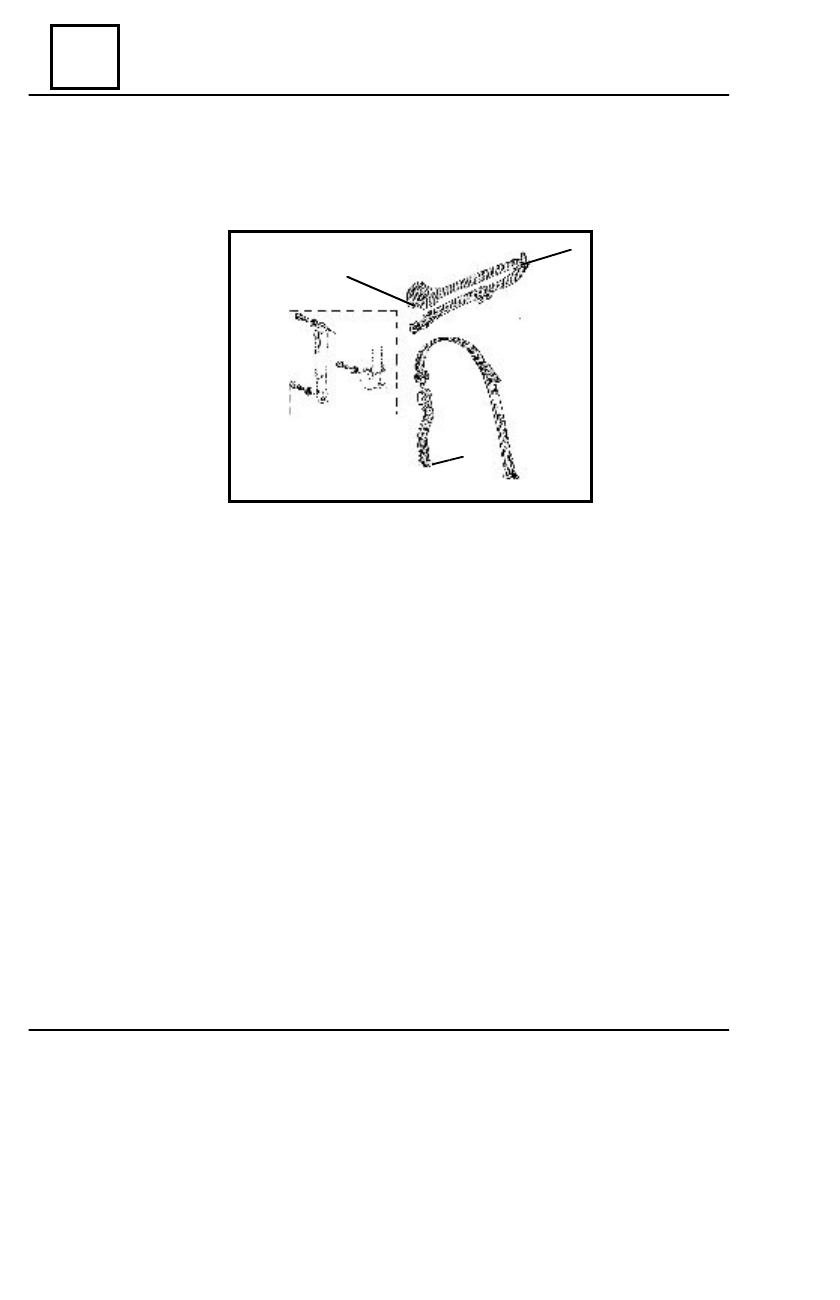

REAR SAFETY BELTS

Dismount  :

- the protector and the attachment rear safety belt screw on the upper part of lateral

panel (pos.1);

- the attachment rear safety belt screw on the inner lateral frame (pos. 2);
- the attachment screws of the rear belt lock on central floor (pos.3);
- rear safety belt.

R

EMO UNTING

     Perform the dismounting operations in reverse order.

59 - 2

D

ISMO UNTING

1

3

2

61

HEATING

61 - 1

D

ISMO UNTING

Disconnect  the battery.
Dismount the ash try from the dash board.
Dismount the attachment screws (4) of the block on the dash board and detach the

block from its place.

Disconnect:

- the control cables (5) of the flaps;
- the control cable (6) of the climate control valve.

R

EMOUNTING

Perform the dismounting operation in the reverse order, observing the following

conditions:

- when remounting the flaps cables, operate one by one other, the levers  (1) and (2)

to the left, leaving a clearance of  3 – 4 mm, the cable sheath being attached in this
position, by means of a clip and check the correct operation of the lever and the flap
closing;

- the control cable (6) of the climate control valve (7) is mounted to the lever (3), so

that the valve is set in the open position ( the arrow direction ) and the lever (3) is moved
towards right, leaving a clearance of 3 – 4 mm. In this position attach the cable sheath by
means of clip, than check the correct operation of the lever in the position corresponding
to the valve closing, respectively opening.

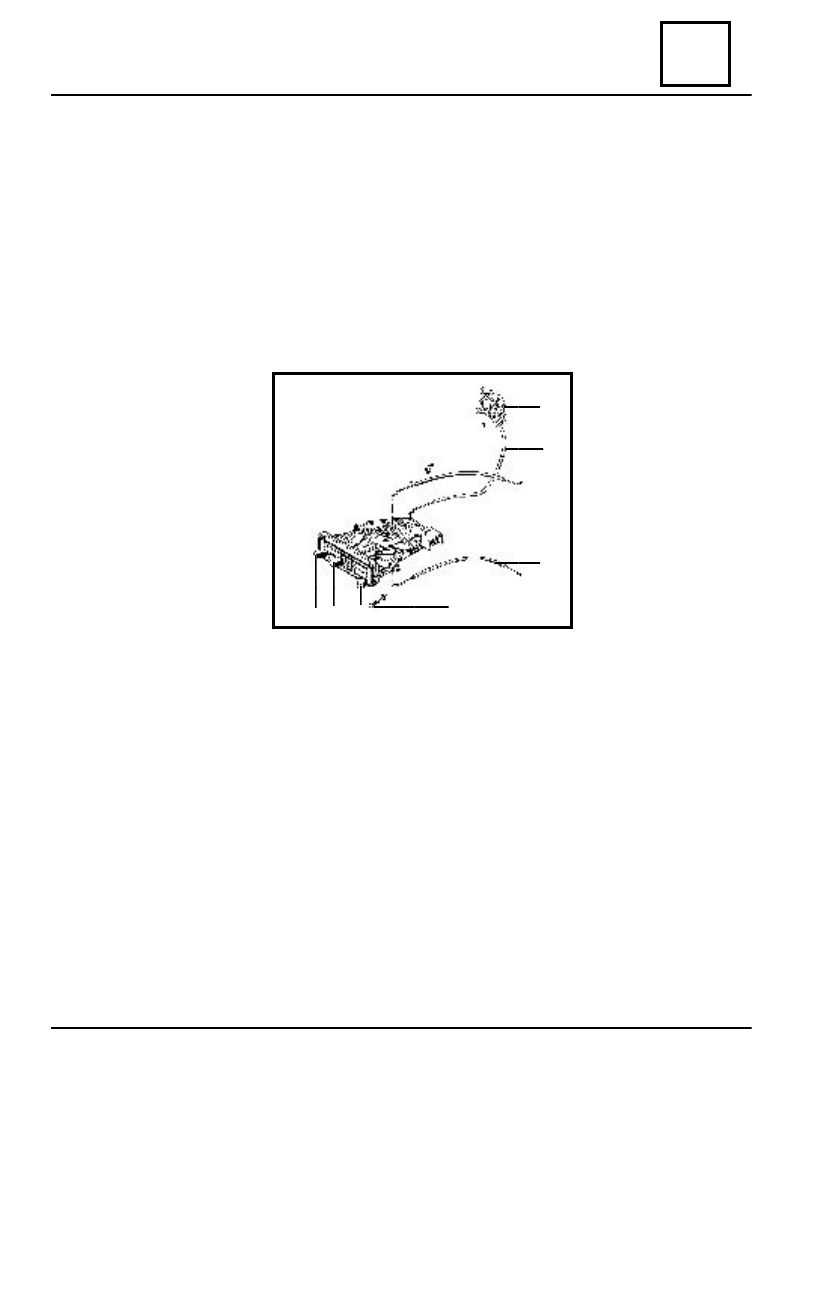

 CLIMATE CONTROL BLOCK

1 3

2

4

5

6

7
