Dacia Pick-Up 1304/1305/1307. Service manual - part 8

VALUES AND SETTINGS

07 - 14

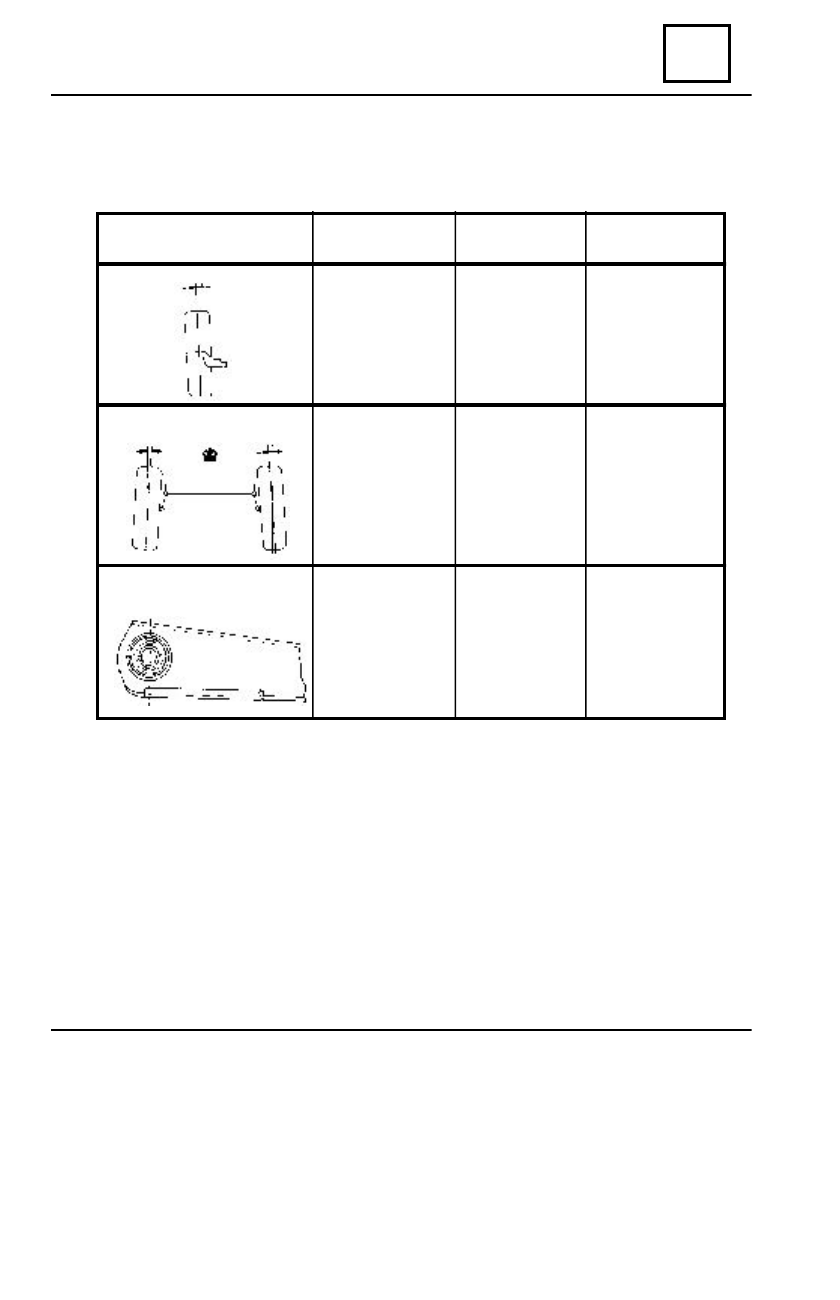

CONTROL VALUE OF FRONT AXLE ANGLES

Steering box positioning

6 – 7,75 on the scale

By means of

T.F.246

eccentrics

Steering rack central

C=65mm

By means of

the

point

steering whe

rotation

ANGLES

POSITION OF THE VEHICLE

ADJUSTMENTS

1304

1307

VALUES

OTHER STEERING SYSTEM VALUES TO BE RESPECTED

VALUES AND SETTINGS

07 - 15

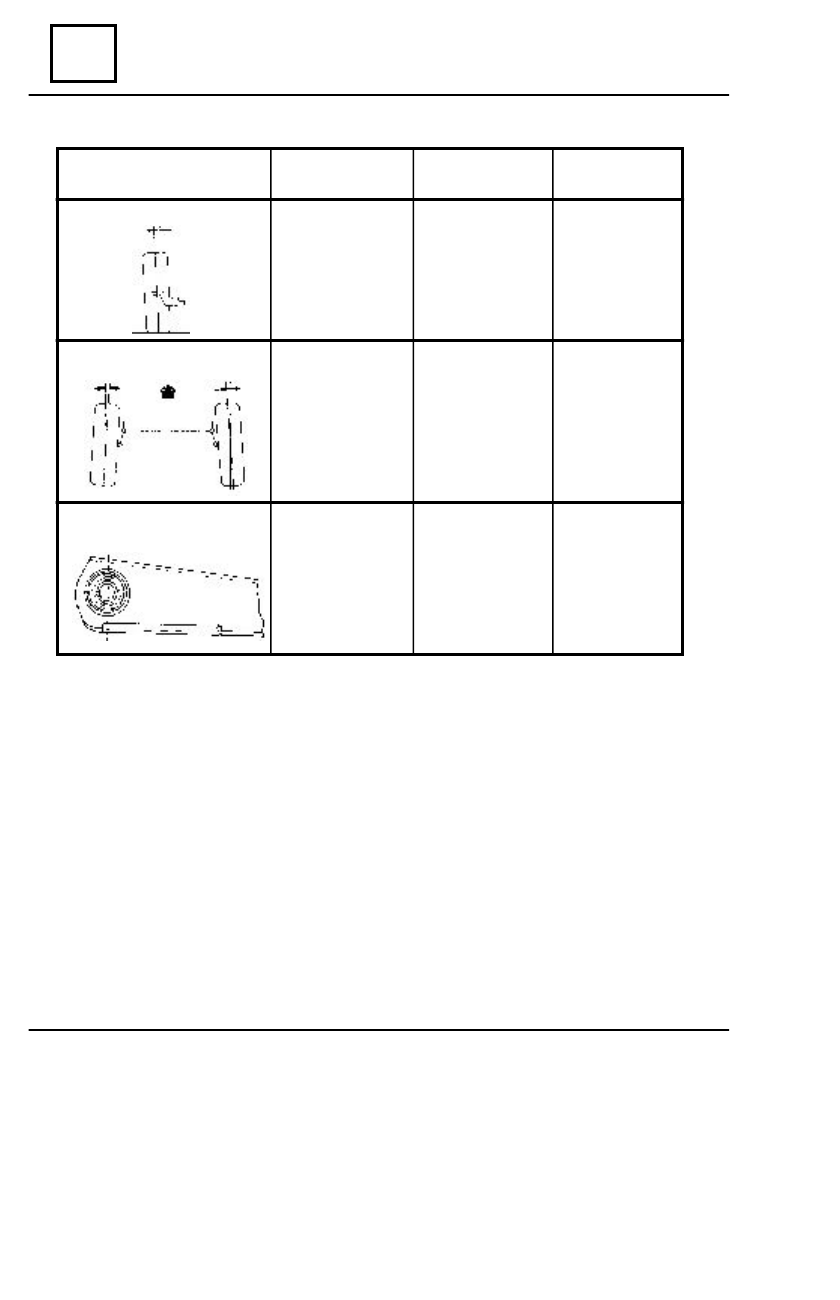

CONTROL VALUE OF REAR AXLE ANGLES

Not adjustable

Empty

± 34'30''

(For two wheels)

Toe out

± 34'30''

ANGLES

CAMBER

PARALLELISM

ELASTIC JOINTS BLOCKI

COMMERCIAL U 75 DRIVE (1304, 1307)

VALUES

VEHICLE

POSITION

ADJUSTMENTS

VALUES AND SETTINGS

07 - 16

CONTROL VALUE OF REAR AXLE ANGLES

In order to check and adjust the front axle angles values, respectively the rear axle ones, the

following must be done:

- perform the tires checking concerning:
- dimensions
- inflating pressure
- degree of wear
- perform the joints checking:
- elastic joints condition
- ball joint clearance
- wheel bearing clearance

The vehicle must be obligatory:

- positioned with the wheels on bench rotating plates being in horizontal direction
- braked ensured
- suspension tested, for vehicle setting at its free height
- steering brought at central point and steering rack blocked in this position.

These operations are to be followed by optical device attachment on vehicle, observing the

prescriptions of the steering measurement bench manufacturer.

COMMERCIAL U 75 / 4 X 4 DRIVE (1304, 1307)

Not adjustable

Empty

± 19'59''

(

For two wheels)

Toe out

± 19'59''

ANGLES

CAMBER

PARALLELISM

ELASTIC JOINTS BLOCKING

VALUES

VEHICLE

POSITION

ADJUSTMENTS

10 - 1

ENGINE AND LOWER ENGINE UNITS

INGREDIENTS

YPE

TILISATION

RHODORSEAL 5661

Propeller shaft pins.

Oil sump and distribution cap.

LOCTITE 518

Petrol pump sealaing ( membrane type )

and cap of bearing no. 1.

OMNI - FIT RAPID ( FIXAMED M 28 )

Flywheel attachement screws,bearings

cap screws.

OIL SUPER 15 W 40 API SJ

Engine lubrication,parts lubrication
when mounting.

S.E. DERO 100

Washing of steel,aluminium and cast
iron parts.
