Peugeot Traveller (2016 year). Manual

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

If your vehicle is not fitted with an
alarm, locking is confirmed by the fixed
illumination of the direction indicators
for about two seconds.
According to version, the door mirrors
fold at the same time.

If one of the openings (doors or boot) is
still open, the central locking does not
take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
And if your vehicle has an alarm, this
will be reactivated (with volumetric
monitoring, even if this had been
deactivated).
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PeugeoT dealer or a
qualified workshop.

Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
As a safety measure (children on
board), never leave the vehicle without
taking your remote control, even for a
short period.

ensure that no person or object might
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.

Locking

F To unlock the vehicle totally, turn the key

to the rear of the vehicle.

If your vehicle has an alarm, this will not be
activated.

F To lock the vehicle totally, press

this button.

Using the key

If a door is not fully closed (except
the right-hand door with side-hinged
doors):
-

vehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,

vehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.

If fitted to your vehicle, pressing
and holding this button closes the
windows. The window stops when
you release the button.

Using the remote control

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Deadlocking

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

To deadlock the vehicle:
F Turn the key to the rear of the vehicle.
F Then

within five seconds, turn the key to

the rear again.

Depending on version, the door mirrors
fold at the same time.

Using the remote control

To lock the vehicle:

F Press this button.

F Then

within five seconds after

locking, press this button again.

If your vehicle is not fitted with an alarm,
deadlocking is signalled by the fixed
illumination of the direction indicators
for about two seconds.

To deadlock the vehicle:

Using the key

ensure that no person or object could
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.

If fitted to your vehicle, pressing
and holding this button allows the
windows to be closed. The window
stops when you release the button.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Electronic engine immobiliser

The remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.

F Press this button

Locating your vehicle

This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.

This switches on the courtesy lamps and the
direction indicators flash for about ten seconds.

Remote operation of lighting

A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).

A second press on this button before
the end of the timed period cancels
the remote lighting.

Anti-theft protection

In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.

Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.

In this case, your vehicle will not start; contact
a PeugeoT dealer as soon as possible.

If fitted to your vehicle.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Back-up control(s)

Locking the driver's door

Locking the front passenger door

F open the door.

For mechanically locking and unlocking the doors in the event of a fault with the central locking
system or a battery failure.

If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
opening a door will trigger the alarm,
which can be stopped by switching on
the ignition.

Locking the sliding side door

F If fitted to your vehicle, check that the

electric child lock is not on.

F open the door.

Unlocking

F Insert the key in the door lock and turn it to

the front.

Unlocking

use the interior door handle.

Unlocking

F use the interior door handle.

For more information on the Child lock,
refer to the corresponding section.

F Remove the cap on the edge of the door.
F Insert the key into the latch aperture

(without forcing) and turn the assembly.

F Remove the key and refit the cap.
F Close the door and check from the outside

that it has locked correctly.

F Remove the cap on on the edge of the

door.

F Insert the key into the latch aperture

(without forcing) and turn the assembly.

F Remove the key and refit the cap.
F Close the door and check from the outside

that it has locked correctly.

F Insert the key in the door lock and turn it to

the rear.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Changing the battery

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

If the battery is flat, you are
informed by lighting of this warning

lamp in the instrument panel, an audible signal
and a message in the screen.

Reinitialisation

Locking the side-hinged doors

F If fitted to your vehicle, check that the

electric child lock is not on.

F open the left-hand door.

Battery ref.: CR1620 / 3 volts.

F Lock the driver's door using the

key.

F Press one of the remote control

buttons.

F Turn the key to position 2 (Ignition on).
F Switch off the ignition and remove the key

from the ignition switch.

The remote control is fully operational again.

Unlocking

F use the interior door handle.

Remote control problem

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F First of all, use the key in the lock to unlock

or lock your vehicle.

F Then reinitialise the remote control.
If the problem persists, contact a PeugeoT
dealer as soon as possible.

F Insert the key into the latch aperture on the

edge of the door (without forcing) and slide
the assembly upward.

F Remove the key.
F Close the door and check from the outside

that it has locked correctly.

F unclip the cover using a screwdriver in the

cut-out.

F  Remove the cover.
F  extract the flat battery from its location.
F  Place the new battery into its location

observing the original direction.

F Clip the cover in place.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

"Keyless entry and
Starting"

It allows the central locking or unlocking of the
vehicle from a distance.
It is also used to locate and start the vehicle, as
well as providing protection against theft.

Remote control

Locking

ensure that no person or object could
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.

If a door is not correctly shut (except
the right-hand door with side-hinged
rear doors):
-

vehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,

vehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.

F To

totally lock the vehicle, press

this button.

F To unlock the vehicle, press

this button.

With electric sliding door(s)

F To unlock the vehicle

and open the side door,
press and hold this
button until the door has
opened

unlocking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold at the same time.

Unlocking

If fitted to your vehicle, pressing
and holding this button allows the
windows to be closed. The window
stops when you release the button.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Driving with the doors locked may make
access to the passenger compartment
by the emergency services more difficult
in the event of an emergency.
As a safety measure (children on board),
never leave the vehicle without your
remote control, even for a short period.

If your vehicle is not fitted with an
alarm, locking is signalled by the fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.

If one of the doors remains open, the
central locking does not take place.
If the vehicle is inadvertently unlocked,
it will automatically lock itself again
after about thirty seconds, if no door is
opened.
And if fitted to your vehicle, the alarm is
reactivated (with volumetric monitoring,
even if you had deactivated it).

If fitted to your vehicle, pressing
and holding this button allows the
windows to be closed. The window
stops when you release the button.

Deadlocking

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

F Press this button.

F Then

within five seconds after

locking, press this button again.

ensure that no person or object could
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.

Depending on version, the door mirrors
fold at the same time.

If your vehicle is not fitted with an alarm,
deadlocking is signalled by the fixed
illumination of the direction indicators
for about two seconds.

To lock the vehicle,

To deadlock the vehicle.

The automatic folding and unfolding
of the electric door mirrors can be
deactivated by a PeugeoT dealer or a
qualified workshop.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

The unlocking, locking or deadlocking
does not take place:
-

if the ignition is on,

if one of the doors or the boot is still
open,

if the key for the Keyless entry and
Starting system has been left inside
the vehicle.

When the vehicle is locked (with the
remote control or Keyless entry and
Starting), if it is unlocked inadvertently,
it will lock itself again automatically after
about thirty seconds unless a door has
been opened.
And if your vehicle has an alarm, this
will be reactivated (with volumetric
monitoring, even if this had been
deactivated).

"Keyless Entry and
Starting" on your person

This allows the unlocking, locking and starting
the vehicle while keeping the remote control on
your person.

As a safety measure (children on
board), never leave the vehicle without
taking your Keyless entry and Starting
remote control, even for a short period.
guard against theft when the Keyless
entry and Starting remote control is in
the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
To restore these functions, press one of
the remote control buttons or start the
engine with the remote control at the
reader.

The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PeugeoT dealer or a
qualified workshop.

In the ignition on (accessories) position,
with the "START/SToP" button, the
hands-free function is deactivated.
For more information on "Keyless
Entry and Starting" and in particular
the "ignition on" position, refer to the
corresponding section.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

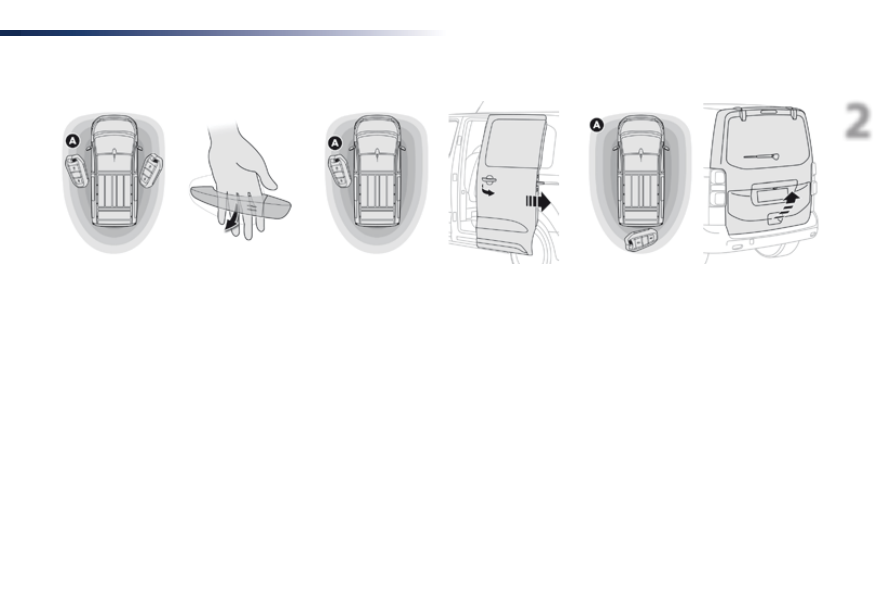

Unlocking

F To unlock the vehicle, remote control on

your person and in the recognition zone A,
pass your hand behind one of the door
handles (front doors, manual sliding side
doors and side-hinged doors).

F Pull the handle to open the corresponding

door.

With electric sliding
slide door(s)

F To unlock the vehicle, remote control

on your person and in the recognition
zone A, pull and release the door handle to
trigger the electric powered opening of the
corresponding door.

With a tailgate

F To unlock the vehicle, remote control on

your person and in the recognition zone A,
pull the tailgate handle.

F Raise the tailgate.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

With an opening rear screen in the tailgate

F To unlock the vehicle, remote control on

your person and in the recognition zone A,
press the unlocking button for the tailgate.

The screen partly opens.

unlocking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.

With electric sliding side door(s)

Locking

F To

totally lock the vehicle, with the remote

control in the recognition zone A, press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.

If a door is not properly closed
(except the right-hand door with side-
hinged rear doors):
-

vehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,

vehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.

F To

totally lock the vehicle, with the remote

control in the recognition zone A, press
with a finger or thumb at the markings on
one of the front door handles.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

ensure that no one might prevent the
correct operation of the windows.
Be particularly aware of children when
operating the windows.

If fitted to your vehicle, pressing and
holding the locking controls allows
the windows to be opened. The
window stops when you release the
button.

With side-hinged doors

F To lock the vehicle, with the remote control

in the recognition zone A, press the left-
hand door locking control.

With a tailgate

F To lock the vehicle, with the remote control

in the recognition zone A, press the
tailgate locking control.

Driving with the doors locked may
render access for the emergency
services difficult in an emergency.

If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Deadlocking

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

F To

totally lock the vehicle, with the remote

control in the recognition zone A, press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.

F To deadlock the vehicle, press the marking

again within five seconds.

F To

totally lock the vehicle, with the remote

control in the recognition zone A, press
with a finger or thumb at the markings on
one of the front door handles.

F To deadlock the vehicle, press the marking

again within five seconds.

With electric sliding side door(s)

With side-hinged doors

F To lock the vehicle, with the remote control

in the recognition zone A, press the left-
hand door locking control.

F To deadlock the vehicle, press the control

again within five seconds.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

If your vehicle is not fitted with an alarm,
deadlocking is confirmed by fixed
illumination of the direction indicators
for about two seconds.

With a tailgate

F To lock the vehicle, with the remote control

in the recognition zone A, press the
tailgate locking control.

F To deadlock the vehicle, press the control

again within five seconds.

Locating your vehicle

This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.

F Press this button

This switches on the courtesy lamps and the
direction indicators flash for about ten seconds.

Remote operation of lighting

If fitted to your vehicle.

A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).

A second press on this button before
the end of the timed period cancels
the remote lighting.

Anti-theft protection

Electronic engine immobiliser

In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.

In this case, your vehicle will not start; contact
a PeugeoT dealer as soon as possible.

Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Back-up control(s)

If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.

Integral key

Locking the driver's door

Unlocking

F Insert the integral key into the door lock,

then turn it to the front.

If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
opening a door will trigger the alarm,
which can be stopped by switching the
ignition on.
To deadlock the vehicle, turn the key
again within five seconds of locking.

Locking the front passenger door

F open the door.

Unlocking

F use the interior door handle.

It is used to lock and unlock the vehicle when
the remote control cannot operate:
-

cell battery flat, vehicle battery discharged
or disconnected, ...

vehicle located in an area with strong
electromagnetic signals.

F Press and hold button 1 to extract the

integral key 2.

F Remove the cap on on the edge of the

door.

F Insert the key into the latch aperture

(without forcing) and turn the assembly.

F Remove the key and refit the cap.
F Close the door and check from the outside

that the vehicle has locked correctly.

F Insert the integral key into the door lock,

then turn it to the rear.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

For more information on the child lock,
refer to the corresponding section.

Locking a sliding side door

F If fitted to your vehicle, check that the

electric child lock is not on.

F open the door.

Locking the side-hinged doors

F If fitted to your vehicle, check that the

electric child lock is not on.

F open the left-hand side-hinged door.

Unlocking

F use the interior door handle.

Unlocking

F use the interior door handle.

F Remove the cap on the edge of the door.
F Insert the key into the latch aperture

(without forcing) and turn the assembly.

F Remove the key and refit the cap.
F Close the door and check from the outside

that the vehicle has locked correctly.

F Insert the key (without forcing) into the

latch aperture located on the edge of the
door and slide the assembly upward.

F Remove the key.
F Close the door and check from the outside

that the vehicle has locked correctly.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Changing the cell battery

Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
PeugeoT dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is needed.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

F Place the remote control against the

reader.

F Keeping it in place, switch on the ignition

by pressing "START/SToP".

The remote control is fully operational again.

Reinitialisation

Remote control problem

to unlock or lock your vehicle.

F Then, reinitialise the remote control.

If the problem persists, contact a
PeugeoT dealer or a qualified
workshop as soon as possible.

F unlock the driver's door using the integral

key.

F Press one of the remote control

buttons.

F Place the integral key in the lock to unlock

your vehicle.

F unclip the cover using a small screwdriver

at the cutout.

F  Lift off the cover.
F  Remove the flat battery from its location.
F  Fit the new battery into its location

observing the original direction of fitment.

F Clip the cover onto the casing.

Peugeot Traveller (2016 year). Manual - part 4
