Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

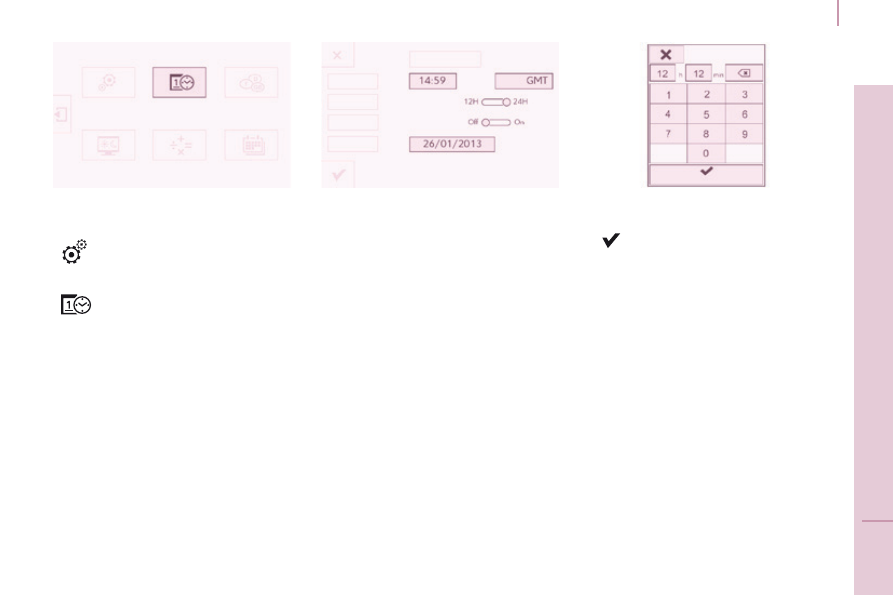

Touch screen

F Select the "

Configuration"

menu.

F In the secondary page,

press on "

Time/Date".

F Select "

Adjust time" or "Adjust

date" and modify the settings using

the number keypad, then confirm.

F Press "

Confirm" to quit.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

WARNING LAMPS

Warning lamp

indicates

Solution - action

STOP

on, associated
with another
warning
lamp and
accompanied
by a message
in the screen.

major faults linked with

the "Brake fluid level",

"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution"and
"Power steering" warning
lamps.

You must stop as soon as it is safe to do

so. Park and switch off the ignition. Have it

checked by a PEUGEOT dealer or a qualified

workshop.

Parking

brake / Brake

fluid level /

EBFD

on.

that the parking brake is applied or
has not been released fully.

Releasing the parking brake switches off the
warning lamp.

on.

low brake fluid level.

Top up using a fluid recommended by PEUGEOT.

remaining on even
though the level
is correct and
associated with the

ABS warning lamp.

a fault with the electronic
brake force distribution.

You must stop as soon as it is safe to do so.

Park and switch off the ignition.

Have it checked by a PEUGEOT dealer or a

qualified workshop.

Engine oil

pressure and

temperature

on while
driving.

low pressure or a high
temperature.

Park and switch off the ignition then allow to cool.
Visually check the level.
Chapter 7, "Levels" section.

remaining on, even
though the level is
correct.

a major fault.

Have it checked by a PEUGEOT dealer or a

qualified workshop.

Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They go off almost immediately.
Engine running: the lamp becomes a warning if it remains on continuously or flashes.
This initial warning may be accompanied by an audible signal and a message in the screen.
Do not ignore these warnings.

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Coolant

temperature

and level

on with needle
in the red
zone.

an abnormal increase in
temperature.

Park and switch off the ignition then allow to cool.
Visually check the level.

flashing.

a drop in the coolant level.

Chapter 7, "Levels" section.
Contact a PEUGEOT dealer or a qualified

workshop.

Service

on temporarily. minor faults or warnings.

Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer or
a screen: refer to the "Steering mounted controls"
section in Chapter 4.
Contact a PEUGEOT dealer or a qualified

workshop.

remaining on.

major faults.

Seat belt not

fastened

on then

flashing.

the driver and/or front
passenger has not fastened
their seat belt.

Pull the strap then insert the tongue in the buckle.

accompanied
by an audible
signal then
remains on.

the vehicle is moving with
the driver's and/or front
passenger's seat belt not
fastened.

Check that the seat belt is fastened by pulling the
strap.
Chapter 5, "Seat belts" section.

ECO

on.

The Stop & Start system
has put the engine in STOP
mode following a vehicle

stop (red light, traffic jam,

etc...).

As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.

flashes for a

few seconds,
then goes off.

STOP mode is temporarily
unavailable.
or
START mode has been
invoked automatically.

Chapter 3, "Stop & Start" section.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Front / lateral

airbag

flashing or

remaining on.

a failure of an airbag.

Have the system checked by a PEUGEOT

dealer or a qualified workshop without delay.
Chapter 5, "Airbags" section.

Front

passenger's

airbag

deactivated

on.

the intentional deactivation
of this airbag in the
presence of a rearward
facing child seat.

Chapter 5, "Airbags" or "child safety" section.

Low fuel

level

on with gauge
needle in the
red zone.

When it first comes on,

there remains around
8 litres of fuel in the tank.
The distance you can drive
on this fuel depends on
your style of driving and the
engine type.

You must fill up with fuel to avoid running out. This

warning lamp comes on each time you switch on

the ignition until you have filled up.
Capacity of the tank: approximately 60 litres (or
55 litres according to version). Never risk driving
until the tank is empty, this could damage the
emissions and injection systems.

flashing.

cutting off of the fuel supply
following a serious impact.

Restore the supply.
Chapter 7, "Fuel" section.

EOBD

emission

control

system

flashing or

remaining on.

a failure of the system.

There is a risk of damage to the catalytic
converter. Have it checked by a PEUGEOT

dealer or a qualified workshop.

Battery

charge

on.

a fault in the charging
circuit.

Check the battery terminals, …
Chapter 8, "Battery" section.

flashing.

placing of the active
functions on standby
(economy mode).

Chapter 8, "Battery" section.

remaining on,
in spite of the
checks.

an ignition or injection
malfunction.

Have it checked by a PEUGEOT dealer or a

qualified workshop.

ABS

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Power

steering

on.

a fault with the
system.

The vehicle retains conventional steering without
assistance. Have it checked by a PEUGEOT

dealer or a qualified workshop.

Door open

detection

on and accompanied
by a message in the
screen.

that a door is not
closed correctly.

Check that all of the doors are closed.

ABS

remaining on.

a fault with the anti-
lock braking system.

The vehicle retains conventional braking.
Have it checked by a PEUGEOT dealer or a

qualified workshop.

ESC

flashing.

triggering of the ASR
or DSC regulation.

The system optimises traction and improves the
directional stability of the vehicle.
Chapter 5, "Driving safety" section.

remaining on.

a fault with the
system.

E.g.: under-inflation

of the tyres.

E.g.: check the pressure of the tyres.
Have it checked by a PEUGEOT dealer or

a qualified workshop. (Wheel speed sensor,

hydraulic valve block, ...).

Under-

inflation

on.

The tyre pressure is
too low in or more
wheels.

Check the tyre pressure as soon as possible.
This check must be done with the tyres cold.

flashing then

remaining on,
accompanied by the

Service warning

lamp, and depending
on equipment, the
display of a message.

The tyre pressure
monitoring system
has a fault or one of
the wheels does not
have a sensor.

Detection of under-inflation is no longer assured.
Have it checked by a PEUGEOT dealer or a

qualified workshop.

Particle filter

on.

a problem with the

particle filter (fuel

additive level, risk of
blockage, ...).

Have the filter checked by a PEUGEOT dealer or

a qualified workshop.
Chapter 7, "Levels" section.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Dipped beam

headlamps /

Daytime

running

lamps

on.

a manual selection or
automatic illumination of
headlamps.

Turn the ring on the lighting control stalk to the
second position.

illumination of the dipped beam headlamps
from the time the ignition is switched on:
daytime running lamps (depending on the
country in which the vehicle is sold).

Chapter 4, "Steering mounted controls" section.

Main beam

headlamps

pulling of the stalk towards
you.

Pull the stalk to return to dipped beam
headlamps.

Direction

indicators

flashing with

audible signal.

a change of direction via
the lighting stalk.

Flashing right: push stalk downwards.
Flashing left: push stalk upwards.

Front

foglamps

on.

a manual selection.

The foglamps only operate if the sidelamps or
dipped beam headlamps are on.

Rear

foglamps

on.

a manual selection.

The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
In conditions of normal visibility, switch them off
to avoid breaking the law.
"This lamp is a dazzling red".

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp in the

screen

indicates

Solution - action

Cruise

control

on.

cruise control selected.

Manual selection.
Chapter 4, "Steering mounted controls" section.

Speed limiter on.

speed limiter selected.

Manual selection.
Chapter 4, "Steering mounted controls" section.

Gear shift

indicator

on.

a recommendation
independent of the type and

density of traffic.

To reduce fuel consumption, change to an
appropriate gear with a manual gearbox.
The driver retains responsibility to follow this
indication or not.

Diesel pre-

heating

on.

climatic conditions requiring
pre-heating.

Wait until the warning lamp goes off before
operating the starter.

Presence of

water in the

Diesel filter

on and
accompanied by
a message in the
screen.

water in the Diesel filter.

Have the filter bled by a PEUGEOT dealer or a

qualified workshop without delay.
Chapter 7, "Checks" section.
According to country.

Service

spanner

on.

that a service will be due
shortly.

Refer to the list of checks in the warranty and
maintenance record.
Have the service carried out by a PEUGEOT

dealer or a qualified workshop.

Time

flashing.

adjustment of the time.

Use the left-hand button on the instrument panel.
Chapter 3, "Instruments and controls" section.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

AdBlue

For more information on filling, refer to the chapter 7, AdBlue

section.

Alert

Information

Solution - action

level of alert

There is an audible signal when the ignition is switched on.
The warnings are intermittent and then become permanent
when switching on the ignition or when driving.
The remaining driving range is counted down from
1 500 miles (2 400 km) to 375 miles (600 km).
The range figure reduces in steps of 200 miles (300 km).

The contents of the AdBlue

tank has dropped to a

level sufficient for a range of less than 1 500 miles

(2 400 km).
Have the fluid topped-up using an AdBlue

container or bottles.

level of alert

There is an audible signal when the ignition is
switched on.
The warnings are intermittent (every 30 seconds)
and then become permanent every time the ignition
is switched on or when driving.
The remaining driving range is counted down from
350 miles (600 km) to zero, reducing in steps of
30 miles (50 km).

You

must have the AdBlue

topped-up and not wait

for a breakdown.

In the display
screen.

Temporary display: "

NO START IN".

In the touch
screen.

Select:

"Driving assistance".

- "Diagnostic".

The driving range is displayed.

level of alert

The AdBlue

tank is empty.

Starting is impossible.
It is essential to add

at least 3.8 litres of AdBlue

additive to the additive tank.

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

SCR emissions control system

Alerts

Information

Solution - action

The UREA, Service and diagnostic warning lamps
come on, an SCR emissions control system fault
has been detected.

This is is temporary fault, the alert disappears as
soon as the exhaust emissions return to normal
levels.

After 30 miles (50 km) without AdBlue

Confirmation of the fault which is not related to a

lack of fluid.

The remaining driving range 700 miles
(1 100 km).
Go to a PEUGEOT dealer or a qualified workshop

as soon as possible to avoid a breakdown.

The fault is confirmed.
The next time the ignition is switched on, the
authorised driving range will be displayed in miles
(kilometres) and the alert will be repeated every
30 seconds.
The limit of the driving range has been reached,
exhaust emissions levels are above the limits.
Starting is impossible.

To restart the engine, you

must contact a

PEUGEOT dealer or a qualified workshop.

- BlueHDi Diesel

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

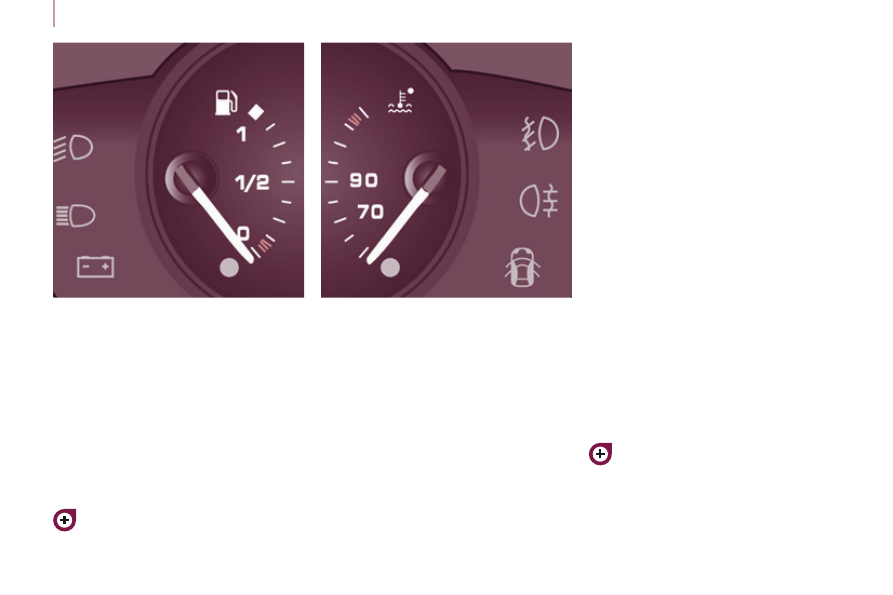

FUEL GAUGE

COOLANT TEMPERATURE

The needle is positioned before the

red zone: normal operation.
In arduous conditions of use or hot
climatic conditions, the needle may
move close to the red graduations.

What you should do if the needle

enters the red zone:
Reduce your speed or let the engine
run at idle.
What you should do if the warning

lamp comes on:
-

stop immediately, switch off the
ignition. The fan may continue to
operate for a certain time, up to
approximately 10 minutes,

wait for the engine to cool down in
order to check the coolant level and
top it up if necessary.

As the cooling system is pressurised,
follow the procedure below to avoid the
risk of scalding:
-

wait at least one hour after
switching off the engine before
carrying out any work,

unscrew the cap by 1/4 turn to
allow the pressure to drop,

when the pressure has dropped,
check the level in the header tank,

if necessary, remove the cap to
top up.

If the needle remains in the red
zone, have the system checked by

a PEUGEOT dealer or a qualified

workshop.

Refer to chapter 7, "Levels"
section.

Refer to chapter 7, "Fuel" section.

The fuel level is tested each time the
key is turned to the "running" position.
The gauge is positioned on:
-

1: the fuel tank is full,

approximately 60 litres.

0: the reserve is now being used,

the warning lamp comes on
continuously. The reserve when

the warning first comes on is

approximately 8 litres.

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

EMISSIONS CONTROLS

EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
on emissions limits of:

CO (carbon monoxide),

HC (unburnt hydrocarbons),

NOx (nitrogen oxides), detected
by oxygen sensors placed
downstream of the catalytic
converters,

- particles.

UNDER-INFLATION DETECTION

This system
continuously monitors
the pressures of the four
tyres, as soon as the
vehicle is moving.

A pressure sensor is located in the
valve of each tyre (except the spare
wheel).
The system triggers an alert if a drop
in pressure is detected in one or more
tyres.

The tyre under-inflation detection

system is an aid to driving which
does not replace the need for
vigilance on the part of the driver.

The driver is warned of any
malfunction of this emissions
control system by the illumination

of this warning lamp in the instrument
panel.
If this warning lamp comes on, have it
checked by a PEUGEOT dealer or a

qualified workshop.

This system does not avoid the
need to check the tyre pressures
regularly (including the spare
wheel) and before a long journey.

Driving with under-inflated tyres

adversely affects road holding,
extends braking distances and causes
premature tyre wear, particularly under
arduous conditions (vehicle loaded,
high speed, long journey).

Driving with under-inflated tyres

increases fuel consumption.

The tyre pressures for your vehicle
can be found on the tyre pressure
label.

Refer to chapter 9, "Identification

markings" section.

The tyre pressures must be checked
when the tyres cold (vehicle stopped
for 1 hour or after driving for less then
6 miles (10 km) at moderate speed).
Otherwise, add 0.3 bar to the values
indicated on the label.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

The alert is maintained
until the tyre or tyres concerned

is reinflated, repaired or

replaced.

The spare wheel (space-saver type or
a steel rim) does not have a sensor.

Operating fault

Under-inflation alert

The loss of pressure detected
does not always lead to visible
deformation of the tyre. Do not rely
on just a visual check.

The alert is given by the fixed

illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the
display of a message.

The flashing and then

fixed illumination of the

under-inflation warning

lamp accompanied by the

illumination of the "Service" warning
lamp, and depending on equipment,
the display of a message indicates a
fault with the system.
In this case, monitoring of the tyre
pressures is not assured.

In the event of a problem on one of
the tyres, the symbol or the message
appears, according to equipment, to
identify it.
-

Reduce speed, avoid sudden
steering movements or harsh brake
applications.

Stop as soon as it is safe to do so.

In the event of a puncture, use
the temporary puncture repair kit
or the spare wheel (according to
equipment),

or
-

if you have a compressor, the one
in the temporary puncture repair
kit for example, check the four tyre
pressures when cold,

or
-

if it is not possible to check the
tyre pressures at the time, drive
carefully at reduced speed.

This alert is also displayed when

one or more wheels is not fitted

with a sensor (for example, a
space-saver or steel spare wheel).

Go to a PEUGEOT dealer or a

qualified workshop to have the system

checked or, following the repair of a
puncture, to have the original wheel,

equipped with a sensor, refitted.

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

UNDER-INFLATION DETECTION WITH REINITIALISATION

System which automatically checks the
pressures of the tyres while driving.

The system monitors the pressures
in the four tyres, once the vehicle is
moving.
It compares the information given by
the four wheel speed sensors with

reference values, which must be

reinitialised every time the tyre

pressures are adjusted or a wheel

changed.
The system triggers an alert as soon

as it detects a drop in the inflation

pressure of one or more tyres.

The under-inflation detection

system does not replace the
need for vigilance on the part of

the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres

impairs road holding, extends braking
distances and causes premature
tyre wear, particularly under arduous
condition (high loading, high speed,
long journey).

Driving with under-inflated tyres

increases fuel consumption.

The inflation pressures defined for

your vehicle can be found on the
tyre pressure label.

For more information on the

identification markings, refer to the

corresponding section.
Tyre pressures should be checked
when the tyres are "cold" (vehicle
stopped for 1 hour or after a journey of
less than 6 miles (10 km) at moderate
speeds).
Otherwise (when hot), add 0.3 bar to
the pressures shown on the label.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

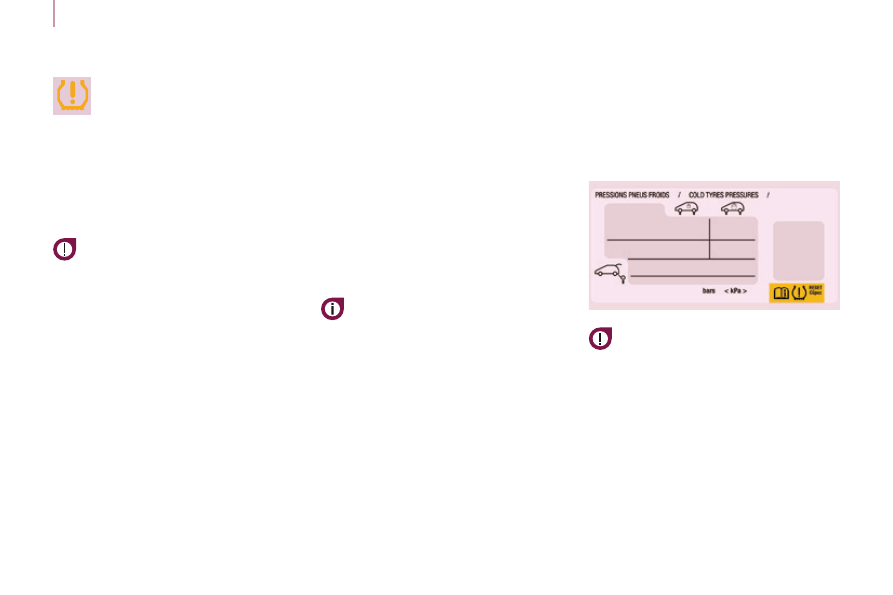

Under-inflation alert

This is given by fixed illumination

of this warning lamp, accompanied
by an audible signal and,
depending on equipment, the
display of a message.

Before reinitialising the system,
ensure that the pressures of
the four tyres are correct for the

use of the vehicle and in line with the
recommendations on the tyre pressure
label.
The under-inflation alert can only

be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly
adjusted.
The under-inflation detection system

does not give a warning if a pressure is
incorrect at the time of reinitialisation.

The loss of pressure detected
does not always cause visible
bulging of the tyre.

Do not satisfy yourself with just a visual
check.

The alert is maintained until the
system is reinitialised.

F Reduce speed immediately, avoid

excessive steering movements and
sudden braking.

F Stop the vehicle as soon as it is

safe to do so.

F If you have a compressor, such as

the one in the temporary puncture
repair kit, check the pressures of
the four tyres when cold.

F If it is not possible to make this

check immediately, drive carefully
at reduced speed.

or
F In the event of a puncture, use

the temporary puncture repair kit
or the spare wheel (depending on
equipment).

Reinitialisation

It is necessary to reinitialise the system
every time one or more tyre pressures
are adjusted, and after changing one
or more wheels.

READY

O GO

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Reinitialisation of the system must be done with the

ignition on and the vehicle

stationary:

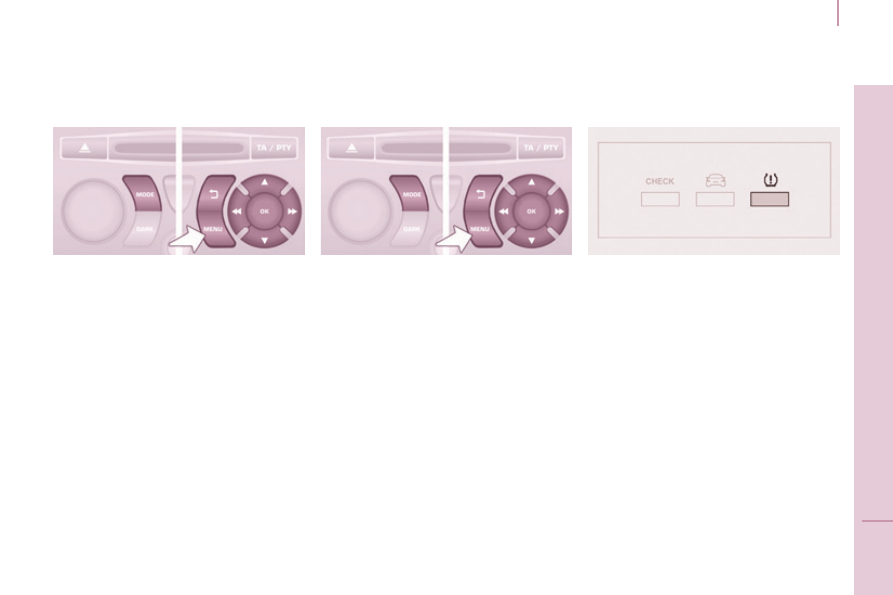

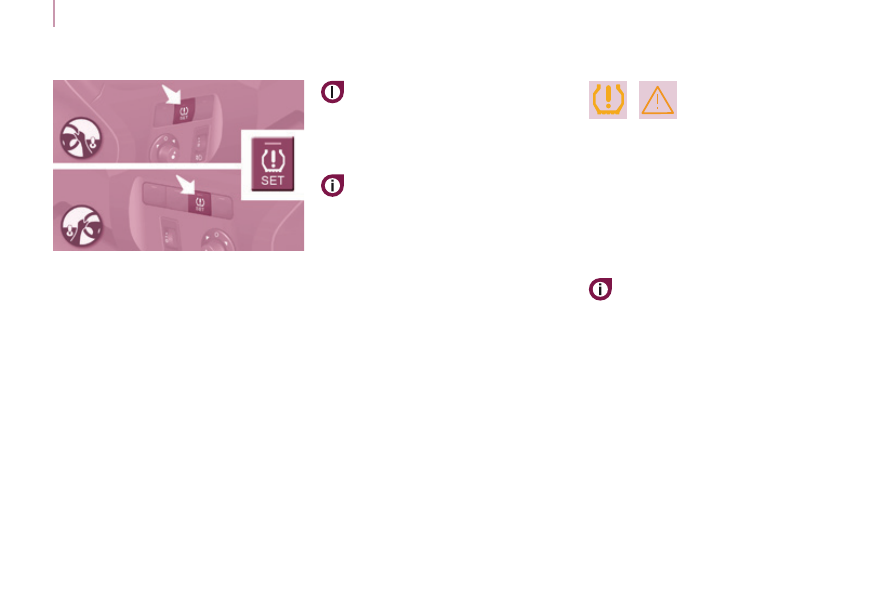

- in the vehicle configuration menu for vehicle fitted with a display screen,
-

using the button on the dashboard, for vehicles without display screen.

Screen A
F Press the

MENU button for access

to the main menu.

F Press the "5" or "6" button to

select the menu

Veh config, then

confirm by pressing the

OK button.

F Press the "5" or "6" button to

select the "

Reinit inflat", menu,

then confirm by pressing the

button.

A message is displayed to confirm

the instruction.

Confirm by pressing the

OK button.

Screen C
F Press the

MENU button for access

to the main menu.

F Press the "5" or "6" button to

select the "

Personalisation-

configuration" menu, then confirm

by pressing the

OK button.

F Press the "5" or "6" button

to select the "

Define vehicle

parameters" menu, then confirm

by pressing the

OK button.

F Press the "5" or "6" button

to select the "

Tyre pressures"

menu, then the "

Reinitialisation"

menu, then confirming by pressing

the

OK button.

A message confirms the

reinitialisation.

Touch screen
F Press the

MENU button.

F Select the "

Driving" menu.

F In the secondary page, select

Under-inflation initialisation".

A message is displayed to confirm the

reinitialisation instruction.
F Select "

Yes" or "No", then confirm.

A message confirms the reinitialisation.

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Partner2VP_en_Chap03_Pret-a-partir_ed02-2016

The new pressure settings registered
are considered to be reference values
by the system.

The under-inflation alert can only

be relied on if the system has
been reinitialised with all four tyres

inflated to the correct pressures.

Before doing anything to the
system, the pressures of the four
tyres must be checked and the
system reinitialised.

Snow chains
The system does not have to be

reinitialised after fitting or removing

snow chains.

Dashboard button
F Make a long press on this button.
A high tone audible signal confirms the

reinitialisation.
A low tone audible signal indicates that
the reinitialisation was not completed.

Operating fault

The flashing and then fixed illumination

of the under-inflation warning lamp

accompanied by illumination of the
Service warning lamp indicates a fault
with the system.
In this case, under-inflation monitoring

of the tyres is no longer assured.
Have the system checked by a

PEUGEOT dealer or a qualified

workshop.

Peugeot Partner Tepee (2017 year). Manual - part 3
