EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

HEAdLAMP BEAM

You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.

this function works in the dipped and main
beam headlamps position.

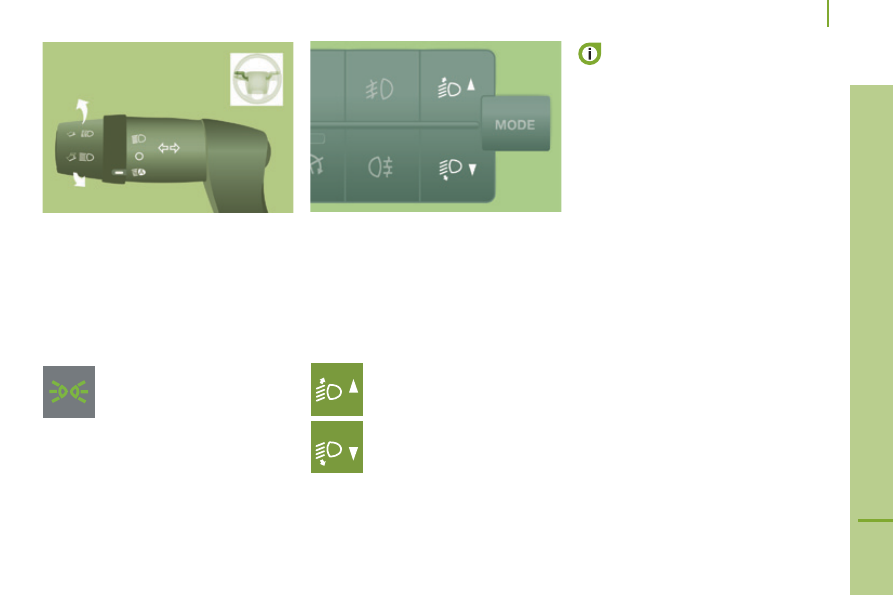

Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.

An indicator in the screen shows
the adjustment position selected
(0, 1, 2, 3).

PArKInG LAMPS

this system enables you to leave the lamps
on when parked; with the ignition off, key in
the StOP position or key removed.

Move the ring on the lighting stalk to
position O then to dipped or main beam
headlamps.

the indicator lamp in the
instrument panel comes on.

the lamps will remain on while
you are parked.

Leaving the lighting on for long periods may
significantly reduce the state of charge of
your vehicle's battery.

travelling abroad

If using your vehicle in a country

that drives on the other side of the road,
the headlamps must be adjusted to avoid
dazzling on-coming drivers.

Contact a PeugeOt dealer or a qualified
workshop.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

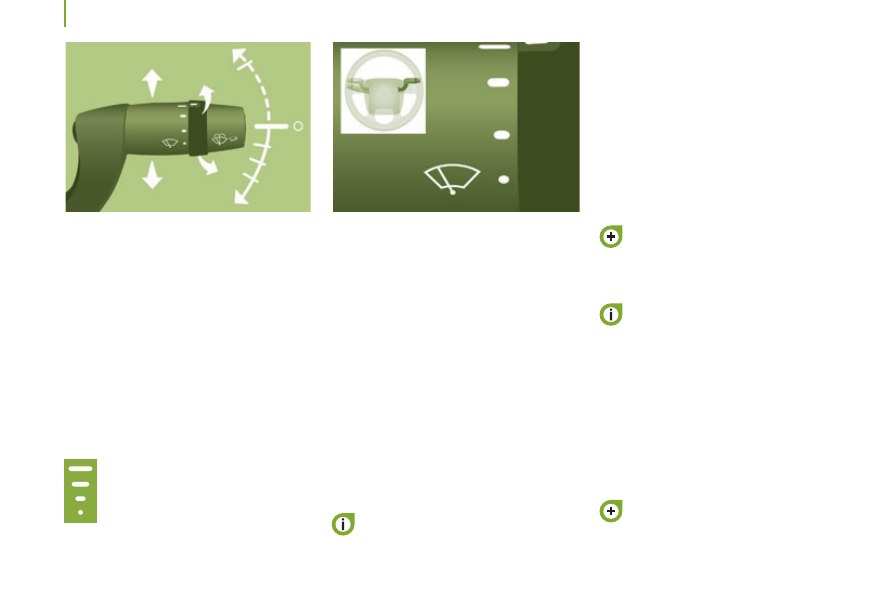

WIPEr controL StALK

Slow continuous wiping: 2 notches downwards.

Do not cover the rain sensor, located at
the top centre of the windscreen.

Screenwash and headlamp wash

Pull the wiper control stalk towards you,
the screenwash is accompanied by a timed
operation of the wipers.

Depending on version, the headlamp wash is
coupled with the screenwash, it is triggered if
the dipped beam headlamps are on.

Windscreen wipers

Wiping is only active when the ignition key is
in the runnInG position.

the control stalk has five different positions:

Wipers off.

Intermittent wiping: 1 notch downwards.

In this position, four wiping frequencies can
be selected by turning the ring:

- very slow frequency

- slow frequency

- standard frequency,

- fast frequency.

Automatic rain sensitive windscreen
wipers

If your vehicle is fitted with this system, the
wiping speed is adapted automatically to the
intensity of the rainfall.

Automatic wiping: 1 notch downwards.
this is confirmed by one wipe. Must
be reactivated each time the ignition is
switched on.

In this position, the sensitivity of the rain
sensor can be increased by turning the ring.

Good practice

Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.

use the step in the front bumper, to remove
any accumulation of snow at the base of the
windscreen and on the blades.

You can change the wiper blades.

Refer to the "Quick help - Worn wiper

blade" section.

You can check the fluid level.

Refer to the "Checks - Levels and
checks" section.

Fast continuous wiping: 3 notches
downwards.

Single wipe: pull the control stalk towards
the steering wheel.

With Stop & Start, when the wiper
control stalk is in the fast wipe position,
the StOP mode is not available.

When washing the vehicle, switch off the
ignition or deactivate the automatic rain
sensitive wipers.

EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

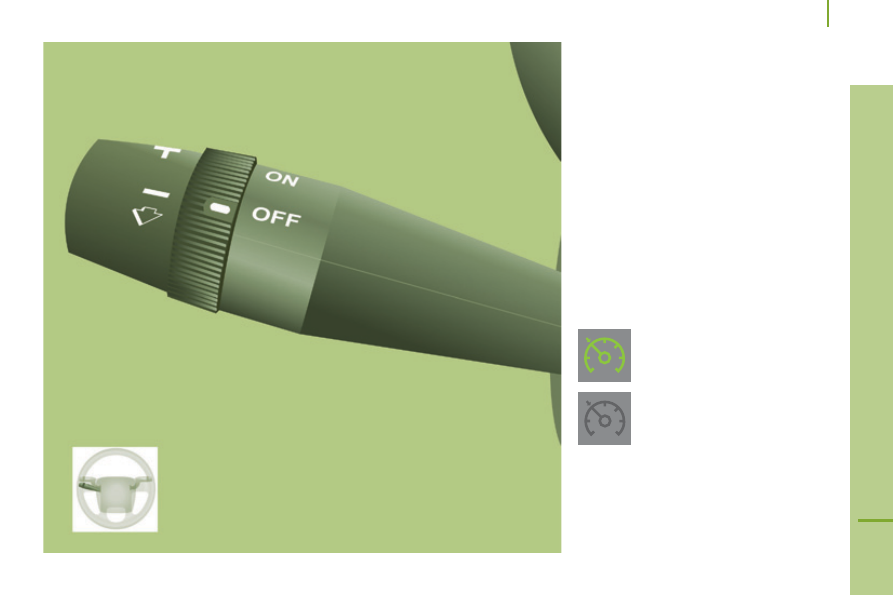

cruISE controL

(3 LItrE HdI EnGInE)

"this is the speed at which the driver wishes to
travel".
This aid to driving in free-flowing traffic conditions
enables the vehicle to maintain a constant
speed programmed by the driver, except when a
considerable load is carried on a steep gradient.

In order to be programmed or activated,
the vehicle speed must be greater than
approximately 18 mph (30 km/h), with 2nd gear
or higher engaged.

Function selected.

Function deactivated.

If your vehicle is fitted with cruise control,
this is displayed on the instrument panel by
an indicator located in the rev counter.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

Selecting the function - on

Selecting on switches the function on. A
message appears in the instrument panel
screen to confirm the action.

Programming a speed

Accelerate to the required speed,
with 2nd to 6th gear engaged.

Move the control upwards (+), for
approximately one second, to store this
speed.

Release the pressure on the accelerator
pedal, the vehicle will maintain this speed.

Switching off / deactivating the
function

Press the brake or clutch pedal or place
the ring in the oFF position, the indicator
goes off.

If the dynamic stability control system comes
into operation, the cruise control system is
deactivated temporarily.

increase the speed in steps, by means
of brief presses, or continuously by
pressing and holding the control
upwards (+ sign),

temporarily exceeding the
programmed speed

When the cruise control is active, it is still
possible to exceed the programmed speed
by depressing the accelerator pedal (to
overtake another vehicle for example).

decrease the speed continuously
by pressing and holding the control
downwards (- sign).

restore - rES

to restore the vehicle's
programmed speed (for example
after pressing the brake or clutch

pedal), gradually return to the chosen speed
and press rES.

the indicator lamp comes on, the cruise
control function is restored.

changing the programmed speed
while the cruise control is in operation

You can:

EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

Good practice

When changing the programmed reference
speed by pressing and holding the control,
take care as the speed may increase or
decrease rapidly.

Do not use the cruise control on slippery
roads or in heavy traffic.

On a steep gradient, the cruise control will
not be able to prevent the vehicle from
exceeding the programmed speed.

the cruise control cannot, in any
circumstances, replace the need to comply
with speed limits or vigilance on the part of
driver.

It is advisable to leave your feet near the
pedals.

to prevent the mat from becoming caught
under the pedals:

ensure that the mat is positioned
correctly,

never fit one mat on top of another.

cancelling the programmed speed

When the vehicle stops, after the ignition is
switched off, the system no longer stores
any speed.

operating fault

In the event of a fault, the system
is switched off and the indicator
goes off.

Contact a PeugeOt dealer or a qualified
workshop to have the system checked.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

cruISE controL

"this is the speed at which the driver wishes
to drive".

this aid to driving in free-flowing traffic
enables the vehicle to maintain the speed
programmed by the driver, unless a
steep gradient or heavy load makes this
impossible.

In order for it to be programmed or
activated, the vehicle speed must be greater
than 18 mph (30 km/h) with 2

gear or

higher engaged.

Function selected.

Function deactivated.

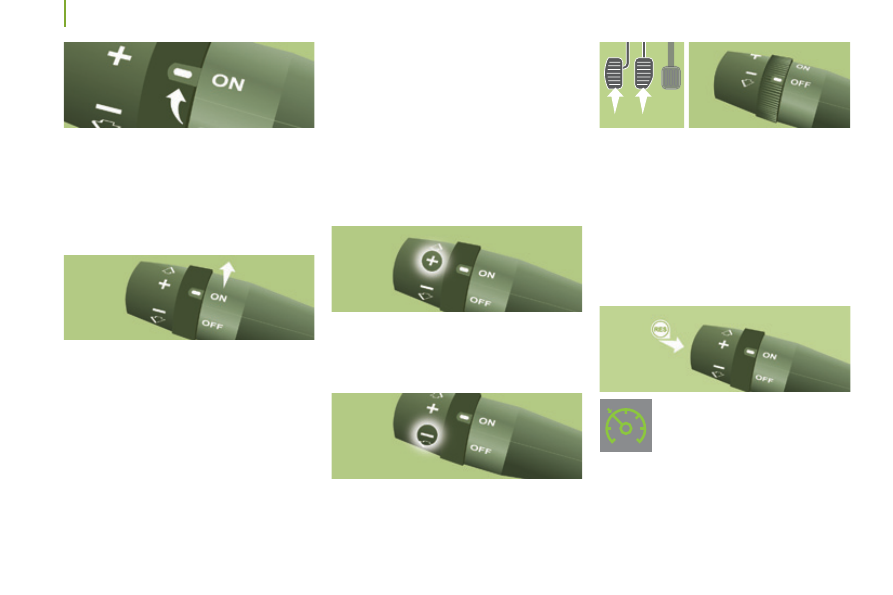

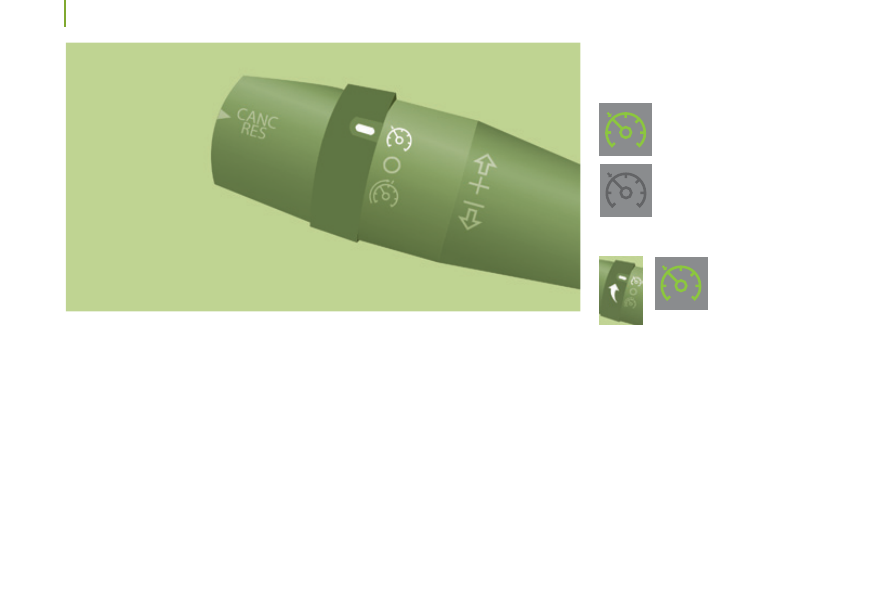

Selecting the function

turn the ring fully upwards. the cruise
control is selected but is not yet active
and no speed has been programmed.
the indicator comes on in the instrument
panel

the status of the cruise control is given
by an indicator in the rev counter and
messages in the instrument panel screen.

EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

First activation /
programming a
speed

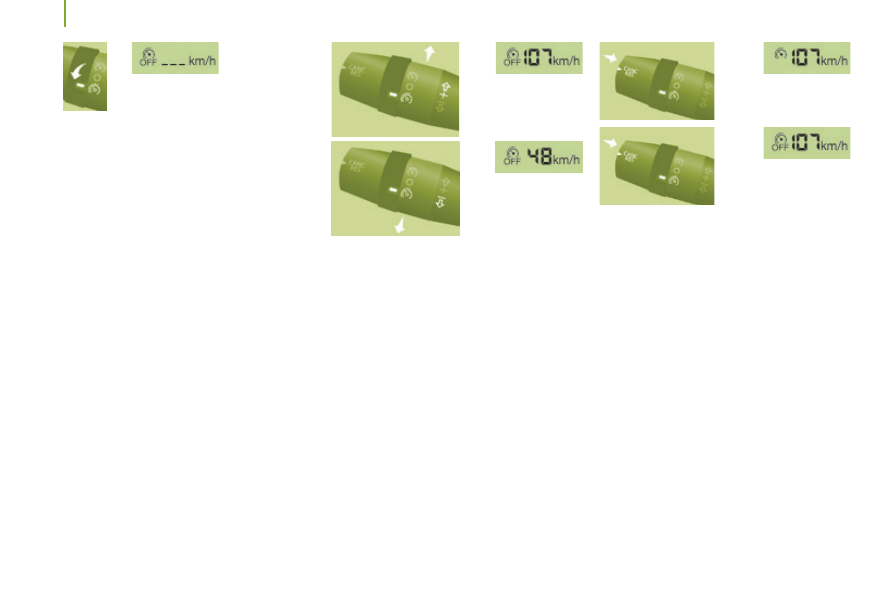

Reach the chosen speed by pressing
the accelerator.

Move the switch up (+) or down (-)
to memorise the speed. A message
appears in the instrument panel screen
to confirm the operation.

the vehicle will maintain this speed setting.

temporarily exceeding the speed
setting

It is possible to accelerate and drive
momentarily at a speed greater than the
programmed speed.

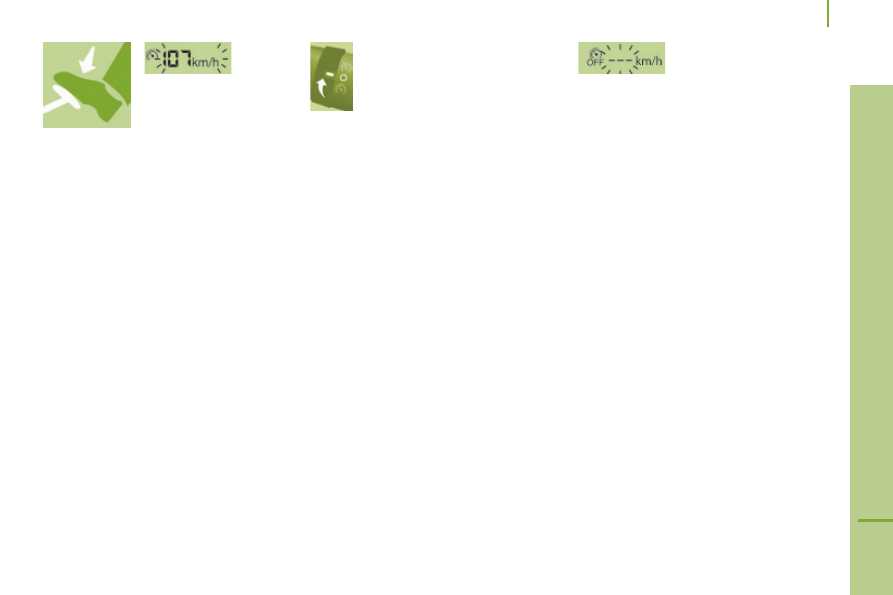

When the accelerator pedal is released, the
vehicle will return to the programmed speed.

reactivation

Following deactivation of the cruise
control, press this button. A message
appears in the instrument panel screen
to confirm the reactivation.

Your vehicle will return to the last
programmed speed.

Alternatively, you can repeat the "first
activation" procedure.

deactivation (off)

Press this button or the brake or clutch
pedal. A message appears in the
instrument panel screen to confirm the
deactivation.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

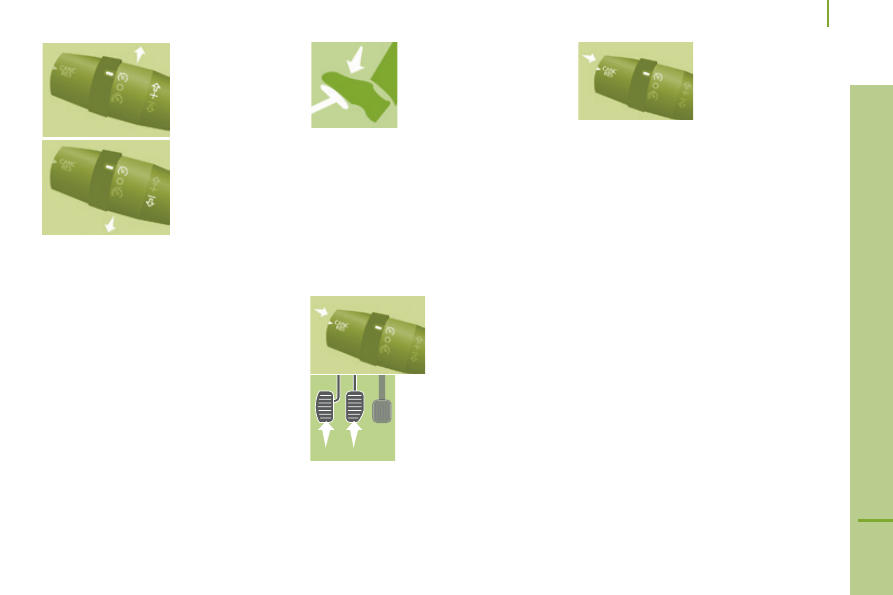

there are two methods of memorising a
speed higher than the previous one:

Without using the accelerator:

Move the switch up (+).

A brief press increases the speed by
1 mph (km/h).

A maintained press increases the speed in
steps of 5 mph (km/h).

using the accelerator:

exceed the memorised speed until the
speed required is reached,

move the switch up (+) or down (-).

to memorise a speed lower than the
previous one:

move the switch down (-).

A brief press decreases the speed by
1 mph (km/h).

A maintained press decreases the speed in
steps of 5 mph (km/h).

changing the
programmed
speed

Switching the system off

Place the ring in the central o position
or switch off the ignition to switch the
system off.

When the vehicle becomes stationary, after
switching off the ignition, the system no
longer memorises a speed.

operating fault

In the event of a fault, the system
switches off and the indicator
goes off. Contact a PeugeOt
dealer or a qualified workshop to
have the system checked.

Good practice

When changing the programmed reference
speed by means of a maintained press,
pay attention as the speed can increase or
decrease rapidly.

Do not use the cruise control on slippery
roads or in heavy traffic.

In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.

In any event, the cruise control cannot
replace the need to observe the speed
limits, nor can it replace the need for
vigilance on the part of the driver.

It is advisable to leave your feet near the
pedals.

to avoid any jamming under the pedals:

ensure that the mat and its fixings on the
floor are positioned correctly,

never place one mat on top of another.

EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

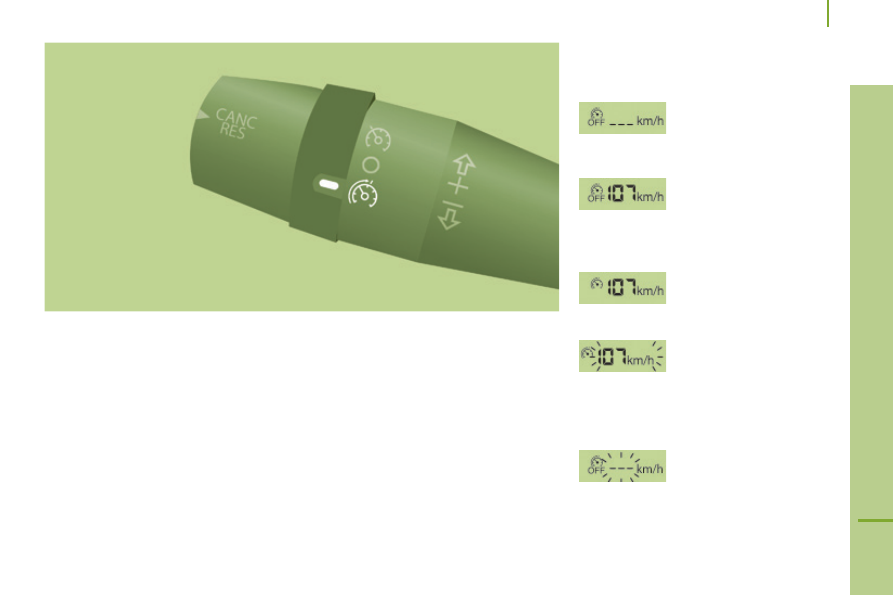

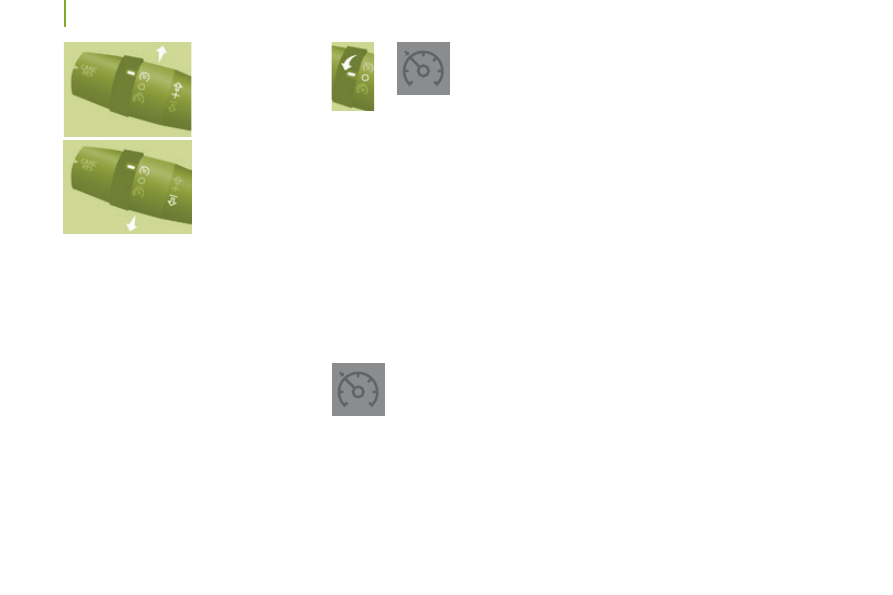

SPEEd LIMItEr

"this is the selected speed which the driver
does not wish to exceed".

this selection is made with the vehicle
stationary and the engine running or with the
vehicle moving and 2

gear or higher engaged.

the lowest speed that can be programmed
is 20 mph (30 km/h).

the speed of the vehicle responds to the
pressure of the driver's foot as far as the
accelerator pedal point of resistance which
indicates that the programmed speed has been
reached.

However, pressing the pedal beyond this
point of resistance to the floor permits
exceeding of the programmed speed. to
resume use of the limiter, simply reduce
the pressure on the accelerator pedal
gradually and return to a speed below that
programmed.

the operating actions may be carried out
with the vehicle stationary and the engine
running, or with the vehicle moving.

this speed limiter shows the status of the
system and the programmed speed in the
instrument panel screen:

System selected,

display of the "Speed
Limiter" indicator.

System deactivated,

last programmed speed - oFF

(example at 65 mph
(107 km/h)).

System activated

(example at 65 mph (107 km/h)).

Vehicle speed above

(example 70 mph (118 km/h))

the programmed speed is
displayed flashing.

Operating fault detected,

oFF - the dashes flash.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

Selecting the function

turn the ring fully downwards. the
speed limiter is selected but is not yet
active. the display indicates oFF and
the last programmed speed.

Programming a speed

A speed can be programmed without
activating the limiter but with the engine
running.

to memorise a speed higher than the
previous one:

move the switch up (+).

A brief press increases the speed by
1 mph (km/h).

A maintained press increases the speed in
steps of 5 mph (km/h).

to memorise a speed lower than the
previous one:

move the switch down (-).

A brief press decreases the speed by
1 mph (km/h).

A maintained press decreases the speed in
steps of 5 mph (km/h).

Activation/deactivation

Pressing this button once activates the
speed limiter, oFF disappears from the
screen and a message appears to confirm
the activation.

A second press deactivates it, oFF
reappears in the screen and a message
appears to confirm the deactivation.

EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

Exceeding the programmed
speed

Pressing the accelerator pedal in order to
exceed the programmed speed will have
no effect unless you press the pedal firmly
beyond the point of resistance.

If the limiter is unable to prevent an increase
in the speed of the vehicle because of the
profile of the road or when going down a
step hill, the programmed speed may be
exceeded.

the limiter is deactivated temporarily and
the programmed speed flashes.

to return to the limiter function, reduce your
speed to below the programmed speed.

Switching the system off

Place the ring in the central o position
or switch off the ignition to switch the
system off.

the last programmed speed remains in the
memory.

operating fault

the programmed speed is cleared then
replaced by dashes.

Contact a PeugeOt dealer or a qualified
workshop to have the system checked.

Good practice

In any event, the speed limiter cannot
replace the need to observe speed limits,
nor can it replace the need for vigilance on
the part of the driver.

Always pay attention to the profile of the
road and sharp acceleration and stay in
complete control of your vehicle.

to avoid any jamming under the pedals:

ensure that the mat and its fixings on the
floor are positioned correctly,

never place one mat on top of another.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

FIxEd SPEEd LIMItEr

If your vehicle is fitted with this function, the
speed of your vehicle can be limited to a
fixed speed of approximately 55 mph
(90 km/h) or 60 mph (100 km/h).

A label in the passenger compartment
indicates this maximum speed.

the fixed speed limiter is not a function
of the cruise control type. It cannot be
activated or deactivated by the driver while
driving.

the maximum speed set in the factory
depends on the legislation in force in

the country of sale.

this maximum speed cannot be modified by
the driver.

If you want the maximum speed modified, go
to a PeugeOt dealer.

Ventilation

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

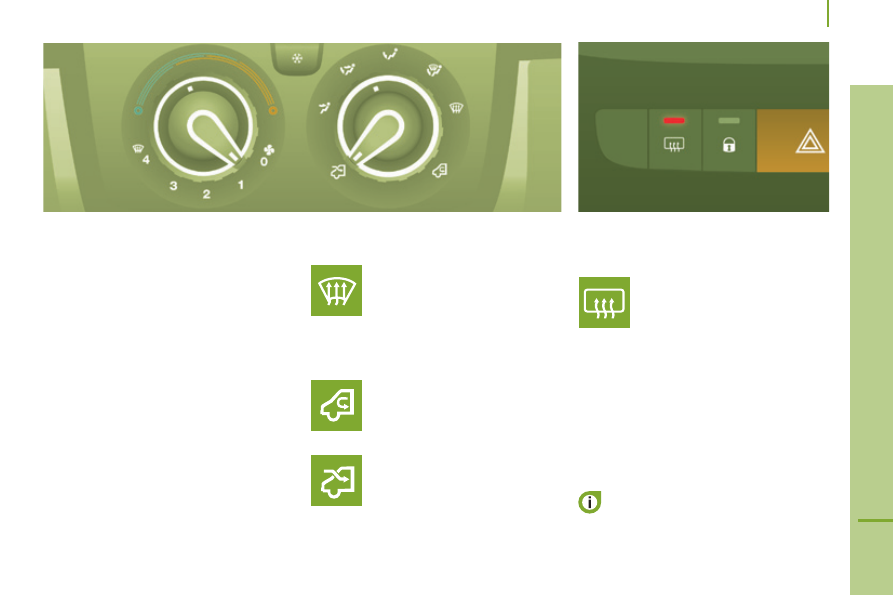

dEMIStInG And dEFroStInG

Manual mode

Direct the control to this air
distribution setting.

For faster and more effective
demisting and defrosting of the
windscreen:

defrosting the rear screen
and mirrors

Only operates when the engine
is running. Pressing this button
activates the rapid demisting-
defrosting of the rear screen

and door mirrors.

this function switches off automatically to
prevent excessive energy consumption. It
stops when the engine is switched off but
resumes when the engine is started again.

Pressing this button switches the
function off.

increase the air flow setting,

Returning to the exterior air
intake position permits renewal
of the air in the passenger
compartment.

Windscreen and side windows

the ventilation outlets located at the base
of the windscreen and the side vents for the
side windows increase the effectiveness
of the demisting and defrosting. Do not
obstruct these air outlets.

the pollen filter continuously and effectively
filters dust.

Air recirculation (which can be activated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, normal use is to
drive with the control positioned with the
exterior air intake open.

- move the exterior air intake

control temporarily to air
recirculation.

With Stop & Start, when the heated
rear screen is switched on, the StOP
mode is not available.

Ventilation

boxer_en_Chap03_ergo-et-confort_ed01-2015

corrEct uSE oF tHE AIr
condItIonInG

In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
remains high after a prolonged period
parked in the sun, first ventilate the
passenger compartment for a few minutes.

For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen, the side and central
vents, the air outlets on the floor and the air
extractor at the rear are not obstructed.

the air conditioning is useful in all seasons
as it eliminates condensation and air
humidity.

Operate the air conditioning system for
5 to 10 minutes, once or twice a month,

to keep it in good working order.

Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.

It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.

If the system does not produce cold air,
do not use it and have it checked by a
PeugeOt dealer or a qualified workshop.

"Leave them open"

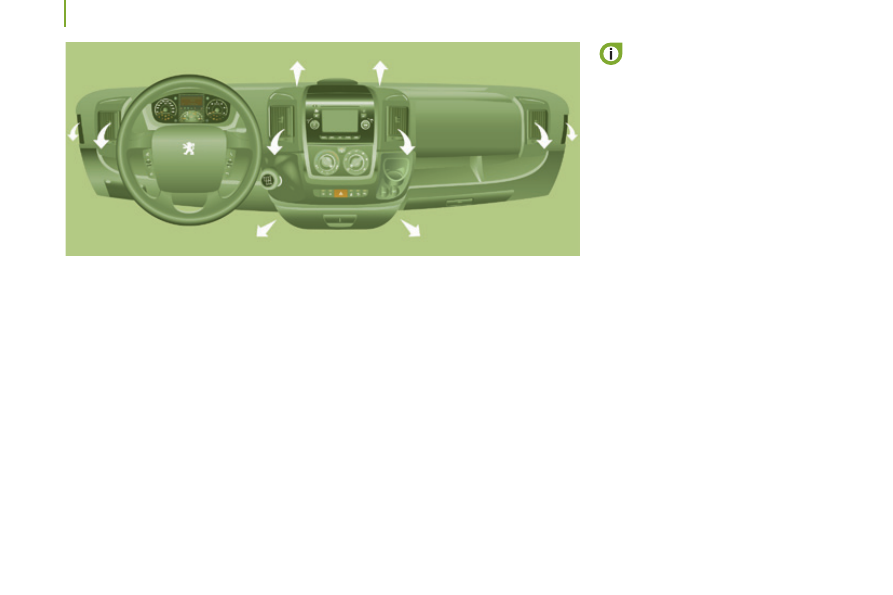

For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are: 4 adjustable central vents, of
which 2 can be directed sideways (right
or left) towards the top of the body and
4 side vents which can be directed towards
the passengers. the air vents directed
towards the floor of the vehicle complete
the equipment.

Vents

Ventilation

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

HEAtInG / MAnuAL AIr
condItIonInG

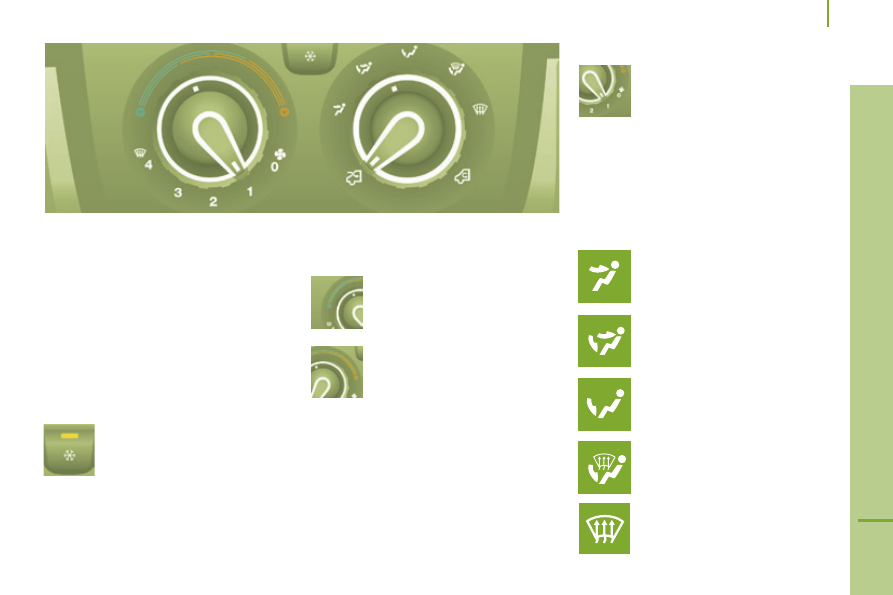

If your vehicle is fitted with these controls,
they are located on the dashboard on the
centre console control panel.

comfort value adjustment

Air flow

the rate of air flow from the
vents, varies from 1 to the
strongest 4. Remember to adjust
this control in order to reach the

ambient air comfort level. to switch off the
blower, place the control in position 0.

Air conditioning

the air conditioning can only operate with
the engine running.

the fan must be set to at least 1.

Pressing the button triggers the
operation of the air conditioning;
the LeD is on. Pressing the

button again switches the function off; the
LeD goes off.

Air distribution

the air supply distribution is directed by the
control turned towards:

the side vents and the central
vents,

the side vents, the central vents
and the footwells,

the footwells,

the windscreen, the footwells and
the side windows,

the windscreen and the side
windows.

in the blue zone provides
cool air,

in the red zone provides
heating of the interior
ambient air.

Control positioned:

Ventilation

boxer_en_Chap03_ergo-et-confort_ed01-2015

Intake of exterior air

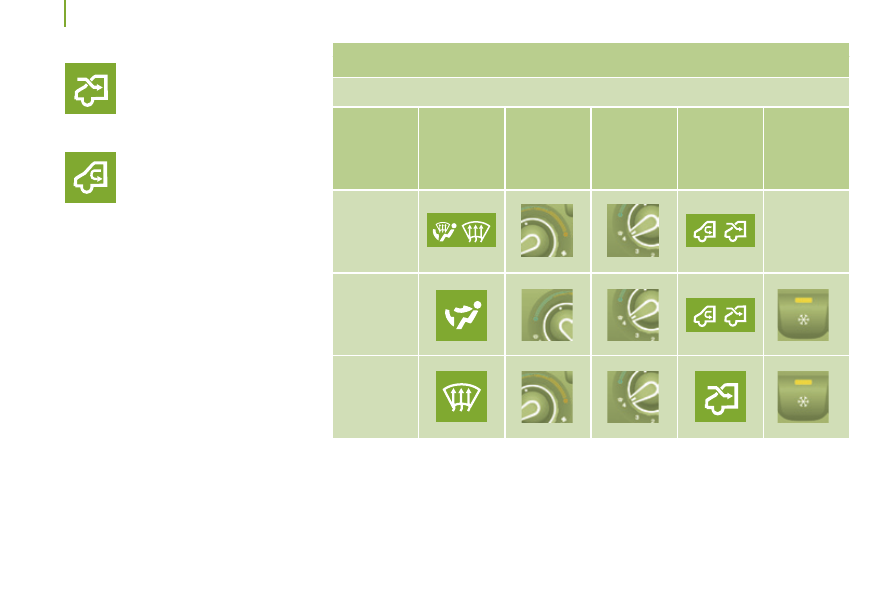

recommended settings for the manual air conditioning

For optimum operation of this system, the settings below are recommended:

recirculation of interior air

this position should only be
temporary.

used with the air conditioning
switched on and the fan setting

(from 1 to 4), recirculation enables you to
obtain the required ambient air comfort level
with both hot or cold settings.

Recirculation temporarily prevents exterior
odours and smoke from entering the
passenger compartment.

If I require...

Air

distribution

temperature

Air flow

Air

recirculation

Heating

Cooling

Demisting

Defrosting

When your ambient air comfort level has
been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and demisting. this
is the preferred operating mode.

this is the preferred operating
position.

Peugeot Boxer (2016 year). Manual - part 4
