Peugeot 1007 Dag (2005.5). Manual

20 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

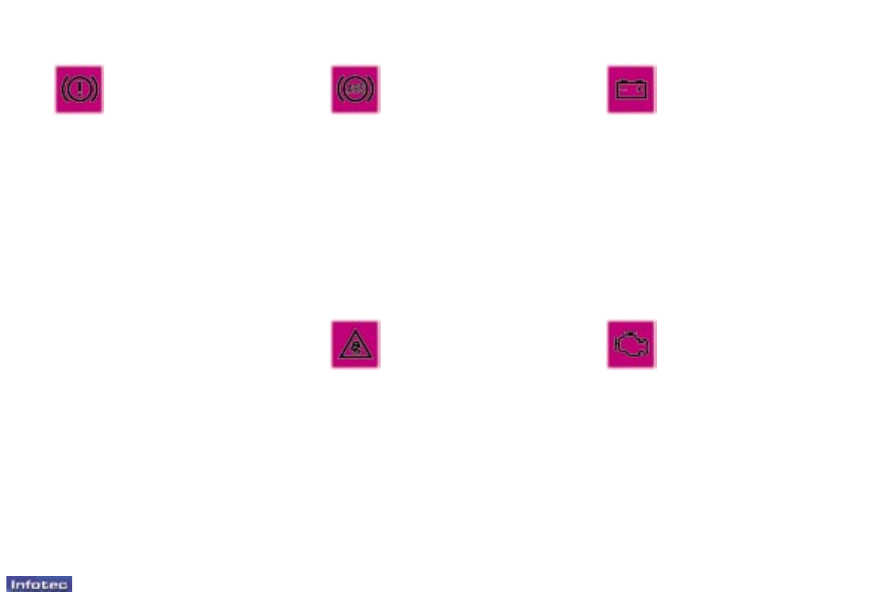

Anti-lock braking

system (ABS) warning

light

This comes on for a few

seconds each time the ignition is

switched on.

If the warning light remains on or

comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.

However, the vehicle retains conven-

tional servo-assisted braking.

Lighting of this warning light, ac-

companied by an audible signal,

indicates an ABS fault.

Consult a PEUGEOT dealer.

Electronic stability

control system

(ESP/ASR) warning

light

This comes on for a few seconds

each time the ignition is switched

on.

While the engine is running and the

vehicle is moving, it lashes if the

system is activated.

It comes on permanently when it is

disarmed.

Battery charge

warning light

This comes on for a few

seconds each time the

ignition is switched on.

If it comes on, with the engine

running, it indicates one of the

following:

- faulty operation of the charging

circuit,

- slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Emission control

system warning light

This comes on each time

the ignition is switched on

and remains on until the engine is

started.

If it comes on, with the engine

running, it indicates a fault in the

injection, ignition or emission control

system. There is a risk of damage to

the catalytic converter (petrol engine

only).

Consult a PEUGEOT dealer.

Handbrake, low

brake luid level and

Electronic Brake

Force Distribution

warning light

This comes on for a few

seconds each time the igni-

tion is switched on.

Linked to the central STOP warning

light.

If this warning light comes on, with

the engine running, it indicates one

of the following:

- that the handbrake is applied or not

fully released, if the vehicle is mov-

ing,

- an excessive drop in brake luid

level (if the warning light remains

on even when the handbrake is

released),

- a fault in the Electronic Brake Force

Distribution.

You must stop.

Consult a PEUGEOT dealer.

20 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

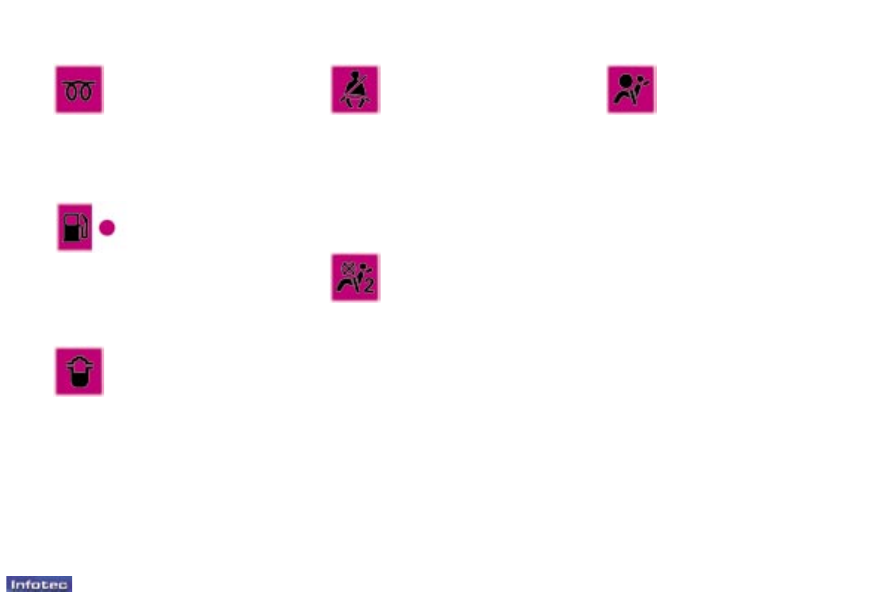

Low fuel level

warning light

This comes on for a

few seconds each time

the ignition is switched on.

When this light irst comes on,

you have enough fuel to drive

approximately 30 miles (50 km)

(The tank capacity is approximately

40 litres).

Water in diesel ilter

indicator**

This comes on for a few

seconds each time the

ignition is switched on.

If it comes on, with the engine

running, this indicates that there is

a risk of damage to the injection

system.

Consult a PEUGEOT dealer as soon

as possible.

Diesel engine pre-heat

warning light

Wait until the warning light

goes out before starting the

engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

Front, steering

column, side and

curtain air bags

warning light

This comes on for a few seconds

each time the ignition is switched

on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal, indicates a fault in

the front, side or curtain air bags.

Consult a PEUGEOT dealer.

** According to country.

Seat belt not fastened

warning light

When the ignition is switched

on, this indicator light comes

on if the driver (and/or a passenger)

has not fastened his seat belt.

Above 12 mph (20 kmh), this warn-

ing light lashes for two minutes

accompanied by an audible signal

which becomes progressively louder.

Once the two minutes have elapsed,

the warning light remains on until the

driver (and/or the passenger) fastens

his seat belt.

Passenger air bag

disarmed warning

light**

This comes on for a few

seconds each time the ignition is

switched on.

If the passenger air bag is disarmed,

the warning light remains on.

Always consult a PEUGEOT dealer if

the warning light lashes.

22 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

Lack of oil

Flashing indicates a lack of oil which

could damage the engine.

If the lack of oil is conirmed by a

check using the dipstick, it is essen-

tial that the level is topped up.

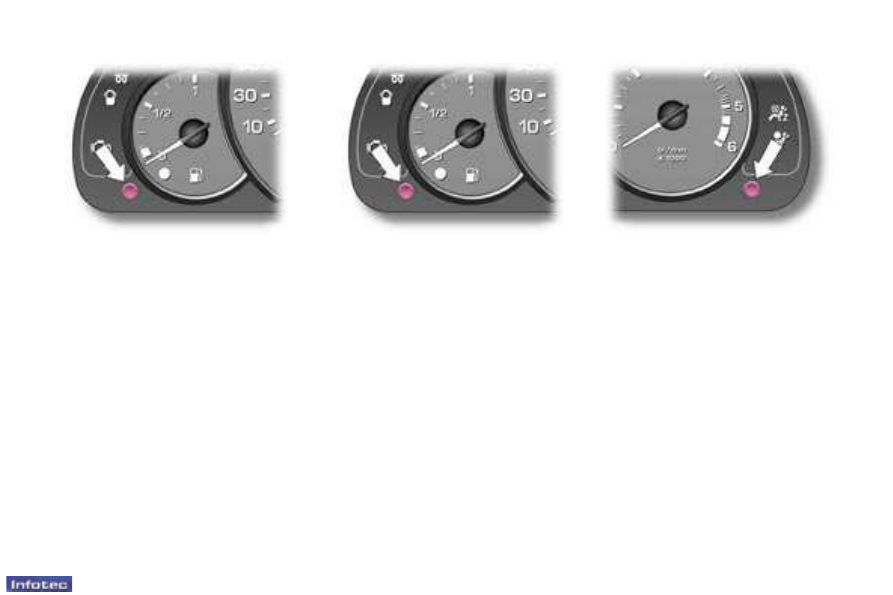

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated for ap-

proximately 5 seconds.

Oil level gauge fault

Check the oil level using the dip-

stick.

If the level is correct, the lashing in-

dicates an actual malfunction of the

engine oil level gauge.

Contact a PEUGEOT dealer.

INSTRUMENT PANEL

DISPLAY

After switching on the ignition, three

functions are shown in succession:

- engine oil level indicator,

- service indicator,

- total distance recorder (total and

trip distances).

Note: the total and trip distances are

displayed for thirty seconds, when

the ignition is switched off, on open-

ing and closing the driver's door as

well

as on locking the vehicle.

It also displays the "2 Tronic" gear-

box positions and operating modes

selected.

If your vehicle is itted with the

mono-

chrome screen A, this displays the

trip computer data.

The level read on the dip-

stick will only be correct

if the vehicle is on level

ground and the engine has

been off for more than 15 minutes.

22 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

Service indicator

This indicates when the next service

is due in accordance with the

manufacturer's servicing schedule.

The point at which the next service

is due is calculated from the last

indicator zero reset. It is determined

by two parameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user's driving habits.

Operation

For 5 seconds after the engine

oil level indication, the spanner

symbolising the servicing operations

comes on; the distance recorder

display indicates the number of miles

[kilometres] (rounded off) remaining

until the next service.

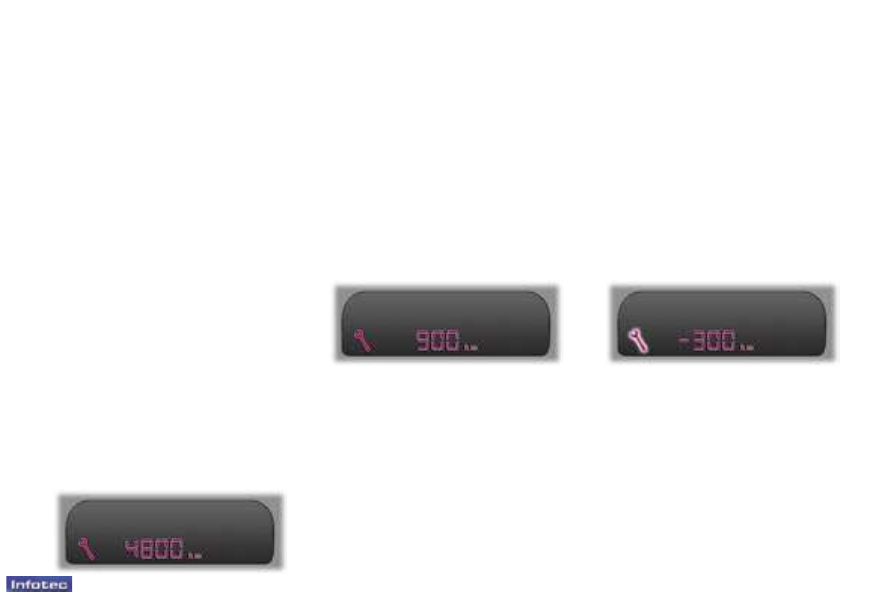

Example: 4,800 miles/km remain

before the next service. For ive

seconds after the engine oil level

indication, the display indicates:

10 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the display indicates the total or trip

distance or the last trip computer

information displayed before the

ignition was switched off.

The distance remaining to

the next service is less than

500 miles/1,000 km.

Example: 400 miles/900 km remain

before the next service.

For 5 seconds after the engine oil

level, the indicator displays:

10 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit.

It indicates that a service must

be carried out soon. The display

indicates the total or trip distance.

The service is overdue.

The service spanner lashes for

5 seconds after each engine oil

level.

Example: the service is overdue by

300 miles/km, your vehicle must be

serviced as soon as possible.

For 5 seconds after the engine oil

level, the display indicates:

10 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the service spanner remains lit. The

display indicates the total or trip

distance.

Note: the service spanner may also

come on if more than two years have

elapsed since the last service.

24 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

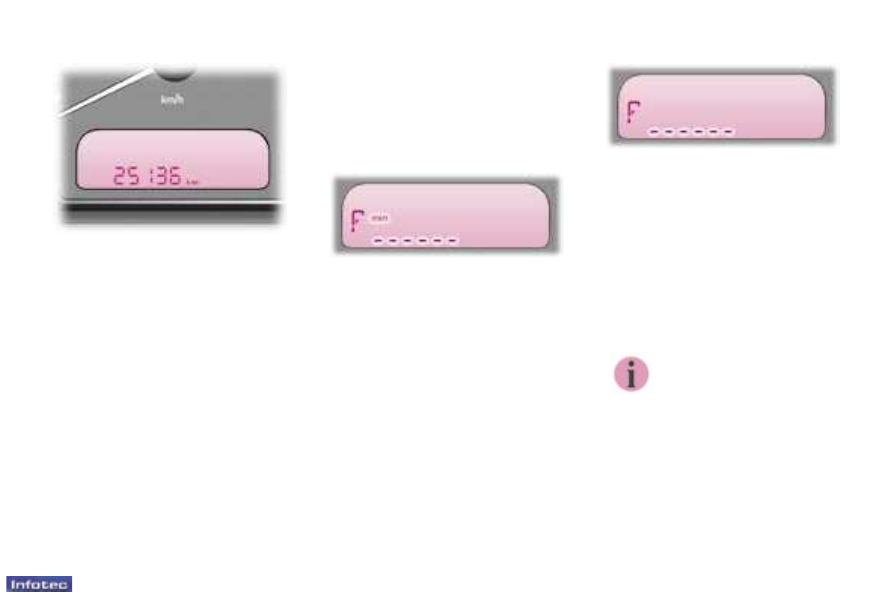

Service indicator zero re-set

Your PEUGEOT dealer carries out

this operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:
F

Switch off the ignition,

Press and hold the trip recorder

re-set button,

Switch on the ignition.

The display begins a countdown.

When the display shows

"= 0" and

the service symbol disappears, re-

lease the button.

Important: after this operation, if you

wish to disconnect the battery, lock

the vehicle and wait for at least ive

minutes, otherwise the zero re-set

will not be registered.

Total/trip distance recorder

Briely pressing the button alternates

between the total and trip distance

displays.

To reset the trip distance recorder to

zero, when it is displayed press the

button until zeros appear.

Lighting rheostat

With the lights on, press the button to

vary the intensity of the lighting of the

instruments and controls. When the

lighting reaches the required bright-

ness, release the button.

24 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

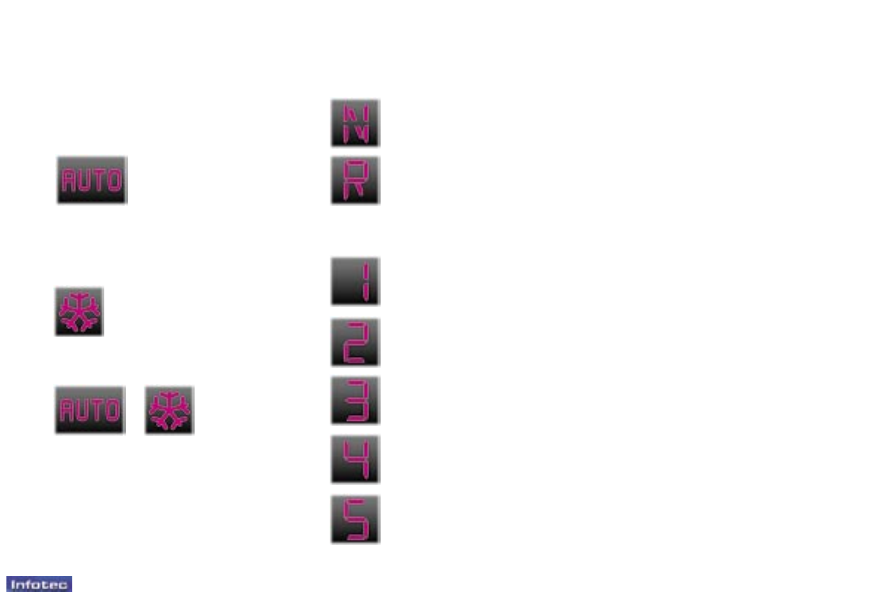

"2 Tronic" gearbox indicator

This comes on when

the

"AUTO" automat-

ed operation mode is

selected.

It is switched off on

switching to the sequential operation

mode.

"AUTO" and "T" indicator lights

Gear lever positions:

"Neutral"

"Reverse"

Sequential operating mode:

1st gear

2nd gear

3rd gear

4th gear

5th gear

"AUTO" indicator light

These lash simultaneously in the

event of a malfunction.

"T" indicator light

In the automated mode, if

the gearbox detects poor

grip, this indicator light

comes on.

26 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

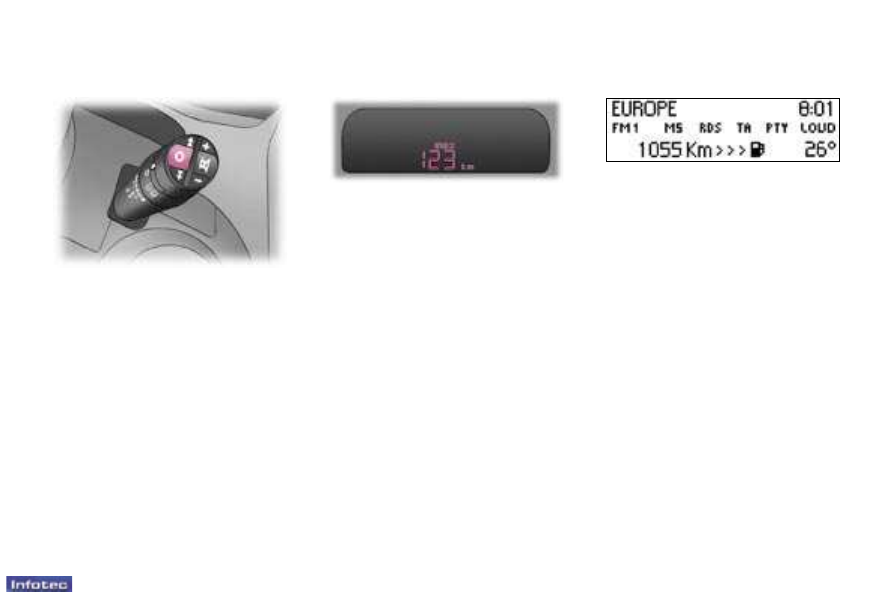

TRIP COMPUTER

Each successive press of the button

marked

"O", located on the end of

the

wiper stalk, permits displaying

of the trip computer data in succes-

sion depending on the multifunction

display:

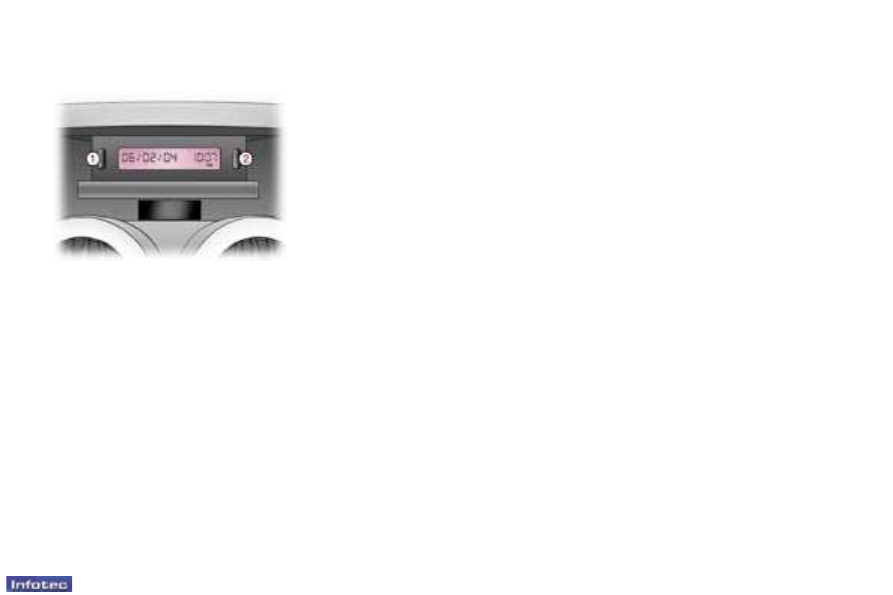

If you have the

monochrome screen

A, the following data will appear on

the instrument panel display:

- the remaining range,

- the current consumption,

- the average consumption,

- the average speed.

Monochrome screen A

Zero reset

Press the stalk for more than two

seconds.

Monochrome screen B

- the remaining range

- the distance travelled

- the average consumption

- the current consumption

- the average speed

Zero reset

Press the stalk for more than two

seconds.

26 - Instruments and controls

01-10-2005

Instruments and controls

01-10-2005

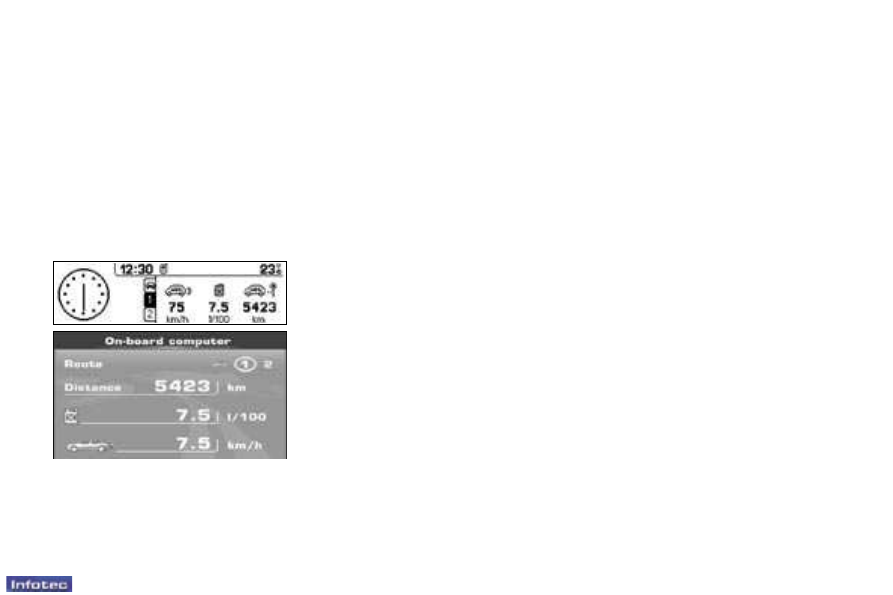

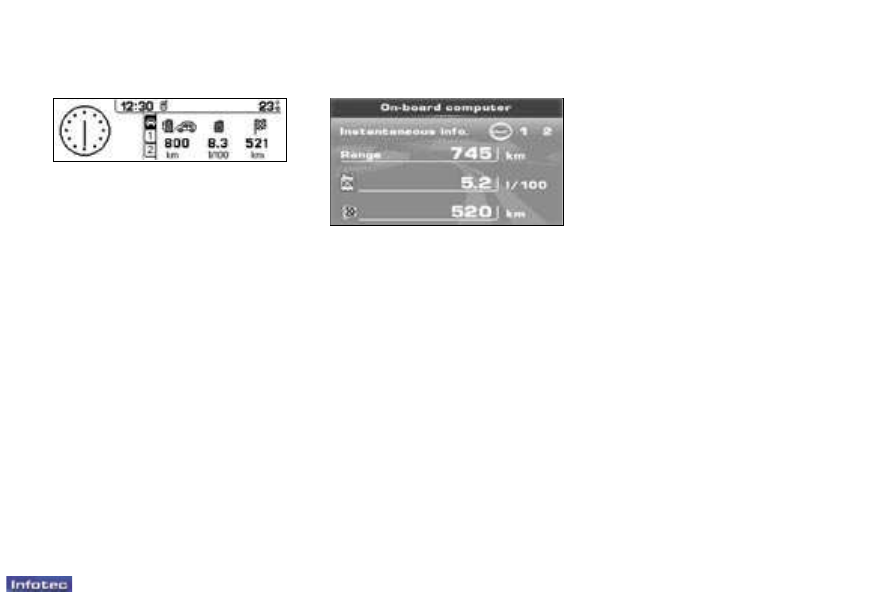

Monochrome screen CT

the 'vehicle' tab with:

• range, current consumption

and

the distance still to be driven,

- tab

'1' (route '1') with:

• the distance driven, the average

consumption and the average

speed calculated over route

"1"

tab '2' (route '2') with the same fea-

tures.

- the

"Current information" with:

• the range,

• the current consumption,

• the distance still to be driven.

'Route 1' with:

• the distance travelled,

• the average consumption,

• the average speed,

'Route 2' with the same features.

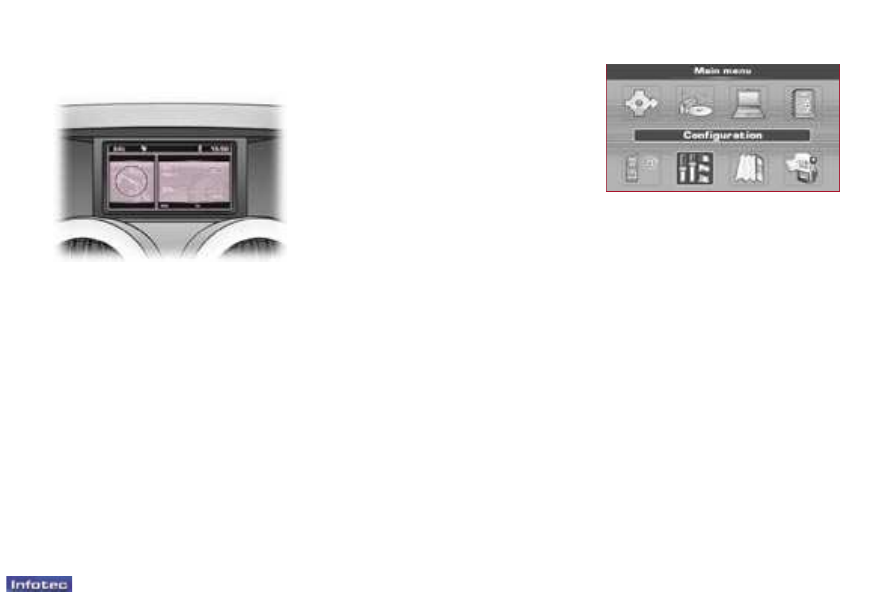

Colour screen DT

Zero re-set

When the required route is displayed,

press the button for more than two

seconds.

Range

This shows the distance that can still

be covered with the fuel remaining in

the tank.

Note: this igure may increase

if there is a change in the style

of driving or the road surface,

producing a signiicant drop in

current consumption.

When the range is less than 20 miles

(30 km),

three

segments

are

displayed. After illing with fuel, the

range is displayed when it exceeds

62 miles (100 km).

If horizontal segments are displayed

for long periods instead of digits,

contact a PEUGEOT dealer.

Current consumption

This is the average quantity of fuel

consumed during the last few seconds.

This function is displayed only when

the vehicle is travelling at a speed

greater than 20 mph (30 km/h).

It can be programmed and therefore

displayed in mpg (litres/100 or in

km/litre).

Zero re-set

When the required route is displayed,

press the button for more than two

seconds.

Average consumption

This is the average fuel consumption

since the computer was last set to zero.

It can be programmed and therefore

displayed in mpg (litres/100 or in

km/litre).

Distance travelled

This indicates the distance travelled

since the computer was last set to

zero.

28 - Instruments and controls

01-10-2005

Distance remaining to be

travelled

This is the distance remaining to

the inal destination. It can either

be calculated by the navigation if

guidance is activated, or entered by

the user, minus the distance covered

since the distance was entered.

Note: if digits are missing, dashes

are displayed in their place.

Average speed

This is the average speed calculated

since the computer was last set to

zero (with the ignition on).

The routes

The routes

"1" and ''2'' are independent

but have identical application.

Route

"1" for example allows you

to make daily calculations and route

"2" monthly calculations.

Speciic features of the

monochrome screen CT and

the colour screen DT

General menu

Press the

"MENU" button to access

the general menu.

Select the icon

''On-board computer''

using the dial, then validate to access

the ''On-board computer'' menu.

The ''On-board computer'' menu

offers various choices:

- On-board computer coniguration,

- Diagnostics.

'On-board computer' context

menu

The context menu associated with the

"On-board computer" application

appears as a superimposed display

when the on-board computer is the

application currently being used

the main screen window.

Briely press the continuous application

'On-board computer'

button to select

one of the following functions:

- Warning log,

- Distance to destination.

On-board computer coniguration

This function allows the distance to

the destination to be input (when

guidance is not activated; otherwise

this information is given by the

navigation system) and also changing

of the units of measurement (°C or °F,

km and litres or miles and gallons).

The

consumptions

(current

average) can be programmed and

therefore displayed in mpg (litres/100

or in km/litre).

Diagnostics

This function permits displaying of the

warning log, the equipment load level

and the number of satellites which

can be detected by the system.

Warning log

This summarises the active warning

messages by displaying them in

succession on the multifunction

display.

Distance to destination

When guidance is not activated, this

enables an approximate value to be

entered to make all the on-board

computer calculations possible.

Multifunction displays

01-10-2005

MONOCHROME SCREEN A

Presentation

This displays the following information:

- the time,

- the date,

- the outside temperature by press-

ing button

1 or 2 (the temperature

lashes if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.: "ASR/

ESP fault") and information mes-

sages (e.g.: "Economy mode") dis-

played temporarily, can be cleared

by pressing button

1 or 2.

If you have the

monochrome screen A,

the trip computer data appears on the

instrument panel display.

Parameter coniguration

Press button

1 for two seconds to

access the settings.

Then, individual presses on this

button allow you to scroll through the

various parameters:

- language in which the information

is displayed,

- hour,

- minutes,

- year,

- month,

- day,

- time format (12 or 24 hour mode),

- temperature unit (degrees Celsius

or Fahrenheit).

Pressing button

2 allows you to

change the parameter selected.

Maintain the pressure for rapid

scrolling.

After ten seconds without action, the

screen returns to the normal display

and the modiied data is recorded.

30 - Multifunction displays

01-10-2005

Multifunction displays

01-10-2005

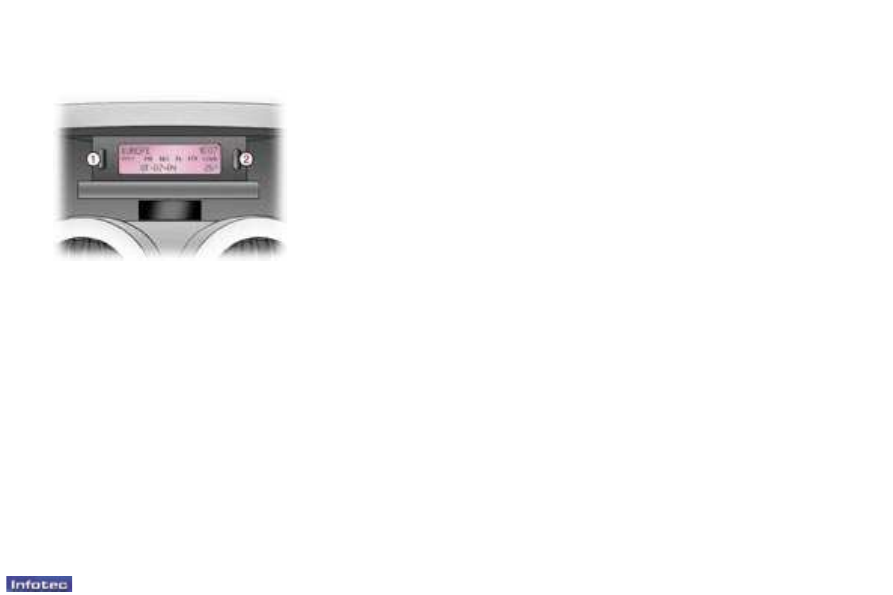

MONOCHROME SCREEN B

Presentation

This displays the following information:

- the time,

- the date,

- the outside temperature (if there is

a risk of ice, you are warned by a

message),

- the audio equipment displays,

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g. "Bat-

tery charge fault") or information

messages (e.g. "Passenger air bag

deactivated''), displayed temporarily,

can be cleared by pressing but-

ton

1 or 2,

- the trip computer.

Parameter coniguration

Press button

1 for two seconds to

access the settings.

Then, individual presses on this but-

ton allow you to scroll through the

various parameters:

- language in which the information

is displayed,

- unit of distance (km or miles),

- unit of temperature (Celsius or

Fahrenheit),

- time format (12 or 24 hour mode)

- hour,

- minutes,

- year,

- month,

- day,

Pressing button

2 allows you to

change the parameter selected.

Maintain the pressure for rapid

scrolling.

After ten seconds without action, the

screen returns to the normal display

and the modiied data is recorded.

30 - Multifunction displays

01-10-2005

Multifunction displays

01-10-2005

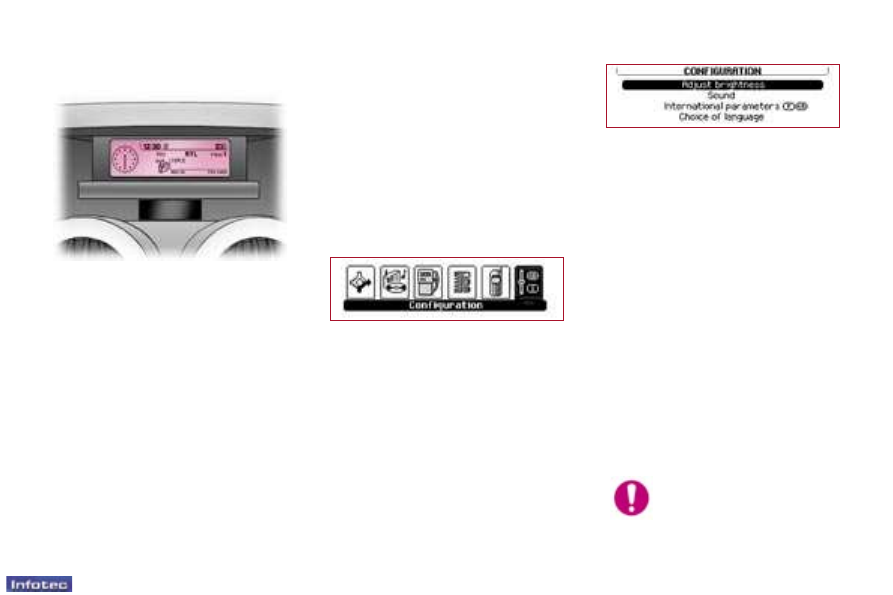

MONOCHROME SCREEN CT

Parameter coniguration

The

"Coniguration" menu provides

access to the following parameters:

• "Brightness setting": setting of the

brightness of the display,

• "Sound": setting of the voice syn-

thesiser (for the male/female voice

parameter: insert the coniguration

CD-Rom); setting of the voice com-

mands,

• "International parameters": setting

of the date and time (12 or 24 hour

mode, adjustment of the minutes

on GPS); selection of the units (l/

100 - °C or mpg - °F),

• "Selection of the language": selec-

tion of the language of the display,

information and voice commands

(German,

English,

Spanish,

French, Italian, Dutch, Portuguese:

insert the coniguration CD-rom ).

Presentation

This displays the following informa-

tion:

- the time,

- the date,

- the outside temperature (if there is

a risk of ice, you are warned by a

message),

- the audio source displays (radio,

CD, ...),

- the telematic system displays (tele-

phone, services, ...),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.: "Fuel

level low") and vehicle function sta-

tus messages (e.g.: "Passenger air

bag deactivated") displayed tempo-

rarily,

- the trip computer display,

- the satellite navigation system dis-

plays.

This system is controlled by the

RT3

GPS audio/telephone keypad.

In order to enable you to use all of

your system's functions, you have

two CD-Roms:

- one, "Coniguration", contains the

software and the various display

languages and spoken informa-

tion,

- the other, "Navigation", contains

the satellite navigation system map

data.

General menu

Press the

"MENU" button on the

RT3 audio/telephone to access the

general menu and select one of the

following applications:

- navigation - trafic info,

- audio functions,

- trip computer,

- directory,

- telephone and telematic services,

- coniguration.

For further details regarding these

functions, refer to the corresponding

section.

For safety reasons, conig-

uration of the multifunction

displays by the driver must

take place when stationary.

32 - Multifunction displays

01-10-2005

Multifunction displays

01-10-2005

COLOUR SCREEN DT

Presentation

This displays the following informa-

tion:

- the time,

- the date,

- the outside temperature (if there is

a risk of ice, you are warned by a

message),

- the audio source displays (radio,

CD, ...),

- the telematic system displays (tele-

phone, services, ...),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.: "Fuel

level low") and vehicle function sta-

tus messages (e.g.: "Passenger air

bag deactivated") displayed tempo-

rarily,

- the trip computer display,

- the satellite navigation system dis-

plays.

This system is controlled by the

RT3

GPS audio/telephone keypad.

In order to enable you to use all of

your system's functions, you have

two CD-Roms:

- one, "Coniguration", contains the

software and the various display

languages and spoken informa-

tion,

- the other, "Navigation", contains

the satellite navigation system map

data.

General menu

Press the

"MENU" button on the

RT3 audio/telephone to access the

general menu and select one of the

following applications:

- navigation - trafic info,

- audio functions,

- trip computer,

- directory,

- telephone and telematic services,

- coniguration,

- map,

- video.

For further details regarding these

functions, refer to the corresponding

section.

32 - Multifunction displays

01-10-2005

Multifunction displays

01-10-2005

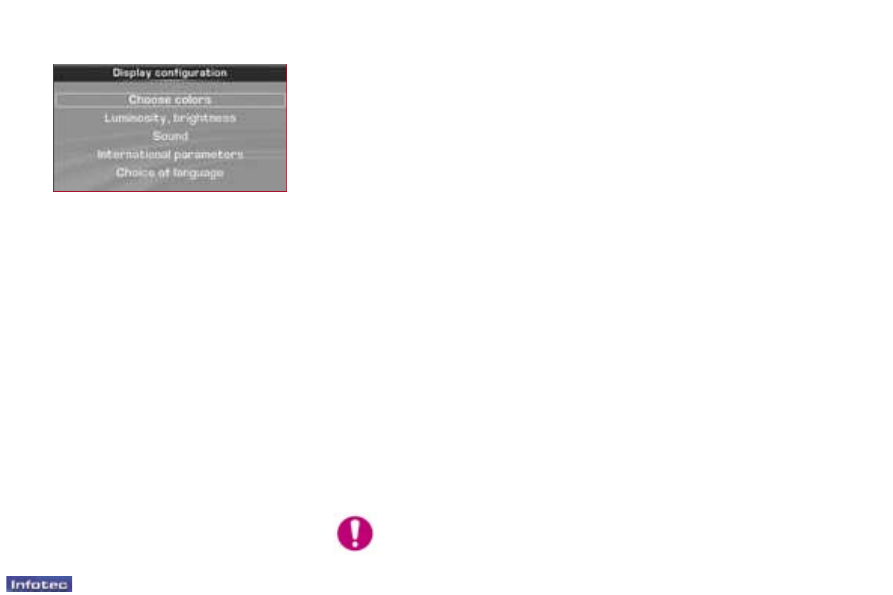

Parameter coniguration

The

"Display coniguration" menu

provides access to the following pa-

rameters:

• "Select the colours": selection from

the palette of colours available for

the display,

• "Brightness and intensity": setting

of the brightness and intensity of

the display,

• "Sound": setting of the voice syn-

thesiser (for the male/female voice

parameter: insert the coniguration

CD-Rom); setting of the voice com-

mands, activation/deactivation of

the auxiliary input,

• "International parameters": setting

of the date and time (12 or 24 hour

mode, adjustment of the minutes

on GPS); selection of the units (l/

100 - °C or mpg - °F),

• "Selection of the language": selec-

tion of the language of the display,

information and voice commands

(German,

English,

Spanish,

French, Italian, Dutch, Portuguese:

insert the coniguration CD-rom ).

For safety reasons, conig-

uration of the multifunction

displays by the driver must

take place when stationary.

A FEW DEFINITIONS...

Superimposed display

This is a window which appears tem-

porarily over the current application

to announce a change of status of

another application.

Permanent application

This is the main application currently

in use, displayed as the main screen

window.

Contextual menu

This is a menu, limited to the main

functions of the main application

currently in use, displayed as the

main screen window.

34 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

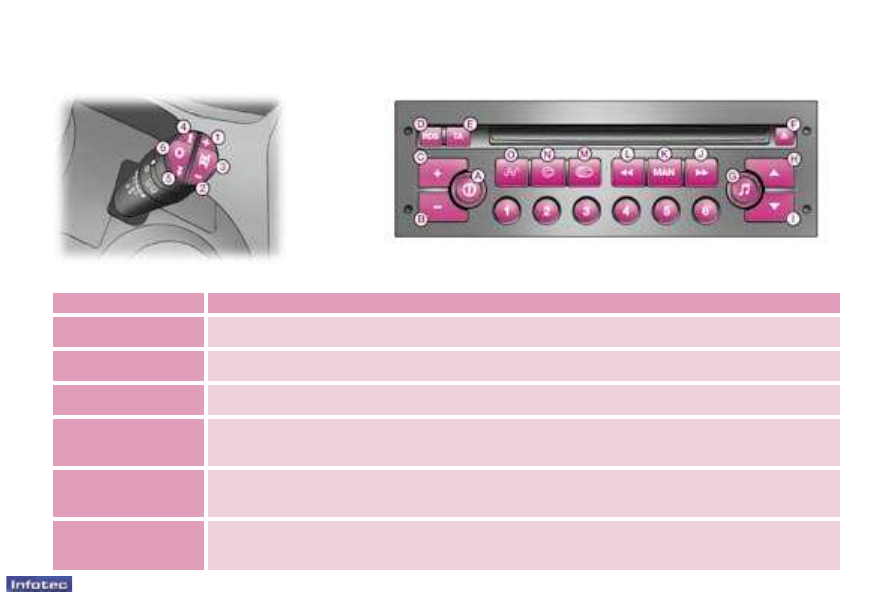

AUDIO RD3

Stalk movement

Function

1 - Press

Increase volume.

2 - Press

Decrease volume.

3 - Press

Sound cut-off (mute); restoring of the sound by pressing a button.

4 - Press

Automatic search of higher frequencies (radio).

Selection of the next track (CD/CD changer).

Continuous pressure until release: accelerated forwards play (CD/CD changer).

5 - Press

Automatic search of lower frequencies (radio).

Selection of the previous track (CD/CD changer).

Continuous pressure until release: accelerated backwards play (CD/CD changer).

6 - Press

Displaying of the trip computer information.

Press for more than 2 seconds: resetting of the route displayed to zero.

34 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Button

Function

Radio on/off.

Reduction in volume.

Increase in volume.

RDS

RDS function on/off.

Press for more than 2 seconds: regional following mode (REG) on/off.

Trafic information priority (TA) on/off.

Press for more than 2 seconds: PTY function on/off.

Ejection of CD.

Selection of bass, treble, loudness, sound distribution and automatic volume correction.

Increase of the functions associated with button

Decrease of the functions associated with button

Peugeot 1007 Dag (2005.5). Manual - part 2
