DRIVING

 Press switch 1 , the indi-

cator  lamp  comes  on  and
the   SPORT   warning  lamp
comes on.

 Press switch 1 again. The

indicator  lamp  is  switched
off and the  AUTO  indicator
lamp comes on.

To return to automatic operation

In this position, the suspension is
maintained in the SPORT position.

In the event of a fault , it
comes on, accompanied by an
audible signal and a message
on the multifunction screen.

Select  automatic  operation  and  con-
tact  a  PEUGEOT  dealer  as  soon  as
possible.

Operating check
This is conﬁ rmed by the switch lamp

and the indicator lamps.

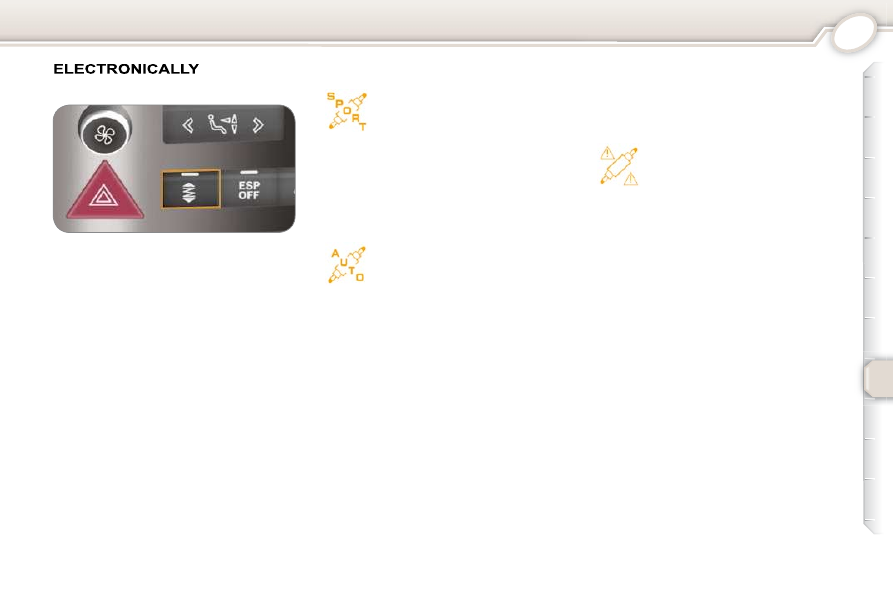

CONTROLLED SUSPENSION

Manual selection of the SPORT
position

The  suspension  adapts  automatically
and instantly to different driving styles
and  road  characteristics,  improving
the  comfort  of  the  occupants  and  the
vehicle's road holding capabilities. The
suspension favours smooth shock ab-
sorption,  ensuring  a  comfortable  ride,
but  as  soon  as  conditions  demand  a
change  (sporty  driving,  tight  bends,
avoidance action, etc.) it automatically

selects ﬁ rmer shock absorption, guar-

anteeing optimum road holding.

DRIVING

CRUISE CONTROL/SPEED
LIMITER

Selecting the function

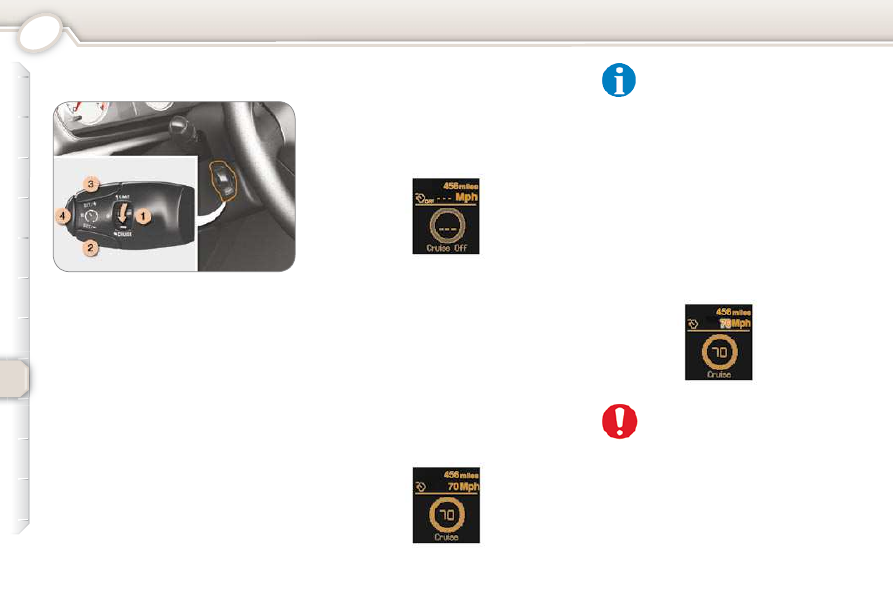

 Place switch 1 in the CRUISE po-

sition. The cruise control is not
yet active and no speed has been
memorised. The display indicates:

Switching the function off

 Place switch 1 in position 0 or

LIMIT to switch the system off.

  Note:   It  is  possible  to  acce-
lerate  and  drive  momentarily
at  a  speed  greater  than  the
memorised  speed.  The  value

memorised ﬂ ashes. When the acce-

lerator pedal is released, the vehicle
will return to the memorised speed.

Cancelling the memorised speed

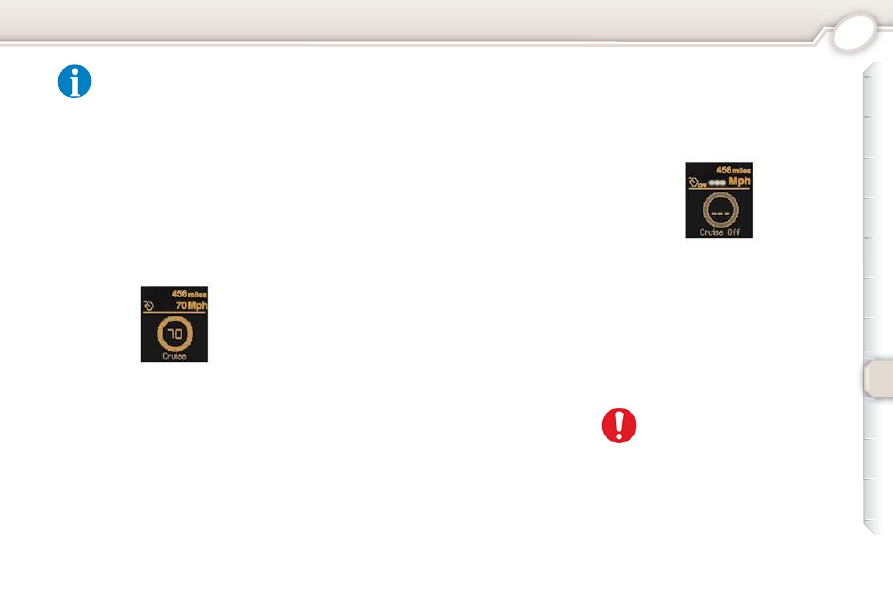

If you wish to cancel the memorised
speed:
 Press button 4 or the brake or

clutch pedal. The display indicates
(e.g. at 70 mph (110 km/h)):

Activation/memorising a speed

As  soon  as  you  reach  the  chosen
speed,  press  button   2   or   3 .  This
memorises  the  speed,  which  will  be
maintained  automatically. The  display
indicates (e.g. at 70 mph (110 km/h)):

On a steep descent, the cruise
control,  which  does  not  act  on
the  brakes,  is  not  able  to  pre-
vent the vehicle from exceeding
the programmed speed.
In  no  circumstances  does  the

cruise control replace the requirement to
respect speed limits, nor does it replace
the need for vigilance and responsibility
on the part of the driver.
We recommend that your feet remain
near the pedals.

Cruise control function

This  enables  the  vehicle  to  maintain
a  steady  speed  programmed  by  the
driver
In  order  for  it  to  be  memorised,  the
vehicle  speed  must  be  greater  than
25  mph  (40  km/h)  with  at  least  fourth
gear  engaged  (second  gear  for  the
automatic  gearbox),   with  the  engine
running .

DRIVING

  Note:   the  speed  memorised
is  cancelled  automatically  if
the vehicle speed is less than
25  mph  (40  km/h),  or  if  the

manual gearbox is in a gear lower than
fourth (second gear for the automatic
gearbox) or if the ESP is activated.

Operating check

In the event of a cruise control malfunc-
tion, the memorised speed is erased,

the dashes ﬂ ash for a few seconds:

Contact a PEUGEOT dealer to have
the system checked.

Do not use the cruise control
on slippery roads or in heavy

trafﬁ c.

Changing a memorised speed

To memorise a speed higher than the
previous one, there are two options:
Without using the accelerator:
 press button 3 ;
Using the accelerator:
 exceed the memorised speed until

the required speed is reached,

     press button  2  or  3 .
To  memorise  a  speed  lower  than  the
previous one:
      press button  2 ;
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or  decrease  of  the  value  in  steps  of
5 mph (5 km/h).

Recalling the memorised speed

After cancellation, press button  4 . Your
vehicle  will  return  to  the  last  memo-
rised  speed.  The  display  indicates
(e.g. at 70 mph (110 km/h)):

Cancelling the memorised speed

 Place switch 1 in position 0 or LIMIT

or switch off the ignition.

To prevent the mat from becoming
caught under the pedals:
-

ensure that the mat is positioned
correctly,

- never ﬁ t one mat on top of another.

DRIVING

100

Selecting the function

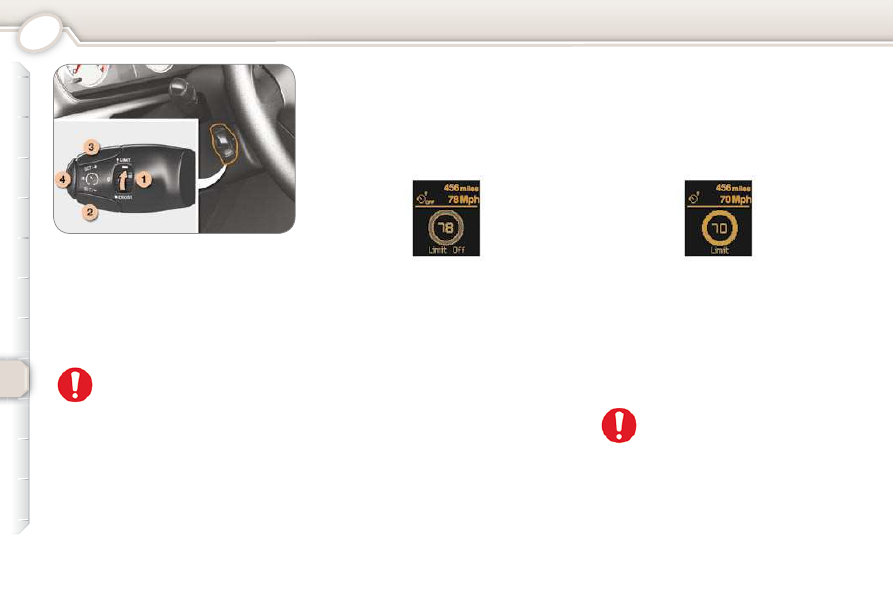

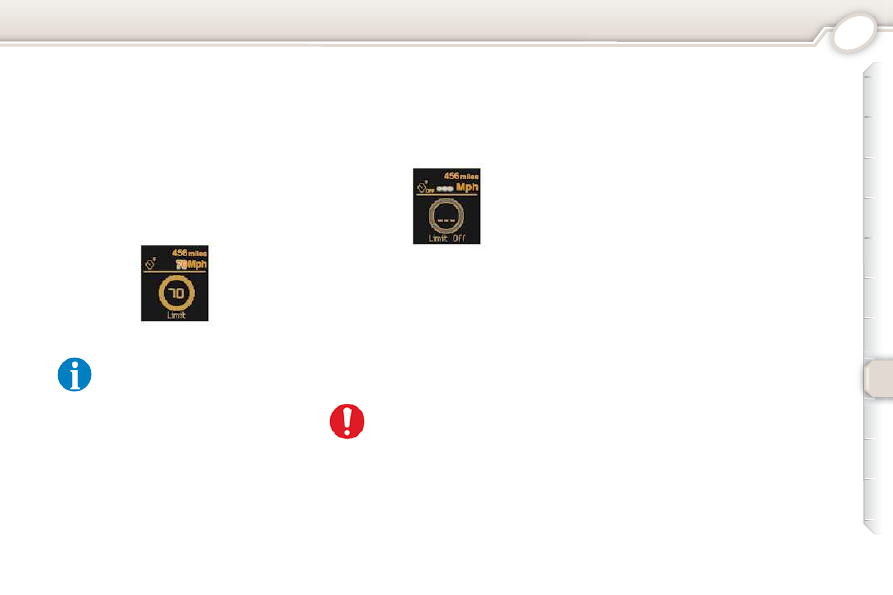

 Place switch 1 in the LIMIT posi-

tion. The limiter is not yet active.
By default the display indicates:

Switching the function off

 Place switch 1 in position 0 or

CRUISE   or  switch  off  the  ignition
to  switch  the  system  off.  The  last
speed programmed remains in the
memory.

Memorising a speed

A  speed  can  be  memorised  without
activation of the limiter.
Pressing buttons  2  and  3  decreases or
increases the speed.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or  decrease  of  the  value  in  steps  of
5 mph (5 km/h).

Activation/deactivation of the limiter

Pressing button 4 activates the limiter,
pressing this button again deactivates it.
When the limiter is active, the display
indicates (e.g. at 70 mph (110 km/h)):

On  a  steep  descent  or  if  the
driver accelerates sharply, the
speed  limiter,  which  does  not
act  on  the  brakes,  is  not  able

to prevent the vehicle from exceeding
the programmed speed.
In  no  circumstances  does  the  speed
limiter  replace  the  requirement  to  re-
spect speed limits, nor does it replace
the need for vigilance and responsibi-
lity on the part of the driver.
The  driver  must  remain  vigilant  and
stay in complete control of his vehicle.

The operations must be car-
ried out with the engine run-
ning.

Speed limiter function

This prevents the vehicle speed ex-
ceeding the speed programmed by
the driver (minimum speed of 18 mph
(30 km/h)).

DRIVING

101

Exceeding the programmed speed

Additional pressing of the accelera-
tor to exceed the programmed speed
will have no effect unless the pedal is

pressed ﬁ rmly (passing the point of

resistance ).
The limiter is deactivated temporarily
and displays the programmed speed
(e.g. at 70 mph (110 km/h)):

Note:

the speed also ﬂ ashes

when  the  speed  limiter  can-
not  prevent  the  vehicle  from
exceeding  the  programmed

speed  (on  a  steep  descent  or  in  the
event of sharp acceleration).
To  re-activate  the  limiter,  release  the
accelerator  to  slow  down  to  a  speed
below the programmed speed.

Operating check

In the event of a limiter malfunction,
the memorised speed is erased, the

dashes ﬂ ash for a few seconds:

Contact a PEUGEOT dealer to have
the system checked.

To prevent the mat from becom-
ing caught under the pedals:
-

ensure that the mat is po-
sitioned correctly,

- never ﬁ t one mat on top of

another.

DRIVING

102

TYRE UNDER-INFLATION
DETECTION

Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.

Deﬂ ated tyre

Instrument panel display warn-
ing lamp.

This  is  accompanied  by  the  audible
signal  and  the  message  on  the  mul-
tifunction screen identifying the wheel
concerned.
If  this  warning  lamp  comes  on,  have
the tyre pressure checked as soon as
possible.

Puncture

This warning lamp, accompanied by
the audible signal and the message on
the multifunction screen identifying the
wheel concerned, is followed by illumi-
nation of the 'STOP' warning lamp.

Stop as soon as it is safe to do so,
avoiding any sudden movement of the
steering wheel and the brakes.
Change the damaged wheel (punc-

tured or very deﬂ ated tyre), and have

the tyre pressure checked as soon as
possible.

Sensor(s) not detected or faulty

Instrument panel screen warn-
ing lamp.

All repairs and changing of

tyres on a wheel ﬁ tted with this

system must be carried out by
a PEUGEOT dealer.

If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system re-
initialised by a PEUGEOT dealer.

The tyre under-inﬂ ation detection sys-

tem is an aid to driving which does not
replace  the  need  for  the  driver  to  be
vigilant or to drive responsibly.
This  system  does  not  eliminate  the
need  to  have  the  tyre  pressures
checked  regularly  (see  the  label  on
the  door  pillar)  to  ensure  that  the  op-
timum  dynamic  performance  of  the
vehicle is maintained and prevent pre-
mature  wear  of  the  tyres,  particularly
in  arduous  driving  conditions  (heavy
load, high speed).
The  tyre  pressures  must  be  checked
cold,  at  least  once  a  month.  Remem-
ber to check the pressure of the spare
wheel.

The tyre under-inﬂ ation detection sys-

tem may experience temporary interfer-
ence due to electromagnetic emissions
on a frequency close to that used by the
system.

  Note :  this  message  is  also
displayed  when  one  of  the
wheels  is  away  from  the  ve-
hicle (being repaired) or when

one or more wheels without a sensor

are ﬁ tted.

Instrument panel display warn-
ing lamp.

This  is  accompanied  by  the  audible
signal  and  the  message  on  the  mul-
tifunction  screen  which  indicates  that

under-inﬂ ation detection is absent

from one (or several) wheel(s) or that
there is a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).

DRIVING

103

VISUAL AND AUDIBLE
FRONT AND REAR PARKING
SENSORS

To ensure optimum operation,
in  bad  weather  or  in  winter,
ensure  that  the  sensors  are
not covered with mud, frost or
snow.

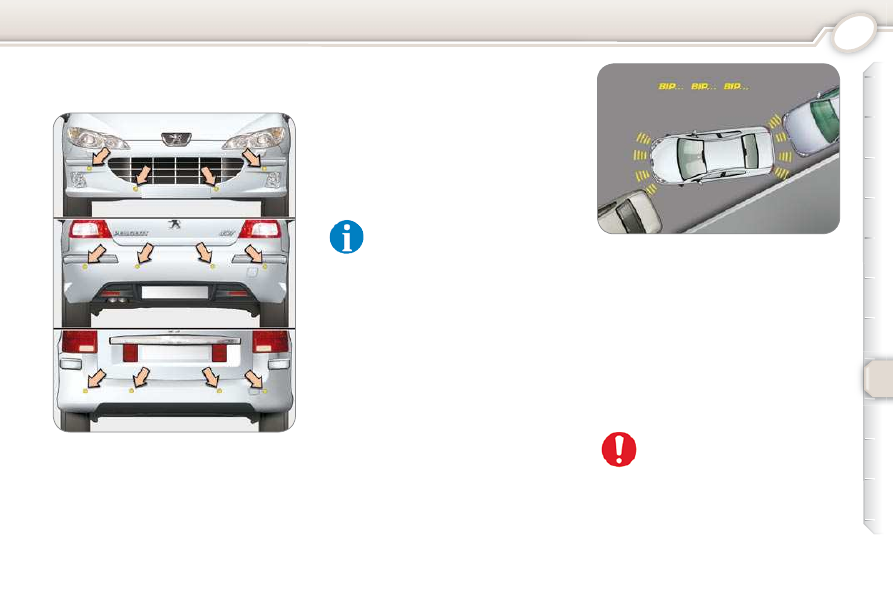

This system consists of proximity
sensors:
-

four in the front bumper,

and
-

four in the rear bumper.

Detection zone

The system is deactivated if
the vehicle is stationary for
more than 3 seconds.

Detection

The system is activated when:
-

reverse gear is engaged,

the speed is below 6 mph (10 km/h)
in forward gear.

It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction screen.

It  detects  any  obstacle  (person,  ve-
hicle, tree, gate, etc.) in front of or be-
hind  the  vehicle.  However,  it  cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other  similar  object  may  be  detected
at the beginning of the manoeuvre but
may  no  longer  be  detected  when  the
vehicle comes close to it.

DRIVING

104

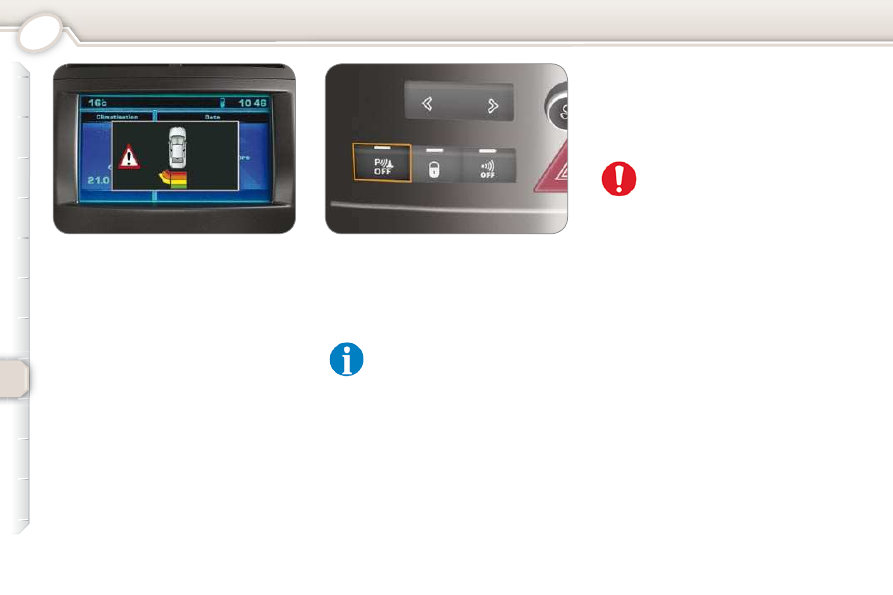

Deactivation

Press button A to deactivate the sys-
tem (child asleep in the rear...). The in-
dicator lamp on the button comes on.

   Note:  this function will be de-
activated  automatically  when
a  trailer  is  being  towed  (vehi-

cle ﬁ tted with a towbar recom-

mended by PEUGEOT).

If  there  is  an  operating  fault,
when  reverse  gear  is  en-
gaged,  the  indicator  lamp

ﬂ ashes, accompanied by an

audible signal and a message on the
multifunction screen.

Reactivation

Press button A again to reactivate the
system. The indicator lamp on the but-
ton is switched off.

The proximity of the obstacle is indi-
cated by:
-

an audible signal which becomes
more rapid as the vehicle ap-
proaches the obstacle,

a graphic on the multifunction
screen, with blocks which become
increasingly close to the vehicle.

The  obstacle  is  located  in  relation  to
the  emission  of  the  audible  signal  by
the speakers; that is, front or rear and
right or left.
When  the  distance  between  the  ve-
hicle  and  the  obstacle  is  less  than
approximately  thirty  centimetres,  the
audible  signal  becomes  continuous
and/or  the  "Danger"  symbol  appears
on the multifunction screen.
The system becomes inactive again:
   -

when you exit reverse gear,

when the speed is above 6 mph
(10 km/h),

at the end of the manoeuvre, when
stationary, after a few seconds
(front parking sensors only).

CHECKS

106

Bonnet stay

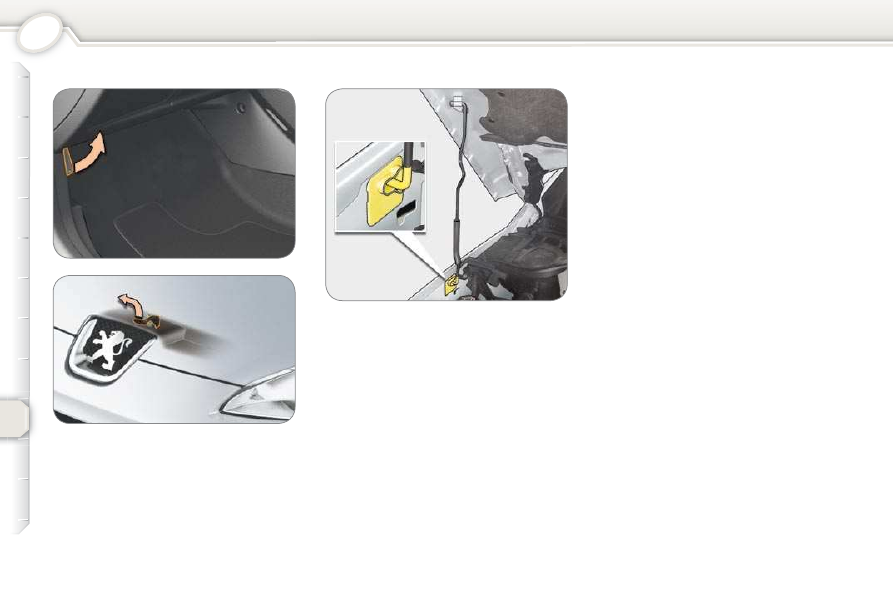

BONNET

Handle the exterior safety catch and
the bonnet stay with care when the en-
gine is hot (risk of burns).

Opening

From inside: pull the release lever on
the left-hand side under the dashboard
towards you.
From outside: move the safety catch to
the left and up then raise the bonnet.

Secure the stay in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
stay in its clip.

Closing

Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is fully closed.

CHECKS

107

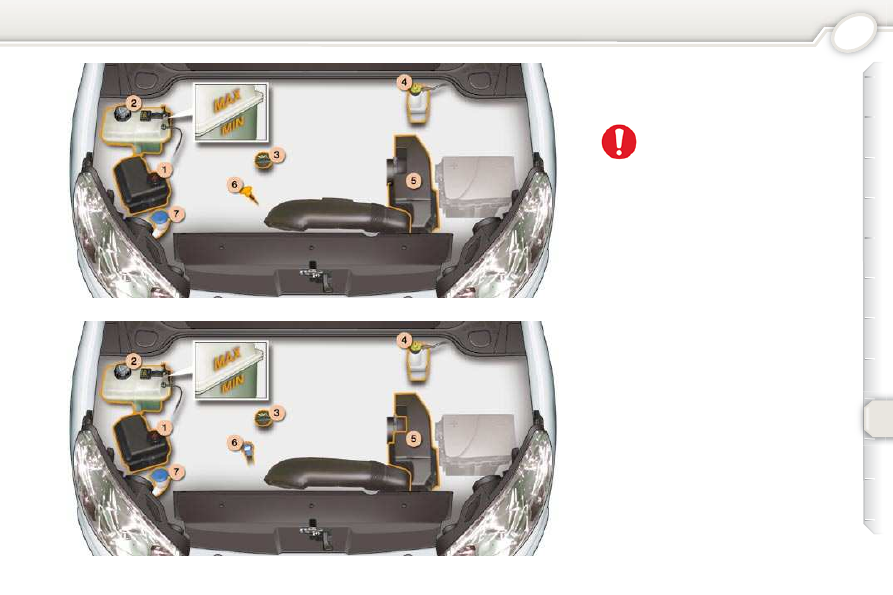

1.8 LITRE 16V, 2 LITRE 16V,
2 LITRE 16V BIOFLEX PETROL
ENGINES

* According to country.

Important: if you have to re-

move or reﬁ t the engine style

cover, handle it with care to

avoid damaging the ﬁ xing clips.

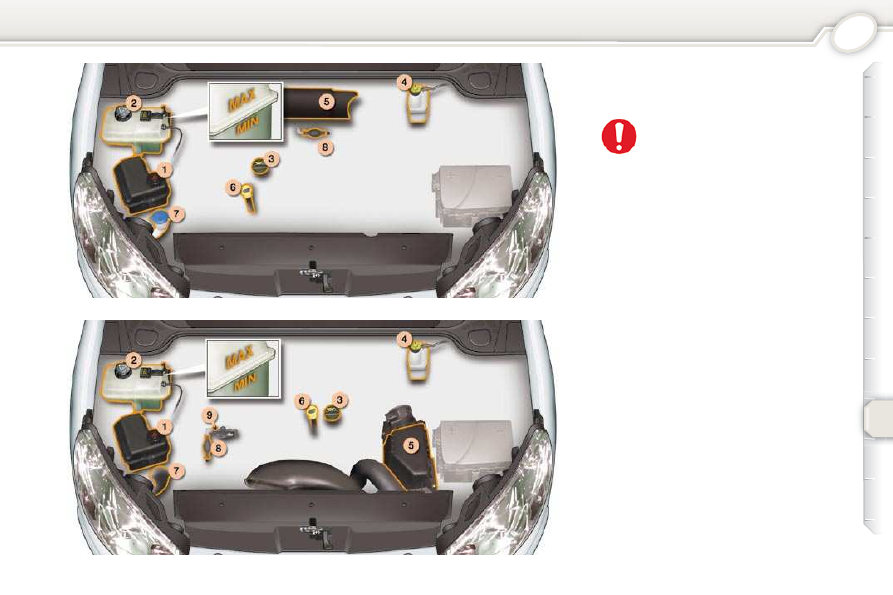

Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir

(header tank).

Engine oil ﬁ ller cap.

Brake ﬂ uid reservoir.

Air ﬁ lter.

6. Engine oil dipstick.

7. Screenwash and headlamp * wash

reservoir ﬁ ller cap.

CHECKS

108

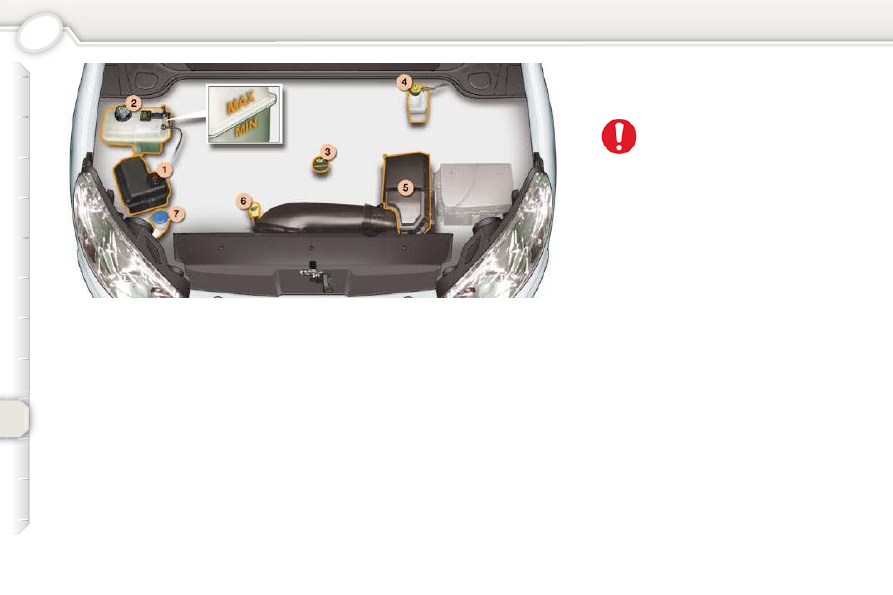

2.2 LITRE 16V AND 3 LITRE V6
24V PETROL ENGINES

* According to country.

Important: if you have to re-

move or reﬁ t the engine style

cover, handle it with care to

avoid damaging the ﬁ xing clips.

Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir

(header tank).

Engine oil ﬁ ller cap.

Brake ﬂ uid reservoir.

Air ﬁ lter.

6. Engine oil dipstick.

7. Screenwash and headlamp * wash

reservoir ﬁ ller cap.

CHECKS

109

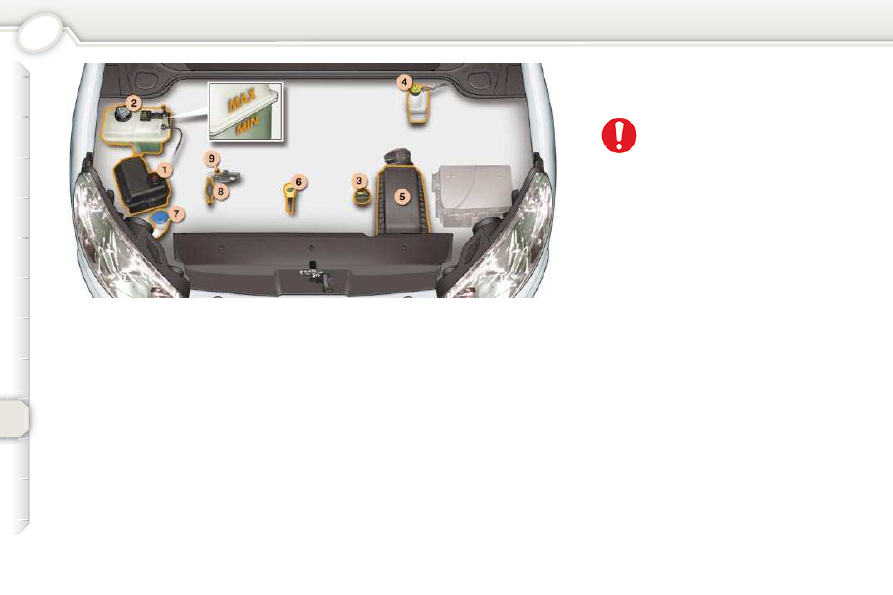

1.6 LITRE HDI 16V AND
2 LITRE HDI 16V DIESEL
ENGINES

* According to country.

Important : if you have to re-

move/reﬁ t the engine style co-

ver, handle it with care to avoid

damaging the ﬁ xing clips.

Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir

(header tank).

Engine oil ﬁ ller cap.

Brake ﬂ uid reservoir.

Air ﬁ lter.

6. Engine oil dipstick.

7. Screenwash and headlamp wash *

reservoir ﬁ ller cap.

8. Priming pump.

9. Bleed screw.

CHECKS

110

2.2 LITRE HDI 16V DIESEL
ENGINES

* According to country.

Important: if you have to re-

move/reﬁ t the engine style co-

ver, handle it with care to avoid

damaging the ﬁ xing clips.

Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir

(header tank).

Engine oil ﬁ ller cap.

Brake ﬂ uid reservoir.

Air ﬁ lter.

6. Engine ol dipstick.

7. Screenwash and headlamp wash *

reservoir ﬁ ller cap.

8. Priming pump.

9. Bleed screw.

CHECKS

111

CHECKING THE LEVELS

These are normal maintenance opera-
tions which keep your vehicle in good
working order. Obtan advice from the
PEUGEOT dealer network or from the
Warranty and Maintenance Record
provided with the vehicle.

If you have to remove/reﬁ t the engine

style cover, handle it with care to avoid

damaging the ﬁ xing clips.

Dipstick

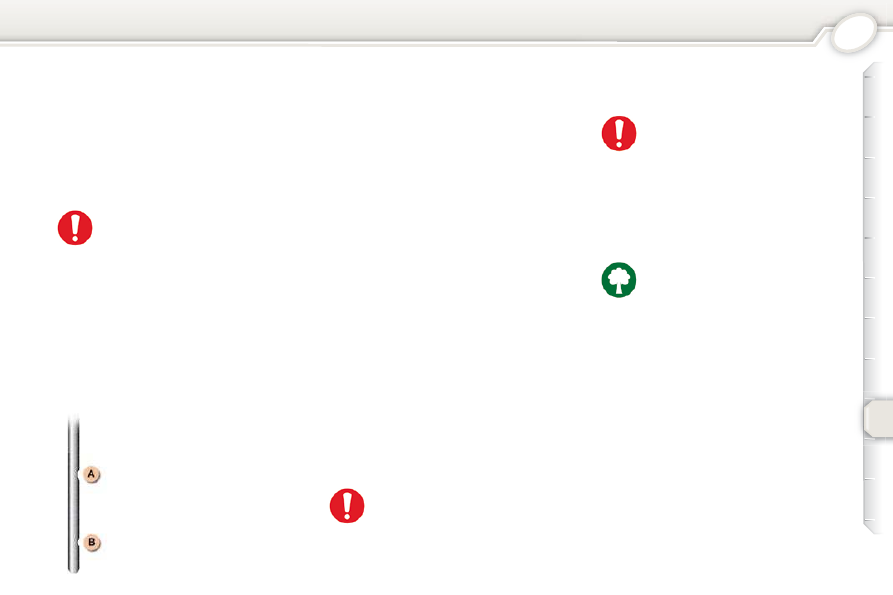

There are two marks on
the dipstick:
A = maximum

Never ﬁ ll past this mark.
  B  = minimum
To  maintain  the  reliability
of  engines  and  emission
control  systems,  the  use
of additives in engine oil is
prohibited.

Oil level

 Check the level regularly and top

up between changes.

Check the level with the vehicle level,
the engine having been off for more
than 15 minutes, using the dipstick.

Oil change

It is essential that this is carried out at

the intervals speciﬁ ed and the viscosity

of the oil chosen must meet the require-
ments laid down in the manufacturer's
servicing schedule. Ask for advice from
the PEUGEOT dealer network.
  Note :  avoid  used  oil  coming  into  pro-
longed  contact  with  the  skin.  Empty
the used oil into the containers provid-
ed  for  this  purpose  in  the  PEUGEOT
dealer  network  (France)  or  take  it  to
an approved recycling centre.

system is pressurised, wait for at least
one hour after the engine has stopped
before carrying out any work.

Oil filter

Replace the ﬁ lter regularly in accor-

dance with the recommendations of
the servicing schedule.

Brake fluid change

Use the ﬂ uid recommended by the

manufacturer, which fulﬁ ls the DOT4

standard.

It is essential that the brake ﬂ uid is

changed at the intervals speciﬁ ed in

the manufacturer's servicing schedule.
Note : avoid all contact with the skin;

the brake ﬂ uid is harmful to health and

is very corrosive.

Used oil

Power steering reservoir

Use the ﬂ uid recommended by the

manufacturer.
 Open the reservoir, with the engine

at  ambient  temperature. The  level
should  always  be  above  the  MIN.
mark and close to the MAX. mark.

Cooling system

Screenwash and headlamp
wash level

To ensure optimum cleaning and avoid

freezing, this ﬂ uid should not be topped

up or replaced with plain water.

Slacken the cap by two turns
to release the pressure to pre-
vent any risk of scalding. When
the pressure has dropped, re-

move the cap and top up the level.
Note : the coolant does not need to be
changed.

Use the ﬂ uid recommended

by the manufacturer.
When the engine is warm, the
temperature of the coolant is

controlled  by  the  engine  fan.  As  this
fan  can  operate  with  the  ignition  key
removed  and  because  the  cooling

Do not dispose of used oil,

brake ﬂ uid or coolant into

drains or onto the ground.

Take care when working un-
der the bonnet, as some parts
of the engine can be very hot
(risk of burns).

CHECKS

112

CHECKS

At  the  start  of  winter,  have
your  battery  checked  by  a
PEUGEOT dealer.

Have the ﬁ lter elements

replaced regularly. If you
drive in dusty conditions,
change them twice as often.

Air filter and passenger compartment filter

Particle emission filter (Diesel)

It is essential that the particle emission

ﬁ lter is maintained in accordance with

the manufacturer's servicing schedule,
by a PEUGEOT dealer.
  Note :  following  prolonged  operation
of the vehicle at very low speed or at
idle,  you  may,  in  exceptional  circum-
stances, notice emissions of water va-
pour  at  the  exhaust  on  acceleration.
This  does  not  have  any  effect  on  the
performance  of  the  vehicle  or  the  en-
vironment.

On vehicles which are ﬁ tted with a par-

ticle emission ﬁ lter, the cooling fan may

operate after the vehicle has stopped,
even when the engine is cold.

Where the parking brake trav-
el is too great or there is a re-
duction in the performance of
the system, the parking brake
should be adjusted.

Have the system checked by a PEUGEOT
dealer.

Parking brake

Disc wear status

For any information relating to check-
ing disc wear, contact a PEUGEOT
dealer.

FUEL SUPPLY CUT-OFF
(PETROL) *

As a safety precaution, in certain cir-
cumstances the fuel supply to the en-
gine is cut off.
To re-establish the fuel supply:

RUNNING OUT OF FUEL
(DIESEL)

If you should run out of fuel, it is ne-
cessary to prime the fuel system.
The priming pump and the bleed screw
are located under the bonnet (see cor-
responding illustration in the technical
information section):

1.6 litre 16V HDI engine

- ﬁ ll the fuel tank with at least ﬁ ve li-

tres of diesel,

squeeze and release the manual
priming pump until fuel appears in
the transparent pipe,

operate the starter until the engine
starts.

2 litre 16V HDI engine

- ﬁ ll the fuel tank with at least ﬁ ve li-

tres of diesel,

unscrew the bleed screw,

squeeze and release the manual
priming pump until diesel is seen
escaping via the bleed screw,

retighten the bleed screw,

operate the starter until the engine
starts.

Brake pad wear depends on
the style of driving, in particu-
lar for vehicles which are used
in town, over short distances.

Brake pads

It may be necessary to check
the brake pads for wear, even
between services.

* According to version.

To  ensure  the  best  perfor-
mance  from  components  as
important as the power steer-
ing  and  the  braking  system,

the manufacturer selects and offers

speciﬁ c products, only use products

recommended by PEUGEOT.

Battery

To prevent damage to the electrical
units, high pressure washing of the en-
gine compartment is strictly prohibited .

 press the red button on the angle

of the front right-hand suspension
housing, under the bonnet.

PRACTICAL INFORMATION

113

CHANGING A WHEEL

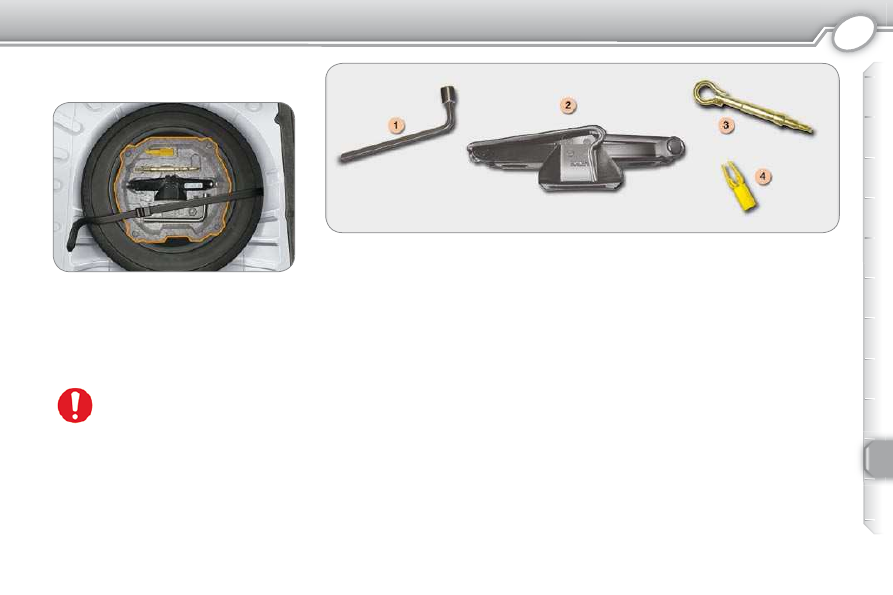

Tools available

The  following  tools  are  located  in
the  holder  in  the  centre  of  the  spare
wheel:
   1.   Wheelbrace.

For removal of the wheel trim and
removal of the wheel securing
bolts.

2. Jack with integral handle.

For raising the vehicle.

3. Removable towing eye.

See corresponding section.

4. Bolt cover tool.

For removal of the bolt protectors
(covers) on alloy wheels.

Removal

 For vehicles with steel wheels, de-

tach the trim using the wheelbrace 1
pulling at the valve passage hole.

 For vehicles with alloy wheels, re-

move the covers using tool 4 .

     Loosen the wheel bolts.
     Take the jack from the tool kit.
     Place the jack  2  in one of the four

locations underneath the vehicle
(the nearest one to the wheel to be
changed).

 Extend the jack 2 until its base is in

contact with the ground.

 Unscrew the bolts and remove the

wheel.

Access to the spare wheel and
the jack in the boot



Lift the ﬂ oor using the grip. Secure

the grip behind the boot seal.

Never  go  underneath  a  ve-
hicle  which  is  supported  only
by a jack.

 Park the vehicle on level, stable

and non-slippery ground.

 Apply the parking brake, switch off

the ignition and engage ﬁ rst or re-

verse gear (position P for the auto-
matic gearbox).

Content .. 6 7 8 9 ..
