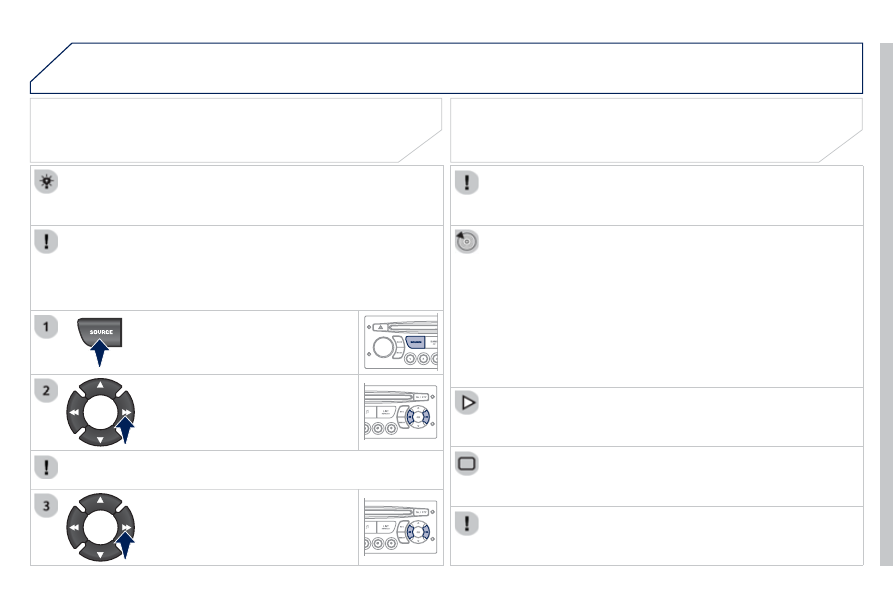

 The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music fi les on a single disc.

 In order to be able to play a recorded CDR or CDRW, when

recording, the ISO 9660 level 1.2 or Joliet fi le format is

recommended.
 If the disc is recorded in another format, it may not be played

correctly.
 It is recommended that the same recording format is always

used for an individual disc, with as low a speed as possible

(4x maximum) for optimum sound quality.
 In the particular case of a multi-session CD, the Joliet format is

recommended.

 The audio system will only play fi les with the extension ".mp3" with

a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le

(.wma, .mp4, .m3u...) can be played.

 It is advisable to restrict fi le names to 20 characters without using

special characters (e.g. " ? ; ù) to avoid any playing or displaying

problems.

             MP3 CD

INFORMATION AND ADVICE

 AUDIO

 Empty CDs are not recognised and may damage the system.

  Insert an MP3 compilation in the player.
 The audio equipment searches for all of the music tracks, which

may take anything between a few seconds and several tens of

seconds, before play begins.

          MP3 CD
 PLAYING AN MP3 COMPILATION

  On a single disc, the CD player can read up to 255 MP3 fi les

spread over 8 folder levels. However, it is advisable to keep to

a limit of two levels to reduce the access time before the CD is

played.
 While the CD is being played, the folder structure is not followed.
All of the fi les are displayed on a single level.

  To play a disc which has already

been inserted, press the SOURCE

button several times in succession

and select CD.

Press one of the buttons to select a

track on the CD.

  Press the LIST REFRESH button to display the list of directories of

the MP3 compilation.

  Press and hold one of the buttons for

fast forward or backward play.

352

05

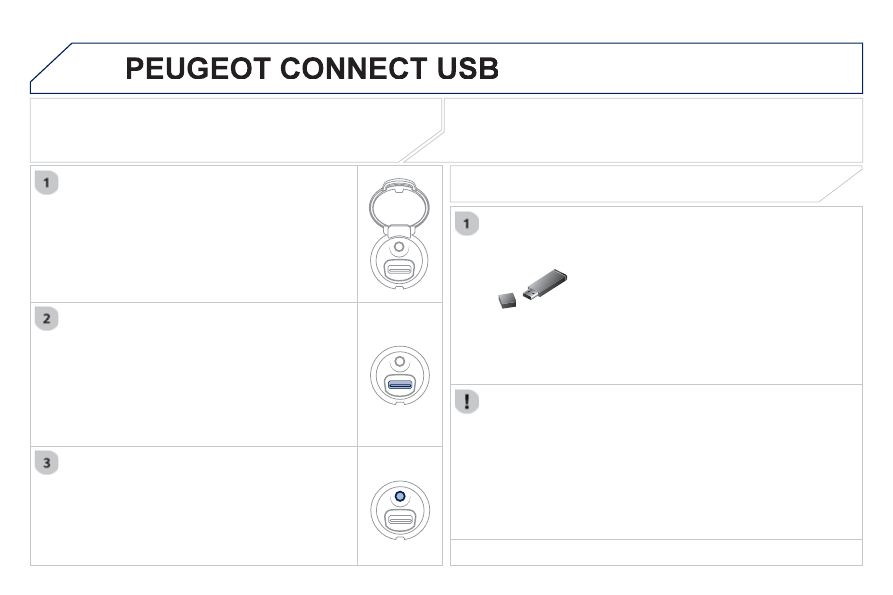

  The system puts together playlists (temporary memory) created

over a period which depends on the capacity of the USB device.
 The other sources are available during this time.
 The playlists are updated each time the ignition is switched off or

each time a USB memory stick is connected.
 When connecting for the fi rst time, the classifi cation suggested

is by folder. When you reconnect, the classifi cation selected

previously is retained.

 Connect the memory stick to the port, directly or

using a lead. If the audio equipment is switched

on, the USB source is detected as soon as it

is connected. Play begins automatically after a

delay which depends on the capacity of the USB

memory stick.
 The fi le formats supported are .mp3 (mpeg1

layer 3 only), .wma (standard 9 only, 128 kbits/sec

compression), .wav and .ogg.
 Certain playlist formats are supported (.m3u, ...).
 On reconnection of the previous memory stick

used, play is resumed automatically with the last

track played.

  This unit consists of a USB port and an auxiliary

Jack socket * . The audio fi les are transmitted

from a portable device - digital player or a USB

memory stick - to your Peugeot Connect Sound

(RD5) and heard via the vehicle's speakers.

  USB memory stick (1.1, 1.2 and 2.0) or Apple

®

player of generation 5 or later:
   -

USB memory sticks should be formatted

FAT or FAT 32 (NTFS not supported),

  -  the

Apple

®

player lead is essential,

  -  navigation through the fi le database is also

possible by means of the steering mounted

controls.

The list of compatible equipment and the compression rates supported

are available from PEUGEOT dealers.

                      USING THE PEUGEOT CONNECT USB

 CONNECTING A USB MEMORY STICK

  Other Apple

®

  players of earlier generations and

®

players using the MTP protocol * :
   -  play via Jack-Jack lead only (not supplied),
  -  navigation through the fi le database is from

the portable device.

 *   According to vehicle.

353

05

  USING THE PEUGEOT CONNECT USB

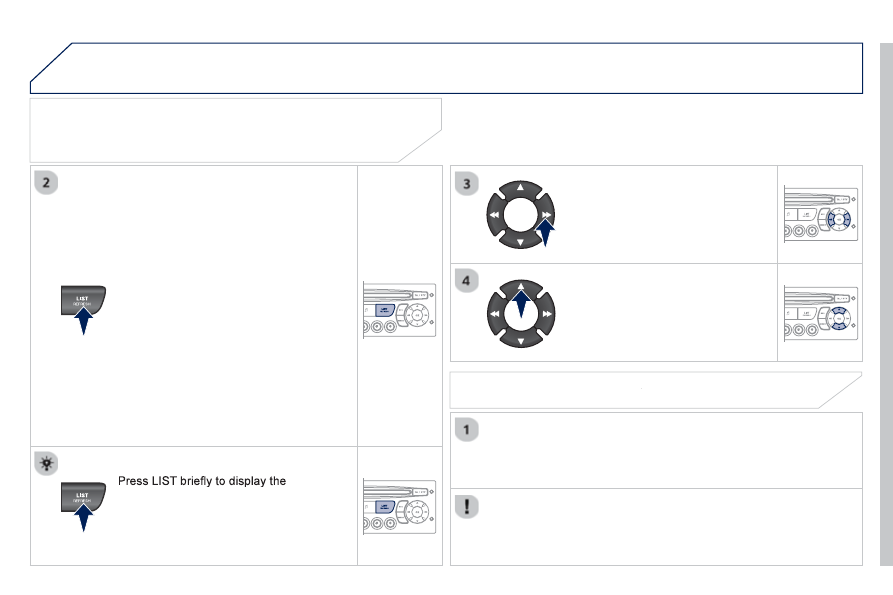

previously selected classifi cation.
 Navigate through the list using the left/

right and up/down buttons.
 Confi rm the selection by pressing OK.

 The lists available are Artist, Genre and Playlist (as defi ned in the

Apple

®

player).

 Selection and Navigation are described in steps 1 to 4 above.

  Do not connect a hard disk or USB connection device other

than audio equipment to the USB port. This could damage your

installation.

  CONNECTING AN APPLE

®

PLAYER VIA THE USB PORT

®

  Press one of these buttons to gain

access to the previous / next track on

the classifi cation list currently being

played.
 Press and hold one of the buttons for

fast forward or backward play.

  Press one of these buttons to

gain access to the previous / next

Genre, Folder, Artist or Playlist on

the classifi cation list currently being

played.

  Press and hold LIST to display the

different classifi cations.
 Select by Folder / Artist / Genre / Playlist,

press OK to select the classifi cation

required, then press OK again to confi rm.

   -

by Folder: all folders containing audio

fi les recognised on the peripheral

device.

  -

by Artist: all of the artist names

defi ned in the ID3 Tags, classifi ed in

alphabetical order.

  -

by Genre: all of the genres defi ned in

the ID3 Tags.

  -

by Playlist: in accordance with the

playlists recorded on the USB device.

PEUGEOT CONNECT USB

354

05

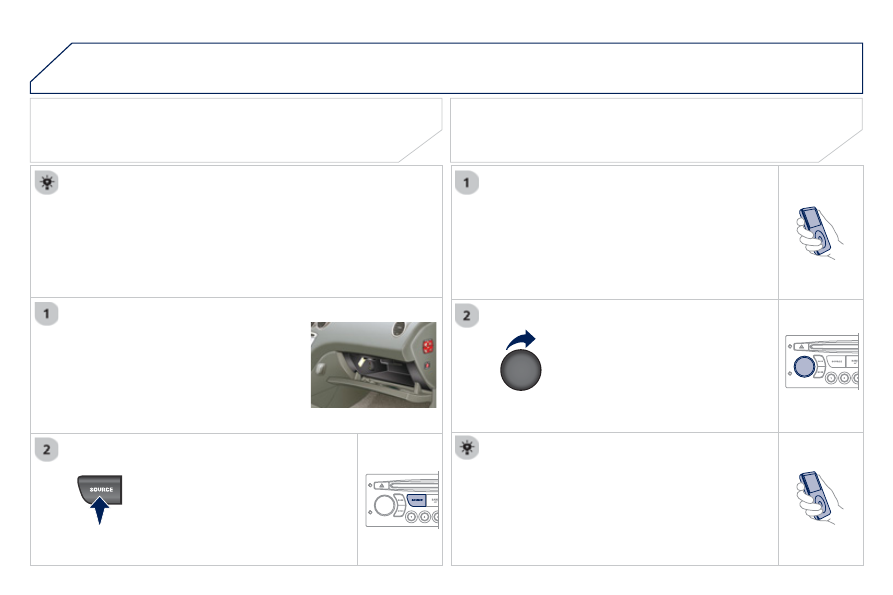

 The display and control is via the portable device.

First adjust the volume of your portable device.

 Then adjust the volume of your audio

system.

             USING THE AUXILIARY SOCKET (AUX)

  ADJUSTING THE VOLUME OF THE

AUXILIARY SOURCE

  RCA SOCKET

  Connect the portable device

(MP3 player…) to the audio sockets (white

and red, RCA type) using a suitable cable

(not supplied).

  Press the SOURCE button several

times in succession and select AUX.

  The RCA auxiliary socket permits the connection of a portable device

(MP3 player...).

PEUGEOT CONNECT USB

355

06 BLUETOOTH

  For safety reasons and because they require prolonged attention

on the part of the driver, the operations for pairing of the Bluetooth

mobile telephone with the Bluetooth hands-free system of your

audio equipment must be carried out with the vehicle stationary

and the ignition on.

Press the MENU button.

  A window is displayed with a message that a search is in progress.

  Activate the telephone's Bluetooth function

and ensure that it is "visible to all" (telephone

confi guration).

In the menu, select:
-  Bluetooth

telephone

function -

Audio

-  Bluetooth

confi guration

-

Perform a Bluetooth search

The services offered depend on the network, the SIM card and the

compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which

services are available to you.

          BLUETOOTH TELEPHONE

SCREEN C

  The TELEPHONE menu permits access to the following functions

in particular: Directory * , Call list, Pairing management.

  The fi rst 4 telephones recognised are displayed in this window.

  A virtual keypad is displayed in the

screen: enter a code with at least 4 digits.
 Confi rm by pressing OK.

  A message that the pairing has been successful appears in the

screen.

  Select the telephone to be connected from the list. Only one

telephone can be connected at a time.

  A message is displayed in the screen of the

telephone chosen. To accept the pairing, enter the

same code on the telephone, then confi rm with OK.

  The automatic connection authorised is only active after the

telephone has been confi gured.
 The directory and the call list can be accessed after the

synchronisation period.

(Available according to model and version)

  *   If your telephone is fully compatible.

 If pairing fails, the number of attempts is not limited.

 Go to www.peugeot.co.uk for more information (compatibility, more

help, ...).

  PAIRING A TELEPHONE / FIRST CONNECTION

356

06

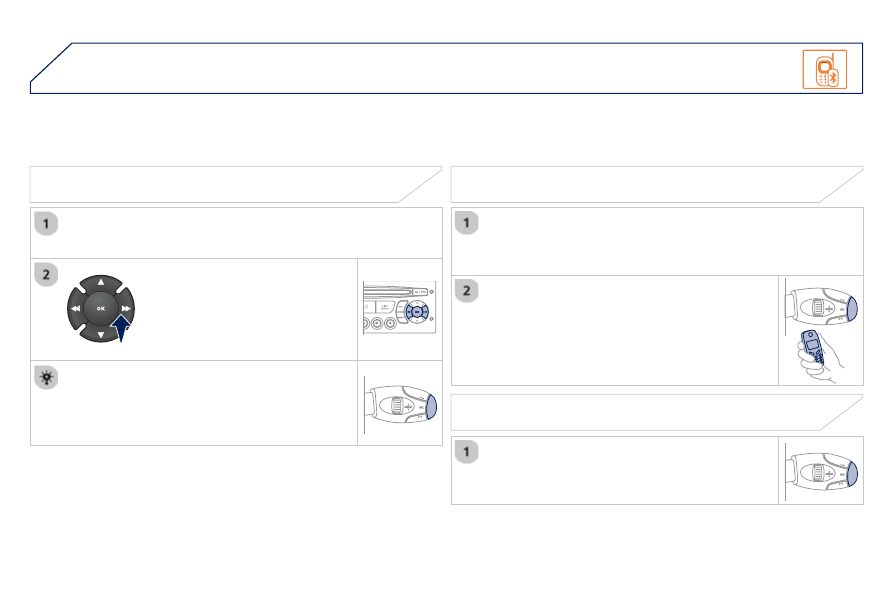

  RECEIVING A CALL

  An incoming call is announced by a ring and a superimposed

display in the vehicle's screen.

  Select the YES tab on the display

using the buttons and confi rm by

pressing OK.

  Press the steering mounted control to accept the

call.

  MAKING A CALL

  From the Bluetooth telephone function Audio menu, select Manage

the telephone call then Call, Call list or Directory.

  Press the steering mounted control for more than

two seconds for access to your directory, then

navigate with the thumb wheel.
 Or
 To dial a number, use your telephone's keypad,

with the vehicle stationary.

  During a call, press the steering mounted control

for more than 2 seconds.
 Confi rm with OK to end the call.

 BLUETOOTH

  ENDING A CALL

357

06

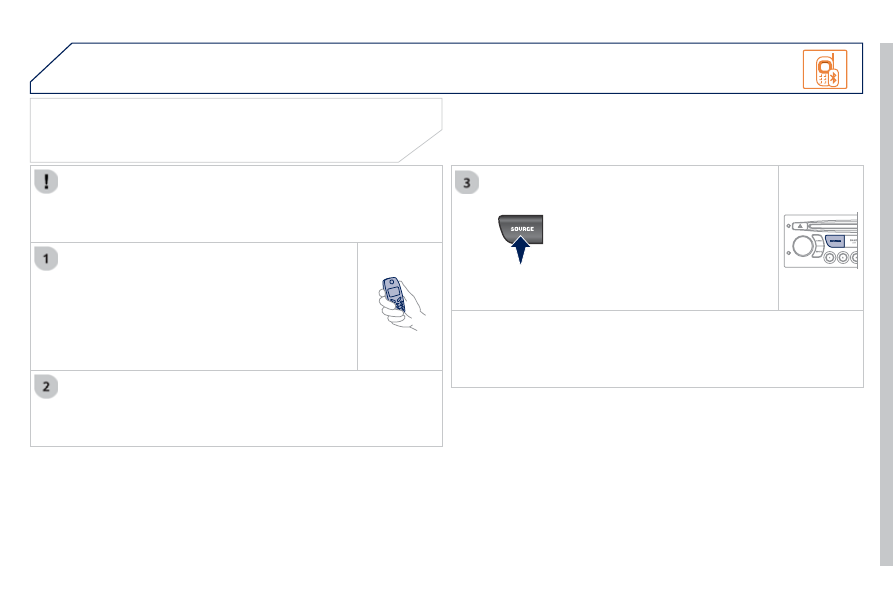

  Initiate the pairing between the telephone and

the vehicle. This pairing can be initiated from

the vehicle's telephone function menu or via the

telephone's keypad. See steps 1 to 9 on the previous

pages. During the pairing phase, the vehicle must be

stationary with the key in the ignition.

Select the telephone to be connected from the telephone function

menu.
The audio system connects to a newly paired telephone

automatically.

       BLUETOOTH AUDIO STREAMING *

  Wireless transmission of the telephone's music fi les via the audio

equipment. The telephone must be able to manage the appropriate

Bluetooth profi les (Profi les A2DP / AVRCP).

*   Depending on the compatibility of the telephone.
**    In certain cases, playing of the Audio fi les must be initiated from the

keypad.

***   If the telephone supports the function.

  Activate the streaming source by

pressing the SOURCE button ** .

The tracks to be played can be

controlled as usual via the buttons on

the audio system control panel and

the steering mounted controls *** .

The contextual information can be

displayed on the screen.

 BLUETOOTH

358

07  SCREEN MENU MAP

  RADIO-CD

  MAIN FUNCTION

  *   The parameters vary according to vehicle.

  OPTION A

  OPTION B...

MONOCHROME A

OPTION A1

OPTION A2

  REG MODE

  CD REPEAT

  RANDOM PLAY

  VEHICLE CONFIG *

  REV WIPE ACT

  OPTIONS

  GUIDE LAMPS

DIAGNOSTICS

  RDS SEARCH

CONSULT

ABANDON

1

2

3

3

1

2

2

2

2

1

2

3

2

3

1

2

2

359

07

  UNITS

FUEL CONSUMPTION:

KM/L - L/100 - MPG

1

2

2

 SCREEN MENU MAP

  DISPLAY ADJUST

  MONTH

  DATE

  HOUR

  MINUTES

YEAR

  12 H/24 H MODE

  LANGUAGE

  ITALIANO

  NEDERLANDS

  PORTUGUES

  PORTUGUES-BRASIL

  FRANCAIS

  DEUTSCH

  ENGLISH

  ESPANOL

1

2

2

2

2

2

2

1

2

2

2

2

2

2

2

2

360

07 SCREEN MENU MAP

Press the OK dial for access to short-cut menus according to the display

on the screen:

MONOCHROME C

activate / deactivate RDS

activate / deactivate REG mode

activate / deactivate radiotext

  RADIO

activate / deactivate Intro

  CD / MP3 CD

activate / deactivate track repeat

(the entire current CD for CD, the entire

current folder for MP3 CD)

activate / deactivate random play

(the entire current CD for CD, the entire

current folder for MP3 CD)

activate / deactivate track repeat (of the

current folder / artist / genre / playlist)

  USB

activate / deactivate random play (of the

current folder / artist / genre / playlist)

1

1

1

1

1

1

1

1

361

07

 MONOCHROME C

 SCREEN MENU MAP

  AUDIO FUNCTIONS

alternative frequencies (RDS)

activate / deactivate

  FM BAND PREFERENCES

regional mode (REG)

activate / deactivate

radio-text information (RDTXT)

activate / deactivate

1

2

3

4

3

4

3

4

PLAY MODES

album repeat (RPT)

 activate / deactivate

track random play (RDM)

 activate / deactivate

2

3

4

3

4

  VEHICLE DIAGNOSTICS

ALERT LOG

1

2

Pressing the MENU button displays:

*   The parameters vary according to vehicle.

video brightness adjustment

  DISPLAY CONFIGURATION

  DEFINE THE VEHICLE PARAMETERS *

  PERSONALISATION-CONFIGURATION

 normal video

 inverse video

 brightness (- +) adjustment

date and time adjustment

 day/month/year adjustment

 hour/minute adjustment

 choice of 12 h / 24 h mode

choice of units

 l/100 km - mpg - km/l

 °Celsius / °Fahrenheit

  CHOICE OF LANGUAGE

1

2

4

3

2

4

4

3

4

4

2

3

4

4

4

362

07 SCREEN MENU MAP

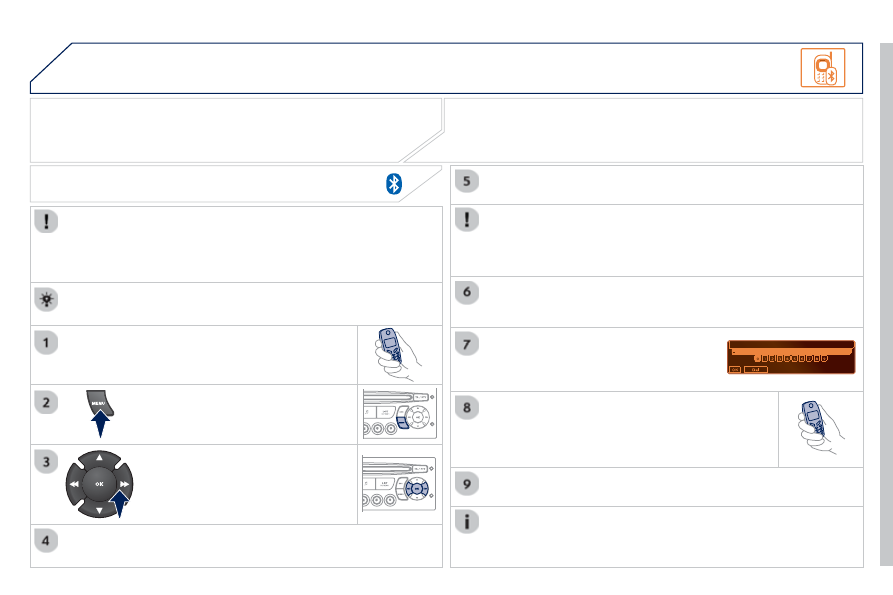

  BLUETOOTH TELEPHONE

Connect/Disconnect a device

 Consult the paired device

Bluetooth confi guration

Telephone function

Audio Streaming function

 Delete a paired device

 Perform a Bluetooth search

Calls list

Call

 Directory

Terminate the current call

Manage the telephone call

Activate private mode

1

2

3

3

3

4

4

4

2

3

4

2

3

3

363

 FREQUENTLY ASKED QUESTIONS

QUESTION

ANSWER

SOLUTION

 There is a difference in

sound quality between

the different audio

sources (radio, CD...).

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio,

CD...).

 Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to

the sources listened to. It is advisable to set

the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle

position, select the musical ambience "None" and

set the loudness correction to the "Active" position

in CD mode or to the "Inactive" position in radio

mode.

 The CD is ejected

automatically or is not

played by the player.

The CD is inserted upside down, is unplayable, does not contain any

audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

  -

Check that the CD is inserted in the player the

right way up.

  -

Check the condition of the CD: the CD cannot

be played if it is too damaged.

  -

Check the content in the case of a recorded

CD: consult the advice in the "Audio" section.

  -

The audio equipment's CD player does not

play DVDs.

  -

Due to their quality level, certain writeable

CDs will not be played by the audio system.

 The message "USB

peripheral error" is

displayed on the screen.
 The Bluetooth connection

is cut.

The battery of the peripheral may not be suffi ciently charged.

 Recharge the battery of the peripheral device.

The USB memory stick is not recognised.
The memory stick may be corrupt.

 Reformat the memory stick.

 The CD player sound is

poor.

The CD used is scratched or of poor quality.

 Insert good quality CDs and store them in suitable

conditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

 Set the treble or bass level to 0, without selecting

an ambience.

364

QUESTION

ANSWER

SOLUTION

 The stored stations do

not function (no sound,

87.5 Mhz is displayed...).

 An incorrect waveband is selected.

 Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the

stations are stored.

 The traffi c announcement

(TA) is displayed. I do

not receive any traffi c

information.

The radio station is not part of the regional traffi c information network.

 Tune to a radio station which broadcasts traffi c

information.

 The quality of reception

of the radio station

listened to gradually

deteriorates or the stored

stations do not function

(no sound, 87.5 Mhz is

displayed...).

The vehicle is too far from the transmitter used by the station listened

to or there is no transmitter in the geographical area through which the

vehicle is travelling.

 Activate the RDS function to enable the system

to check whether there is a more powerful

transmitter in the geographical area.

The environment (hills, buildings, tunnels, basement car parks...) block

reception, including in RDS mode.

 This phenomenon is normal and does not indicate

a failure of the audio equipment.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

 Have the aerial checked by a PEUGEOT dealer.

 Sound cut-outs of 1 to

2 seconds in radio mode.

During this brief sound cut-out, the RDS searches for any frequency

permitting better reception of the station.

 Deactivate the RDS function if the phenomenon is

too frequent and always on the same route.

 With the engine off,

the audio equipment

switches off after a few

minutes of use.

When the engine is switched off, the audio equipment operating time

depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode

and switches off to prevent discharging of the vehicle's battery.

 Start the vehicle's engine to increase the battery

charge.

 The message "the audio

system is overheated"

appears on the display.

In order to protect the installation if the surrounding temperature is too

high, the audio equipment switches to an automatic thermal protection

mode leading to a reduction of the volume or stopping of the playing of

the CD.

 Switch the audio system off for a few minutes to

allow the system to cool.

365

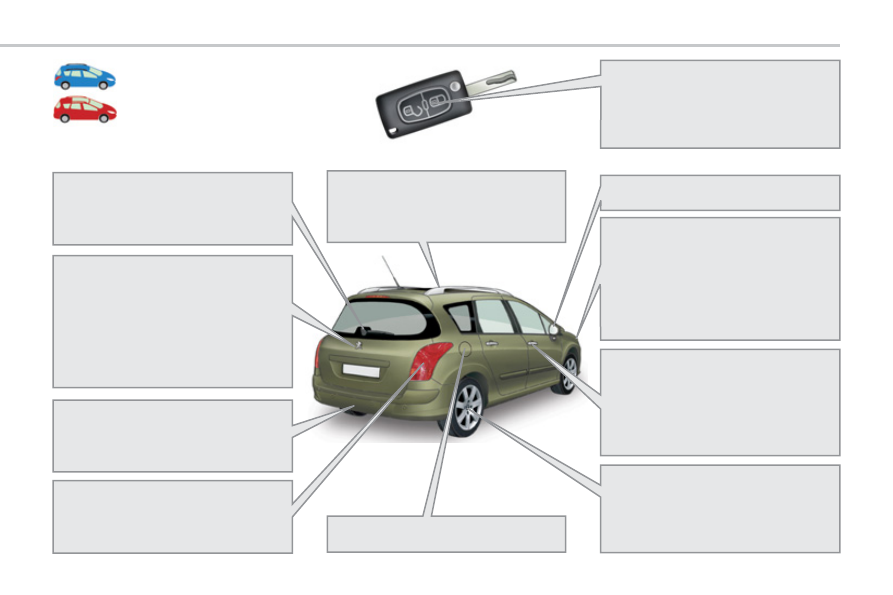

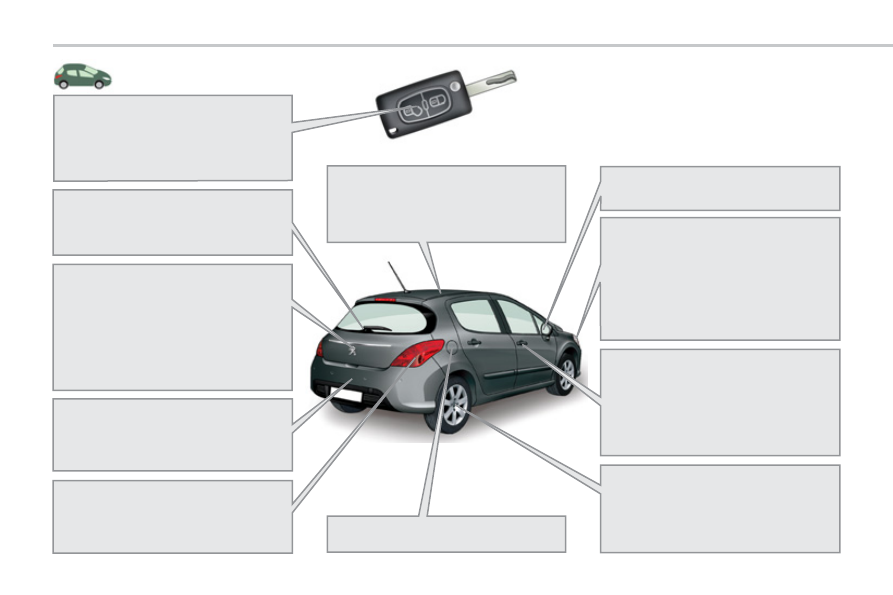

VISUAL SEARCH

EXTERIOR

  Boot .............................................. 92,  94
   -   opening / closing
  -  emergency

release



 Temporary puncture repair kit ....178-183

 Changing a wheel ..................... 187, 192
   -  tools
  -   removing / refi tting

  Wiper controls............................105-107

 Changing a wiper blade .................... 211

  Changing bulbs..........................197-198
   -  rear

lamps

  -   3rd brake lamp
  -   number plate lamps

  Parking sensors .........................167-168

 Towbar .......................................214-215

 Towing ....................................... 211-212

  Remote control key........................83-86
   -   opening / closing
  -  anti-theft

protection

  -  starting
  -  battery



  Accessories ...............................217-218

 Roof bars .......................................... 216

 Panoramic sunroof ............................. 95

  Fuel tank, misfuel prevention.........96-98

  Door mirrors ...................................80-81

  Doors .............................................91-93
   -   opening / closing
  -  central

locking

  -  emergency

control



 Alarm .............................................87-88

 Electric windows ............................89-90

  Lighting controls ..........................99-103

 Directional lighting ............................ 104

 Headlamp height adjustment .....103-104

 Changing bulbs..........................194-196
   -  front

lamps

  -  foglamps
  -   direction indicator repeaters

  Braking assistance ........................... 139

 Trajectory control .............................. 140

 Tyre under-infl ation detection ........... 138

 Tyre pressures .......................... 183, 241

366

VISUAL SEARCH

EXTERIOR

  Boot .............................................. 92,  94
   -   opening / closing
  -  emergency

release



 Temporary puncture repair kit ....178-186

 Changing a wheel ..................... 189, 192
   -  tools
  -   removing / refi tting

  Wiper controls............................105-107

 Changing a wiper blade .................... 211

  Changing bulbs..........................199-200
   -  rear

lamps

  -   3rd brake lamp
  -   number plate lamps

  Parking sensors .........................167-168

 Towbar .......................................214-215

 Towing .......................................213-214

  Remote control key........................83-86
   -   opening / closing
  -  anti-theft

protection

  -  starting
  -  battery



  Accessories ...............................217-218

 Roof bars .......................................... 216

 Panoramic sunroof ............................. 95

  Fuel tank, misfuel prevention.........96-98

  Door mirrors ...................................80-81

  Doors .............................................91-93
   -   opening / closing
  -  central

locking

  -  emergency

control



 Alarm .............................................87-88

 Electric windows ............................89-90

  Lighting controls ..........................99-103

 Directional lighting ............................ 104

 Headlamp height adjustment .....103-104

 Changing bulbs..........................194-196
   -  front

lamps

  -  foglamps
  -   direction indicator repeaters

  Braking assistance ........................... 139

 Trajectory control .............................. 140

 Tyre under-infl ation detection ........... 138

 Tyre pressures .......................... 183, 241
