Peugeot 308 CC Dag (2010.5). Manual

159

PRACTICAL INFORMATION

In all cases, keep a check on the cool-

ant temperature.

Braking
Towing a trailer increases the braking

distance.

Tyres



Check the tyre pressures of the

towing vehicle and of the trailer,

observing the recommended pres-

sures.

Lighting



Check the electrical lighting and sig-

nalling on the trailer.

The rear parking sensors will be de-

activated automatically if a genuine

PEUGEOT towbar is used.



If the warning lamp and the

STOP

warning lamp come

on, stop the vehicle and

switch off the engine as

soon as possible.

The maximum towed load on a long in-

cline depends on the gradient and the

ambient temperature.

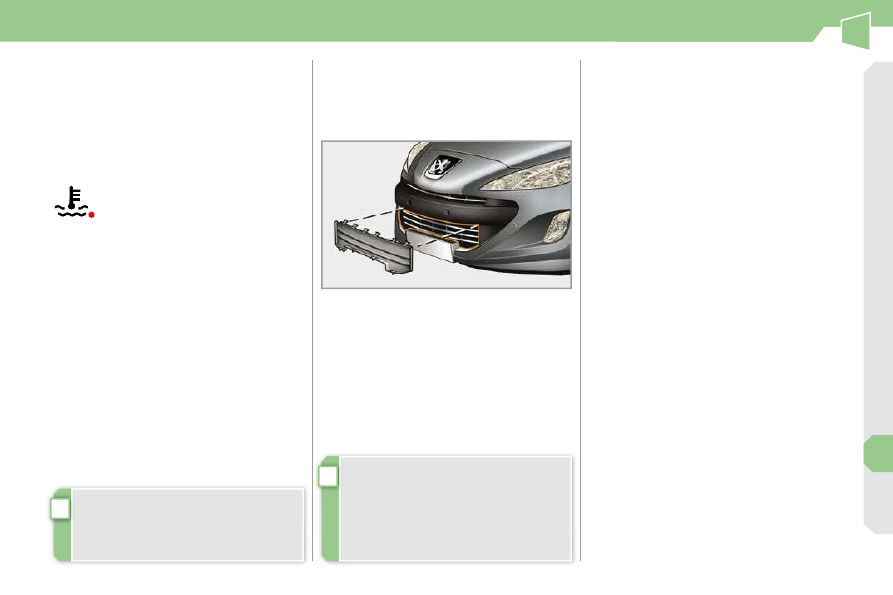

VERY COLD CLIMATE SCREEN *

Removable protective screen which

prevents the accumulation of snow at

the radiator cooling fan.

Fitting



Offer up the very cold climate screen

to the front of the lower section of

the front bumper.



Press around its edge to engage its

ﬁ xing clips one by one.

Do not forget to remove the very

cold climate screen:

- when the ambient temperature

exceeds 10 °C,

- when towing,

- at speeds above 75 mph (120 km/h).

* According to country.

Removal



Use a screwdriver as a lever to release

each ﬁ xing clip in turn.

"Comfort":
windstop, cover for windstop, reading

lamp, parking sensors...

"Transport solutions":
boot liner, towbar-mounted bicycle carrier,

towbars, towbar wiring harnesses...

The trailer towbar and its wiring harness

must be ﬁ tted by a PEUGEOT dealer.

ACCESSORIES

A wide range of accessories and genu-

ine parts is offered by the PEUGEOT

dealer network.

These accessories and parts have been

tested and approved for reliability and

safety.

They are all adapted to your vehicle and

beneﬁ t from PEUGEOT's recommenda-

tion and warranty.

160

PRACTICAL INFORMATION

The ﬁ tting of electrical equipment or

accessories which are not recom-

mended by PEUGEOT may result

in a failure of your vehicle's electron-

ic system and excessive electrical

consumption.

Please note this speciﬁ c warn-

ing. You are advised to contact a

PEUGEOT representative to be

shown the range of recommended

equipment and accessories.

Depending on the legislation in

force in the country, it may be com-

pulsory to have a high visibility

safety vest, warning triangle and

spare bulbs and fuses available in

the vehicle.

You can also obtain products for main-

tenance and cleaning (interior and ex-

terior), topping up (screenwash...) and

recharges (sealant cartridge for the

temporary puncture repair kit) by visit-

ing a PEUGEOT dealer.

Installation of radio
communication transmitters
Before installing on your vehicle

any after-market radio communica-

tion transmitter with external aerial,

we recommend that you contact

a PEUGEOT dealer.

The PEUGEOT dealer network

will give you the speciﬁ cation for

transmitters which can be ﬁ tted

(frequency, maximum power, aerial

position, speciﬁ c installation re-

quirements), in line with the Vehicle

Electromagnetic

Compatibility

Directive (2004/104/EC).

"Mulimedia":
portable satellite navigation systems,

Bluetooth hands-free kit, DVD player,

USB Box...

"Styling":
alloy wheels, front spoiler.

"Safety and security":
anti-theft alarm, security wheel bolts,

breathalyser, ﬁ rst aid kit, warning tri-

angle, high visibility vest, stolen vehicle

tracking system, child booster cush-

ions...

To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

and secured correctly,

- never ﬁ t one mat on top of another.

"Protection":
mats ** , bumper protection strips, vehicle

protective cover...

161

TECHNICAL DATA

MODELS:

ENGINES AND GEARBOXES

Model codes:
4B...

5FS-0

5FX-H

5FT-F

PETROL ENGINES

1.6 litre VTi 16V 120 hp

1.6 litre THP 16V 150 hp 1.6 litre THP 16V 140 hp

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW)

110

103

Max power engine speed (rpm)

6 000

5 800

6 000

Max torque: EU standard (Nm)

160

240

Max torque engine speed (rpm)

4 250

1 400

Fuel

Unleaded

Catalytic converter

Yes

GEARBOXES

Manual

(5-speed)

Manual

(6-speed)

Automatic

(4-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

4.25

162

TECHNICAL DATA

MODELS:

ENGINES AND GEARBOXES

Model codes:
4B...

5FV-8

5FV-A

5FU-8

PETROL ENGINES

1.6 litre THP 16V 156 hp

1.6 litre THP 16V 200 hp

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW)

115

147

Max power engine speed (rpm)

6 000

5 500

Max torque: EU standard (Nm)

240

275

Max torque engine speed (rpm)

1 400

1 700

Fuel

Unleaded

Catalytic converter

Yes

GEARBOXES

Manual

(6-speed)

Automatic

(6-speed)

Manual

(6-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

4.25

165

TECHNICAL DATA

MODELS:

ENGINES AND GEARBOXES

Model codes:
4B...

9HR-8

RHR-8

RHH-A

DIESEL ENGINES

1.6 litre Turbo HDI

110 hp

2 litre Turbo HDI

136 hp

2 litre Turbo HDI

163 hp

Cubic capacity (cc)

1 560

1 997

Bore x stroke (mm)

75 x 88.3

85 x 88

Max power: EU standard (kW)

103

120

Max power engine speed (rpm)

3 500

4 000

Max torque: EU standard (Nm)

276

320

340

Max torque engine speed (rpm)

1 500

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter

Yes

GEARBOXES

Manual

(6-speed)

Manual

(6-speed)

Automatic

(6-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

3.75

5.25

163

TECHNICAL DATA

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp

1.6 litre THP 16V 140 hp

Gearboxes

Manual

Auto.

Model codes: 4B...

5FS-0

5FX-H

5FT-F

- Unladen weight

1 480

1 512

1 523

- Kerb weight

1 555

1 587

1 598

- Payload

405

428

432

- Gross vehicle weight (GVW)

1 885

1 940

1 955

- Gross train weight (GTW)

on a 12 % gradient

2 985

3 340

3 225

- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

1 100

1 400

1 270

- Braked trailer * (with load transfer within

GTW limit)

1 200

1 400

1 270

- Unbraked trailer

750

- Recommended nose weight

The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed weight.

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

164

TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by

the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre THP 16V 156 hp

1.6 litre THP 16V 200 hp

Gearboxes

Manual

Automatic

Manual

Model codes: 4B...

5FV-8

5FV-A

5FU-8

- Unladen weight

1 515

1 530

1 535

- Kerb weight

1 590

1 605

1 610

- Payload

425

440

449

- Gross vehicle weight (GVW)

1 940

1 970

1 984

- Gross train weight (GTW)

on a 12 % gradient

3 340

3 240

2 784

- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

1 400

1 270

800

- Braked trailer * (with load transfer within

GTW limit)

1 400

1 270

800

- Unbraked trailer

750

- Recommended nose weight

166

TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.6 litre Turbo HDI 110 hp 2 litre Turbo HDI 136 hp 2 litre Turbo HDI 163 hp

Gearboxes

Manual

Auto.

Model codes: 4B...

9HR-8

RHR-8

RHH-A

- Unladen weight

1 525

1 599

1 625

- Kerb weight

1 600

1 674

1 700

- Payload

400

421

425

- Gross vehicle weight (GVW)

1 925

2 020

2 050

- Gross train weight (GTW)

on a 12 % gradient

3 025

3 420

3 550

- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

1 100

1 400

1 500

- Braked trailer * (with load transfer within

GTW limit)

1 200

1 400

1 500

- Unbraked trailer

750

- Recommended nose weight

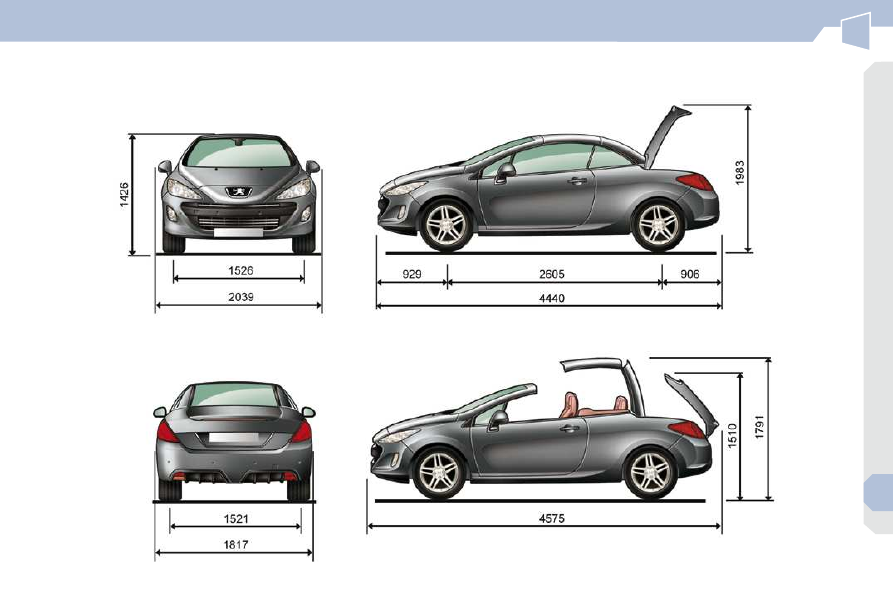

168

TECHNICAL DATA

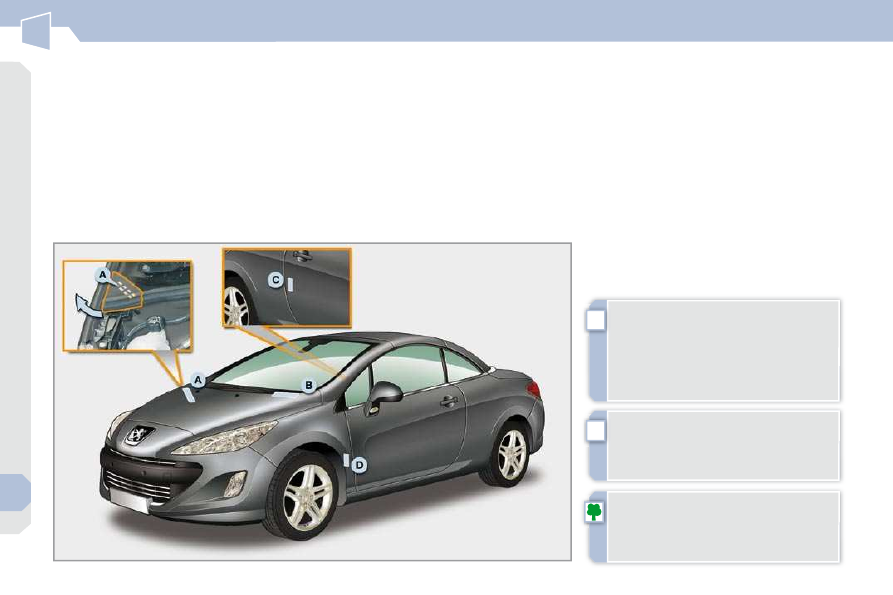

IDENTIFICATION MARKINGS

Various visible markings for the identiﬁ -

cation and tracking of your vehicle.

Wheels which are ﬁ tted with 225/40

R18 tyres cannot be ﬁ tted with

snow chains. For further informa-
tion, contact a PEUGEOT dealer.

If the inﬂ ation pressures are too low,

this increases fuel consumption.

The inﬂ ation pressures must be

checked when the tyres are cold,
at least once a month.

Vehicle identiﬁ cation number (VIN)

under the bonnet.

This number is engraved on the
bodywork near the damper support.

For access to it, raise the plastic cover.

B. VIN on the windscreen lower cross-

member.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C. Manufacturer's label.

This number is indicated on a self-

destroying label afﬁ xed to the door

aperture, below the door striker, on
the right-hand side.

D. Tyre/paint label.

This label is afﬁ xed to the door aper-

ture, on the driver's side.

It bears the following information:
- the tyre inﬂ ation pressures, laden

and unladen,

the wheel rim and tyre sizes,

the brands of tyre recommended by
the manufacturer,

- the inﬂ ation pressure of the spare

wheel,

the paint colour code.

170

EMERGENCY OR ASSISTANCE CALL

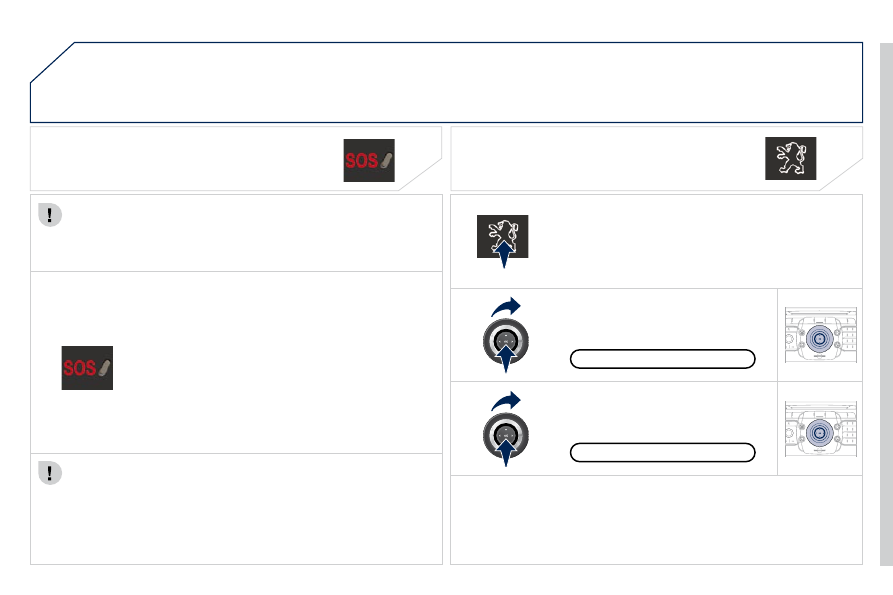

EMERGENCY CALL

In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a

voice message conﬁ rm that the call has been made to the

PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.

ASSISTANCE CALL

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the conﬁ guration of these services

and, if desired, modiﬁ ed to suit your wishes. In a multi-lingual country,

conﬁ guration is possible in the ofﬁ cial national language of your choice.

When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating
correctly.

Pressing this button again immediately cancels the request.
The cancellation is conﬁ rmed by a voice message.

  Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message conﬁ rms that the call has been made * .

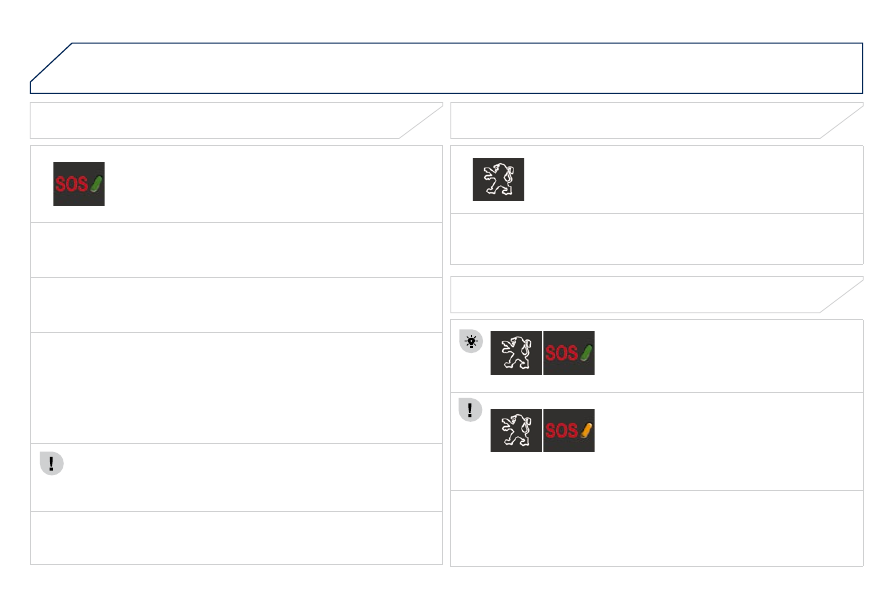

OPERATION OF THE SYSTEM

The green indicator lamp remains on (without ﬂ ashing) when

communication is established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,

the call is dealt with directly by the emergency services (112) without the

vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.

* This service is subject to conditions and availability.

Consult a PEUGEOT dealer.

If the orange indicator lamp ﬂ ashes: there is

a system malfunction.
If the orange indicator lamp is on

continuously: the backup battery must be

replaced.
In both cases, consult a PEUGEOT dealer.

171

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

EMERGENCY OR ASSISTANCE CALL USING PEUGEOT
CONNECT MEDIA

EMERGENCY CALL

In an emergency, press the SOS button until an audible

signal is heard and a "Conﬁ rmation/Cancellation"

screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team
which receives locating information from the vehicle
and can send a detailed alert to the relevant emergency
services.
In countries in which the team is not operational, or
when the locating service has been expressly declined,

the call is sent to the emergency services (112).

Warning - the emergency call and the services are only active

if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational.

Press this button for access to PEUGEOT services.

Customer call

If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated with

ﬂ ashing of the orange indicator lamp indicates a malfunction.

Consult a PEUGEOT dealer.

ASSISTANCE CALL

Select "Customer call" to request
any information about the PEUGEOT
marque.

Select "PEUGEOT Assistance" to
make a breakdown assistance call.

PEUGEOT Assistance

This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check the

conﬁ guration of these services and, if desired, modiﬁ ed to suit your

wishes.

173

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

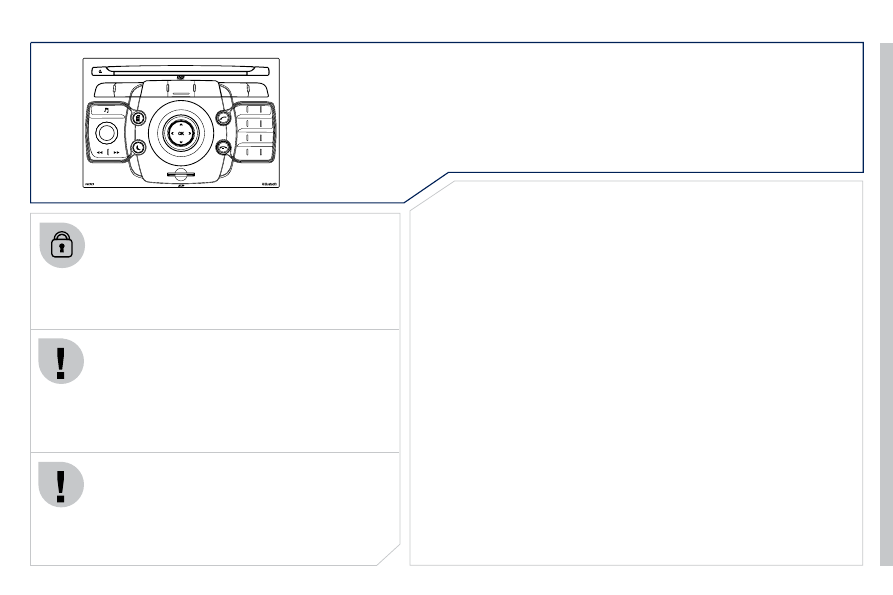

The Peugeot Connect Media is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer

for conﬁ guration of the system.

Certain functions described in this handbook will

become available during the course of the year.

PEUGEOT CONNECT MEDIA

For safety reasons, it is imperative that the driver

carries out operations which require prolonged attention
while the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect Media
switches off following the activation of the Energy

Economy mode.

01 First steps
02 Voice commands and steering

mounted controls

  03  General operation
  04  Navigation - Guidance
  05  Traffic information
  06  Radio
  07  Music media players
  08  Using the telephone
  09  Configuration
  10  Screen menu map

p.
p.

p.
p.
p.
p.
p.
p.
p.
p.

174
176

179
184
193
195
196
201
205
206

CONTENTS

Frequently asked questions

211

MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

174

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

PQRS

CD eject.

RADIO: access to the "Radio" Menu.

Display the list of stations in alphabetical order
(FM waveband) or frequency order
(AM waveband).

MEDIA: access to the "Media" Menu (Audio CD,
Jukebox, External Device).

Display the list of tracks. Change of source.

NAV: access to the "Navigation" Menu and display
of the last destinations.

ESC: abandon the operation in progress.

Long press: return to the main display.

TRAFFIC: access to the "Trafﬁ c" Menu (function

described in detail in sections 02 and 10).

ADDR BOOK: access to the "Address book" Menu
(function described in detail in section 10).

SETUP: access to the "SETUP" Menu (conﬁ guration)

(function described in detail in sections 02 and 10).

Long press: GPS coverage.

Audio settings (Balance/Fader, Bass/Treble,

Musical Ambience…).

4. Volume adjustment (each source is independent,

including message and navigation alert)

Long press: reinitialisation of the system.

Short press: mute.

5. Automatic search for a radio station on a lower

frequency.

Selection of the previous CD or MP3 track.

FIRST STEPS

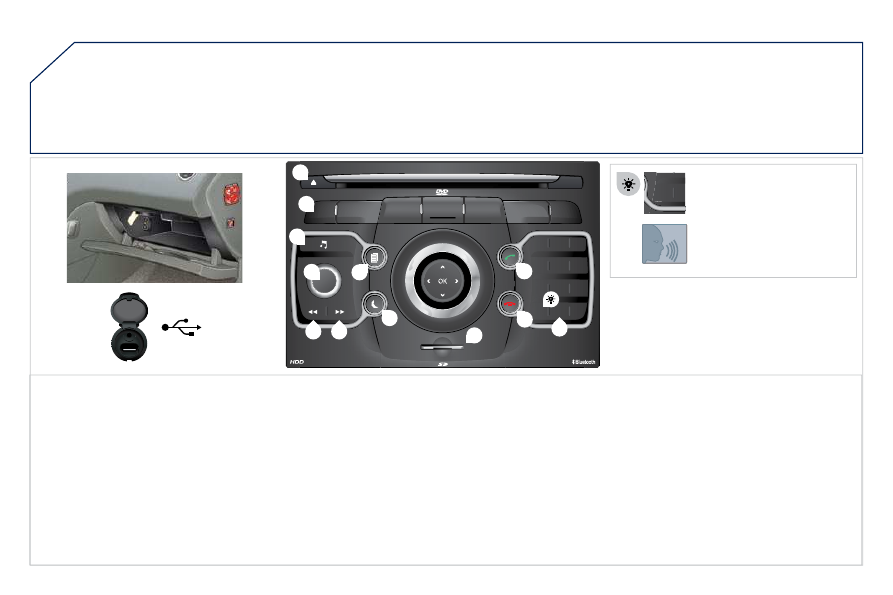

Peugeot Connect Media CONTROL PANEL

Automatic search for a radio station on a higher

frequency.

Selection of the next CD or MP3 track.

7. Normal display or black screen.
8.

Selection of the successive display on the screen of
"MAP"/"NAV" (if navigation is in progress)/"TEL"
(if a conversation is in progress)/"RADIO" or "MEDIA"
currently being played.

9. PICK UP: access to the "Phone" menu.

With Bluetooth connection, accept an incoming call.

10. HANG UP: access to the "Phone" menu.

Hang up the current call or refuse an incoming

call, with Bluetooth connection.

11. Entering of numbers or letters on the alpha-numeric

keypad, pre-selection of 10 radio frequencies.

12. SD card reader.

Short press: clears the last
character.

Long press: activates voice
recognition.

175

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

13. OK: conﬁ rmation of the highlighted item on the

screen.

- 4-direction navigator: press to the left/right.

When the "RADIO" screen is displayed: selection
of the previous/next frequency.

When "MEDIA" is displayed: selection of the
previous/next track.

When "MAP" or "NAV" is displayed: horizontal

movement of the map.

- 4-direction navigator: press up/down.

When "RADIO" is displayed: selection of the
previous/next radio station on the list.

When the "MEDIA" screen is displayed: selection
of the MP3 directory.

When "MAP" or "NAV" is displayed: vertical

movement of the map.

Switch to the next or previous page of a menu.

Movement on the virtual keypad displayed.

FIRST STEPS

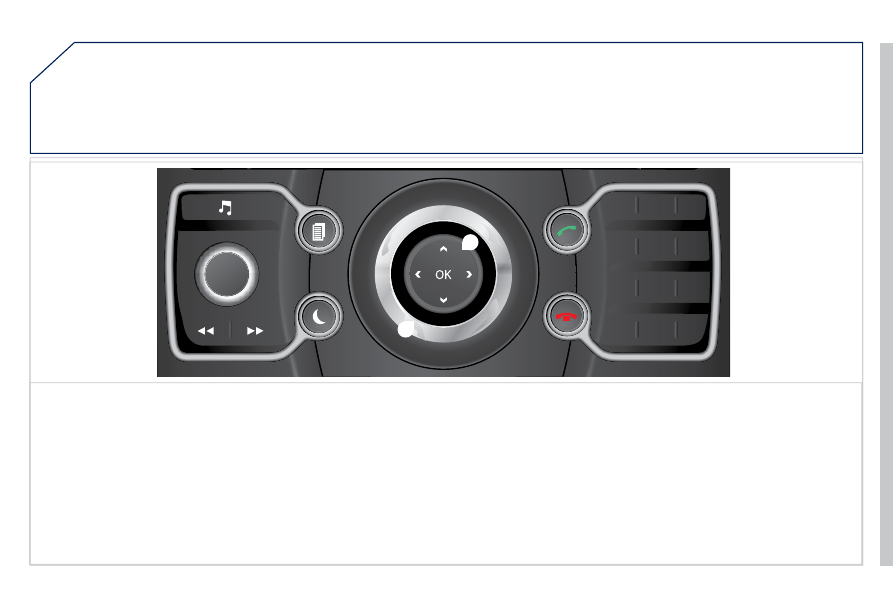

Peugeot Connect Media NAVIGATOR

14. Rotation of the ring:

When the "RADIO" screen is displayed: selection
of the previous/next radio station on the list.

When the "MEDIA" screen is displayed: selection
of the previous/next CD or MP3 track.

When "MAP" or "NAV" is displayed: front/rear

map zoom.

Movement of the menu selection curser.

176

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

NAV

ESC

TRAFFIC

ADDR
BOOK

SETUP

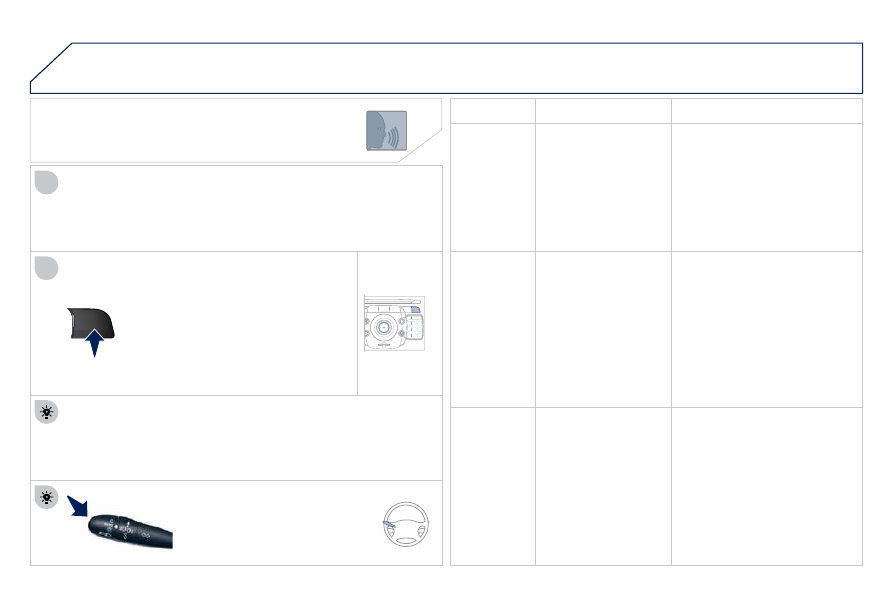

Before using the system for the ﬁ rst time, you are advised to listen

to, say and practice the tutorial.

Press the SETUP button and select
the "Language & Speech" function.
Turn the ring and select "Voice control".
Activate voice recognition.
Select "Tutorial".

VOICE COMMANDS - VOICE
RECO. INITIATION

The phrases to be spoken according to the context are indicated in
the tables below.
Speak and Peugeot Connect Media acts.

Pressing the end of the lighting
control stalk activates voice
recognition.

CONTEXT

SAY

ACTION

GENERAL

Help address book
Help voice control

Help media
Help navigation
Help telephone
Help radio
Cancel

Correction

Access to the address book help
Access to the voice recognition help

Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help

To cancel a voice command which is in
progress
Request to correct the last voice recognition
carried out
Clear

RADIO

Select station

Station <tts:stationName>

Read out station list
Enter frequency

Select wave band
AM
FM
TA on
TA off

Select a radio station
Select a radio station using its RDS

description <tts:station Name> from the
RADIO list
Listen to the list of stations available
Listen to the frequency of the current radio
station
Choose the frequency waveband (AM or FM)
Change the frequency waveband to AM
Change the frequency waveband to FM

Activate Trafﬁ c Info (TA)

Deactivate Trafﬁ c Info

NAVIGATION

Destination input

Voice advice off
Voice advice on
Save address
Start guidance

Abort guidance
Navigate entry
POI Search

Command to enter a new destination
address
Deactivate the spoken guidance instructions
Activate the spoken guidance instructions
Save an address in the address book
Start guidance (once the address has been
entered)
Stop the guidance
Start guidance to an entry in the address book
Start guidance to a point of interest

VOICE COMMANDS AND STEERING MOUNTED CONTROLS

Peugeot 308 CC Dag (2010.5). Manual - part 12
