ECONOMY MODE FUNCTION

After the engine has stopped, certain

functions (windscreen wiper, elec-

tric windows, courtesy lights, audio

equipment, telephone, dipped head-

lamps, etc.) can only be used for a

combined duration of approximately

thirty minutes, to prevent discharging

the battery.
Once the thirty minutes are over, a

switching to economy mode mes-

sage appears on the multifunction

display and the active functions are

put on standby.

These functions are reactivated au-

tomatically next time the vehicle is

driven.
In  order  to  resume  the  use  of  these
functions  immediately,  the  engine
must  be  started  and  left  to  run  for  a

few minutes.

The time available to you will then be

double the duration for which the en-

gine is left running. However, this pe-

riod will always be between i ve and

thirty minutes.

A l at battery prevents the

engine from starting.

LOAD REDUCTION
FUNCTION

When driving, certain functions (air
conditioning, heated rear screen,

heating system for passenger com-

partment of diesel vehicles, etc.) may

be switched off temporarily, depend-

ing on the level of battery charge.
Reactivation of these functions is au-

tomatic, once the battery charge is

sufi cient.
Note: at the risk of discharging the
battery, the functions that have been

switched off may be reactivated

manually.

Note:

if the telephone is be-

ing used when economy

mode starts, it will still be

possible to i nish the call.

PRACTICAL INFORMATION

Without lifting (4 wheels on
the road)

You should always use a towbar.

The removable towing eye is inside

the boot right-hand trim.

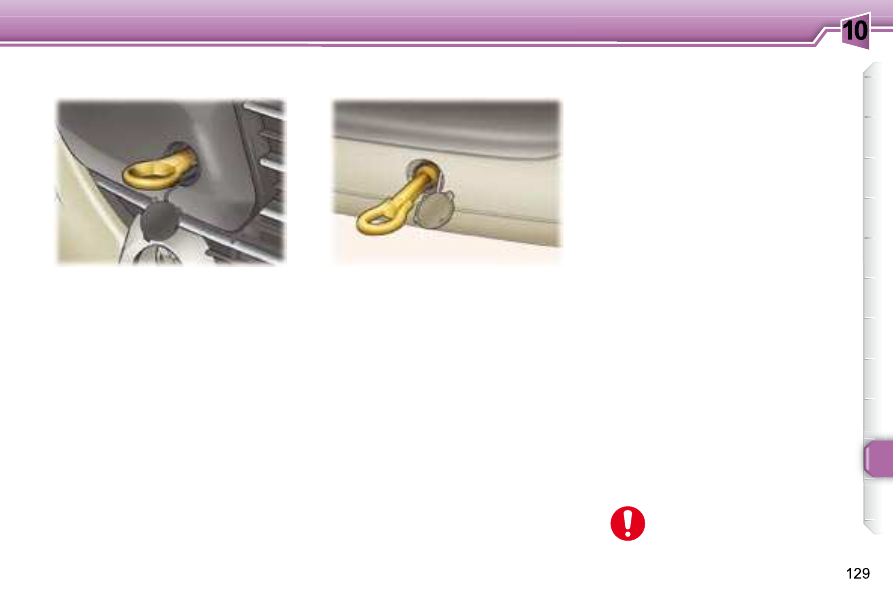

From the front:


Unclip the cover, by pressing the

bottom part,



Screw in the removable towing

eye as far as it will go.

Lifting (2 wheels only on the
road)

It is preferable to raise the vehicle

with a professional lifting device.

When towing with the engine

switched off, there is no brak-

ing or steering assistance.

TOWING YOUR VEHICLE

From the rear:


Unclip the top of the cover using

a coin,



Screw in the removable towing

eye as far as it will go.

Special features of the
automatic gearbox

When towing with four wheels on the

ground, the following rules must be

obeyed:

- lever in position N ,

- tow the vehicle at less than 30 mph

(50 km/h) over a maximum dis-

tance of 30 miles (50 km),

- do not add oil to the gearbox.

130

PRACTICAL INFORMATION

Driving advice

   Distribution of loads:
Distribute  the  load  in  the  trailer  so
that  the  heaviest  items  are  as  close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

Cooling:
towing a trailer on a slope increases

the temperature of the coolant.
As the fan is electrically controlled,

its cooling capacity is not dependent

on the engine speed.

To lower the engine speed, reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the cool-

ant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres:
check the tyre pressures of the tow-

ing vehicle and of the trailer, observ-

ing the recommended pressures.

Braking:
towing increases the braking dis-

tance.

Lights:
check the electrical signalling on the
trailer.

Side wind:
take into account the increased sen-

sitivity to side wind.

CARAVAN, A BOAT, ETC.

Your vehicle is primarily designed

for transporting people and luggage

but it may also be used for towing a

trailer.
We recommend the use of original

PEUGEOT towbars and their har-

nesses that have been tested and

approved from the design stage of

your vehicle and that the i tting of the

towbar is entrusted to a PEUGEOT

dealer.
If the towbar is not i tted by a

PEUGEOT dealer, it is imperative

that it is i tted using the electrical

pre-equipment located at the rear of

the vehicle in accordance with the

manufacturer's instructions.
Driving with a trailer subjects the tow-

ing vehicle to more signii cant stress

and its driver must be particularly

careful.
Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of
altitude.
The rear parking assistance function

will be disarmed automatically when

a towbar is i tted.

PRACTICAL INFORMATION

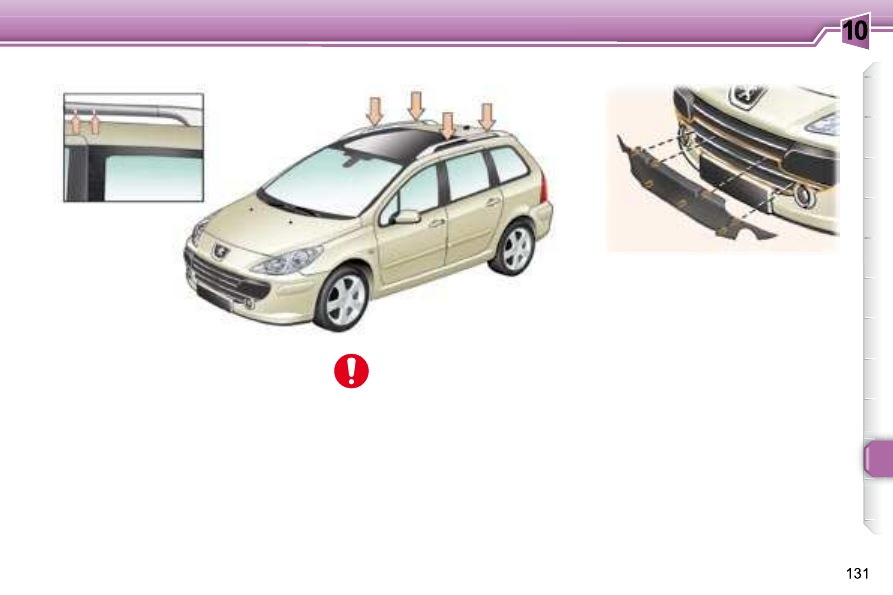

When i tting transverse roof bars,

ensure that they are positioned cor-

rectly.
The correct positions are shown by

marks on each of the longitudinal
bars.
Use accessories recommended by

PEUGEOT and follow the manufac-

turer's i tting instructions.

Maximum

authorised

weight  on  the  roof  rack,
for  a  loading  height  not
exceeding  40 cm  (with  the
exception  of  bicycle  carri-

ers): 100 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-

i le of the road to avoid damaging

the roof bars.

FITTING ROOF BARS

The very cold climate screen is in-

stalled on the lower part of the front

bumper to prevent the accumulation

of snow at the radiator cooling fan.
When the snow has cleared (tem-
perature above 10 °C), remove the
very cold climate screen.

VERY COLD CLIMATE SCREEN *

FITTING



Offer up the very cold climate

screen facing the front bumper .



Put it in place by pressing at each

clip .

REMOVAL



Insert a screwdriver into the hole

located near each of the clips.



Use the screwdriver as a lever to

unclip each clip in turn.

* According to country.

132

PRACTICAL INFORMATION

ACCESSORIES FOR YOUR
307SW

A wide range of accessories recom-

mended by PEUGEOT and original

parts are offered by the Network.

They all benei t from PEUGEOT's

recommendation.
These accessories and parts, having

been tested and approved for re-

liability and safety, are all adapted

to your PEUGEOT vehicle.

The product range offered by

PEUGEOT Accessories is structured

around 5 categories: PROTECTION -

TOURING - IN-CAR TECHNOLOGY -

STYLING - UNIVERSAL.

"Touring":

i xed coat hook on head

restraint, mats, boot tray,

aluminium or PVC sill pro-

tectors.
For leisure pursuits: trans-

verse roof bars, transpor-

tation accessories (bicycle carrier,

ski carrier), roof box, child seats and

booster  cushions,  additional  seats,
rear  screen  blind,  side  blinds,  front
centre  armrest,  CD  storage,  cool

box.

Trailer towbar which must be i tted by

the PEUGEOT Network.

The i tting of electrical equip-

ment or accessories which

are not recommended by
PEUGEOT may result in a

failure of your vehicle's electronic
system.
Please note this specii c warning.

You are advised to contact a repre-

sentative of the Marque to be shown

the range of recommended equip-

ment and accessories.

"Universal":

windscreen wash l uid, in-

terior and exterior cleaning

and maintenance products.

"Protection":

anti-theft alarm, stolen

vehicle tracking system,

window engraving, lock-

ing wheel nuts, i rst aid kit,

warning triangle, high vis-

ibility safety jacket, snow

chains.

"In-Car Technology":

audio equipment, audio/

telephone, speakers, am-

plii ers, hands-free kits, sat-

ellite navigation systems,

CD changer, DVD player,

connection kit for MP3 player or port-

able CD player, entertainment screen

kit, rear parking assistance.

"Styling":

seat covers compatible with

side air bags, aluminium

gear lever knob, fog lamps,

alloy wheels, wheel trims,

styling strips, door spoilers,

sport exhaust.

Depending on the country

in which the vehicle is sold,

it is compulsory to have a

high visibility safety jacket, a

warning triangle and a set of

spare bulbs available in the vehicle.

Wheels i tted with 17 inch tyres

cannot be i tted with snow chains.

For further information, contact a
PEUGEOT dealer.

Note
To prevent any risk of jamming of the

pedals:

- ensure that the mat is positioned

and secured correctly,

- never i t one mat on top of another.

133

TECHNICAL DATA

ENGINES AND GEARBOXES

MODELS:
Model codes: 3H...

NFUC

NFUF

NFUC/FF

PETROL ENGINES

1.6 litre 16V 110 ch

1.6 l. 16V BioFlex

Cubic capacity (cm

)

1 587

Bore x stroke (mm)

78.5 x 82

EU standard max power (kW/bhp)

80/110

Max power engine speed (rpm)

5 800

EU standard max torque (Nm)

147

153

Max torque engine speed (rpm)

4 000

Fuel

Unleaded

E85

Catalytic converter

Yes

GEARBOX

Manual

(5 speed)

Automatic

(4 speed)

Manual

(5 speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

3.25

Gearbox-Final drive

134

TECHNICAL DATA

ENGINES AND GEARBOXES

MODELS:
Model codes: 3H...

9HXC

9HVC

9HZC

9HYB

RHRH

RHRJ

DIESEL ENGINES

1.6 litre Turbo HDI 16V

90 bhp

1.6 litre Turbo HDI 16V

110 bhp

2 litre Turbo HDI 16V

136 bhp

Cubic capacity (cm

)

1 560

1 997

Bore x stroke (mm)

75 x 88.3

85 x 88

EU standard max power (kW/bhp)

66/90

80/110

100/136

Max power engine speed (rpm)

4 000

EU standard max torque (Nm)

215

240

320

Max torque engine speed (rpm)

1 750

2 000

Fuel

Diesel

Gazole

Catalytic converter

Yes

Particulate emission i lter

Yes

GEARBOX

Manual

(5 speed)

Manual

(5 speed)

Manua

(6 speed)

Auto

(6 speed)

OIL CAPACITIES (in litres)

((

Engine (with cartridge replacement)

3.75

5.25

Gearbox-Final drive

1.9

2.4

135

TECHNICAL DATA

CONSUMPTION

In accordance with EC Directive 80/1268 (as amended)

[In MPG (litres/100 km)]

Engine

Gearbox

Model

Codes 3H...

Urban Circuit

Inter-urban

Circuit

Mixed Circuit)

Emission of

by weight

g/km

1.6 litre 16V

Manual

NFUC

9.9

6.3

7.7

178

1.6 litre 16V

Automatic

NFUF

11.4

6.3

8.3

194

1.6 l. 16V BioFlex

Manual

NFUC/FF

9.9 (1)

13.9 (2)

6.3 (1)
8.5 (2)

7.7 (1)

10.4 (2)

178 (1)
169 (2)

2 litre 16V

Manual

RFJC

11.0

6.1

7.9

188

2 litre 16V

Automatic

RFJF

12.2

6.3

8.4

199

1.6 l. Turbo HDI 16V
90 bhp

Manual

9HXC

6.3

4.5

5.1

134

9HVC

6.3

4.5

5.1

134

1.6 l. Turbo HDI 16V
110 bhp

Manual

9HZC

6.3

4.5

5.1

134

9HYB

6.2

4.4

5.0

131

2 l. Turbo HDI 16V

Manual

RHRH

7.3

4.7

5.6

148

Automatic

RHRJ

9.5

5.4

6.9

183

The consumption values presented here correspond to the values communicated at the time of printing. The consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary in relation to the style of driv-
ing, driving conditions, weather conditions, the vehicle load, the maintenance of the vehicle and the use of the accessories.
(1) Unleaded. - (2) E85.

136

TECHNICAL DATA

WEIGHTS AND TOWING LOADS (in kg)

Petrol engines

1.6 litre 16V

1.6 l. 16V BioFlex

2 litre 16V

Gearbox

Manual

Automatic

Manual

Automatic

Model codes: 3H…

NFUC

NFUC/FF

NFUF

RFJC

RFJF

• Kerb weight

1 435

1 469

1 466

1 493

• Payload

505

511

504

492

• Gross vehicle weight (GVW)

1 940

1 980

1 970

1 985

• Gross train weight (GTW)

on a 12 % gradient

2 900

3 200

on a 8 % gradient

2 900

3 200

• Braked trailer (within GTW)

on a 12 % gradient

960

920

1 230

1 215

on a 8 % gradient

960

920

1 230

1 215

• Braked trailer * (with load transfer

within GTW)

1 200

1 500

• Unbraked trailer

715

730

745

• Recommended nose weight

* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an equal

amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction of the performance of the vehicle in order to protect the engine; if the
exterior temperature is above 37 °C, limit the towed weight.

137

TECHNICAL DATA

WEIGHTS AND TOWING LOADS (in kg)

* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an equal

amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Diesel engines

1.6 litre Turbo HDI

16V 90 bhp

1.6 litre Turbo HDI

16V 110 bhp

2 litre 16V Turbo HDI

Gearbox

Manual

Auto.

Model codes: 3H...

9HXC

9HVC

9HZC

9HYB

RHRH

RHRJ

• Kerb weight

1 469

1 492

1 483

1 575

1 606

• Payload

501

508

517

505

509

• Gross vehicle weight (GVW)

1 970

2 000

2 080

2 115

• Gross train weight (GTW)

on a 12 % gradient

3 130

3 450

on a 8 % gradient

3 130

3 450

• Gross train weight (GTW)

on a 12 % gradient

1 160

1 300

1 130

1 370

1 335

on an 8 % gradient

1 160

1 300

1 130

1 370

1 335

• Braked trailer * (with load transfer

within GTW)

1 300

1 500

• Unbraked trailer

730

745

740

750

• Recommended nose weight

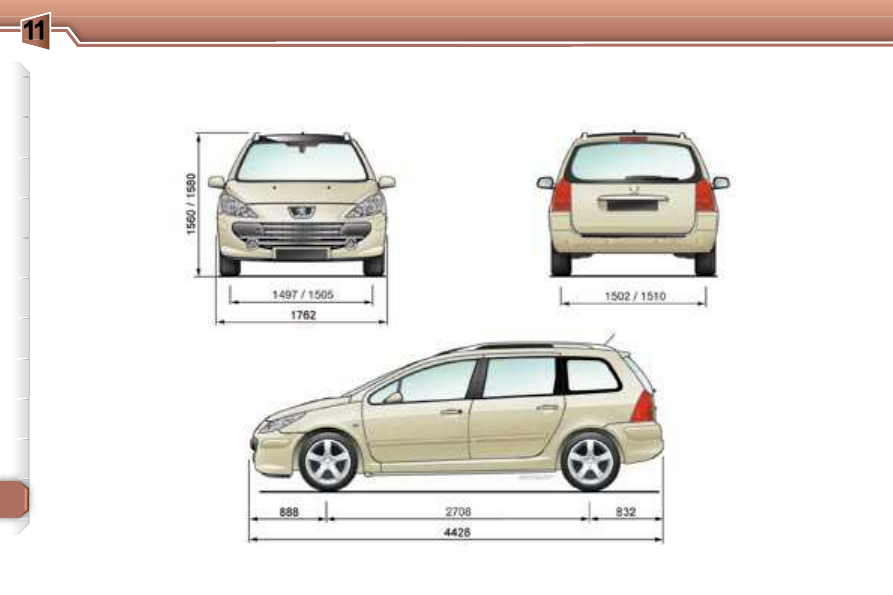

TECHNICAL DATA

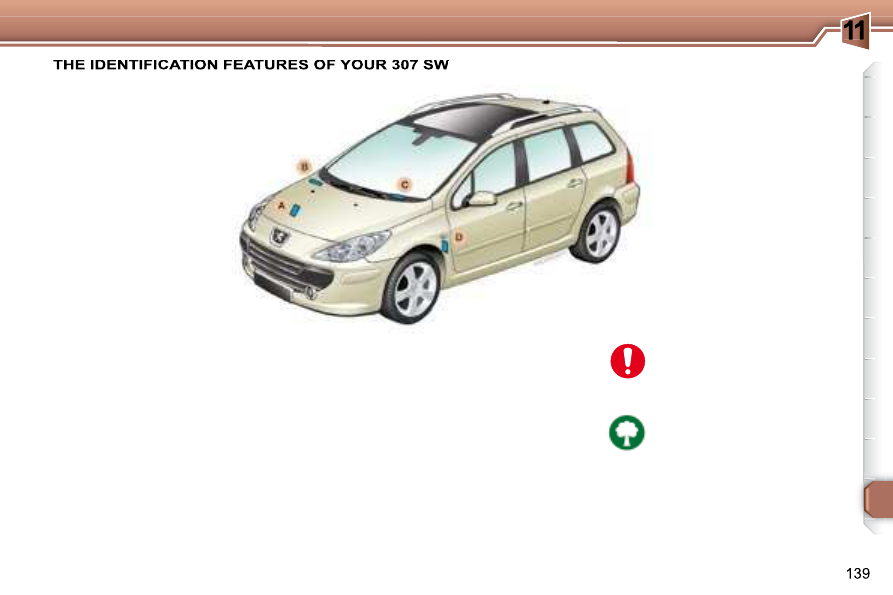

A. Manufacturer's plate.

B. Serial number on the body-

work.

C. Serial number on the fascia.

D. Tyres and paint colour refer-

ence.

The label D on the driver's door pillar,
near the hinges, indicates:
-

the wheel and tyre sizes,

the brands of tyres approved by
the manufacturer,

the tyre pressures,

the paint colour reference.

The tyre pressure must be
checked when the tyre is
cold, at least once a month.

Insufi cient pressure increas-

es fuel consumption.

141

SOURCE

MODE

BAND

ESC

abc

jkl

tuv

def

mno

wxyz

ghi

pqrs

MENU

LIST

PTY

DARK

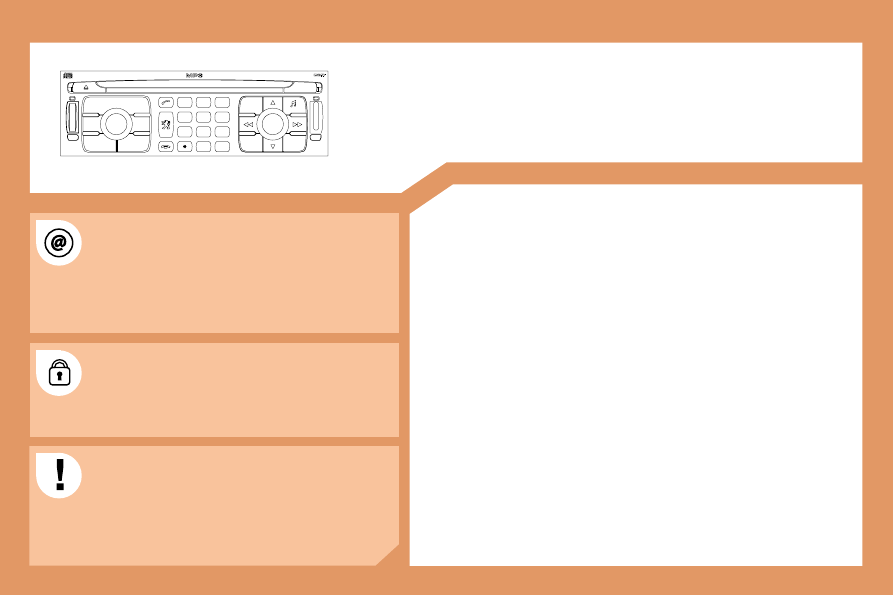

The SERVICE BOX internet site provides additional
animated information on the RT4. It can be consulted at
the following address:
http://public.servicebox.peugeot.com
Simple registration permits access and free consultation of
the handbook.

The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact your PEUGEOT

dealer for coniguration of the system.

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the RT4 GPS audio/telephone
may switch off after a few minutes.

RT4

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

CONTENTS

01 First steps

pg. 142

02 General menu

pg. 143

03 GPS

pg. 144

04 Trafic information

pg. 152

05 Audio

pg. 154

06 Telephone

pg. 160

07 Control short-cuts

pg. 163

08 Coniguration

pg. 165

09 Display low charts

pg. 166

Frequently asked questions pg. 181

142

SOURCE

MODE

BAND

ESC

abc

jkl

tuv

def

mno

wxyz

ghi

pqrs

MENU

LIST

PTY

DARK

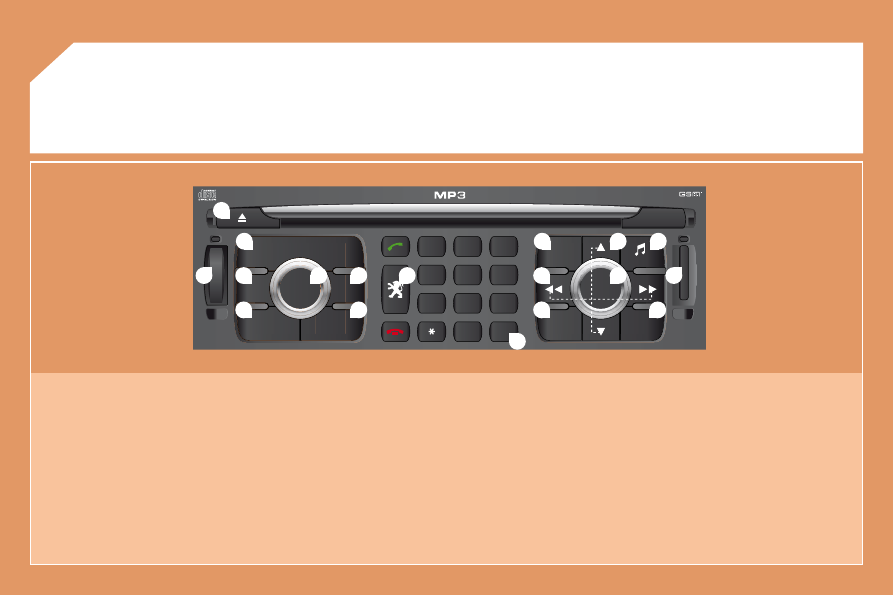

Ejection of the CD.

Selection of the source: radio, Jukebox, CD, CD changer

and auxiliary (AUX, if activated on the Coniguration menu).

Long press: CD copy to hard disc.

Long press on the SOS button: emergency call.

Selection of the display on the screen from the modes:
TRIP, TEL, NAV and AUDIO.

Modiication of the screen display.

Long press: reinitialisation of the RT4 GPS audio/telephone.

On/Off and Volume adjustment.

Selection of the wavebands FM1, FM2, FMast, AM.

TA (Trafic Announcement) function on/off.

Long press: access to the PTY (radio Programme TYpes)
mode.

Access to the "PEUGEOT" services menu.

10. Cancellation of the current operation.

Long press: return to the current application.

11. Automatic search for a lower/higher frequency.

Selection of the previous/next CD, MP3 or Jukebox track.

12. Displaying of the general menu.

13. Keypad for entering descriptions by successive presses.

14. Selection of the previous/next CD.

Selection of the previous/next MP3/Jukebox directory.

15. Audio option adjustments: front/rear, left/right balance,

loudness, sound ambiences.

16.

Selection and conirmation.

17. SIM card slot.

18. Displaying of the list of local radio stations, of the tracks on

the CD or of the MP3/Jukebox directories.
Long press: updating of the local radio stations.

FIRST STEPS

144

MENU

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

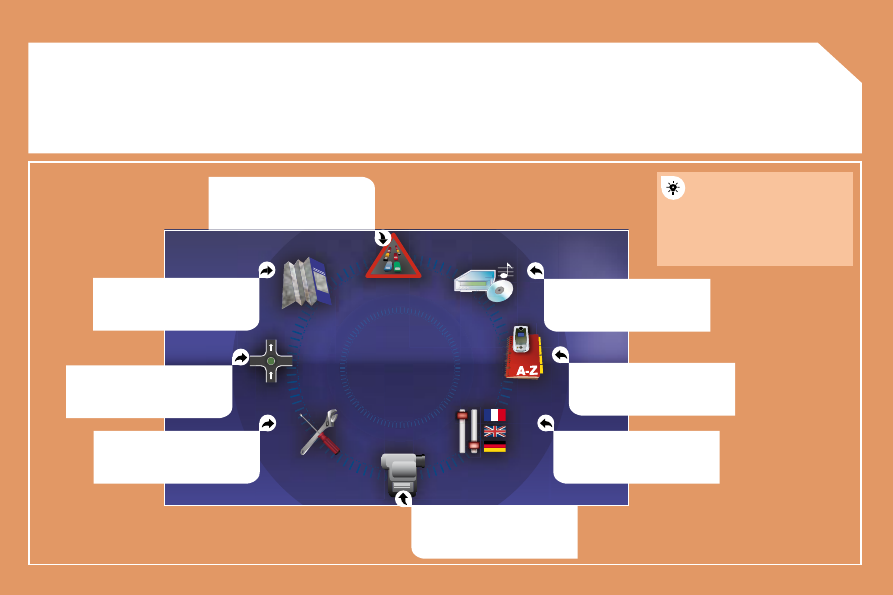

03 GPS

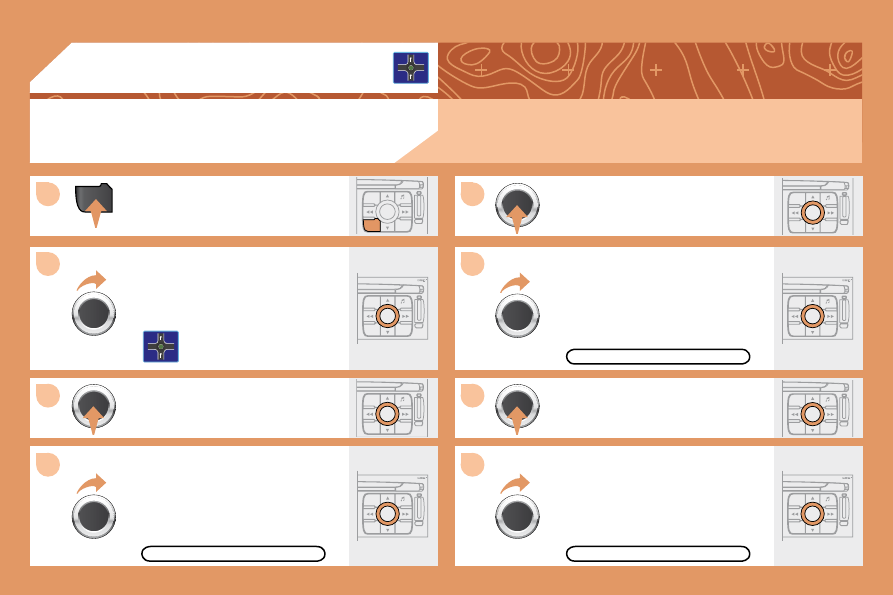

SELECTING A DESTINATION

Press the MENU button.

Turn the dial and select the
NAVIGATION GUIDANCE function.

Press the dial to conirm the selection.

Turn the dial and select the
DESTINATION CHOICE function.

Press the dial to conirm the selection.

Turn the dial and select the ENTER
AN ADDRESS function.

When the country has been selected,
turn the dial and select the TOWN
function.

TOWN

ENTER AN ADDRESS

DESTINATION CHOICE

Tip: for a detailed global view of the menus available, refer to the "Display low charts" section of this
RT4 chapter.

Peugeot 307 SW Dag (2007.5). Manual - part 10
