06 TELEPHONE

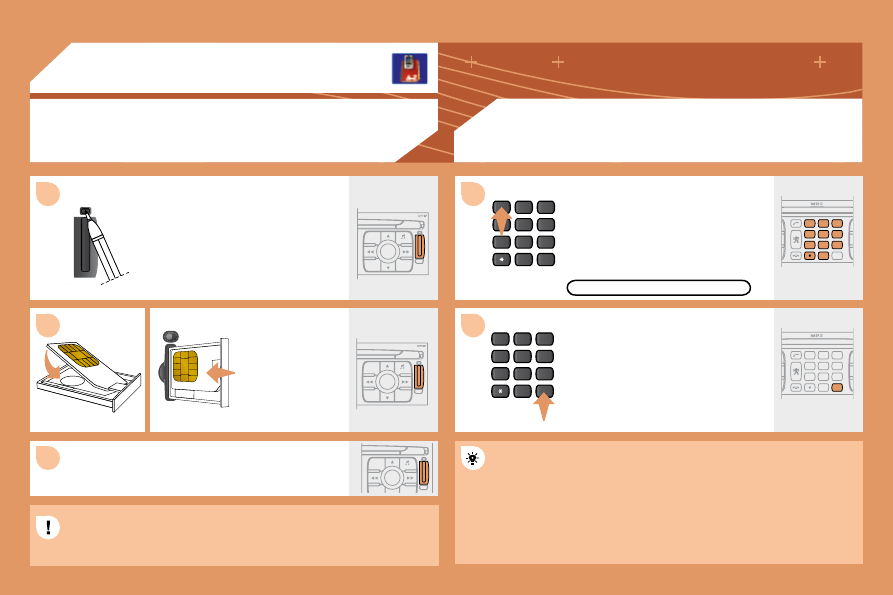

INSTALLING YOUR SIM CARD

ENTERING THE PIN CODE

Access the slot by pressing the button
using the tip of a pen.

Install the SIM card
in the holder and
then insert it in the
slot.

To remove the SIM card, repeat step 1.

Your SIM card must be installed and removed with the RT4 GPS
audio/telephone switched off and the ignition off.

Enter the PIN code on the keypad.

Conirm the PIN code by pressing
button #.

PIN CODE

When entering your PIN code, tick the STORE PIN tab to gain
access to the telephone without having to enter this code when it is
used subsequently.

143

abc

jkl

tuv

def

mno

wxyz

ghi

pqrs

ESC

MENU

LIST

ESC

MENU

LIST

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

06 TELEPHONE

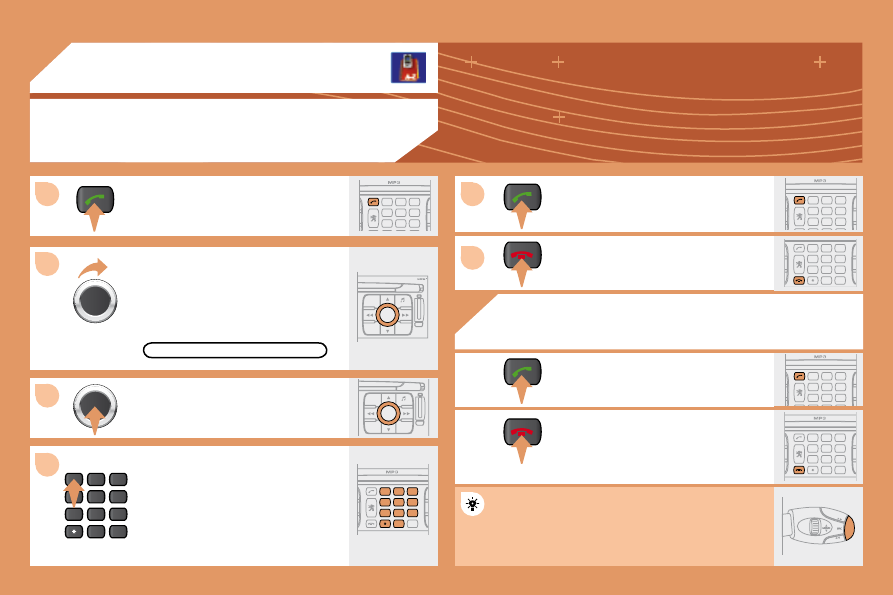

CALLING A CONTACT

Turn the dial and select the DIAL
function.

Press the PICK UP button to display
the superimposed telephone menu.

Press the dial to conirm the selection.

Dial the telephone number of your
contact using the alphanumeric
keypad.

Press the PICK UP button to call the
number dialled.

Press the HANG UP button to end
the call.

ACCEPTING OR REFUSING A CALL

Press the PICK UP button to accept
a call.

Press the HANG UP button to refuse
a call.

DIAL

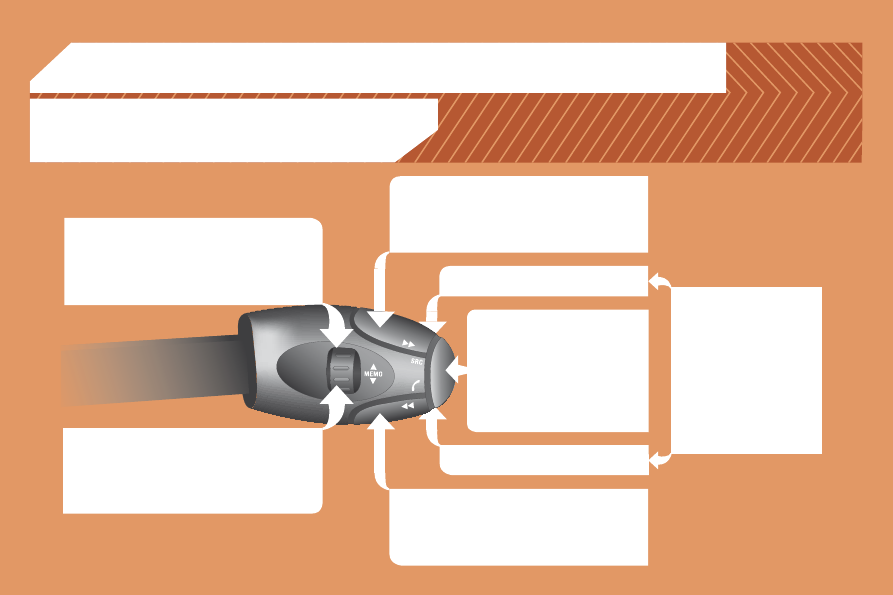

Press the end of the steering wheel stalk for more
than 2 seconds to access the telephone menu:
calls log, directory, voice mailbox.

144

SOURCE

MODE

BAND

DARK

abc

jkl

tuv

def

mno

wxyz

ghi

pq s

ESC

MENU

LIST

ESC

MENU

LIST

Select PEUGEOT ASSISTANCE to
make a breakdown assistance call.

Select CUSTOMER CONTACT
CENTRE to request any information
about the PEUGEOT marque.

EMERGENCY CALL

In an emergency, press the SOS
button until an audible signal is
heard and a CONFIRMATION/
CANCELLATION screen is displayed

(if valid SIM card inserted).
A call is made to the emergency

services (112).
In certain countries*, this emergency
call is made directly by the PEUGEOT
Emergency team which locates the
vehicle and alerts the appropriate
emergency services as quickly as
possible.

PEUGEOT ASSISTANCE

CUSTOMER CONTACT CENTRE

When the PEUGEOT Emergency contract has been signed, it
is recommended that an initial call is made to the PEUGEOT
Emergency team.

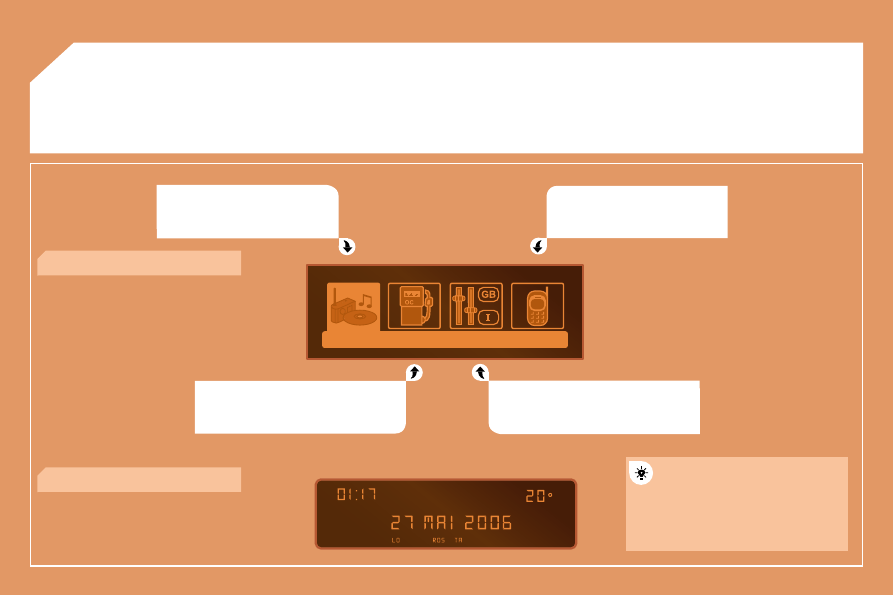

CONSULTING THE SERVICES

Press the LION button to gain access
to the PEUGEOT services*.

* These services and options are subject to conditions and availability.

* On condition that the PEUGEOT Emergency contract has been signed.

This is free and of unlimited duration. Contact a PEUGEOT dealer.

146

MENU

ESC

LIST

MENU

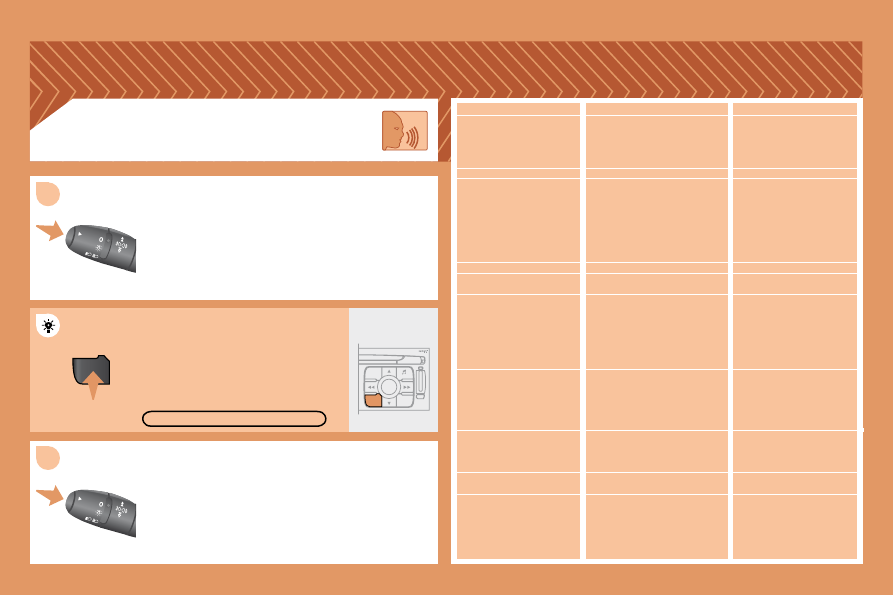

Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible

conirmation signal between each word.
The list which follows is exhaustive.

To display the list of available voice commands, press
the end of the lights stalk to start the voice recognition,
then say HELP or WHAT CAN I SAY.

For the same operation, press and
hold the MENU button and select the
function VOICE COMMANDS LIST.

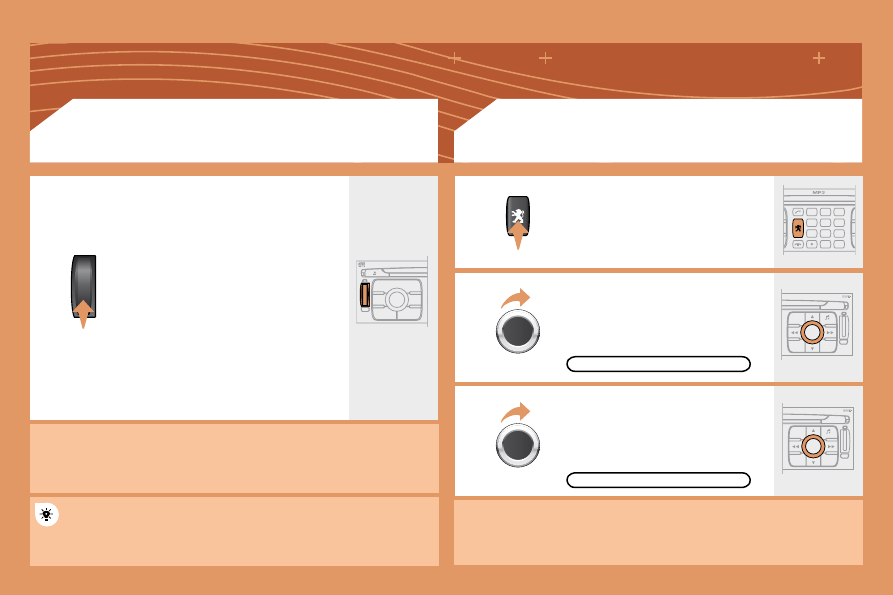

VOICE COMMANDS LIST

LEVEL 1

display

call
changer

guide to
trafic info

CD player/jukebox

navigation

radio

SMS/message

telephone

LEVEL 2

audio
guidance
navigation
trip computer
telephone
description
disc number
previous/next disc
random play
list
track number
previous/next track
repeat
scan
description
display
read
random play
list
track number
previous/next track

directory (MP3 CD)

scan
stop/resume
directory
show

zoom out/in
autostore
list
memory
previous/next
display
read
voice mailbox
last number
voice message service
directory

LEVEL 3

1 … 20

1 ... 20

previous/next
repeat

destination
description
vehicle

1 … 6

description

VOICE COMMANDS

DISPLAYING THE LIST AND USING THEM

147

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

Turn the dial and select the ADJUST
THE DATE AND TIME function.

CONFIGURATION

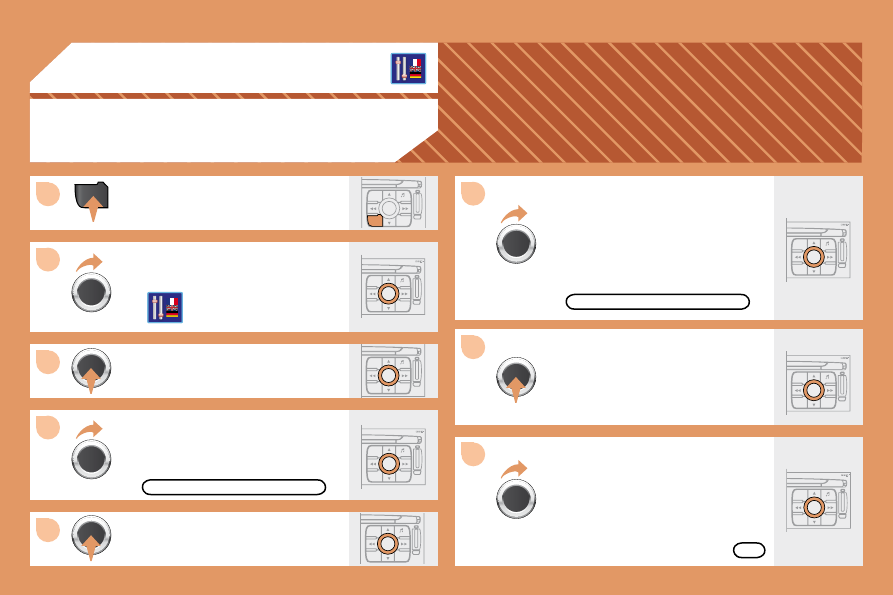

ADJUSTING THE DATE AND TIME

Press the MENU button.

Turn the dial and select the
CONFIGURATION function.

Press the dial to conirm the selection.

Turn the dial and select the DISPLAY
CONFIGURATION function.

Adjust the parameters one by one

conirming by pressing the dial. Next
select the OK tab on the display then

conirm.

Press the dial to conirm the selection.

DISPLAY CONFIGURATION

ADJUST THE DATE AND TIME

Press the dial to conirm the selection.

148

SELECT DESTINATION

NAVIGATION - GUIDANCE

previous destinations

DISPLAY FLOW CHARTS

set speech synthesis

activate/deactivate road names

map data base description

delete last destinations

STOP/RESUME GUIDANCE

MAP

SELECT DESTINATION

enter an address

country:

town:

road:

N°/_:

curr. loc

directory

previous destinations

order/delete journey legs

divert route

chosen destination

MAP ORIENTATION

vehicle direction

north direction

3D view

MAP DETAILS

administration and safety

town halls, town centre

universities, colleges

hospitals

hotels, restaurants and shops

hotels

restaurants

vineyards

149

business centres

supermarkets, shopping

culture, tourism and shows

tourism

culture and museums

casinos and nightlife

cinemas and theatres

shows and exhibitions

sports and open air centres

sports centres

golf courses

skating rinks, bowling alleys

winter sports resorts

parks, gardens

theme parks

transport and automobile

airports, ports

stations, bus stations

vehicle rental

lay-bys, car parks

service stations, garages

DISPLAY MAP

full screen map

map in window

CONFIGURE MESSAGE ANNOUNCEMENT

read messages

new message display

TRAFFIC INFORMATION

AUDIO FUNCTIONS

MOVE THE MAP

READ MESSAGES

FILTER TRAFFIC INFORMATION

geographic ilter

around the vehicle

around location

on the route

road information

trafic information

road closure

size limit

road condition

weather and visibility

urban/city information

parking

public transport

demonstrations

SELECT TMC STATION

automatic TMC

manual TMC

list of TMC stations

RADIO FAVOURITES

enter a frequency

activate/deactivate RDS mode

activate/deactivate regional mode

display/hide radio text

CD, JUKEBOX FAVOURITES

activate/deactivate Introscan (SCN)

activate/deactivate Random mode (RDM)

activate/deactivate Repeat (RPT)

activate/deactivate display of CD info

STOP THE COPY

COPY CD TO JUKEBOX

copy complete CD

150

TELEMATICS

multiple selection

current album

current track

send a text message

write a text message

delete list of text messages

DIRECTORY

managing directory iles

consult or modify a ile

add a ile

delete a ile

delete all iles

conigure directory

select a directory

name directory

select starting directory

ile transfer

exchange by infrared

send all records

send one record

receive by infrared

exchange with SIM card

send all records to SIM

send one record to SIM

receive all SIM iles

receive a SIM ile

JUKEBOX

jukebox management

jukebox coniguration

hi-i (320 kbps)

high (192 kbps)

normal (128 kbps)

delete jukebox data

PLAYLIST MANAGEMENT

CALL

call list

dial

directory

mailbox

services

customer contact centre

PEUGEOT assistance

messages received

TEXT MESSAGES (SMS)

read received text messages

TELEPHONE FUNCTIONS

network

network search mode

automatic mode

manual mode

networks available

length of calls

zero reset

manage PIN code

activate/deactivate

save PIN number

modify PIN code

call options

conigure calls

display my number

automatic reply after x ring(s)

ring options

for voice calls

for text messages (SMS)

151

MENU

text message ring

call diversion to mailbox n°

delete calls log

* The parameters vary according to vehicle

(refer to the "Multifunction displays" chapter).

CONFIGURATION

VIDEO

VEHICLE DIAGNOSTICS

Press the MENU button for more
than 2 seconds to gain access to the

next low chart.

VOICE COMMANDS LIST

Press the Music button several
times in succession to access the
following settings.

AUTO VOLUME CORRECTION

SELECT LANGUAGE

Each audio source (Radio, CD, MP3,

Jukebox, CD changer) has its own
separate settings.

DISPLAY CONFIGURATION

choose colour

adjust luminosity

set date and time

select units

SOUND

voice commands setting

speech synthesis setting

guidance instructions volume

other message volume

select female/male voice

activate/deactivate auxiliary source

DEFINE VEHICLE PARAMETERS*

RESET TYRE PRESS. DETEC. SYS.*

ACTIVATE VIDEO MODE

VIDEO PARAMETERS

display formats

adjust luminosity

set colours

set contrasts

ALERT LOG

STATUS OF FUNCTIONS*

AUDIO/TELEPHONE DIAGNOSTICS

GPS COVERAGE

UNIT BACKUP POWER

UNIT DESCRIPTION

NAVIGATION DEMONSTRATION

SERVICES CONFIGURATION

MUSICAL AMBIENCE
BASS
TREBLE
LOUDNESS CORRECTION

FR-RR BALANCE

LH-RH BALANCE

Flow chart version 7.0

163

The table below groups together the answers to the most frequently asked questions concerning the RD4 audio equipment and the RT4 audio/telephone.

QUESTION

SOLUTION

RESPONSE

There is a difference in
sound quality between
the different audio
sources (radio, CD, CD

changer...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source

(radio, CD, CD changer...).

The CD is ejected
automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the Audio section.

- The audio equipment’s CD player does not

play DVDs.

- Due to inadequate quality, certain recorded

CDs will not be played by the audio system.

- The CD changer does not play MP3 CDs.

The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

FREQUENTLY ASKED QUESTIONS

The CD player sound
is poor.

The CD used is scratched or of poor quality.

Insert good quality CDs and store them in
suitable conditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting
an ambience.

164

QUESTION

SOLUTION

RESPONSE

The stored stations do
not function (no sound,

87.5 Mhz is displayed...)

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.

The trafic announcement

(TA) is displayed. I do

not receive any trafic
information.

Tune to a radio station which broadcasts trafic
information.

The radio station is not part of the regional trafic information network.

The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is

displayed...).

The vehicle is too far from the transmitter used by the station listened to or
there is no transmitter in the geographical area through which the vehicle
is travelling.

The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.

This phenomenon is normal and does not
indicate a failure of the audio equipment.

Have the aerial checked by a PEUGEOT dealer.

Sound cut-outs of 1
to 2 seconds in radio
mode.

During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.

Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.

With the engine off,
the audio equipment
switches off after a few
minutes of use.

When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle’s battery.

Start the vehicle’s engine to increase the battery
charge.

The message "the audio
system is overheated"
appears on the display.

Switch the audio system off for a few minutes to
allow the system to cool.

In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of the
CD.

165

QUESTION

SOLUTION

RESPONSE

The TRAFFIC INFO
box is ticked. However,

certain trafic jams
along the route are not
indicated in real time.

On starting, it is several minutes before the system begins to receive the

trafic information.

Wait until the trafic information is being received

correctly (displaying of the trafic information

symbols on the map).

In certain countries, only major routes (motorways, ...) are listed for the

trafic information.

The time taken to
calculate a route
sometimes seems
longer than usual.

This phenomenon is normal. The system is

dependent on the trafic information available.

The performance of the system may slow down temporarily if a CD is
being copied onto the Jukebox at the same time as a route is being
calculated.

Wait until the CD has been copied or stop the
copying before starting the guidance function.

Does the emergency call
function work without a
SIM card?

No, European regulations impose the presence of a SIM card in order to
make an emergency call.

Insert a valid SIM card in the slot on the RT4 GPS
audio/telephone.

My SIM card is not
recognised.

The RT4 accepts 3.3 V SIM cards, the old 5 V and 1.8 V SIM cards are not
recognised.

Contact your telephone operator.

After changing a wheel,
the system loses its
location.

The RT4 GPS audio/telephone uses the wheel rotation information to

improve the GPS locating function. If a wheel is changed or delates
suddenly, the system recalculates the location. For approximately ten
minutes, this recalculation may affect the quality of the locating function.

Wait until the system has completed its
recalculation.

The table below groups together the answers to the most frequently asked questions concerning the RT4 audio/telephone.

The location on the
map is incorrect or
inaccurate.
The altitude is not
displayed.

On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly.

Wait until the system has started up completely.
Check that there is a GPS coverage of at least
3 satellites (long press on the MENU button, then
select AUDIO/TELEPHONE DIAGNOSTICS, then

GPS COVERAGE).

Depending on the geographical environment (tunnel, ...) or the weather,
the conditions of reception of the GPS signal may vary.

This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.

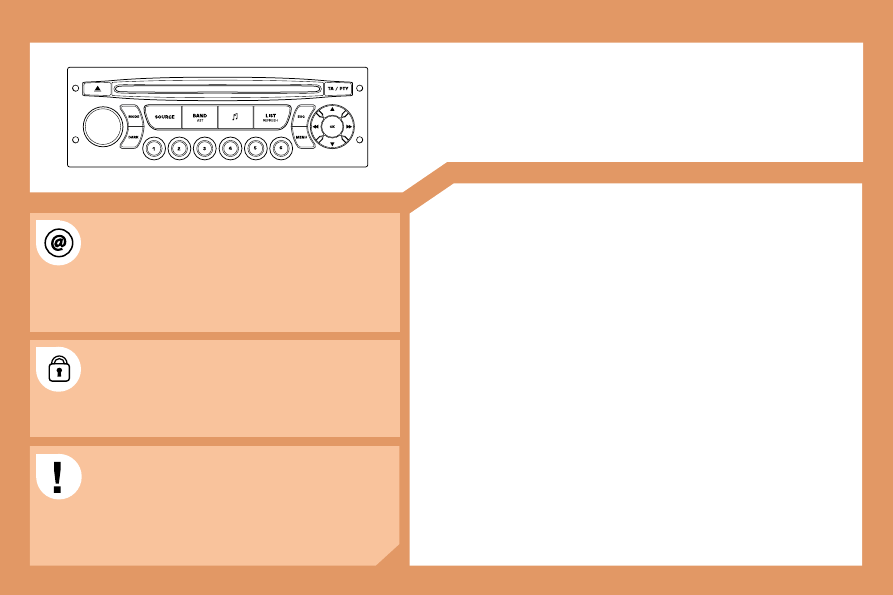

152

RD4

AUDIO EQUIPMENT/HANDS-FREE KIT

CONTENTS

01 First steps

pg. 153

02 General menu

pg. 154

03 Audio

pg. 155

04 Hands-free kit

pg. 158

05 Control short-cuts

pg. 159

06 Coniguration

pg. 160

07 Display low charts

pg. 161

Frequently asked questions pg. 163

The INFOTEC internet site provides additional animated
information on the RD4. It can be consulted at the
following address:
http://public.infotec.peugeot.com
Simple registration permits access and free consultation
of the handbook.

The RD4 audio equipment is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact your PEUGEOT dealer for

coniguration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is off, and in order to prevent
discharging of the battery, the RD4 audio equipment may
switch off after a few minutes.

153

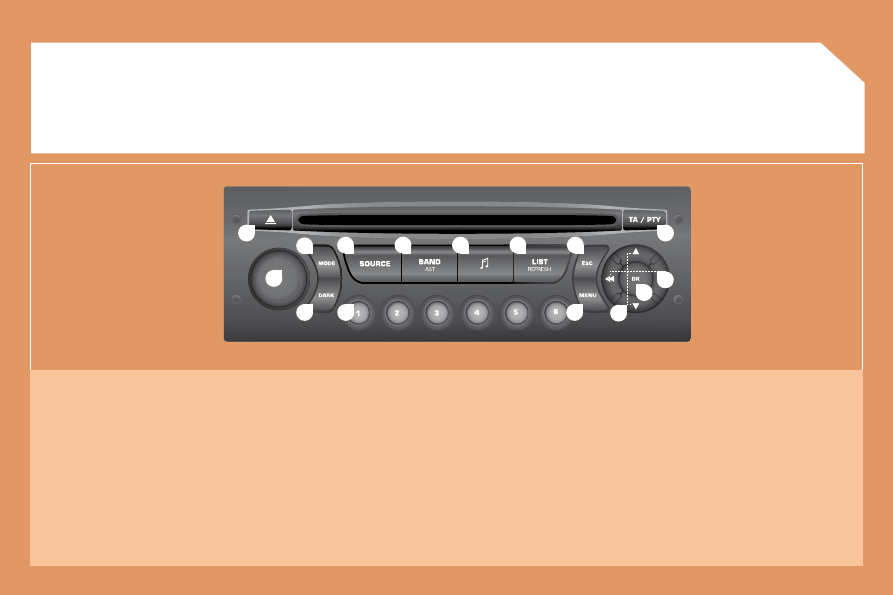

FIRST STEPS

On/Off and volume adjustment.

CD eject.

Selection of the screen display mode.

Selection of the source: radio, CD and CD changer.

Selection of the FM1, FM2, FMast and AM wavebands.

Setting the audio options: front/rear balance, left/right
balance, loudness, sound ambiences.

Displaying of the list of local stations, of the tracks on the
CD or of the MP3 directories.

Abandon current operation.

TA (Trafic Announcement) function on/off.

Long press: access to the PTY (TYpes of radio Programme) mode.

10.

Conirmation.

11. Automatic search for a lower/higher frequency.Selection of

previous/next CD or MP3 track.

12. Selection of a lower/higher radio frequency.

Selection of the previous/next CD.

Selection of the previous/next MP3 directory.

13. Displaying of the general menu.

14. Buttons 1 to 6:

Selection of a stored radio station.

Selection of a CD in the CD changer.

Long press: storing of a station.

15. The DARK button changes the display on the screen to

improve driving comfort at night.
1st press: lighting of the top banner only.
2nd press: black screen display.
3rd press: return to the standard display.

Peugeot 307 CC (2007.5). Manual - part 11
