FUEL RECOMMENDATION

Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).

CAUTION

∙ Only vehicles with the E-85 filler door

label can operate on E-85. Fuel system
or other damage can occur if E-85 is
used in vehicles that are not designed
to run on E-85.

∙ Using a fuel other than that specified

could adversely affect the emission
control system, and may also affect
the warranty coverage.

∙ Under no circumstances should a

leaded gasoline be used, because this
will damage the three-way catalyst.

∙ Do not use a fuel containing more

than 15% ethanol in your vehicle. Your
vehicle is not designed to run on a fuel
containing more than 15% ethanol.
Using a fuel containing more than 15%
ethanol in a vehicle not specifically
designed for a fuel containing more
than 15% ethanol can adversely affect
the emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN New Vehicle Limited Warranty.

∙ Do not use fuel that contains the oc-

tane booster methylcyclopentadienyl
manganese tricarbonyl (MMT). Using
fuel containing MMT may adversely
affect vehicle performance and ve-
hicle emissions. Not all fuel dispens-
ers are labeled to indicate MMT con-
tent, so you may have to consult your
gasoline retailer for more details.
Note that Federal and California laws
prohibit the use of MMT in reformu-
lated gasoline.

∙ U.S. government regulations require

ethanol dispensing pumps to be iden-
tified by a small, square, orange and
black label with the common abbre-
viation or the appropriate percentage
for that region.

Gasoline specifications

NISSAN recommends using gasoline that
meets the World-Wide Fuel Charter (WWFC)
specifications where it is available. Many of
the automobile manufacturers developed
this specification to improve emission con-
trol system and vehicle performance. Ask
your service station manager if the gaso-
line meets the WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing re-
formulated gasolines. These gasolines are
specially designed to reduce vehicle emis-
sions. NISSAN supports efforts towards
cleaner air and suggests that you use re-
formulated gasoline when available.

10-4

Technical and consumer information

Gasoline containing oxygenates

Some fuel suppliers sell gasoline contain-
ing oxygenates such as ethanol, Methyl
Tert-butyl Ether (MTBE) and methanol with
or without advertising their presence.
NISSAN does not recommend the use of
fuels of which the oxygenate content and
the fuel compatibility for your NISSAN can-
not be readily determined. If in doubt, ask
your service station manager.

you

use

oxygenate-blend

gasoline,

please take the following precautions as
the usage of such fuels may cause vehicle
performance problems and/or fuel system
damage.

∙ The fuel should be unleaded and have

an octane rating no lower than that
recommended for unleaded gasoline.

∙ If an oxygenate-blend other than

methanol blend is used, it should
contain no more than 15% oxygenate.

∙ If a methanol blend is used, it should

contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should

also

contain

suitable

amount of appropriate cosolvents
and corrosion inhibitors. If not prop-
erly formulated with appropriate co-
solvents and corrosion inhibitors,
such methanol blends may cause fuel
system damage and/or vehicle per-
formance problems. At this time, suf-
ficient data is not available to ensure
that all methanol blends are suitable
for use in NISSAN vehicles.

If any driveability problems such as engine
stalling and difficult hot-starting are expe-
rienced after using oxygenate-blend fuels,
immediately change to a non-oxygenate
fuel or a fuel with a low blend of MTBE.

Take care not to spill gasoline during re-
fueling. Gasoline containing oxygenates
can cause paint damage.

E–15 fuel

E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline.
E-15 can only be used in vehicles designed
to run on E-15 fuel. U.S. government regula-
tions

require

fuel

ethanol

dispensing

pumps to be identified with small, square,

orange and black label with the common
abbreviation or the appropriate percent-
age for that region.

E–85 fuel

E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline.
E-85 can only be used in a Flexible Fuel
Vehicle (FFV). Do not use E-85 in your ve-
hicle. U.S. government regulations require
fuel ethanol dispensing pumps to be iden-
tified by a small, square, orange and black
label with the common abbreviation or the
appropriate percentage for that region.

Fuel containing MMT

MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting ad-
ditive. NISSAN does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT
content, not all do, so you may have to
consult your gasoline retailer for more de-
tails.

Technical and consumer information

10-5

Aftermarket fuel additives

NISSAN does not recommend the use of
any aftermarket fuel additives (for ex-
ample,

fuel

injector

cleaner,

octane

booster, intake valve deposit removers,
etc.) which are sold commercially. Many of
these additives intended for gum, varnish
or deposit removal may contain active sol-
vents or similar ingredients that can be
harmful to the fuel system and engine.

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended can
cause persistent, heavy “spark knock.”
(“Spark knock” is a metallic rapping
noise.) If severe, this can lead to engine
damage. If you detect a persistent heavy
spark knock even when using gasoline
of the stated octane rating, or if you hear
steady spark knock while holding a
steady speed on level roads, it is recom-
mended that you have a NISSAN dealer
correct the condition. Failure to correct
the condition is misuse of the vehicle, for
which NISSAN is not responsible.

Incorrect ignition timing may result in
spark knock, after-run and/or overheating,
which may cause excessive fuel consump-
tion or engine damage. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended that you
visit a NISSAN dealer for servicing.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not
a cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

10-6

Technical and consumer information

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS

Selecting the correct oil

It is essential to choose the correct grade,
quality and viscosity engine oil to ensure
satisfactory engine life and performance.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities”
in this section. NISSAN recommends the
use of an energy conserving oil in order to
improve fuel economy.

Select only engine oils that meet the
American Petroleum Institute (API) certifi-
cation or International Lubricant Standard-
ization and Approval Committee (ILSAC)
certification and SAE viscosity standard.
These oils have the API certification mark
on the front of the container. Oils which do
not have the specified quality label should
not be used as they could cause engine
damage.

Oil additives

NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.

Oil which may contain foreign matter or
has been previously used should not be
used.

Oil viscosity

The engine oil viscosity or thickness
changes with temperature. Because of
this, it is important to select the engine oil
viscosity based on the temperatures at
which the vehicle will be operated before
the next oil change. Choosing an oil viscos-
ity other than that recommended could
cause serious engine damage.

Selecting the correct oil filter

Your new NISSAN vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or
its equivalent for the reason described in
“Change intervals.”

LTI2051

Technical and consumer information

10-7

Change intervals

The oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Using en-
gine oil and filters that are not of the speci-
fied quality, or exceeding recommended oil
and filter change intervals could reduce
engine life. Damage to the engine caused
by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is
not covered by the NISSAN New Vehicle
Limited Warranty.

Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter
change intervals depend upon how you
use your vehicle.

Operation under the following conditions
may require more frequent oil and filter
changes:

∙ repeated short distance driving at cold

outside temperatures

∙ driving in dusty conditions

∙ extensive idling

∙ stop and go commuting

For additional information, refer to the
“Maintenance and schedules” section of
this manual.

AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS

The air conditioner system in your
NISSAN vehicle must be charged with the
refrigerant

HFC-134a

(R-134a)

and

NISSAN A/C system oil Type ND-OIL11 or
the exact equivalents.

CAUTION

The use of any other refrigerant or oil
will cause severe damage to the air con-
ditioning system and will require the re-
placement of all air conditioner system
components.

The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle does not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
government regulations require the recov-
ery and recycling of any refrigerant during
automotive air conditioner system service.
A NISSAN dealer has the trained techni-
cians and equipment needed to recover
and recycle your air conditioner system re-
frigerant.

It is recommended that you visit a NISSAN
dealer when servicing your air conditioner
system.

10-8

Technical and consumer information

ENGINE

Model

MR20DD

Type

Gasoline, 4-cycle, DOHC

Cylinder arrangement

4-cylinder

Bore x Stroke

in (mm) 3.307 x 3.547 (84.0 x 90.1)

Displacement

cu in (cm

) 121.86 (1,997)

Firing order

1-3-4-2

Idle speed

No adjustment is necessary.

CVT (in N position)

Ignition timing (degree B.T.D.C. at idle speed)

CO % at idle

Spark plug

DILKAR7D-11H

Spark plug gap (Nominal)

in (mm) 0.043 (1.1)

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

SPECIFICATIONS

Technical and consumer information

10-9

WHEELS AND TIRES

Wheel type

Offset in (mm)

Size

Aluminum

1.38 (35)

17 x 7J

1.38 (35)

18 x 7J

Tires

Size

Non Run Flat

225/65R17

225/60R18

Spare tires

Size

Spare Wheel

T155/90D17

DIMENSIONS AND WEIGHTS

Overall length

in (mm)

184.5 (4,686)

Overall width

in (mm)

72.4 (1,840)

Overall height

with All-wheel drive

in (mm)

68.5 (1,741)

with front wheel drive

in (mm)

67.8 (1,721)

Front and Rear Track

in (mm)

62.8 (1,595.1)

Wheelbase

in (mm)

106.5 (2,706)

Gross vehicle weight rating

lbs. (kg)

Refer to the “F.M.V.S.S./C.M.

V.S.S. certification label” on

the center pillar between

the driver’s side front and

rear doors.

Gross axle weight rating

Front

lbs. (kg)

Rear

lbs. (kg)

10-10

Technical and consumer information

When planning to drive your NISSAN ve-
hicle in another country, you should first
find out if the fuel available is suitable for
your vehicle's engine.

Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.

When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modify the vehicle to meet local laws
and regulations.

The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.

When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.

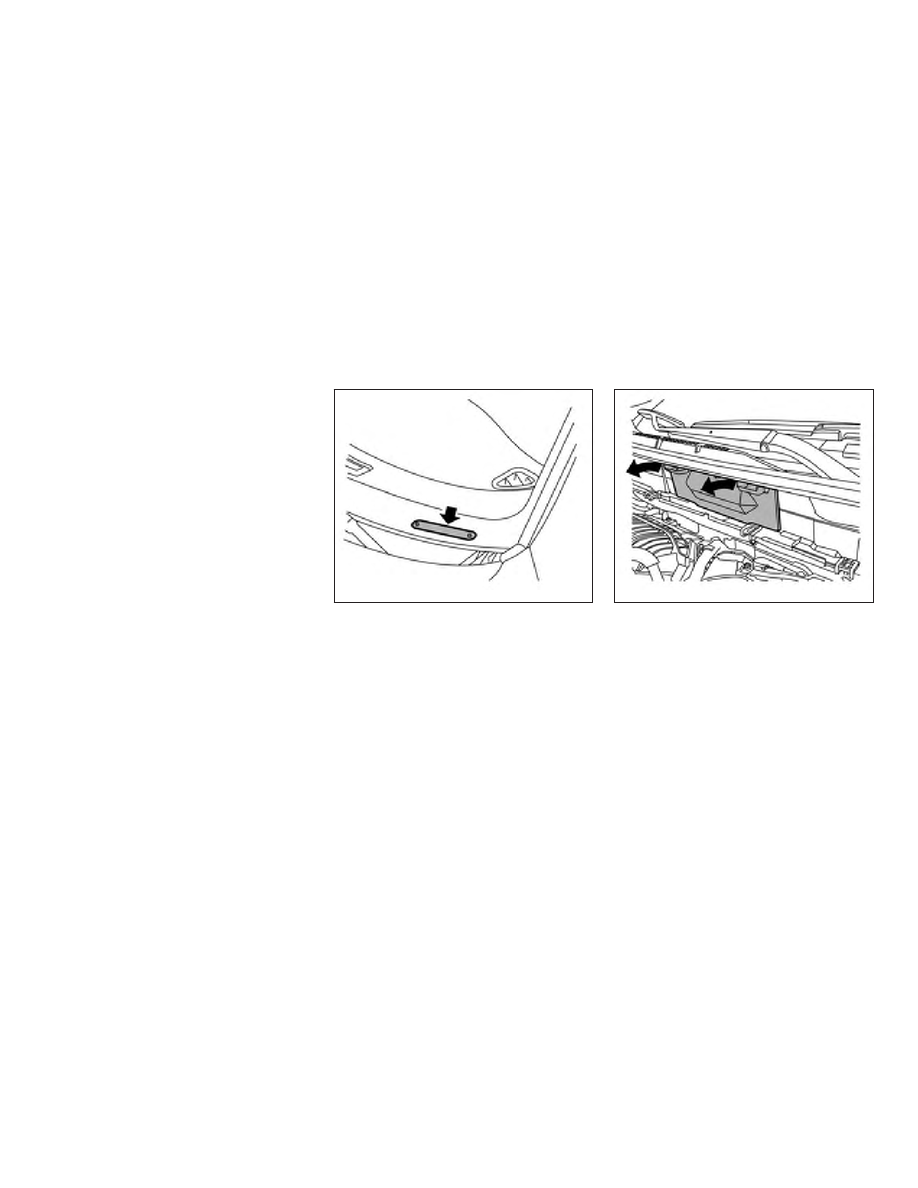

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE

The vehicle identification number (VIN)
plate is located as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.

VEHICLE IDENTIFICATION NUMBER
(chassis number)

The vehicle identification number is lo-
cated as shown.

LTI2050

LTI2270

WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY

VEHICLE IDENTIFICATION

Technical and consumer information

10-11

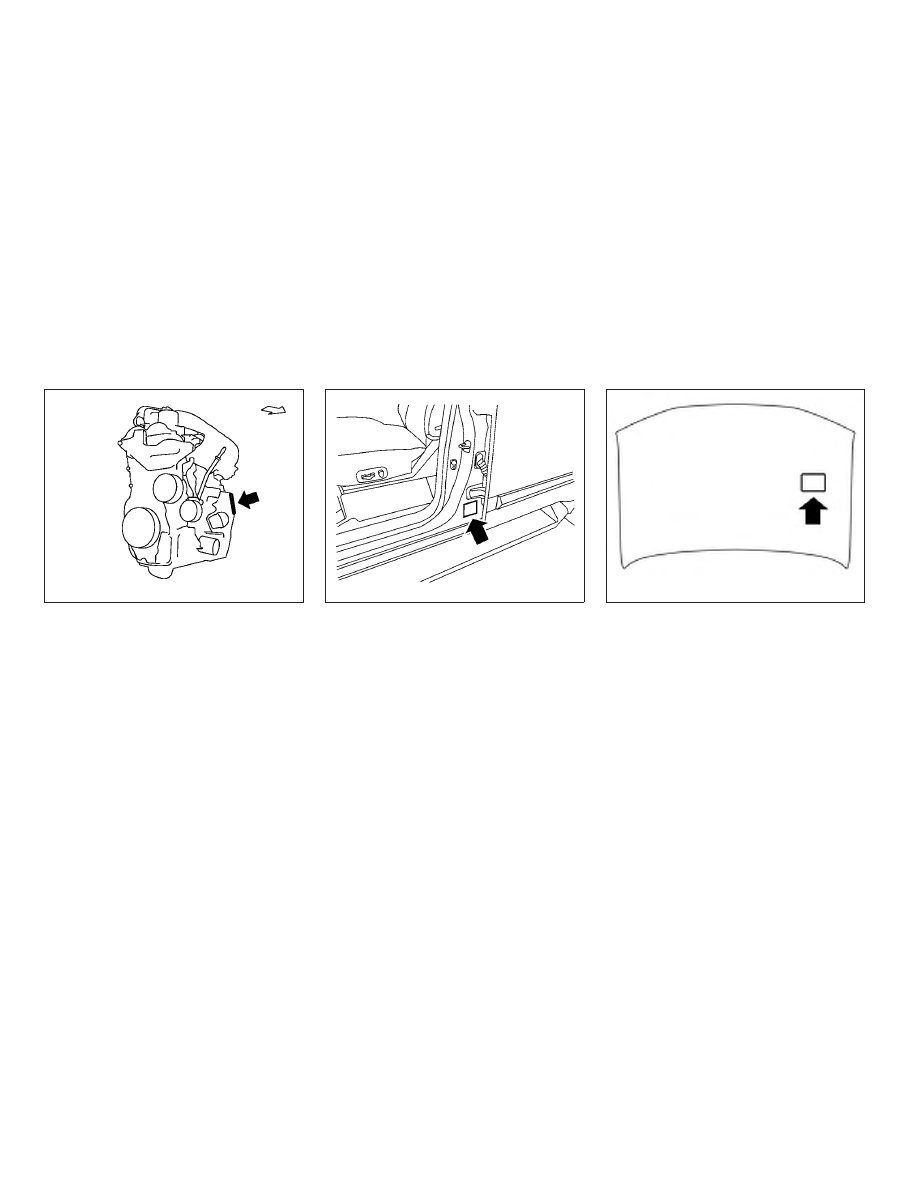

ENGINE SERIAL NUMBER

The number is stamped on the engine as
shown.

F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL

The

Federal/Canadian

Motor

Vehicle

Safety Standard (F.M.V.S.S./C.M.V.S.S.) certifi-
cation label is affixed as shown. This label
contains valuable vehicle information, such
as: (GVWR), (GAWR), month and year of
manufacture, (VIN), etc. Review it carefully.

EMISSION CONTROL
INFORMATION LABEL

The emission control information label is
attached to the underside of the hood as
shown.

STI0466

WTI0099

LTI2072

10-12

Technical and consumer information

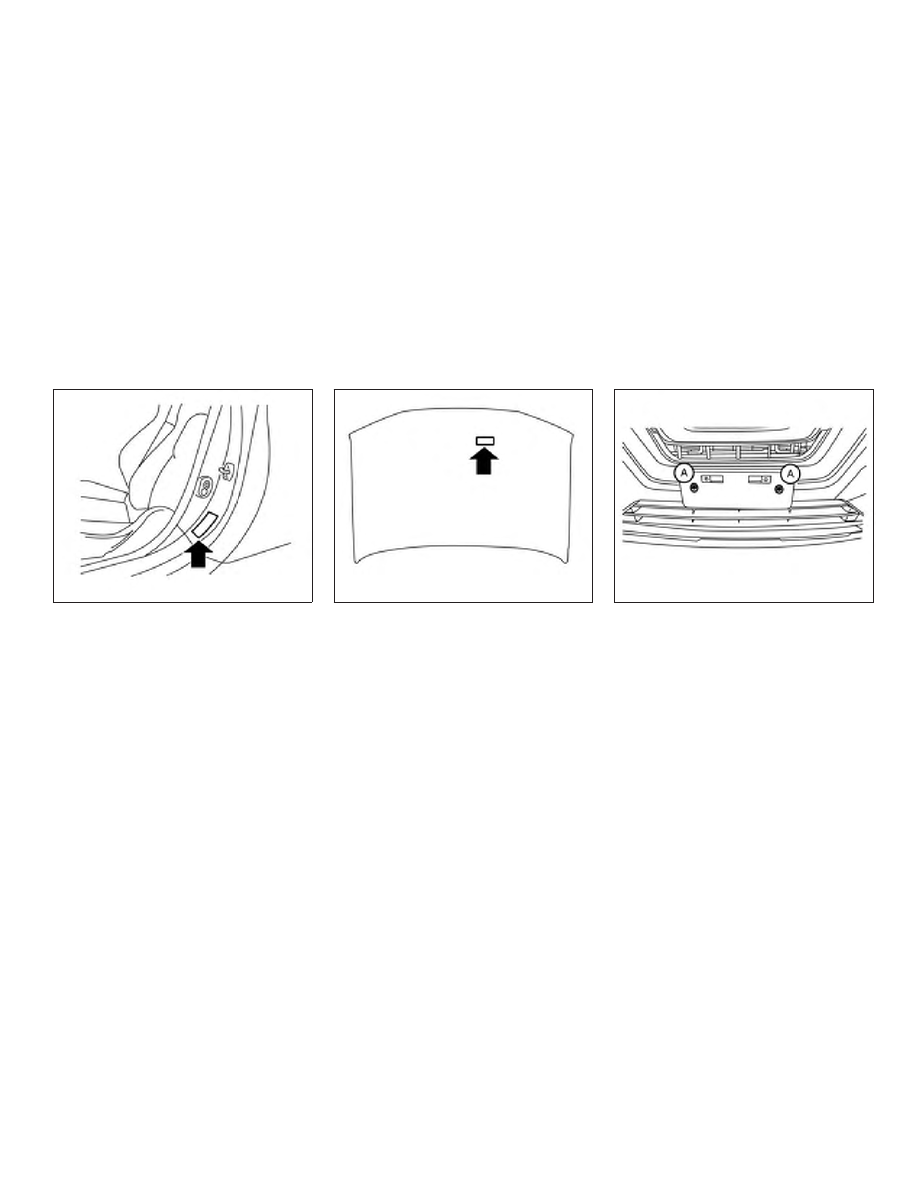

TIRE AND LOADING INFORMATION
LABEL

The cold tire pressure is shown on the Tire
and Loading Information label. The label is
located as shown.

AIR CONDITIONER SPECIFICATION
LABEL

The air conditioner specification label is af-
fixed to the underside of the hood as
shown.

To mount the front license plate, attach the
license plate bracket to the bumper fascia
at the location marks (small dimples) using
the two provided screws

䊊

LTI2251

LTI2271

LTI2352

INSTALLING FRONT LICENSE PLATE

Technical and consumer information

10-13

WARNING

∙ It is extremely dangerous to

ride in a cargo area inside a ve-
hicle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.

∙ Do not allow people to ride in

any area of your vehicle that is
not equipped with seats and
seat belts.

∙ Be sure everyone in your vehicle

is in a seat and using a seat belt
properly.

TERMS

It is important to familiarize yourself
with the following terms before
loading your vehicle:

∙ Curb Weight (actual weight of

your vehicle) - vehicle weight in-
cluding: standard and optional
equipment,

fluids,

emergency

tools, and spare tire assembly.
This weight does not include
passengers and cargo.

∙ GVW (Gross Vehicle Weight) - curb

weight plus the combined weight
of passengers and cargo.

∙ GVWR (Gross Vehicle Weight Rat-

ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This informa-
tion

located

the

F.M.V.S.S./C.M.V.S.S.

certification

label.

∙ GAWR (Gross Axle Weight Rating) -

maximum

weight

(load)

limit

specified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S.

certification

label.

∙ GCWR (Gross Combined Weight

rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer.

∙ Vehicle Capacity Weight, Load

limit, Total load capacity - maxi-
mum total weight limit specified
of the load (passengers and
cargo) for the vehicle. This is the
maximum combined weight of
occupants and cargo that can be
loaded into the vehicle. If the ve-
hicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.

∙ Cargo

capacity

permissible

weight of cargo, the subtracted
weight of occupants from the
load limit.

VEHICLE LOADING INFORMATION

10-14

Technical and consumer information

VEHICLE LOAD CAPACITY

Before driving a loaded vehicle, con-
firm that you do not exceed the
Gross Vehicle Weight Rating (GVWR)
or the Gross Axle Weight Rating
(GAWR) for your vehicle. Both the
GVWR and GAWR are located on the
F.M.V.S.S./C.M.V.S.S. certification label.
For additional information, refer to
“Measurement of weights” in this
section.

Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on
the Tire and Loading Information la-
bel. Do not exceed the number of
occupants shown as “Seating Ca-
pacity” on the Tire and Loading Infor-
mation label.

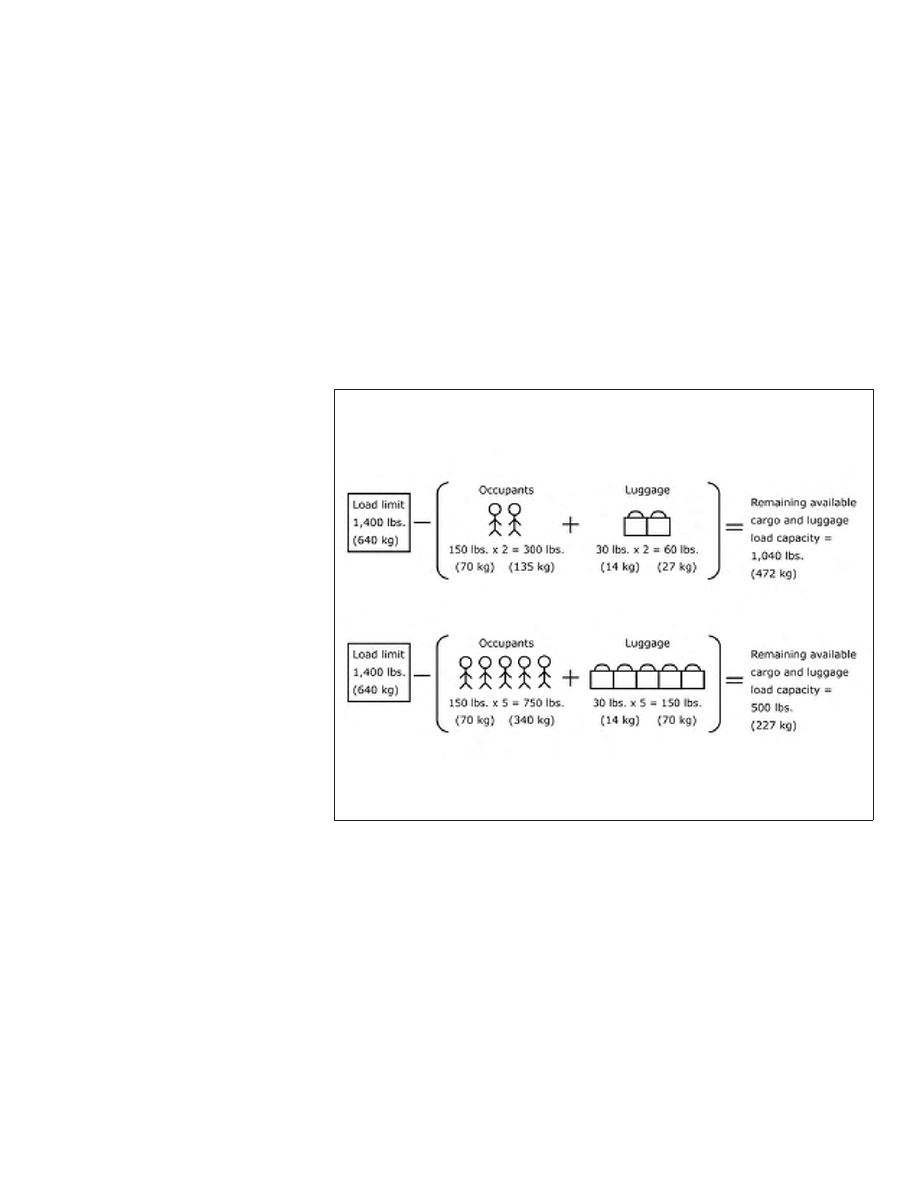

To get “the combined weight of oc-
cupants and cargo”, add the weight
of all occupants, then add the total
luggage

weight.

Examples

are

shown in the following illustration.

Example

LTI2335

Technical and consumer information

10-15

Steps for determining correct
load limit

1. Locate the statement “The com-

bined weight of occupants and
cargo should never exceed XXX
lbs. or XXX kg” on your vehicle’s
Tire and Loading Information la-
bel.

2. Determine the combined weight

of the driver and passengers
that will be riding in your vehicle.

3. Subtract the combined weight

of the driver and passengers
from XXX lbs. or XXX kg.

4. The resulting figure equals the

available amount of cargo and
luggage load capacity. For ex-
ample, if the XXX amount equals
1,400 lbs. and there will be five
150 lbs. passengers in your ve-
hicle, the amount of available
cargo and luggage load capac-
ity is 650 lbs. (1,400-750 (5 X 150) =
650 lbs.) or (640-340 (5 X 70) =
300 kg.)

5. Determine the combined weight

of luggage and cargo being
loaded on the vehicle. That
weight may not safely exceed
the available cargo and luggage
load

capacity

calculated

step 4.

Before driving a loaded vehicle, con-
firm that you do not exceed the
Gross Vehicle Weight Rating (GVWR)
or the Gross Axle Weight Rating
(GAWR) for your vehicle. For addi-
tional information, refer to “Measure-
ment of weights” in this section.

Also check tires for proper inflation
pressures. For additional informa-
tion, refer to “Tire and Loading Infor-
mation label” in this section.

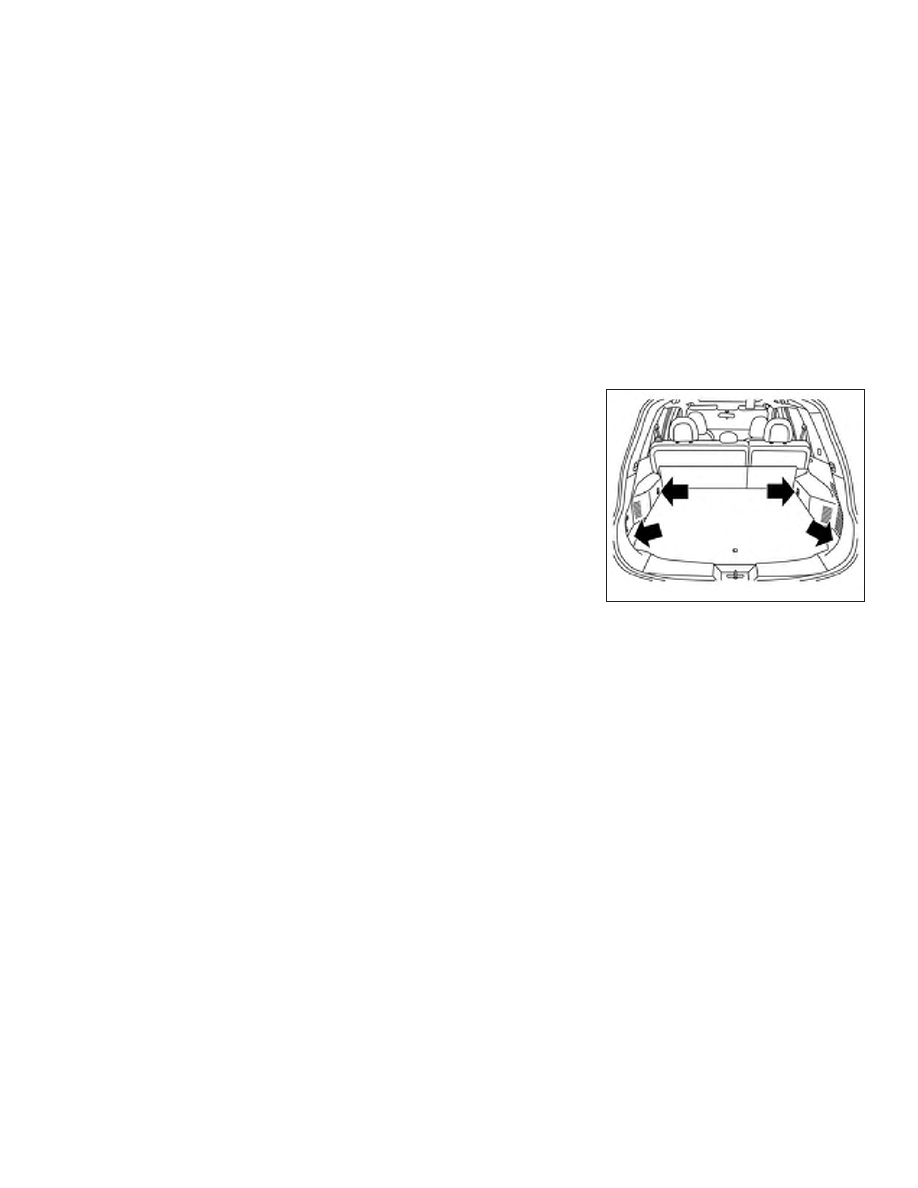

SECURING THE LOAD

There are luggage hooks located in the
cargo area as shown. The hooks can be
used to secure cargo with ropes or other
types of straps.

When securing items using luggage
hooks located on the side finisher do not
apply a load over more than 6.5 lbs. (29 N)
to a single hook.

The luggage hooks that are located on
the floor should have loads less than
110 lbs. (490 N) to a single hook.

Cargo area luggage hooks

LIC3715

10-16

Technical and consumer information

WARNING

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ The child restraint top tether strap

may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.

∙ Do not load your vehicle any heavier

than the GVWR or the maximum front
and rear GAWRs. If you do, parts of
your vehicle can break, tire damage
could occur, or it can change the way
your vehicle handles. This could result
in loss of control and cause personal
injury.

LOADING TIPS

∙ The GVW must not exceed GVWR

or GAWR as specified on the
F.M.V.S.S./C.M.V.S.S.

certification

label.

∙ Do not load the front and rear

axle to the GAWR. Doing so will
exceed the GVWR.

WARNING

∙ Properly secure all cargo with

ropes or straps to help prevent
it from sliding or shifting. Do not
place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.

∙ Do not load your vehicle any

heavier than the GVWR or the
maximum

front

and

rear

GAWRs. If you do, parts of your
vehicle can break, tire damage
could occur, or it can change the
way your vehicle handles. This
could result in loss of control
and cause personal injury.

∙ Overloading

not

only

can

shorten the life of your vehicle
and the tire, but can also cause
unsafe vehicle handling and
longer braking distances. This
may cause a premature tire fail-
ure which could result in a seri-
ous accident and personal in-
jury.

Failures

caused

overloading are not covered by
the vehicle’s warranty.

MEASUREMENT OF WEIGHTS

Secure

loose

items

prevent

weight shifts that could affect the
balance of your vehicle. When the ve-
hicle is loaded, drive to a scale and
weigh the front and the rear wheels
separately to determine axle loads.
Individual axle loads should not ex-
ceed either of the GAWR. The total of
the axle loads should not exceed the
GVWR. These ratings are given on
the

vehicle

certification

label.

weight ratings are exceeded, move
or remove items to bring all weights
below the ratings.

Technical and consumer information

10-17

Do not tow a trailer with your vehicle.

FLAT TOWING FOR ALL–WHEEL
DRIVE VEHICLE (if so equipped)

Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational ve-
hicle, such as a motor home.

CAUTION

∙ Failure to follow these guidelines can

result in severe transmission damage.

∙ Never flat tow your All-wheel drive

(AWD) vehicle.

∙ DO NOT tow your All-wheel drive

(AWD) vehicle with any wheels on the
ground. Doing so may cause serious
and

expensive

damage

the

powertrain.

∙ For emergency towing procedures re-

fer

“Towing

recommended

NISSAN” in the “In case of emergency”
section of this manual.

FLAT TOWING FOR FRONT WHEEL
DRIVE VEHICLE (if so equipped)

Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational ve-
hicle, such as a motor home.

CAUTION

∙ Failure to follow these guidelines can

result in severe transmission damage.

∙ Whenever flat towing your vehicle, al-

ways tow forward, never backward.

∙ Never tow your front wheel drive ve-

hicle with the front tires on the
ground. Doing so may cause serious
and

expensive

damage

the

powertrain.

∙ DO NOT tow your front wheel drive

continuously variable transmission
vehicle with all four wheels on the
ground (flat towing). Doing so WILL
DAMAGE internal transmission parts
due

lack

transmission

lubrication.

∙ For emergency towing procedures re-

fer

“Towing

recommended

NISSAN” in the “In case of emergency”
section of this manual.

Continuously Variable
Transmission

To tow a vehicle equipped with a continu-
ously variable transmission, an appropriate
vehicle dolly MUST be placed under the
towed vehicle’s drive wheels. Always follow
the dolly manufacturer’s recommenda-
tions when using their product.

TOWING A TRAILER

10-18

Technical and consumer information

DOT (Department of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.

Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:

Treadwear 200 Traction AA Temperature A

Treadwear

The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Traction AA, A, B and C

The traction grades, from highest to low-
est, are AA, A, B, and C. Those grades repre-
sent the tire’s ability to stop on wet pave-
ment

measured

under

controlled

conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.

WARNING

The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include ac-
celeration, cornering, hydroplaning, or
peak traction characteristics.

Temperature A, B and C

The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat, and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. The grade C corresponds to a
level of performance which all passenger
car tires must meet under the Federal Mo-
tor Vehicle Safety Standard No. 109. Grades
B and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.

WARNING

The temperature grade for this tire is
established for a tire that is properly in-
flated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.

UNIFORM TIRE QUALITY GRADING

Technical and consumer information

10-19

Nissan Rogue Hybrid (2019 year). Manual - part 30
