Nissan Rogue Hybrid (2019 year). Manual - part 19

HOW TO ENABLE/DISABLE THE
BSW SYSTEM

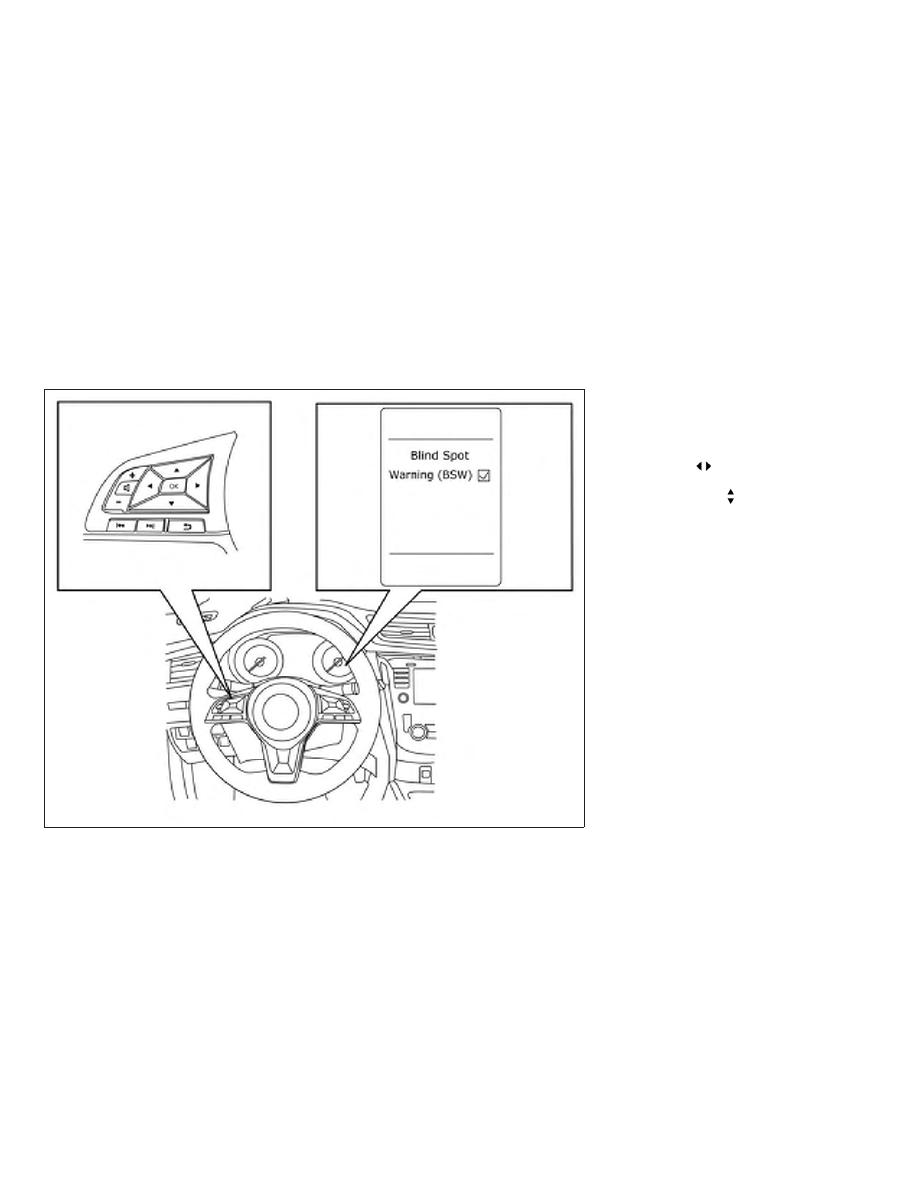

Perform the following steps to enable or
disable the BSW system.

1. Press the

button until “Settings”

displays in the vehicle information dis-
play. Use the

button to select

“Driver Assistance.” Then press the OK
button.

2. Select “Driving Aids” and press the OK

button.

3. Select “Blind Spot” and press the OK

button.

– To turn on the warning system, use

the OK button to check the box for
“Warning (BSW).”

NOTE:

When enabling/disabling the system,
the system will retain current settings
even if the hybrid system is restarted.

LSD3095

5-40

Starting and driving

BSW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the BSW system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The BSW system cannot detect all ve-

hicles under all conditions.

∙ The radar sensors may not be able to

detect and activate BSW when certain
objects are present such as:

– Pedestrian, bicycles, animals.

– Vehicles such as motorcycles, low

height vehicles, or high ground
clearance vehicles.

– Oncoming vehicles.

– Vehicles remaining in the detec-

tion zone when you accelerate
from a stop.

– A vehicle merging into an adjacent

lane at a speed approximately the
same as your vehicle.

– A vehicle approaching rapidly from

behind.

– A vehicle which your vehicle over-

takes rapidly.

– A vehicle that passes through the

detection zone quickly.

– When overtaking several vehicles

in a row, the vehicles after the first
vehicle may not be detected if they
are traveling close together.

∙ The radar sensors’ detection zone is

designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect ve-
hicles in an adjacent lane. When driv-
ing in a narrow lane, the radar sensors
may detect vehicles driving two lanes
away.

∙ The radar sensors are designed to ig-

nore most stationary objects; how-
ever, objects such as guardrails, walls,
foliage and parked vehicles may oc-
casionally be detected. This is a nor-
mal operation condition.

∙ The following conditions may reduce

the ability of the radar to detect other
vehicles:

– Severe weather

– Road spray

– Ice/frost/snow/dirt

build-up

the vehicle

∙ Do not attach stickers (including

transparent material), install accesso-
ries or apply additional paint near the
radar sensors. These conditions may
reduce the ability of the radar to de-
tect other vehicles.

∙ Excessive noise (for example, audio

system volume, open vehicle window)
will interfere with the chime sound,
and it may not be heard.

Starting and driving

5-41

BSW DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

Another vehicle approaching
from behind

Illustration 1: The side BSW/RCTA indicator
light illuminates if a vehicle enters the de-
tection zone from behind in an adjacent
lane.

Illustration 2: If the driver activates the
turn signal when another vehicle is in the
detection zone, then the system chimes
(twice) and the side indicator light flashes.

NOTE:

∙ The radar sensors may not detect ve-

hicles which are approaching rapidly
from behind.

∙ If the driver activates the turn signal

before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the
other vehicle is detected.

Illustration 1 – Approaching from behind

LSD2299

Illustration 2 – Approaching from behind

LSD2300

5-42

Starting and driving

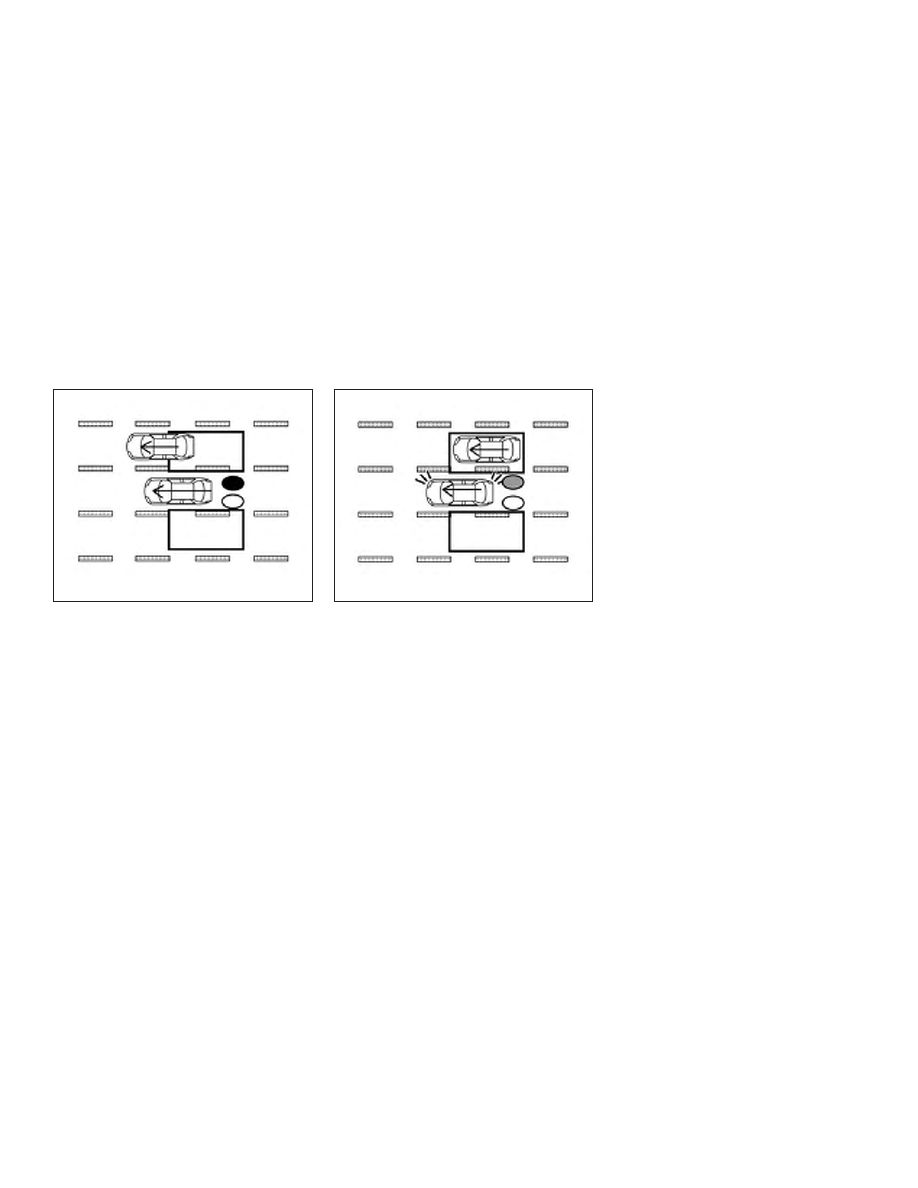

Overtaking another vehicle

Illustration 3: The side indicator light illu-
minates if you overtake a vehicle and that
vehicle stays in the detection zone for ap-
proximately 2 seconds.

Illustration 4: If the driver activates the
turn signal while another vehicle is in the
detection zone, then the system chimes
(twice) and the side indicator light flashes.

NOTE:

∙ When overtaking several vehicles in a

row, the vehicles after the first vehicle
may not be detected if they are trav-
eling close together.

∙ The radar sensors may not detect

slower moving vehicles if they are
passed quickly.

∙ If the driver activates the turn signal

before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the
other vehicle is detected. .

Illustration 3 – Overtaking another

vehicle

LSD2302

Illustration 4 – Overtaking another

vehicle

LSD2303

Starting and driving

5-43

Entering from the side

Illustration 5: The side indicator light illu-
minates if a vehicle enters the detection
zone from either side.

Illustration 6: If the driver activates the
turn signal while another vehicle is in the
detection zone, then the system chimes
(twice) and the side indicator light flashes.

NOTE:

∙ If the driver activates the turn signal

before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the
other vehicle is detected.

∙ The radar sensors may not detect a

vehicle which is traveling at about the
same speed as your vehicle when it
enters the detection zone.

Illustration 5 – Entering from the side

LSD2305

Illustration 6 – Entering from the side

LSD2308

5-44

Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE

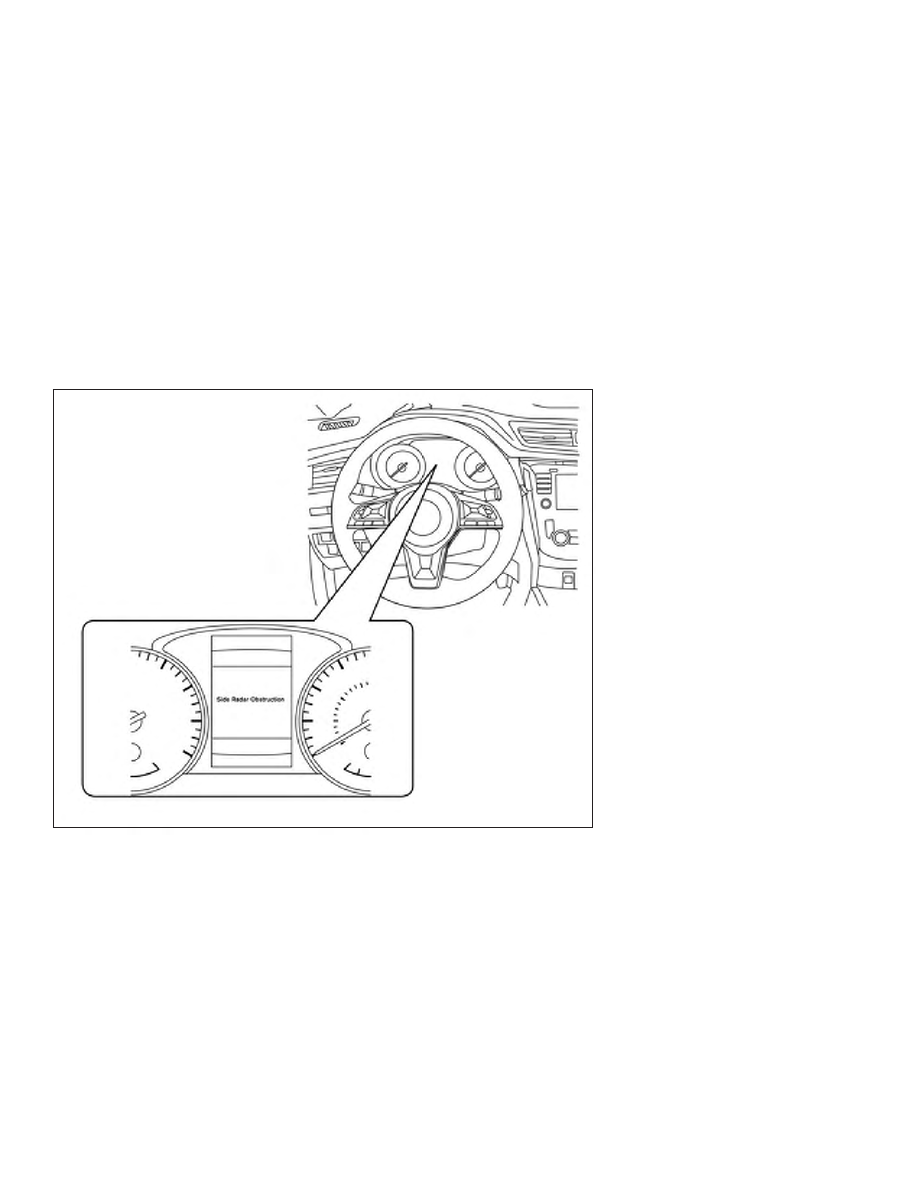

When radar blockage is detected, the sys-
tem will be deactivated automatically. The
“Side Radar Obstruction” warning message
will appear in the vehicle information dis-
play.

The system is not available until the condi-
tions no longer exist.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog. The blocked condi-
tion may also be caused by objects such as
ice, frost or dirt obstructing the radar sen-
sors.

NOTE:

If the BSW system stops working, the
RCTA system will also stop working.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

LSD2735

Starting and driving

5-45

Malfunction

If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message will appear in the vehicle
information display.

Action to take:

Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the hy-
brid system off and restart the hybrid sys-
tem. If the message continues to appear,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

SYSTEM MAINTENANCE

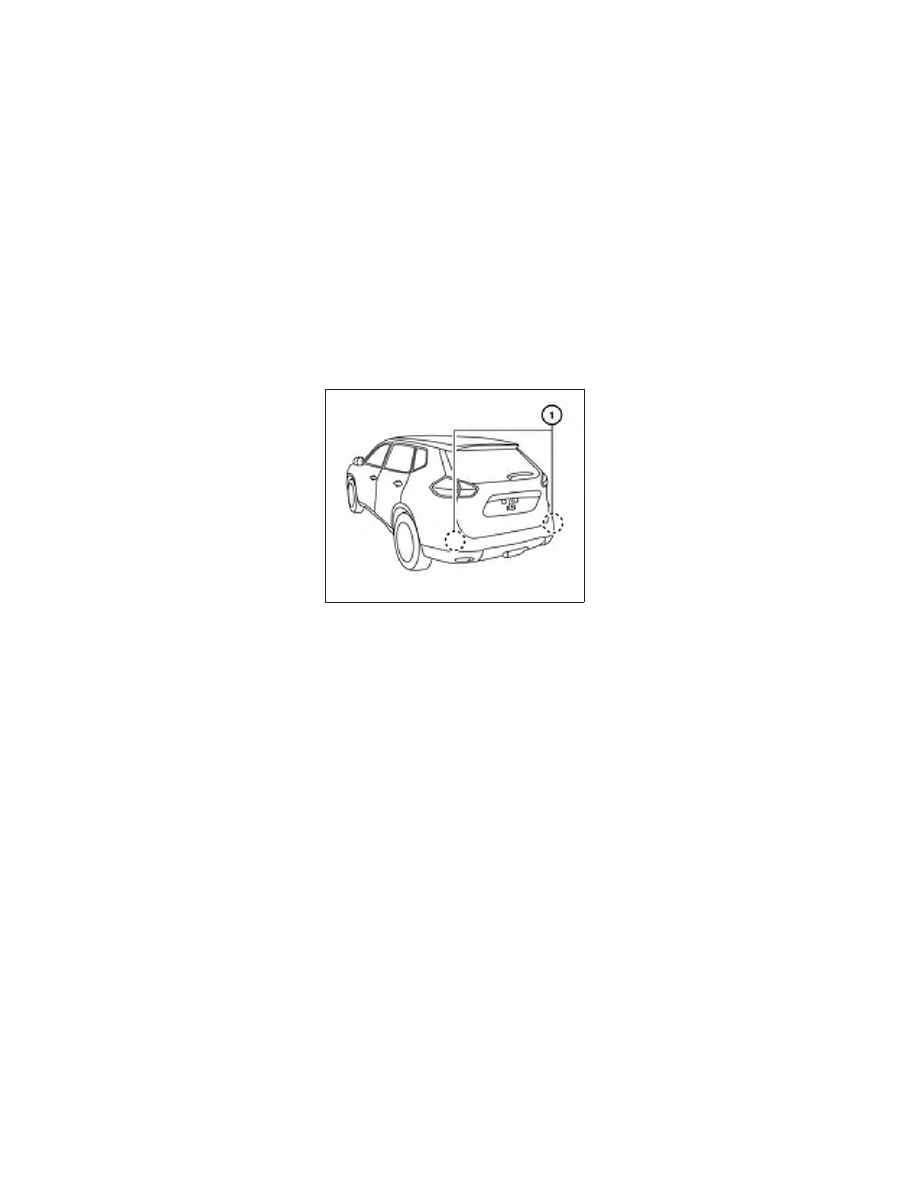

The two radar sensors

䊊

for the BSW sys-

tem are located near the rear bumper. Al-
ways keep the area near the radar sensors
clean.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog.

The blocked condition may also be caused
by objects such as ice, frost or dirt ob-
structing the radar sensors.

Check for and remove objects obstructing
the area around the radar sensors.

Do not attach stickers (including transpar-
ent material), install accessories or apply
additional paint near the radar sensors.

Do not strike or damage the area around
the radar sensors. It is recommended that
you visit a NISSAN dealer if the area around
the radar sensors is damaged due to a
collision.

Radio frequency statement

For USA

FCC : OAYSRR3B

This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:

(1) This device may not cause harmful
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired
operation.

FCC Warning

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment

LSD2439

5-46

Starting and driving

For Canada

Applicable law: Canada 310

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

Frequency bands: 24.05 – 24.25GHz

Output power: less than 20 milliwatts

WARNING

Failure to follow the warnings and in-
structions for proper use of the RCTA
system could result in serious injury or
death.

∙ The RCTA system is not a replacement

for proper driving procedures and is
not designed to prevent contact with
vehicles or objects. When backing out
of a parking space, always use the
side and rear mirrors and turn and
look in the direction your vehicle will
move. Never rely solely on the RCTA
system.

The RCTA system will assist you when
backing out from a parking space. When
the vehicle is in reverse, the system is de-
signed to detect other vehicles approach-
ing from the right or left of the vehicle. If the
system detects cross traffic, it will alert you.

REAR CROSS TRAFFIC ALERT (RCTA)

Starting and driving

5-47

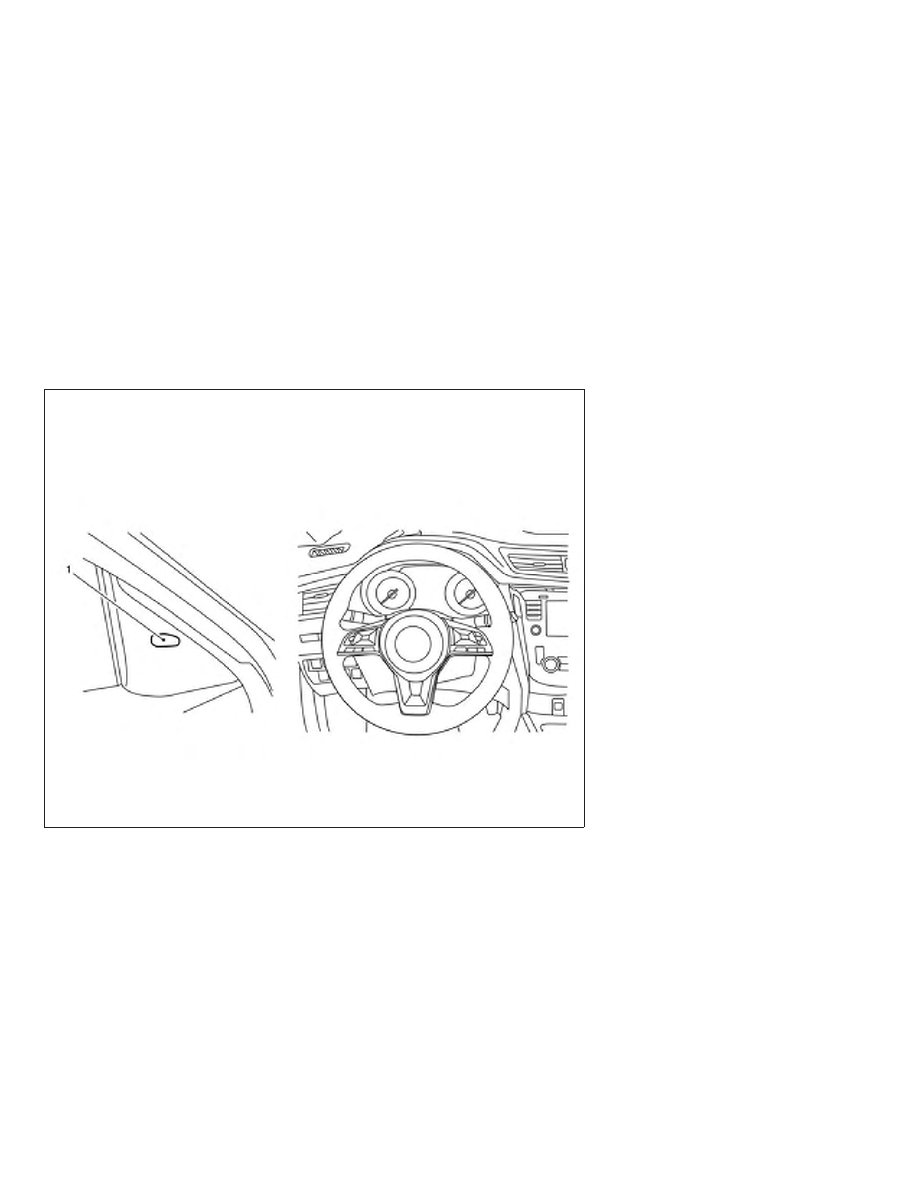

1. Side BSW/RCTA Indicator Light

RCTA SYSTEM OPERATION

The RCTA system can help alert the driver
of an approaching vehicle when the driver
is backing out of a parking space.

When the shift position is in R (Reverse) and
the vehicle speed is less than approxi-
mately 5 mph (8 km/h), the RCTA system is
operational.

If the radar detects an approaching vehicle
from either side, the system chimes (once)
and the side BSW/RCTA indicator light
flashes on the side the vehicle is approach-
ing from.

LSD2734

5-48

Starting and driving

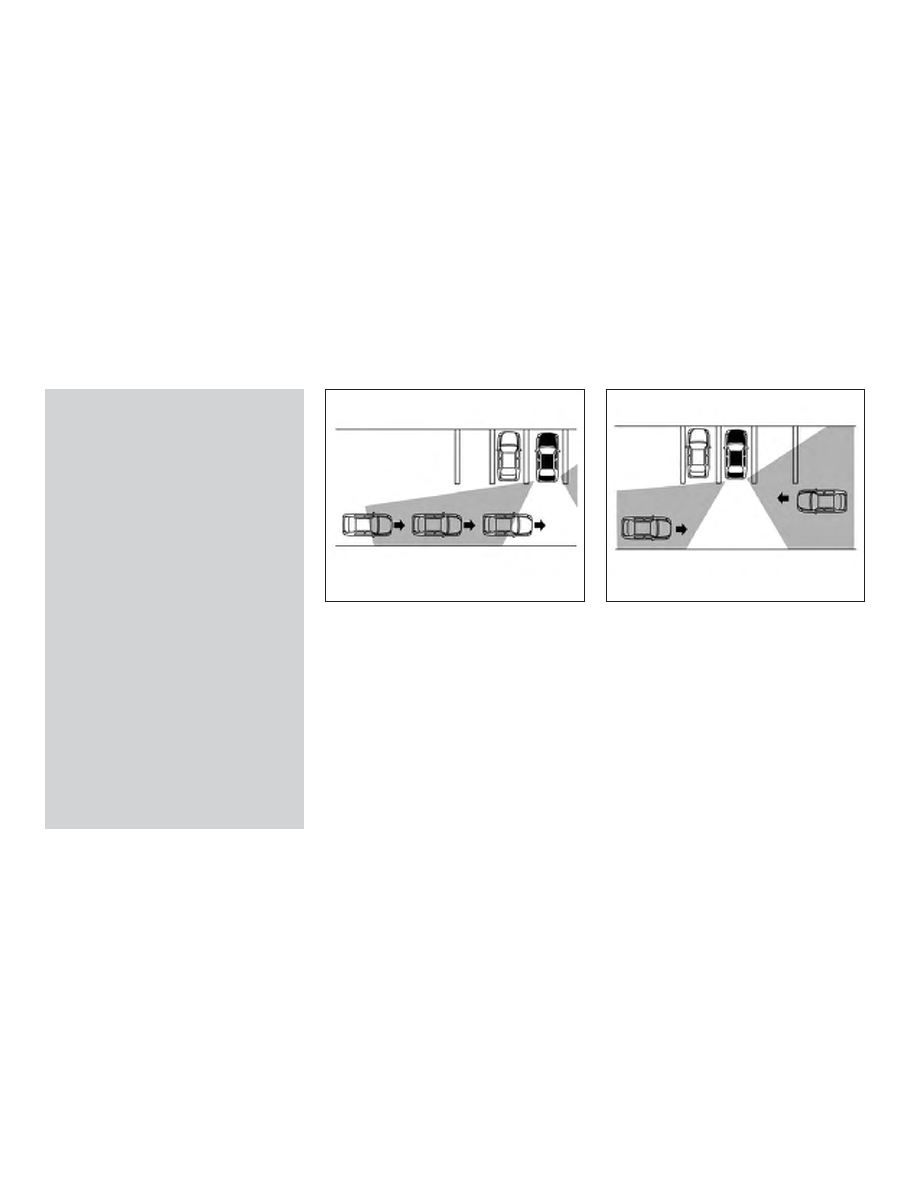

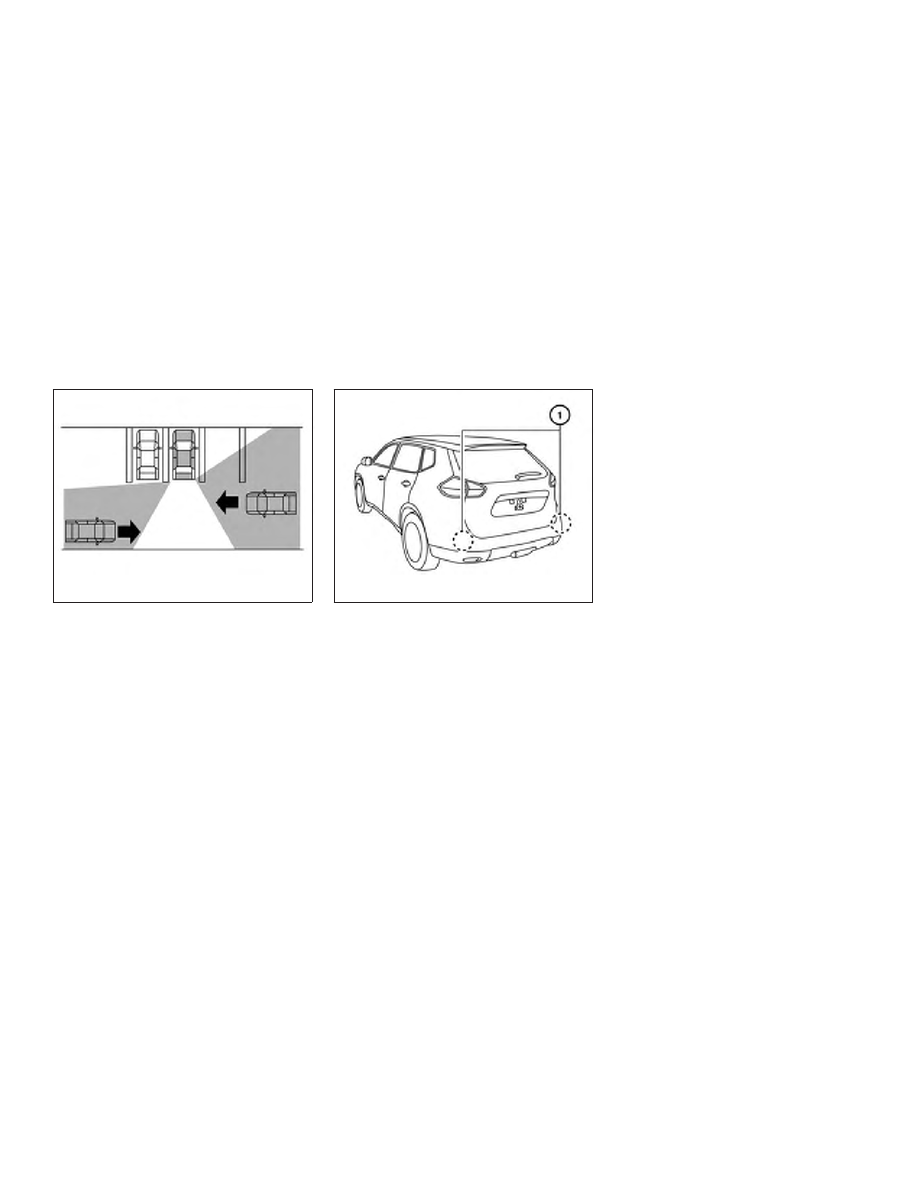

The RCTA system uses radar sensors

䊊

installed on both sides near the rear bum-
per to detect an approaching vehicle.

The radar sensors

䊊

can detect an ap-

proaching vehicle from up to approxi-
mately 66 ft (20 m) away.

LSD2216

LSD2439

Starting and driving

5-49

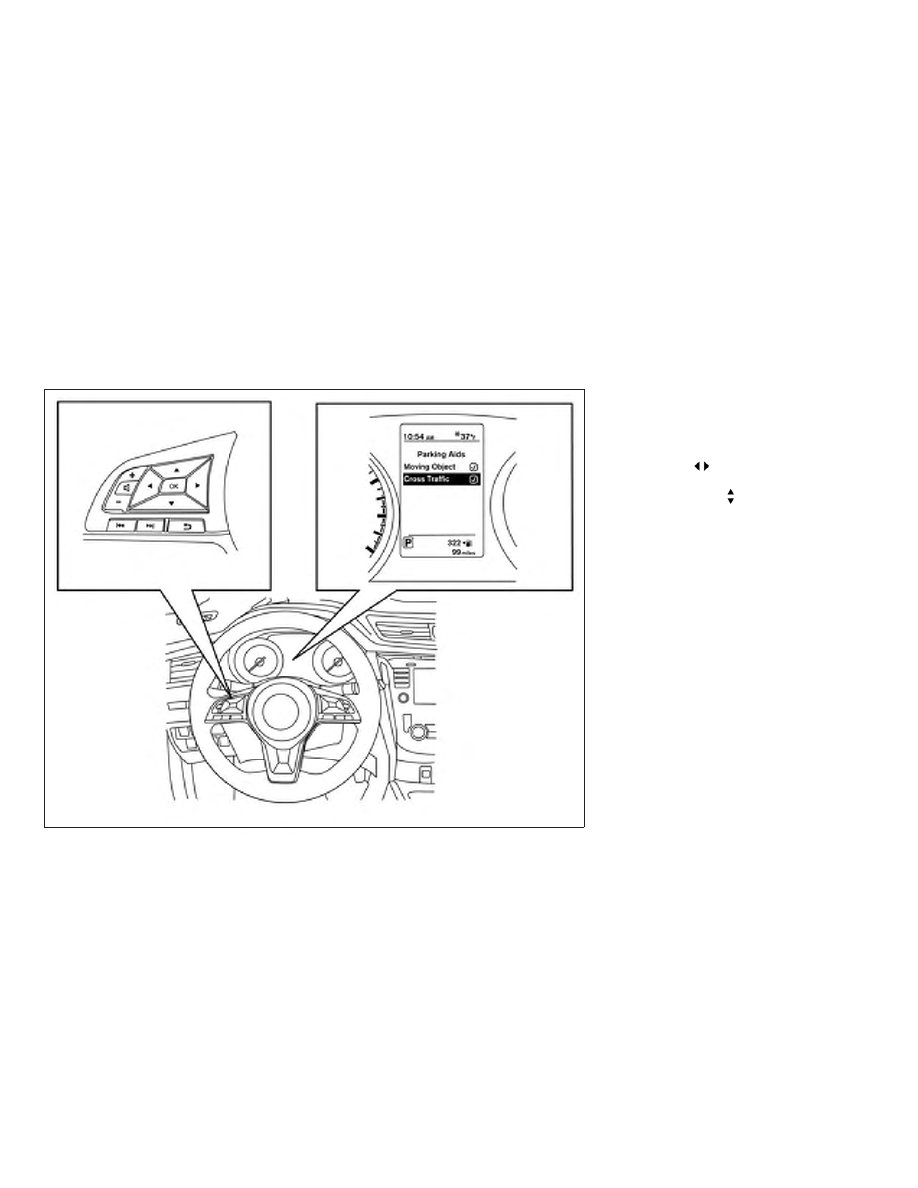

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM

Perform the following steps to enable or
disable the RCTA system.

1. Press the

button until “Settings”

displays in the vehicle information dis-
play. Use the

button to select

“Driver Assistance.” Then press the OK
button.

2. Select “Parking Aids” and press the OK

button.

3. Select “Cross Traffic” and press the OK

button.

4. Use the OK button to enable or disable

the system.

NOTE:

When enabling/disabling the system,
the system setting will be retained even
if the hybrid system is restarted.

LSD2768

5-50

Starting and driving

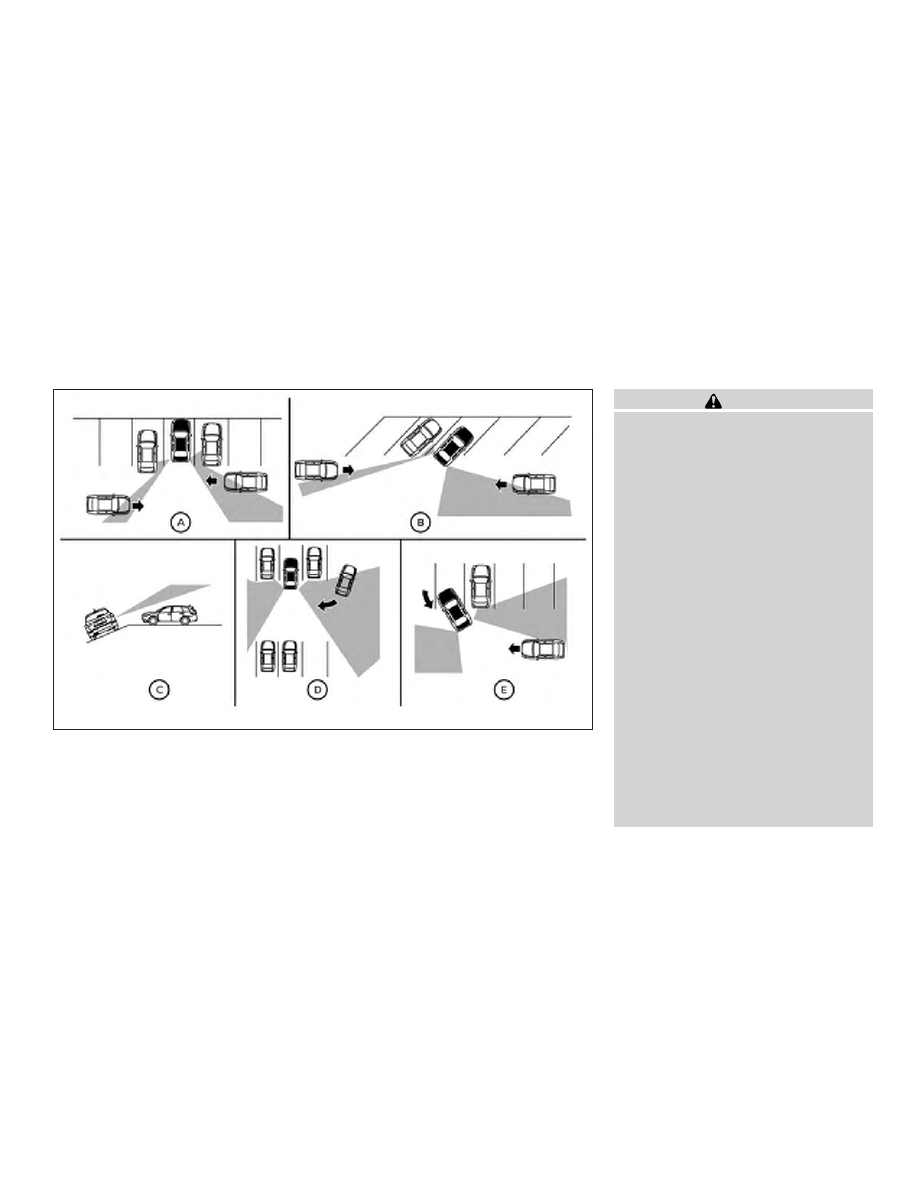

RCTA SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the RCTA system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ Always check surroundings and turn

to check what is behind you before
backing up. The radar sensors detect
approaching (moving) vehicles. The
radar sensors cannot detect every
object such as:

– Pedestrians, bicycles, motorcycles,

animals

child-operated

toy

vehicles

– A vehicle that is passing at speeds

greater

than

approximately

19 mph (30 km/h)

– A vehicle that is passing at speeds

lower than approximately 5 mph
(8 km/h)

∙ The radar sensors may not detect ap-

proaching

vehicles

certain

situations:

– Illustration

䊊

: When a vehicle

parked next to you obstructs the
beam of the radar sensor.

LSD3195

Starting and driving

5-51

– Illustration

䊊

: When the vehicle is

parked in an angled parking space.

– Illustration

䊊

: When the vehicle is

parked on inclined ground.

– Illustration

䊊

: When an approach-

ing vehicle turns into your vehicle’s
parking lot aisle.

– Illustration

䊊

: When the angle

formed by your vehicle and ap-
proaching vehicle is small.

∙ The following conditions may reduce

the ability of the radar to detect other
vehicles:

– Severe weather

– Road spray

– Ice/frost/snow/dirt

build-up

the vehicle

∙ Do not attach stickers (including

transparent material), install accesso-
ries or apply additional paint near the
radar sensors. These conditions may
reduce the ability of the radar to de-
tect other vehicles.

∙ Excessive noise (e.g., audio system

volume, open vehicle window) will in-
terfere with the chime sound, and it
may not be heard.

NOTE:

In the case of several vehicles approach-
ing in a row (Illustration 1) or in the oppo-
site direction (Illustration 2), a chime may
not be sounded by the RCTA system af-
ter the first vehicle passes the sensors.

Illustration 1

LSD2043

Illustration 2

LSD2044

5-52

Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE

When radar blockage is detected, the sys-
tem will be deactivated automatically. The
“Side Radar Obstruction” warning message
will appear in the vehicle information dis-
play.

The systems are not available until the
conditions no longer exist.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog.

The blocked condition may also be caused
by objects such as ice, frost or dirt ob-
structing the radar sensors.

NOTE:

If the BSW system stops working, the
RCTA system will also stop working.

Action to take
When the above conditions no longer exist,
the system will resume automatically.

LSD2735

Starting and driving

5-53

Malfunction

When the RCTA system malfunctions, it will
turn off automatically. The system mal-
function warning message will appear in
the vehicle information display.

NOTE:

If the BSW system stops working, the
RCTA system will also stop working.

Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the hy-
brid system off and restart the hybrid sys-
tem. If the message continues to appear,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

SYSTEM MAINTENANCE

The two radar sensors

䊊

for the BSW and

RCTA systems are located near the rear
bumper. Always keep the area near the ra-
dar sensors clean.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog.

The blocked condition may also be caused
by objects such as ice, frost or dirt ob-
structing the radar sensors.

Check for and remove objects obstructing
the area around the radar sensors.

Do not attach stickers (including transpar-
ent material), install accessories or apply
additional paint near the radar sensors.

Do not strike or damage the area around
the radar sensors. It is recommended that
you visit a NISSAN dealer if the area around
the radar sensors is damaged due to a
collision.

Radio frequency statement

For USA

FCC : OAYSRR3B

This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:

(1) This device may not cause harmful
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired
operation.

FCC Warning

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment

LSD2439

5-54

Starting and driving

For Canada

Applicable law: Canada 310

This

device

complies

with

Industry

Frequency bands: 24.05 – 24.25GHz

Output power: less than 20 milliwatts

PRECAUTIONS ON CRUISE
CONTROL

䊊

RES+ switch

䊊

CANCEL switch

䊊

SET- switch

䊊

Cruise control switch

∙ If the cruise control system malfunc-

tions, it cancels automatically. The
indicator in the vehicle information dis-
play then blinks to warn the driver.

∙ If the

indicator blinks, turn the

cruise control switch off and have the
system checked. It is recommended
that you visit a NISSAN dealer for this
service.

∙ The

indicator may blink when the

cruise control switch is turned on while
pushing the RES+, SET-, or CANCEL
switch. To properly set the cruise con-
trol system, use the following proce-
dures.

WARNING

Do not use the cruise control when driv-
ing under the following conditions:

∙ When it is not possible to keep the

vehicle at a set speed.

∙ In heavy traffic or in traffic that varies

in speed.

∙ On winding or hilly roads.

∙ On slippery roads (rain, snow, ice, etc.).

∙ In very windy areas.

Doing so could cause a loss of vehicle
control and result in an accident.

LSD3251

CRUISE CONTROL (if so equipped)

Starting and driving

5-55

Content .. 17 18 19 20 ..
