Pre-driving checks and adjustments

Power open

When the liftgate is fully closed, the liftgate will
fully open automatically by:
. pushing the power liftgate switch

on the

instrument panel for more than 1 second

. pushing the liftgate opener switch

. pushing the power liftgate button

on the

Intelligent Key for more than 1 second

The hazard flashes 4 times and the outside
chime sounds when the liftgate starts opening.

NOTE:

The liftgate can be opened by the power
liftgate switch

or the liftgate button

even if the liftgate is locked or

the power door main switch is in the OFF
position. The liftgate will unlock and open.

Power close

When the liftgate is fully opened, the liftgate will
fully close automatically by:
. pushing the power liftgate switch

on the

instrument panel for more than 1 second

. pushing the power liftgate switch

on the

lower part of the liftgate

. pushing the liftgate button

on the

Intelligent Key for more than 1 second

The hazard flashes 4 times and the outside
chime sounds when the liftgate starts closing.

Reverse function

The power liftgate will reverse immediately if one
of the following actions is performed during
power open or power close.
. pushing the power liftgate switch

on the

instrument panel

. pushing the liftgate switch

on the lower

part of the liftgate

. pushing the liftgate button

on the

Intelligent Key.

The outside chime sounds when the liftgate
starts to reverse.

Auto reverse function

The auto-reverse function enables the liftgate to
automatically reverse when something is caught
in the liftgate as it is opening or closing. When
the control unit detects an obstacle, the liftgate
will reverse and return to the full open or full
close position.

If a second obstacle is detected, the liftgate
motion will stop and the drive motor will
disengage. The liftgate will enter the manual
mode.

A pinch sensor is mounted on each side of the
liftgate. If an object is detected by the pinch
sensor during power close, the liftgate will
reverse and return to the full open position
immediately.

NOTE:

If the pinch sensor is damaged or removed,
the power close function will not operate.

WARNING

There is a small distance immediately
before the closed position that cannot
be detected. Make sure that all passen-
gers keep their hands, etc., clear from
the liftgate opening before closing the
liftgate.

Manual mode

If power operation is not available, the liftgate
can be operated manually. Power operation may
not be available if multiple obstacles have been
detected in a single power cycle or if the battery
voltage is low. When the power door main
switch is in the OFF position, the liftgate can be
opened manually by pushing the liftgate opener
switch. If the power liftgate opener switch is
pushed during power open or close, the power
operation will be canceled and the liftgate can
be operated manually.

SPA2853

Safe Mode

If the gas stays of the liftgate

lose pressure,

the power liftgate safe mode is activated. When
the safe mode is activated, the liftgate intermit-
tently closes. Then the liftgate will be pulled to
the closed and latched position by a motor.

The power liftgate cannot be opened using the
switches at any time in the safe mode.

Do not operate the liftgate again until it is
checked. It is recommended you visit a NISSAN
dealer.

CAUTION

. If the power liftgate does not stay

open or if the liftgate unexpectedly
closes at any time, do not operate
the liftgate. There may be a pressure
loss in one or both of the liftgate
gas stays. Have the liftgate in-
spected. It is recommended you visit
a NISSAN dealer.

. Do not activate the power liftgate if

one or both of the liftgate gas stays
are removed. Damage to the liftgate
or power liftgate mechanisms may
occur.

AUTO CLOSURE

If the liftgate is pulled down to a partly open
position, the liftgate will pull itself to the closed
position.

Do not apply excessive force when the
auto closure is operating. Excessive force
applied may cause the mechanism to
malfunction.

CAUTION

. The liftgate will automatically close

from a partly open position. To avoid
pinching, keep hands and fingers
away from liftgate opening.

. Do not let children operate the

liftgate.

Pre-driving checks and adjustments

3-29

3-30

Pre-driving checks and adjustments

SPA2824

LIFTGATE RELEASE

If the liftgate cannot be opened due to a
discharged battery, follow these steps.

1. Remove the cover

inside of the liftgate

with a suitable tool.

2. Move the lever

as illustrated to open the

liftgate.

It is recommended you contact a NISSAN dealer
as soon as possible for repair.

SPA2861

OPENING FUEL-FILLER DOOR

To open the fuel-filler door, pull the fuel-filler
door opener handle

FUEL-FILLER CAP

WARNING

. Gasoline is extremely flammable

and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle

when refueling.

. Do not attempt to top off the fuel

tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.

. Use only an original equipment type

fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.

. Never pour fuel into the throttle

body to attempt to start your vehi-
cle.

. Close the sliding door before open-

ing the fuel-filler door.

. Do not fill a portable fuel container

in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:

FUEL-FILLER DOOR

— Always place the container on

the ground when filling.

— Do not use electronic devices

when filling.

— Keep the pump nozzle in contact

with the container while you are
filling it.

— Use only approved portable fuel

containers for flammable liquid.

CAUTION

. If fuel is spilled on the vehicle body,

flush it away with water to avoid
paint damage.

. Insert the cap straight into the fuel-

filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may
cause the

malfunction indicator

light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The

light

should turn off after a few driving
trips. If the

light does not turn

off after a few driving trips, have the
vehicle inspected. It is recom-
mended you visit a NISSAN dealer
for this service.

For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-17).

. The LOOSE FUEL CAP warning will

appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the

Malfunction

Indicator Light (MIL) to illuminate.

JVP0067X

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclockwise

to remove.

2. Hang the tether of the cap on the hook

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the fuel-

filler tube.

2. Turn the fuel-filler cap clockwise

until a

single click is heard.

Pre-driving checks and adjustments

3-31

3-32

Pre-driving checks and adjustments

SPA2833

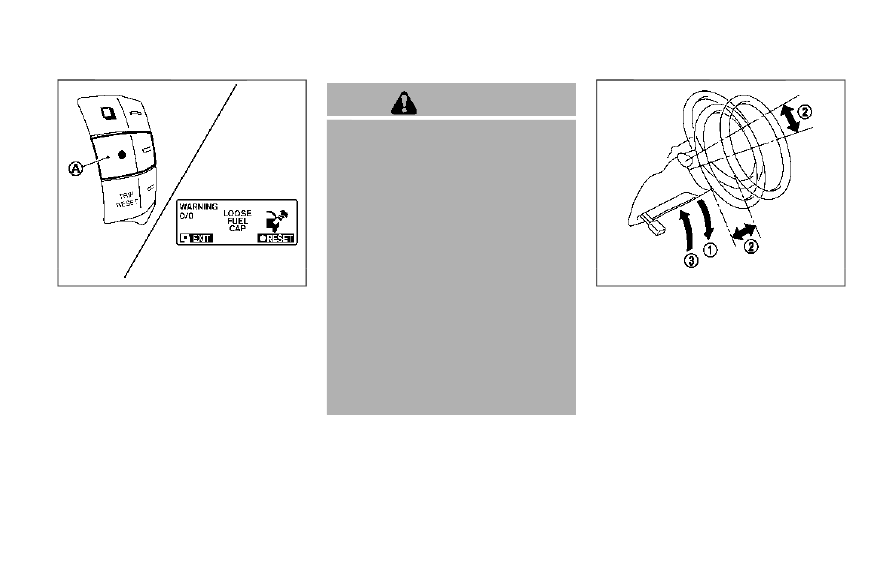

LOOSE FUEL CAP warning

The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed. To turn off the
warning, perform the following steps:

1. Remove and install the fuel-filler cap as soon

as possible. (See “Fuel-filler cap” (P.3-30).)

2. Tighten the fuel-filler cap until it clicks.

3. Push the reset switch

on the right side

of the combination meter for about 1 second
to turn off the LOOSE FUEL CAP warning
after tightening the fuel cap.

WARNING

. Do not adjust the steering wheel

while driving. You could lose control
of your vehicle and cause an acci-
dent.

. Do not adjust the steering wheel

any closer to you than is necessary
for proper steering operation and
comfort. The driver’s air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.

SPA2854

TILT OR TELESCOPIC OPERATION

While pulling the lock lever down

, adjust the

steering wheel up, down, forward or rearward

until the desired position is achieved.

Push the lock lever up

firmly to lock the

steering wheel in place.

TILT/TELESCOPIC STEERING

SIC3451

CAUTION

. Do not store the main sun visor

before storing the extension sun
visor.

. Do not pull the extension sun visor

forcedly downward.

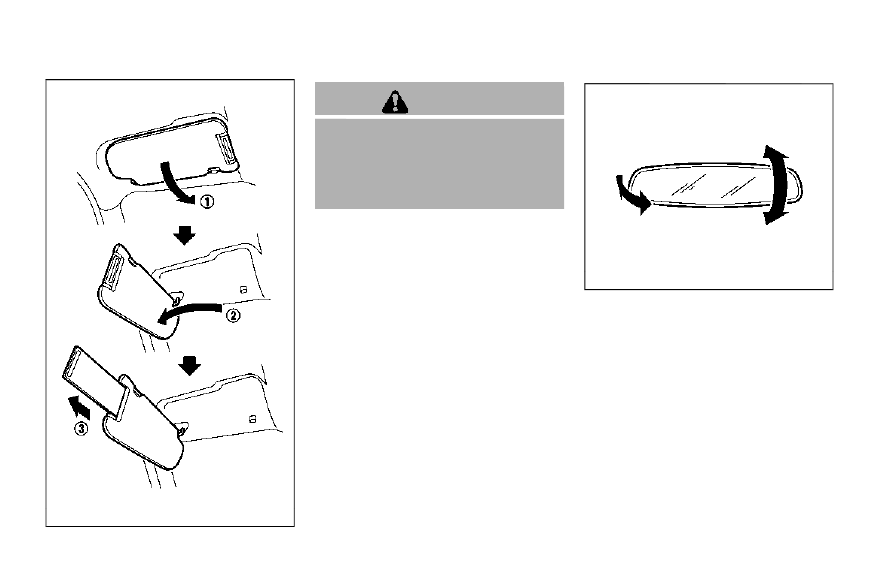

1. To block out glare from the front, swing

down the main sun visor

2. To block glare from the side, remove the

main sun visor from the center mount and
swing it to the side

3. Draw out the extension sun visor

from

the main sun visor to block from further
glare.

SPA2447

INSIDE MIRROR

Adjust the height and the angle of the inside
mirror to the desired position.

Pre-driving checks and adjustments

3-33

SUN VISORS

MIRRORS

3-34

Pre-driving checks and adjustments

SPA2143

Manual anti-glare type

The night position

will reduce glare from the

headlights of vehicles behind you at night.

Use the day position

when driving in daylight

hours.

WARNING

Use the night position only when ne-
cessary, because it reduces rear view
clarity.

SPA2422A

Type A (if so equipped)

SPA2450

Type B (if so equipped)

Automatic anti-glare type

The inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.

The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.

When the anti-glare system is turned on, the
indicator light

will illuminate and excessive

glare from the headlights of the vehicle behind
you will be reduced.

Type A (if so equipped): Push the

switch

to make the inside rearview mirror operate
normally and the indicator light will turn off.
Push the

switch again to turn the system on.

Type B (if so equipped): Push the “

*” switch

to make the inside rearview mirror operate

normally. The indicator light will turn off. Push the
“I” switch

to turn the system on.

Do not allow any object to cover the
sensors

or apply glass cleaner on

them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.

For the compass (if so equipped) operation, see
“Compass” (P.2-8).

For the HomeLink

Universal Transceiver opera-

tion, see “HomeLink

Universal Transceiver”

(P.2-60).

OUTSIDE MIRRORS

WARNING

Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

SPA2319

Adjusting outside mirrors

The outside mirror control switch is located on
the armrest.

The outside mirror will operate only when the
ignition switch is in the ACC or ON position.

Turn the switch right or left to select the right or
left side mirror

, then adjust using the control

switch

Defrosting outside mirrors (if so
equipped)

The outside mirrors will be heated when the rear
window defroster switch is operated.

Reverse tilt-down feature (if so
equipped)

When backing up the vehicle, the right and left
outside mirrors will turn downward automatically
to provide better rear visibility.

1. Push the ignition switch to the ON position.

2. Move the shift lever to the R (Reverse)

position.

3. Choose the right or left outside mirror by

operating the outside mirror control switch.

4. The outside mirror surfaces move down-

ward.

When one of the following conditions has
occurred, the outside mirror surfaces will return
to their original positions.
. The shift lever is moved to any position other

than R (Reverse).

. The outside mirror control switch is set to

the center position.

. The ignition switch is pushed to the OFF

position.

Pre-driving checks and adjustments

3-35

3-36

Pre-driving checks and adjustments

SPA1829

Foldable outside mirrors

Fold the outside mirror by pushing it toward the
rear of the vehicle.

SIC4448

VANITY MIRROR

To use the front vanity mirror, pull down the sun
visor and pull up the cover.

The automatic drive positioner system has two
features:
. Entry/exit function
. Memory storage

ENTRY/EXIT FUNCTION

This system is designed so that the driver’s seat
will automatically move when the shift lever is in
the P (Park) position. This allows the driver to
get into and out of the driver’s seat more easily.

The driver’s seat will slide backward when the
driver’s door is opened with the ignition switch
in the LOCK position.

The driver’s seat will return to the previous
positions when the ignition switch is pushed to
the ACC position.

The driver’s seat will not return to the previous
positions if the seat adjusting switch is operated
when the seat is at the exit position.

Cancel or activate entry/exit function

The shift lever must be in the P (Park) position
with the ignition switch in the OFF position.

The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.

The entry/exit function can also be activated or
canceled if the “Slide Driver Seat Back on Exit”
key is turned to ON or OFF in the “Comfort”

AUTOMATIC DRIVE POSITIONER (if
so equipped)

settings. (See “Vehicle information and settings
(models with center multi-function control pa-
nel)” (P.4-10).)

Initialize entry/exit function

If the battery cable is disconnected, or if the fuse
opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is placed in the LOCK position from the
ON position. The entry/exit function will be
activated.

JVP0248X

MEMORY STORAGE

Two positions for the driver’s seat and outside
mirrors can be stored in the automatic drive
positioner memory. Follow this procedure to use
the memory system.

1. Move the shift lever to the P (Park) position.

2. Adjust the driver’s seat and outside mirrors

to the desired positions by manually operat-
ing each adjusting switch. For additional
information, see “Seats” (P.1-2) and “Out-
side mirrors” (P.3-35).

3. Push the SET switch and, within 5 seconds,

push the memory switch (1 or 2).

The indicator light for the pushed memory

switch will stay on for approximately 5
seconds after pushing the switch.

When the memory is stored in the memory
switch (1 or 2), a buzzer will sound.

If memory is stored in the same memory
switch, the previous memory will be deleted.

Linking Intelligent Key to a stored mem-
ory position

The Intelligent Key can be linked to a stored
memory position with the following procedure.

1. Follow one of the steps for storing a memory

position.

. While the indicator light for the memory

switch being set is illuminated for 5 sec-
onds, push the

button on the Intelligent

Key.

. Push the ignition switch to the OFF position,

and then push the SET switch. Push the
button while pushing the memory button
while the indicator light stays on for approxi-
mately 5 seconds.

If the indicator light blinks, the Intelligent Key is
linked to that memory setting.

Push the ignition switch to the OFF position, and
then push the

button on the Intelligent Key.

The driver’s seat and outside mirrors will move to
the memorized position.

Pre-driving checks and adjustments

3-37

3-38

Pre-driving checks and adjustments

Confirming memory storage

. Push the ignition switch to the ON position

and push the SET switch. If the main
memory has not been stored, the indicator
light will come on for approximately 0.5
second. When the memory has stored in
position, the indicator light will stay on for
approximately 5 seconds.

. If the battery cable is disconnected, or if the

fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.

. If optional keys are added to your vehicle,

the memory storage procedure to switch 1
or 2 and linking Intelligent Key procedure to
a stored memory position should be per-
formed again for each Intelligent Key. For
additional Intelligent Key information, see
“Keys” (P.3-3).

Selecting the memorized position

1. Move the shift lever to the P (Park) position.

2. Use one of the following methods to move

the driver’s seat and outside mirrors.

Push the memory switch (1 or 2).

Within 45 seconds of opening the

driver’s door, push the memory switch
(1 or 2).

The driver’s seat and outside mirrors will

move to the memorized position with the
indicator light flashing, and then the light will
stay on for approximately 5 seconds.

SYSTEM OPERATION

The automatic drive positioner system will not
work or will stop operating under the following
conditions:
. When the vehicle speed is above 4 MPH (7

km/h) (entry/exit function).

. When the vehicle is driven (memory sto-

rage).

. When the adjusting switch for the driver’s

seat is turned on while the automatic drive
positioner is operating.

. When the driver’s seat and outside mirrors

have already been moved to the memorized
position.

. When no position is stored in the memory

switch.

. When the engine is started while moving the

automatic drive positioner.

. When the shift lever is moved from the P

(Park) position to any other position. (How-
ever, it will not be canceled while the driver’s
seat is returning to the previous positions
(entry/exit function).)

. When the driver’s door remains open for

more than 45 seconds and the ignition

switch is not in the ON position.

4 Monitor, heater, air conditioner, audio, phone

and voice recognition systems

Safety note .................................................................................. 4-4
Center multi-function control panel (if so equipped) ...... 4-5

How to use multi-function controller .............................. 4-7
How to use touch screen (models with
navigation system) .............................................................. 4-7
Menu options (models with navigation system) .......... 4-9
How to select menus on the screen ........................... 4-10

Vehicle information and settings (models with center
multi-function control panel) ............................................... 4-10

RearView Monitor (if so equipped) ................................... 4-25

RearView Monitor system operation .......................... 4-25
How to read the displayed lines .................................. 4-26
Difference between predictive and actual distances
(if so equipped) ................................................................ 4-26
How to park with predictive course lines
(models with center multi-function control panel) ..... 4-28
Adjusting the screen ....................................................... 4-29

Predictive course line settings (if so equipped) ..... 4-29
RearView Monitor system limitations ........................ 4-30
System maintenance ..................................................... 4-31

Around View

Monitor (if so equipped) .......................... 4-32

Around View

Monitor system operation ................. 4-33

How to adjust the screen view ................................... 4-39
Around View

Monitor system limitations ................ 4-39

System maintenance ..................................................... 4-41

Moving Object Detection (MOD) (if so equipped) ...... 4-42

MOD system operation ................................................ 4-43
Turning on and off the MOD system ........................ 4-44
MOD system limitations ............................................... 4-44
System maintenance ..................................................... 4-45

Ventilators ................................................................................ 4-46

Center ventilators ........................................................... 4-46
Side ventilators ............................................................... 4-46
Rear ventilators ............................................................... 4-47

Heater and air conditioner .................................................. 4-47

Operating tips (for automatic air conditioner) ........ 4-48
Manual air conditioner .................................................. 4-49
Automatic air conditioner ............................................. 4-54
Servicing air conditioner .............................................. 4-60
In-cabin microfilter ......................................................... 4-60

Audio system .......................................................................... 4-61

Audio operation precautions ....................................... 4-61

player operation (models with center

multi-function control panel) ......................................... 4-99
Bluetooth

streaming audio (models with

navigation system) ........................................................ 4-101
Auxiliary input jacks (if so equipped) ....................... 4-106
CD/DVD/USB memory care and cleaning ............. 4-107
Steering-wheel-mounted controls for audio (if
so equipped) .................................................................. 4-108
Antenna ............................................................................ 4-109

NISSAN Mobile Entertainment System (MES) (if
so equipped) ........................................................................ 4-110

Digital Versatile Disc (DVD)
system components ...................................................... 4-111
Before operating the DVD Mobile
Entertainment System .................................................. 4-116
Playing a DVD ................................................................ 4-117
Care and maintenance ................................................. 4-121

Car phone or CB radio ..................................................... 4-121
Bluetooth

hands-free phone system (Type A) (if

so equipped) ........................................................................ 4-122

Regulatory information ................................................. 4-123

Bluetooth

hands-free phone system (Type B) (if

so equipped) ....................................................................... 4-133

Bluetooth

hands-free phone system (Type C) (if

so equipped) ....................................................................... 4-146

Regulatory information ............................................... 4-147
Using the system ........................................................ 4-147

NISSAN Voice Recognition system (models with
navigation system) ............................................................. 4-154

NISSAN Voice Recognition standard mode ........ 4-155
Using the system ........................................................ 4-157
NISSAN Voice Recognition alternate
command mode ........................................................... 4-166

Using the system ........................................................... 4-174
Troubleshooting guide .................................................. 4-179

4-4

Monitor, heater, air conditioner, audio, phone and voice recognition systems

WARNING

. Do not disassemble or modify this

system. If you do, it may result in
accidents, fire, or electric shock.

. Do not use this system if you notice

any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.

. In case you notice any foreign

object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately. It is recom-
mended you visit a NISSAN dealer
for servicing. Ignoring such condi-
tions may lead to accidents, fire, or
electric shock.

. Park the vehicle in a safe location

and apply the parking brake to view
the images on the front center dis-
play screen.

Do not attempt to operate the system in
extreme temperature conditions [below
í4

8F (í208C) and above 1588F (708C)].

Operating this system under these condi-

tions may result in system malfunctions.

SAFETY NOTE

SAA3020

Models with navigation system

“CAMERA” button (P.4-32)

2, 6, 7.

For navigation system control buttons (Refer to
the separate Navigation System Owner’s Man-
ual.)

Multi-function controller (P.4-7)

“INFO” button (P.4-11)

“SETTING” button (P.4-15)

“STATUS” status display button (P.4-10)

“

OFF” brightness control and display ON/

OFF button (P.4-10)

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-5

CENTER MULTI-FUNCTION
CONTROL PANEL (if so equipped)

Content .. 10 11 12 13 ..
