Nissan Quest (2017 year). Manual - part 3

1-16

Safety — Seats, seat belts and supplemental restraint system

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.

. The seat belt should be properly

adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.

. Always route the shoulder belt over

your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.

. Position the lap belt as low and

snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent.

. Be sure the seat belt tongue is

securely fastened to the proper
buckle.

. Do not wear the seat belt inside out

or twisted. Doing so may reduce its
effectiveness.

. Do not allow more than one person

to use the same seat belt.

. Never carry more people in the

vehicle than there are seat belts.

. If the seat belt warning light glows

continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked. It is
recommended you visit a NISSAN
dealer for this service.

. No changes should be made to the

seat belt system. For example, do
not modify the seat belt, add mate-
rial or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury.

. Once a seat belt pretensioner has

activated, it cannot be reused and
must be replaced together with the
retractor. It is recommended you
visit a NISSAN dealer for this ser-
vice.

. All seat belt assemblies, including

retractors and attaching hardware,
should be inspected after any colli-
sion. It is recommended you visit a
NISSAN dealer for this service.
NISSAN recommends that all seat
belt assemblies in use during a
collision be replaced unless the
collision was minor and the belts
show no damage and continue to
operate properly.

Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.

. All child restraints and attaching

hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are

damaged.

SSS0016

SSS0014

PREGNANT WOMEN

NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist, and
place the shoulder belt over your shoulder and
across your chest. Never run the lap/shoulder
belt over your abdominal area. Contact your
doctor for specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.

THREE-POINT TYPE SEAT BELT

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times.

. Do not ride in a moving vehicle

when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious

Safety — Seats, seat belts and supplemental restraint system

1-17

1-18

Safety — Seats, seat belts and supplemental restraint system

internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly.

JVR0183X

WARNING

Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously injured
or killed if the seat belt retracts and
becomes tight. This can occur even if
the vehicle is parked. Unbuckle the seat
belt to release the child. For the center
of the 3rd row seat, the connector

tongue

may also be released.

Release the connector tongue by in-
serting a suitable tool (such as a key)
into the connector buckle

. If the

seat belt cannot be unbuckled or is
already unbuckled, release the child by
cutting the seat belt with a suitable tool
(such as a knife or scissors) to release
the seat belt.

SSS0292

Fastening the seat belts

1. Adjust the seat. (See “Seats” (P.1-2).)

2. Slowly pull the seat belt out of the retractor

and insert the tongue into the buckle until
you hear and feel the latch engage.

The retractor is designed to lock

during a sudden stop or on impact.
A slow pulling motion permits the
belt to move, and allows you some
freedom of movement in the seat.

If the seat belt cannot be pulled from

its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.

SSS0290

3. Position the lap belt portion low and snug

on the hips as shown.

4. Pull the shoulder belt portion toward the

retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.

The three-point type seat belts have two modes
of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
of movement in the seat. The ELR locks the seat

belt when the vehicle slows down rapidly or
during impacts.

The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.

When the ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “Child restraints” (P.1-27).

The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.

WARNING

When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.

Safety — Seats, seat belts and supplemental restraint system

1-19

1-20

Safety — Seats, seat belts and supplemental restraint system

SSS0326

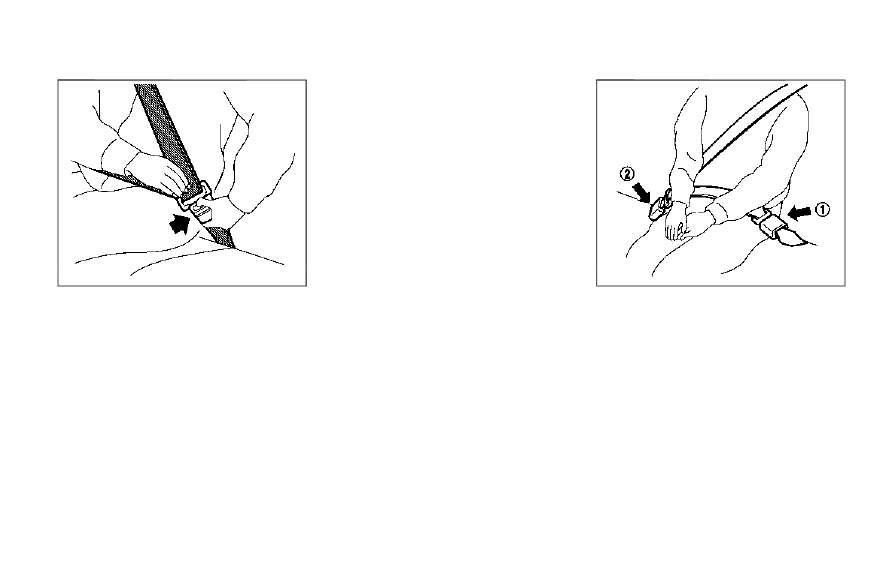

Unfastening the seat belts

To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat
belt movement by two separate methods:
. When the belt is pulled quickly from the

retractor.

. When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
. Grasp the shoulder belt and pull forward

quickly. The retractor should lock and

restrict further belt movement.

If the retractor does not lock during this check,
get the system checked. It is recommended you
visit a NISSAN dealer for this service, or to learn
more about seat belt operation.

SSS0391

3rd row center seat belt

The 3rd row center seat belt has a connector
tongue

and a seat belt tongue

. Both the

connector tongue and the seat belt tongue must
be securely latched for proper seat belt opera-
tion.

SSS0241

WARNING

. Always fasten the connector tongue

and the seat belt in the order shown.

. Always make sure both the connec-

tor tongue and the seat belt tongue
are secured when using the seat
belt or installing a child restraint. Do
not use the seat belt or child
restraint with only the seat belt
tongue attached. This could result
in serious personal injury in case of
an accident or a sudden stop.

SSS1164

Stowing 3rd row center seat belt:

When folding down the 3rd row seat, the 3rd
row center seat belt can be retracted into a
stowed position as follows:

1. Hold the connector tongue

so that the

seat belt does not retract suddenly when the
tongue is released from the connector
buckle. Release the connector tongue by
inserting a suitable tool such as key

into

the connector buckle.

2. Insert the seat belt tongue into the retractor

base first

3. Then secure the connector tongue into the

retractor base

WARNING

Do not unfasten the 3rd row center seat
belt connector except when folding
down the rear seat.

Safety — Seats, seat belts and supplemental restraint system

1-21

1-22

Safety — Seats, seat belts and supplemental restraint system

SSS1165

Attaching 3rd row center seat belt:

Always be sure the 3rd row center seat belt
connector tongue and connector buckle are
attached. Disconnect only when folding down
the 3rd row seat.

To connect the buckle:

1. Pull out the connector tongue from the

retractor base

2. Pull out the seat belt tongue from the

retractor base

3. Pull the seat belt and secure the connector

buckle until it clicks

The center seat belt connector tongue and
buckle are indicated by the

! and ~ mark.

The center seat belt connector tongue can be
attached only into the 3rd row center seat belt
connector buckle.

To fasten the seat belt, see “Fastening the seat
belts” (P.1-19).

WARNING

. When attaching the 3rd row center

seat belt connector, be certain that
the seatbacks are completely se-
cured in the latched position and
the 3rd row center seat belt con-

nector is completely secured.

. If the 3rd row center seat belt

connector and the seatbacks are
not secured in the correct position,
serious personal injury may result in
an accident or sudden stop.

SSS0351A

Shoulder belt height adjustment (if so
equipped)

The shoulder belt anchor height should be
adjusted to the position best for you. (See
“Precautions on seat belt usage” (P.1-15).)

To adjust, pull the adjustment button

, and

then move the shoulder belt anchor to the
desired position

, so that the belt passes

over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.

WARNING

. After adjustment, release the ad-

justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.

. The shoulder belt anchor height

should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.

SSS1076

Seat belt hooks

When the 2nd or 3rd row seat belts are not in
use and when folding down the 2nd or 3rd row
seats, hook the 2nd and 3rd outer seat belts on
the seat belt hooks.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available that can be
purchased. The extender adds approximately 8
in (200 mm) of length and may be used for either
the driver or front passenger seating position. It
is recommended you visit a NISSAN dealer for

Safety — Seats, seat belts and supplemental restraint system

1-23

1-24

Safety — Seats, seat belts and supplemental restraint system

assistance with purchasing an extender if an
extender is required.

WARNING

. It is recommended that only

NISSAN seat belt extenders, made
by the same company which made
the original equipment seat belts,
be used with the NISSAN seat belts.

. Adults and children who can use the

standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal
injury in the event of an accident.

. Never use seat belt extenders to

install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured or
killed in a collision or a sudden stop.

SEAT BELT MAINTENANCE

. To clean the seat belt webbing, apply a

mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then, wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.

. If dirt builds up in the shoulder belt

guide of the seat belt anchors, the seat
belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.

. Periodically check to see that the seat

belt and the metal components such as
buckles, tongues, retractors, flexible wires
and anchors work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt
assembly should be replaced.

JVR0183X

WARNING

CHILD SAFETY

tongue may also be released. Release
the connector tongue

by inserting a

suitable tool (such as a key) into the
connector buckle

. If the seat belt

cannot be unbuckled or is already
unbuckled, release the child by cutting
the seat belt with a suitable tool (such
as a knife or scissors) to release the
seat belt.

Children need adults to help protect them.

They need to be properly restrained.

In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.

There are three basic types of child restraint
systems:
. Rear-facing child restraint
. Forward-facing child restraint
. Booster seat
The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20 lbs (9 kg) should be placed in rear-
facing child restraints. Forward-facing child
restraints are available for children who outgrow

rear-facing child restraints and are at least 1
year old. Booster seats are used to help position
a vehicle lap/shoulder belt on a child who can no
longer use a forward-facing child restraint.

WARNING

Infants and children need special pro-
tection. The vehicle’s seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.

All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. See
“Child restraints” (P.1-27).

A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchors and
Tethers for CHildren) system or with the vehicle
seat belt. See “Child restraints” (P.1-27) for
more information.

NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
Studies show that children are safer when

properly restrained in the rear seat than in
the front seat.

This is especially important because your
vehicle has a supplemental restraint sys-
tem (Air bag system) for the front passen-
ger. See “Supplemental restraint system”
(P.1-48).

INFANTS

Infants up to at least 1 year old should be placed
in a rear-facing child restraint. NISSAN recom-
mends that infants be placed in child restraints
that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint
that fits your vehicle and always follow the
manufacturer’s instructions for installation and
use.

SMALL CHILDREN

Children that are over 1 year old and weigh at
least 20 lbs (9 kg) should remain in a rear-facing
child restraint as long as possible up to the
height or weight limit of the child restraint.
Children who outgrow the height or weight limit
of the rear-facing child restraint and are at least
1 year old should be secured in a forward-facing
child restraint with a harness. Refer to the
manufacturer’s instructions for minimum and
maximum weight and height recommendations.
NISSAN recommends that small children be

Safety — Seats, seat belts and supplemental restraint system

1-25

1-26

Safety — Seats, seat belts and supplemental restraint system

placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.

LARGER CHILDREN

Children should remain in a forward-facing child
restraint with a harness until they reach the
maximum height or weight limit allowed by the
child restraint manufacturer.

Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child
restraint, NISSAN recommends that the child be
placed in a commercially available booster seat
to obtain proper seat belt fit. For a seat belt to fit
properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the
shoulder. The lap belt should lie snugly across
the lower hips or upper thighs, not the abdomen.
A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.

A booster seat should be used until the child
can pass the seat belt fit test below:
. Are the child’s back and hips against the

vehicle seatback?

. Is the child able to sit without slouching?
. Do the child’s knees bend easily over the

front edge of the seat with feet flat on the
floor?

. Can the child safely wear the seat belt (lap

belt low and snug across the hips and
shoulder belt across mid-chest and
shoulder)?

. Is the child able to use the properly adjusted

head restraint/headrest?

. Will the child be able to stay in position for

the entire ride?

JVR0473X

If you answered no to any of these questions,
the child should remain in a booster seat using a
three-point type seat belt.

NOTE:

Laws in some communities may follow
different guidelines. Check local and state
regulations to confirm your child is using
the correct restraint system before travel-
ing.

WARNING

Never let a child stand or kneel on any
seat and do not allow a child in the
cargo area. The child could be seriously

injured or killed in a sudden stop or
collision.

SSS0099

SSS0100

PRECAUTIONS ON CHILD RE-
STRAINTS

WARNING

. Failure to follow the warnings and

instructions for proper use and in-
stallation of child restraints could
result in serious injury or death of a
child or other passengers in a
sudden stop or collision:

— The child restraint must be used

and installed properly. Always
follow all of the child restraint
manufacturer’s instructions for
installation and use.

— Infants and children should

never be held on anyone’s lap.
Even the strongest adult cannot
resist the forces of a collision.

— Do not put a seat belt around

both a child and another pas-
senger.

— NISSAN recommends that all

child restraints be installed in
the rear seat. Studies show that
children are safer when properly
restrained in the rear seat than

Safety — Seats, seat belts and supplemental restraint system

1-27

CHILD RESTRAINTS

1-28

Safety — Seats, seat belts and supplemental restraint system

in the front seat. If you must
install a forward-facing child
restraint in the front seat, see
“Forward-facing child restraint
installation using LATCH” (P.1-
37).

— Even with the NISSAN Advanced

Air Bag System, never install a
rear-facing child restraint in the
front seat. An inflating air bag
could seriously injure or kill a
child. A rear-facing child re-
straint must only be used in the
rear seat.

— Be sure to purchase a child

restraint that will fit the child
and vehicle. Some child re-
straints may not fit properly in
your vehicle.

— Child restraint anchor points are

designed to withstand loads
from child restraints that are
properly fitted.

— Never use the anchor points for

adult seat belts or harnesses.

— A child restraint with a top tether

strap should not be used in the
front passenger seat.

— Keep seatbacks as upright as

possible after fitting the child
restraint.

— Infants and children should al-

ways be placed in an appropri-
ate child restraint while in the
vehicle.

. When the child restraint is not in

use, keep it secured with the LATCH
system or a seat belt. In a sudden
stop or collision, loose objects can
injure occupants or damage the
vehicle.

CAUTION

A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.

This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHil-

dren) system. Some child restraints include rigid
or webbing-mounted attachments that can be
connected to these anchors.

For details, see “Lower Anchors and Tethers for
CHildren System (LATCH)” (P.1-29).

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.

Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
. Choose only a restraint with a label certifying

that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

. Check the child restraint in your vehicle to

be sure it is compatible with the vehicle’s
seat and seat belt system.

. If the child restraint is compatible with your

vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.

. If the combined weight of the child and child

restraint is less than 65 lbs (29.5 kg), you
may use either the LATCH anchors or the
seat belt to install the child restraint (not

both at the same time).

. If the combined weight of the child and child

restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower
anchors) to install the child restraint.

. Be sure to follow the child restraint manu-

facturer’s instructions for installation.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated
anchor point on the vehicle.

SSS1166

Lower Anchors and Tethers for CHildren
System (LATCH)

Your vehicle is equipped with special anchor
points that are used with LATCH (Lower
Anchors and Tethers for CHildren) system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint unless the combined weight of the
child and child restraint exceeds 65 lbs (29.5
kg). If the combined weight of the child and child
restraint is greater than 65 lbs (29.5 kg), use the
vehicle’s seat belt (not the lower anchors) to
install the child restraint. Be sure to follow the

child restraint manufacturer’s instructions for
installation.

The LATCH anchor points are provided to install
child restraints in the following positions only:
. 2nd row seats
. 3rd row seat (for the right outboard seat

only)

LATCH lower anchor

WARNING

Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:

. Attach LATCH system compatible

child restraints only at the locations
shown in the illustration.

. Do not secure a child restraint in the

center rear seating position using
the LATCH lower anchors. The child
restraint will not be secured prop-
erly.

. Inspect the lower anchors by insert-

ing your fingers into the lower

Safety — Seats, seat belts and supplemental restraint system

1-29

1-30

Safety — Seats, seat belts and supplemental restraint system

anchor area. Feel to make sure
there are no obstructions over the
anchors such as seat belt webbing
or seat cushion material. The child
restraint will not be secured prop-
erly if the lower anchors are ob-
structed.

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed
in a collision.

SSS0637

LATCH lower anchor location

LATCH lower anchor location

The LATCH lower anchors are located at the
rear of the seat cushion near the seatback. A
label is attached to the seatback to help you
locate the LATCH lower anchors.

SSS1167

2nd row seats

SSS1177

3rd row seat

SSS0643

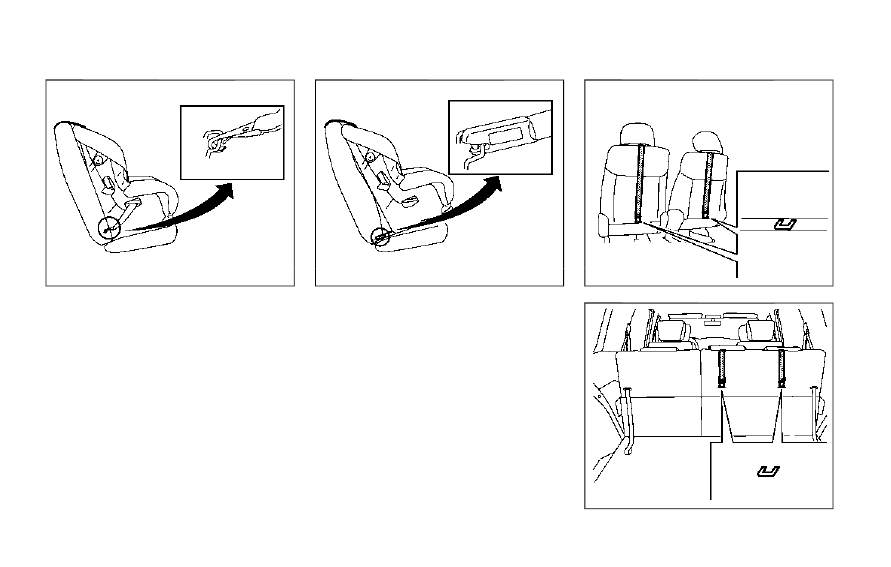

LATCH webbing-mounted attachment

Installing child restraint LATCH lower
anchor attachments

LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.

SSS0644

LATCH rigid-mounted

When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.

SSS1088

2nd row seat

JVR0408X

3rd row seat

Safety — Seats, seat belts and supplemental restraint system

1-31

Content .. 1 2 3 4 ..
