SE-26
< ON-VEHICLE REPAIR >
FRONT SEAT

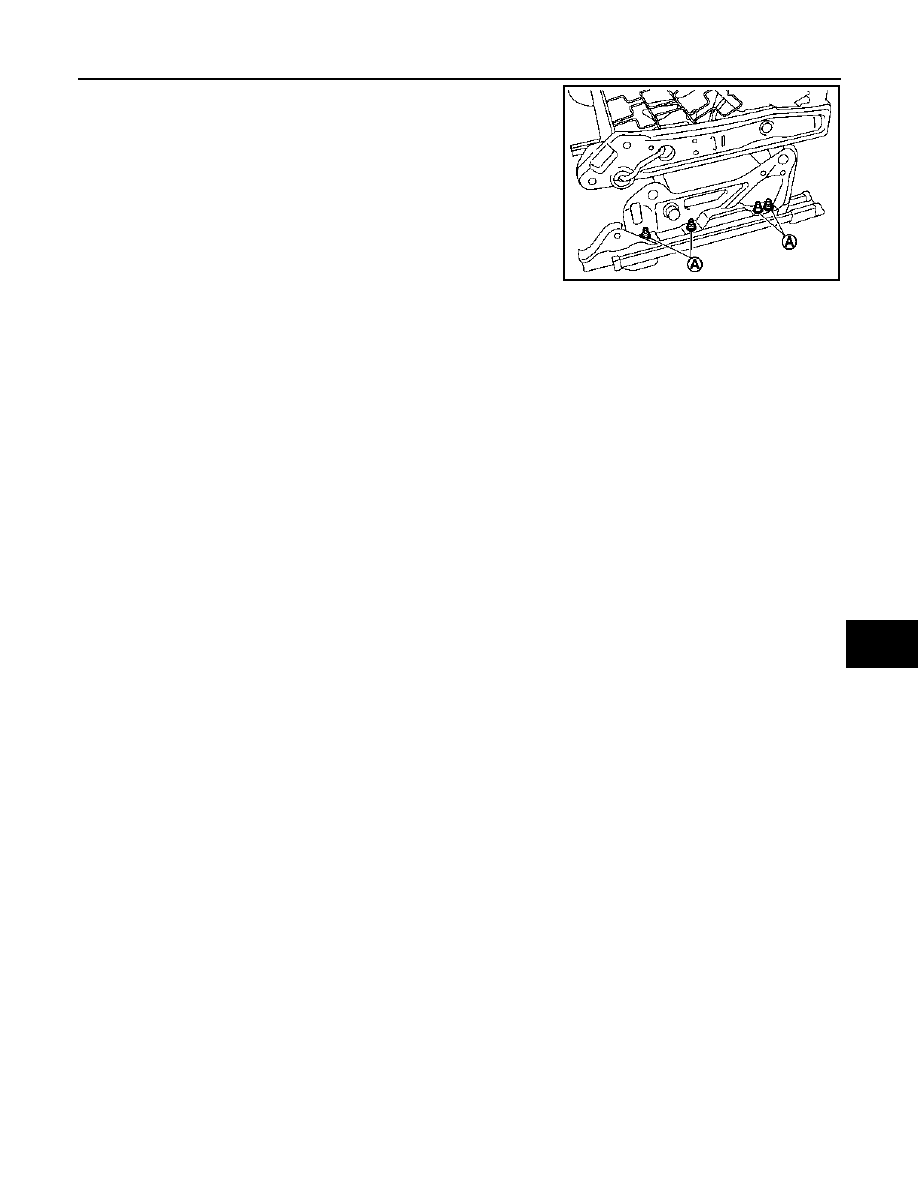

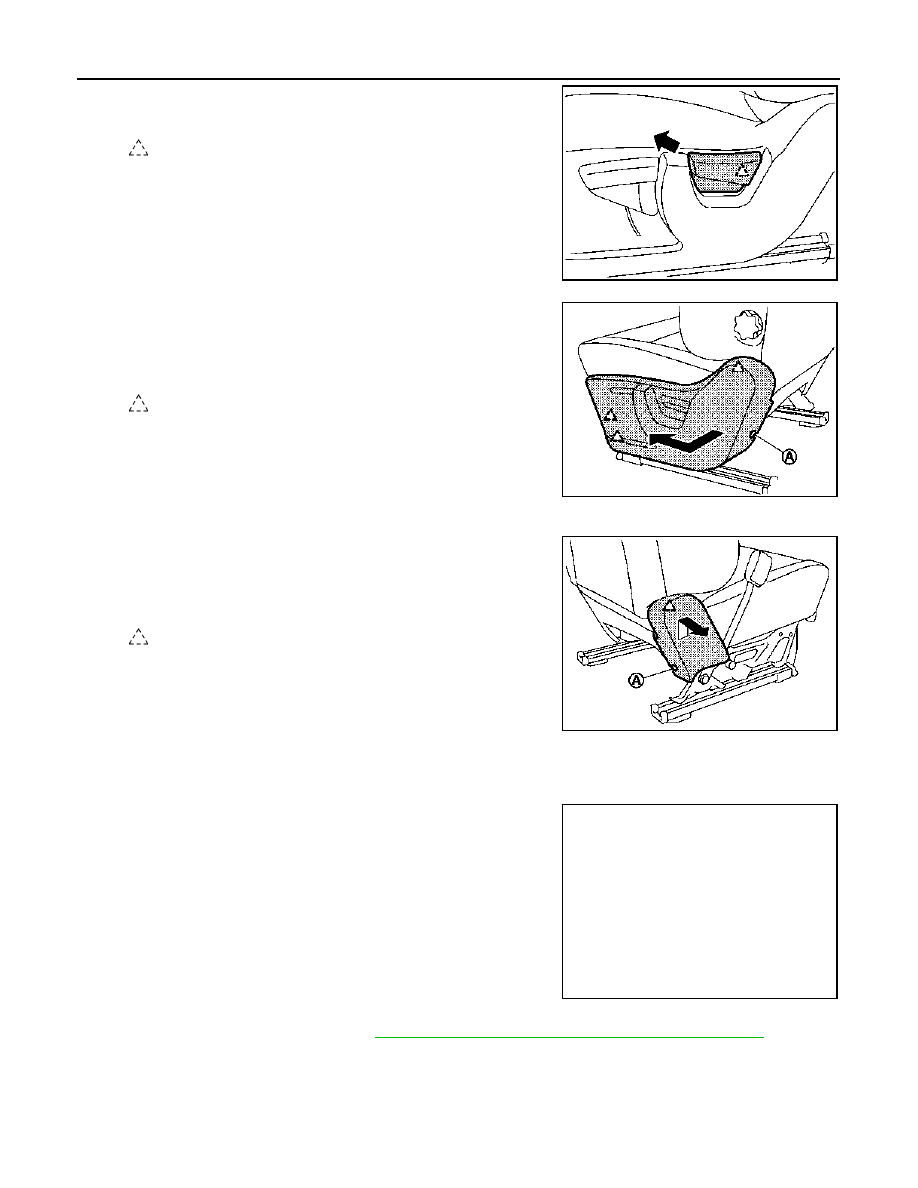

• Remove the TORX bolt (T25) (A).
• Pull the rear side of the seat cushion outer finisher frontward,
and then slide it forward to remove the pawls.Remove the seat
cushion outer finisher.
2.
Remove the seat cushion inner finisher.

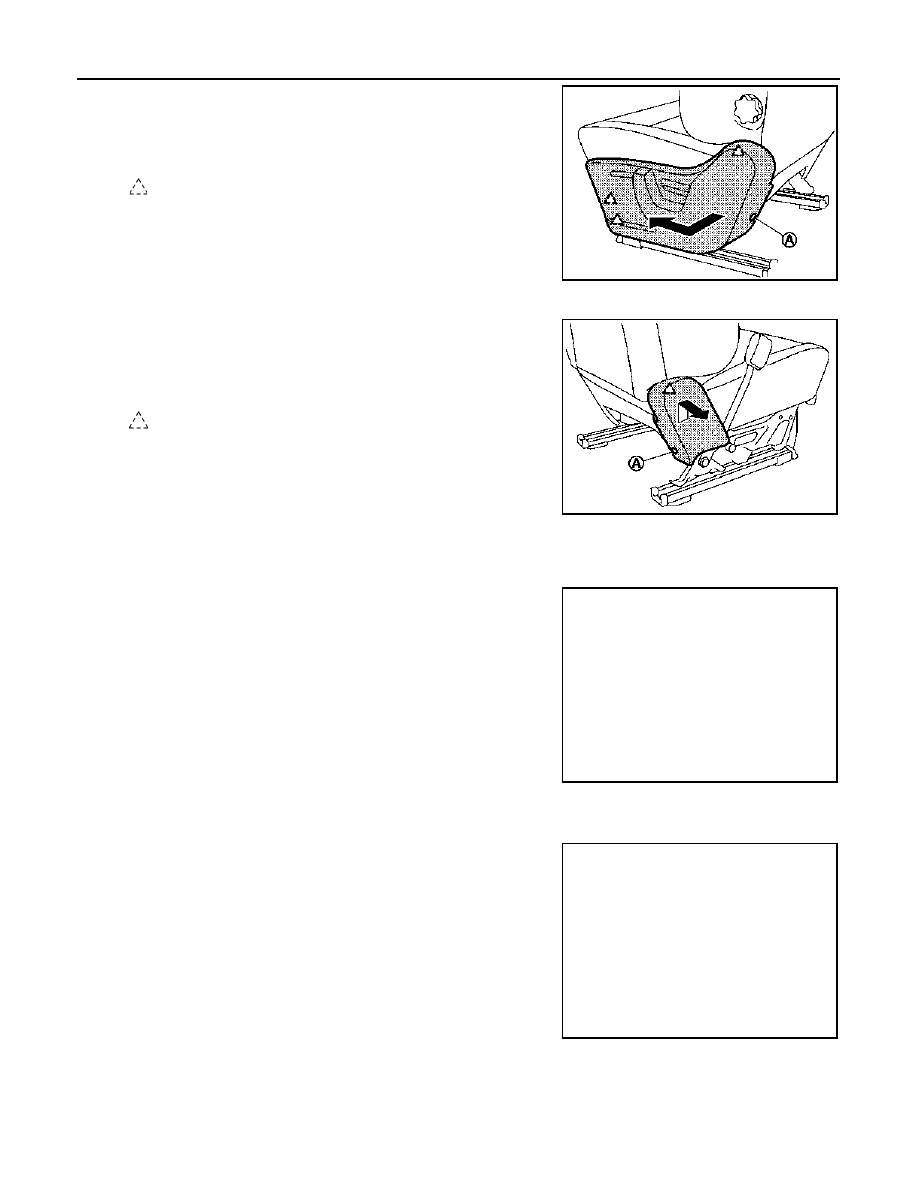

• Remove the TORX bolt (T25) (A).
• Pull the rear side of the seat cushion inner finisher frontward,
and then slide it upward to remove the pawls.Remove the seat
cushion inner finisher.
3.
Remove the seatback assembly.

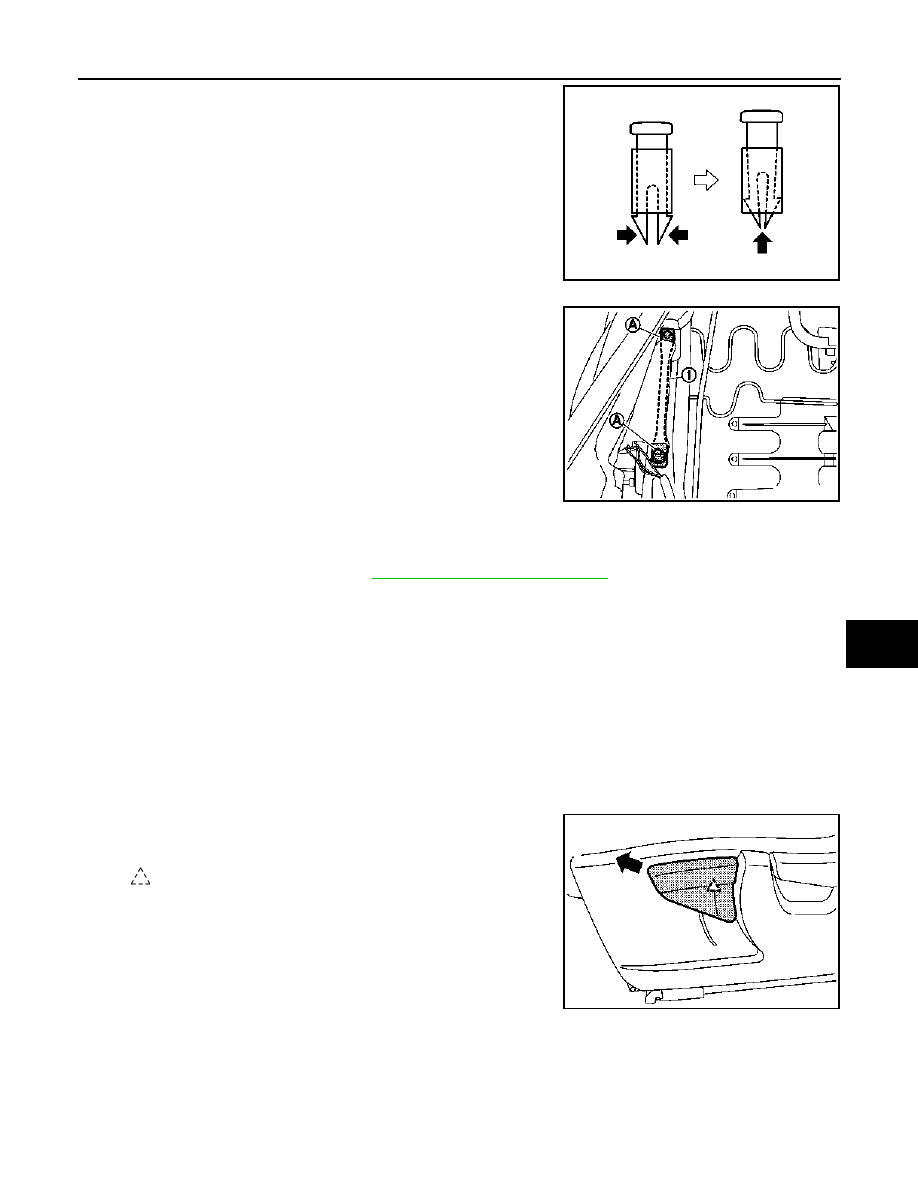

• Disconnect the seat cushion heater harness connect, and remove the harness clamp.
• Pull out the side air bag harness and seat heater harness from seat cushion trim.
• Remove the TORX bolt (T50) (A).
4.
Remove the seatback trim and seatback pad.
• Remove the lumbar support knob.
• Remove the seatback retainer (1) on the back side of the seat-
back.
: Pawl
JMJIA0352ZZ
: Pawl
JMJIA0353ZZ
JMJIA0354ZZ
JMJIA0356ZZ
