BLOWER MOTOR

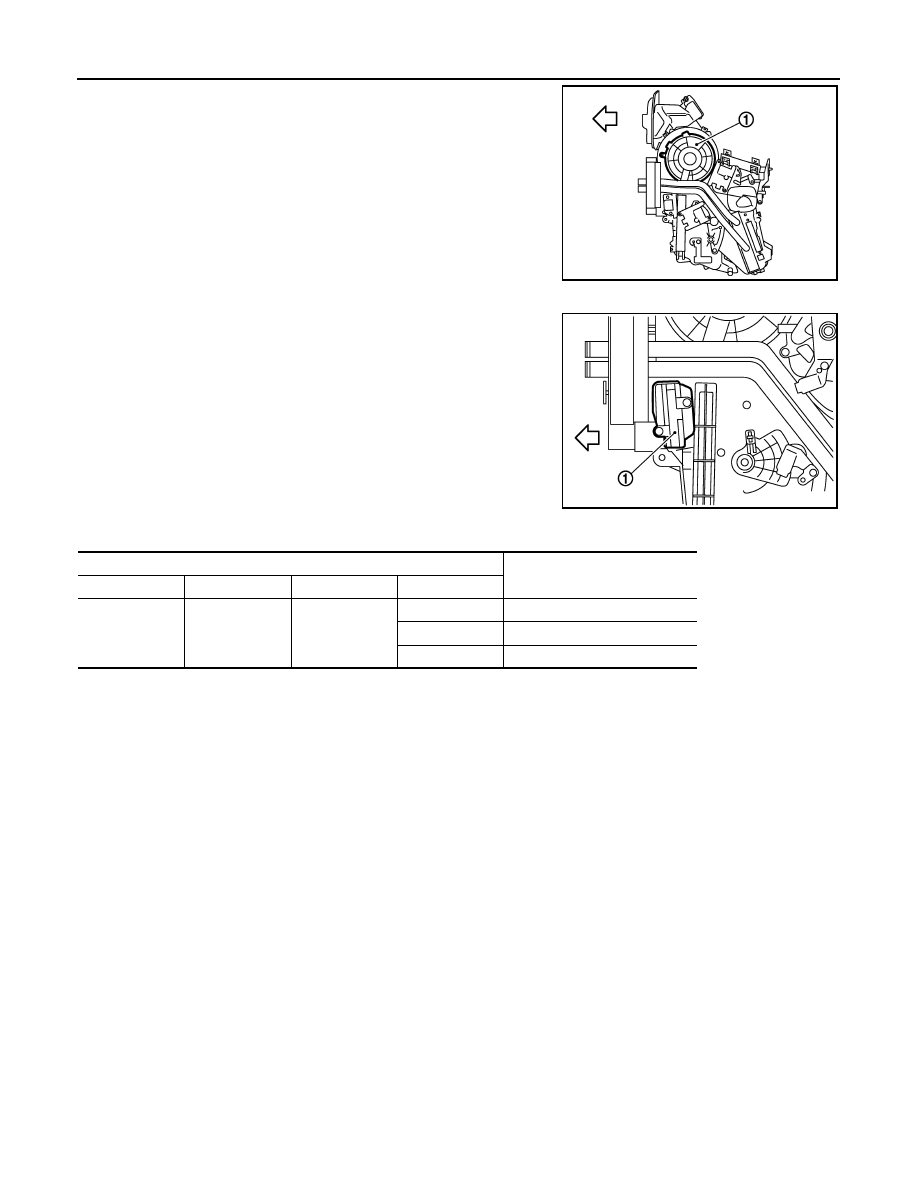

Confirm smooth rotation of the blower motor (1).

BLOWER FAN RESISTOR

Check continuity between blower fan resistor connector (1) M305
terminal 1 and 2, 3, 4.

:

Vehicle front

JPIIA0028ZZ

:

Vehicle front

JPIIA0034ZZ

Blower fan resistor

Resistance (

Ω

)

Connector

Terminal

Connector

Terminal

M305

1

M305

2

Approx.  0.3

3

Approx.  0.9

4

Approx.  2.0

MAGNET CLUTCH

HAC-157

< COMPONENT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MAGNET CLUTCH

Description

INFOID:0000000001069976

Magnet clutch drives a compressor, by a signal of IPDM E/R.

Component Function Check

INFOID:0000000001069977

1.

CONFIRM SYMPTOM BY PERFORMING THE FOLLOWING OPERATIONAL CHECK

1.

Turn fan control dial to the desired (1 to 4 speed) position.

2.

Press A/C switch.

3.

A/C switch indicator will turn ON. Confirm that the magnet clutch engages (sound or visual inspection).

Does the magnet clutch operate?

YES

>> END.

NO

>> Go to Diagnosis Procedure. Refer to

HAC-157, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001069978

1.

PERFORM AUTO ACTIVE TEST

Perform “AUTO ACTIVE TEST”. Refer to

PCS-9, "Diagnosis Description"

.

Does the magnet clutch operate?

YES

>> •

WITH CONSULT-III: GO TO 5.

•

WITHOUT CONSULT-III: GO TO 6.

NO

>> Check 10A fuse (No. 53, located in IPDM E/R), and GO TO 2.

2.

CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and compressor connector.

3.

Check continuity between IPDM E/R harness connector E12 terminal 23 and compressor harness con-
nector F17 (With Gasoline Engine) or F18 (With Diesel Engine) terminal 1.

With Gasoline Engine

With Diesel Engine

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK CIRCUIT CONTINUITY BETWEEN COMPRESSOR GROUND

1.

Turn ignition switch OFF.

2.

Check continuity between compressor harness connector F17 (With Gasoline Engine) or F18 (With Diesel
Engine) terminal 2 and ground.

With Gasoline Engine

IPDM E/R

Compressor

Continuity

Connector

Terminal

Connector

Terminal

E12

23

F17

1

Continuity should exist

IPDM E/R

Compressor

Continuity

Connector

Terminal

Connector

Terminal

E12

23

F18

1

Continuity should exist

Compressor

—

Continuity

Connector

Terminal

F17

2

Ground

Continuity should exist

HAC-158

< COMPONENT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

MAGNET CLUTCH

With Diesel Engine

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK MAGNET CLUTCH CIRCUIT

Check for operation sound when applying battery voltage direct current to terminal.
Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Replace compressor.

5.

CHECK BCM INPUT (AIR COND SW) SIGNAL

Check compressor ON/OFF signal in “DATA MONITOR”. Refer to

HAC-140, "AIR CONDITIONER : CON-

SULT-III Function (BCM - MANUAL AIR CONDITIONER)"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 6.

6.

CHECK CIRCUIT CONTINUITY BETWEEN HEATER CONTROL PANEL AND BCM

1.

Turn ignition switch OFF.

2.

Disconnect heater control panel connector and BCM harness connector.

3.

Check continuity between heater control panel harness connector M54 terminal 7 and BCM harness con-
nector M65 terminal 14.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair harness or connector.

7.

CHECK A/C SWITCH SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect heater control panel connector.

3.

Turn ignition switch ON.

4.

Check voltage between heater control panel harness connector M54 terminal 7 and ground.

5.

Reonnect heater control panel connector.

6.

Press A/C switch and turn fan control dial except OFF position.

7.

Check voltage between heater control panel harness connector M54 terminal 7 and ground.

Compressor

—

Continuity

Connector

Terminal

F18

2

Ground

Continuity should exist

A/C SW ON

: AIR COND SW ON

A/C SW OFF

: AIR COND SW OFF

Heater control panel

BCM

Continuity

Connector

Terminal

Connector

Terminal

M54

7

M65

14

Continuity should exist

(+)

(

−

)

Voltage

Heater control panel

—

Connector

Terminal

M54

7

Ground

Battery voltage

MAGNET CLUTCH

HAC-159

< COMPONENT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace heater control panel.

8.

CHECK REFRIGERANT PRESSURE SENSOR

WITH CONSULT-III

1.

Start the engine.

2.

Check voltage of refrigerant pressure sensor in “DATA MONITOR”. Refer to

HAC-181, "HR16DE : Refer-

ence Value"

 (HR16DE),

HAC-182, "MR20DE : Reference Value"

 (MR20DE),

HAC-182, "K9K : Reference

Value"

 (K9K).

WITHOUT CONSULT-III

1.

Start the engine.

2.

Check voltage between ECM harness connector F8 terminal 41 (With Gasoline Engine) F68 terminal 78
(With Diesel Engine) and ground.

With Gasoline Engine

With Diesel Engine

Is the inspection result normal?

YES

>> •

WITH CONSULT-III: GO TO 9.

•

WITHOUT CONSULT-III: GO TO 10.

NO

>> Refer to

EC-316, "Diagnosis Procedure"

 [HR16DE (WITH EURO-OBD)],

EC-595, "Diagnosis Pro-

cedure"

 [HR16DE (WITHOUT EURO-OBD)],

EC-936, "Diagnosis Procedure"

 [MR20DE (WITH

EURO-OBD)],

EC-1215, "Diagnosis Procedure"

 [MR20DE (WITHOUT EURO-OBD)], or

EC-1380,

"Diagnosis Procedure"

 (K9K).

9.

CHECK BCM INPUT (FAN ON) SIGNAL

Check FAN ON/OFF signal in “DATA MONITOR”. Refer to

HAC-140, "AIR CONDITIONER : CONSULT-III

Function (BCM - MANUAL AIR CONDITIONER)"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> GO TO 10.

10.

CHECK CIRCUIT CONTINUITY BETWEEN HEATER CONTROL PANEL AND BCM

1.

Turn ignition switch OFF.

2.

Disconnect heater control panel connector and BCM harness connector.

(+)

(

−

)

Condition

Voltage

Heater control panel

—

Connector

Terminal

M54

7

Ground

A/C SW: ON

FAN SW: ON

Approx. 0

(+)

(

−

)

Condition

Voltage

ECM

—

 Connector

Terminal

F8

41

Ground

A/C SW: ON

(Blower motor operates.)

Approx. 1.0 - 4.0

(+)

(

−

)

Condition

Voltage

ECM

—

 Connector

Terminal

F68

78

Ground

A/C SW: ON

(Blower motor operates.)

Approx. 2.3

FAN SW ON

: FAN ON SIG ON

FAN SW OFF

: FAN ON SIG OFF
