HAC-136

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

MANUAL AIR CONDITIONER SYSTEM

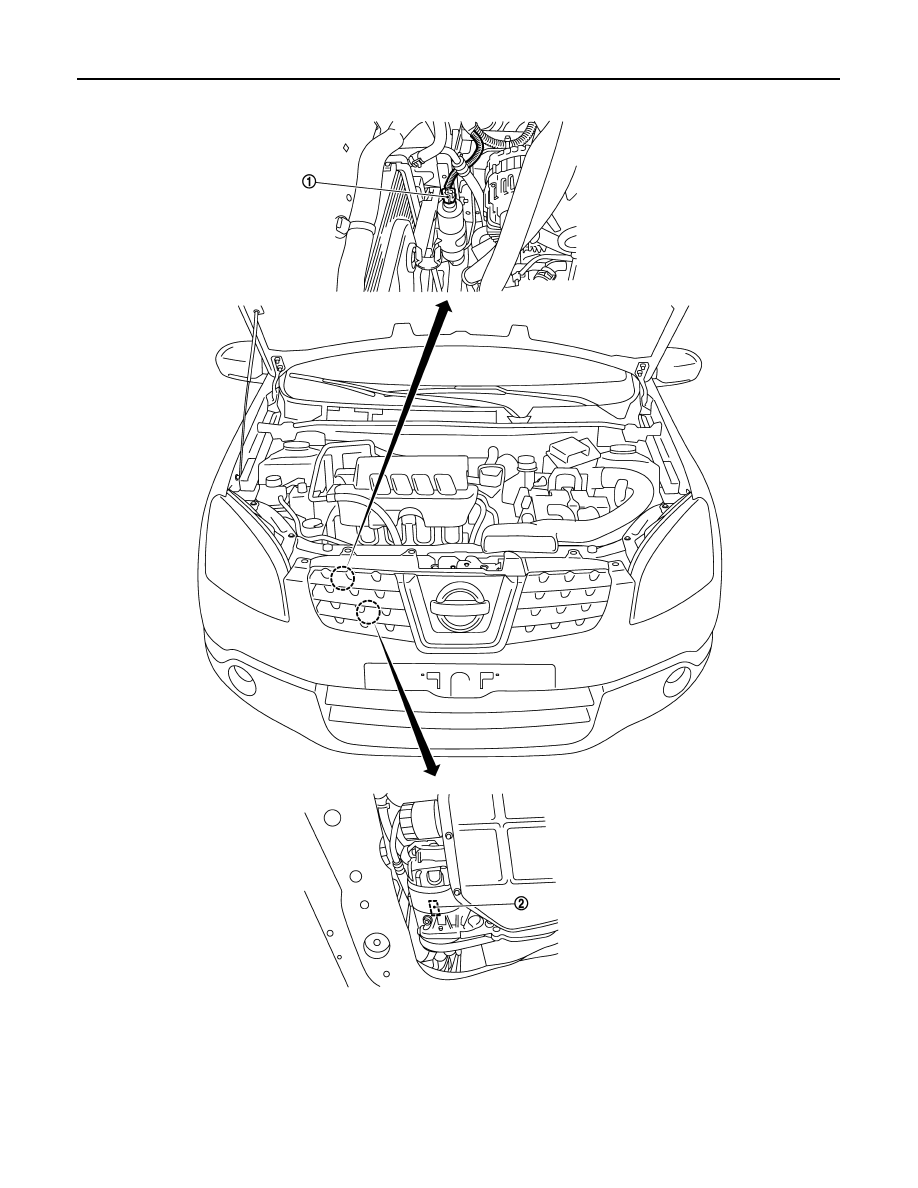

PASSENGER COMPARTMENT

LHD Models

1.

Refrigerant pressure sensor

2.

Compressor

JPIIA0169ZZ

MANUAL AIR CONDITIONER SYSTEM

HAC-137

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

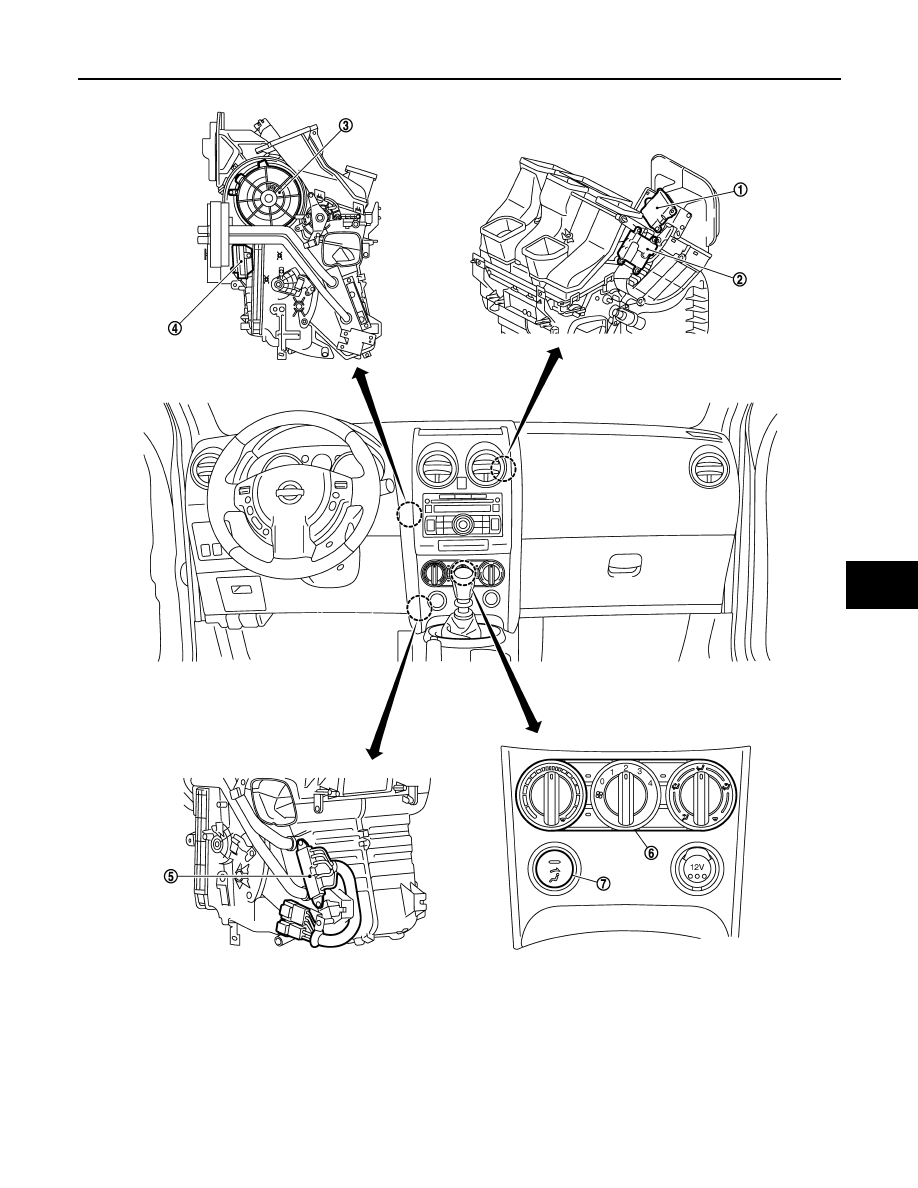

RHD Models

1.

Intake door motor

2.

High-level ventilator door motor

3.

Blower motor

4.

Blower fan resistor

5.

PTC heater

6.

Heater control panel

7.

High-level ventilator switch

JPIIA0171ZZ

HAC-138

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

MANUAL AIR CONDITIONER SYSTEM

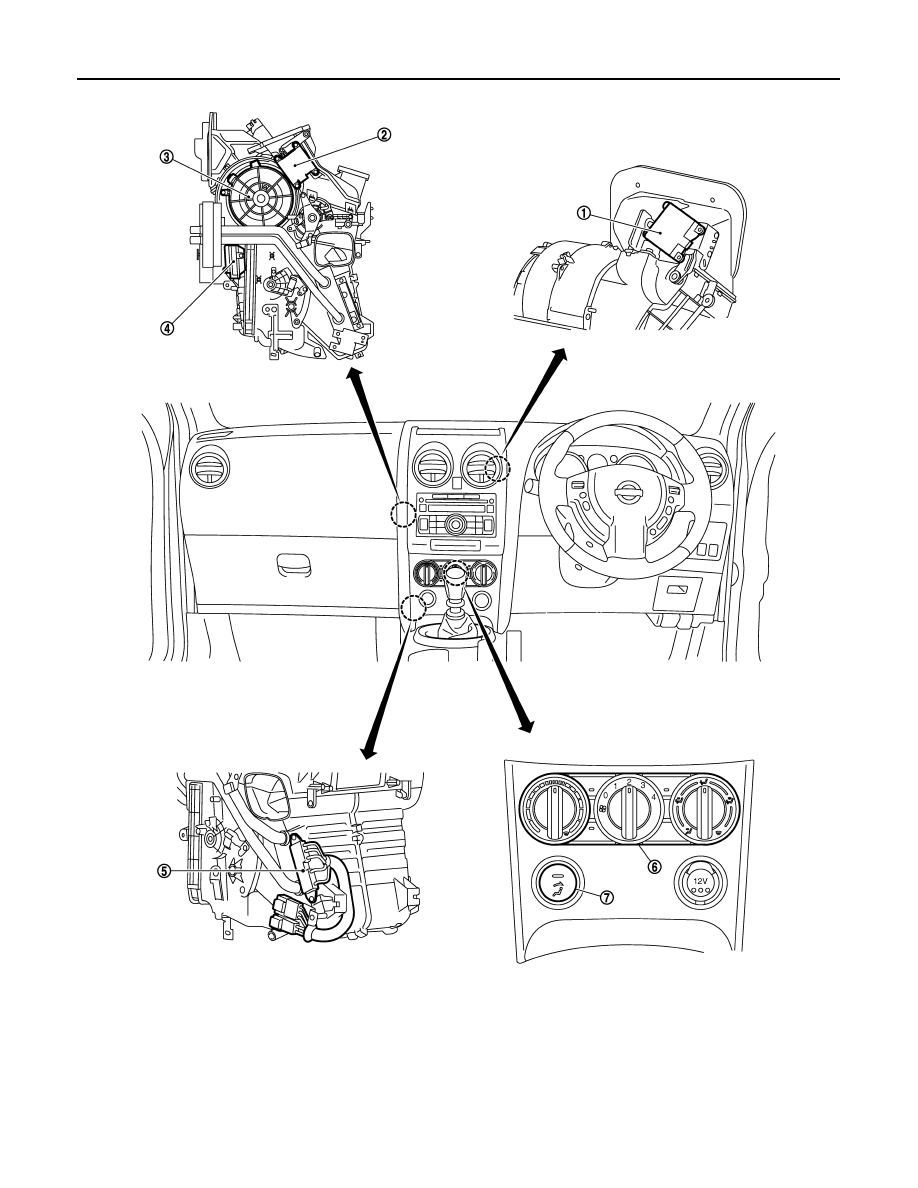

Component Description

INFOID:0000000001069939

1.

Intake door motor

2.

High-level ventilator door motor

3.

Blower motor

4.

Blower fan resistor

5.

PTC heater

6.

Heater control panel

7.

High-level ventilator switch

JPIIA0172ZZ

MANUAL AIR CONDITIONER SYSTEM

HAC-139

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component

Reference

Blower fan resistor

HAC-155, "Component Inspection"

Blower motor

HAC-153, "Description"

Compressor

HAC-157, "Description"

Heater control panel

HAC-169, "Description"

High-level ventilator door motor

HAC-147, "Description"

High-level ventilator switch

HAC-149, "Component Inspection"

intake door motor

HAC-150, "Description"

PTC heater

HAC-167, "Component Inspection"

Refrigerant pressure sensor

HAC-161, "Component Inspection"
