HA-110

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER (HR/MR)]

REFRIGERATION SYSTEM

FUNCTION DIAGNOSIS

REFRIGERATION SYSTEM

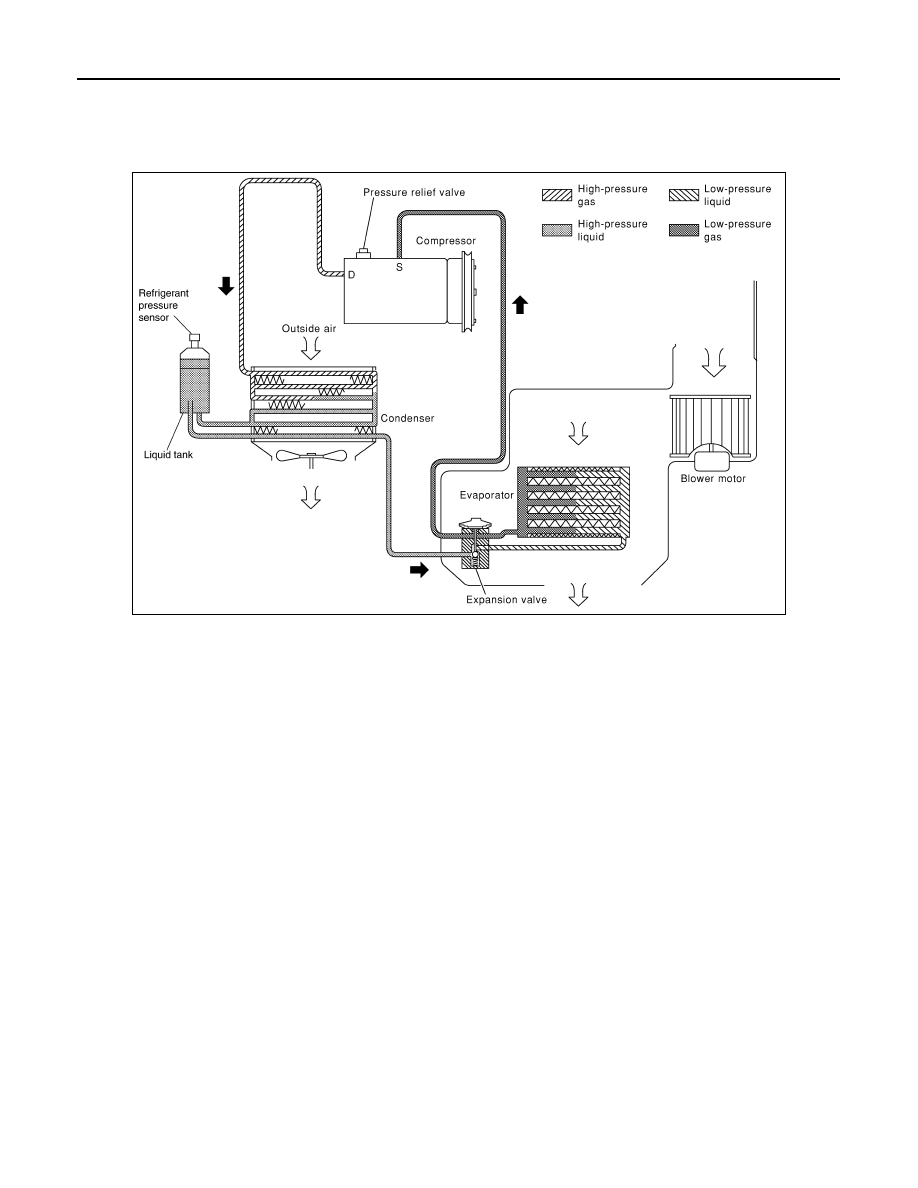

System Diagram

INFOID:0000000001098129

System Description

INFOID:0000000001098130

REFRIGERANT CYCLE

Refrigerant Flow

The refrigerant flows from the compressor, through the condenser with liquid tank, through the evaporator, and
back to the compressor. The refrigerant evaporation in the evaporator is controlled by an externally equalized
expansion valve, located inside the evaporator case.

Freeze Protection

To prevent evaporator frozen up, the evaporator air temperature is monitored, and the voltage signal to the
display and A/C auto amp. will make the A/C relay go OFF and stop the compressor.

REFRIGERANT SYSTEM PROTECTION

Refrigerant Pressure Sensor

The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure sen-
sor, located on the condenser. If the system pressure rises above, or falls below the specifications, the refrig-
erant pressure sensor detects the pressure inside the refrigerant line and sends the voltage signal to the ECM.
ECM makes the A/C relay go OFF and stops the compressor when pressure on the high-pressure side
detected by refrigerant pressure sensor is over about 3,119 kPa (31.8 kg/cm

2

, 452 psi), or below about 118

kPa (1.2 kg/cm

2

, 17 psi).

Pressure Relief Valve

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.
When the pressure of refrigerant in the system increases to an unusual level [more than 3,628 kPa (37 kg/
cm

2

, 526 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant into

the atmosphere.

LUBRICANT

RJIA1552E

REFRIGERATION SYSTEM

HA-111

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Maintenance of Lubricant Quantity in Compressor

The lubricant in the compressor circulates through the system with the refrigerant. Add lubricant to compres-
sor when replacing any component or after a large refrigerant leakage occurred. It is important to maintain the
specified amount.
If lubricant quantity is not maintained properly, the following malfunctions may result:
• Lack of lubricant: May lead to a seized compressor.
• Excessive lubricant: Inadequate cooling (thermal exchange interference)

Lubricant

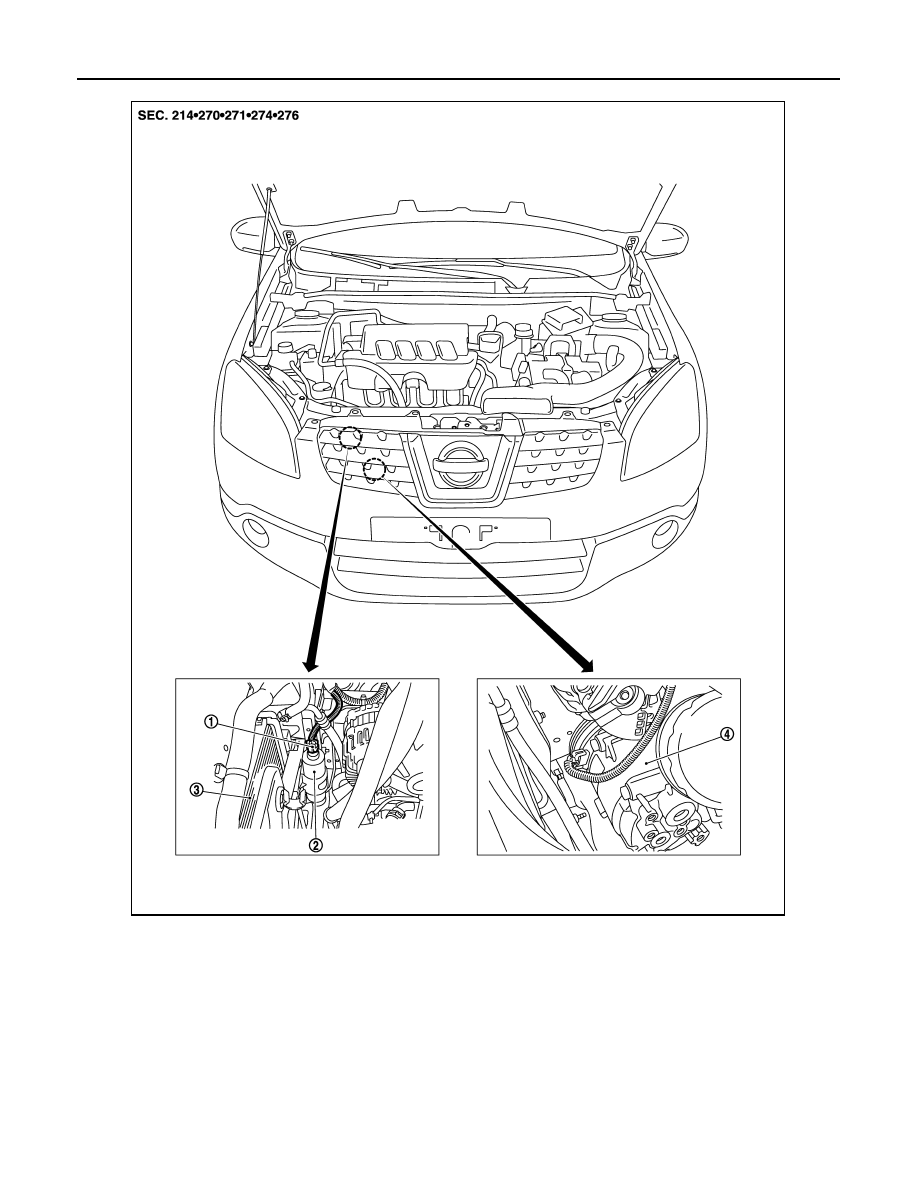

Component Parts Location

INFOID:0000000001098131

Name

: Nissan A/C System Oil Type S

HA-112

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER (HR/MR)]

REFRIGERATION SYSTEM

1.

Refrigerant pressure sensor

2.

Liquid tank

3.

Radiator

4.

Compressor

E1KIA0065ZZ

REFRIGERATION SYSTEM

HA-113

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

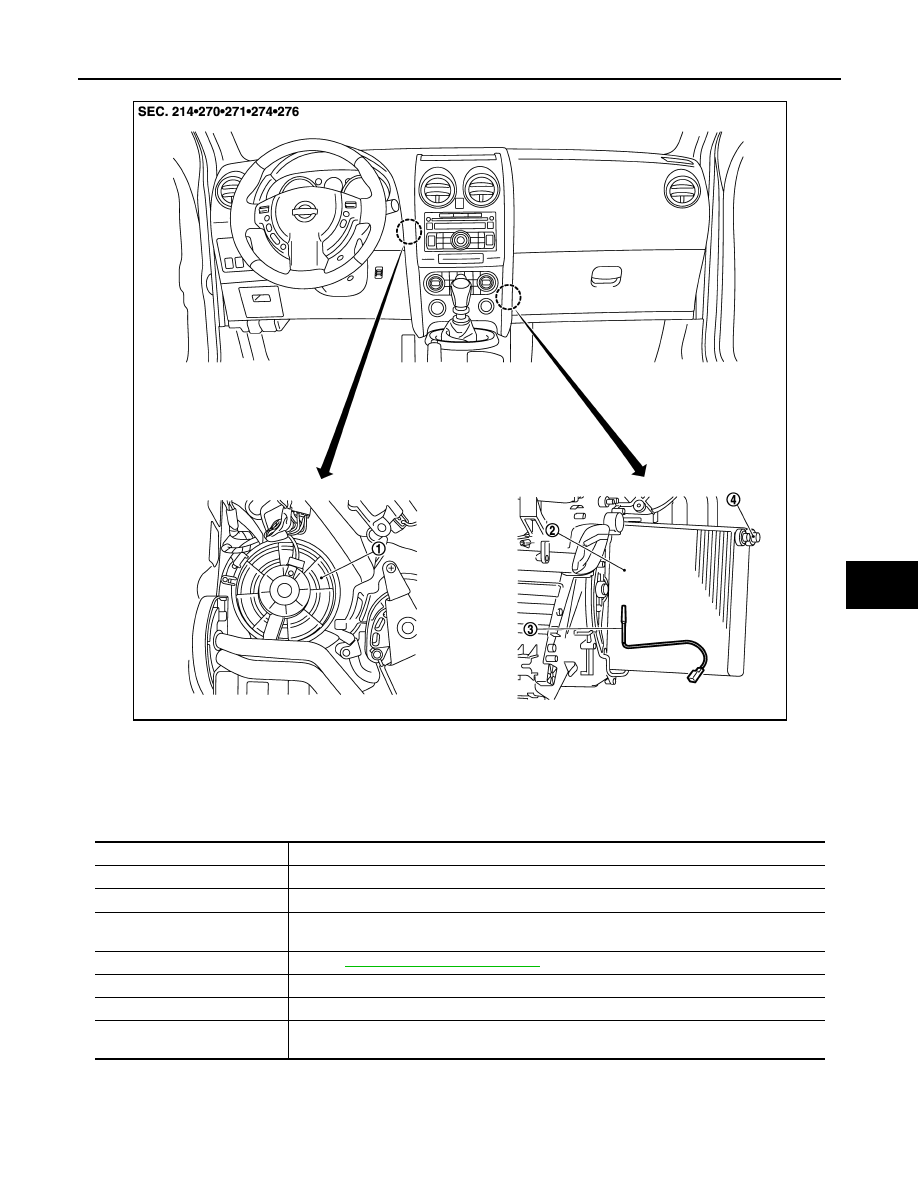

Component Description

INFOID:0000000001098132

1.

Blower motor assembly

2.

Evaporator

3.

Intake sensor (AT only)

4.

Expansion valve

E1KIA0034ZZ

Component

Description

Compressor

Intakes, compresses, and discharges refrigerant, then conveys it to condenser.

Condenser

Condenses refrigerant, and then conveys it to liquid tank.

Liquid tank

Drives moisture out of refrigerant, eliminates foreign matter, then conveys refrigerant to expan-
sion valve.

Refrigerant pressure sensor

Refer to

HAC-161, "Component Inspection"

.

Expansion valve

Vaporizes refrigerant, controls the amount of flow, then conveys refrigerant to evaporator.

Evaporator

Cools passing air, and then conveys it to compressor.

Blower motor

Takes in air in the vehicle or fresh outside air, and then adjusts room temperature by air condi-
tioning.
