BRC-54

< ECU DIAGNOSIS >

[ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

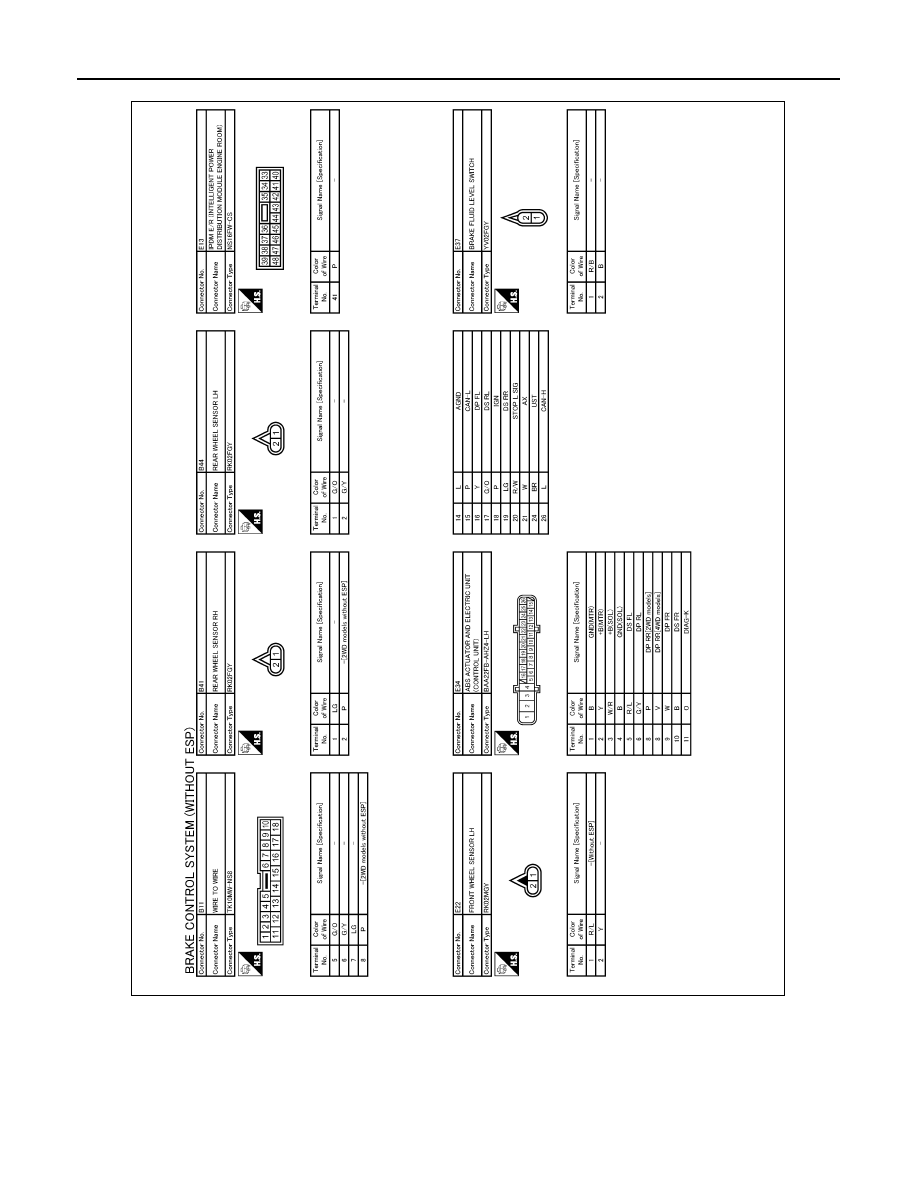

JCFWA0032GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-55

< ECU DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

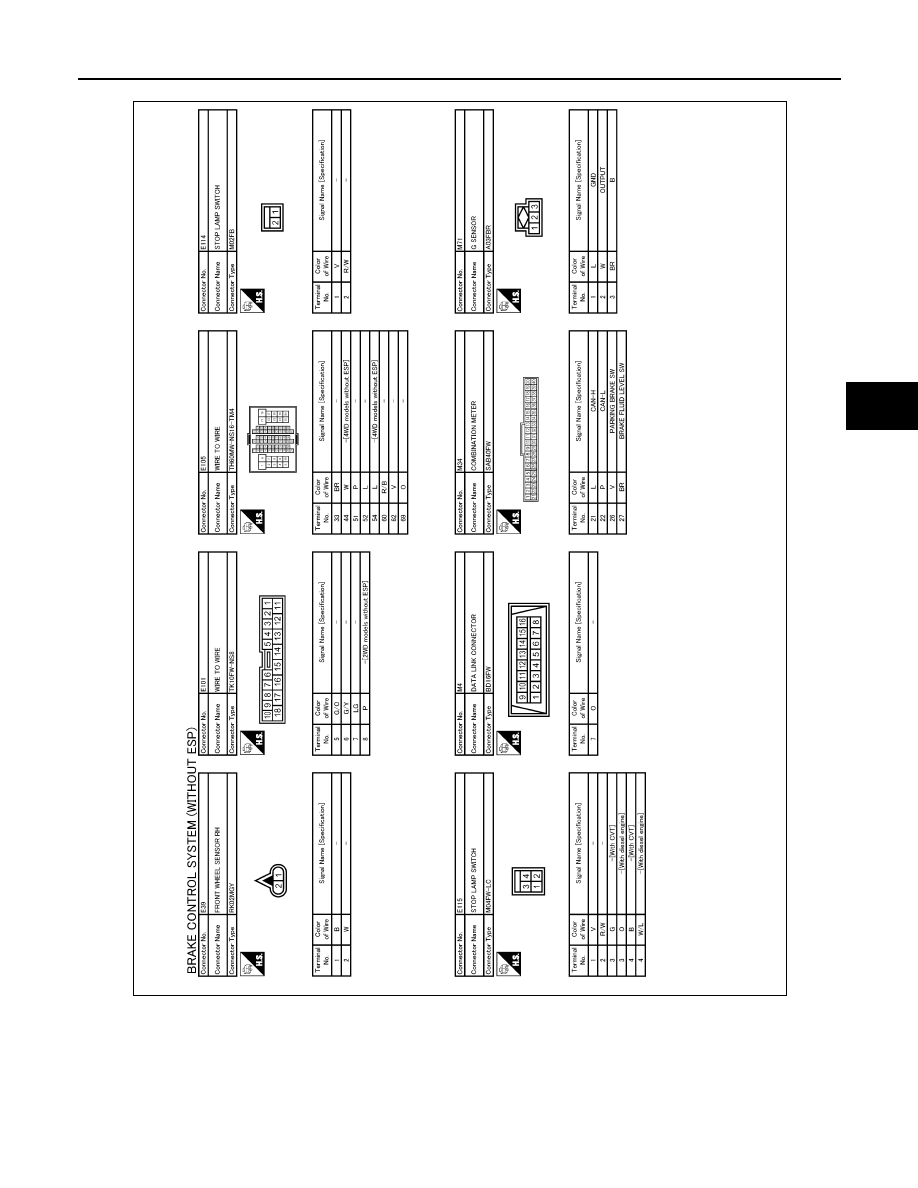

JCFWA0033GB

BRC-56

< ECU DIAGNOSIS >

[ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Fail-Safe

INFOID:0000000000925074

ABS, EBD SYSTEM

In case of electrical malfunctions with the ABS, ABS warning lamp will turn ON. In case of electrical malfunc-
tions with the EBD, brake warning lamp, ABS warning lamp will turn ON. Simultaneously, the ABS become
one of the following conditions of the fail-safe function.

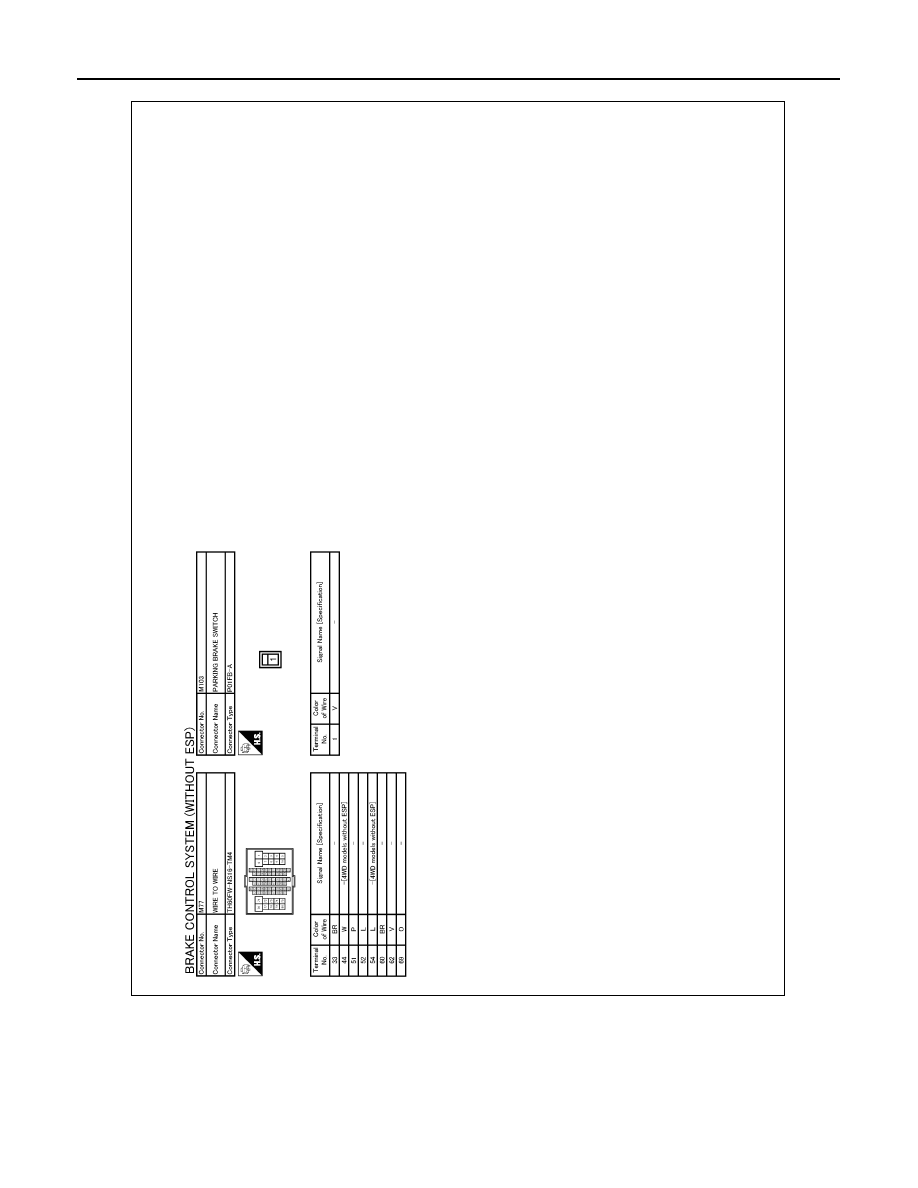

JCFWA0034GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-57

< ECU DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of vehi-

cles without ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

• For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as the

condition of vehicles without ABS, EBD system.

DTC No. Index

INFOID:0000000000925075

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-20, "Description"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-23, "Description"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-26, "Description"

C1110

CONTROLLER FAILURE

BRC-28, "Description"

C1111

PUMP MOTOR

BRC-29, "Description"

C1113

G SENSOR

BRC-31, "Description"

C1114

MAIN RELAY

BRC-33, "Description"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-35, "Description"

C1116

STOP LAMP SW

BRC-38, "Description"

C1120

FR LH IN ABS SOL

BRC-40, "Description"

C1121

FR LH OUT ABS SOL

BRC-42, "Description"

C1122

FR RH IN ABS SOL

BRC-40, "Description"

C1123

FR RH OUT ABS SOL

BRC-42, "Description"

C1124

RR LH IN ABS SOL

BRC-40, "Description"

C1125

RR LH OUT ABS SOL

BRC-42, "Description"

C1126

RR RH IN ABS SOL

BRC-40, "Description"

C1127

RR RH OUT ABS SOL

BRC-42, "Description"

C1153

EMERGENCY BRAKE

BRC-28, "Description"

U1000

CAN COMM CIRCUIT

BRC-44, "Description"
