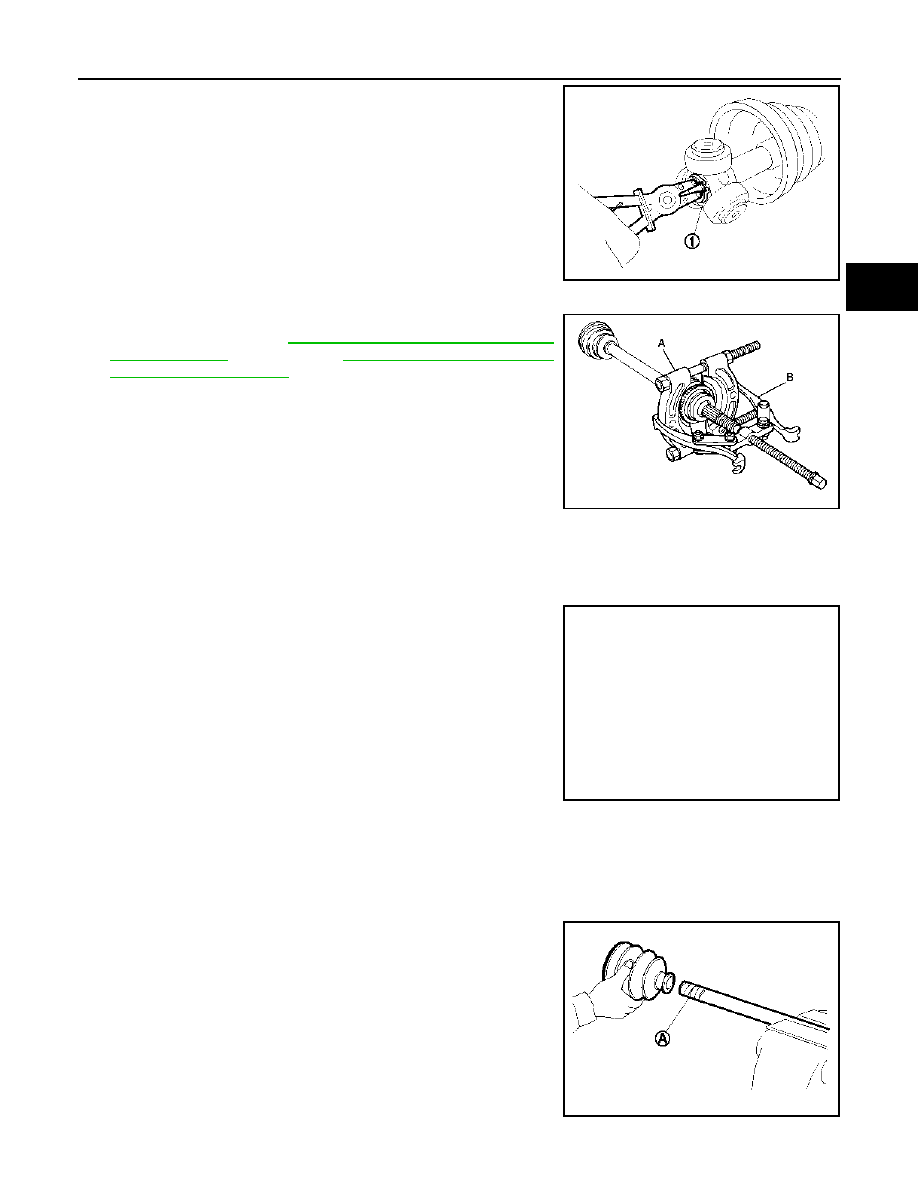

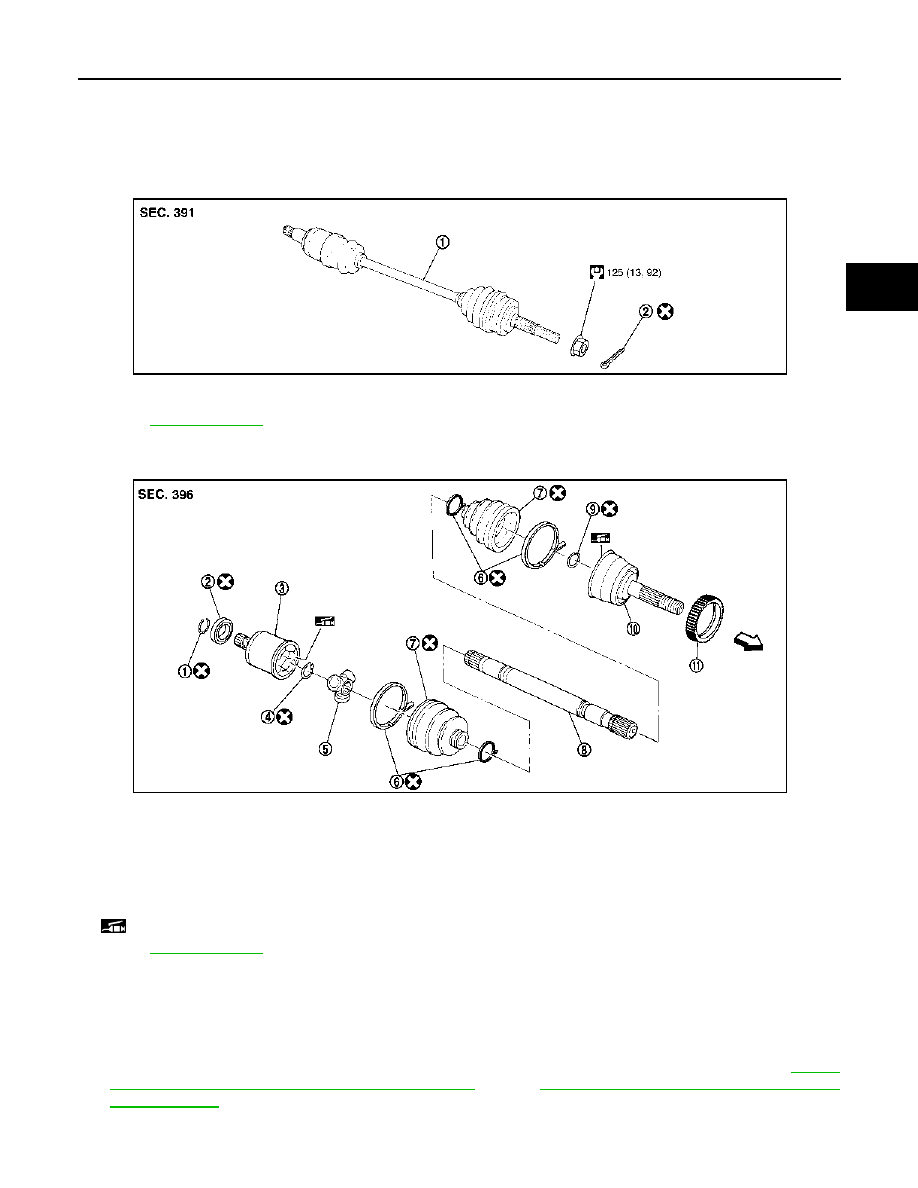

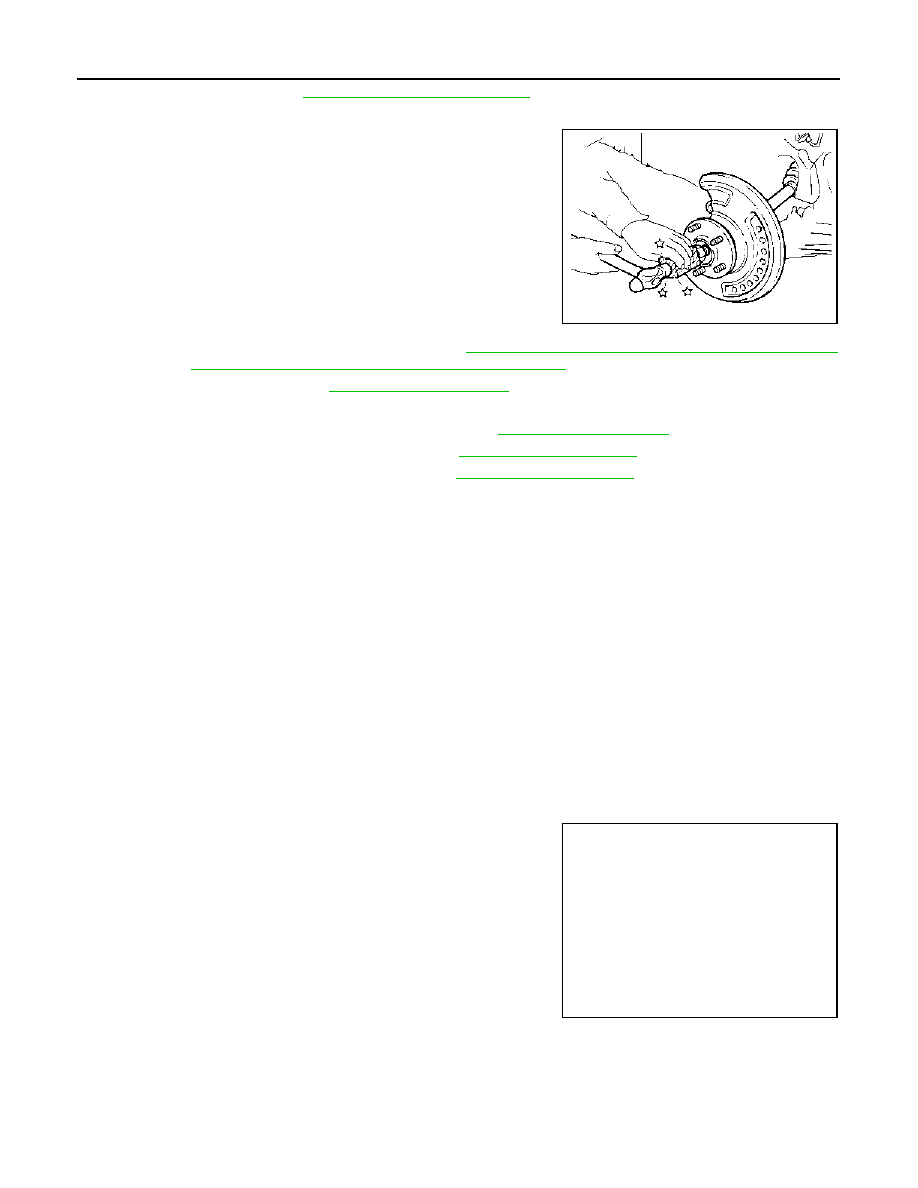

REAR DRIVE SHAFT RAX-13 < ON-VEHICLE REPAIR > [4WD] C E F G H I J K L M A B RAX N O P REAR DRIVE SHAFT Exploded View INFOID:0000000000970510 REMOVAL DISASSEMBLY Removal and Installation INFOID:0000000000970511 REMOVAL 1. Remove tires from vehicle. 2. Remove torque member mounting bolts. Hang torque member not to interfere with work. Refer to "BRAKE CALIPER ASSEMBLY : Exploded View" (LHD), BR-86, "BRAKE CALIPER ASSEMBLY : (RHD). CAUTION: Never depress brake pedal while brake caliper is removed. 1. Drive shaft 2. Cotter pin Refer to PDIA1172J 1. Circular clip 2. Dust shield 3. Housing 4. Snap ring 5. Spider assembly 6. Boot band 7. Boot 8. Shaft 9. Circular clip 10. Joint sub-assembly 11. Sensor rotor : Wheel side : Fill NISSAN genuine grease or an equivalent. Refer to for symbols not described on the above. JPDIG0015ZZ |
