CONTROL LINKAGE

Exploded View

INFOID:0000000001070440

Removal and Installation

INFOID:0000000001070441

REMOVAL

1.

Remove the air cleaner case and air duct (inlet). Refer to

EM-27, "Removal and Installation"

.

2.

Remove the battery. Refer to

PG-118, "Removal and Installation"

.

1.

Bracket

2.

Shift cable

3.

Control shaft assembly

4.

Cable mounting bracket

5.

Tapping bolt

6.

Select cable

7.

Grommet

8.

Control device assembly

9.

Control lever

10. Control lever knob

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPDIC0057GB

TM-20

< ON-VEHICLE REPAIR >

[5MT: RS5F92R]

CONTROL LINKAGE

3.

Disconnect the connectors (A) and then remove the bracket (1).

4.

While pressing the lock of the select cable in the direction of the
arrow shown in the figure, remove the select cable from the con-
trol shaft assembly.

5.

While pressing the lock of the shift cable in the direction of the
arrow shown in the figure, remove the shift cable from the con-
trol shaft assembly.

6.

While pulling the lock of the select cable in the direction of the
arrow shown in the figure, remove the select cable from the
cable mounting bracket.

7.

While pulling the lock of the shift cable in the direction of the
arrow shown in the figure,  remove the shift cable from the cable
mounting bracket.

8.

Remove the control lever knob.

9.

Remove console finisher assembly and the center console
assembly. Refer to

IP-18, "Removal and Installation"

.

10. Shift the control lever to the neutral position.

11. While pressing the lock of the select cable in the direction of the

arrow shown in the figure, remove the select cable from the con-
trol device assembly.

12. While pressing the lock of the shift cable in the direction of the

arrow shown in the figure, remove the shift cable from the con-
trol device assembly.

13. While pulling the lock of the select cable in the direction of the

arrow shown in the figure, remove the select cable from the con-
trol device assembly.

14. While pulling the lock of the shift cable in the direction of the

arrow shown in the figure, remove the shift cable from the con-
trol device assembly.

15. Remove the control device assembly.
16. Remove the heat plate.

17. Remove the bracket.

JPDIA0240ZZ

JPDIC0066ZZ

JPDIC0067ZZ

JPDIC0066ZZ

JPDIC0067ZZ

CONTROL LINKAGE

TM-21

< ON-VEHICLE REPAIR >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

18. Remove the grommet and then remove the shift cable and select cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Shift the control lever to the neutral position.
• Securely assemble each cable and the lever of the control shaft assembly.
• Securely assemble each cable and the cable mounting bracket.
• Securely assemble each cable and the control device assembly.
• Make sure that the claws of grommet are in contact with the floor.
• Be careful about the installation direction and push the control lever knob into the control lever.

CAUTION:

Never reuse control lever knob.

• Tapping work for tapping bolt is not applied to new clutch housing. Do not perform tapping by other than

screwing tapping bolt because tapping is formed by screwing tapping bolt into clutch housing.

CAUTION:

Never reuse tapping bolt.

Inspection

INFOID:0000000001070442

After installing, confirm the following items:
• When the control lever is shifted to 1st-2nd side and 5th-Reverse side, confirm the control lever returns to

neutral position smoothly.

• When the control lever is shifted to each position, make sure there is no binding or disconnection in each

boot.

TM-22

< ON-VEHICLE REPAIR >

[5MT: RS5F92R]

AIR BREATHER HOSE

AIR BREATHER HOSE

Exploded View

INFOID:0000000001070443

Removal and Installation

INFOID:0000000001070444

REMOVAL

Refer to the figure for removal procedure.

CAUTION:

When removing air breather hose, be sure to hold breather pipe securely.

INSTALLATION

Refer to the figure for installation procedure.
• When installing air breather hose on breather pipe, aim paint mark face toward the vehicle front.
• When installing air breather hose on breather pipe, push it until it hits transaxle case.
• When installing air breather hose to air cleaner case, make sure that clip are fully inserted.

CAUTION:

Make sure air breather hose is not collapsed or blocked due to folding or bending when installed.

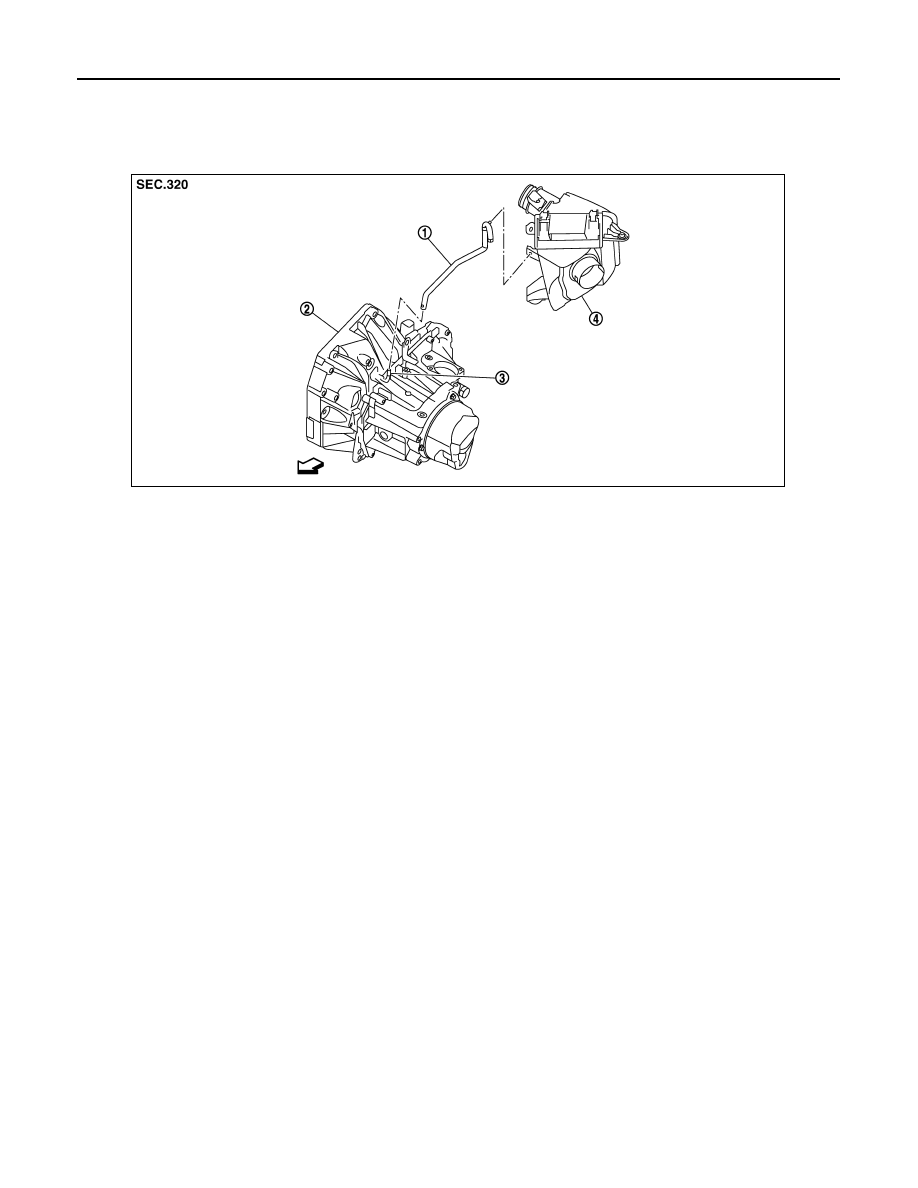

1.

Air breather hose

2.

Transaxle assembly

3.

Breather pipe

4.

Air cleaner case

: Vehicle front

JPDIC0050ZZ
