Nissan Qashqai (2007-2010). Manual - part 374

AIR CONDITIONING CUT CONTROL

EC-1015

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PBIB2942E

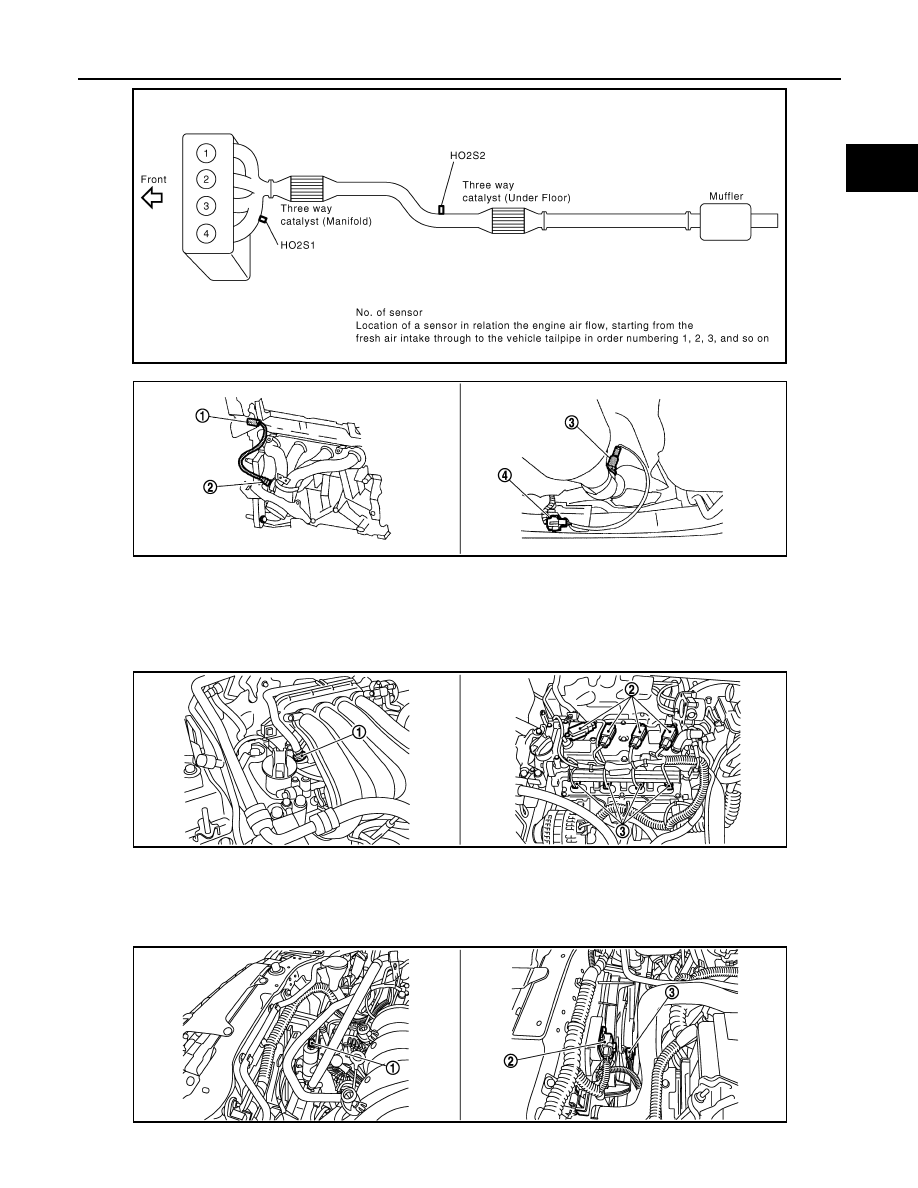

1.

Heated oxygen sensor 1 harness
connector

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injection

JMBIA0454ZZ

JMBIA0344ZZ

JMBIA0345ZZ

EC-1016

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

AIR CONDITIONING CUT CONTROL

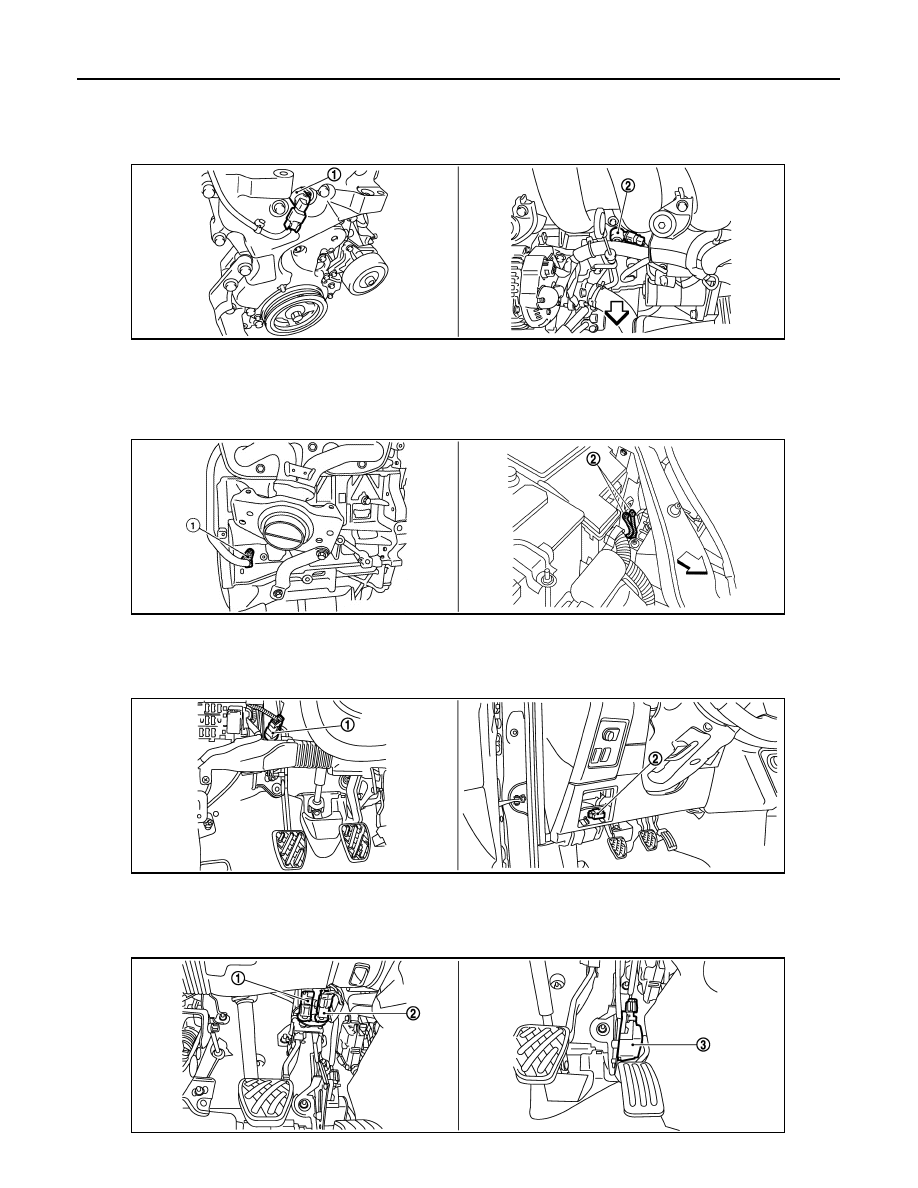

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

1.

ASCD clutch switch

2.

Data link connector

JMBIA0445ZZ

JMBIA0446ZZ

JMBIA0347ZZ

JMBIA0348ZZ

AIR CONDITIONING CUT CONTROL

EC-1017

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

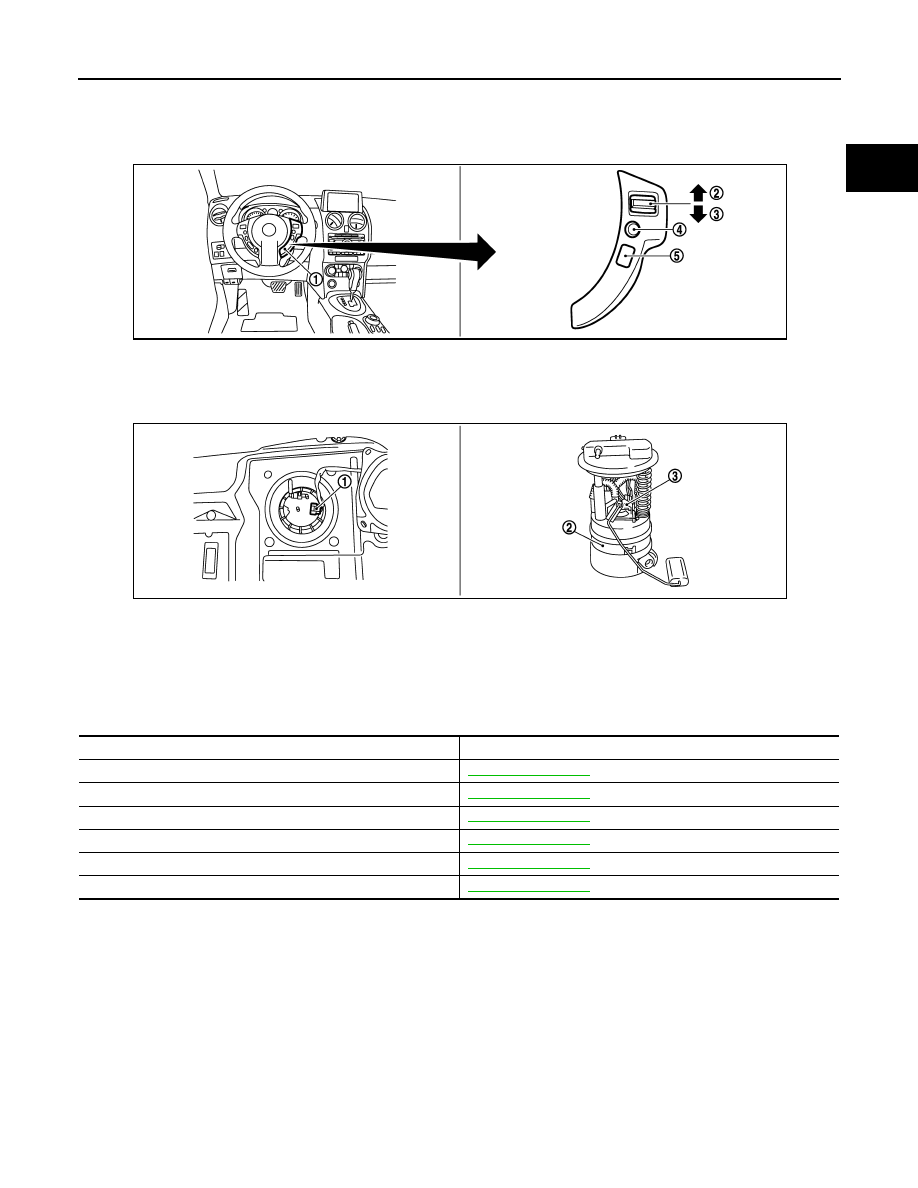

Component Description

INFOID:0000000001094064

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

1.

ASDC steering switch

2.

CANSEL switch

3.

RESUME/ACCCELERATE switch

4.

SET/COAST switch

5.

MAIN SWITCH

6.

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

JMBIA0349ZZ

JMBIA0346ZZ

Component

Reference

Accelerator pedal position sensor

EC-899, "Description"

Camshaft position sensor (PHASE)

EC-813, "Description"

Crankshaft position sensor (POS)

EC-809, "Description"

Engine coolant temperature sensor

EC-754, "Description"

Refrigerant pressure sensor

EC-936, "Description"

Vehicle speed sensor

EC-825, "Description"

EC-1018

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

System Diagram

INFOID:0000000001094065

System Description

INFOID:0000000001094066

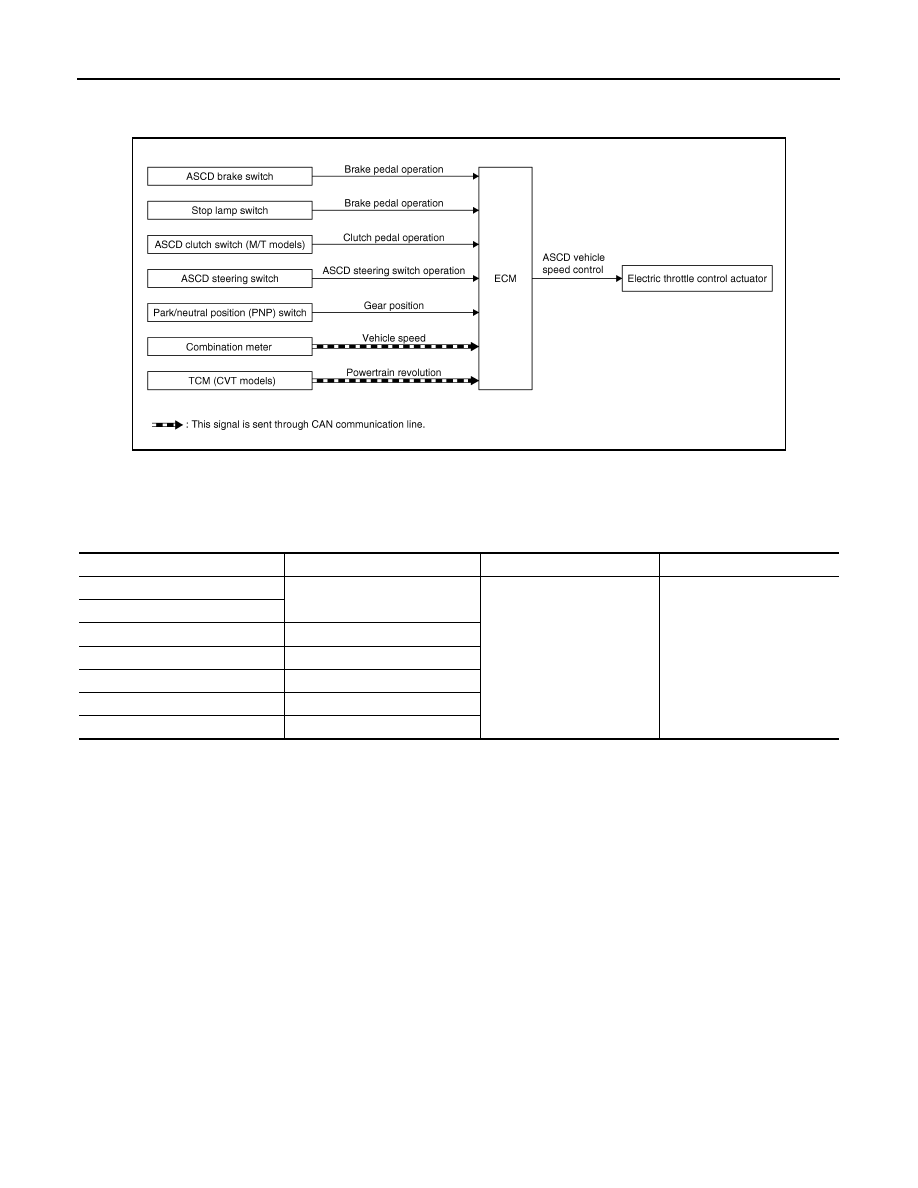

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM through CAN communication line

BASIC ASCD SYSTEM

Refer to Owner's Manual for ASCD operating manuals.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 180 km/h (112 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE lamp and SET lamp in combination meter. If any malfunc-
tion occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.

SET OPERATION

Press MAIN switch. (The CRUISE lamp in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 180 km/h (112
MPH), press SET/COAST switch. (Then SET lamp in combination meter illuminates.)

ACCELERATE OPERATION

If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.

CANCEL OPERATION

JMBIA0176GB

Sensor

Input signal to ECM

ECM function

Actuator

ASCD brake switch

Brake pedal operation

ASCD vehicle speed control

Electric throttle control
actuator

Stop lamp switch

ASCD clutch switch (M/T models)

Clutch pedal operation

ASCD steering switch

ASCD steering switch operation

Park/neutral position (PNP) switch

Gear position

Combination meter*

Vehicle speed

TCM* (CVT models)

Powertrain revolution
