LAN

EPS BRANCH LINE CIRCUIT

LAN-557

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 36)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

EPS BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000001100096

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the EPS control unit for damage, bend and loose connection (unit
side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of EPS control unit.

2.

Check the resistance between the EPS control unit harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the EPS control unit branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the EPS control unit. Refer to

STC-8, "Diagnosis Proce-

dure"

.

Is the inspection result normal?

YES (Present error)>>Replace the EPS control unit. Refer to

ST-10, "Exploded View"

.

YES (Past error)>>Error was detected in the EPS control unit branch line.
NO

>> Repair the power supply and the ground circuit.

EPS control unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M37

8

6

Approx. 54 – 66

LAN-558

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 36)]

I-KEY BRANCH LINE CIRCUIT

I-KEY BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000001100097

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the Intelligent Key unit for damage, bend and loose connection
(unit side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of Intelligent Key unit.

2.

Check the resistance between the Intelligent Key unit harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the Intelligent Key unit branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the Intelligent Key unit. Refer to

DLK-71, "INTELLIGENT

KEY UNIT : Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the Intelligent Key unit. Refer to

SEC-11, "Component Parts Location"

.

YES (Past error)>>Error was detected in the Intelligent Key unit branch line.
NO

>> Repair the power supply and the ground circuit.

Intelligent Key unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M40

2

3

Approx. 54 – 66

LAN

IPDM-E BRANCH LINE CIRCUIT

LAN-559

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 36)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM-E BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000001100099

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (unit side and con-
nector side).

-

IPDM E/R connector

-

Harness connector E105

-

Harness connector M77

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of IPDM E/R.

2.

Check the resistance between the IPDM E/R harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the IPDM E/R branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the IPDM E/R. Refer to

PCS-18, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the IPDM E/R. Refer to

PCS-32, "Exploded View"

.

YES (Past error)>>Error was detected in the IPDM E/R branch line.
NO

>> Repair the power supply and the ground circuit.

IPDM E/R harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

E12

28

29

Approx. 108 – 132

LAN-560

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 36)]

CAN COMMUNICATION CIRCUIT

CAN COMMUNICATION CIRCUIT

Diagnosis Procedure

INFOID:0000000001100100

INSPECTION PROCEDURE

1.

CONNECTOR INSPECTION

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect all the unit connectors on CAN communication system.

4.

Check terminals and connectors for damage, bend and loose connection.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the harness and repair the root cause.

3.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector and the ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Check the harness and repair the root cause.

4.

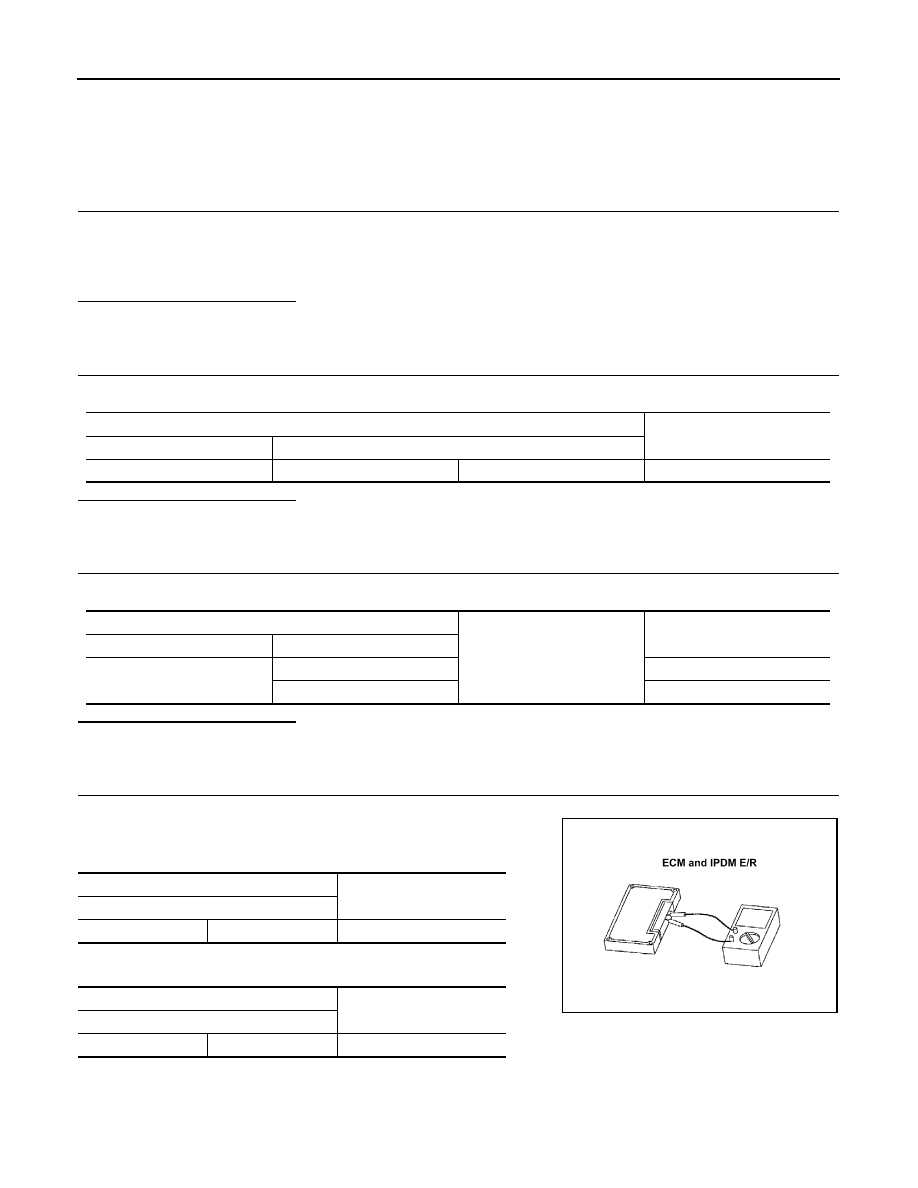

CHECK ECM AND IPDM E/R TERMINATION CIRCUIT

1.

Remove the ECM and the IPDM E/R.

2.

Check the resistance between the ECM terminals.

-

HR engine/MR engine models

-

K9K engine models

3.

Check the resistance between the IPDM E/R terminals.

Data link connector

Continuity

Connector No.

Terminal No.

M4

6

14

Not existed

Data link connector

Ground

Continuity

Connector No.

Terminal No.

M4

6

Not existed

14

Not existed

ECM

Resistance (

Ω

)

Terminal No.

84

83

Approx. 108 – 132

ECM

Resistance (

Ω

)

Terminal No.

100

99

Approx. 108 – 132

LKIA0037E
