Nissan Qashqai (2007-2010). Manual - part 140





EVAPORATIVE EMISSION SYSTEM

EC-79

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

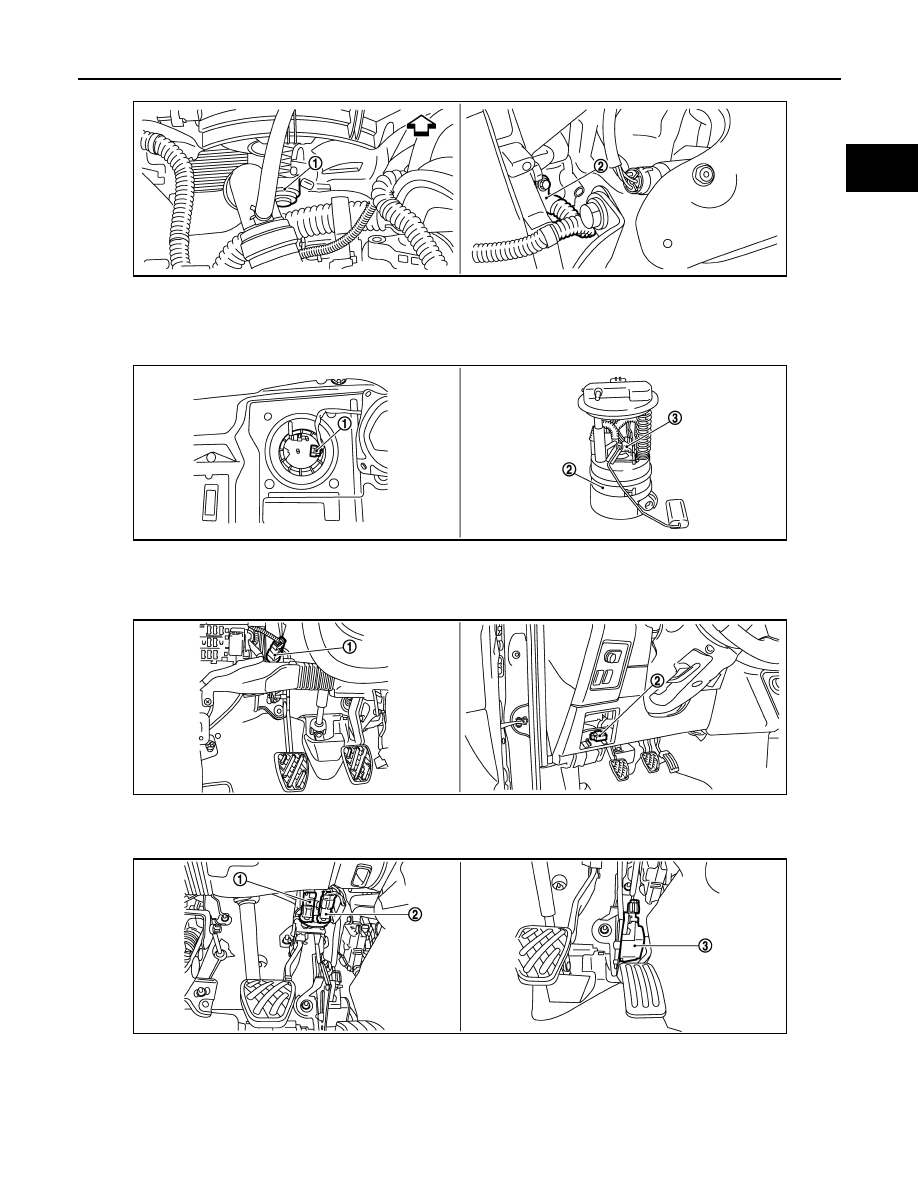

1.

Cooling fan motor

2.

Crankshaft position sensor (POS)

Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump  3.

Fuel pressure regulator

1.

ASCD clutch switch

2.

Data link connector

1.

Stop lamp switch

2.

ASCD brake pedal

3.

Accelerator pedal position sensor

JMBIA0407ZZ

JMBIA0346ZZ

JMBIA0347ZZ

JMBIA0348ZZ

EC-80

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

EVAPORATIVE EMISSION SYSTEM

Component Description

INFOID:0000000001056157

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

JMBIA0349ZZ

Component

Reference

Accelerator pedal position sensor

EC-280, "Description"

Camshaft position sensor (PHASE)

EC-197, "Description"

Crankshaft position sensor (POS)

EC-193, "Description"

Engine coolant temperature sensor

EC-135, "Description"

EVAP canister purge volume control solenoid valve

EC-206, "Description"

Heated oxygen sensor 1

EC-141, "Description"

Mass air flow sensor

EC-127, "Description"

Throttle position sensor

EC-138, "Description"

Vehicle speed sensor

EC-209, "Description"

INTAKE VALVE TIMING CONTROL

EC-81

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

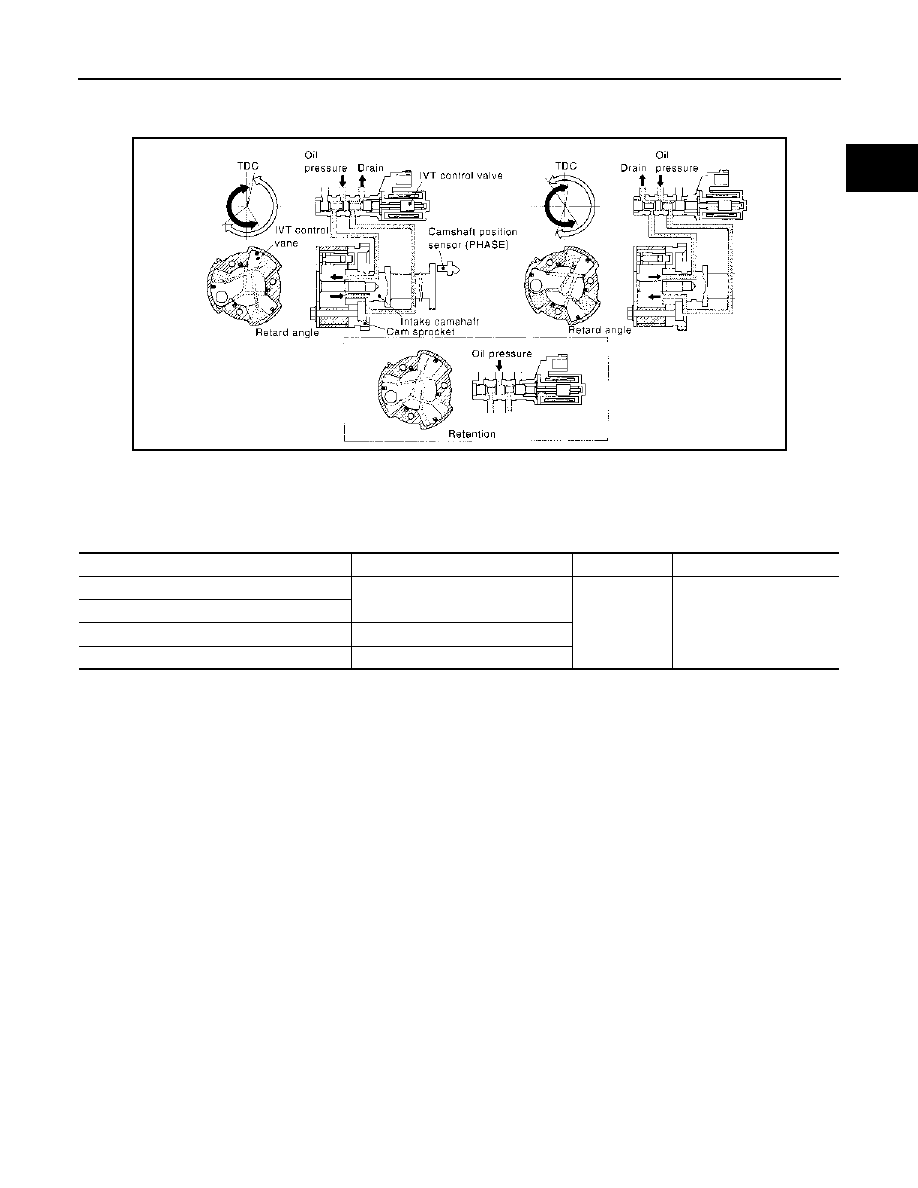

INTAKE VALVE TIMING CONTROL

System Diagram

INFOID:0000000001056158

System Description

INFOID:0000000001056159

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM through CAN communication line

SYSTEM DESCRIPTION

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.

Component Parts Location

INFOID:0000000001060015

MBIB1560E

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed and piston position

Intake valve
timing control

Intake valve timing control
solenoid valve

Camshaft position sensor (PHASE)

Engine coolant temperature sensor

Engine coolant temperature

Combination meter*

Vehicle speed

EC-82

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

INTAKE VALVE TIMING CONTROL

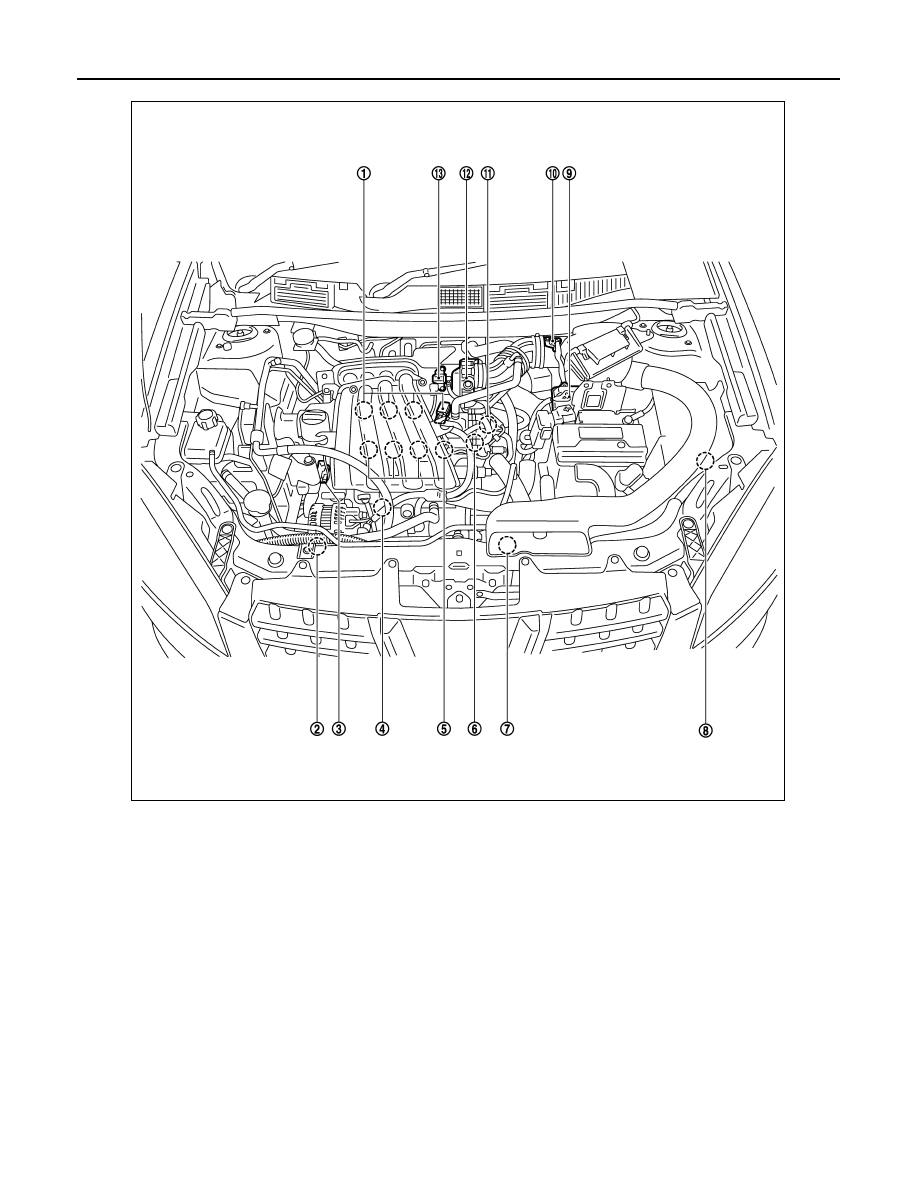

1.

Ignition coil (with power transistor)
and spark plug

2.

Refrigerant pressure sensor

3.

Intake valve timing control solenoid
valve

4.

Knock sensor,
Crankshaft position sensor (POS)

5.

Fuel injector

6.

Camshaft position sensor (PHASE)

7.

Cooling fan motor

8.

IPDM E/R

9.

ECM

10. Mass air flow sensor (with intake

temperature sensor)

11.

Engine coolant temperature sensor

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

JMBIA0399ZZ
