MIR-38

< ON-VEHICLE REPAIR >

DOOR MIRROR

DOOR MIRROR

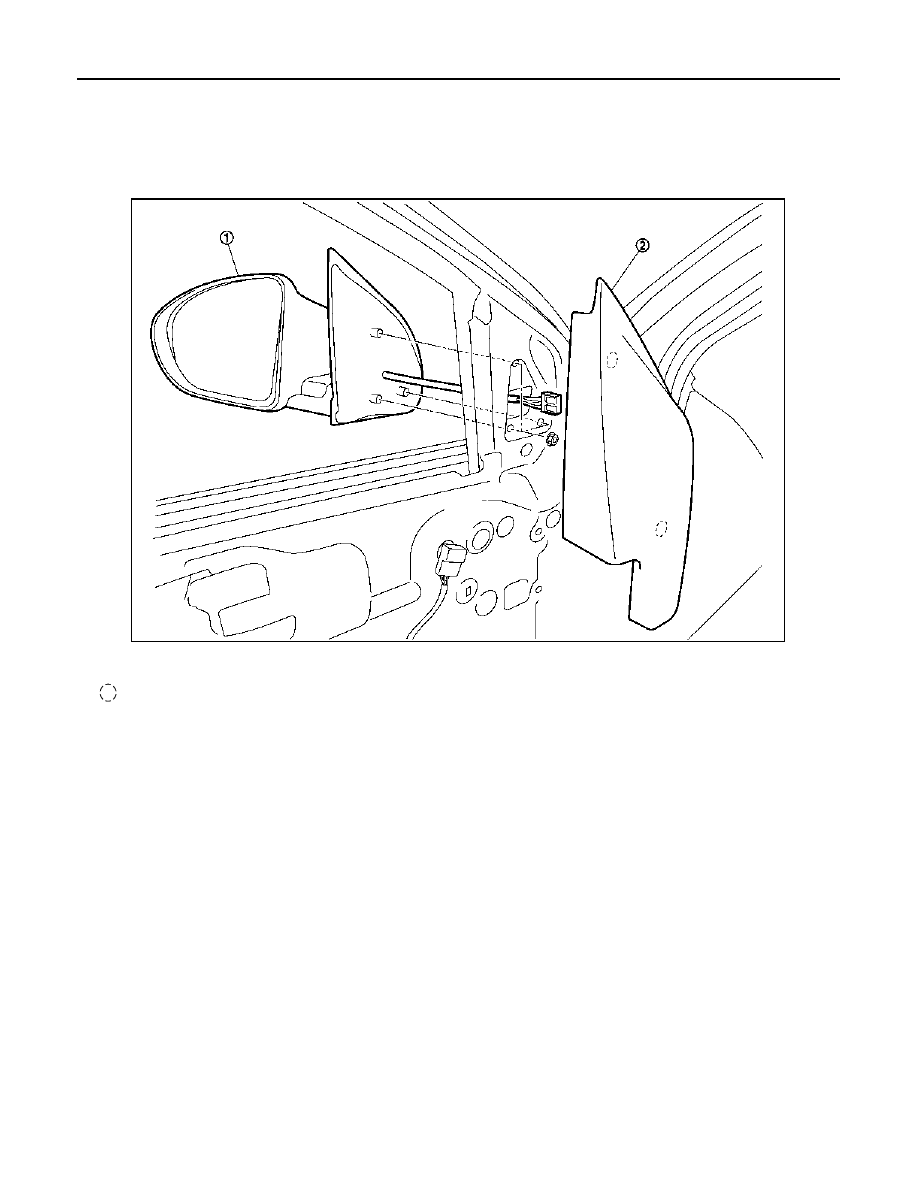

Exploded View

INFOID:0000000001093102

REMOVAL

DISASSEMBLY

1.

Door mirror assembly

2.

Corner cover

:Clip

JMLIA0035ZZ

DOOR MIRROR

MIR-39

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Removal and Installation

INFOID:0000000001093103

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the corner cover.

3.

Disconnect the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

CAUTION:

Do not damage the mirror bodies.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Do not damage the mirror bodies.

Disassembly and Assembly

INFOID:0000000001093104

DISASSEMBLY

1.

Remove the clips and mirror cover from the housing.

2.

Place the mirror body with mirror glass upward.

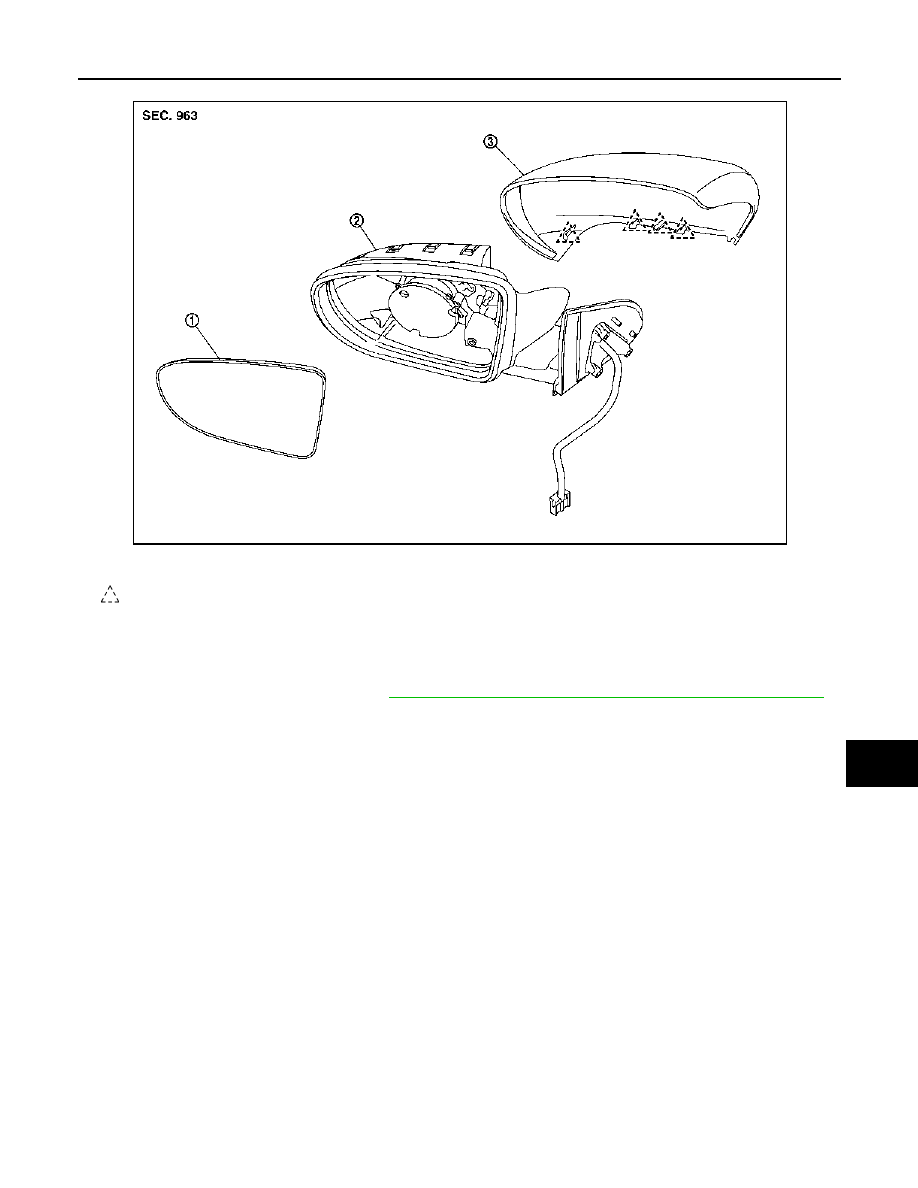

1.

Mirror (mirror holder)

2.

Mirror assembly

3.

Mirror cover

Pawl

JMLIA0036ZZ

MIR-40

< ON-VEHICLE REPAIR >

DOOR MIRROR

3.

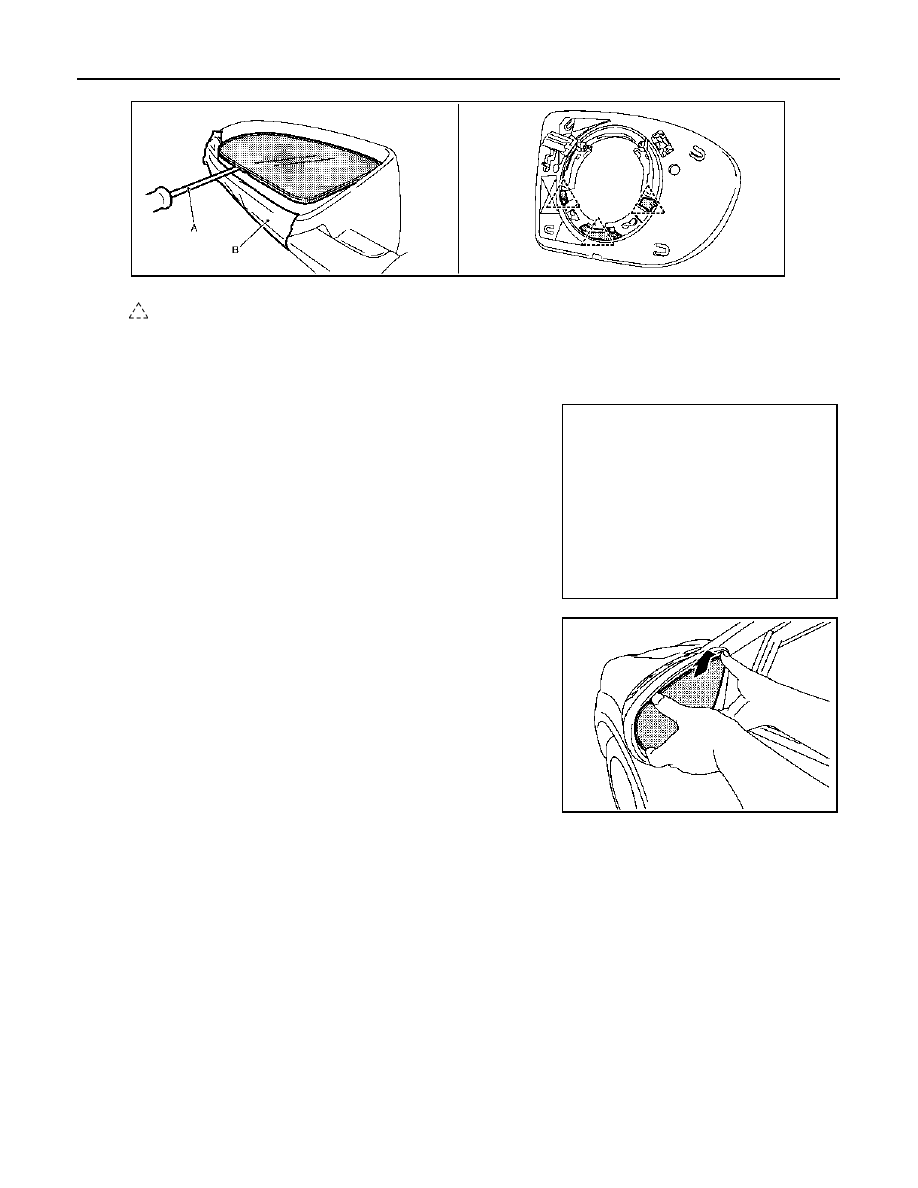

Put a strip of protective tape (B) on mirror body.

4.

Insert a small flatted driver (A) between the mirror assembly and the mirror glass, and remove the pawl
located under the mirror glass from mirror assembly.
NOTE:
when removing the pawl under the mirror glass, the left and right side pawls are simultaneously removed.

5.

From the mirror assembly side, hold and push the mirror glass
downward.

CAUTION:

Avoid dropping the mirror glass by holding it securely.

6.

Slide the mirror glass upward as shown by the arrow and
remove it from the mirror assembly.

7.

Remove two terminals of mirror heater attachment.

ASSEMBLY

Install in the reverse order of removal.
NOTE:
After installation, visually check that pawls are securely engaged.

:Pawl

JMLIA0038ZZ

JMLIA0039ZZ

JMLIA0040ZZ

DOOR MIRROR REMOTE CONTROL SWITCH

MIR-41

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

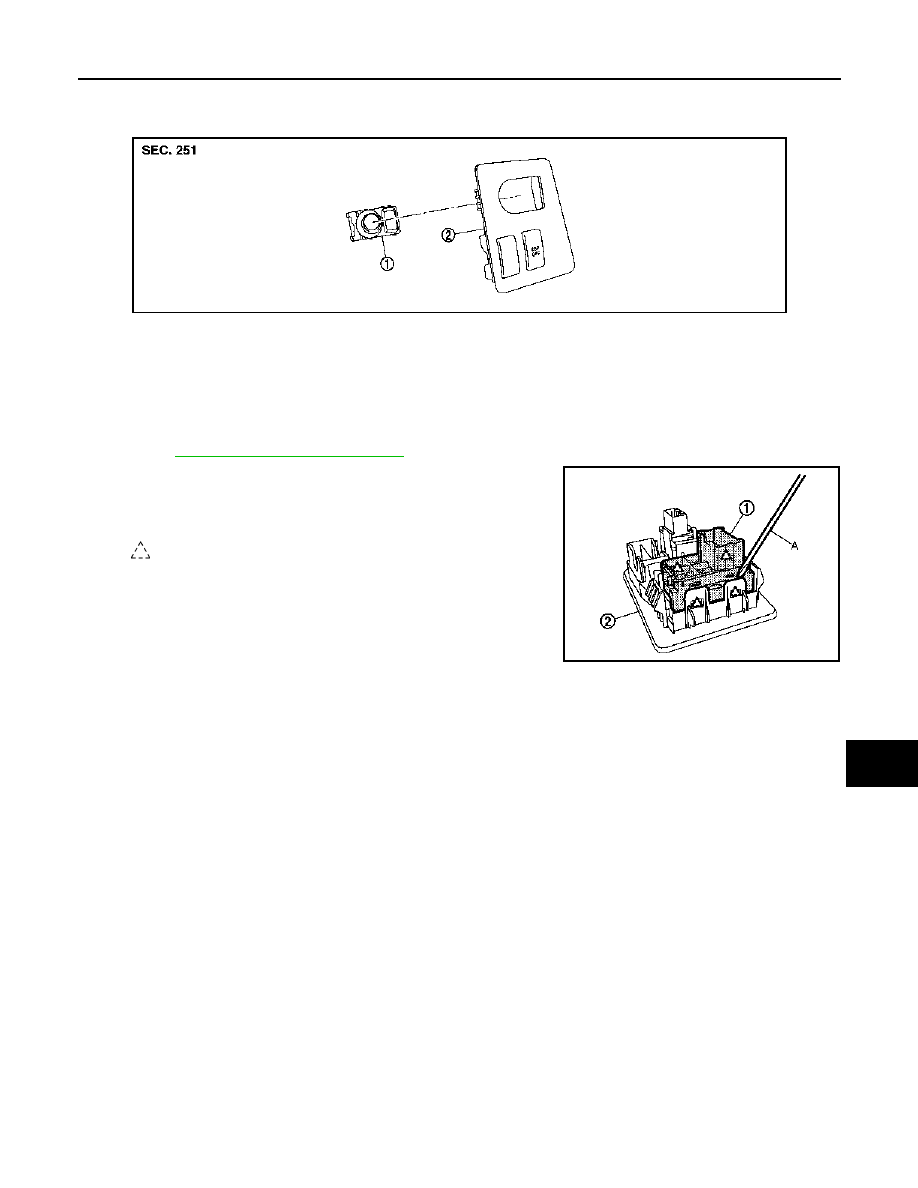

Exploded View

INFOID:0000000000951550

Removal and Installation

INFOID:0000000000951551

REMOVAL

1.

Remove the mirror switch finisher (2).
 Refer to

IP-12, "Removal and Installation"

2.

Remove door mirror remote control switch (1) from mirror switch
finisher (2) using screw driver (A).

INSTALLATION

Install in the reverse order of removal.

JMLIA0028ZZ

1.

Door mirror remote control switch

2.

Mirror switch finsher

: Pawl

JMLIA0029ZZ
