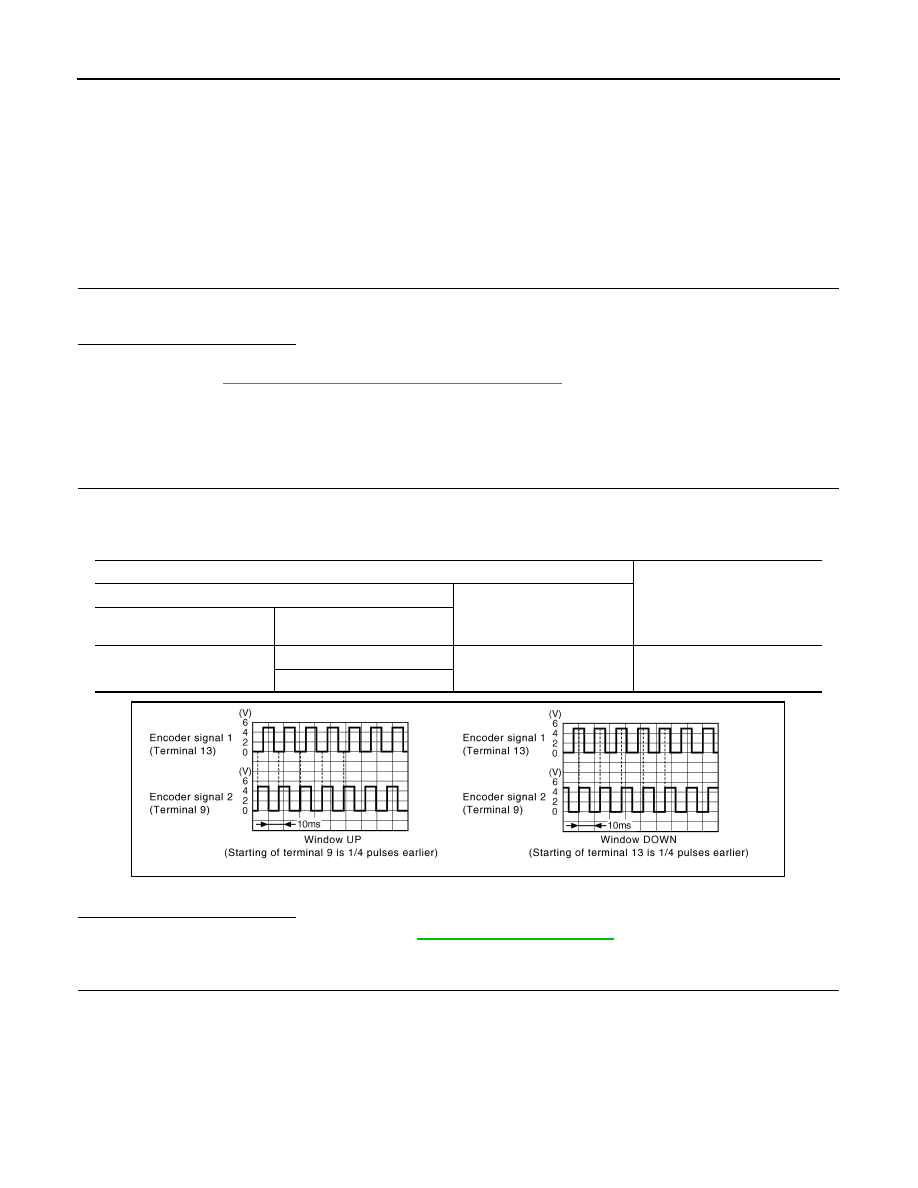

POWER WINDOW MOTOR CIRCUIT PWC-25 < COMPONENT DIAGNOSIS > C D E F G H I J L M A B PWC N O P ():RHD models Is the inspection result normal? YES >> GO TO 3. NO >> GO TO 2. 2. CHECK HARNESS CONTINUITY 1. Turn ignition switch OFF. 2. Disconnect rear power window switch LH connector and rear power window motor LH connector. 3. Check continuity between rear power window switch LH connector and rear power window motor LH con- 4. Check continuity between rear power window switch LH connector and ground. ():RHD models YES >> Check rear power window switch. Refer to PWC-17, "REAR POWER WINDOW SWITCH : Com- . NO >> Repair or replace harness. 3. CHECK REAR POWER WINDOW MOTOR LH Check rear power window motor LH. PWC-25, "REAR LH : Component Inspection" Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident" . NO >> Replace rear power window motor LH. Refer to . REAR LH : Component Inspection INFOID:0000000000990512 COMPONENT INSPECTION 1. CHECK POWER WINDOW MOTOR Does motor operate by connecting the battery voltage directly to rear power window motor LH connector? Terminal Window condition Voltage (V) (Approx.) (+) (–) Rear power window mo- tor LH connector Terminal D82 (D112) 2 Ground UP Battery voltage DOWN 0 1 UP 0 DOWN Battery voltage Rear power window switch LH connector Terminal Rear power window motor LH connector Terminal Continuity D83 (D113) 4 D82 (D112) 1 Existed 5 2 Rear power window switch LH con- nector Terminal Ground Continuity D83 (D113) 4 Not existed 5 |
