< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

NATS (NISSAN ANTI-THEFT SYSTEM)

ON-VEHICLE REPAIR

NATS (NISSAN ANTI-THEFT SYSTEM)

Exploded View

INFOID:0000000000944700

Refer to

SEC-152, "Removal and Installation"

.

Removal and Installation

INFOID:0000000000944701

REMOVAL

1.

Remove the steering column cover.
Refer to

IP-11, "Exploded View"

 and

IP-12, "Removal and Installation"

.

2.

Remove the NATS antenna amp. mounting screw (A), and then
remove NATS antenna amp. (1) from steering lock assembly (2).

INSTALLATION

Install in the reverse order of removal.

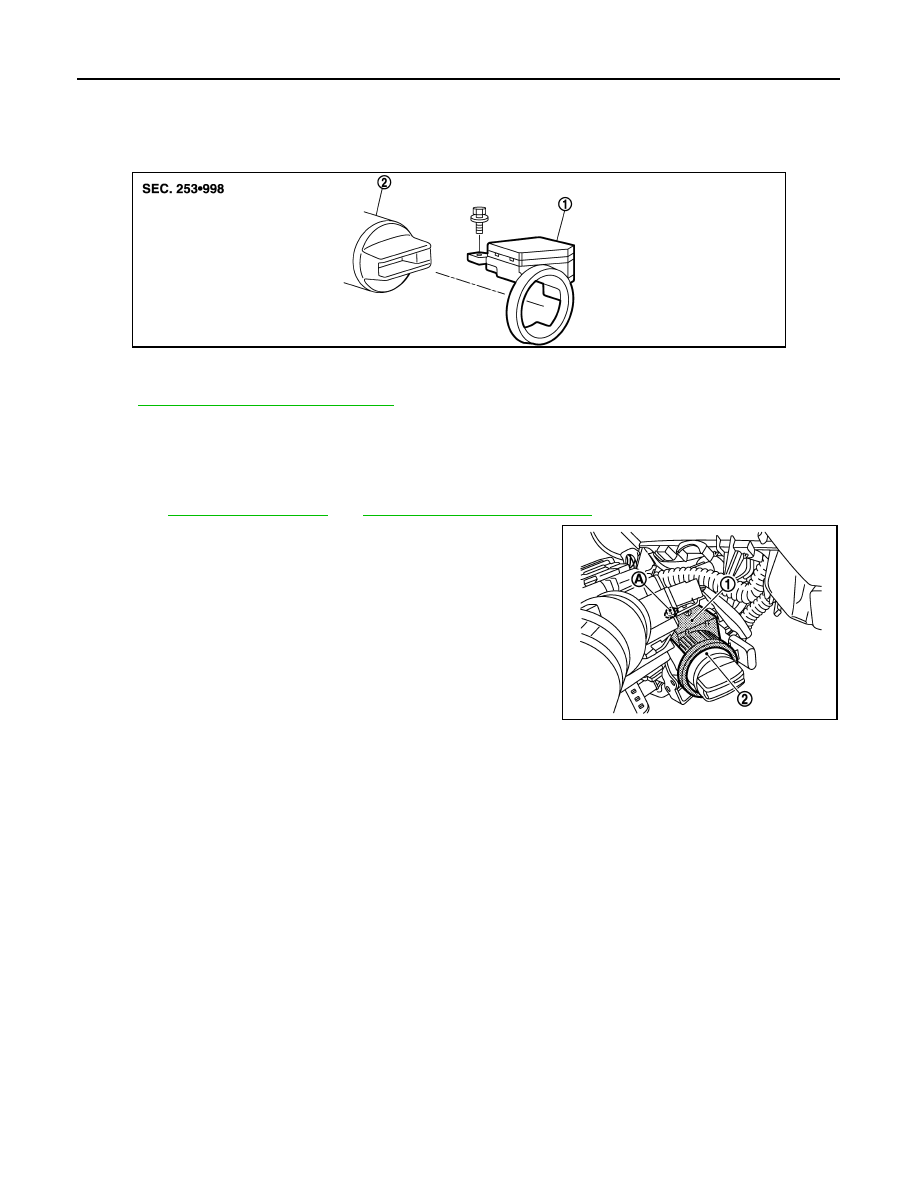

JMKIA0463ZZ

1.

NATS antenna amp.

2.

Steering lock assembly

JMKIA0464ZZ

SIREN

SEC-153

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SIREN

Exploded View

INFOID:0000000001091488

SIREN

Refer to

SEC-153, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001091494

REMOVAL

1.

Remove the luggage side lower finisher (LH).
Refer to

INT-24, "Exploded View"

 and

INT-24, "Removal and Installation"

.

2.

Remove the siren mounting bolt (A), and then remove siren (1).

INSTALLATION

Install in the reverse order of removal.

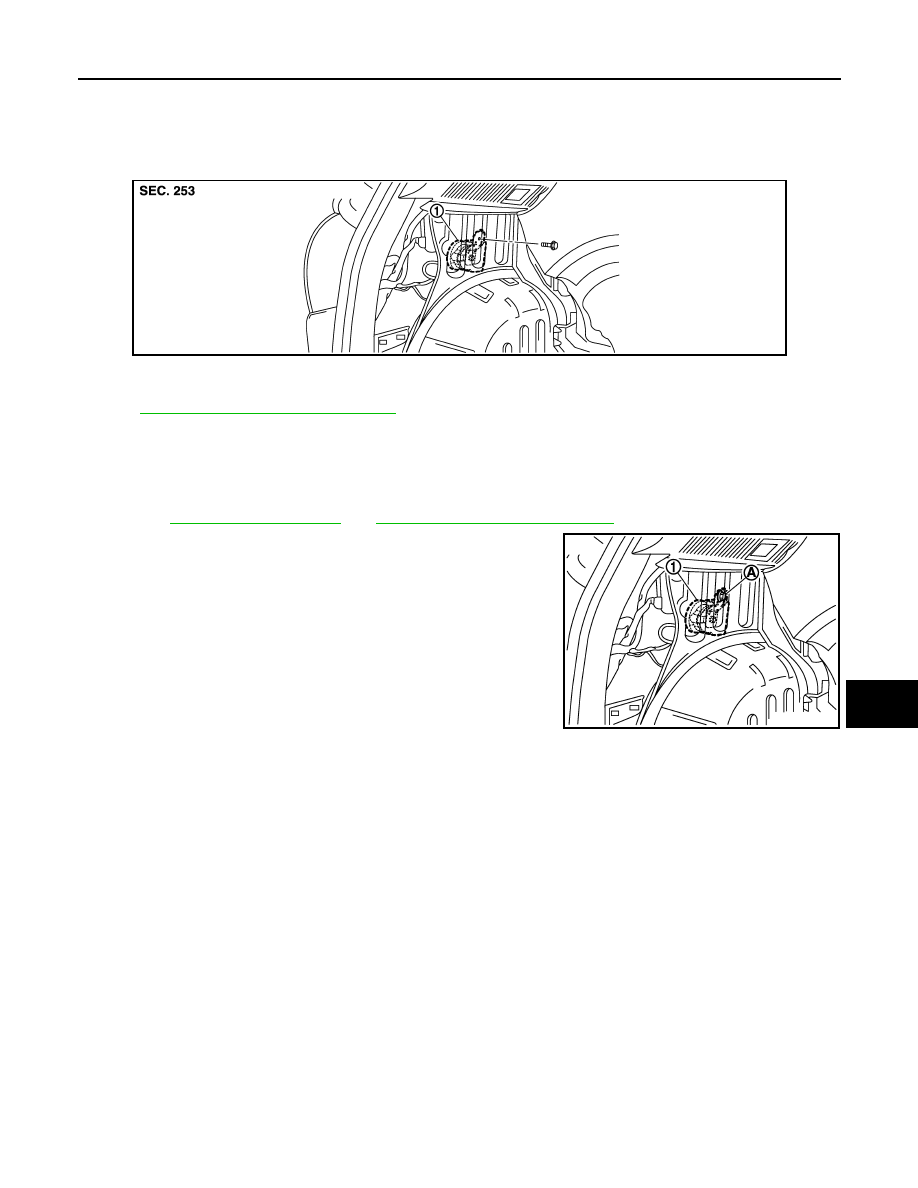

JMKIA0461ZZ

1.

Siren

JMKIA0462ZZ

SEC-154

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

SIREN CONTROL UNIT

SIREN CONTROL UNIT

Exploded View

INFOID:0000000001091551

SIREN CONTROL UNIT

Refer to

SEC-154, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001091554

REMOVAL

1.

Remove the glove box.
Refer to

IP-11, "Exploded View"

 and

IP-12, "Removal and Installation"

.

2.

Remove the siren control unit mounting screw (A), and then
remove siren control unit (1).

INSTALLATION

Install in the reverse order of removal.

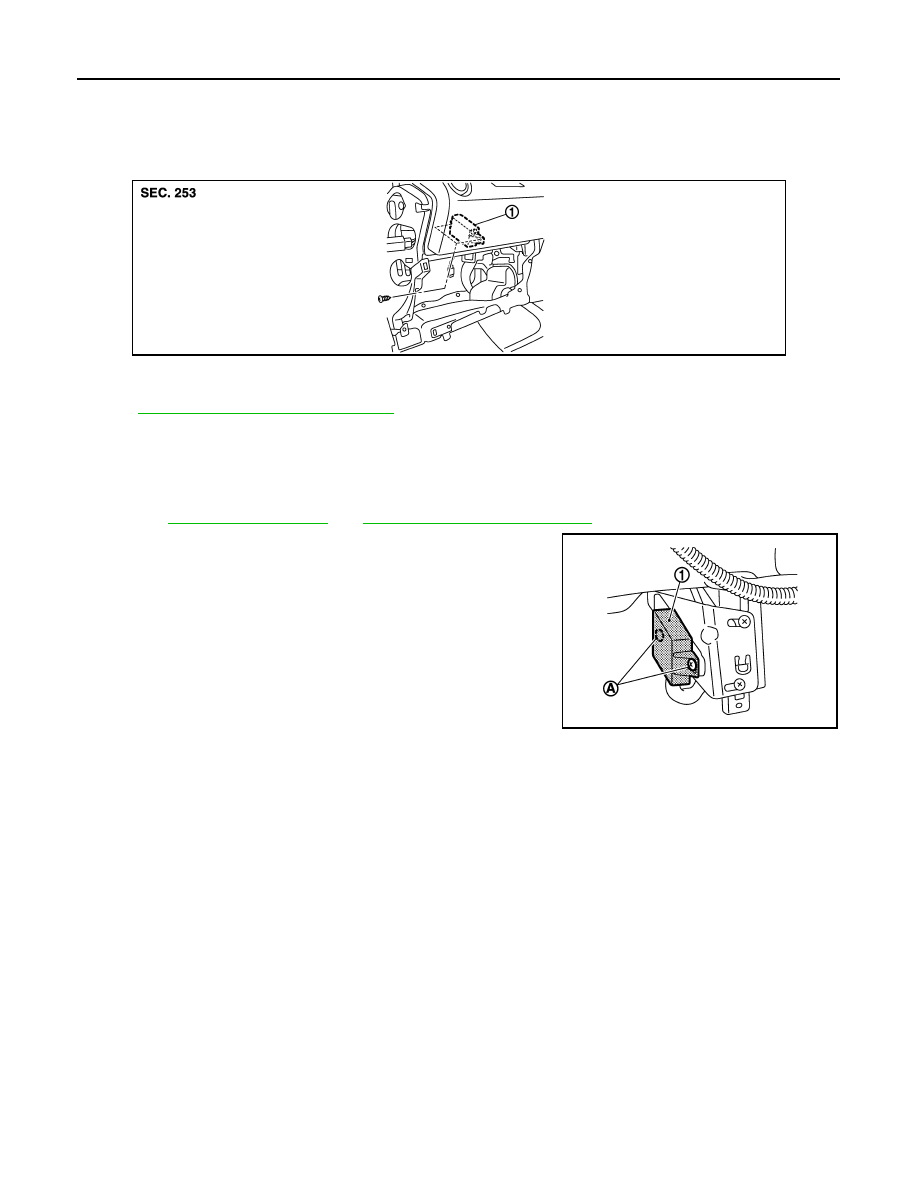

JMKIA0445ZZ

1.

Siren control unit

JMKIA0446ZZ

ULTRA SONIC SENSOR

SEC-155

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ULTRA SONIC SENSOR

Exploded View

INFOID:0000000001091573

ULTRA SONIC SENSOR

Refer to

SEC-155, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001091576

REMOVAL

1.

Remove the ultra sonic sensor finisher.
Refer to

SEC-155, "Exploded View"

.

2.

Remove the ultra sonic sensor (2) from ultra sonic sensor fin-
isher (1).

INSTALLATION

Install in the reverse order of removal.

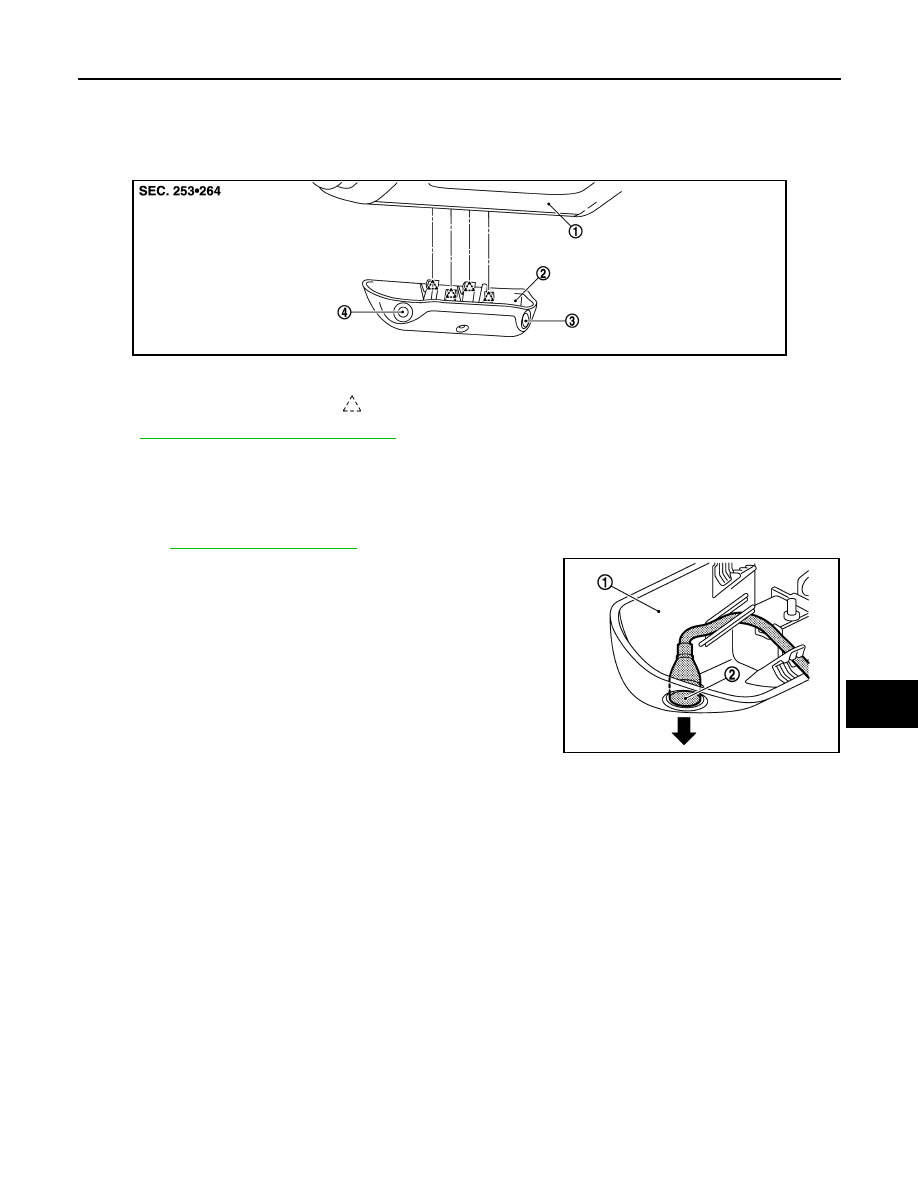

JMKIA0447ZZ

1.

Headlining

2.

Ultra sonic sensor finisher

3.

Ultra sonic sensor RH

4.

Ultra sonic sensor LH

Pawl

JMKIA0448ZZ
