OIL PUMP
LU-29
< ON-VEHICLE REPAIR >
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
LU
N
P
O
OIL PUMP

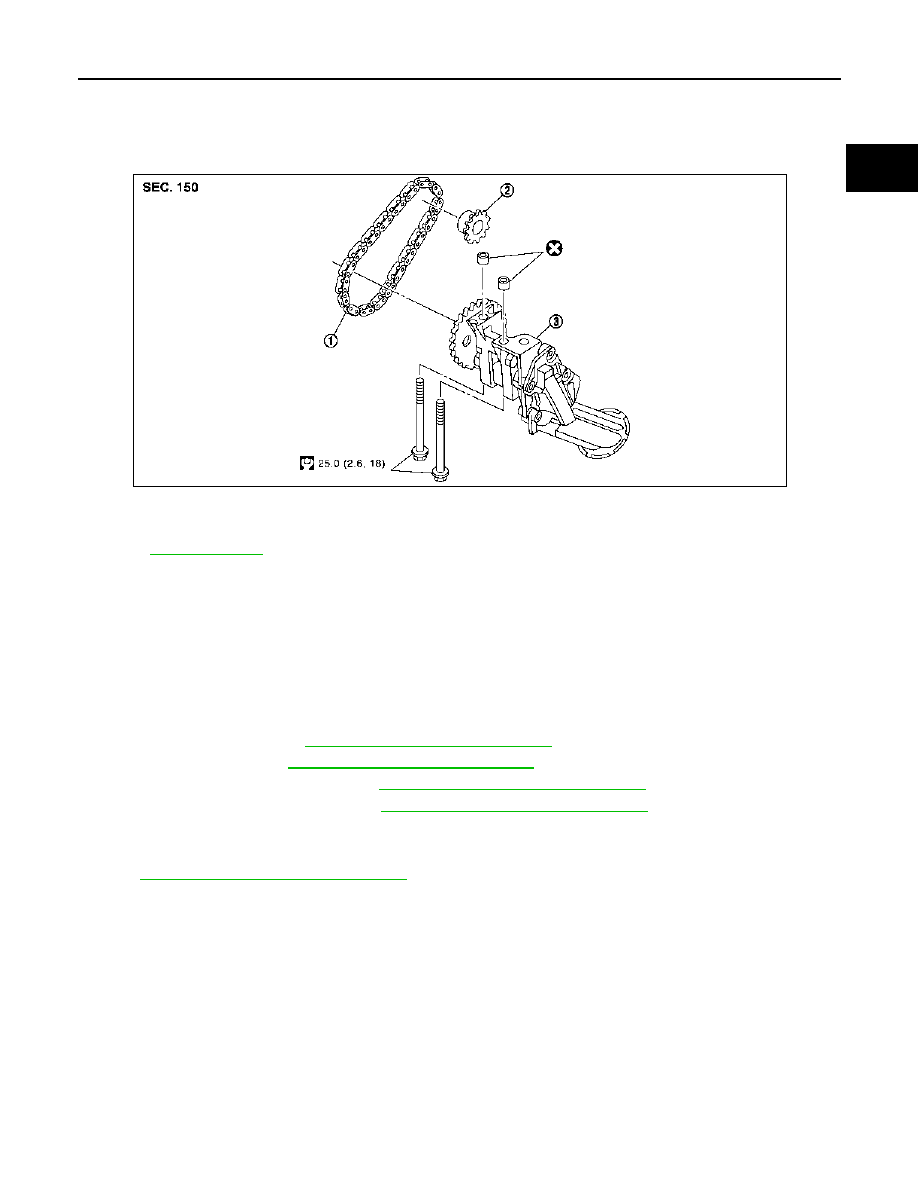

Exploded View
INFOID:0000000001062319
Removal and Installation
INFOID:0000000001062317
REMOVAL
1.
Remove the following parts.
• Battery ground cable
• Undercover
• RH front wheel
2.
Remove right side splash cover.
3.
Remove drive belt. Refer to
EM-259, "Removal and Installation"
4.
Remove oil pan. Refer to
EM-280, "Removal and Installation"
.
5.
Remove rear oil seal retainer. Refer to
EM-310, "Disassembly and Assembly"
.
6.
Remove oil pump drive chain. Refer to
EM-310, "Disassembly and Assembly"
.
7.
Remove oil pump assembly.
INSTALLATION
EM-310, "Disassembly and Assembly"
.
1.
Oil pump drive chain
2.
Crankshaft sprocket (oil pump drive
chain)
3.
Oil pump
Refer to
for symbols not described on the above.
E1BIA0028GB
