INTELLIGENT KEY UNIT

DLK-147

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JCKWA0249GB

DLK-148

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

INTELLIGENT KEY UNIT

JCKWA0250GB

INTELLIGENT KEY UNIT

DLK-149

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

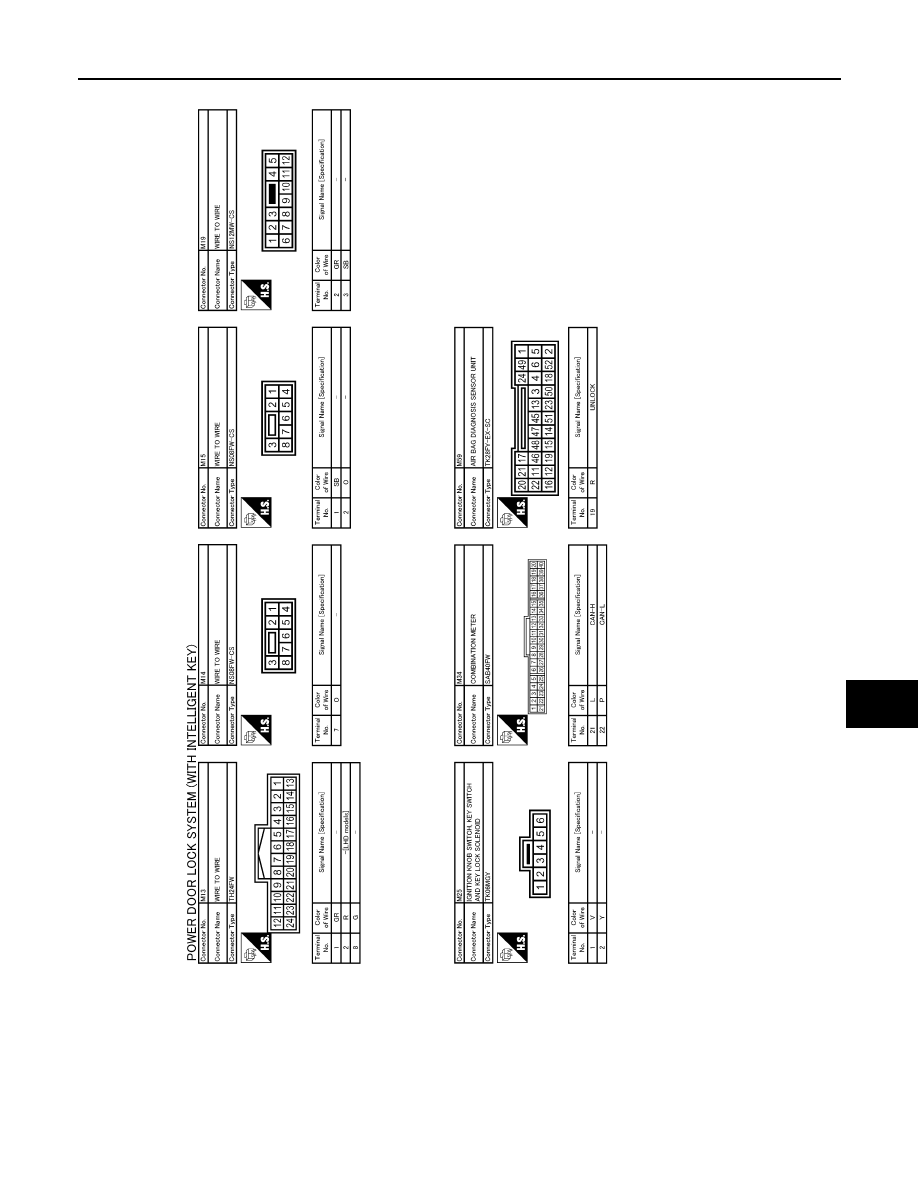

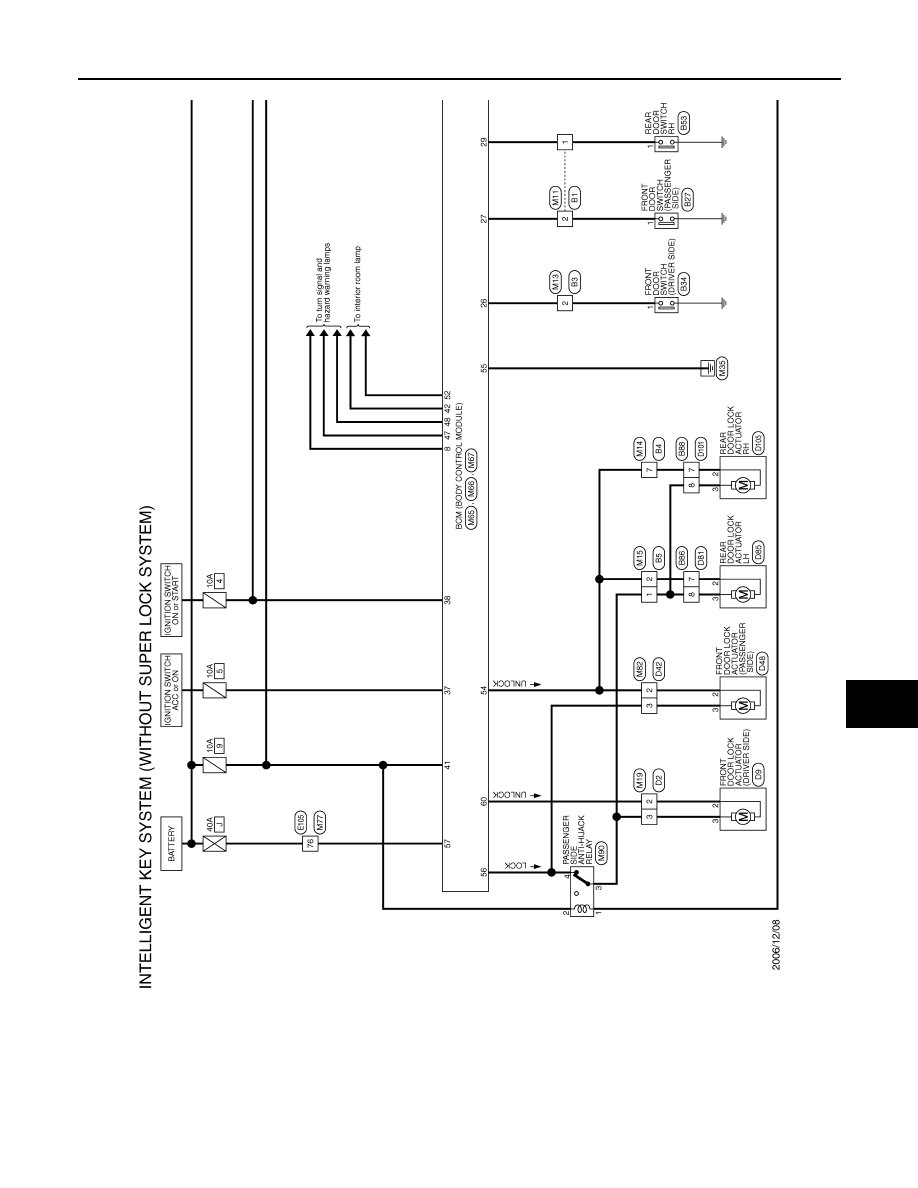

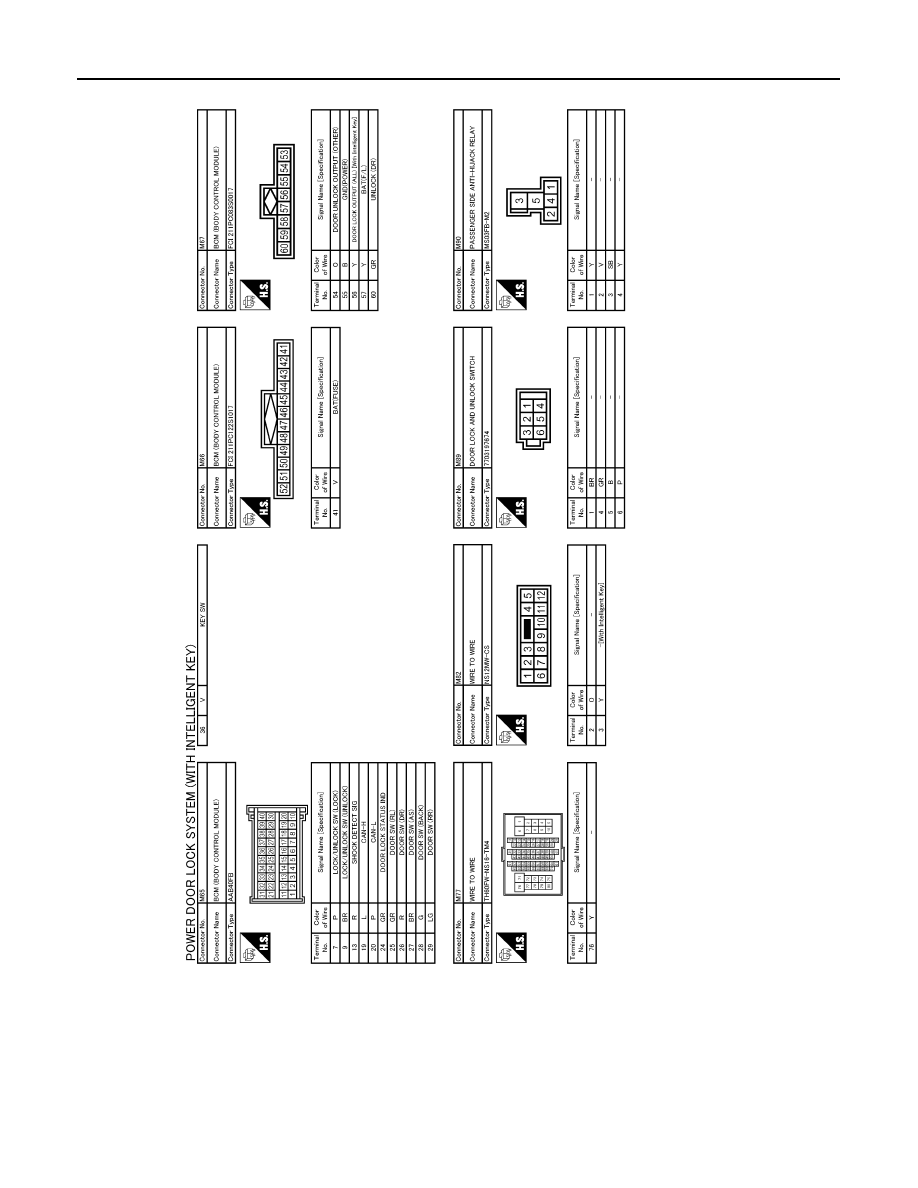

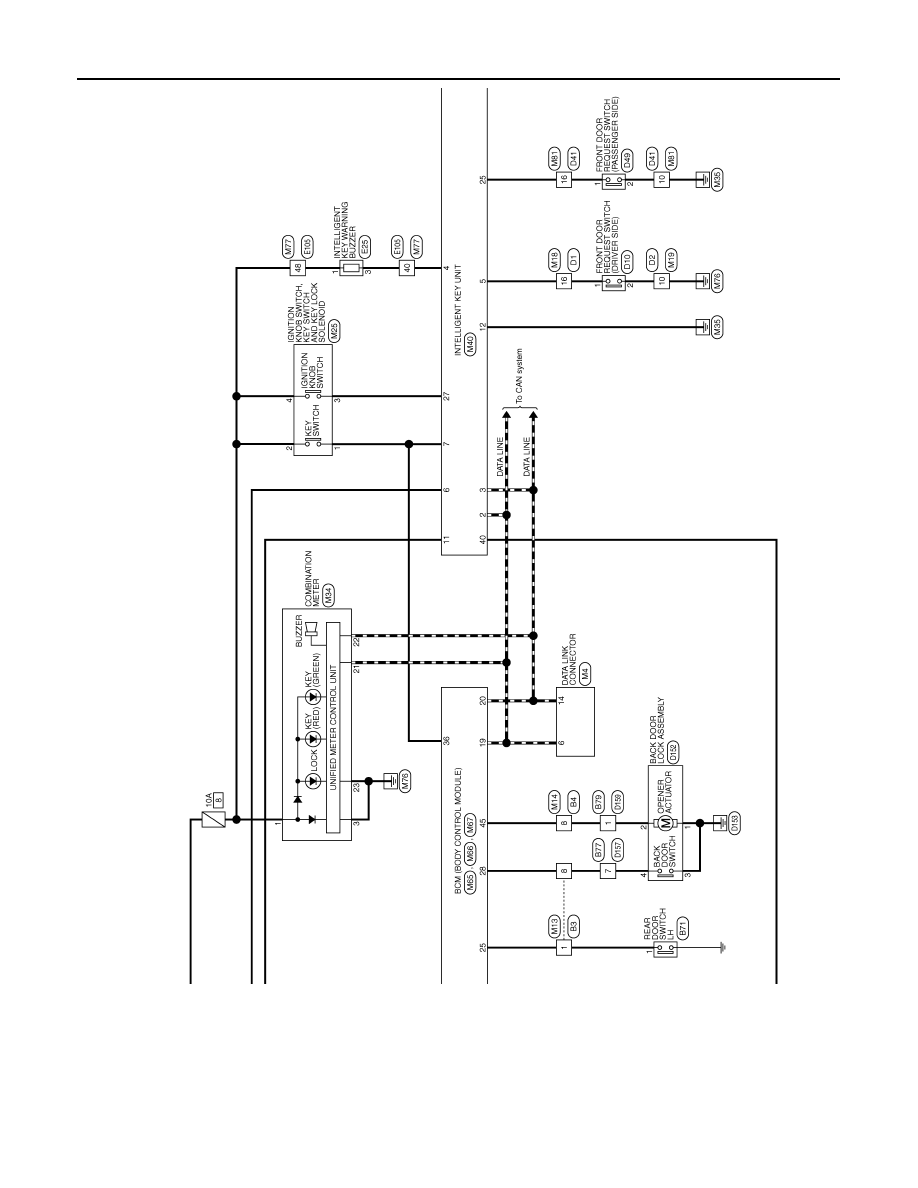

Wiring Diagram - INTELLIGENT KEY CONTROL SYSTEM -

INFOID:0000000001097043

JCKWA0271GB

DLK-150

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

INTELLIGENT KEY UNIT

JCKWA0272GB
