Mazda Mazdaspeed 6 (2007 year). Manual

Black plate (281,1)

NOTE

Tires degrade over time, even when
they are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace
the spare tire when you replace the
other road tires due to the aging of the
spare tire. Regarding the manufacturing
week and year is indicated with 4 digit.
Refer to The tire labeling on page 9-18.

qReplacing a Wheel

WARNING

Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.

CAUTION

A wrong-sized wheel may adversely
affect:

Tire fit

Wheel and bearing life

Ground clearance

Speedometer calibration

Headlight aim

Bumper height

When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.

Maintenance and Care

Owner Maintenance

8-27

Mazdaspeed6_8V77-EA-06F_Edition1 Page281
Tuesday, May 9 2006 10:45 AM

Black plate (282,1)

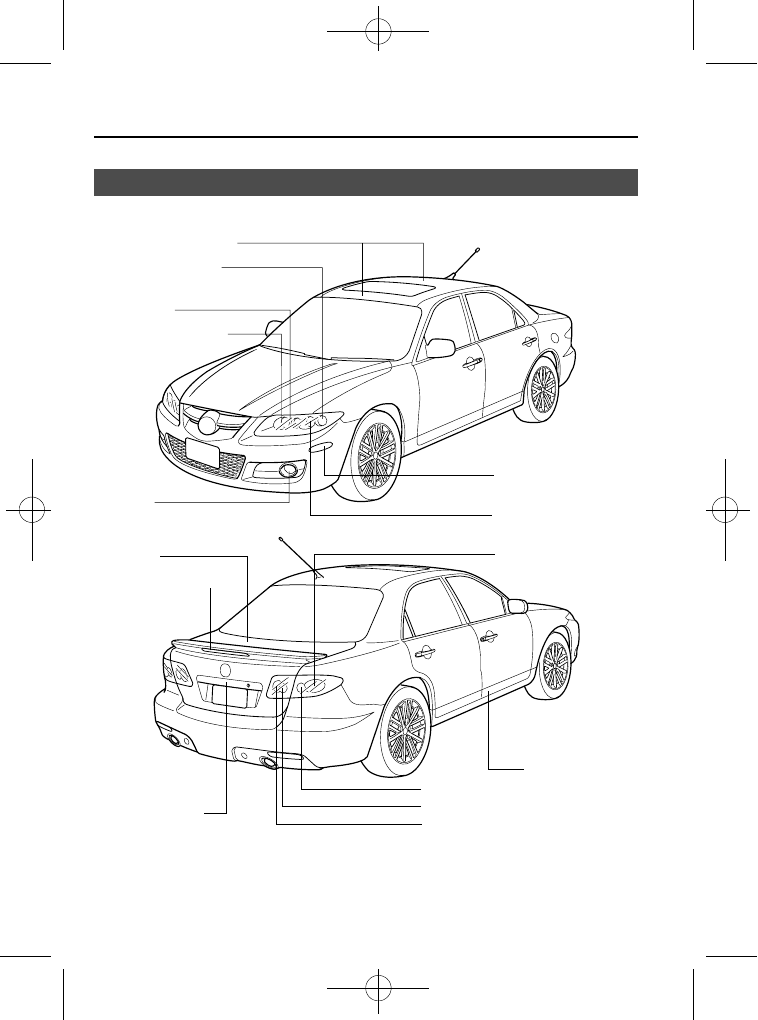

Light Bulbs

Overhead light/Map lights

Fog lights

High-mount brake light

Trunk light

Brake lights/Taillights

Rear turn signal lights

Reverse lights

Parking lights

Front turn signal lights

Headlights (Low beam)

Headlights (High beam)

Courtesy lights

License plate lights

Side-marker lights

Taillights

The equipment and installation position varies according to model and grade.

8-28

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page282
Tuesday, May 9 2006 10:45 AM

Black plate (283,1)

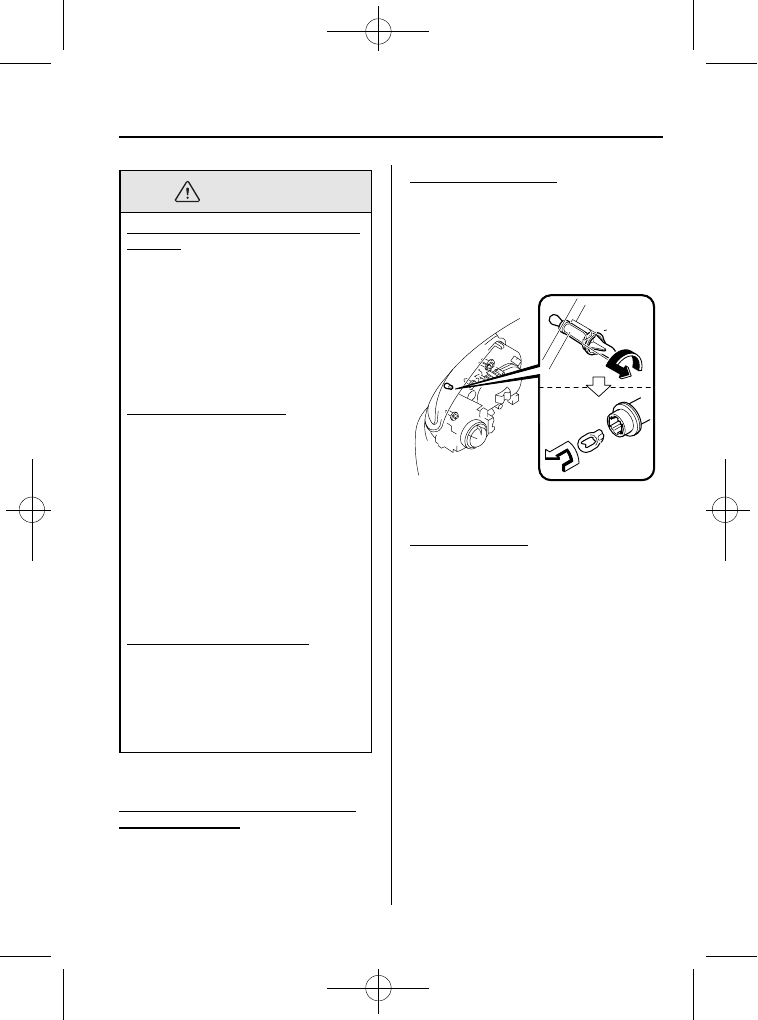

WARNING

Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement is
necessary.

Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.

Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.

qReplacing Exterior Light Bulbs

Replacing the headlight, fog light and
parking light bulbs

Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.

Front turn signal lights

1. Turn the socket and bulb assembly

counterclockwise and remove it.

2. Remove the bulb by pushing it in

slightly and turning it
counterclockwise.

3. Install the new bulb in the reverse order

of removal.

Side-marker lights

1. If you are changing the left side-maker

light, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.

2. Turn the screws counterclockwise and

remove them.

Maintenance and Care

Owner Maintenance

8-29

Mazdaspeed6_8V77-EA-06F_Edition1 Page283
Tuesday, May 9 2006 10:45 AM

Black plate (284,1)

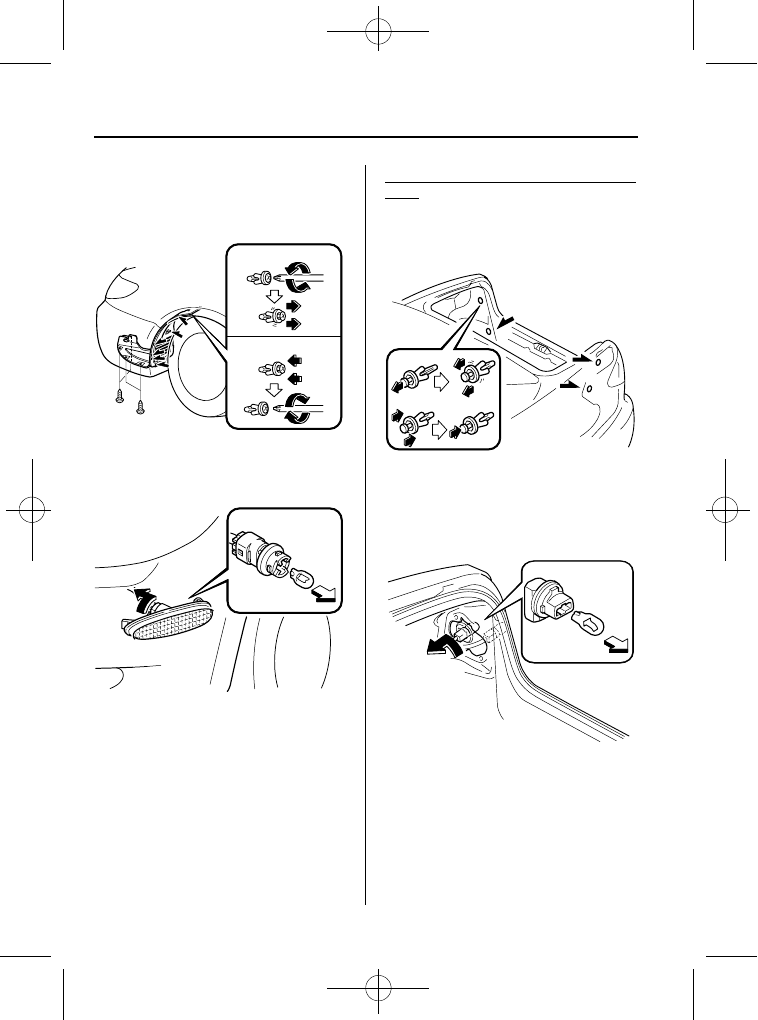

3. Turn the center section of the plastic

retainers counterclockwise and remove
them, and partially peel back the
mudguard.

Removal

Installation

4. Turn the socket and bulb assembly

counterclockwise and remove it.

5. Disconnect the bulb from the socket.

6. Install the new bulb in the reverse order

of removal.

Brake lights/Taillights, Rear turn signal
lights

1. Pull the center section of the plastic

retainer and remove the retainers and
partially open the trunk side trim.

Removal

Installation

2. Turn the socket and bulb assembly

counterclockwise and remove it.

3. Disconnect the bulb from the socket.

Brake lights/Taillights

8-30

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page284
Tuesday, May 9 2006 10:45 AM

Black plate (285,1)

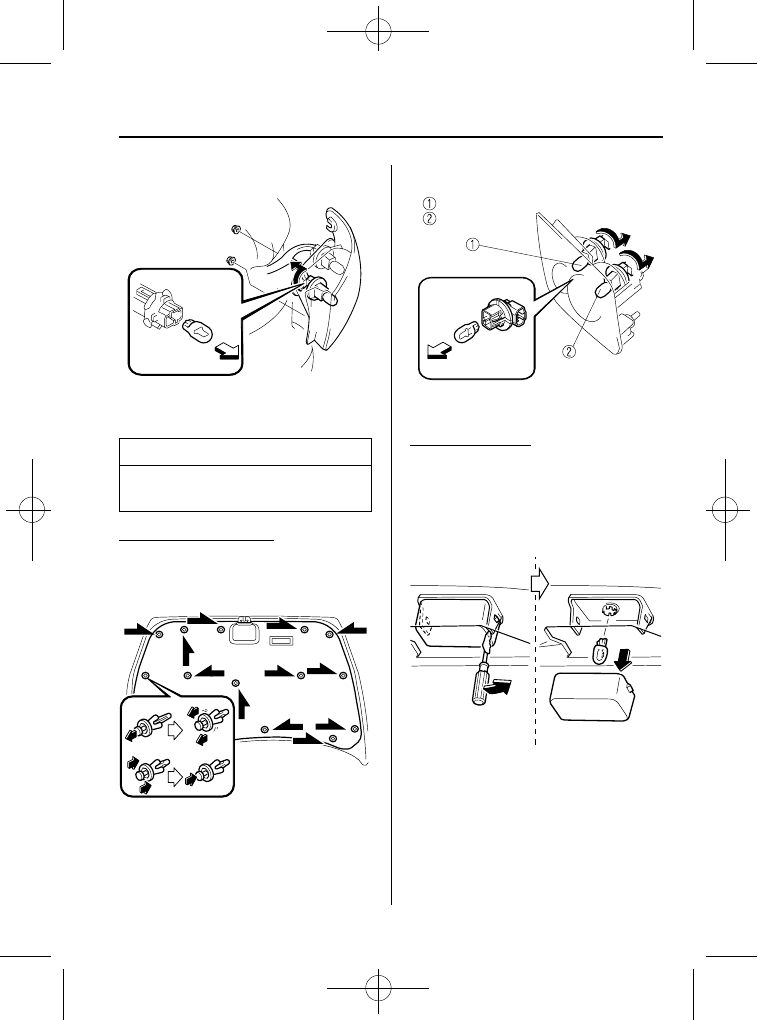

Rear turn signal lights

4. Install the new bulb in the reverse order

of removal.

NOTE

To replace the bulb, contact an
Authorized Mazda Dealer.

Reverse lights, Taillights

1. Pull the center section of the plastic

retainer and remove the retainers, then
remove the trunk rear trim.

Installation

Removal

2. Turn the socket and bulb assembly

counterclockwise and remove it.

3. Disconnect the bulb from the socket.

Reverse lights
Taillights

4. Install the new bulb in the reverse order

of removal.

License plate lights

1. Wrap a flathead screwdriver with a soft

cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order

of removal.

Maintenance and Care

Owner Maintenance

8-31

Mazdaspeed6_8V77-EA-06F_Edition1 Page285
Tuesday, May 9 2006 10:45 AM

Black plate (286,1)

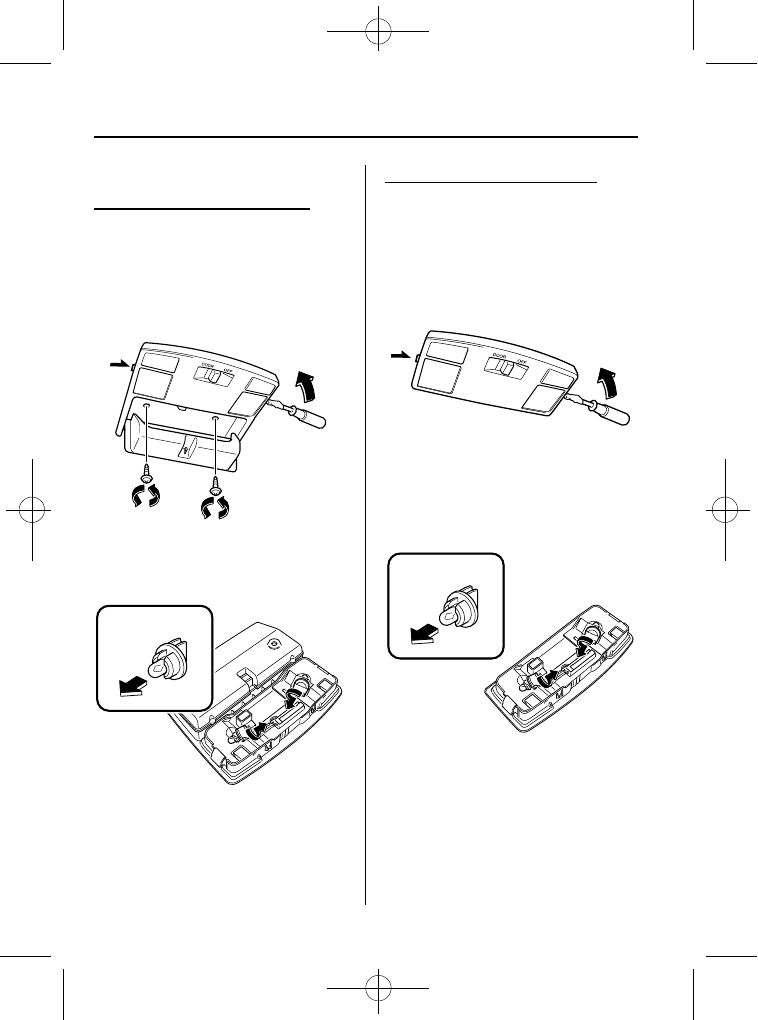

qReplacing Interior Light Bulbs

Overhead light/Map lights (Front)

1. Remove the screws.

2. Wrap a flathead screwdriver with a soft

cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.

3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse order

of removal.

Overhead light/Map lights (Rear)

1. Wrap a flathead screwdriver with a soft

cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.

2. Turn the socket and bulb assembly

counterclockwise and remove it.

3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse order

of removal.

8-32

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page286
Tuesday, May 9 2006 10:45 AM

Black plate (287,1)

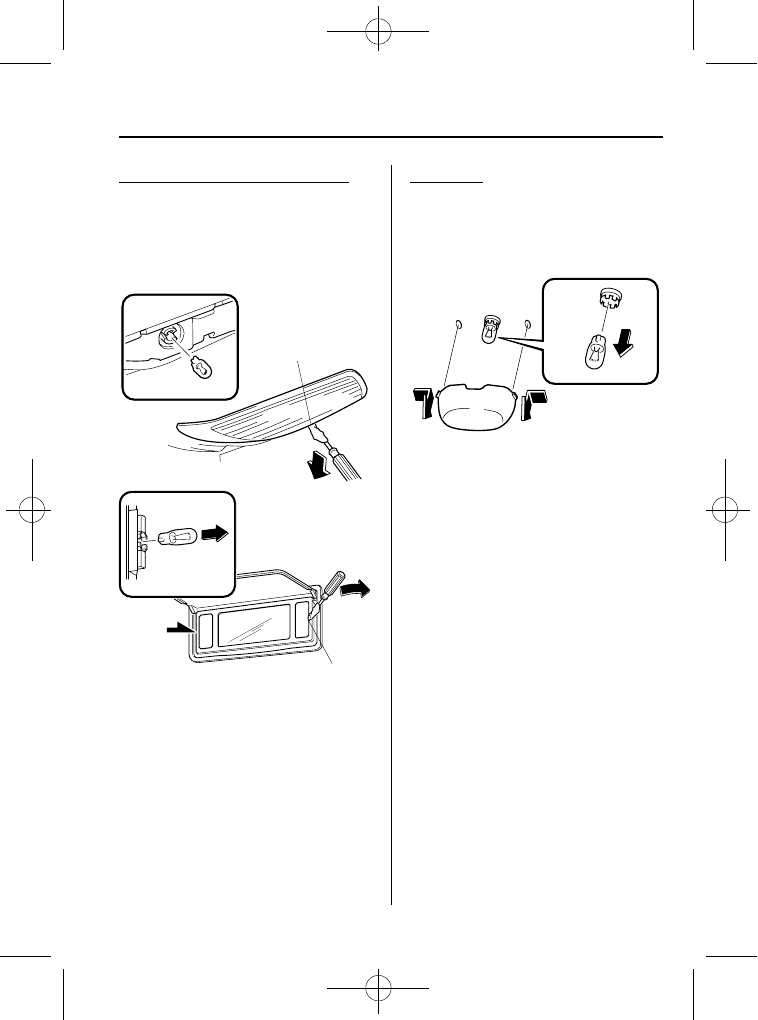

Courtesy lights, Vanity mirror lights

1. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.

2. Disconnect the bulb by pulling it out.

Edge

Courtesy lights

Vanity mirror lights

Edge

3. Install the new bulb in the reverse order

of removal.

Trunk light

1. Press both sides of the lens cap to

remove it.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order

of removal.

Maintenance and Care

Owner Maintenance

8-33

Mazdaspeed6_8V77-EA-06F_Edition1 Page287
Tuesday, May 9 2006 10:45 AM

Black plate (288,1)

Fuses

Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

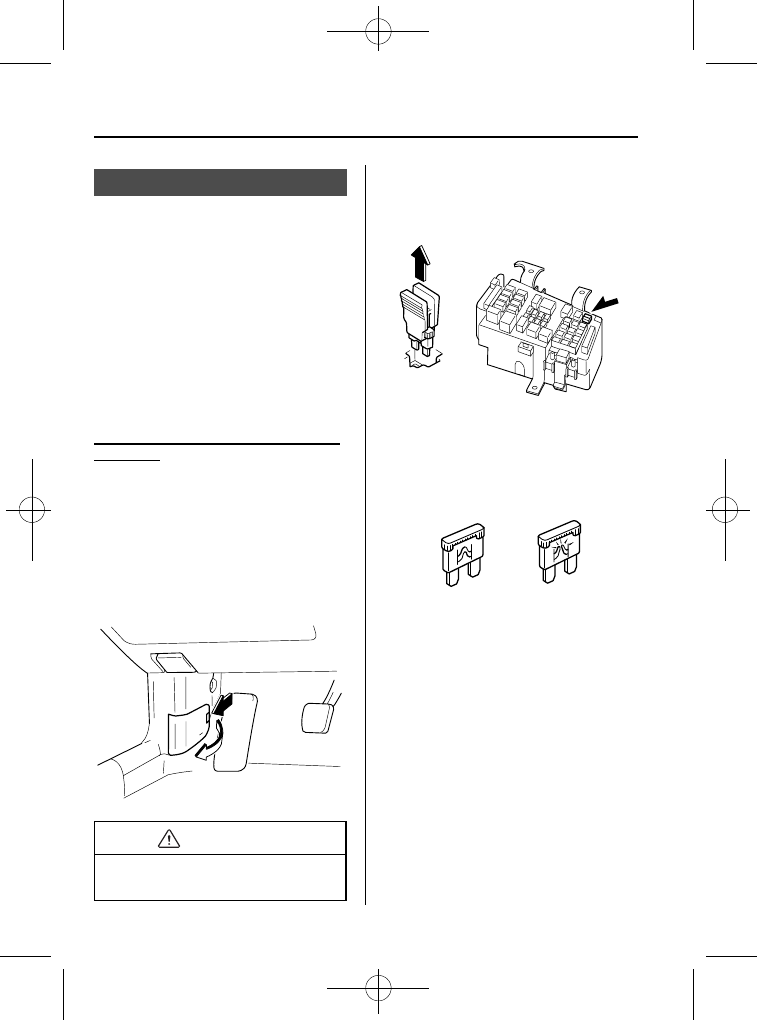

qFuse Replacement

Replacing the fuses on the driver's side
kick-panel

If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.

1. Turn off the ignition switch and other

switches.

2. Open the fuse panel cover by sliding

the cover straight back toward you.

CAUTION

Pulling the cover off sideways may
break the retaining tabs off.

3. Pull the fuse straight out with the fuse

puller provided on the fuse block
located in the engine compartment.

4. Inspect the fuse and replace it if it's

blown.

Normal

Blown

5. Push in a new fuse of the same

amperage rating, and make sure it fits
tightly. If it doesn't, have an expert
repairer install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.

8-34

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page288
Tuesday, May 9 2006 10:45 AM

Black plate (289,1)

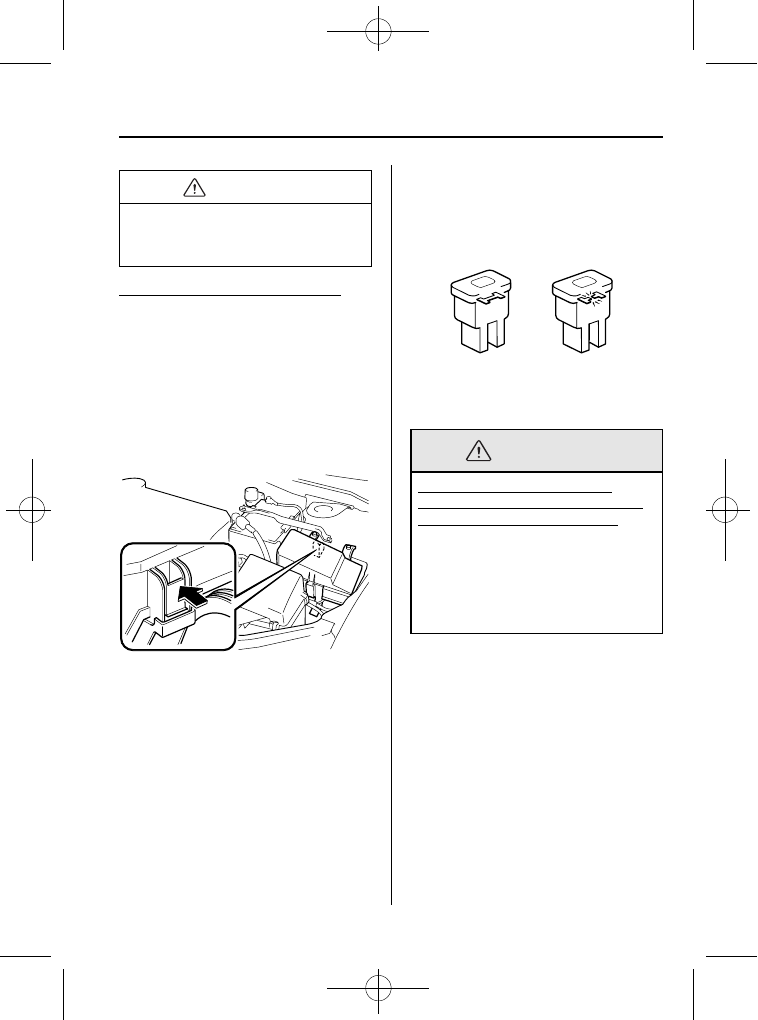

CAUTION

Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.

Replacing the fuses under the hood

If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:

1. Turn off the ignition switch and all

other switches.

2. Remove the fuse block cover.

3. If any fuse but the MAIN fuse is

blown, replace it with a new one of the
same amperage rating.

Normal

Blown

WARNING

Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.

Maintenance and Care

Owner Maintenance

8-35

Mazdaspeed6_8V77-EA-06F_Edition1 Page289
Tuesday, May 9 2006 10:45 AM

Black plate (290,1)

qFuse Panel Description

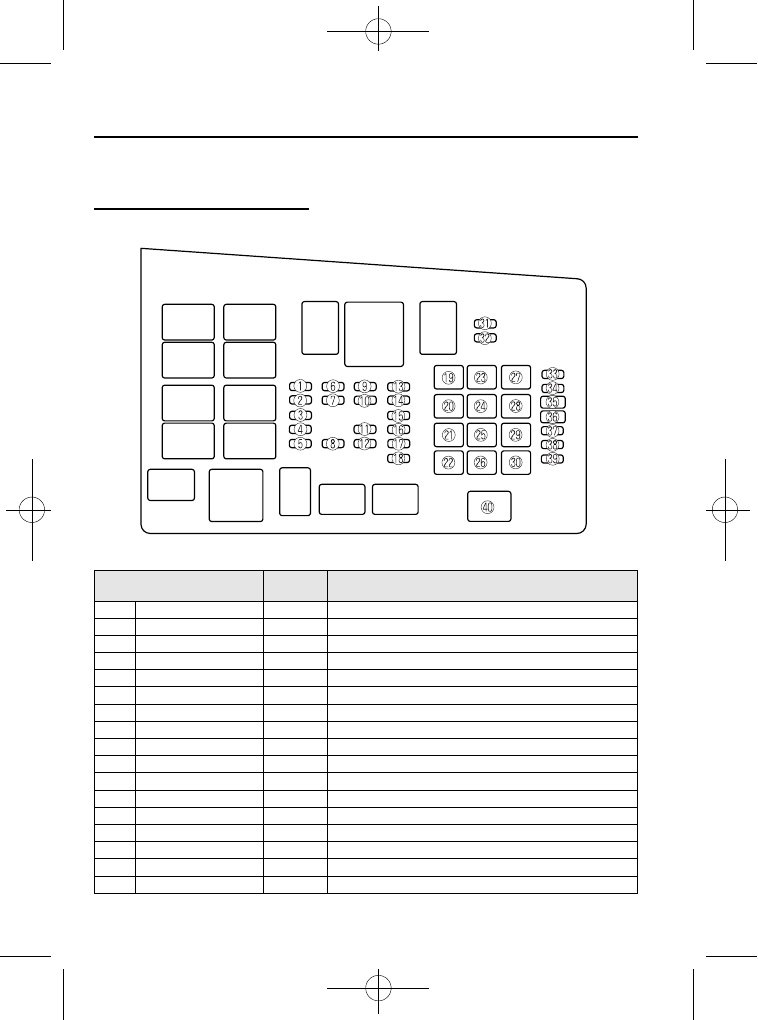

Fuse block (Engine compartment)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

SPARE

20A

―

SPARE

15A

―

SPARE

10A

―

M DEF

7.5A

Mirror defroster

―

INJ

15A

PCM

ENG BAR

15A

Sensor, EGR control valve

ENG BB

Waste gate solenoid, Cooling fan

HEAD LR

15A

Headlight-low beam (Right)

HEAD LL

15A

Headlight-low beam (Left)

HEAD HL

10A

Headlight-high beam (Left)

HEAD HR

10A

Headlight-high beam (Right)

DRL

15A

DRL

(Headlight high beams)

HAZARD

10A

Turn signal lights

STOP

20A

Brake lights, Horn

ENG+B

10A

PCM, AWD

ETC

10A

Electronic throttle

8-36

Maintenance and Care

Some models.

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page290
Tuesday, May 9 2006 10:45 AM

Black plate (291,1)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

―

IG KEY 1

30A

Engine control, SAS, Instrument cluster, Lighter

P.WIND

30A

Power windows

FUEL PUMP

30A

Fuel pump

INJ DRIVE

30A

Injector

―

BLOWER

40A

Blower motor

BTN

40A

Overhead light, Power door lock

IG KEY 2

40A

Wiper and washer, Climate control unit

DEFOG

40A

Rear window defroster

ABS

60A

DSC

FAN2

30A

Cooling fan

FAN1

30A

Cooling fan

TAIL

10A

Taillights, License plate lights

ILLUMI

10A

Dashboard illumination

MAG

10A

Magnet clutch

AUDIO

15A

Audio system

P.SEAT

30A

Power seat

―

H/CLEAN

20A

―

FOG

15A

Fog lights

MAIN

120A

For protection of all circuits

Maintenance and Care

Owner Maintenance

8-37

Some models.

Mazdaspeed6_8V77-EA-06F_Edition1 Page291
Tuesday, May 9 2006 10:45 AM

Black plate (292,1)

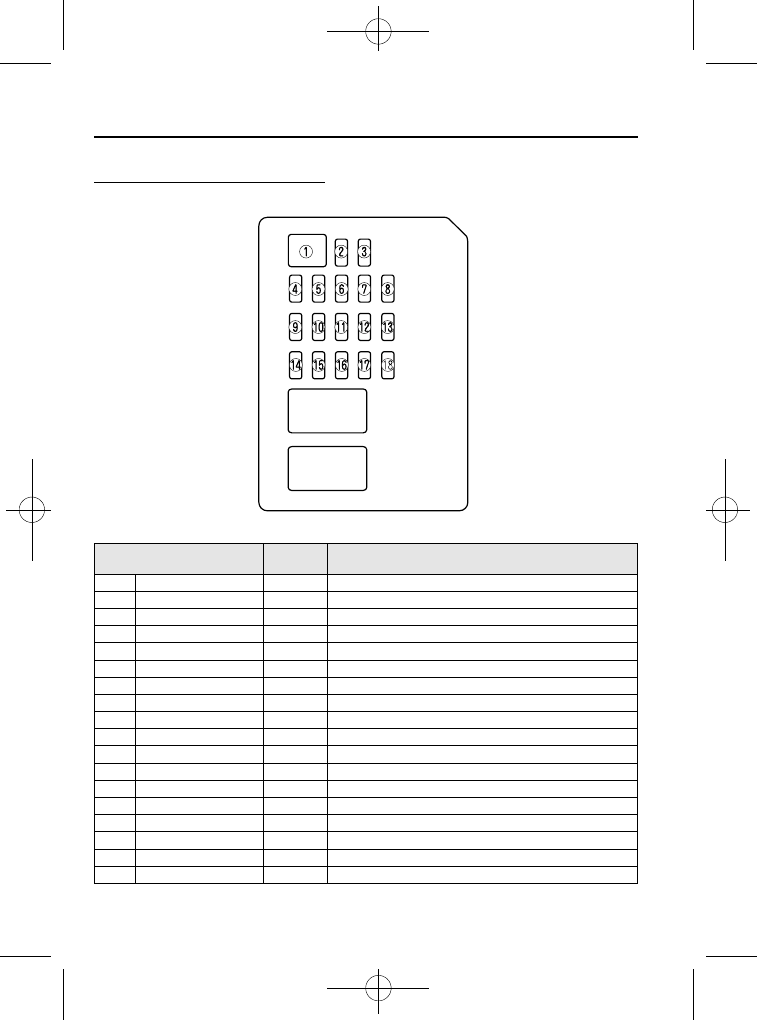

Fuse block (Driver's side kick-panel)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

P.WIND IG

―

P.WIND

―

D.LOCK

30A

Power door lock

CIGAR

15A

Lighter

MIRROR

Power control mirror, Audio system

METER ACC

Auto light off unit

R.CIGAR

15A

Accessory socket

SPARE

10A

―

ENGINE IG

15A

Engine control system

SAS

10A

DSC unit, SAS unit

METER IG

15A

Instrument cluster, Reverse lights

WIPER

20A

Windshield wiper and washer

SPARE

15A

―

A/C

10A

Heater

SEAT

15A

Seat warmer

, Rear window defroster

R.WIP

―

ROOM

15A

Overhead light

SPARE

20A

―

8-38

Maintenance and Care

Some models.

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page292
Tuesday, May 9 2006 10:45 AM

Black plate (293,1)

How to Minimize
Environmental Paint Damage

The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent
them.

qEtching Caused by Acid Rain or

Industrial Fallout

Occurrence

Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.

qDamage Caused by Bird

Dropping, Insects, or Tree Sap

Occurrence

Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.

Prevention

It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.

Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.

Maintenance and Care

Appearance Care

8-39

Mazdaspeed6_8V77-EA-06F_Edition1 Page293
Tuesday, May 9 2006 10:45 AM

Black plate (294,1)

qWater Marks

Occurrence

Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.

qPaint Chipping

Occurrence

Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.

How to avoid paint chipping

Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.

NOTE

The paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).

In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.

Chipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.

8-40

Maintenance and Care

Appearance Care

Mazdaspeed6_8V77-EA-06F_Edition1 Page294
Tuesday, May 9 2006 10:45 AM

Black plate (295,1)

Exterior Care

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.

qMaintaining the Finish

Washing

To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface
when:

The vehicle is washed without first
rinsing off dirt and other foreign
matter.

The vehicle is washed with a rough,
dry, or dirty cloth.

The vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.

Cleansers or wax containing abrasives
are used.

NOTE

Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.

Scratches are more noticeable on
vehicles with darker paint finishes.

To minimize scratches on the vehicle's
paint finish:

Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.

Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.

Rub gently when washing or drying the
vehicle.

Take your vehicle only to a car wash
that keeps its brushes well maintained.

Don't use abrasive cleansers or wax
that contain abrasives.

CAUTION

Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.

To prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.

Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.

Maintenance and Care

Appearance Care

8-41

Mazdaspeed6_8V77-EA-06F_Edition1 Page295
Tuesday, May 9 2006 10:45 AM

Black plate (296,1)

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.

WARNING

Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.

Waxing

Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.

1. Use wax which contains no abrasives.

Waxes containing abrasive will remove
paint and could damage bright metal
parts.

2. Use a good grade of natural wax for

metallic, mica, and solid colors.

3. When waxing, coat evenly with the

sponge supplied or a soft cloth.

4. Wipe off the wax with a soft cloth.

NOTE

A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.

qRepairing Damage to the Finish

Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.

CAUTION

If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.

qBright-Metal Maintenance

Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.

To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.

During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.

8-42

Maintenance and Care

Appearance Care

Mazdaspeed6_8V77-EA-06F_Edition1 Page296
Tuesday, May 9 2006 10:45 AM

Mazda Mazdaspeed 6 (2007 year). Manual - part 18
