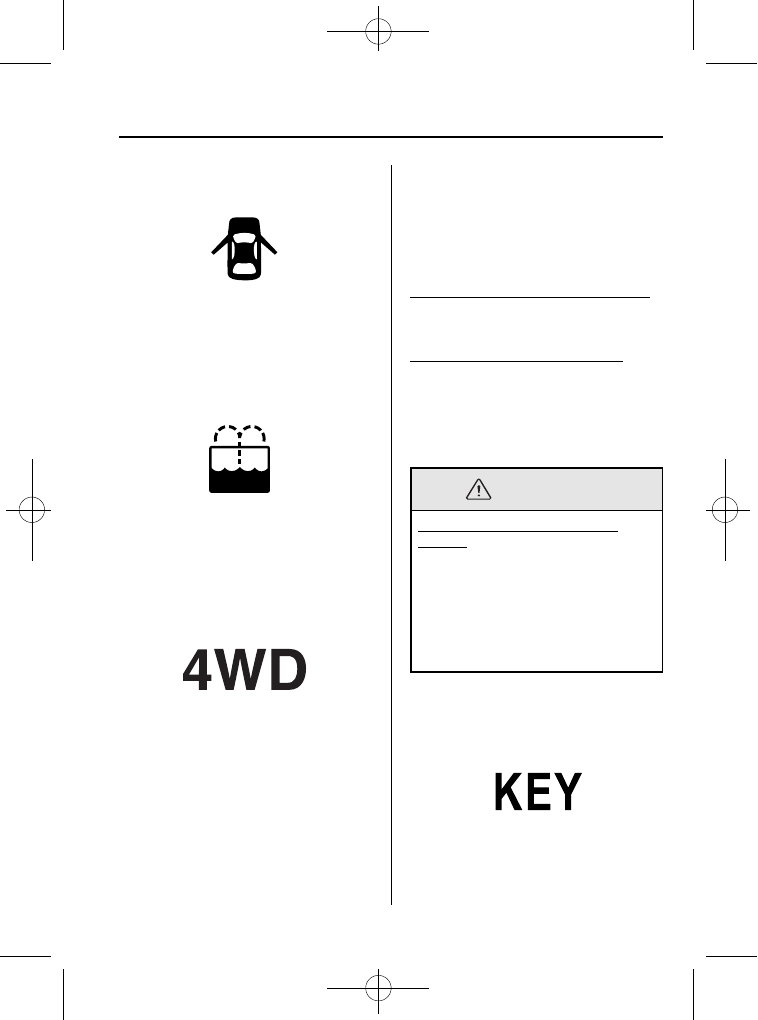

qDoor-Ajar Warning Light

This warning light comes on when any
door isn't securely closed.

qLow Washer Fluid Level

Warning Light

This warning light indicates that little
washer fluid remains. Add fluid (page
8-18).

qAWD Warning Light

This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the warning light will
illuminate or flash under the following
conditions:

Illuminates when there is an
abnormality with the AWD system.

Flashes when the differential oil
temperature is abnormally high.

Flashes when there are continually
large differences between front and rear
wheel rotation, such as when trying to
pull away from an icy surface.

If the AWD warning light illuminates:

If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.

If the AWD warning light flashes:

Park the vehicle in a safe place. After a
few moments; if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.

WARNING

Never spin a wheel that is off the
ground:
Spinning a wheel that is off the
ground as a result of the vehicle being
stuck or in a ditch is dangerous. The
drive assembly could be seriously
damaged which could lead to an
accident or could even lead to
overheating, oil leakage, and a fire.

qKEY Warning Light (Red)/KEY

Indicator Light (Green)

This indicator has two colors.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-31

Some models.

Mazdaspeed6_8V77-EA-06F_Edition1 Page169
Tuesday, May 9 2006 10:44 AM

Black plate (170,1)

KEY Warning Light (Red)

When illuminated

When the ignition switch is turned to
the ON position, it illuminates
momentarily and then goes out.

If any malfunction occurs in the
advanced keyless system, it illuminates
continuously.

WARNING

Do not drive the vehicle with the KEY
warning light illuminated:
If the KEY warning light remains
illuminated, do not continue to drive
using the advanced key system. Park
the vehicle in a safe place and use the
auxiliary key to continue driving the
vehicle. Have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.

When flashing

Under the following conditions, the
KEY warning light (red) flashes to
inform the driver that the start knob
will not rotate to the ACC position
even if it is pushed in from the LOCK
position.

The advanced key battery is dead.

The advanced key is not within
operational range.

The advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).

A key from another manufacturer
similar to the advanced key is in the
operational range.

Under the following conditions, the
KEY warning light (red) will flash
continuously when the start knob has
not been returned to the LOCK
position to notify the driver that the
advanced key has been removed from
the vehicle. It will stop flashing when
the advanced key is back inside the
vehicle.

The start knob has not been returned
to the LOCK position, the driver's
door is open, and the advanced key
is removed from the vehicle.

The start knob has not been returned
to the LOCK position and all the
doors are closed after removing the
advanced key from the vehicle.

NOTE

The flashing KEY warning light (red)
and the beep sound operate
simultaneously (page 3-19).

KEY Indicator Light (Green)

When illuminated

When the start knob is pushed in from the
LOCK position, the system confirms that
the correct advanced key is inside the
vehicle, the KEY indicator light (green)
illuminates, and the start knob can be
turned to the ACC position (page 3-10).

When flashing

When the advanced key battery power is
low, the KEY indicator light flashes for 30
seconds after the start knob is turned from
the ON position to the ACC or LOCK
position. Replace with a new battery
before the advanced key becomes
unusable (page 3-6).

5-32

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

Mazdaspeed6_8V77-EA-06F_Edition1 Page170
Tuesday, May 9 2006 10:44 AM

Black plate (171,1)

NOTE

The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-18).

qSecurity Indicator Light

This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.

The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.

If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

qHeadlight High-Beam Indicator

Light

This light indicates one of two things:

The high-beam headlights are on.

The turn signal lever is in the flash-to-
pass position.

qTCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.

If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-33

Mazdaspeed6_8V77-EA-06F_Edition1 Page171
Tuesday, May 9 2006 10:44 AM

Black plate (172,1)

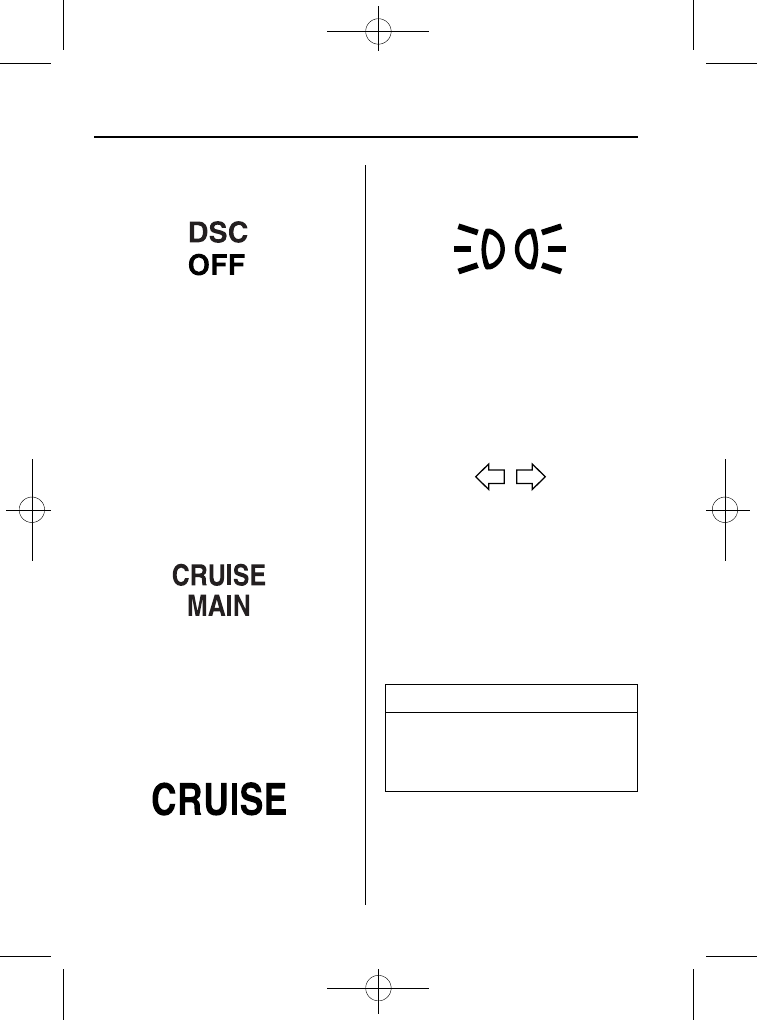

qDSC OFF Indicator Light

This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-19).

If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.

qCruise Main Indicator Light

This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.

qCruise Set Indicator Light

This light comes on when a cruising speed
is set.

qLight-On Indicator Light

This indicator light comes on when the
exterior lights and dashboard illumination
are on.

qTurn-Signal/Hazard Warning

Indicator Lights

When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-38).

When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-42).

NOTE

If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, one of the turn signal bulbs
may be burned out.

5-34

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

Mazdaspeed6_8V77-EA-06F_Edition1 Page172
Tuesday, May 9 2006 10:44 AM

Black plate (173,1)

Beep Sounds

qSeat Belt Warning Beep

If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
If the driver's seat belt is not fastened and
the vehicle is driven at a speed faster than
about 20 km/h (12 mph), a beep sound
will be heard again for a specified period
of time.
Refer to Seat Belt Warning Light/Beep on
page 5-29.

qIgnition Key Reminder

If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.

qLights-On Reminder

If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.

NOTE

When the advanced keyless function is
used and the start knob is in the ACC
position, the

“Start Knob Not in LOCK

Warning Beep

” (page 3-16) overrides

the lights-on reminder.

qAdvanced Keyless Warning

Warning indicators for the advanced key,
such as

“the advanced key removed from

vehicle warning

”, use a beep sound and

warning/indicator lights in the instrument
cluster.
Refer to Warning and Beep Sounds on
page 3-16.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-35

Some models.

Mazdaspeed6_8V77-EA-06F_Edition1 Page173
Tuesday, May 9 2006 10:44 AM

Black plate (174,1)

Lighting Control

qHeadlights

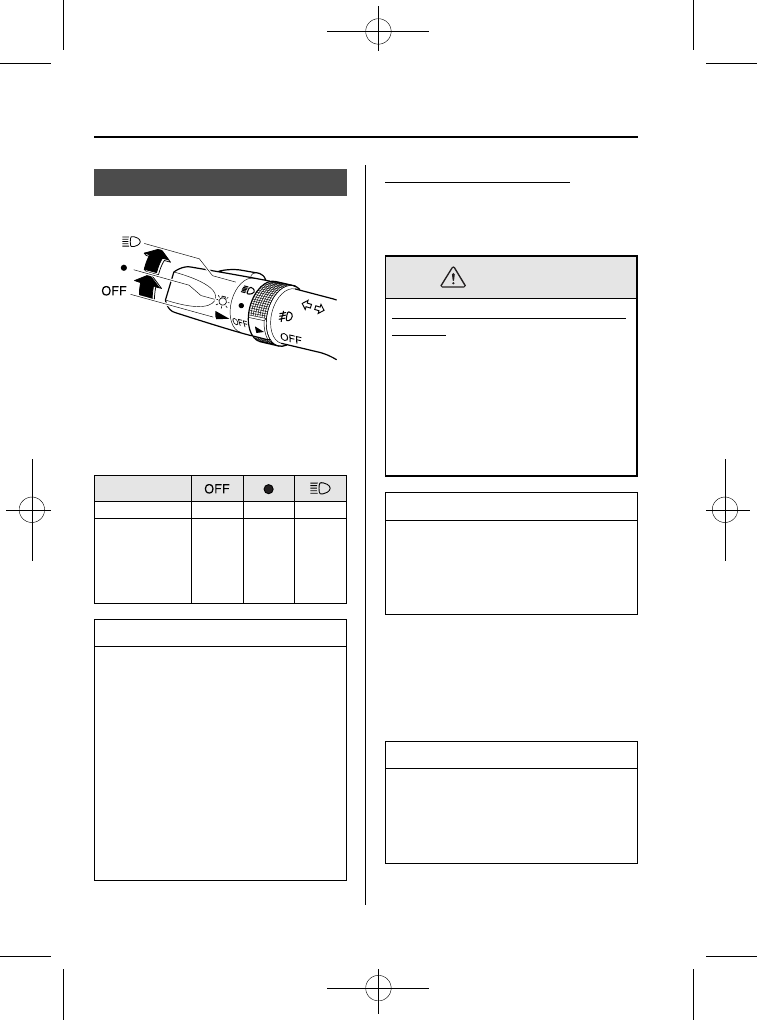

To turn on the lights, turn the headlight
switch on the end of the control lever.

Switch Position

Headlights

Off

Taillights
Parking lights
License lights
Side-marker lights
Dashboard
illumination

Off

NOTE

If the light switch is left on, the lights
will automatically switch off 30
seconds after turning the ignition
switch to the LOCK position or
removing the key.

The lights will automatically switch
back on when the ignition switch is
turned to the ACC or ON position.

To prevent discharging the battery,
don't leave the lights on while the
engine is off unless safety requires
them.

Xenon fusion headlight bulbs

The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.

WARNING

Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement is
necessary.

NOTE

If the headlights flicker, or the
brightness weakens, the bulb-life may
be depleted and a replacement is
necessary. Consult an Authorized
Mazda Dealer.

qLights-On Reminder

If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.

NOTE

When the advanced keyless function is
used and the start knob is in the ACC
position, the

“Start Knob Not in LOCK

Warning Beep

” (page 3-16) overrides

the lights-on reminder.

5-36

Driving Your Mazda

Switches and Controls

Mazdaspeed6_8V77-EA-06F_Edition1 Page174
Tuesday, May 9 2006 10:44 AM

Black plate (175,1)

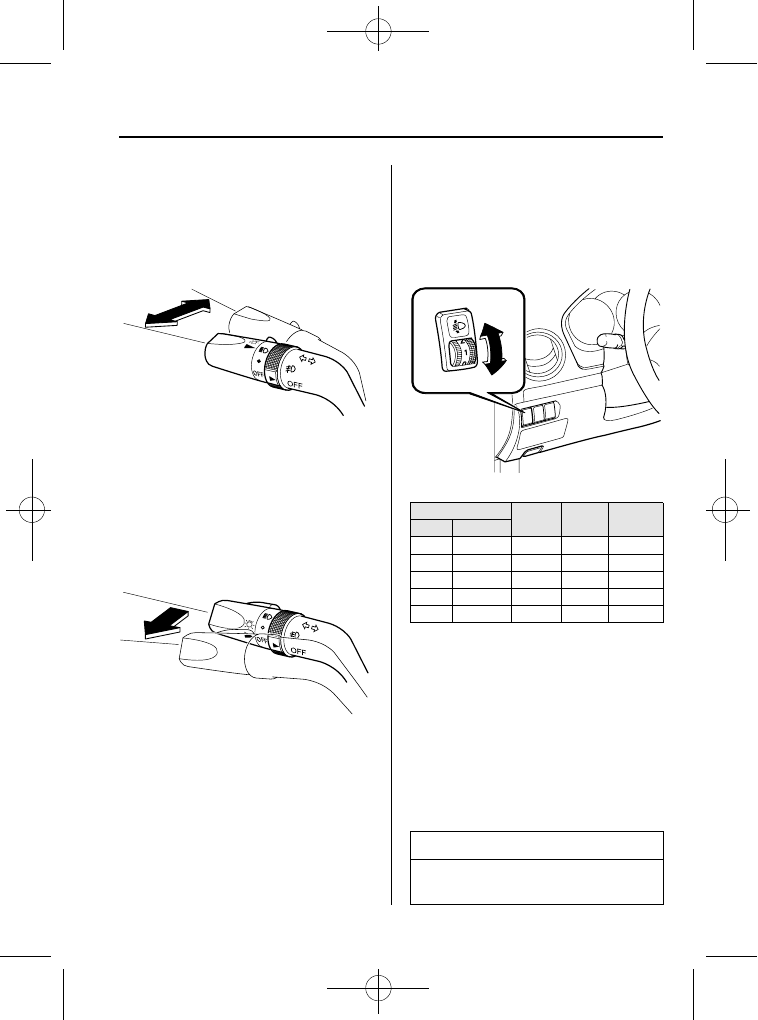

qHeadlight High-Low Beam

Push the lever forward for high beam.
Pull back to original position for low
beam.

High beam

Low beam

qFlashing the Headlights

To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.

qHeadlight Leveling

The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch adjusts this
angle.

Select the proper setting from the following chart.

Front seat

Rear

seat

Load

Switch

Position

Driver Passenger

―

×: Yes

―: No

qDaytime Running Lights (Canada)

In Canada, vehicles must be driven with
the headlights on during daytime
operation.

For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

NOTE

The Daytime Running Lights turn off
when the parking brake is applied.

Driving Your Mazda

Switches and Controls

5-37

Mazdaspeed6_8V77-EA-06F_Edition1 Page175
Tuesday, May 9 2006 10:44 AM

Black plate (176,1)

Turn and Lane-Change
Signals

qTurn Signal

Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.

If the indicator light continues to flash
after a turn, manually return the lever to
its original position.

Right turn

Left turn

OFF

Right lane
change

Left lane
change

Green indicators on the dashboard show
which signal is working.

Lane-change signals

Move the lever slightly toward the
direction of the change

―until the

indicator flashes

― and hold it there. It

will return to the off position when
released.

NOTE

If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.

Fog Lights

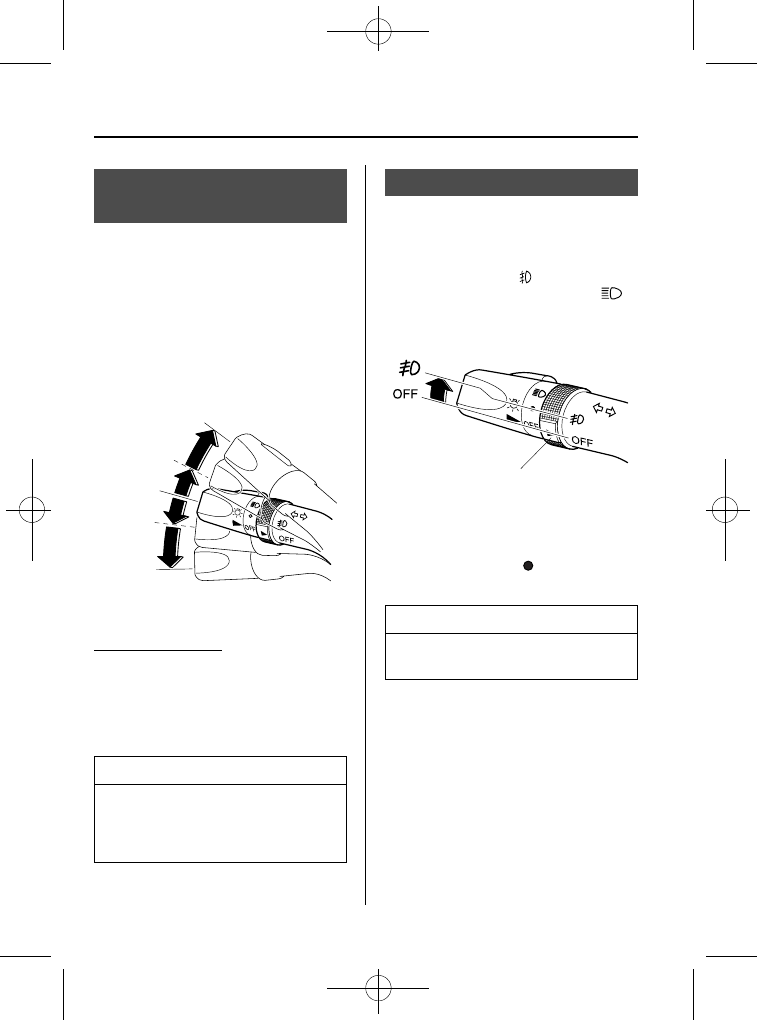

Use this switch to turn on the fog lights.
They help you to see as well as to be seen.

To turn the front fog lights on, rotate the
fog light switch to the

position.

The headlight switch must be in the
position to turn on the front fog lights.

Fog light switch

To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the

or OFF

position.

NOTE

The fog lights will turn off when the
headlights are set at high beam.

5-38

Driving Your Mazda

Switches and Controls

Mazdaspeed6_8V77-EA-06F_Edition1 Page176
Tuesday, May 9 2006 10:44 AM

Black plate (177,1)

Windshield Wipers and
Washer

The ignition switch must be in the ON
position.

WARNING

Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident.

Do not use the washer without first
warming the windshield and never use
plain tap water:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident.

NOTE

Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road
and park off the right-of-way. Wait until
the weather clears before trying to drive
with the wipers inoperative.

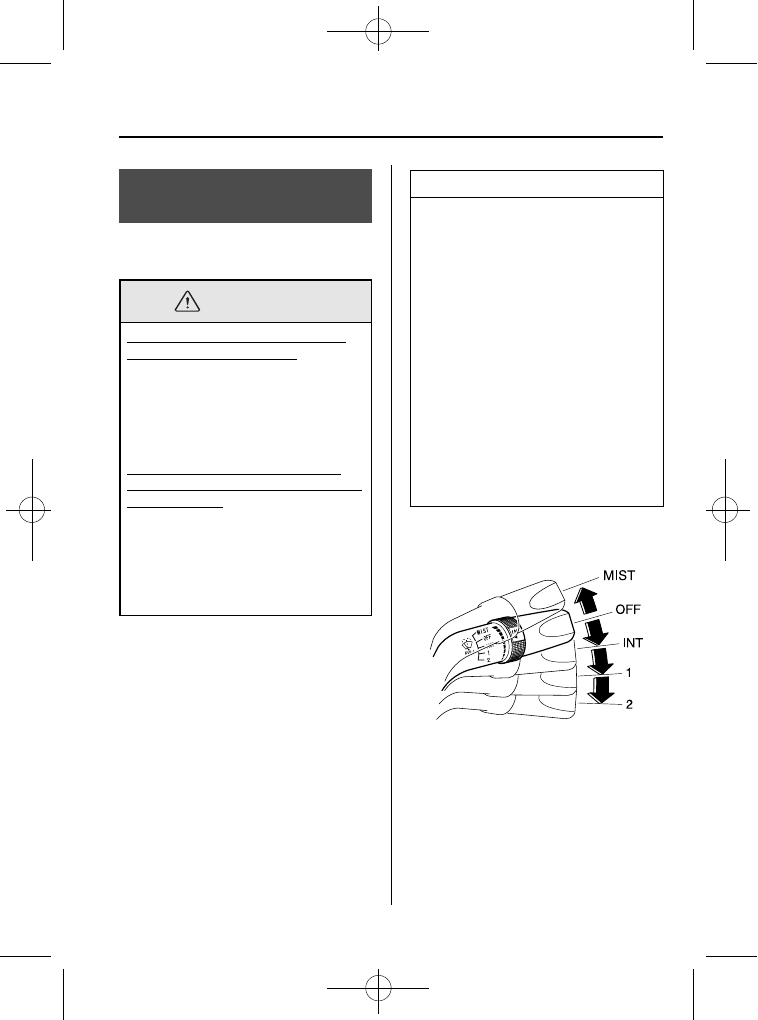

qWindshield Wipers

Turn the wipers on by pulling the lever
down.
MIST

― Mist

INT

― Intermittent

― Low speed

― High speed

For a single wiping cycle, push the lever
up to MIST.

Driving Your Mazda

Switches and Controls

5-39

Mazdaspeed6_8V77-EA-06F_Edition1 Page177
Tuesday, May 9 2006 10:44 AM

Black plate (178,1)

Variable-speed intermittent wipers

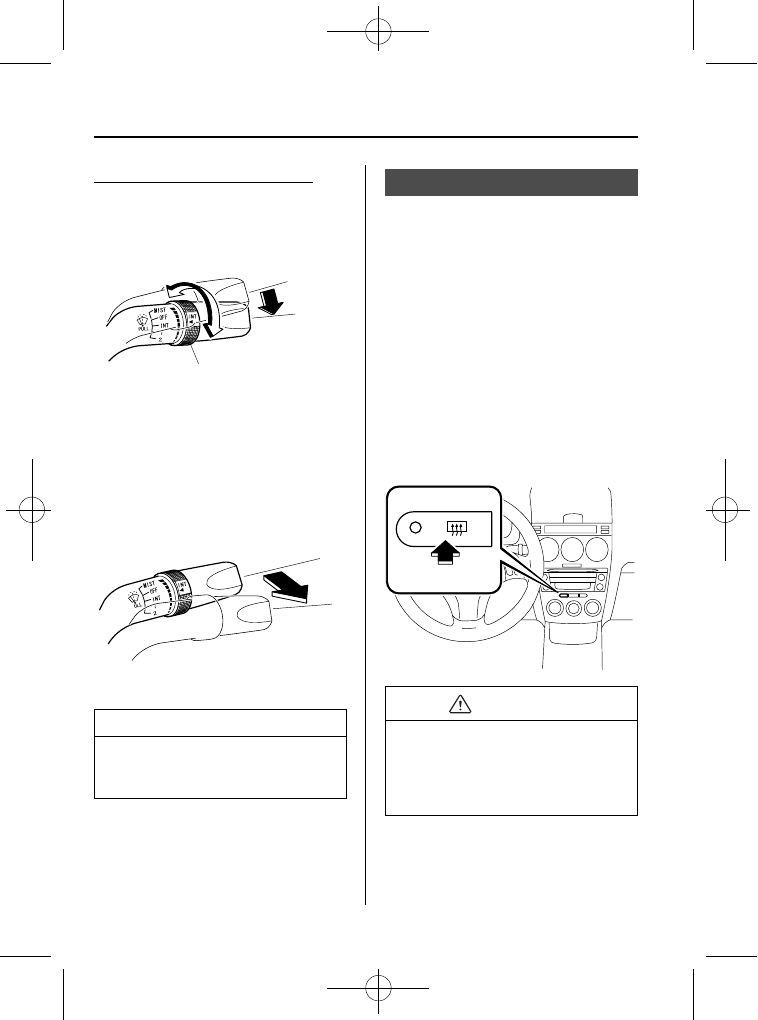

Set the lever to INT and choose the
interval timing by rotating the ring.

OFF

INT

INT ring

qWindshield Washer

Pull the lever toward you and hold it to
spray washer fluid.

OFF

Washer

NOTE

With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.

If the washer doesn't work, inspect the
fluid level (page 8-18). If it's OK, consult
an Authorized Mazda Dealer.

Rear Window Defroster

The rear window defroster clears frost,
fog, and thin ice from the rear window.

The ignition switch must be in the ON
position.

Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.

To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.

CAUTION

Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.

5-40

Driving Your Mazda

Switches and Controls

Mazdaspeed6_8V77-EA-06F_Edition1 Page178
Tuesday, May 9 2006 10:44 AM

Black plate (179,1)

NOTE

This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.

Horn

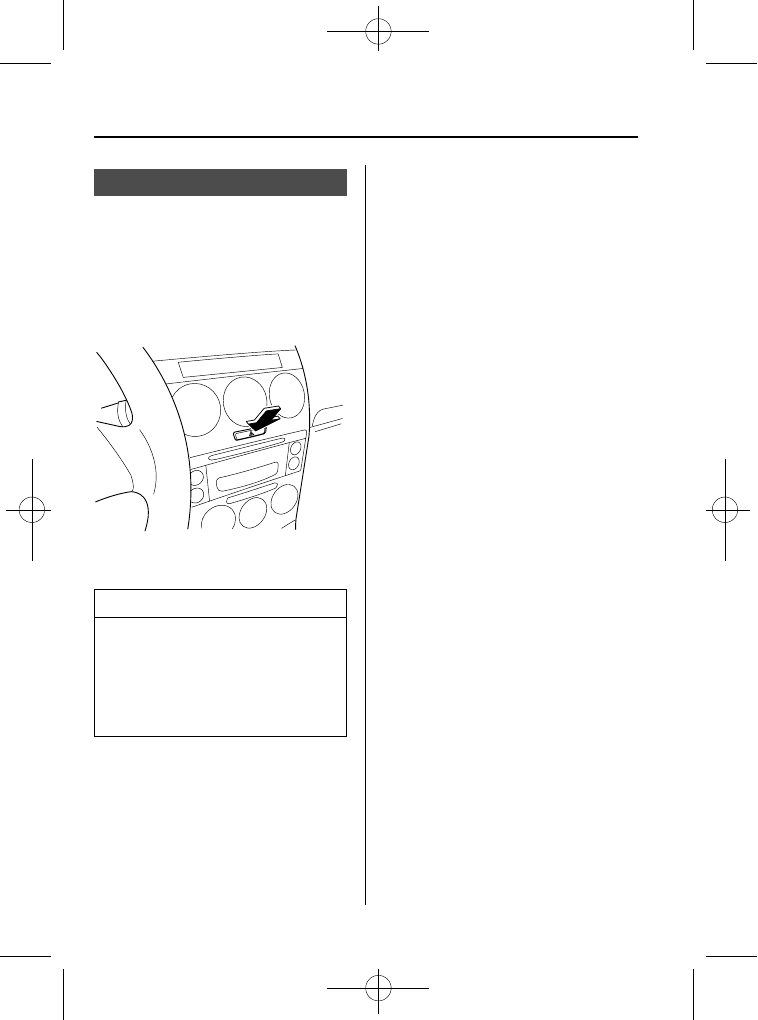

To sound the horn, press the

mark on

the steering wheel.

Driving Your Mazda

Switches and Controls

5-41

Mazdaspeed6_8V77-EA-06F_Edition1 Page179
Tuesday, May 9 2006 10:44 AM

Black plate (180,1)

Hazard Warning Flasher

The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash.

NOTE

The turn signals don't work when the
hazard warning lights are on.

Check local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.

5-42

Driving Your Mazda

Switches and Controls

Mazdaspeed6_8V77-EA-06F_Edition1 Page180
Tuesday, May 9 2006 10:44 AM

Black plate (181,1)

Interior Comfort

Use of various features for drive comfort, including air-conditioning and audio
system.

Climate Control System ............................................................... 6-2

Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Control Panel ............................................................................ 6-5

Audio System ............................................................................... 6-10

Antenna ................................................................................... 6-10
Operating Tips for Audio System ........................................... 6-10
Audio Set ................................................................................ 6-21
Audio Control Switch Operation (Steering Wheel) ................ 6-37
Safety Certification ................................................................. 6-39

Interior Equipment ..................................................................... 6-40

6-1

Mazdaspeed6_8V77-EA-06F_Edition1 Page181
Tuesday, May 9 2006 10:44 AM

Black plate (182,1)

Operating Tips

qOperating the Climate Control

System

Operate the climate control system with
the engine running.

NOTE

To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.

qClearing the Air Inlet

Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.

qFoggy Windows

The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.

To help defog the windows, operate the
air conditioner to dehumidify the air.

NOTE

The air conditioner may be used along
with the heater to dehumidify the air.

qOutside/Recirculated Air Position

Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.

qParking in Direct Sunlight

If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

qNot Using for a Long Period

Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.

qCheck the Refrigerant before the

Weather Gets Hot

Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.

The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

qReplacement of the Cabin Air Filter

If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.

6-2

Interior Comfort

Climate Control System

Mazdaspeed6_8V77-EA-06F_Edition1 Page182
Tuesday, May 9 2006 10:44 AM

Black plate (183,1)

Vent Operation

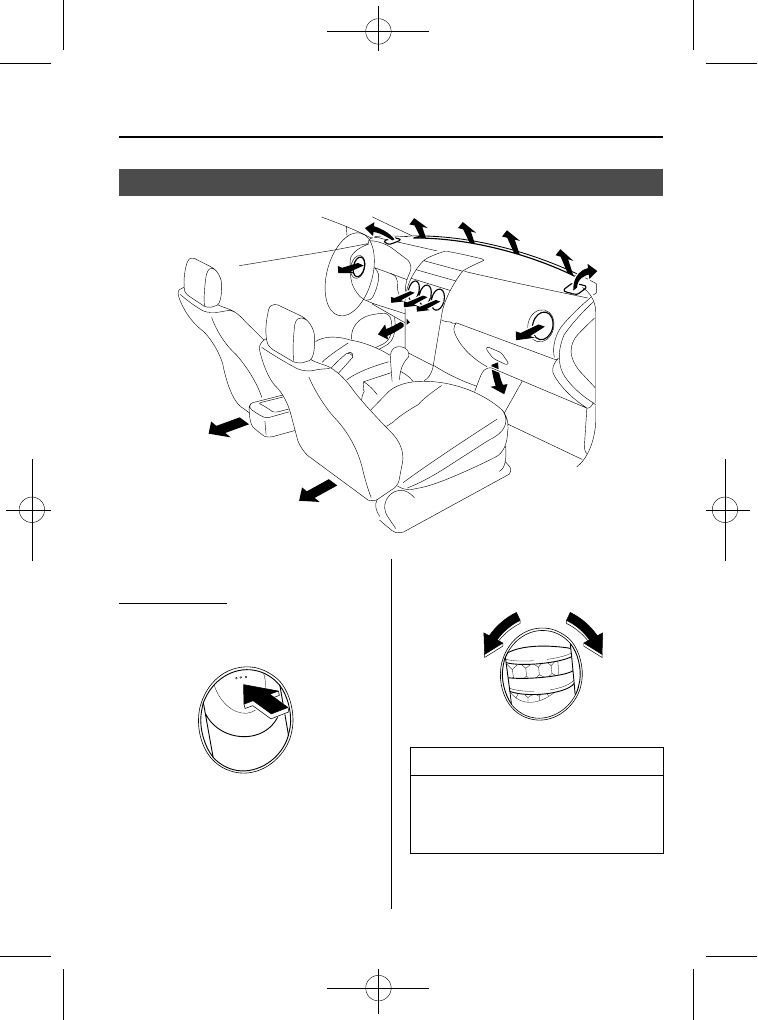

qAdjusting the Vents

Directing airflow

1. Press the upper part of the air vent to

open it.

2. Rotate the air vent left and right to

adjust the direction of airflow.

NOTE

When using the air conditioner, mist
may come out from the vents. This is
not a sign of trouble but a result of
humid air being suddenly cooled.

Interior Comfort

Climate Control System

6-3

Mazdaspeed6_8V77-EA-06F_Edition1 Page183
Tuesday, May 9 2006 10:44 AM

Black plate (184,1)

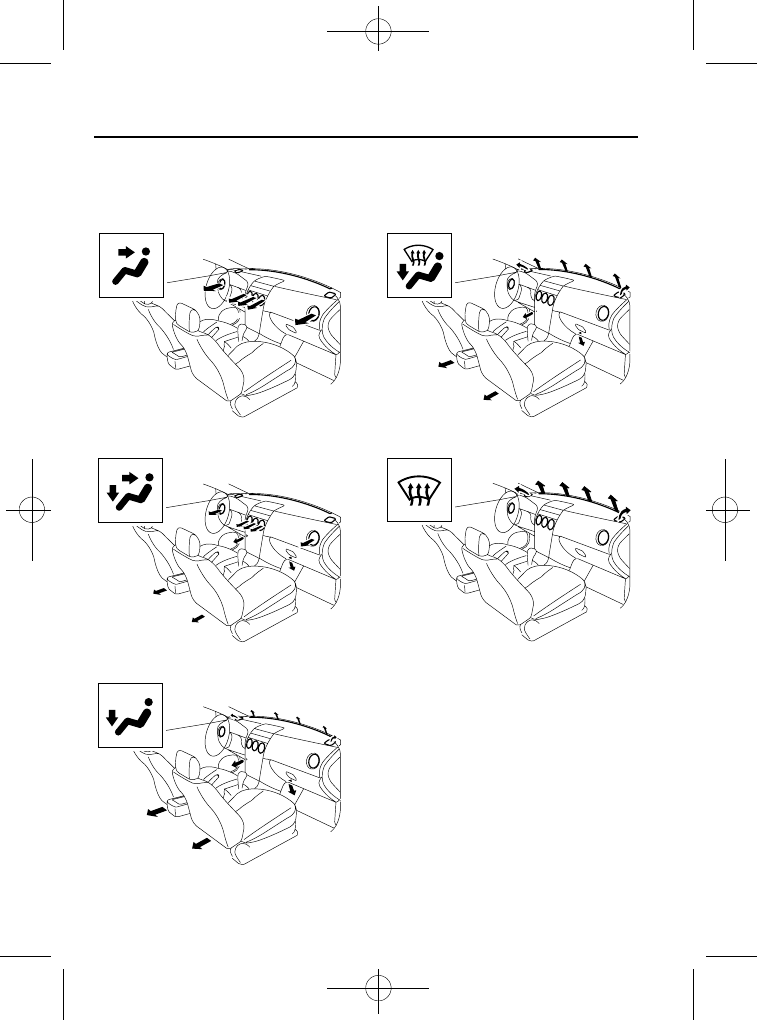

qSelecting the Airflow Mode

Defroster and Floor Vents

Dashboard Vents

Floor Vents

Defroster Vents

Dashboard and Floor Vents

6-4

Interior Comfort

Climate Control System

Mazdaspeed6_8V77-EA-06F_Edition1 Page184
Tuesday, May 9 2006 10:44 AM

Content .. 9 10 11 12 ..
