Fuel-Filler Lid and Cap

WARNING

When removing the fuel-filler cap, loosen
the cap slightly and wait for any hissing to
stop, then remove it:
Fuel spray is dangerous. Fuel can burn skin
and eyes and cause illness if ingested. Fuel
spray is released when there is pressure in
the fuel tank and the fuel-filler cap is
removed too quickly.

Before refueling, stop the engine, and
always keep sparks and flames away from
the filler neck:
Fuel vapor is dangerous. It could be ignited
by sparks or flames causing serious burns
and injuries.
Additionally, use of the incorrect fuel-filler
cap or not using a fuel-filler cap may result
in a fuel leak, which could result in serious
burns or death in an accident.

Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the fuel pump
nozzle has shut off automatically is
dangerous because overfilling the fuel tank
may cause fuel overflow or leakage. Fuel
overflow and leakage could damage the
vehicle and if the fuel ignites it could cause
a fire and explosion resulting in serious
injury or death.

CAUTION

Always use only a genuine Mazda fuel-filler
cap or an approved equivalent, available
at an Authorized Mazda Dealer. The wrong
cap can result in a serious malfunction of
the fuel and emission control systems.
(U.S.A. and Canada)
It may also cause the check engine light in
the instrument cluster to illuminate.

▼ Refueling

Before refueling, close all the doors,
windows, and the liftgate, and switch the
ignition OFF.

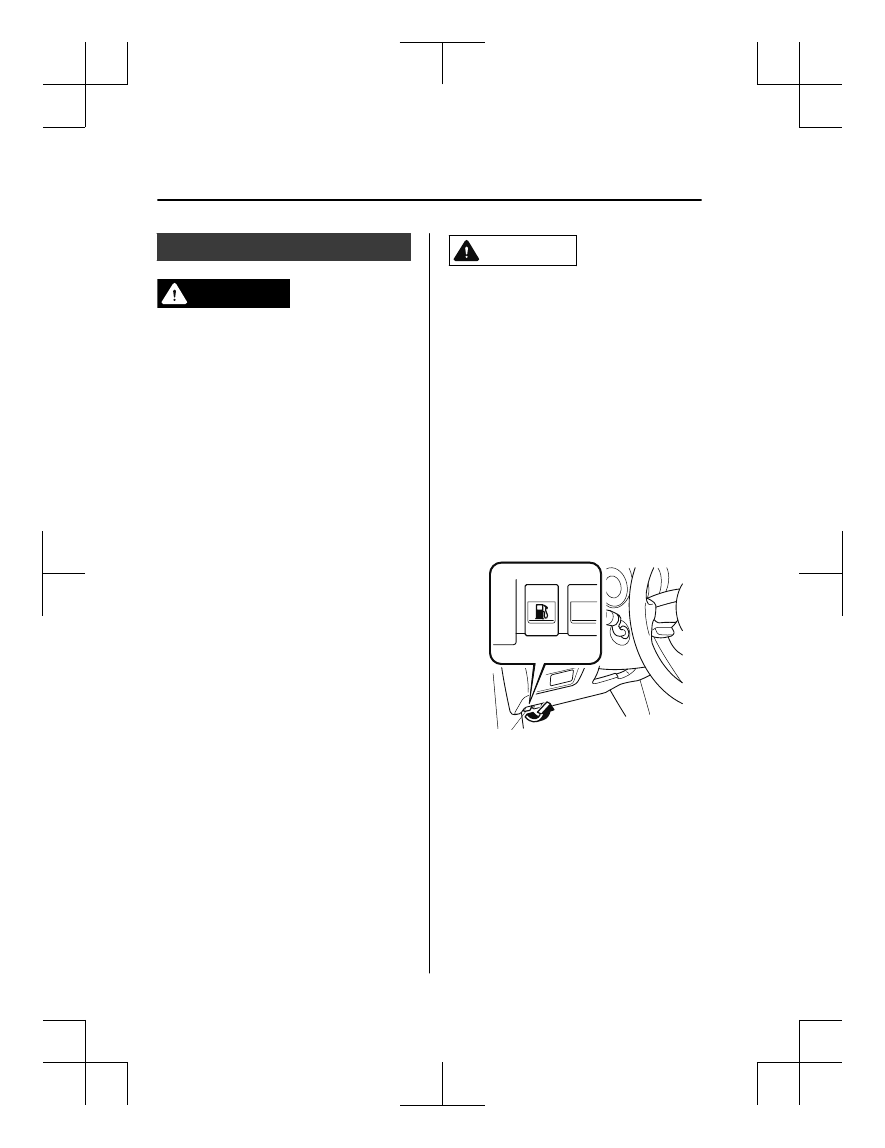

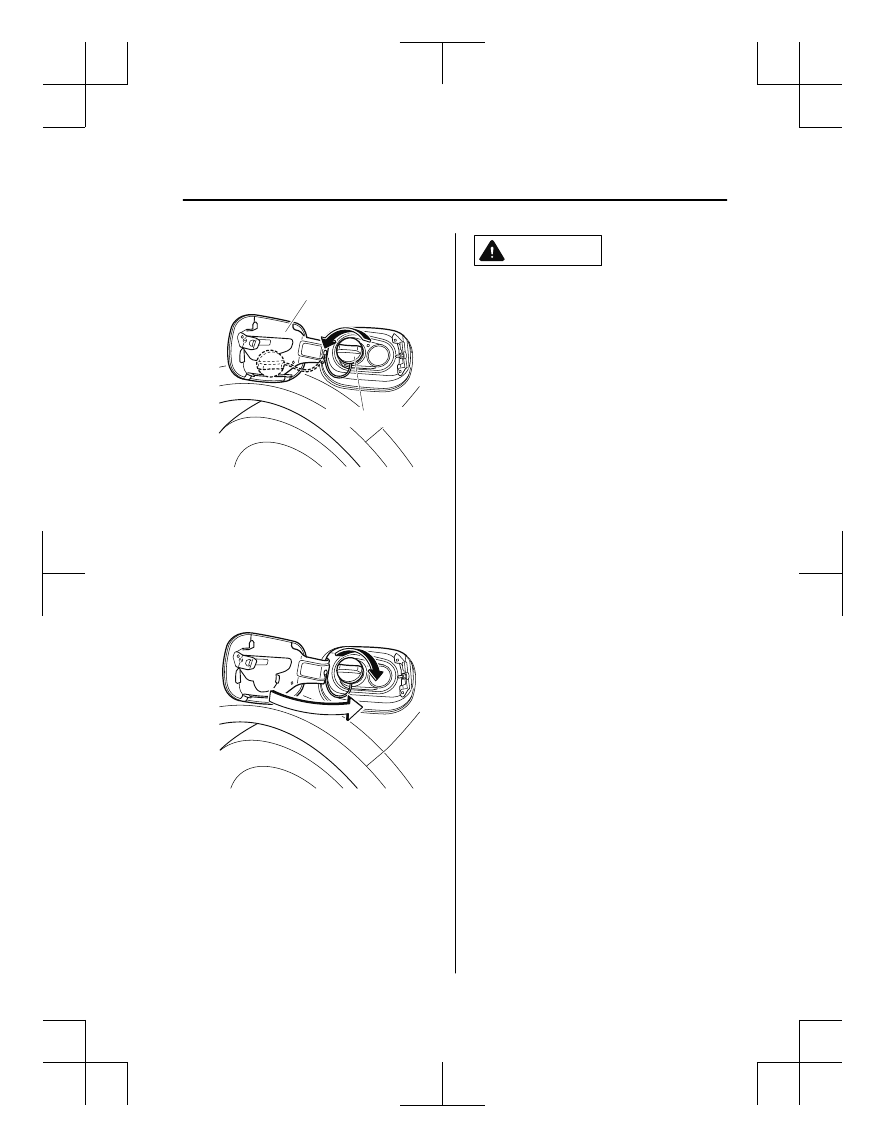

1. To open the fuel-filler lid, pull the

remote fuel-filler lid release.

Remote fuel-filler lid release

2. To remove the fuel-filler cap, turn it

counterclockwise.

Before Driving

Fuel and Emission

3-30

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

3. Attach the removed cap to the inner

side of the fuel-filler lid.

Fuel-filler cap

Fuel-filler lid

4. Insert the refueling nozzle all the way

and begin refueling. Pull out the
refueling nozzle after the refueling
stops automatically.

5. To close the fuel-filler cap, turn it

clockwise until a click is heard.

6. To close, press the fuel-filler lid until it

locks securely.

CAUTION

(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-filler cap may not be
properly installed. If the warning light
illuminates, park your vehicle safely off the
right-of-way, remove the fuel-filler cap and
reinstall it correctly. After the cap has been
correctly installed, the fuel cap warning
light may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of starting
the engine (after four or more hours with
the engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check fuel cap
warning light illuminated could cause the
check engine light to illuminate as well.

Before Driving

Fuel and Emission

3-31

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Mirrors

Before driving, adjust the inside and
outside mirrors.

▼ Outside Mirrors

WARNING

Be sure to look over your shoulder before
changing lanes:
Changing lanes without taking into
account the actual distance of the vehicle
in the convex mirror is dangerous. You
could have a serious accident. What you
see in the convex mirror is closer than it
appears.

Mirror type

Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.

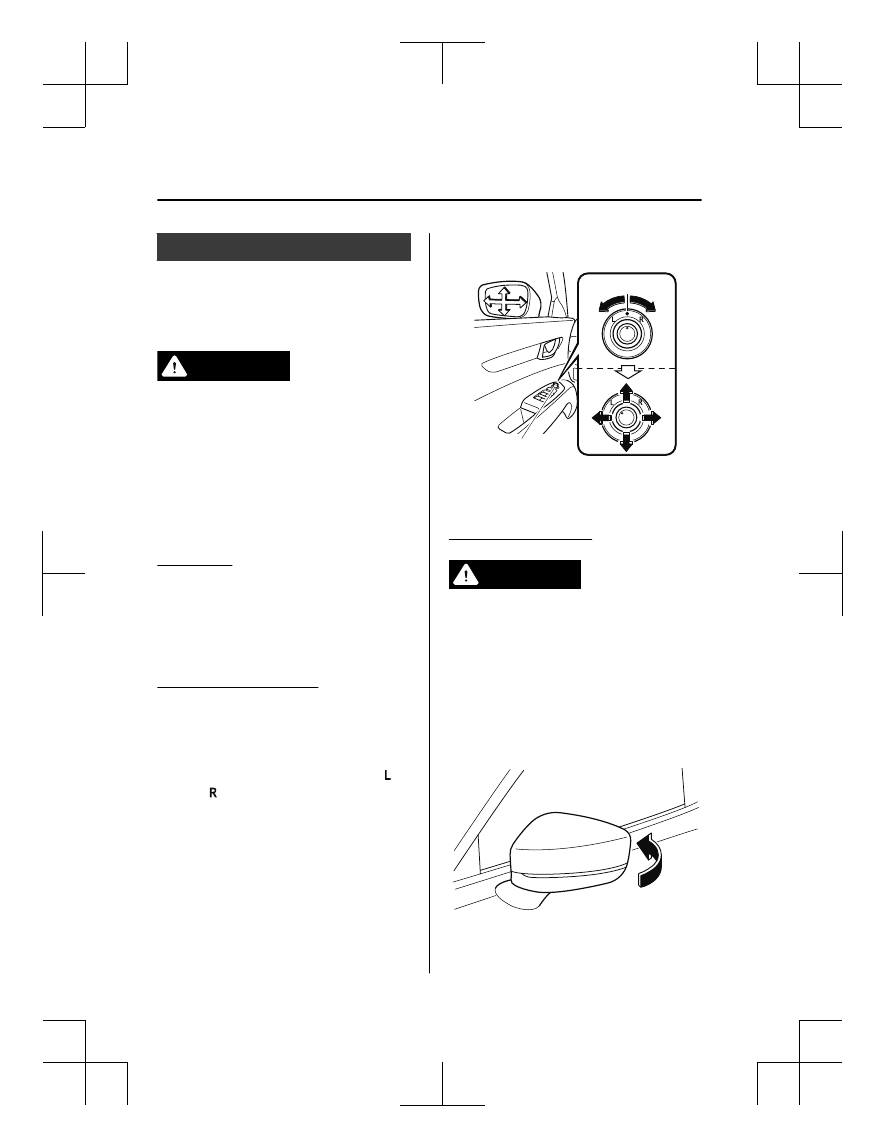

Power mirror adjustment

The ignition must be switched to ACC or
ON position.

To adjust:
1. Rotate the mirror switch to the left or

right to choose the left or right side
mirror.

2. Press the mirror switch in the

appropriate direction.

Center position

Mirror switch

After adjusting the mirror, lock the control
by rotating the switch in the center
position.

Folding outside mirror

WARNING

Always return the outside mirrors to the
driving position before you start driving:
Driving with the outside mirrors folded in is
dangerous. Your rear view will be
restricted, and you could have an accident.

Manual folding outside mirror

Fold the outside mirror rearward until it is
flush with the vehicle.

Before Driving

Mirrors

3-32

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Power folding outside mirror

WARNING

Do not touch a power folding outside
mirror while it is moving:
Touching the power folding outside mirror
when it is moving is dangerous. Your hand
could be pinched and injured or the mirror
could be damaged.

Use the outside mirror switch to set the
mirror to the on-road position:
Setting the power folding outside mirror to
the on-road position by hand is dangerous.
The mirror will not lock in position and will
prevent effective rearview visibility.

Only operate the power folding outside
mirror with the vehicle safely parked:
Operating the power folding outside mirror
while the vehicle is moving is dangerous.
Wind blast on the mirror will cause them to
collapse and you will be unable to return it
to the on-road position, preventing
rearview visibility.

The ignition must be switched to ACC or
ON position.

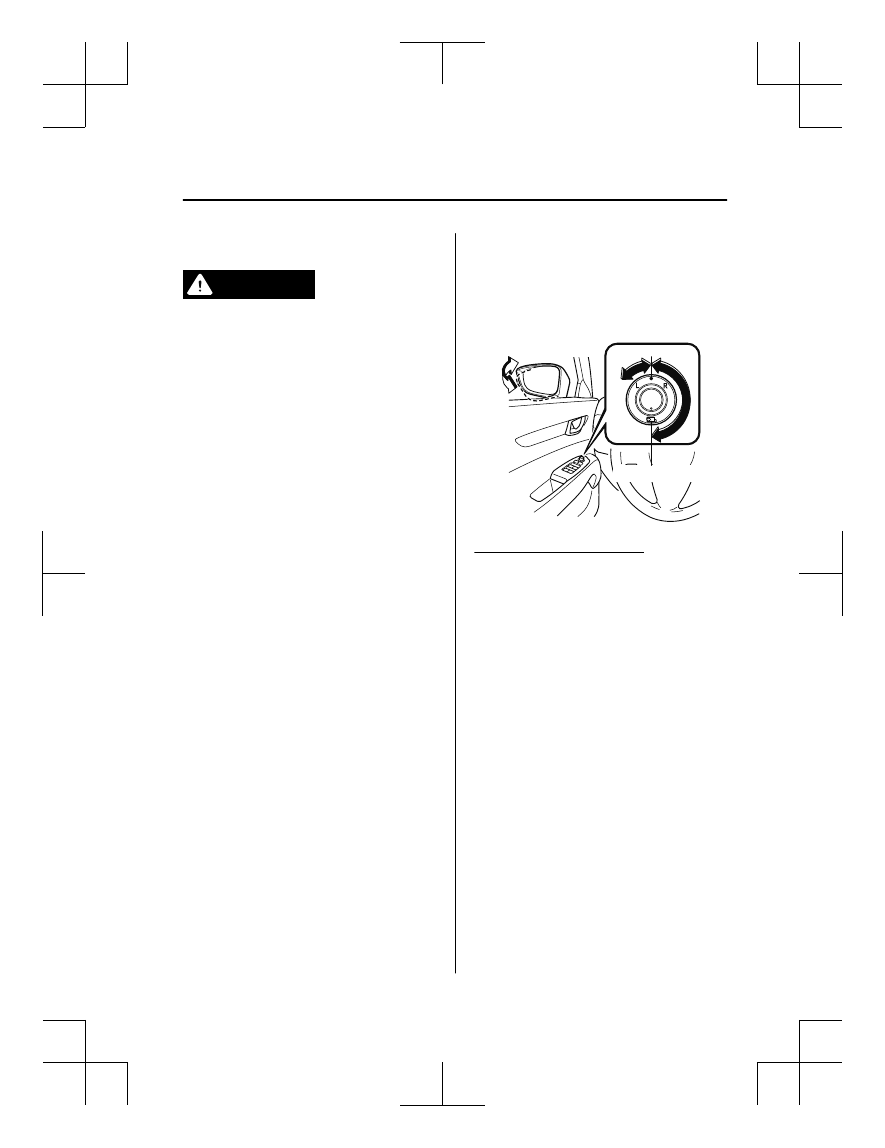

To fold, rotate the outside mirror switch.
To return the mirror to the driving
position, rotate the switch to the center
position.

Fold-in position

Center position

Automatic folding function

The automatic folding function operates
when the ignition is switched to OFF.
When the outside mirror switch is in a
position other than the fold-in position, the
outside mirrors automatically fold in and
out when the doors are locked and
unlocked.
Also, when the ignition is switched ON or
the engine is started, the outside mirrors
fold out automatically.

NOTE
The outside mirrors may not fold in and
out automatically under cold weather
conditions.
If the outside mirrors do not fold in and
out automatically, remove any ice or snow,
and then operate the outside mirror switch
to fold the outside mirrors in or out.

Before Driving

Mirrors

3-33

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Canceling the automatic folding
function

To cancel the automatic folding function,
carry out the following procedure using
the master control switches.
1. Switch the ignition ON.
2. If the power window lock switch is in

the unlock position, switch it to the
lock position.

3. Press and hold the front passenger's

power window switch and rear left/
right power window switches on the
driver's door at the same time for 3
seconds or longer.

NOTE



The automatic folding function cannot
be canceled if the procedure is not
completed within the specified times, or
the procedure is changed along the way.
To redo the procedure, first switch the
ignition off and proceed from the
beginning.



If you are unable to cancel the function
despite doing the cancellation
procedure, consult an Authorized Mazda
Dealer.

Restoring the automatic folding
function

With the automatic folding function in the
canceled state, repeat the previous
procedure for canceling the function and it
will be restored.

NOTE
If you are unable to restore the function
despite carrying out the restore procedure,
consult an Authorized Mazda Dealer.

Engine-off outside mirror operation

The outside mirrors can be operated for
about 40 seconds after the ignition is
switched from ON to off.

▼ Rearview Mirror

WARNING

Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.

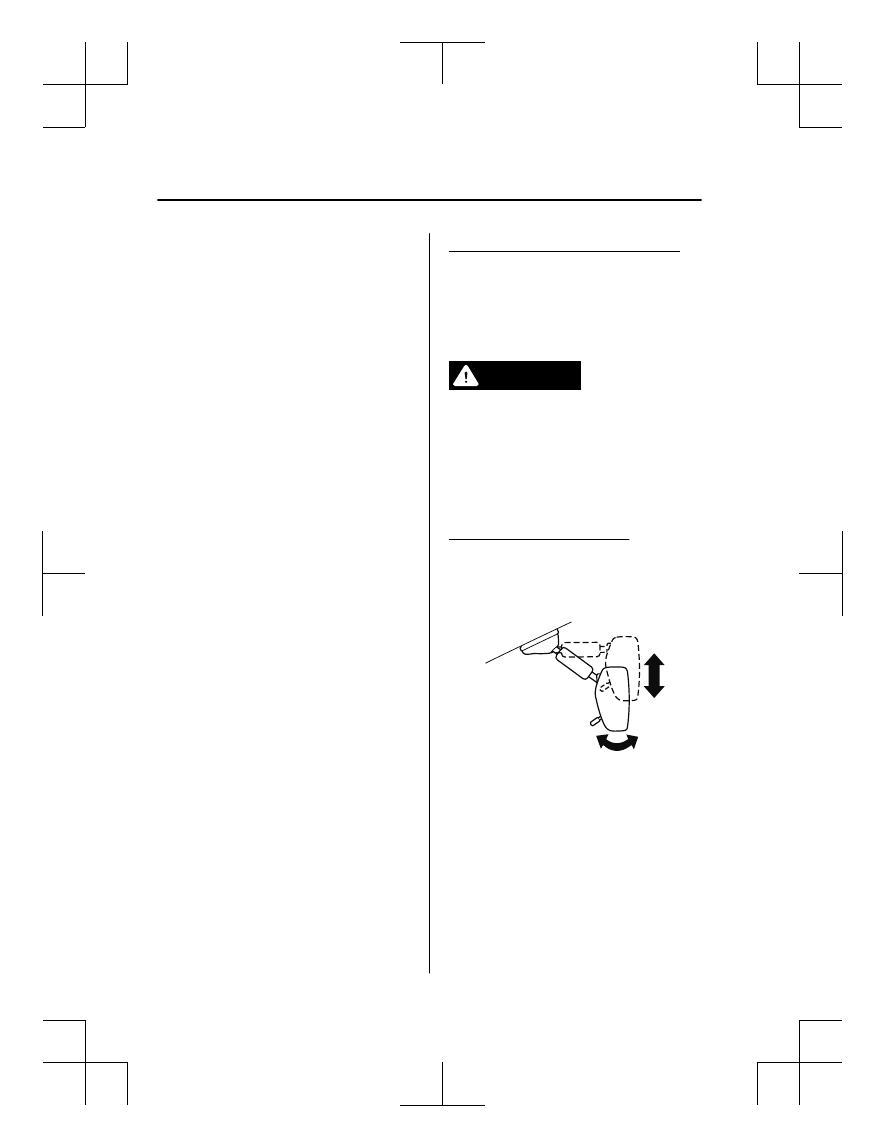

Rearview mirror adjustment

Before driving, adjust the rearview mirror
to center on the scene through the rear
window.

NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.

Before Driving

Mirrors

3-34

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

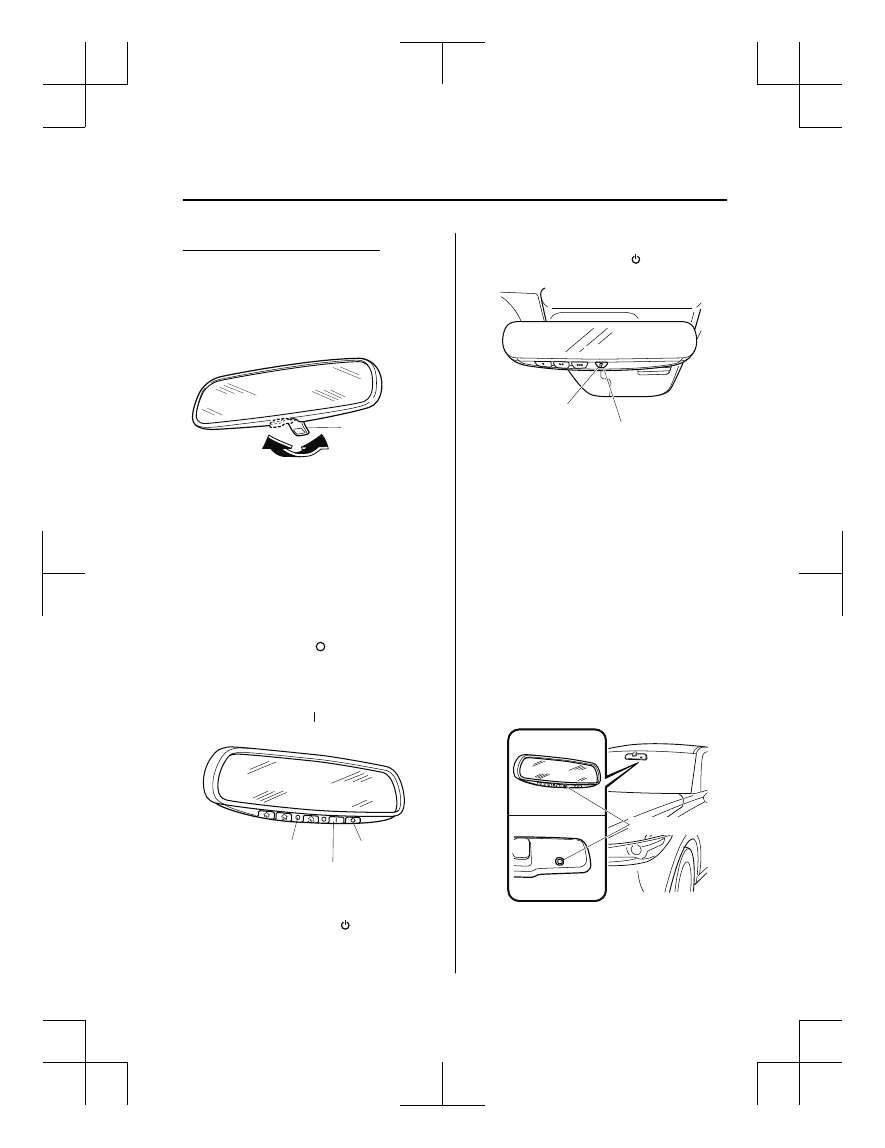

Reducing glare from headlights

Manual day/night mirror

Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Day/Night lever

Day

Night

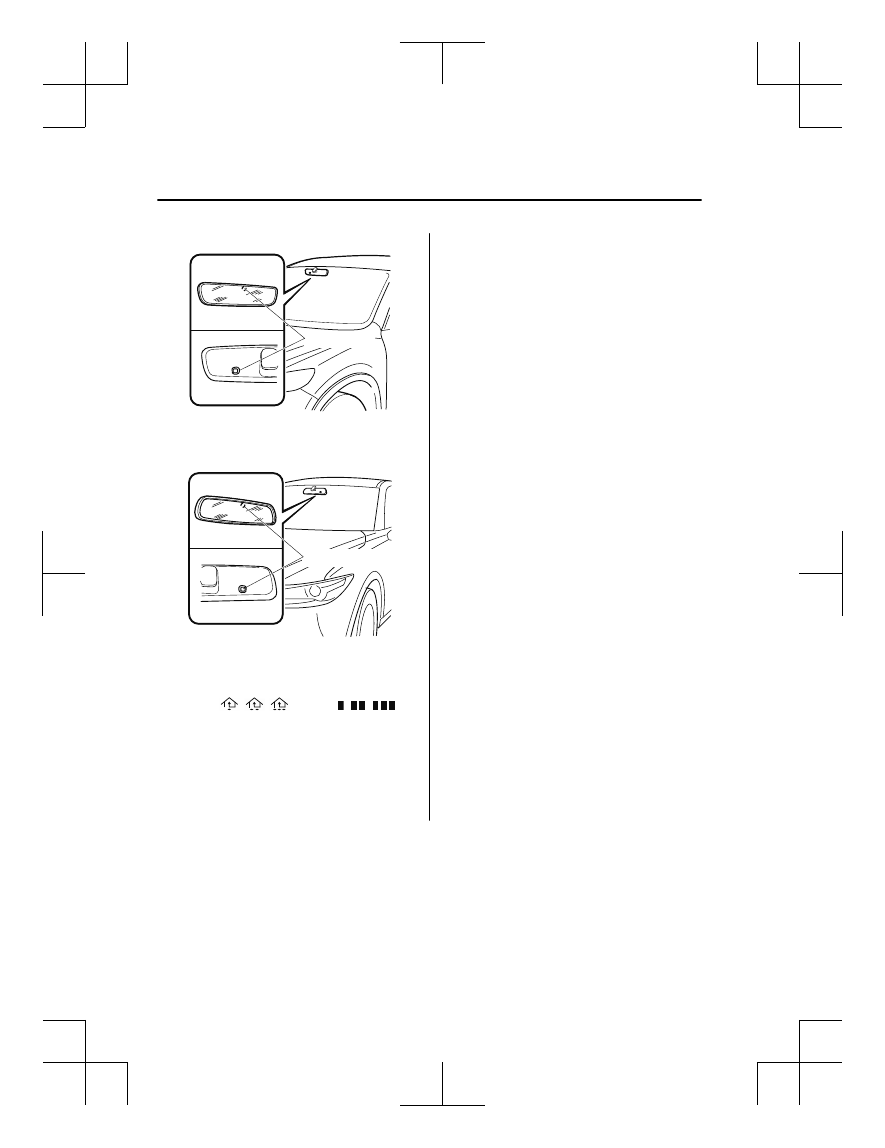

Auto-dimming mirror

(With Homelink wireless control
system)
The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.

(Type A)
Press the OFF button ( ) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON button ( ). The indicator
light will illuminate.

Indicator light

OFF button

ON button

(Type B)
Press the ON/OFF button ( ) to cancel the
auto-dimming function. The indicator light
will turn off.

To reactivate the auto-dimming function,
press the ON/OFF button ( ). The
indicator light will illuminate.

Indicator light

ON/OFF button

(Without Homelink wireless control
system)
The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.

NOTE



Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.
(With Homelink wireless control
system)
(Type A)

Light sensor

Before Driving

Mirrors

3-35

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

(Type B)

Light sensor

(Without Homelink wireless control
system)

Light sensor



(With Homelink wireless control
system)
For information regarding the 3 buttons
(Type A

/Type B , ,

)

on the auto-dimming mirror.
Refer to HomeLink Wireless Control
System on page 4-85.



The auto-dimming function is canceled
when the ignition is switched ON and
the selector lever is in the R position.

Before Driving

Mirrors

3-36

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

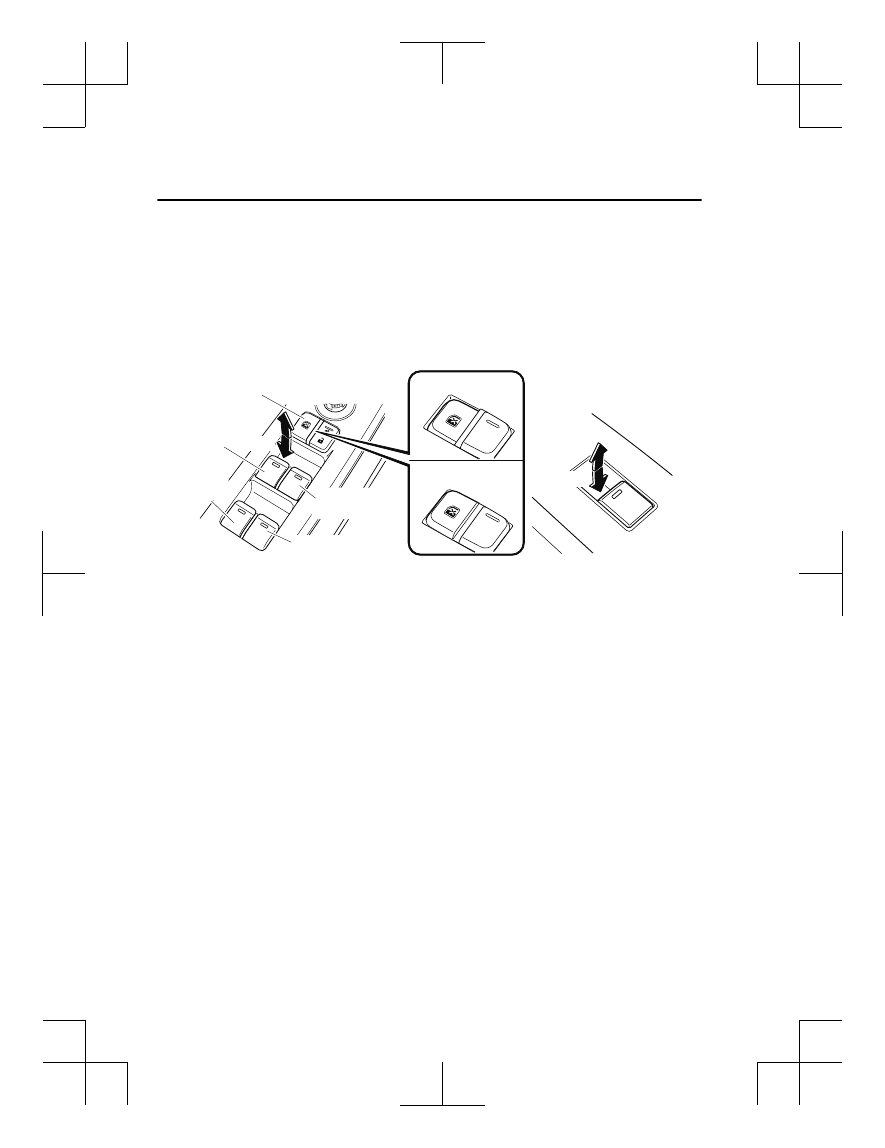

Power Windows

The windows can be opened/closed by operating the power window switches.

WARNING

Make sure the opening is clear before closing a window:
Closing a power window is dangerous. A person's hands, head, or even neck could be caught
by the window and result in serious injury or even death. This warning applies especially to
children.

Never allow children to play with power window switches:
Power window switches that are not locked with the power window lock switch would allow
children to operate power windows unintentionally, which could result in serious injury if a
child's hands, head or neck becomes caught by the window.

Make sure nothing blocks the window just before it reaches the fully closed position or while
fully holding up the power window switch:
Blocking the power window just before it reaches the fully closed position or while fully
holding up the power window switch is dangerous.
In this case, the jam-safe function cannot prevent the window from closing all the way. If
fingers are caught, serious injuries could occur.

NOTE
When driving with only 1 of the rear windows open, your ears might experience a
resonating sound. However, this does not indicate a problem. The sound can be reduced by
slightly opening a front window or by changing the size of the rear window opening.

Before Driving

Windows

3-37

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Opening/Closing Windows

The window opens while the switch is pressed and it closes while the switch is pulled up
with the ignition switched ON. Do not open or close 3 or more windows at the same time.
The front passenger's side and rear windows can be opened/closed when the power window
lock switch on the driver's door is in the unlock position. Keep this switch in the locked
position while children are in the vehicle.

Open

Right rear window

Driver's
window

Power window
lock switch

Master control switches

Front passenger's
window switch

Locked position

Unlocked position

Front passenger's
window

Left rear
window

Rear window switches

NOTE



A power window may no longer open/close if you continue to press the switch after fully
opening/closing the power window. If the power window does not open/close, wait a
moment and then operate the switch again.



The passenger windows may be opened or closed using the master control switches on the
driver's door.



The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power window, the switch must be held up firmly
throughout window closure because the auto-closing function will be inoperable.



When the power window lock switch is in the locked position, the light on each power
window switch, except for the driver's power window switch, turns off. The light may be
difficult to see depending on the surrounding brightness.

Before Driving

Windows

3-38

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Auto-opening/Closing

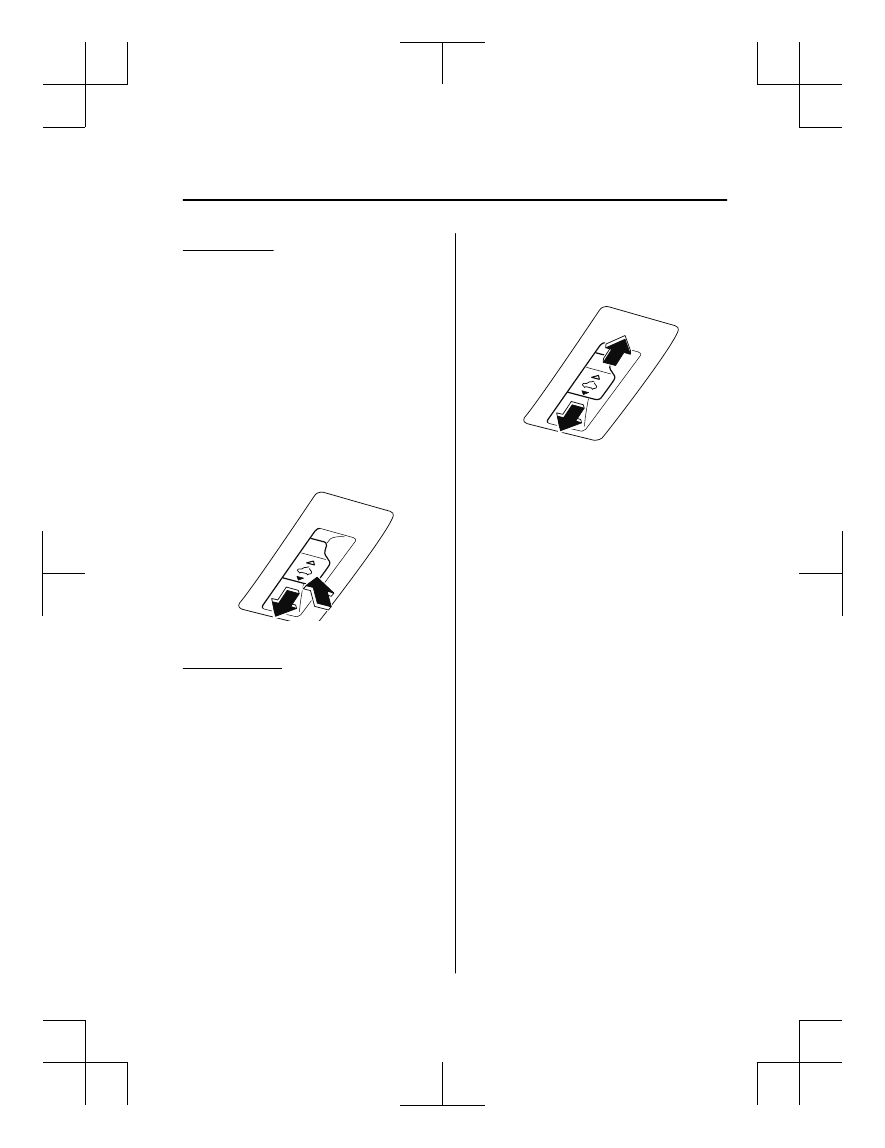

To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window partway, pull or press
the switch in the opposite direction and
then release it.

NOTE
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
The power window auto function will only
resume on a power window that has been
reset.
1. Switch the ignition ON.
2. Make sure that the power window lock

switch located on the driver's door is
not depressed.

3. Press the switch and fully open the

window.

4. Pull up the switch to fully close the

window and continue holding the
switch for about 2 seconds after the
window fully closed.

5. Make sure that the power windows

operate correctly using the door
switches.

After the system has been re-initialized,
each passenger window can be fully
opened or closed automatically using the
master control switches.

▼ Jam-safe Window

If foreign matter is detected between the
window and the window frame while the
window is closing automatically (refer to
Auto-opening/Closing on page 3-39), the
window stops closing and automatically
opens partway.

NOTE



The jam-safe function may operate
under the following conditions:



A strong impact is detected while the
window is closing automatically.



Window is closing automatically in
very low temperatures.



In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch and the window will close.



The jam-safe window function does not
operate until the system has been reset.

Before Driving

Windows

3-39

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Moonroof

The moonroof can be opened or closed
when operating the overhead tilt/slide
switch at the front seats.

WARNING

Do not let passengers stand up or extend
part of the body through the open
moonroof while the vehicle is moving:
Extending the head, arms, or other parts of
the body through the moonroof is
dangerous. The head or arms could hit
something while the vehicle is moving. This
could cause serious injury or death.

Never allow children to play with the tilt/
slide switch:
The tilt/slide switch would allow children to
operate the moonroof unintentionally,
which could result in serious injury if a
child's hands, head or neck becomes
caught by the moonroof.

Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it as it
closes, causing serious injury or even death.

Make sure nothing blocks the moonroof
just before it reaches the fully closed
position:
Blocking the moonroof just before it
reaches the closed position is dangerous.
In this case, the jam-safe function cannot
prevent the moonroof from closing. If
fingers are caught, serious injuries could
occur.

CAUTION

Do not sit on or put heavy items on the

area where the moonroof opens and
closes. Otherwise, the moonroof could be
damaged.

Do not open or close the moonroof

forcefully during freezing temperatures
or snowfall. Otherwise, the moonroof
could be damaged.

The sunshade does not tilt. To avoid

damaging the sunshade, do not push it
up.

Do not close the sunshade while the

moonroof is opening. Trying to force the
sunshade closed could damage it.

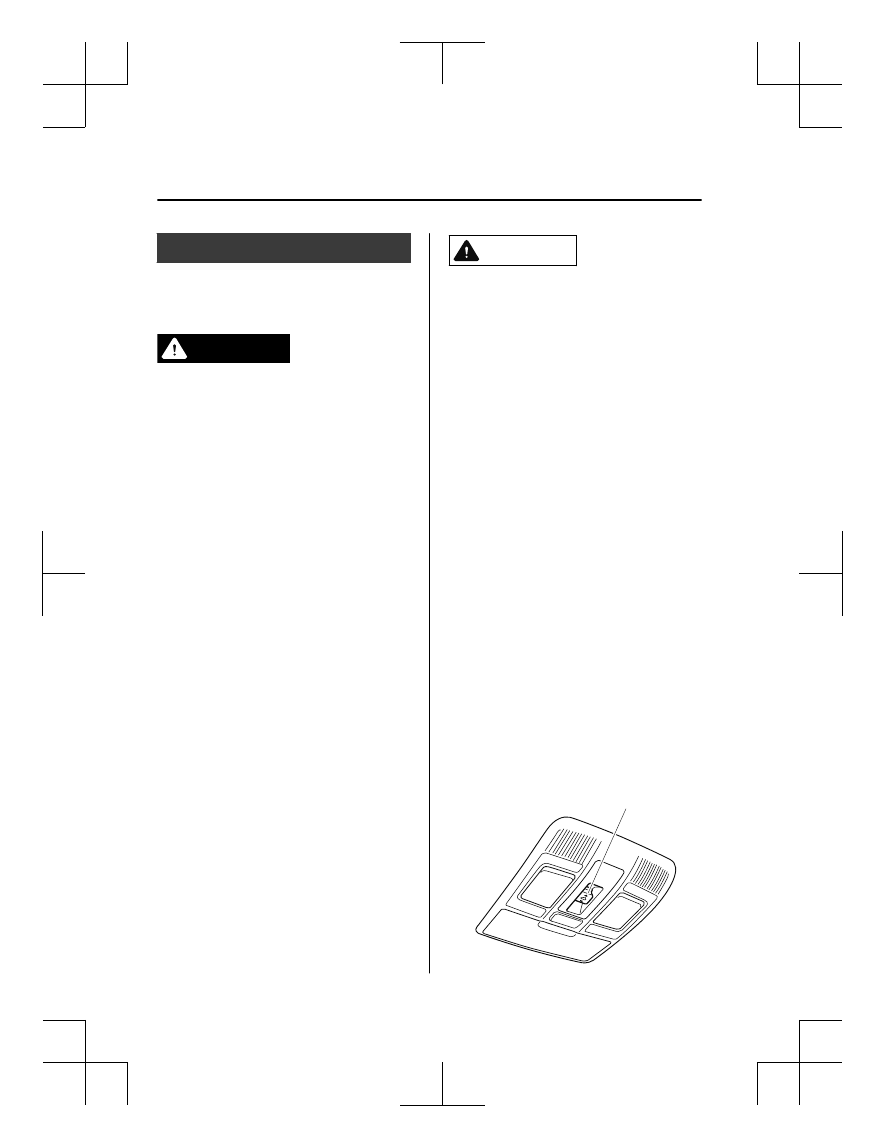

▼ Tilt/Slide Operation

The moonroof can be opened or closed
electrically only when the ignition is
switched ON.



Before leaving the vehicle or washing
your Mazda, make sure the moonroof is
completely closed so that water does not
get inside the cabin area.



After washing your Mazda or after it
rains, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.

Tilt/Slide switch

Before Driving

Windows

3-40

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Tilt Operation

The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
When the moonroof is already slid open
and you want to tilt it open, first close the
moonroof and then do a tilt operation.

Close (Tilt down)

Tilt up

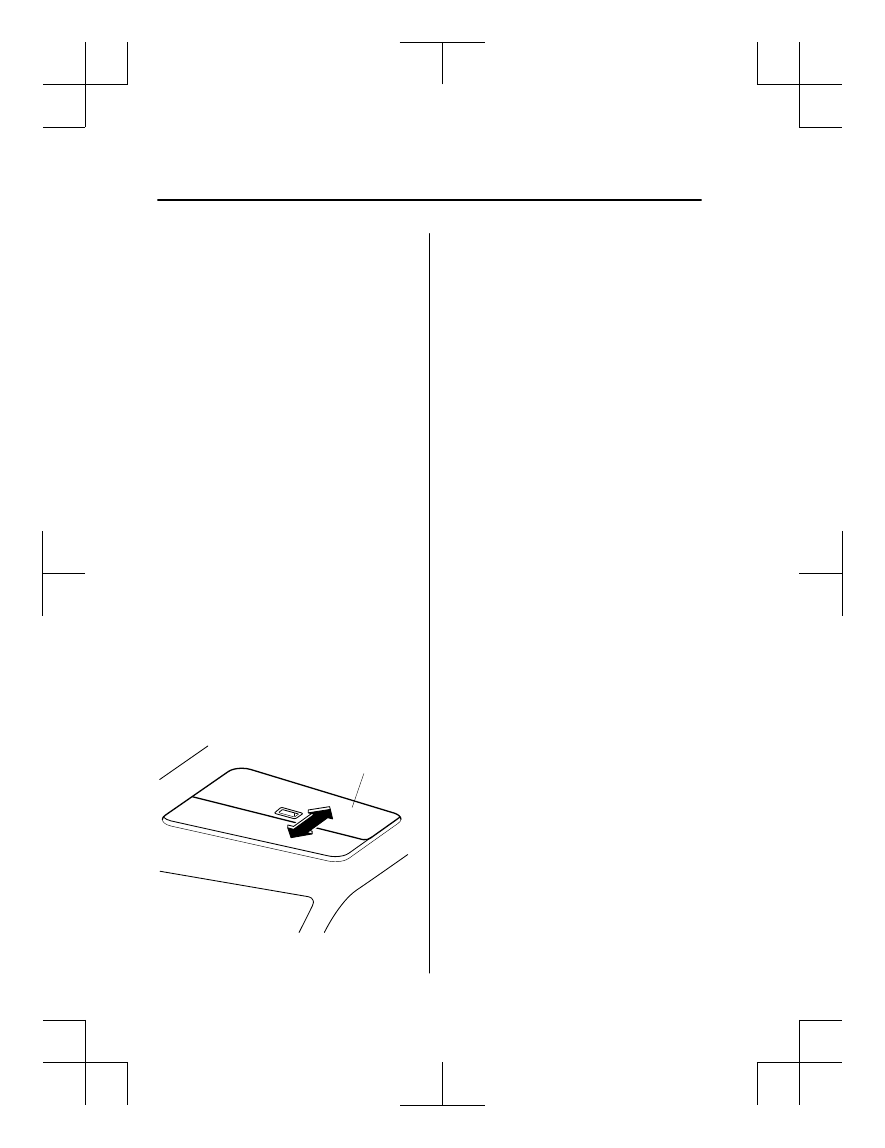

Slide Operation

To fully open automatically, momentarily
press the tilt/slide switch in the backward
direction.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop sliding partway, press the tilt/slide
switch.

When the moonroof is already tilted open
and you want to slide it open, first close
the moonroof and then do a slide
operation.

Open

NOTE
If the moonroof does not operate normally,
do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt

open the rear of the moonroof.

3. Repeat Step 2. The rear of the

moonroof tilts open to the fully open
position, then closes a little.

If the reset procedure is performed while
the moonroof is in the slide position
(partially open) it will close before the
rear tilt opens.

Before Driving

Windows

3-41

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Jam-safe Moonroof

If a person's hands, head or an object
blocks the moonroof while it is closing,
the moonroof will stop and move in the
open direction.

NOTE



The jam-safe function may operate
under the following conditions:



A strong impact is detected while the
moonroof is closing automatically.



The moonroof is closing automatically
during very low temperatures.



In the event the jam-safe function
activates and the moonroof cannot be
closed automatically, press the tilt/slide
switch and the moonroof will close.



The jam-safe moonroof function does
not operate until the system has been
reset.

▼ Sunshade

The sunshade can be opened and closed by
hand.

The sunshade opens at the same time as
the moonroof slides open, but it must be
closed by hand.

Sunshade

Before Driving

Windows

3-42

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Modification and Add-On

Equipment

Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.

CAUTION

To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.

Immobilizer System

The immobilizer system allows the engine
to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

CAUTION

Radio equipment like this is governed by

laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.

To avoid damage to the key, do not:

Drop the key.
Get the key wet.
Expose the key to any kind of magnetic

field.

Expose the key to high temperatures

on places such as the dashboard or
hood, under direct sunlight.

If the engine does not start with the

correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

Before Driving

Security System

3-43

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE



The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.



Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.



If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.

▼ Operation

NOTE



The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key to
a location within the signal range,
switch the ignition off, and then restart
the engine.



Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.

Arming

The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming

The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after 3
or more tries, contact an Authorized
Mazda Dealer.

NOTE



If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.



Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorized Mazda
Dealer so that they can be programmed.

Before Driving

Security System

3-44

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Theft-Deterrent System

If the theft-deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.

▼ Operation

System triggering conditions

The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:



Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.



Forcing open a door, the hood or the
liftgate.



Opening the hood by operating the hood
release handle.



Switching the ignition ON without using
the push button start.

If the system is triggered again, the lights
and horn will activate until the driver's
door or the liftgate is unlocked with the
transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.

NOTE



The liftgate does not open while the
theft-deterrent system is operating.



For vehicles equipped with the power
liftgate, the liftgate can be opened even
while the theft-deterrent system is
operating by pressing the power liftgate
button on the transmitter or the electric
liftgate opener switch while carrying the
key.



If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash when the battery is
charged or replaced.

▼ How to Arm the System

1. Close the windows and the moonroof

securely.

2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the

liftgate are closed.

4. Press the lock button on the transmitter

or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “ ” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.

Before Driving

Security System

*Some models.

3-45

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Mazda CX-5 (2019 year). Manual - part 8
