About folders and files

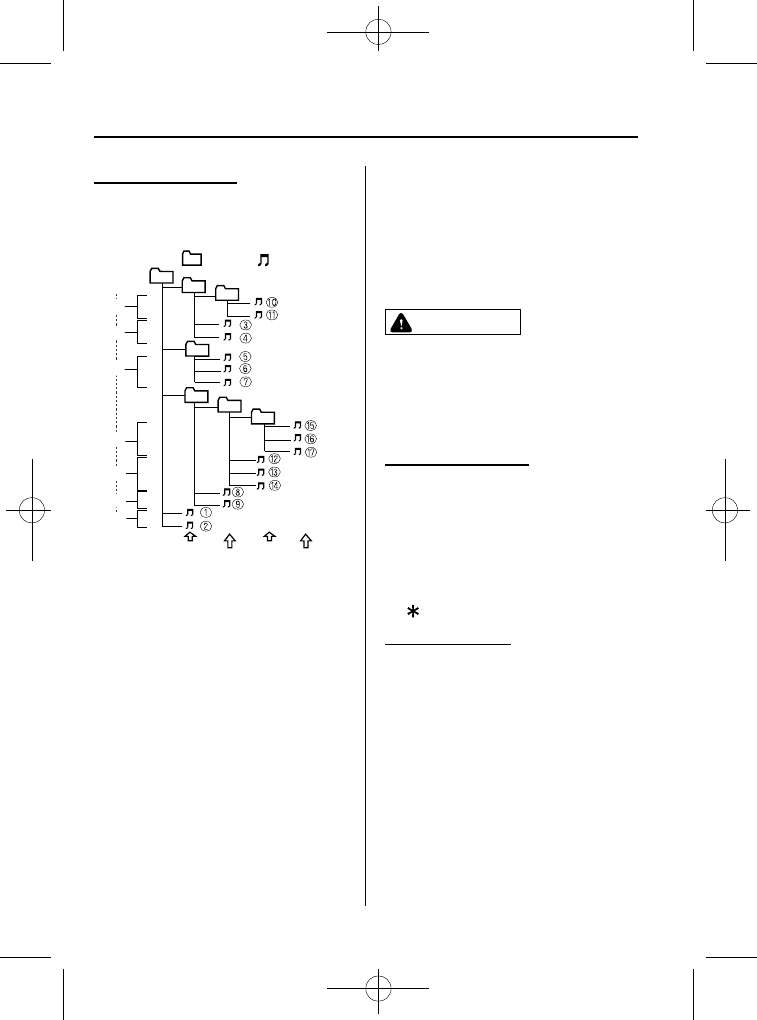

The arrangement and playing order of a
recorded disc containing MP3 files is
as follows:

Folder
No.

Level1

Level2

Level3

Playback may not occur in the above
hierarchy depending on the audio unit.

Level4

: Track (File)

: Folder

The folder order is automatically
assigned and this order cannot be
optionally set.

Any folder without an MP3 file will be
ignored. (It will be skipped and the
folder number will not be displayed.)

MP3 files not conforming to the MP3
format containing both header frames
and data frames will be skipped and
not played.

This unit will play MP3 files that have
up to eight levels. However, the more
levels a disc has, the longer it will take
to initially start playing. It is
recommended to record discs with two
levels or less.

A single disc with up to 512 files can
be played and a single folder with up to
255 files can be played.

When naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.

The number of characters which can be
displayed is restricted.

CAUTION

This unit can only play MP3 files that
have an MP3 file extension (.mp3)
attached. Do not attach an MP3 file
extension to any other type file as it
could cause noise to be emitted or a
malfunction in the unit.

About ID3 Tag display

This unit can only display ID3 Tag
album, track and artist names that have
been input using Ver.1.0/1.1/2.2/2.3/2.4
formats. Any other data that may have
been input cannot be displayed.

This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(

Specialized glossary

MP3

Abbreviation for

“MPEG Audio Layer 3”.

A technical standard for audio
compression as decided by the ISO

MPEG working group. Use of MP3
allows for audio data to be compressed to
approximately a tenth of the source data
size.
*1 International Organization for

Standardization

6-18

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page216
Monday, May 23 2016 7:35 PM

Black plate (217,1)

ISO 9660

An international standard for logical
formatting of CD-ROM files and folders.
It is divided into three separate levels
based on differences in file naming
procedures, data configuration and other
characteristics.

Multi-session

A session is the complete amount of data
recorded from the beginning to the end of
a single period of CD-ROM, CD-R/CD-
RW data recording. Multi-session refers to
the existence of data from two or more
sessions on a single disc.

Sampling

Refers to the process of encoding analog
audio data at regular intervals and
converting it to digital data. The sampling
rate refers to the number of times a
sample is taken in one second and is
expressed in Hz units. Increasing the
sampling rate improves the sound quality
but also increases the data size.

Bit rate

Refers to the volume of data per second,
expressed in bps (bits per second).
Generally, the larger the number of the
transfer bit rate when compressing an
MP3 file, the more information regarding
musical reproduction it carries, and
therefore the better the sound quality.

Packet writing

A general term for the method, similar to
that used for floppy discs or hard drives,
of recording the required file in a single
increment on a CD-R and similar.

ID3 Tag

ID3 tag is a method for storing
information related to the music in an
MP3 file. Information such as track, artist
and album name can be stored. This
content can be freely edited using ID3
editing function software.

VBR

Abbreviation for Variable Bit Rate. While
CBR (Constant Bit Rate) is generally
used, VBR varies the bit rate for audio
compression according to compression
conditions and this allows for
compression with preference given to
sound quality.

qOperating Tips for WMA

WMA is short for Windows Media Audio
and is the audio compression format used
by Microsoft.
Audio data can be created and stored at a
higher compression ratio than MP3.
* Microsoft and Windows Media are

registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.

Playable WMA files are as follows:

Item

Content

Specification

Windows Media Audio Version
7.0, 8.0, 9.0

Sampling rate

22.05 kHz (MID)
44.1/48/32 kHz (HI)

Bit rate

―192 kbps (Version 7.0, 8.0)

―320 kbps (Version 9.0)

Interior Comfort

Audio System

6-19

Mazda5_8FN4-EA-16G_Edition1 Page217
Monday, May 23 2016 7:35 PM

Black plate (218,1)

CAUTION

This unit plays files with the (.wma)
file extension as a WMA file. Do not
use the WMA file extension for files
other than WMA files. Otherwise, it
could result in noise or a
malfunction.

Track, artist and album name
information is recorded as data termed

“WMA-Tag”, and this information is
displayable.

WMA files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.

The file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension

“.wma” to the end of the file name, and
then write it to the disc.

qOperating Tips for AAC

Advanced Audio Coding (AAC) is
standardized voice compression
established by the ISO

working group

(MPEG). Audio data can be created and
stored at a higher compression ratio than
MP3.
*1 International Organization for

Standardization

Playable AAC file specifications

This unit supports playback of AAC files
recorded in CD-R and CD-RW.

Playable AAC files are as follows:

Item

Content

Specification

MPEG-4 AAC-LC

Sampling rate

8/11.025/12 kHz
16/22.05/24 kHz
32/44.1/48 kHz

Bit rate

―320 kbps

CAUTION

This unit plays files with the file
extension (.aac/.m4a) as an AAC file.
Do not use the AAC file extension for
files other than AAC files. Otherwise,
it could result in noise or a
malfunction.

Song, artist, and album name
information in the AAC file is recorded
as data termed

“iTunes, m4a, Meta-Data applicable”,
and this information is displayable.

AAC files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.

The file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension

“.aac/.m4a” to the end of the file name,
then write it to the disc.

6-20

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page218
Monday, May 23 2016 7:35 PM

Black plate (219,1)

qOperating Tips for USB device

This unit supports playback of MP3/
WMA/AAC files recorded to USB device.

NOTE

Music data (MP3/WMA/AAC (.aac/.m4a)
format) stored in a USB mass-storage class
compliant device (such as USB flash
memory) can be played.

Playback may not be possible depending on
the type and condition of the USB flash
memory even if the audio file complies with
the previous standard.

A copyright protected WMA/AAC file
cannot be played in this unit.

The order of the music data stored in the
device may differ from the playback order.

To prevent loss or damage of stored data,
we recommend that you always back up
your data.

If a device exceeds the maximum electric
current value of 500 mA, it may not operate
or recharge when connected.

Do not pull out the USB device while in the
USB mode (only pull it out while in FM/AM
radio or CD mode).

The device will not operate if the data is
password protected.

Playable MP3 file specifications

Playable MP3 files are as follows:

Item

Content

Specification

MPEG1 AUDIO LAYER III
MPEG2 AUDIO LAYER III
MPEG2.5

Sampling rate

44.1/48/32 kHz (MPEG1)
22.05/24/16 kHz (MPEG2)
11.025/12/8 kHz (MPEG2.5)

Bit rate

―320 kbps (MPEG1)

―160 kbps (MPEG2)

―160 kbps (MPEG2.5)

CAUTION

This unit plays files with the file
extension (mp3) as an MP3 file. Do
not use the MP3 file extension for
files other than MP3 files. Otherwise,
it could result in noise or a
malfunction.

MP3 files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.

The file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension

“.mp3” to the end of the file name, and
then write it to the memory.

Playable WMA file specification

Playable WMA files are as follows:

Item

Content

Specification

Windows Media Audio Version
7.0, 8.0, 9.0 (standard)

Sampling rate

22.05 kHz (MID)
44.1/48/32 kHz (HI)

Bit rate

―192 kbps (Version 7.0, 8.0)

―320 kbps (Version 9.0)

CAUTION

This unit plays files with the file
extension (wma) as a WMA file. Do
not use the WMA file extension for
files other than WMA files.
Otherwise, it could result in noise or
a malfunction.

WMA files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.

Interior Comfort

Audio System

6-21

Mazda5_8FN4-EA-16G_Edition1 Page219
Monday, May 23 2016 7:35 PM

Black plate (220,1)

The file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension

“.wma” to the end of the file name, and
then write it to the memory.

Playable AAC file specification

Playable AAC files are as follows:

Item

Content

Specification

MPEG4 AAC-LC

Sampling rate

8/11.025/12 kHz
16/22.05/24 kHz
32/44.1/48 kHz

Bit rate

―320 kbps

CAUTION

This unit plays files with the file
extension (.aac/.m4a) as an AAC file.
Do not use the AAC file extension for
files other than AAC files. Otherwise,
it could result in noise or a
malfunction.

AAC files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.

The file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension

“.aac” or “.m4a” to the end of the file
name, and then write it to the memory.

qOperating Tips for iPod

This unit supports playback of music files
recorded to an iPod.

iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.

iPod classic is a trademark of Apple
Inc., registered in the U.S. and other
countries.

iPod nano is a trademark of Apple Inc.,
registered in the U.S. and other
countries.

iPod touch is a trademark of Apple
Inc., registered in the U.S. and other
countries.

iPhone is a trademark of Apple Inc.,
registered in the U.S. and other
countries.

Connectable iPods are as follows:

iPod: 5G

iPod classic

iPod nano: 1/2/3/4/5/6G

iPod touch

iPhone

: 3G/3GS/4

*1 Only iPod functions

6-22

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page220
Monday, May 23 2016 7:35 PM

Black plate (221,1)

CAUTION

Ø Remove the iPod when it is not in

use. Because the iPod is not
designed to withstand excessive
changes in temperature inside the
cabin, it could be damaged or the
battery may deteriorate due to the
excessive temperature or humidity
inside the cabin if it is left in the
vehicle.

Ø If data in the iPod is lost while it is

connected to the unit, Mazda
cannot guarantee recovery of any
lost data.

Ø If the iPod battery is deteriorated,

the iPod may not recharge and
playback may not be possible
when it is connected to the unit.
Replace the iPod battery
immediately.

Ø For the details on using the iPod,

refer to the iPod instruction
manual.

Ø When connecting the iPod to a

USB port, all commands are made
from the audio unit. iPod control is
not possible.

NOTE

The audio unit cannot display images or
videos stored in an iPod.

Interior Comfort

Audio System

6-23

Mazda5_8FN4-EA-16G_Edition1 Page221
Monday, May 23 2016 7:35 PM

Black plate (222,1)

MEMO

6-24

Mazda5_8FN4-EA-16G_Edition1 Page222
Monday, May 23 2016 7:35 PM

Black plate (223,1)

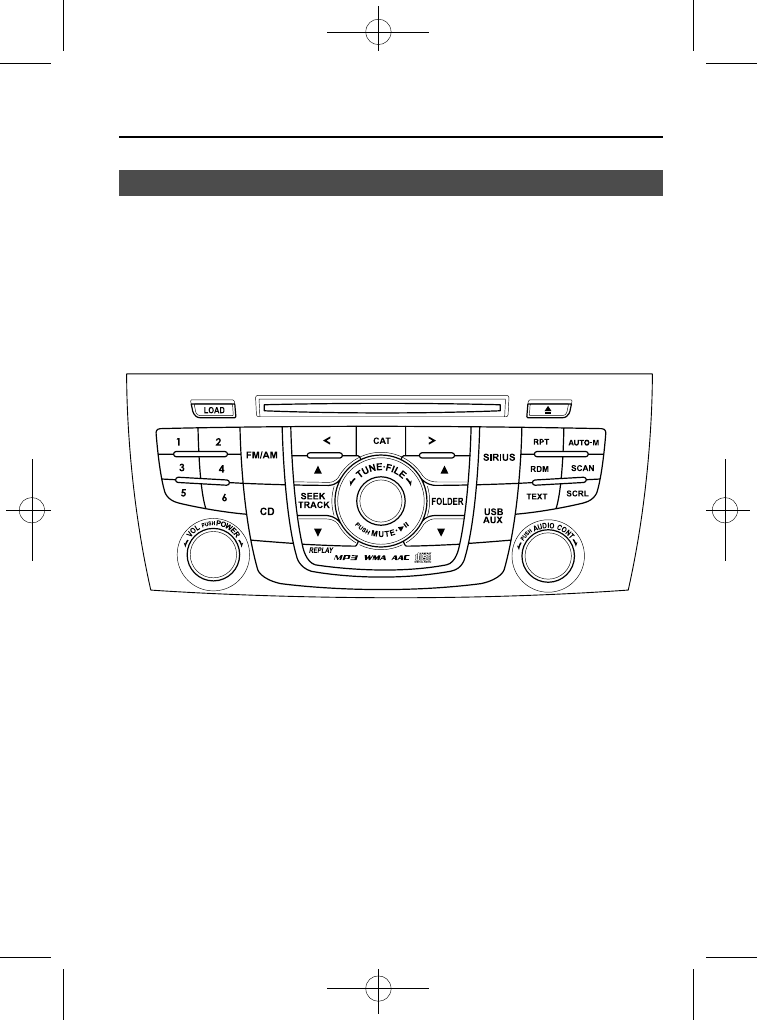

Audio Set

Audio information is displayed on the information display.

Interior Comfort

Audio System

6-25

Mazda5_8FN4-EA-16G_Edition1 Page223
Monday, May 23 2016 7:35 PM

Black plate (224,1)

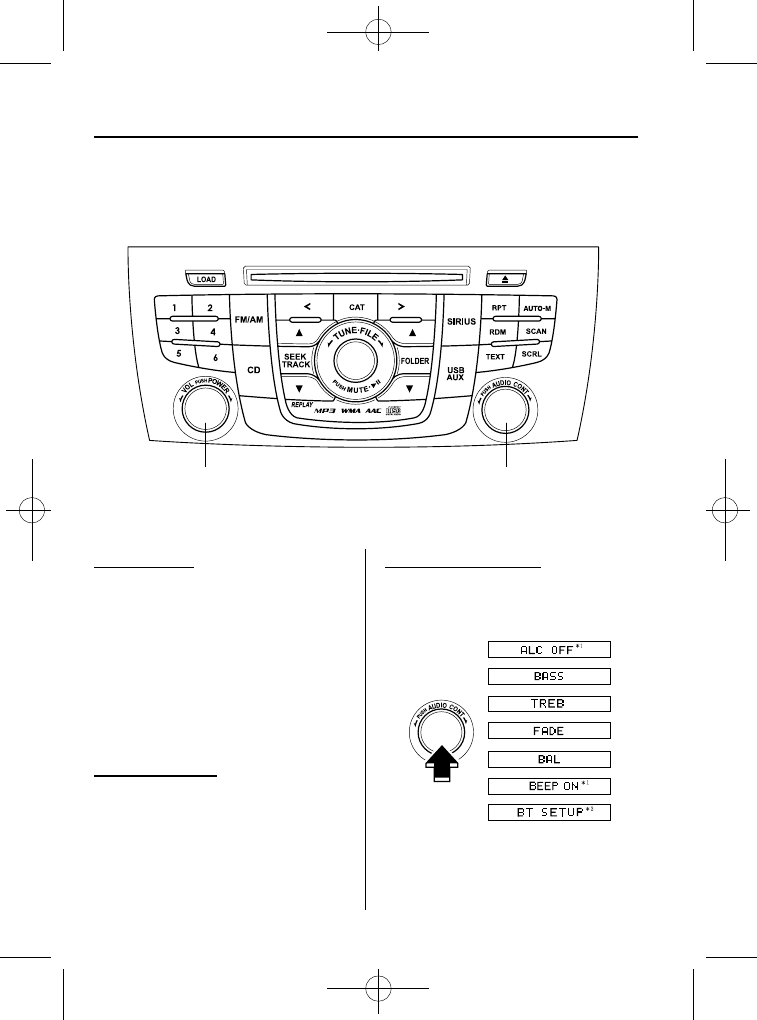

qPower/Volume/Sound Controls

Audio control dial

Power/Volume dial

Power ON/OFF

Switch the ignition to ACC or ON.

Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.

NOTE

To prevent the battery from being discharged,
do not leave the audio system on for a long
period of time when the engine is not running.

Volume adjustment

To adjust the volume, turn the power/
volume dial.

Turn the power/volume dial to the right to
increase volume, to the left to decrease it.

Audio sound adjustment

1. Press the audio control dial to select the

function. The selected function will be
indicated.

*1 Depending on the mode selected, the

indication changes.

*2 Depending on the model, this

function, may not be available.

6-26

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page224
Monday, May 23 2016 7:35 PM

Black plate (225,1)

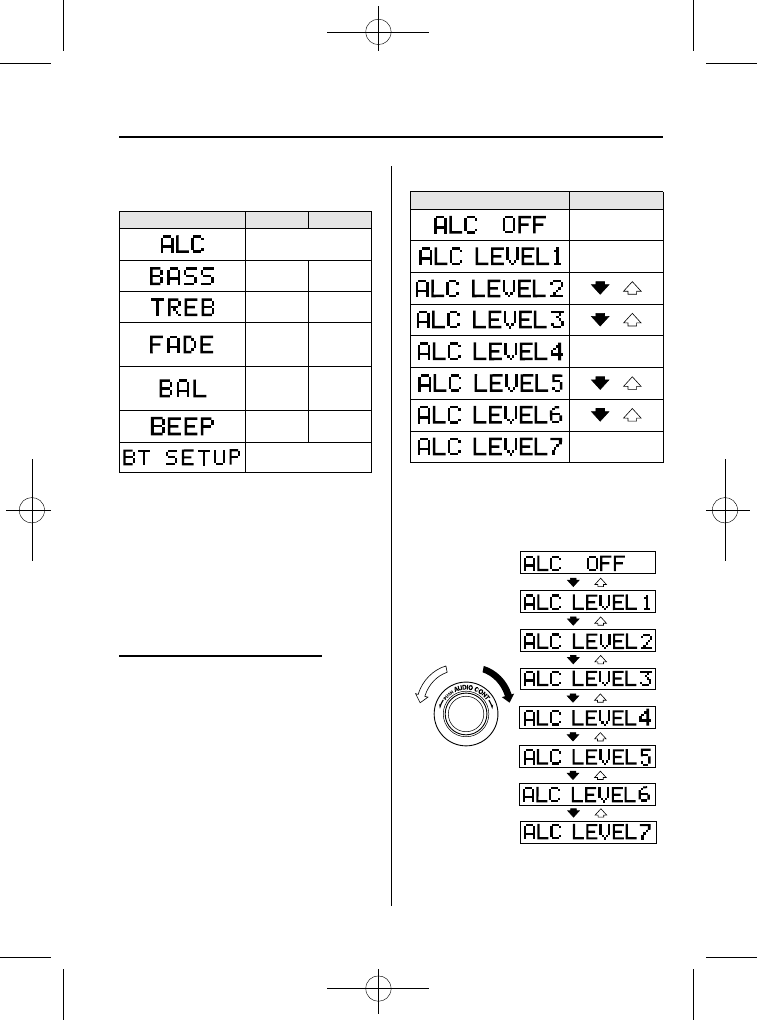

2. Turn the audio control dial to adjust the

selected functions as follows:

Indication

Turn Left Turn Right

Select mode

Decrease

bass

Increase

bass

Decrease

treble

Increase

treble

Shift the

sound to the

front

Shift the

sound to the

rear

Shift the

sound to the

left

Shift the

sound to the

right

off

Select mode

NOTE

Depending on the type of audio unit, the
order in which the functions appear differs.

About 5 seconds after selecting any mode,
the volume function will be automatically
selected. To reset bass, treble, fade, and
balance, press the audio control dial for 2
seconds. The unit will beep and

“CLEAR”

will be displayed.

Automatic Level Control (ALC)

The automatic level control (ALC) is a
feature that automatically adjusts audio
volume and sound quality according to
the vehicle speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.

Select the desired ALC mode.

Mode

Volume change

No change

Minimum

Medium

Maximum

Turn the audio control dial to select ALC
OFF or ALC LEVEL1

―7 modes. The

selected mode will be indicated.

Interior Comfort

Audio System

6-27

Mazda5_8FN4-EA-16G_Edition1 Page225
Monday, May 23 2016 7:35 PM

Black plate (226,1)

BEEP setting

The beep-sound when operating the audio
system can be set on or off.

BT SETUP mode

Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth

transmission function can be listened to
via wireless transmission over the
vehicle's speakers. Using the BT SETUP
mode, these devices can be programmed
to the Bluetooth

unit or changed.

Refer to Bluetooth® Audio on page 6-62.

6-28

Interior Comfort

Some models.

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page226
Monday, May 23 2016 7:35 PM

Black plate (227,1)

MEMO

6-29

Mazda5_8FN4-EA-16G_Edition1 Page227
Monday, May 23 2016 7:35 PM

Black plate (228,1)

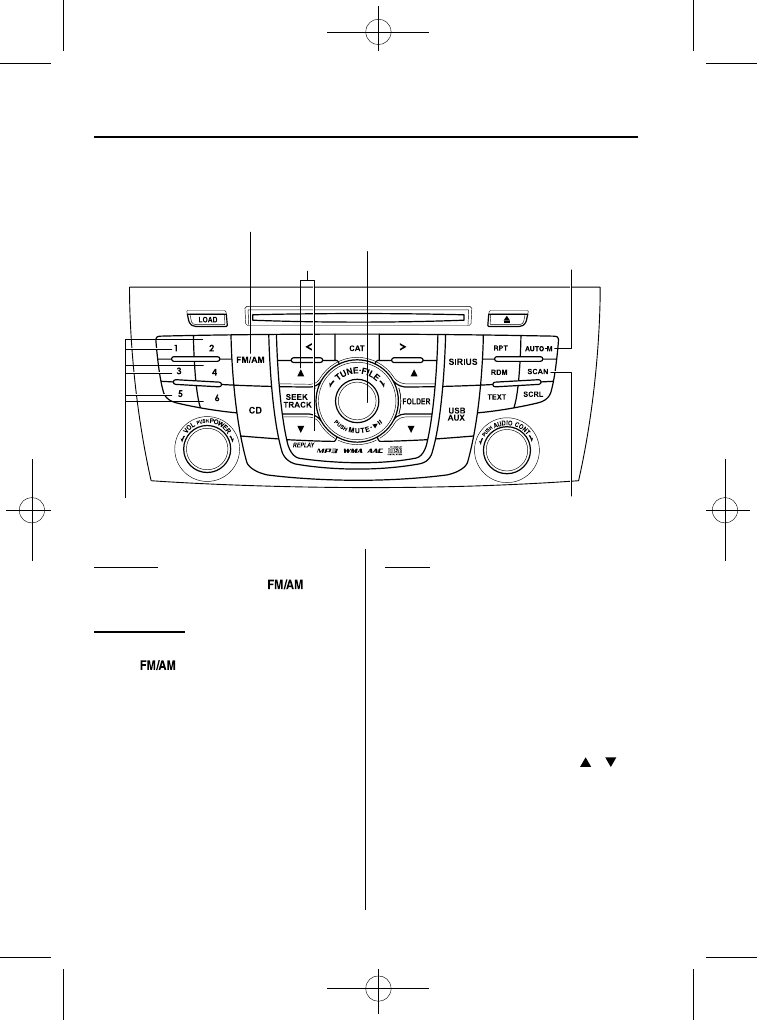

qOperating the Radio

Auto memory button

Channel preset buttons

Scan button

Manual tuning dial/Mute button

Band selector button

Seek tuning buttons

Radio ON

Press a band selector button (

) to

turn the radio on.

Band selection

Successively pressing the band selector
button (

) switches the bands as

follows: FM1

→FM2→AM.

The selected mode will be indicated. If
FM stereo is being received,

“ST” will be

displayed.

NOTE

If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise, and the
“ST” indicator will go out.

Tuning

The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.

Manual tuning

Turning the manual tuning dial will
change the frequency higher or lower.

Seek tuning

Pressing the seek tuning button (

)

will cause the tuner to seek a higher or
lower frequency automatically.

NOTE

If you continue to press and hold the button,
the frequency will continue changing without
stopping.

6-30

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page228
Monday, May 23 2016 7:35 PM

Black plate (229,1)

Scan tuning

Press the scan button (

) to

automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button (

) again during this interval.

Preset channel tuning

The 6 preset channels can be used to store
6 AM and 12 FM stations.

1. To set a channel first select AM, FM1,

or FM2. Tune to the desired station.

2. Depress a channel preset button for

about 2 seconds until a beep sound is
heard. The preset channel number and
station frequency will be displayed.
The station is now held in the memory.

3. Repeat this operation for the other

stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.

Auto memory tuning

This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.

Press and hold the auto memory button
(

) for about 2 seconds until a beep

sound is heard; the system will
automatically scan and temporarily store
up to 6 stations with the strongest
frequencies in each selected band in that
area.

After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(

) to recall stations from the auto-

stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.

NOTE

If no stations can be tuned after scanning
operations,

“A” will be displayed.

Mute

Press the mute button (

) once to

mute the audio. Press it again to resume
audio output.

Interior Comfort

Audio System

6-31

Mazda5_8FN4-EA-16G_Edition1 Page229
Monday, May 23 2016 7:35 PM

Black plate (230,1)

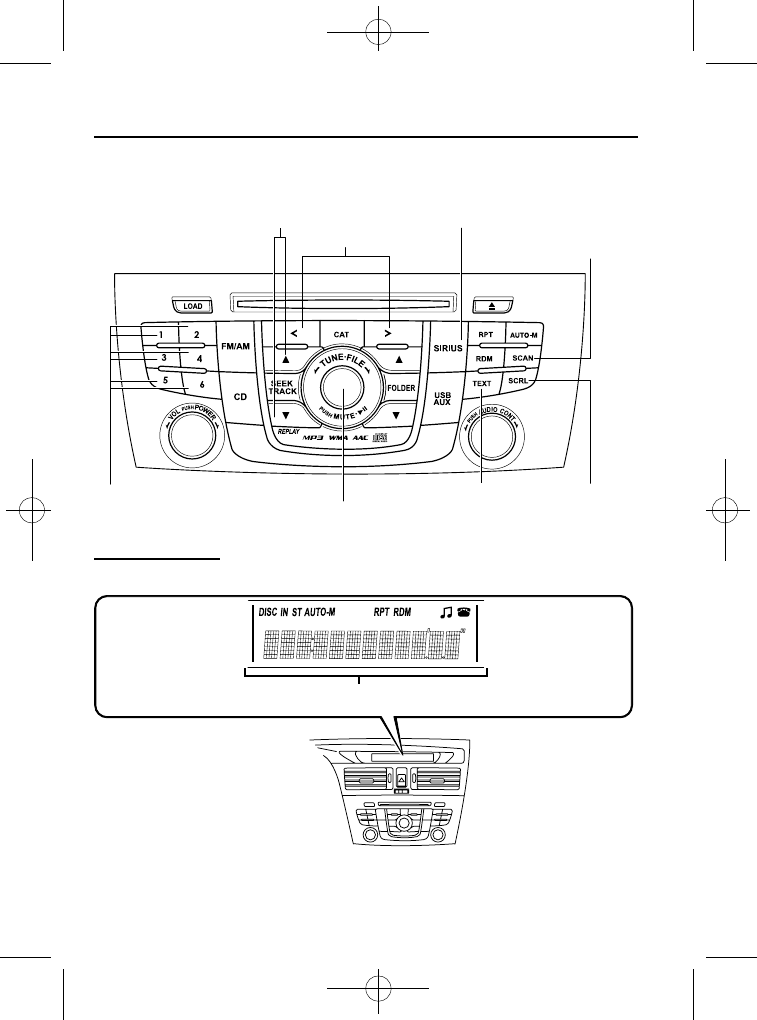

qOperating the Satellite Radio

Scan button

Scroll button

Channel preset buttons

Text button

Manual tuning dial/Instant replay button

Satellite button

Seek tuning buttons

Category buttons

Information display

All operations of the satellite radio are displayed on the Information display.

Channel number, Channel name, Category name, Artist name, Song title, ID
code, Preset channel number, Bank number, Error signs

6-32

Interior Comfort

Some models.

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page230
Monday, May 23 2016 7:35 PM

Black plate (231,1)

NOTE

This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
- Increase the separation between the
equipment and tuner.
- Connect the equipment into an outlet on a
circuit different from that to which the tuner is
connected.
- Consult the dealer or an experienced radio/
TV technician for help.

What is satellite radio?

With over 130 channels, SIRIUS Satellite
Radio brings you more of what you love.
Get 69 channels of 100 % commercial-
free music, plus all your favorite sports,
news, talk and entertainment. Everything
worth listening to is now on SIRIUS.
100 % Commercial-free Music

―With

music from every genre, artist-dedicated
channels, live performances and more,
SIRIUS is the home of 100 %
commercial-free music.
Live Sports Play-by-Play & Expert
Talk

―Hear every NFL game, every

NASCAR

race and college sports

coverage from over 150 schools. Plus
24/7 sports talk with channels like
SIRIUS NFL Radio, SIRIUS NASCAR
Radio and more.
Exclusive Entertainment and
Talk

―The biggest names, compelling

talk, hilarious comedy. Hear Howard
Stern, Martha Stewart, Jamie Foxx, Blue
Collar Comedy, Playboy Radio, political
talk and more.
World-class News

―Stay informed with

FOX, CNN, CNBC, NPR

, BBC and

more.
Plus local traffic and weather.
Family & Kids

―Entertain the entire

family with Radio Disney, Kids Place
Live, Laugh USA and more.

Sign up for SIRIUS Radio today! For
more information, visit
www.siriusxm.com.
Satellite radio is only available in regions
providing satellite radio service (some
areas of the United States and Canada).

How to Activate Satellite Radio

You must call SIRIUS to activate your
service. Activation is free and takes only a
few minutes.

Interior Comfort

Audio System

6-33

Mazda5_8FN4-EA-16G_Edition1 Page231
Monday, May 23 2016 7:35 PM

Content .. 12 13 14 15 ..
