2) If the locking key of remote controller is not pressed for alarm setting within ten seconds, the
steering light flashes for three times and annunciator sounds for three times for locking indication
with alarm setting implemented.

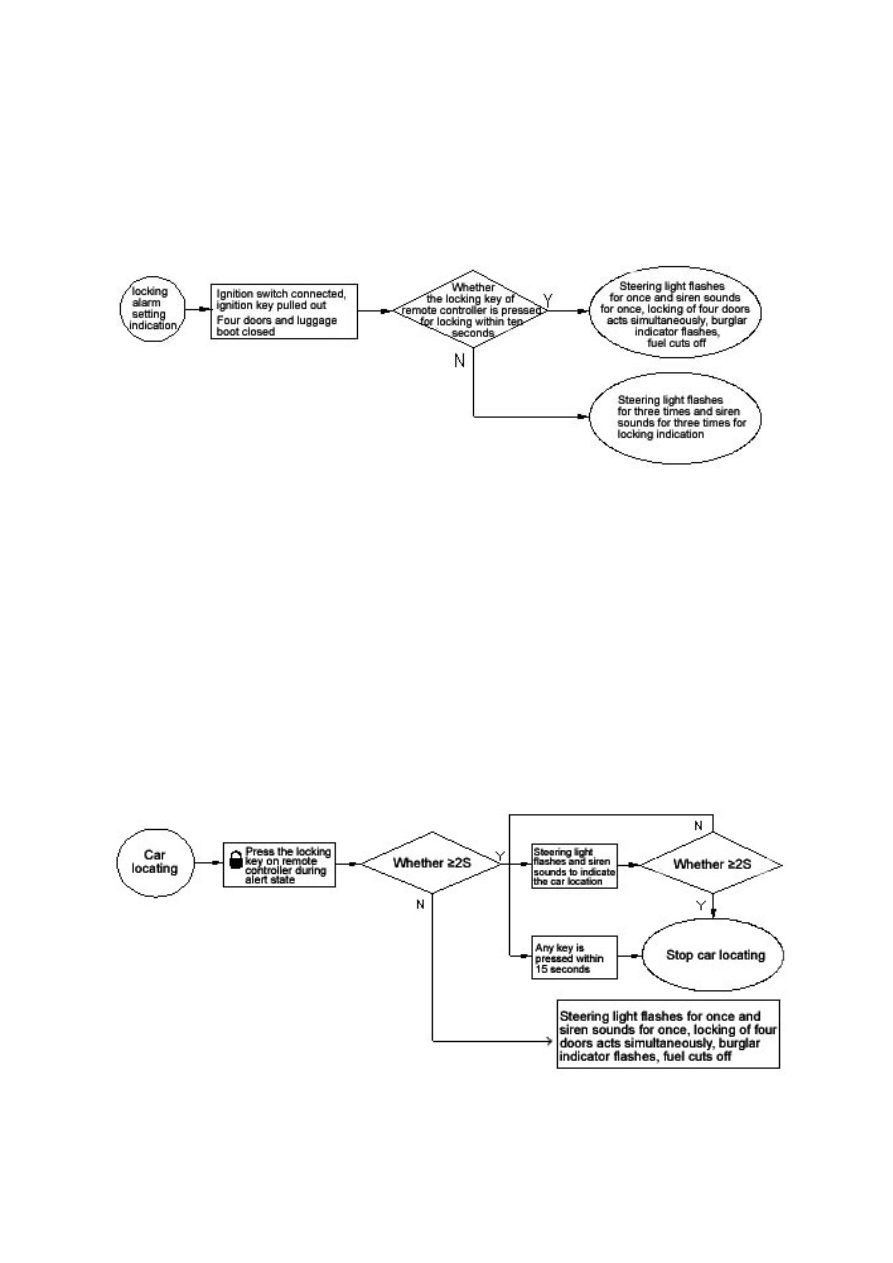

(2) Logical flow of locking alarm setting indication
As shown in Fig. 4-44.






Fig. 4-45



221

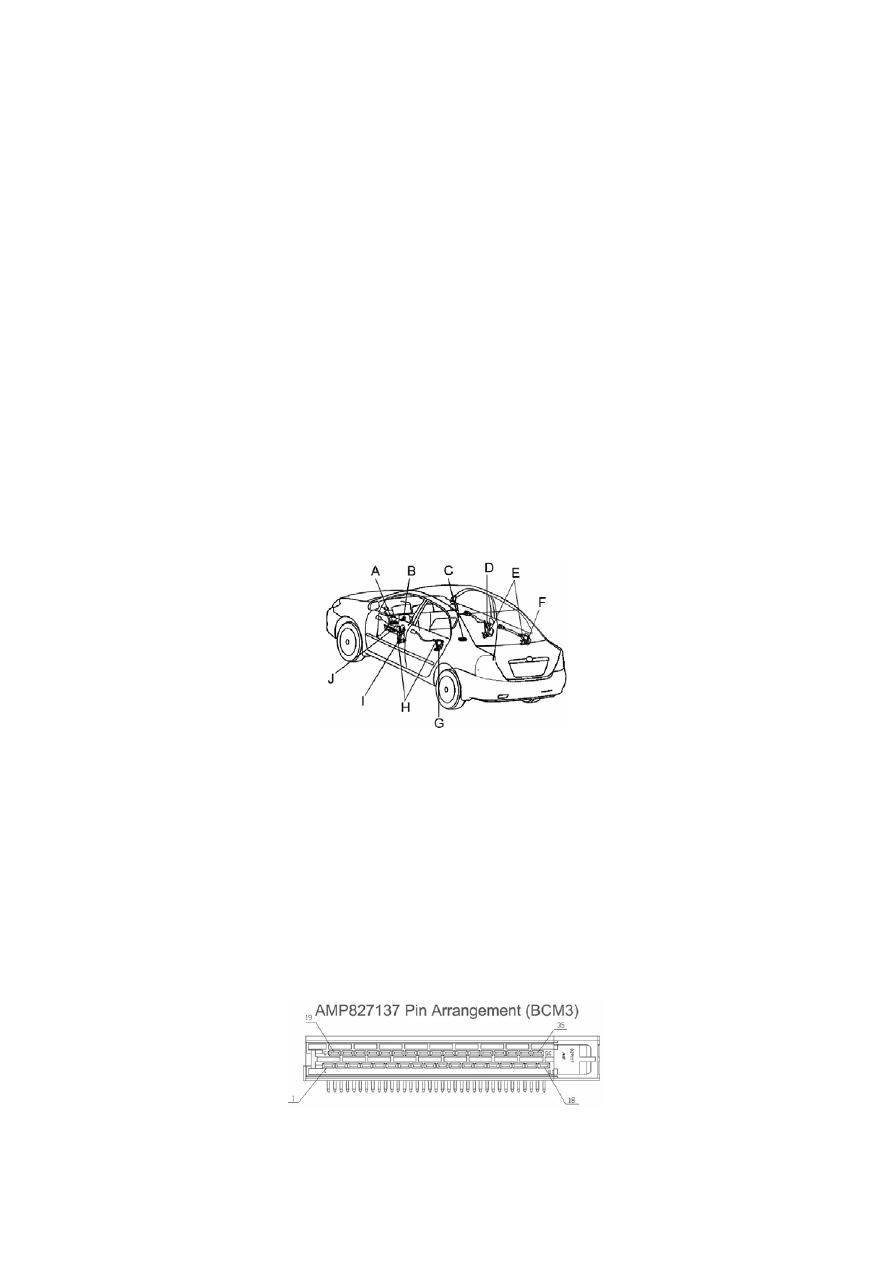

1. For pin definition of central door lock of body control module (BCM), refer to Fig. 4-47, Table 4-8,
Fig. 4-48, Table 4-9, Fig. 4-49, and Table 4-10.





Fig. 4-47

222

Table 4-8

Testing

terminal

Wire color

Terminal

description

Test condition

Standard value

(3-1)－body

S/B

Central lock

power

Always Less

than

1Ω

(3-2)－body

Y/B

Locking of left

front door lock

Always Less

than

1Ω

(3-3)－body

W/B

Unlocking of left

front door lock

Always Less

than

1Ω











223

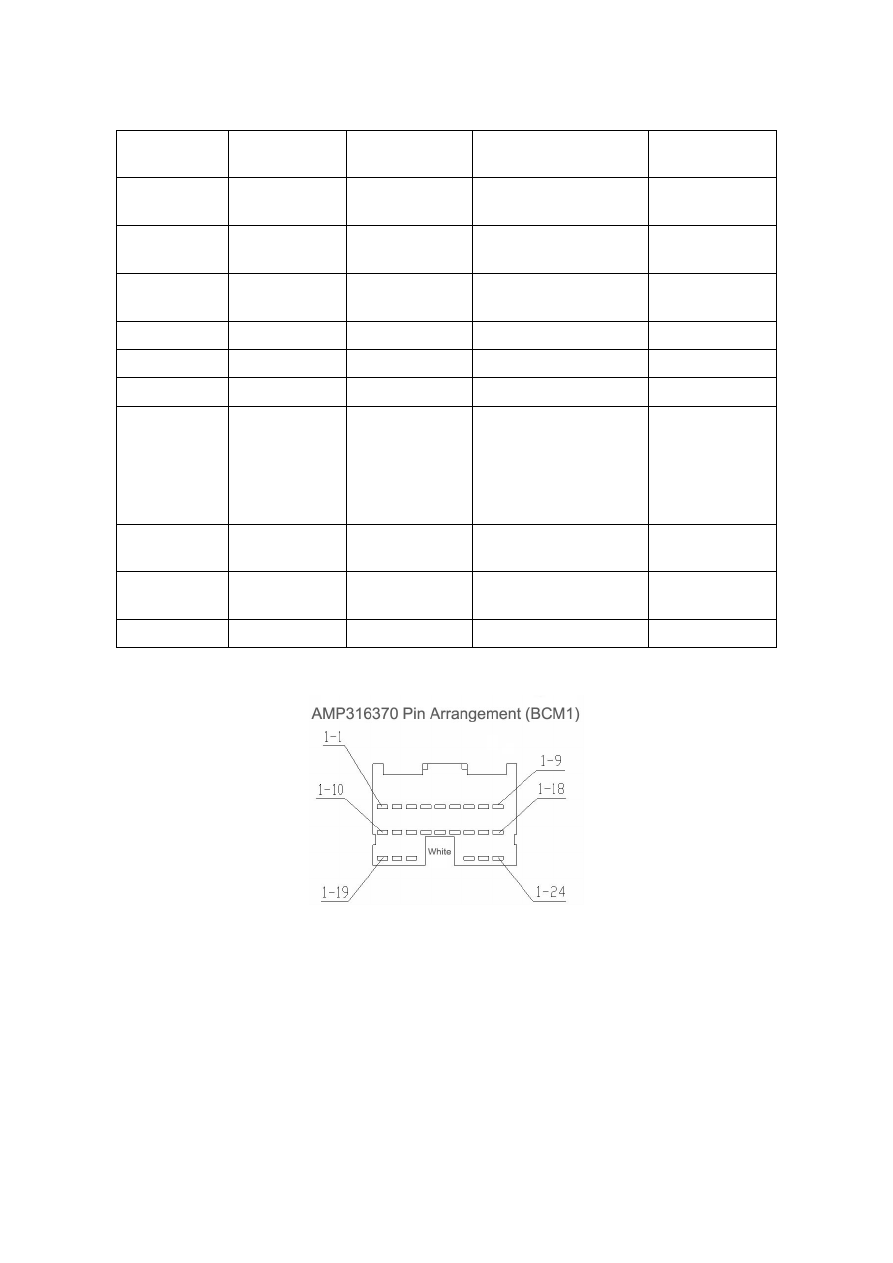

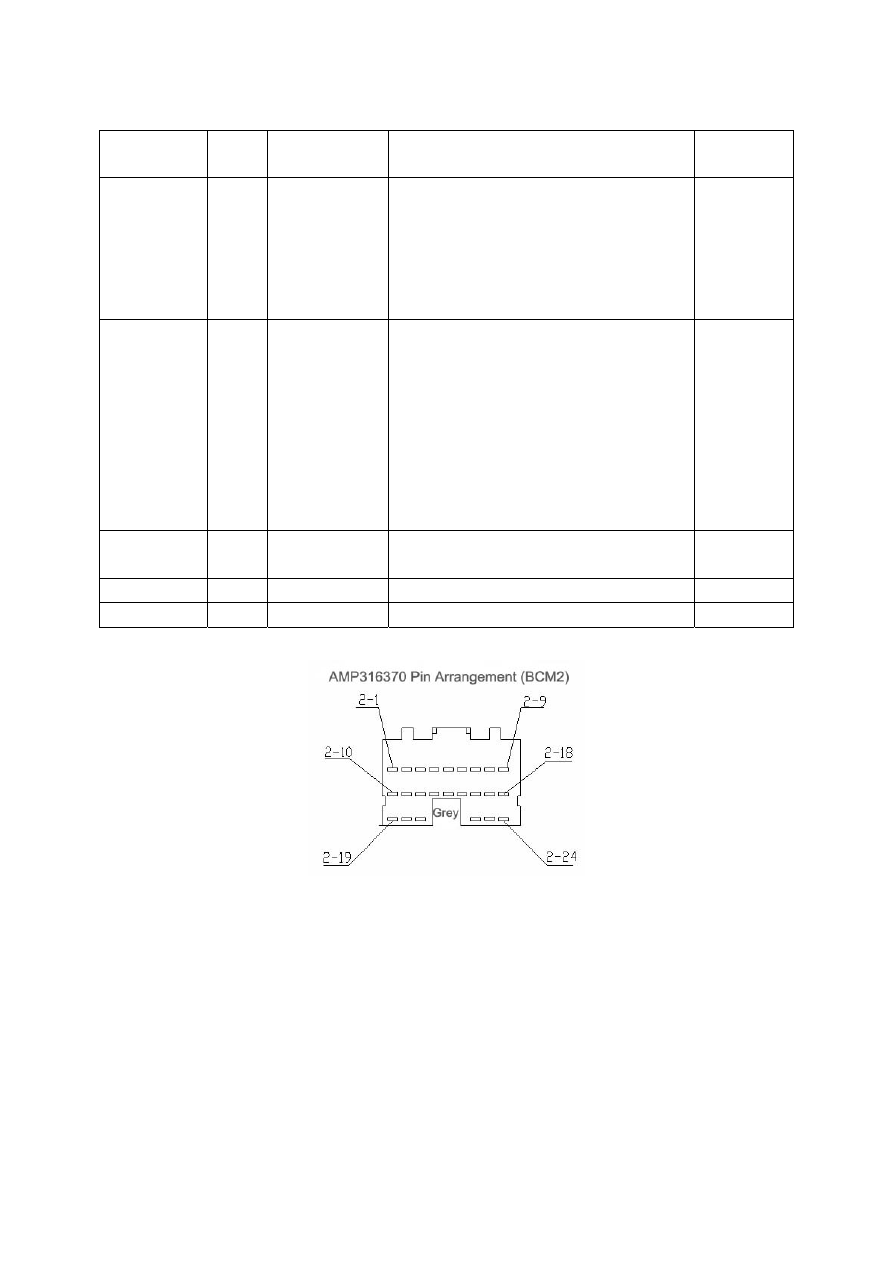

Table 4-9

Testing

terminal

Wire

color

Terminal

description

Test condition

Standard

value

(1-1)－body

B/R

Extended

illumination

control output of

inner light

When roof light is at “DOOR” position, the roof

light is lit upon unlocking by remote controller or

opening of any door. If no door is opened within

30 seconds after unlocking by remote controller,

it goes out, and refer to the user’s guide to find

more.

Less than 1 V
