Lifan 620. Service manual - part 26

road surface better, reduces the vehicle vibration due to uneven road surface and enhances the
comfort and driving stability.

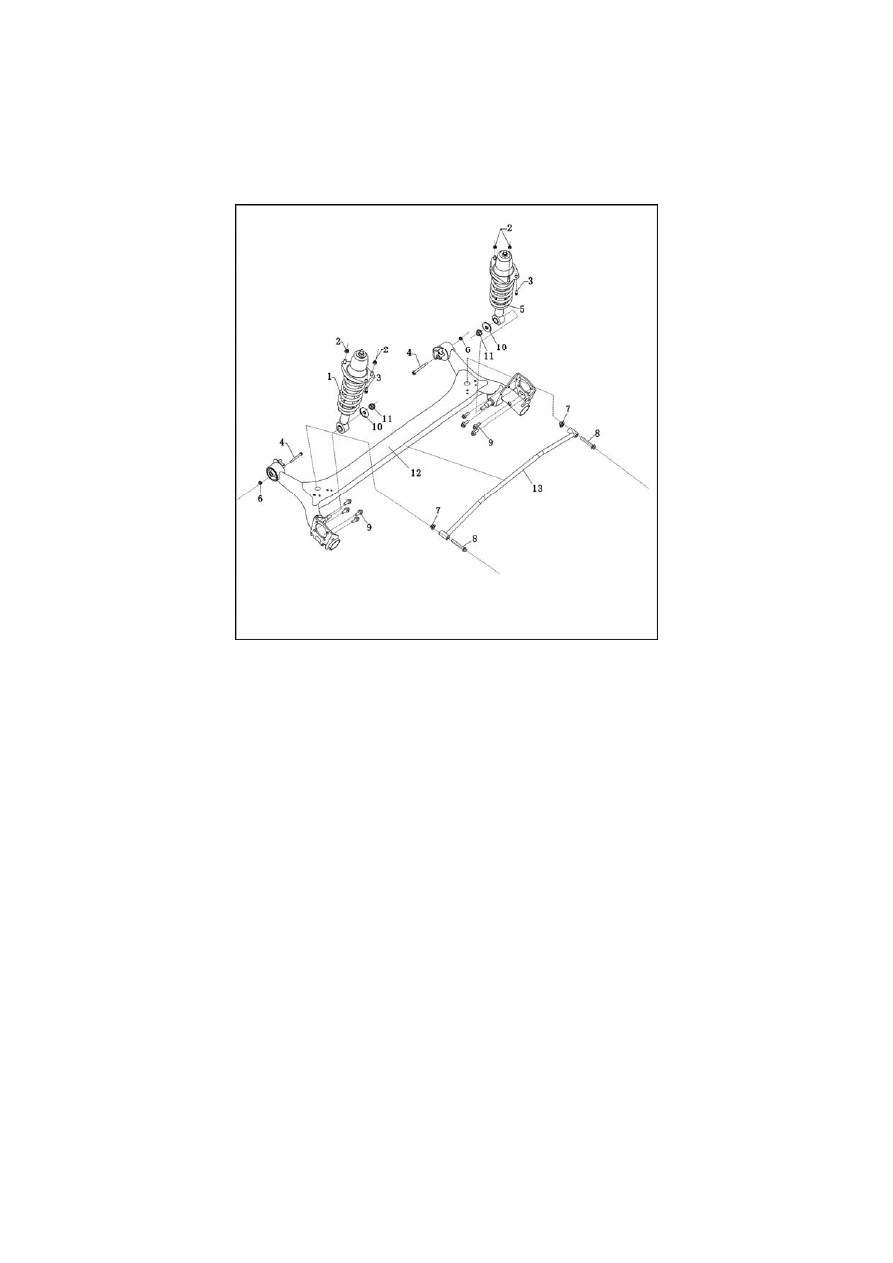

2. Rear suspension. Refer to Fig. 2-2.




105



Fig. 2-4

(3) Toe-in of wheel: It refers to that the weel moves inward off the geometric center line/thrust line.

106

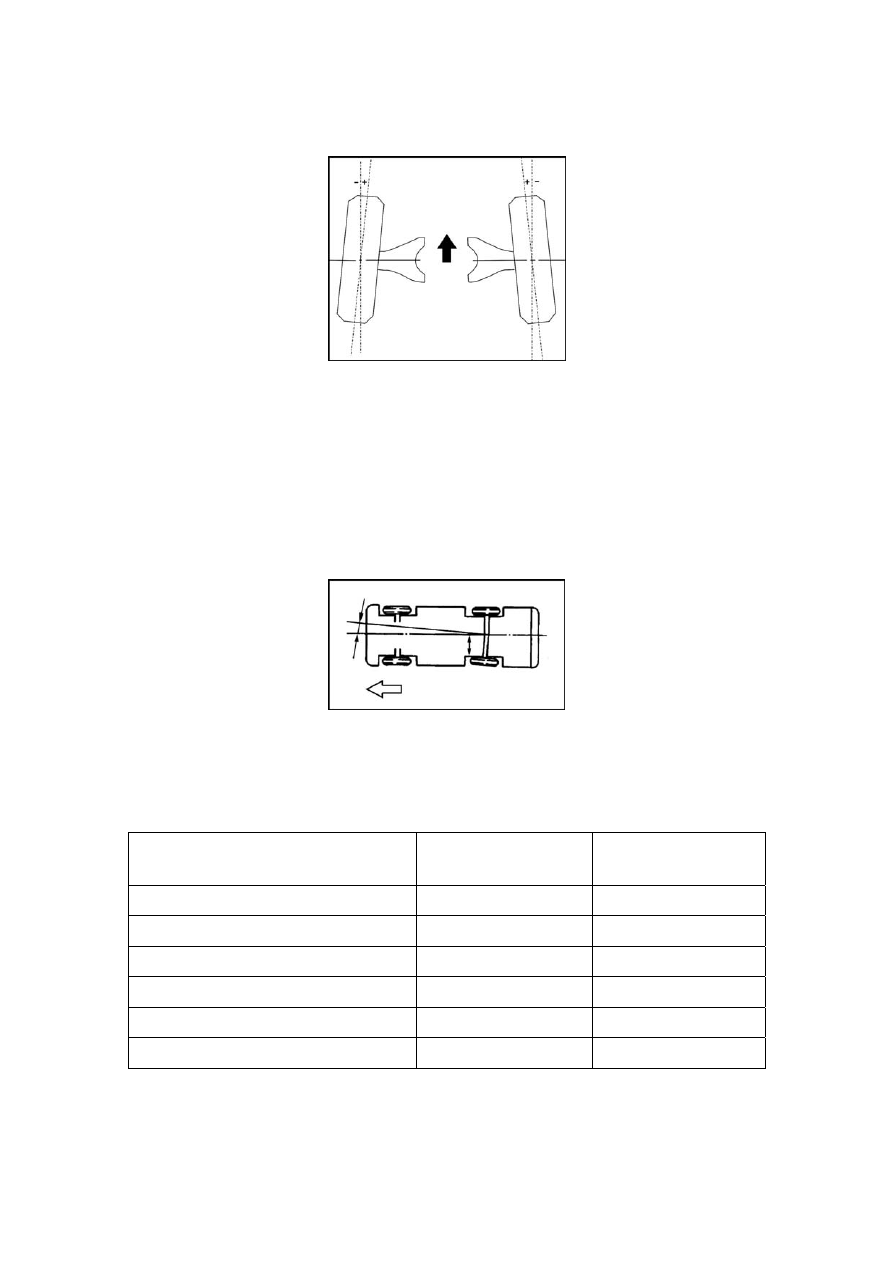

The negative toe-in means that the wheel moves outward, as shown in Fig. 2-5.

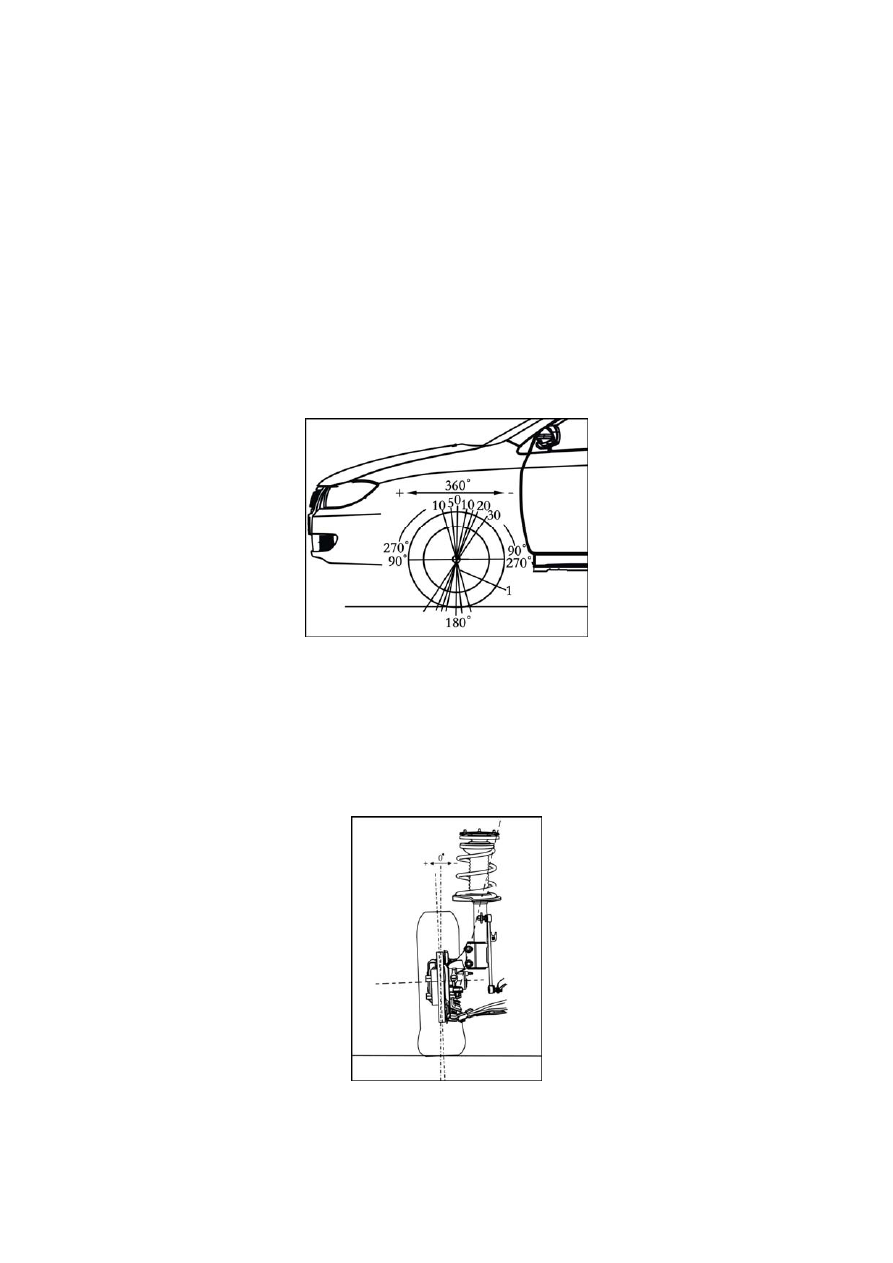

Kingpin inclination angle

11°15′±45′ 10°30′±30′

Kingpin caster angle

3°00′±30′ 4°00′±30′

Rear wheel camber angle

1°50′±30′ -1°55′±30′

Rear wheel toe-in

-2-2

2-6







107

II. Fault Elimination Table, Table 2-2.

Table 2-2

Fault

Possible Cause

Action

Incorrect vehicle height (high or low front or rear)

Check if the load is abnormal, if the ring

spring is sunken or is not standard spring.

Worn or broken steering gear or connecting rod.

Check the steering system.

Brake system.

Check the brake.

Incorrect wheel alignment.

Adjust the wheel alignment.

Leaning to one

side

Damaged suspension.

Check the suspension.

Incorrect tire pressure.

Adjust the tire pressure.

Improper worn

tire

Incorrect wheel alignment.

Adjust the wheel alignment.

Damaged or worn front wheel bearing

Check the front wheel bearing.

Wheel and tire.

Check the tire. Balance the tire or install a

new one if necessary.

Incorrect wheel alignment.

Adjust the wheel alignment.

Vibration

Abnormal steering system operation.

Check the steering system.

108
