Circuit

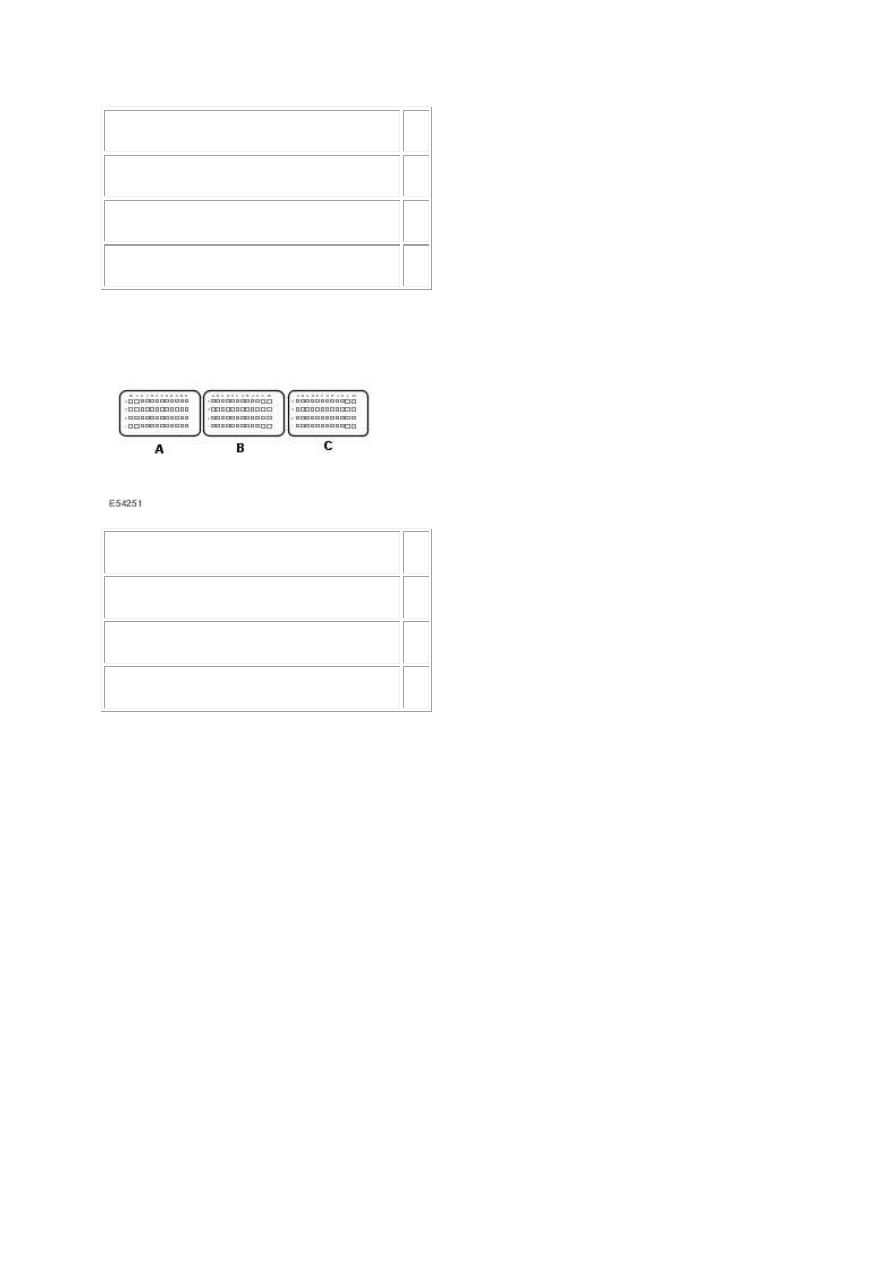

Pin Accelerator pedal position sensor 1 - signal
04
Accelerator pedal position sensor 1 - power 05
Accelerator pedal position sensor 1 - return 03
2.
Circuit
Pin Accelerator pedal position sensor 1 - signal
D1
Accelerator pedal position sensor 1 - power E1
Accelerator pedal position sensor 1 - return C1
3. Key on, engine off. 4. Make sure the accelerator pedal is released. 5. Access the ECM-Pedal position sensor 1 (voltage) PID using the Jaguar approved diagnostic system or a scan tool. Is the voltage between 0 - 1 volts? -> Yes GO to Pinpoint Test G549822t85.
-> No GO to Pinpoint Test G549822t86.
G549822t85 : CHECK THE APP1 VALUE, WITH THE ACCELERATOR FULLY 1. Make sure the accelerator pedal is fully depressed. 2. Access the ECM-Pedal position sensor 1 (voltage) PID using the Jaguar approved diagnostic system or a scan tool. |
