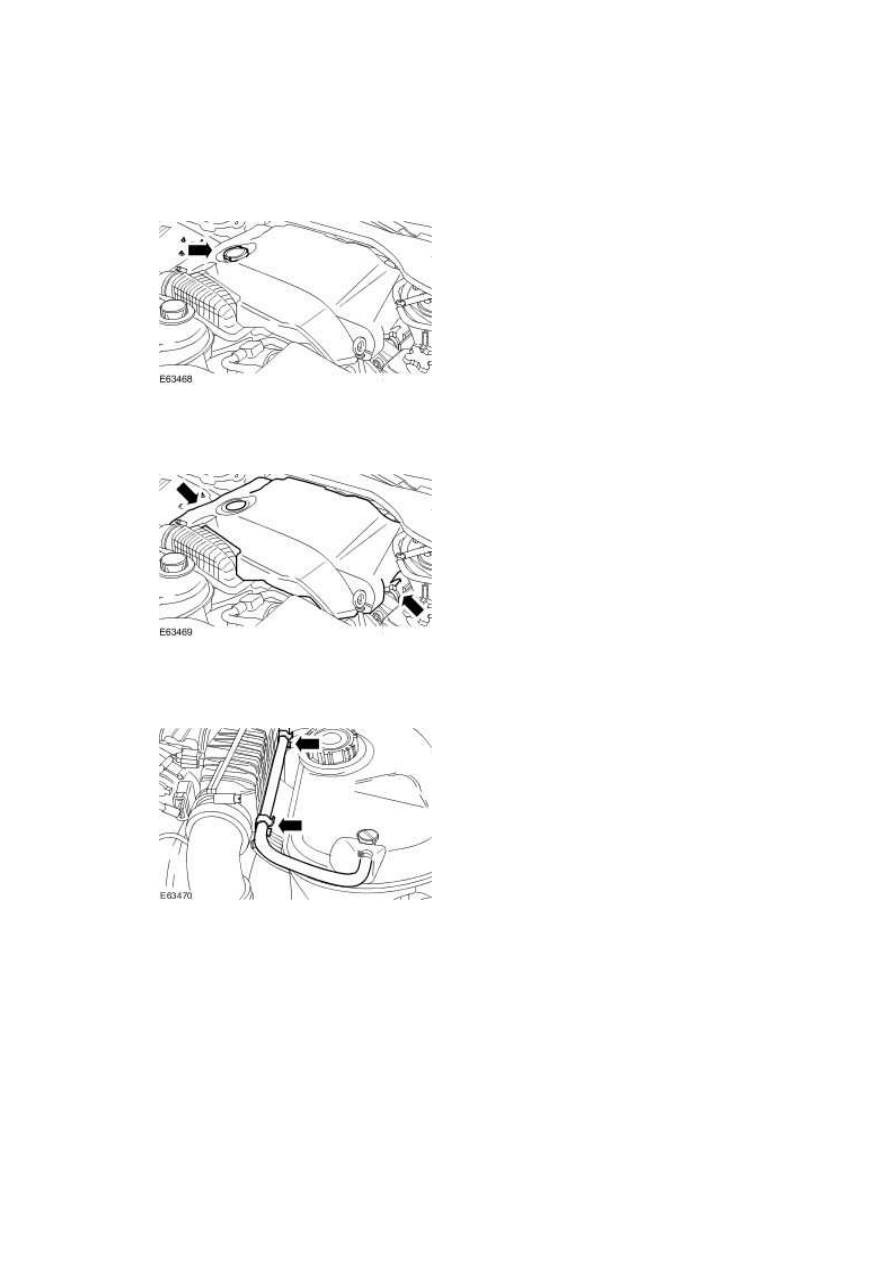

4 .

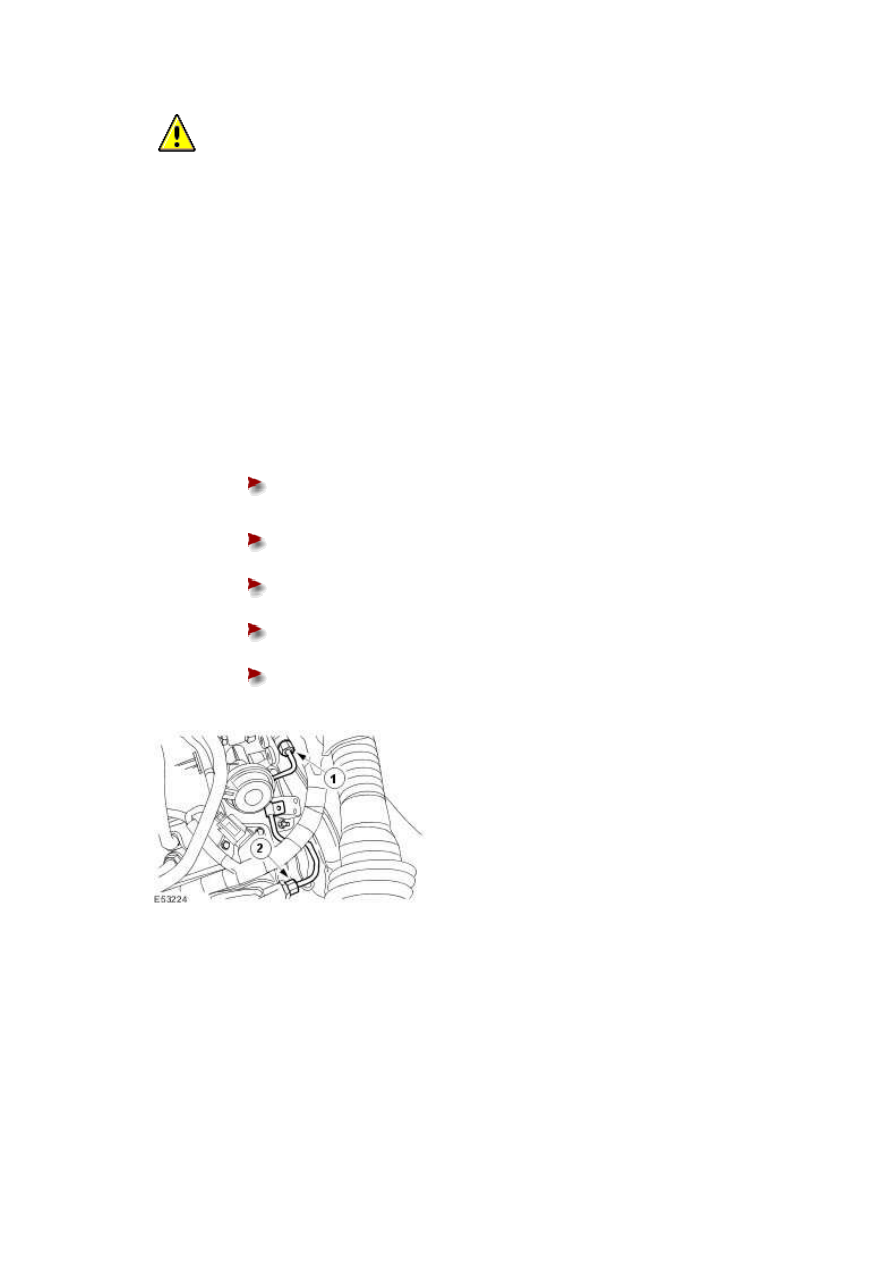

CAUTION: Do not allow the unions to hit the olive ends of the high-pressure fuel supply line as this may damage the ends of the line and allow foreign matter enter the fuel injection system.
NOTE:
Left-hand shown, right-hand similar.

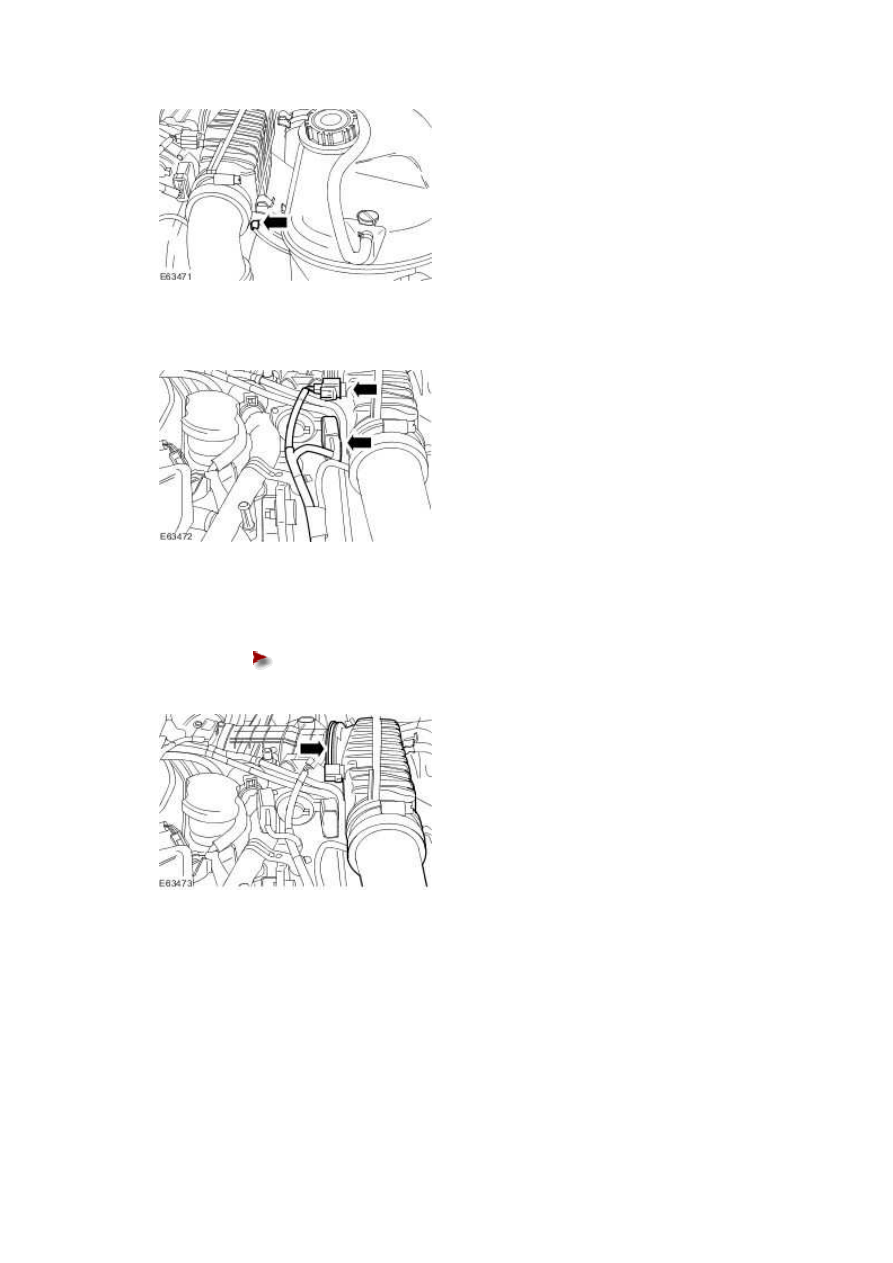

Install new high-pressure fuel supply line.
1) Install the new high-pressure fuel supply line, tighten the fuel supply line unions finger tight.
Tighten the high-pressure fuel supply line in the sequence shown in four stages:
Stage 1: Tighten the high-pressure fuel supply line union 1 to 15 Nm.
Stage 2: Tighten the high-pressure fuel supply line union 2 to 15 Nm.
Stage 3: Tighten the high-pressure fuel supply line union 1 to 30 Nm.
Stage 4: Tighten the high-pressure fuel supply line union 2 to 30 Nm.

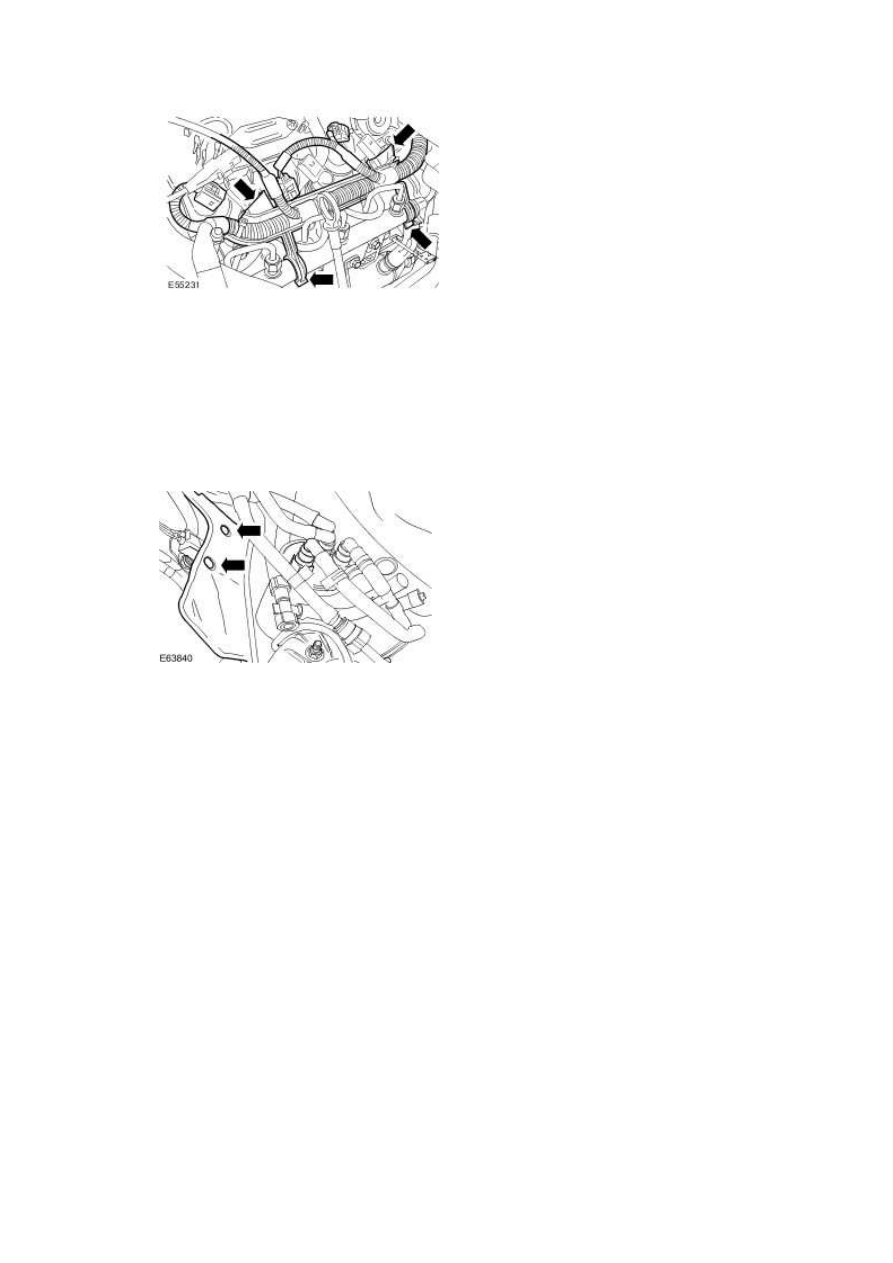

5 . NOTE:
Left-hand shown, right-hand similar.
Attach the injector harness to the fuel rail. |
