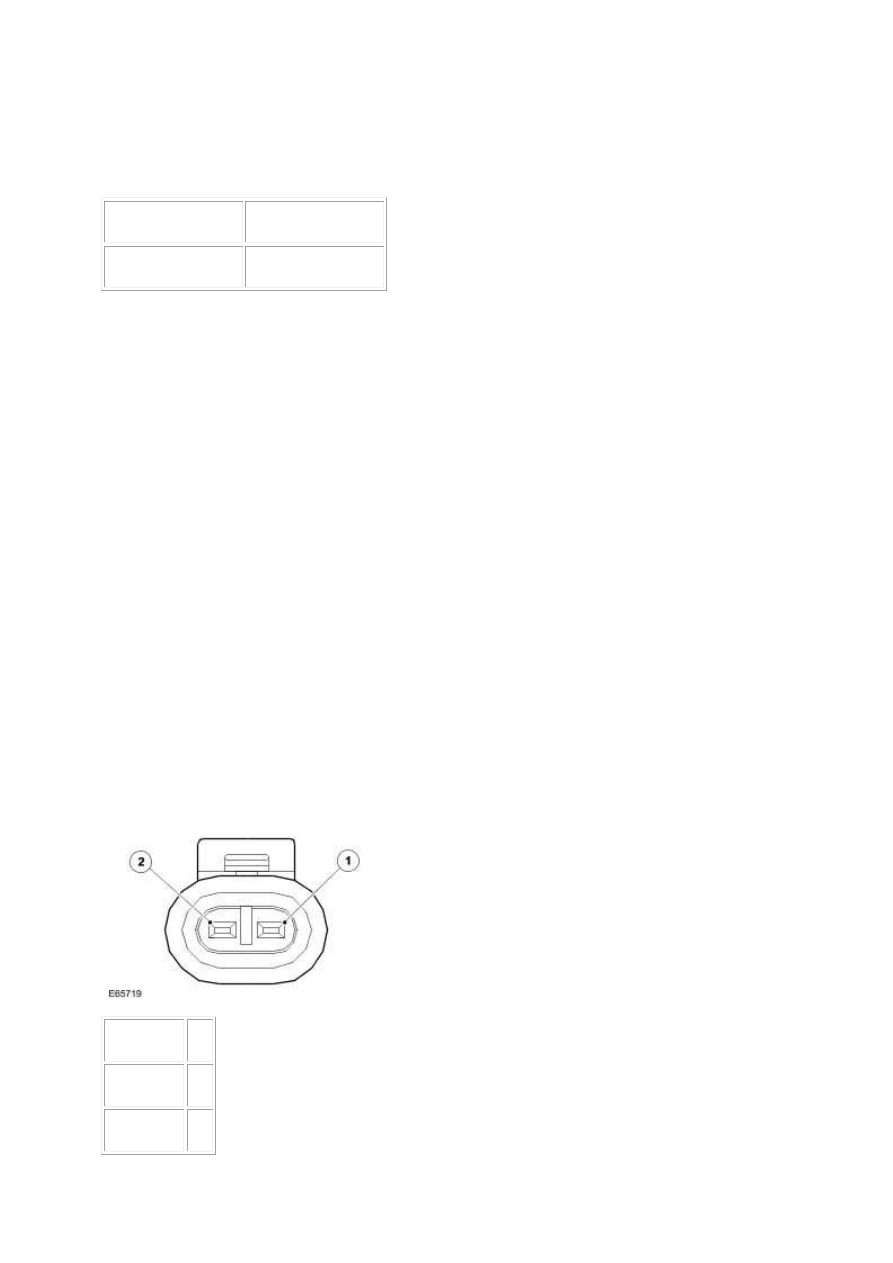

-> No REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear the DTC, test the system for normal operation by driving the vehicle at more than 20 kph (12.5 mph) for more than 3 minutes. G531322t19 : CHECK THE WSS SIGNAL CIRCUIT FOR SHORT CIRCUIT TO 1. Measure the resistance between: EC044, harness side Battery
Pin 01
Negative terminal
•
Is the resistance greater than 100 Kohms? -> Yes GO to Pinpoint Test G531322t20 .

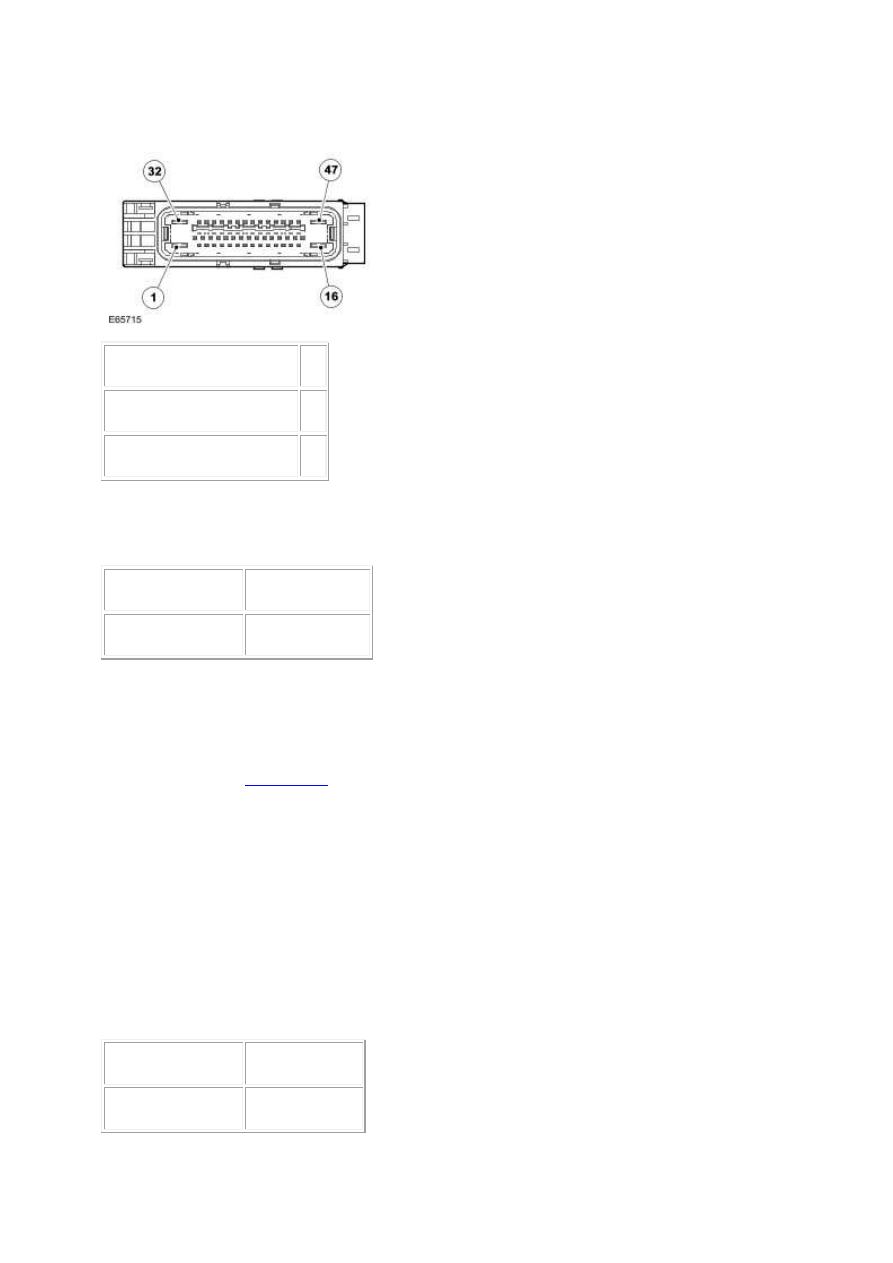

-> No REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear the DTC, test the system for normal operation by driving the vehicle at more than 20 kph (12.5 mph) for more than 3 minutes. G531322t20 : CHECK THE WSS SIGNAL CIRCUIT FOR HIGH RESISTANCE 1. Measure the resistance between: EC044, harness side EC030, harness side Pin 01
Pin 46
•
Is the resistance less than 10 ohms? -> Yes GO to Pinpoint Test G531322t21 .
-> No REPAIR the high resistance circuit. For additional information, refer to the wiring diagrams. Clear the DTC, test the system for normal operation by driving the vehicle at more than 20 kph (12.5 mph) for more than 3 minutes. |
