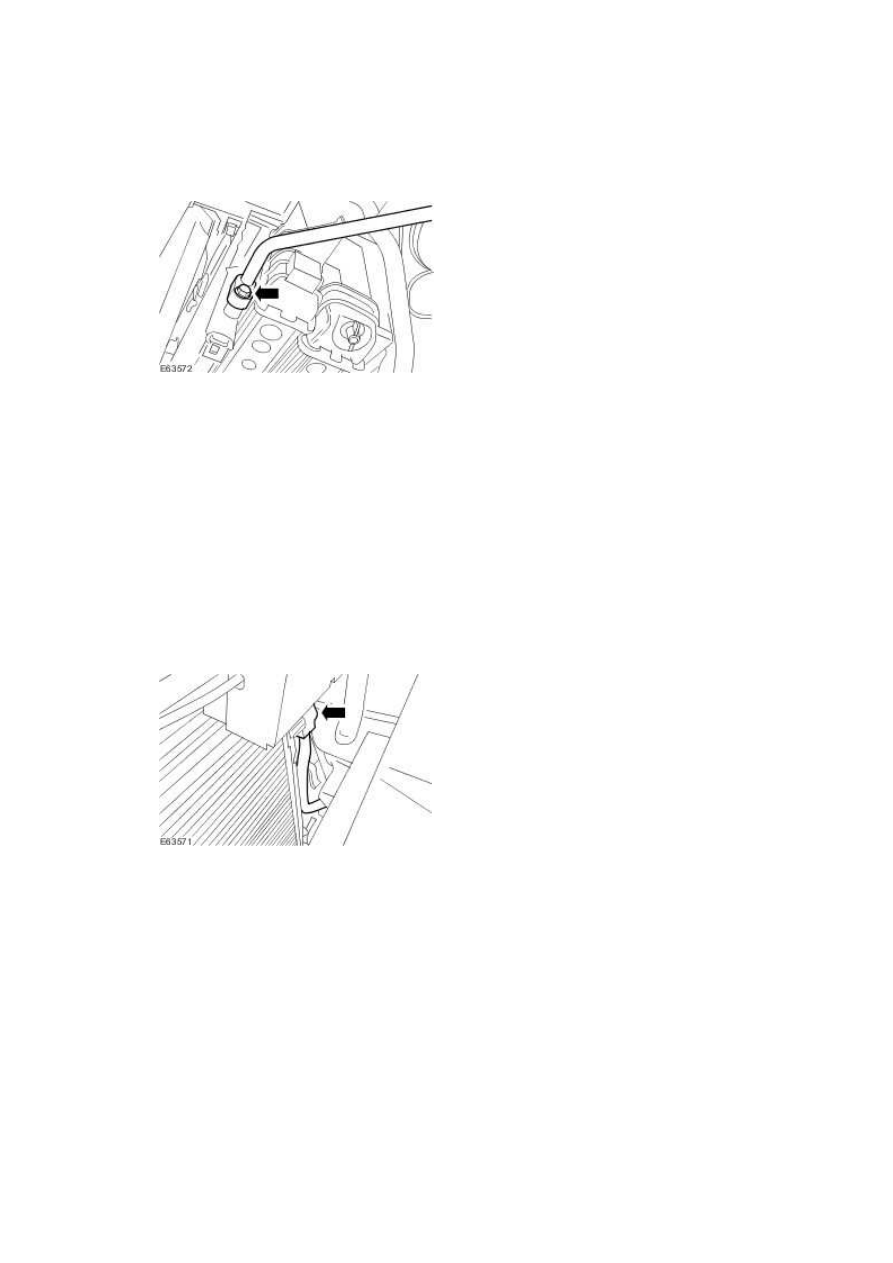

Lubricate the new O-ring seal with A/C refrigerant oil.

Tighten to 5 Nm.

3 . NOTE:

Install a new O-ring seal.

NOTE:

Lubricate the new O-ring seal with A/C refrigerant oil.

Tighten to 5 Nm.

Carry out the A/C system evacuation and charging procedure.

For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and

Charging (82.30.30)

NOTE:

Desiccant Bag - 4.2L NA V8 - AJV8/4.2L SC
V8 - AJV8/3.0L NA V6 - AJ27/3.5L NA V8 -
AJV8 (82.17.03)

Installation

1 . Install new desiccant bag retaining screw O-ring seals.

Lubricate the new O-ring seals with A/C refrigerant oil.

CAUTION: Do not leave the desiccant bag exposed to atmosphere for longer than

five minutes.

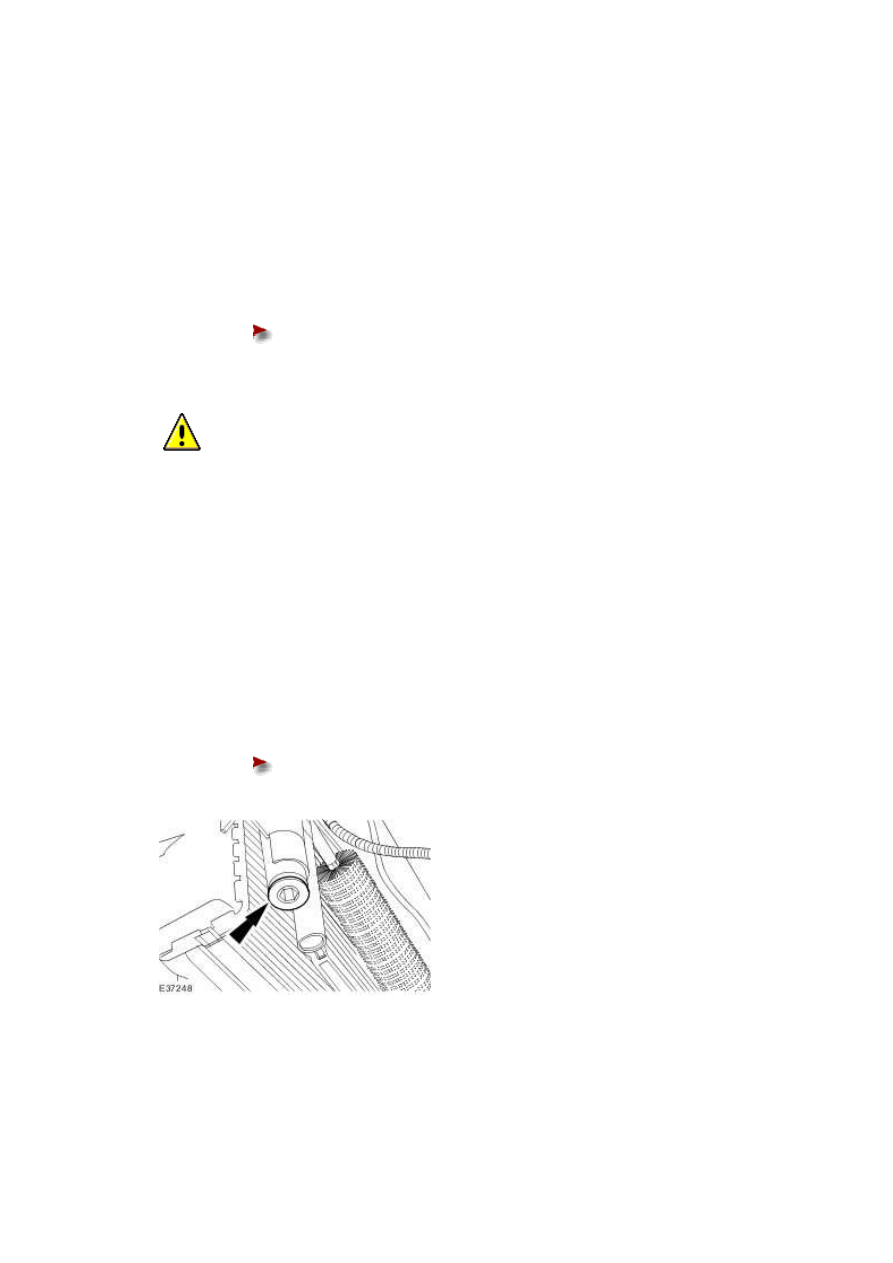

Install the desiccant bag.

3 . NOTE:

Un-cap the exposed port.

Install the retaining screw.

Tighten to 22 Nm.

4 . Clean off any oil residue that may contain A/C system flourescent dye.

www.

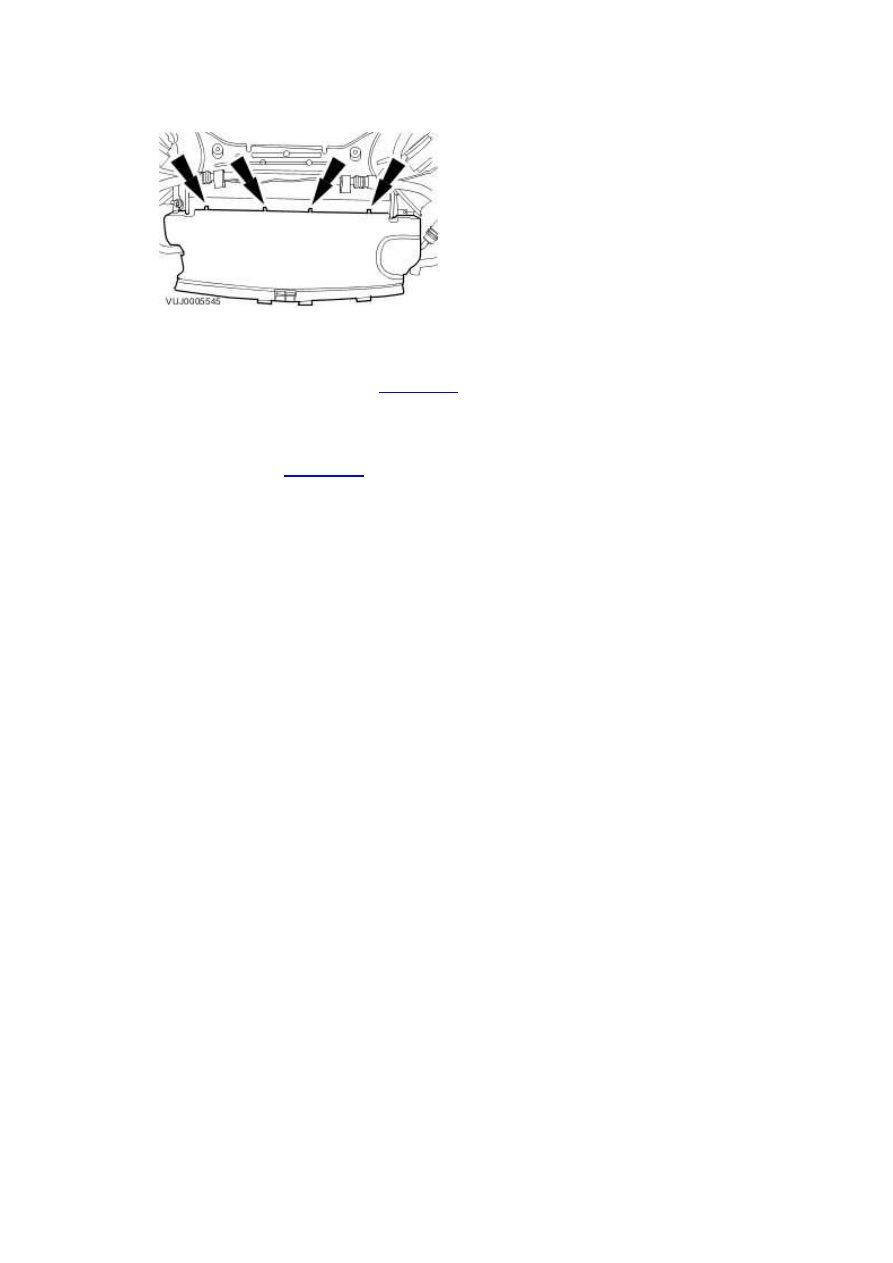

5 . Install the radiator lower cowl.

6 . Install the radiator splash shield. <<501-02>>

7 . Lower the vehicle. <<100-02>>

8 . Carry out the A/C system evacuation and charging procedure. <<412-00>>

9 . Carry out the A/C system flourescent dye leak detection procedure. <<412-00>>

Desiccant Bag - 2.7L V6 - TdV6 (82.17.03)

Removal

Carry out the air conditioning (A/C) system recovery procedure.

For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and

Charging (82.30.30)

2 . Raise the vehicle.

For additional information, refer to Lifting

3 . Remove the radiator splash shield.

For additional information, refer to Radiator Splash Shield (76.22.90)

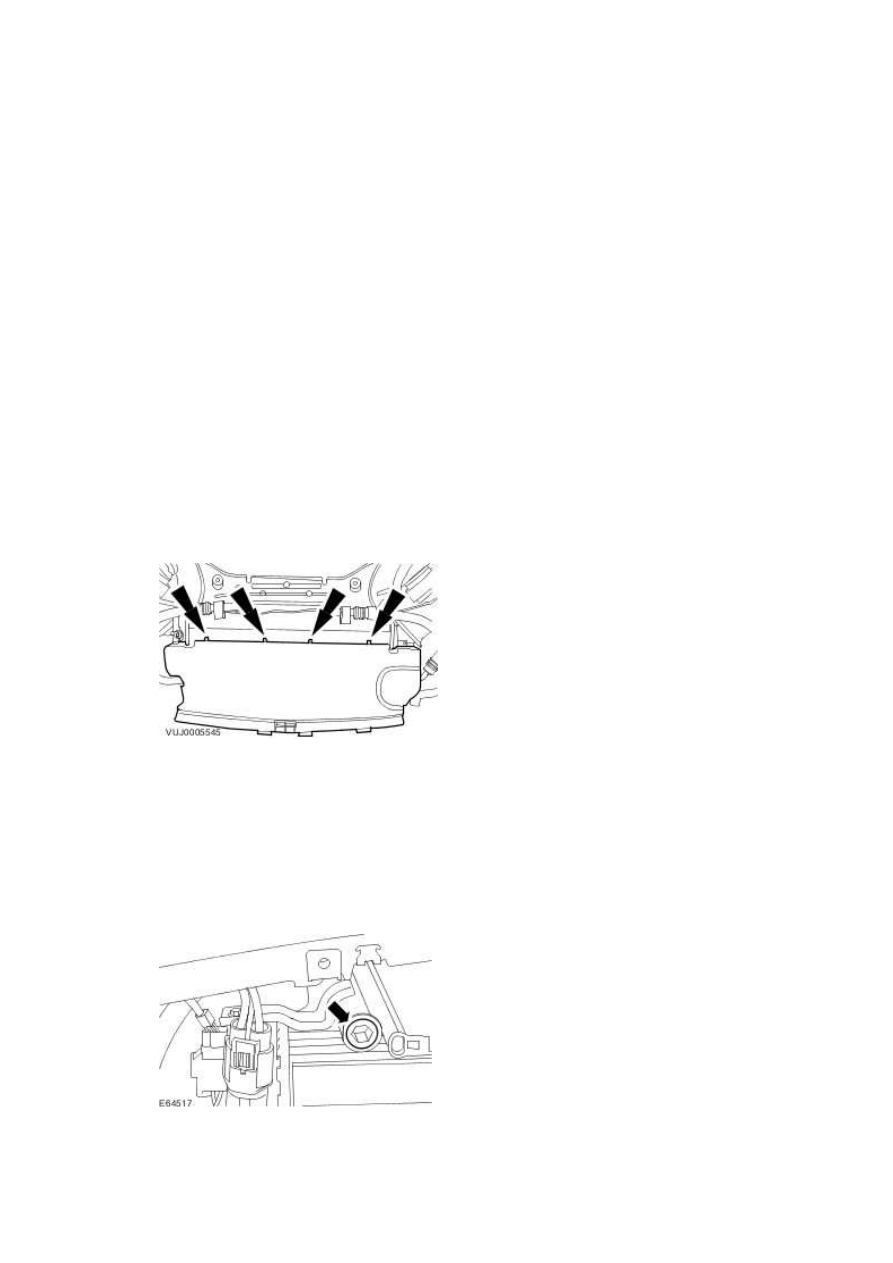

4 . Remove the radiator lower cowl.

5 . NOTE:

Discard the desiccant bag retaining screw O-ring seal.

Remove the desiccant bag retaining screw.
