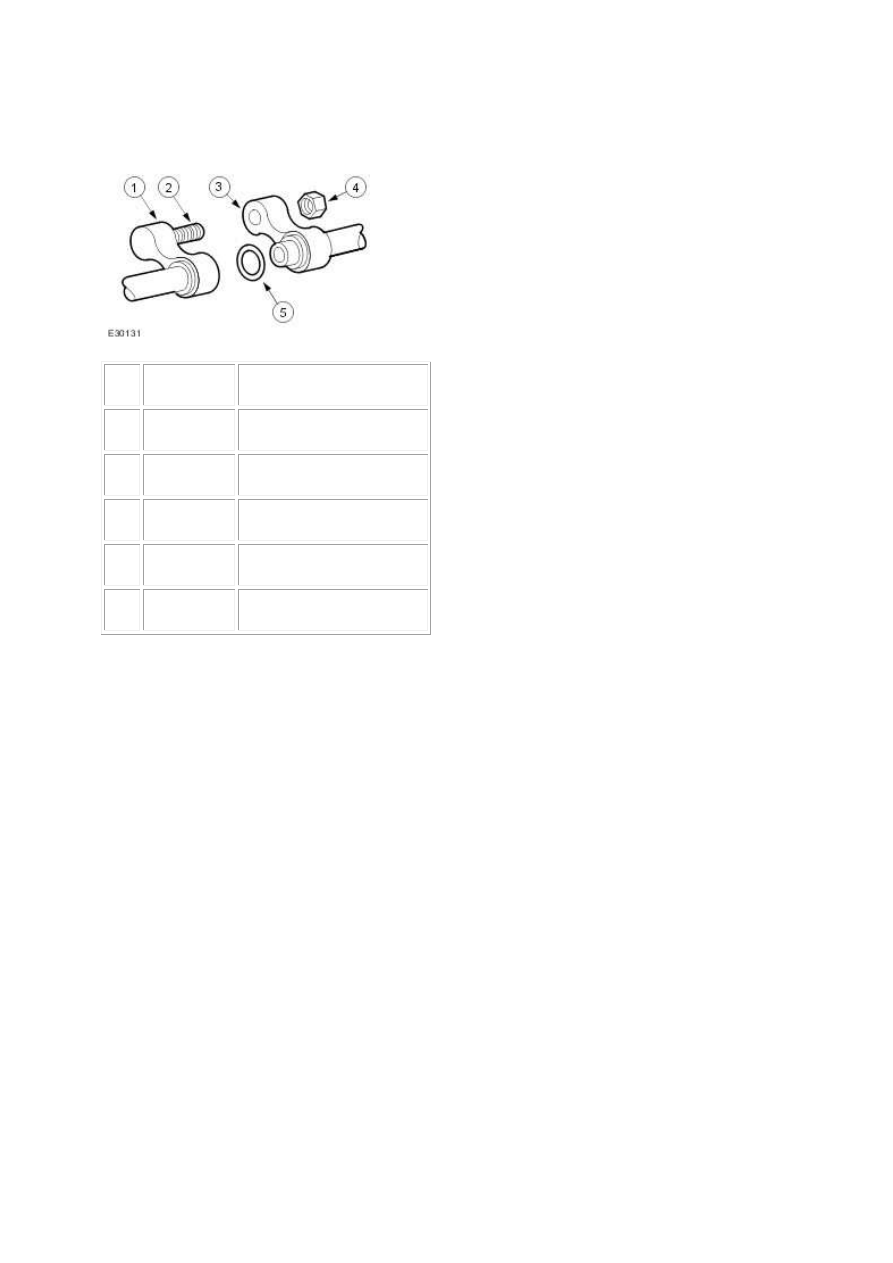

Air Conditioning Line Peanut Fitting Peanut Fitting Assembly
Item
Part Number
Description
1
—
Female air conditioning line
2
—
Stud
3
—
Male air conditioning line
4
—
Retaining nut
5
—
O-ring seal
The connections between the air conditioning (A/C) condenser core/receiver drier and the connections between the lines use peanut fittings. •
The male and female line of the peanut fitting are retained with a nut. •
An O-ring seal is installed around the tube on the male line. •
The female line is welded to the tube and is not adjustable. •
Support the female line with a wrench to prevent the twisting of the tubes. •
The male line will pivot around the tube to allow for alignment with the female line during •
When correctly assembled, the mating surfaces of the male and female fittings should be Blower motor The blower motor pulls air from the air inlet and forces it into the heater core and evaporator core housing where it is mixed and distributed. The blower motor has eleven speeds (vehicles with telematics have seven speeds) and is controlled by the remote climate control module (RCCM). Air conditioning refrigerant The R-134a air conditioning system uses a hydrofluorocarbon (HFC) non-CFC based refrigerant. R- 134a requires the use of Jaguar compressor oil or equivalent meeting Jaguar specification. Do not use R-12 tools and equipment when repairing an R-134a system unless specified in the workshop manual. Never mix R-12 and R-134a refrigerants and oils. They are not compatible. |
