Jaguar XJ (X350). Service manual - part 1132
Fuel Level Sender LH - 4.2L NA V8 -
AJV8/4.2L SC V8 - AJV8/3.0L NA V6 -
AJ27/3.5L NA V8 - AJV8, VIN Range:
G00442->G45703
Removal
WARNING: Do not smoke or carry lighted tobacco or an open flame of any type when
working on or near any fuel related components. Highly flammable vapors are always present and
may ignite. Failure to follow these instructions may result in personal injury.
WARNING: Do not carry or operate cellular phones when working on or near any fuel
related components. Highly flammable vapors are always present and may ignite. Failure to follow
these instructions may result in personal injury.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times
and always observe fuel handling precautions. Failure to follow these instructions may result in
personal injury.
1
.
Remove the transfer pump.
For additional information, refer to Fuel Transfer Pump - 4.2L NA V8 - AJV8/4.2L SC V8 -
AJV8/3.0L NA V6 - AJ27/3.5L NA V8 - AJV8, VIN Range: G00442->G45703 (19.45.21)

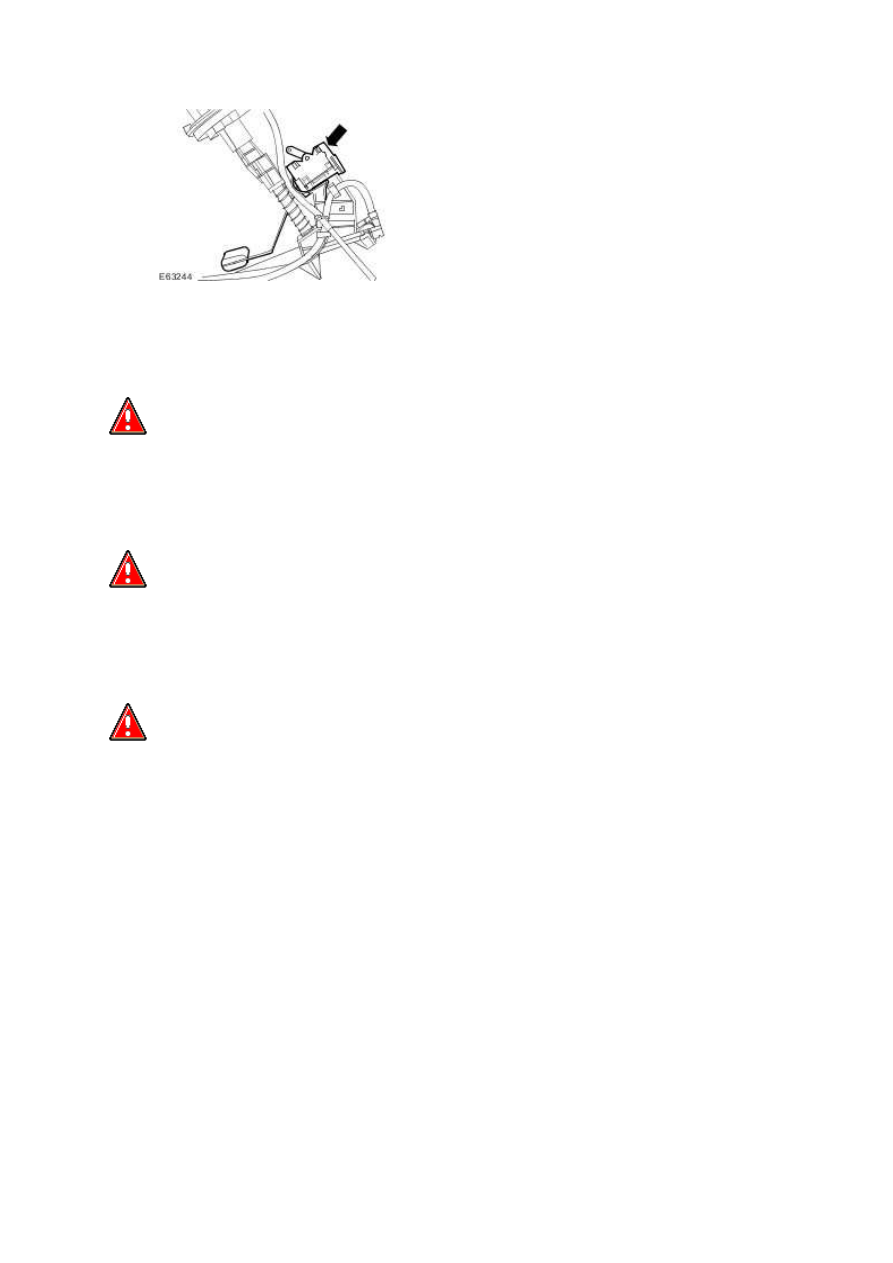

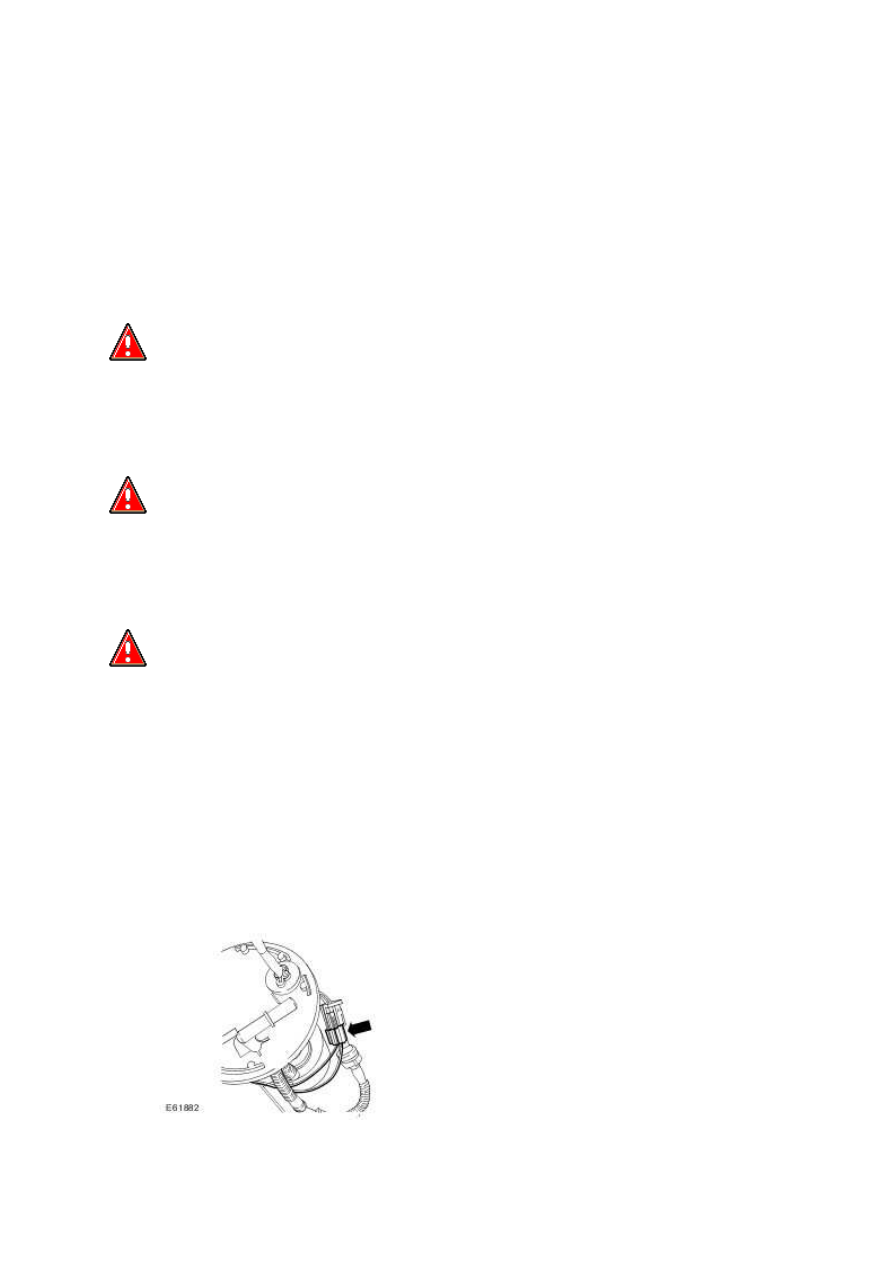

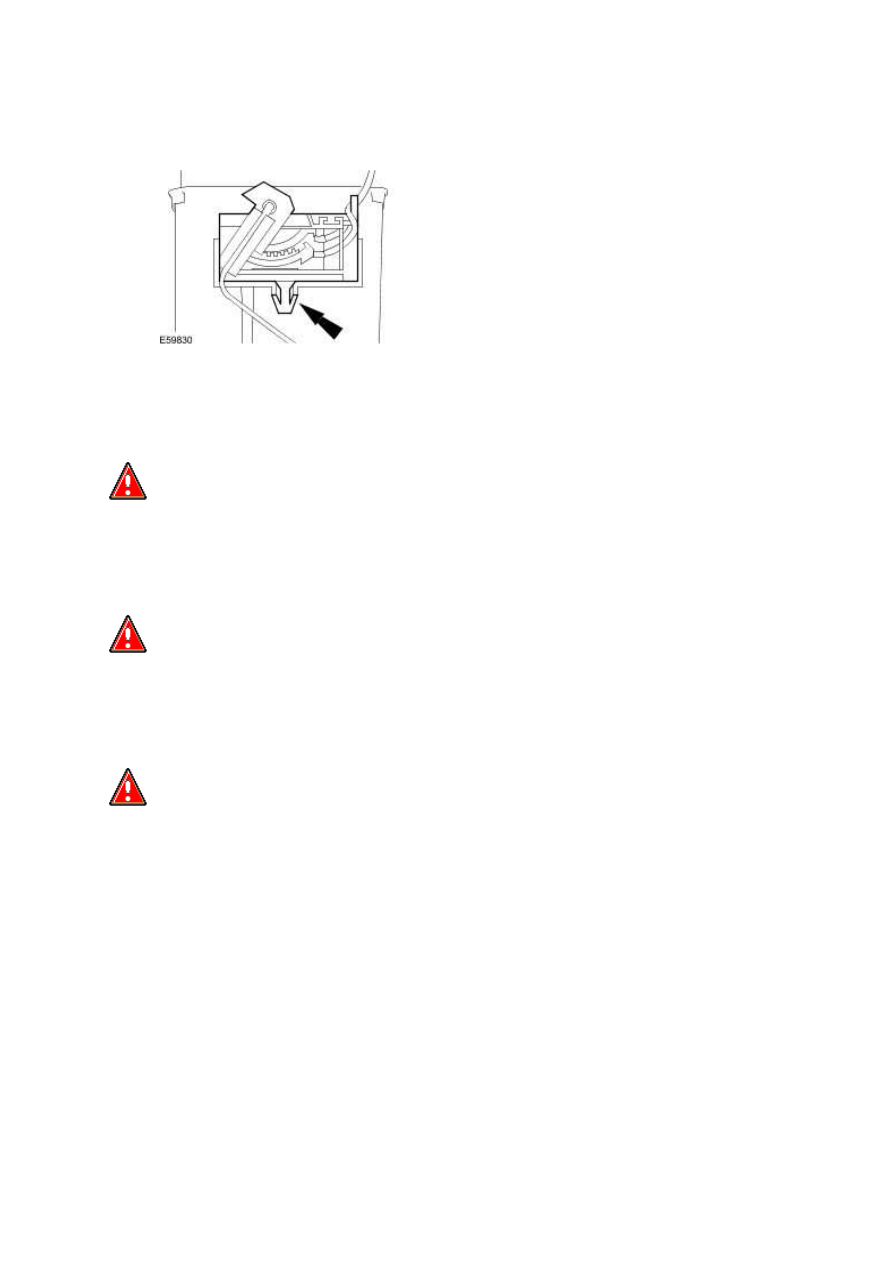

2 . Disconnect the fuel level sender electrical connector.
