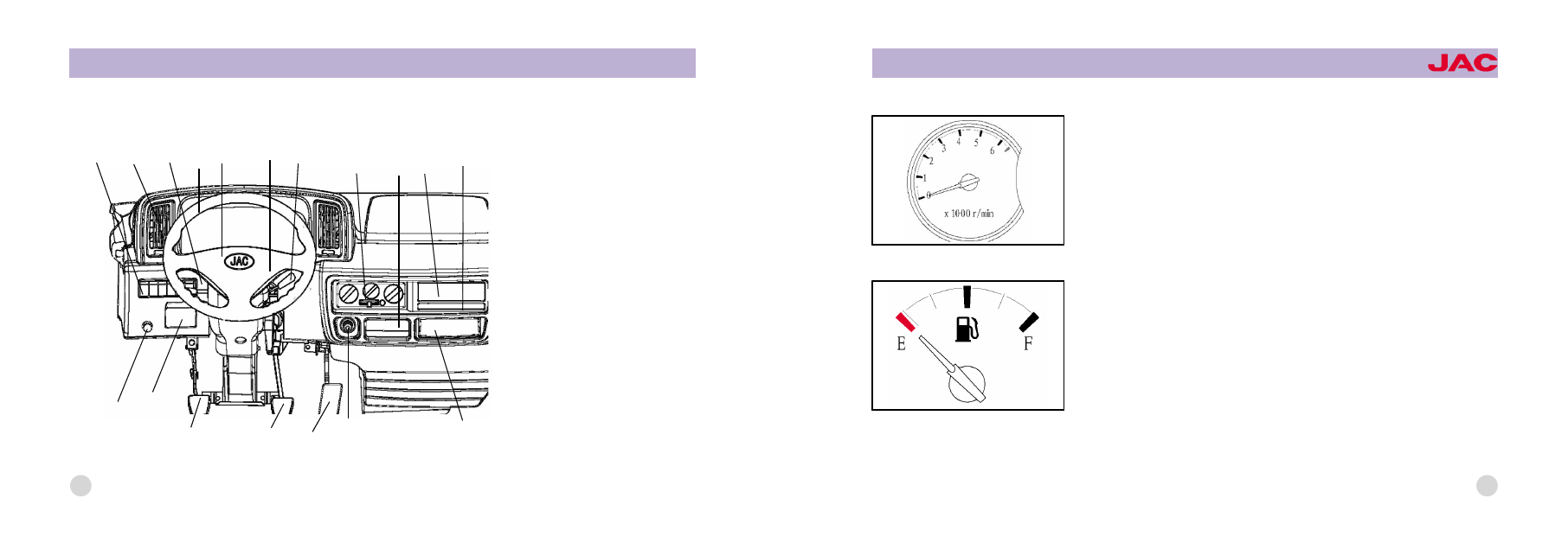

1. Switch
2. Instrument panel vent
3. Combined switch handle
4. Steering wheel
5. Instruments
6. Horn button
7. Windshield wiper/cleaner handle
8. Air conditioner switch
9. Ashtray
10援Radio
11援Tea cup holder
12援Manual accelerator knob
13援Ashtray
14. Clutch pedal
15. Brake pedal
16. Accelerator pedal
17. Cigarette lighter
18. Glove compartment

员

OWNER爷S MANUAL

JAC High end Light Trucks

Tachometer
The tachometer indicates the engine 's round per minute. The red zone means
the critical rpm.
When the tachometer hand is in the red zone of the scale plate, driving is not
allowed. If a driver does not stop the vehicle when the tachometer hand is get鄄
ting into the red zone, serious damage will occur to the engine.

Fuel gauge
It indicates the present fuel level in the fuel tank, "F" stands for "Full", and "E"
stands for "Empty".
Fuel tank should be always replenished in time to avoid fuel shortage during
driving.

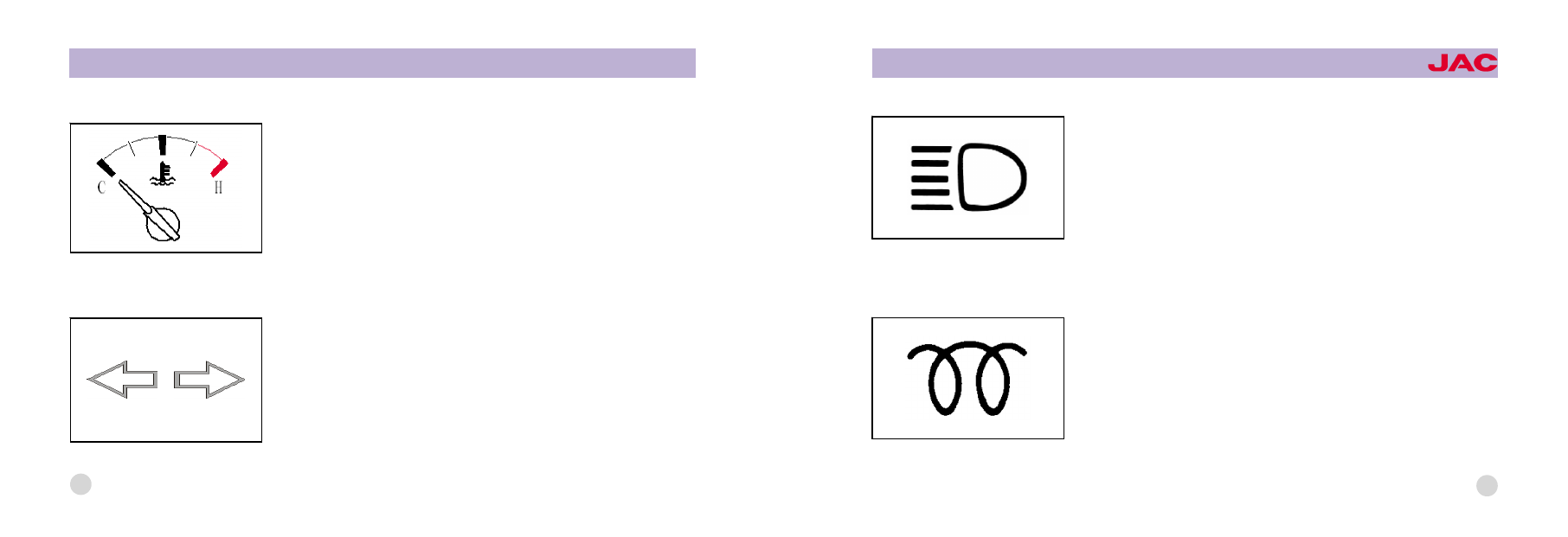

Temperature gauge
It shows the engine coolant temperature. If the hand is in the red zone when
engine is running, it means the engine is overheat. Always pay attention to
keeping the engine temperature at normal degrees.
Note:
There will be some difference between the actual temperature and the temp.
reading of the tachometer due to the surrounding and driving conditions.
If the temperature inside and outside the vehicle is below -30 or above 70 de鄄
grees, it will bring about inexact temperature reading values.

Turn signal indicator light (green)
When a turn signal lamp is flashing, its indicator light will flash on and off. If the
flash is very short in interval, it is possible that the turn signal connected with it
has some problem or maybe one of the bulbs is burnt down.

OWNER爷S MANUAL

JAC High end Light Trucks

High beam indicator light (blue)
The indicator light will be on when the high beam is on.

Diesel warm-up indicator light (light yellow)
When pressing the warm-up switch in "ON" position, this indicator light is on.
The time when the indicator light is on depends on the water temperature.

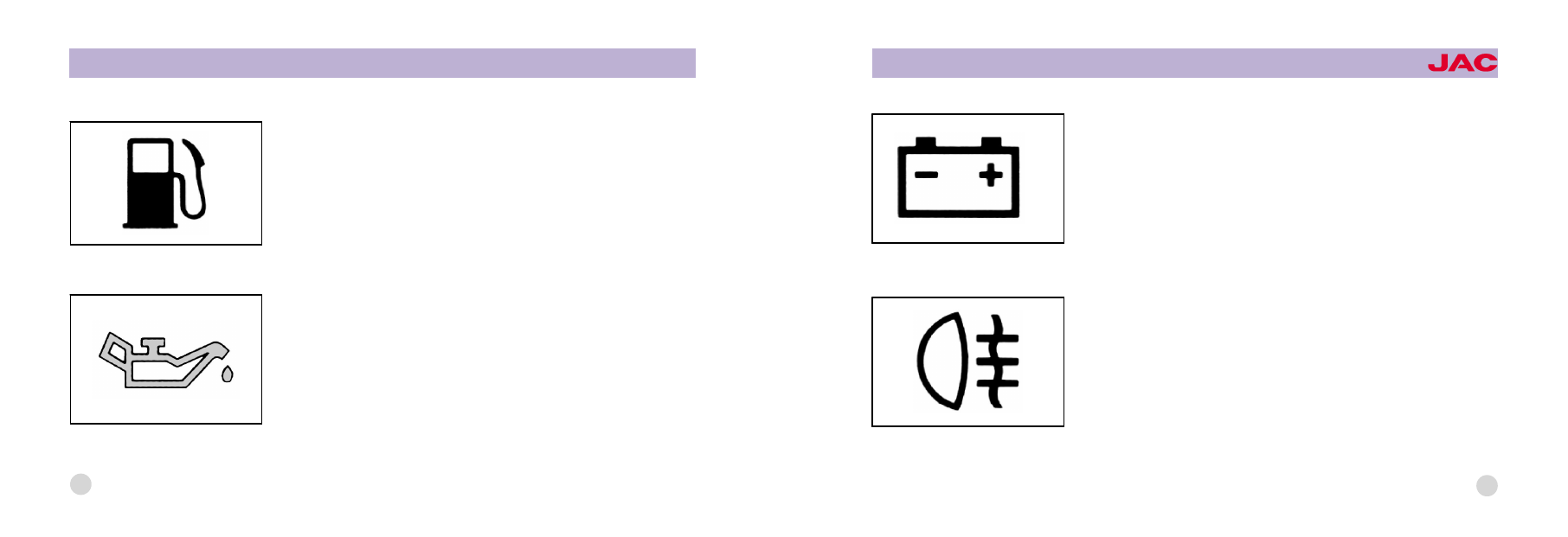

Low fuel level warning light (light yellow)
This light will be on when the fuel oil level is very low in the tank. Fuel oil
should be added at once.

Oil pressure warning light (red)
It is on when the ignition switch is in "ON", and is off after the engine is started. If
this light is on during engine running, stop the engine immediately, and get in
touch with the nearest JAC vehicle dealer.

OWNER爷S MANUAL

JAC High end Light Trucks

Charging warning light (red)
When the ignition switch is in "ON" position, this light is on, and becomes off af鄄
ter the engine is started. If the light remains on during the engine running, it
means something wrong with the charging system. Check the V belt for any
damage, and contact the nearest JAC vehicle dealer.

Rear fog light indicator light
This indicator light gets on when the rear fog light is turned on.

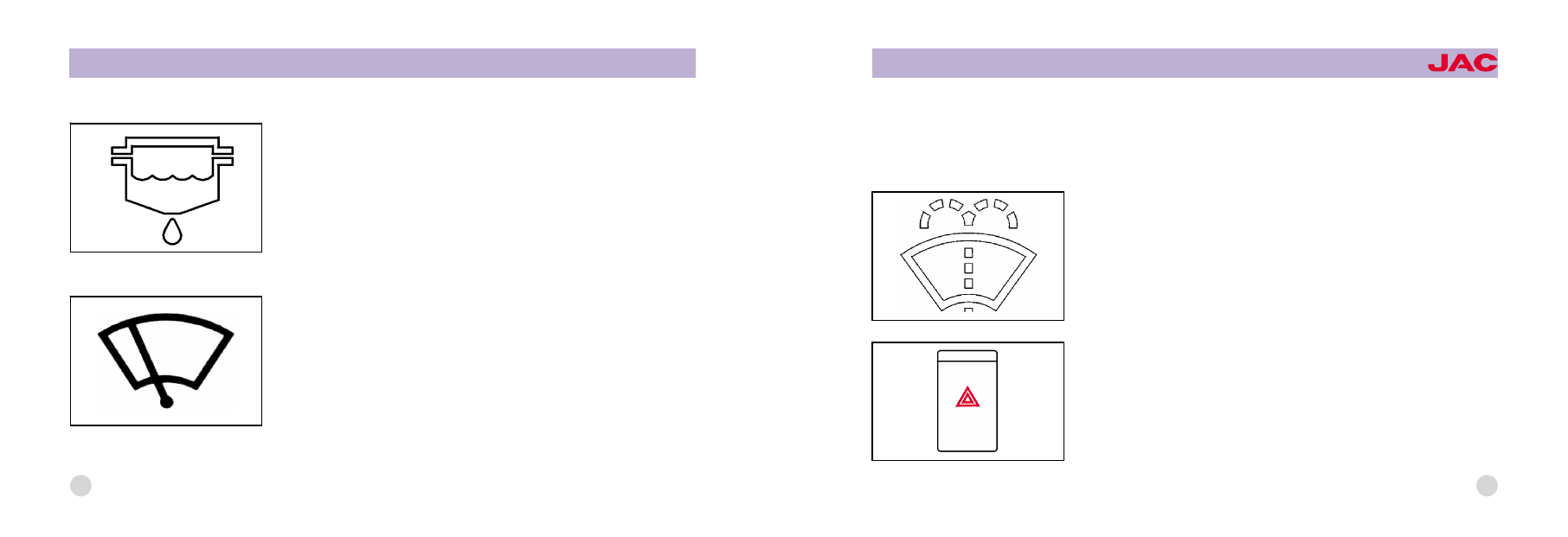

Water quantity indicator light of the fuel filter
When water in the oil/water separator reaches a dangerous level, the water
quantity indicator light of the fuel filter is on. If the indicator light remains on dur鄄
ing the engine running after it is on, it means that water in the oil/water separa鄄
tor should be drained out.

Windshield wiper working indication
Turning the operation handle in horizontal clockwise may control the windshield
wiper. Turn the operation handle 12 degrees clockwise into the INT position,
the windshield wiper will work intermittently in 5-10 seconds; turn the handle 12
degrees clockwise into the L0 position, the wiper will work at the low speed
level; turn the handle further 12 degrees clockwise, and the wiper will work at
high speed level; when the handle gets into the starting position, the wiper will
automatically be turned off or reset.

OWNER爷S MANUAL

JAC High end Light Trucks

Washer indication
The washer control button is at the end of the operation handle, and the windshield washer is installed near the right door
and below the instrument panel. When the washer control button is pressed in, detergent (anti-freeze solution for winter
time) will be injected out of the washer through the nozzles onto the windshield.

Danger warning switch
Pressing this switch, located in the lower left corner of the dashboard, will
sound an alarm, at this moment all the turn signal lamps will be flashing, and
have nothing to do with the positions where they are. Press it again, the switch
will reset.
When vehicle meets with any danger that may cause traffic accident, this dan鄄
ger warning light shall be used in day and night to sound an alarm to other
drivers.
