TIRE PRESSURE MONITORING SYSTEM (TPMS)
Check Tire Pressure
• The displayed tire pressure values
may differ from those measured
■ Type A
■ Type B
with a tire pressure gauge.
• You can change the tire pressure
unit in the User Settings mode on
the cluster.
- psi, kpa, bar (Refer to the "User
Settings Mode" section in
chapter 3).
OAE066006N
■ Type A
■ Type B
OAE046460L/OAE066030L
• You can check the tire pressure in
the Information Mode (for cluster
type A) or Assist Mode (for cluster
type B) on the cluster.
Refer to the "LCD Display
Modes" in chapter 3.
OAE046114L/OAE046115L
• Tire pressure is displayed after a
(1) Low Tire Pressure / TPMS
few minutes of driving after initial
Malfunction Indicator Lamp
engine start up.
(2) Low Tire Pressure /
• If tire pressure is not displayed
Tire Pressure Monitor /
when the vehicle is stopped, "Drive
TPMS Malfunction Display
to display" message will appear.
(shown on the cluster LCD dis-
After driving, check the tire pres-
play)
sure.
6-14
Tire Pressure Monitoring
As an added safety feature, your
Your vehicle has also been equipped
System
vehicle has been equipped with a tire
with a TPMS malfunction indicator to
pressure monitoring system (TPMS)
indicate when the system is not
that illuminates a low tire pressure
operating properly.
WARNING
telltale when one or more of your
The TPMS malfunction indicator is
tires is significantly under-inflated.
Over-inflation or under-inflation
combined with the low tire pressure
Accordingly, when the low tire pres-
can reduce tire life, adversely
telltale. When the system detects a
sure telltale illuminates, you should
affect vehicle handling, and
malfunction, the telltale will flash for
stop and check your tires as soon as
lead to sudden tire failure that
approximately one minute and then
possible, and inflate them to the
may cause loss of vehicle con-
remain continuously illuminated. This
proper pressure. Driving on a signifi-
trol resulting in an accident.
sequence will continue upon subse-
cantly underinflated tire causes the
quent vehicle start-ups as long as
tire to overheat and can lead to tire
the malfunction exists.
Each tire, including the spare (if pro-
failure.
vided), should be checked monthly
When the malfunction indicator is
Under-inflation also reduces fuel effi-
when cold and inflated to the inflation
illuminated, the system may not be
pressure recommended by the vehi-
ciency and tire tread life, and may
able to detect or signal low tire pres-
affect the vehicle's handling and
cle manufacturer on the vehicle plac-
sure as intended. TPMS malfunc-
stopping ability.
6
ard or tire inflation pressure label. (If
tions may occur for a variety of rea-
your vehicle has tires of a different
Please note that the TPMS is not a
sons, including the installation of
size than the size indicated on the
substitute for proper tire mainte-
replacement or alternate tires or
vehicle placard or tire inflation pres-
nance, and it is the driver's responsi-
wheels on the vehicle that prevent
sure label, you should determine the
bility to maintain correct tire pres-
the TPMS from functioning properly.
proper tire inflation pressure for
sure, even if under-inflation has not
Always check the TPMS malfunction
those tires.)
reached the level to trigger illumina-
telltale after replacing one or more
tion of the TPMS low tire pressure
tires or wheels on your vehicle to
telltale.
ensure that the replacement or alter-
nate tires and wheels allow the
TPMS to continue to function proper-
ly.
6-15
What to do in an emergency
Always check the TPMS malfunction
Low Tire Pressure
If any of your tire pressures are indi-
LCD display after replacing one or
Telltale
cated as being low, immediately
more tires or wheels on your vehicle
reduce your speed, avoid hard cor-
to ensure that the replacement or
nering, and anticipate increased
alternate tires and wheels allow the
Low Tire Pressure LCD
stopping distances. You should stop
TPMS to continue to function proper-
Display with Position Indicator
and check your tires as soon as pos-
ly.
sible. Inflate the tires to the proper
■ Type A
■ Type B
pressure as indicated on the vehi-
NOTICE
cle's placard or tire inflation pressure
label located on the driver's side cen-
If any of the below happens, have
ter pillar outer panel.
the system checked by an author-
If you cannot reach a service station
ized HYUNDAI dealer.
OAE046114L
OAE046115L
or if the tire cannot hold the newly
1. The Low Tire Pressure TPMS
added air, replace the low pressure
When the tire pressure monitoring
Malfunction Indicator does not
tire with the spare tire.
system warning indicators are illumi-
illuminate for 3 seconds when
nated and the warning message is
The Low Tire Pressure LCD position
the Engine Start/Stop button is
displayed on the cluster LCD display,
indicator will remain on and the
placed to the ON position or
one or more of your tires is signifi-
TPMS Malfunction Indicator may
engine is running.
cantly under-inflated. The LCD posi-
blink for one minute and then remain
2. The TPMS Malfunction Indicator
tion indicator will indicate which tire
illuminated until you have the low
remains illuminated after blink-
is significantly under-inflated by illu-
pressure tire repaired and replaced
ing for approximately 1 minute.
minating the corresponding position
on the vehicle.
3. The Low Tire Pressure LCD dis-
light.
play remains illuminated
NOTICE
The spare tire is not equipped with
a tire pressure sensor.
6-16
TPMS Malfunction
CAUTION
WARNING
Indicator
During winter or cold weather,
Low pressure damage
The TPMS Malfunction
the TPMS indicator may illumi-
Indicator will illuminate after it blinks
Significantly low tire pressure
nate if the tire pressures were
for approximately one minute when
makes the vehicle unstable and
set when the outside tempera-
there is a problem with the Tire
can contribute to loss of vehicle
ture was warm. As the outside
Pressure Monitoring System.
control and increased braking
air becomes colder, the pres-
Have the system checked by an
distances.
sure in the tires will decrease.
authorized HYUNDAI dealer as soon
Similarly, if the outside air
Continued driving on low pres-
as possible.
becomes warmer, the pressure
sure tires can cause the tires to
in the tires will increase. As you
overheat and fail.
NOTICE
drive your vehicle, the tempera-
ture of the tires will heat up,
If there is a malfunction with the
therefore the tire pressures will
TPMS, the individual tire pres-
increase. Check and adjust your
sures in the cluster LCD display
tire pressures regularly before
will not be available. Have the sys-
6
driving to make sure your vehi-
tem checked by an authorized
cle is operating at the correct
HYUNDAI dealer as soon as possi-
pressures as designed.
ble.
6-17
What to do in an emergency
NOTICE
Changing a Tire with TPMS
Once the original tire equipped with
a tire pressure monitoring sensor is
If you have a flat tire, the Low Tire
The TPMS Malfunction Indicator
reinflated to the recommended pres-
Pressure and LCD position indicator
may illuminate after blinking for
sure and reinstalled on the vehicle,
will come on. Have the flat tire
one minute if the vehicle is near
the Low Tire Pressure LCD position
repaired by an authorized HYUNDAI
electric power supply cables or
indicator and TPMS Malfunction
dealer as soon as possible or
radio transmitters such as police
Indicator will go off within a few min-
replace the flat tire with the spare
stations, government and public
utes of driving.
tire.
offices, broadcasting stations,
If the indicators do not disappear
military installations, airports,
after a few minutes, please visit an
transmitting towers, etc.
CAUTION
authorized HYUNDAI dealer.
Additionally, the TPMS Malfunction
Never use a puncture-repairing
Each wheel is equipped with a tire
Indicator may illuminate if snow
agent not approved by HYUNDAI
pressure sensor mounted inside the
chains are used or electronic
dealer to repair and/or inflate a
tire behind the valve stem (except for
devices such as computers, charg-
low pressure tire. Tire sealant
the spare tire). You must use TPMS
ers, remote starters, navigation,
not approved by HYUNDAI deal-
specific wheels. It is recommended
etc. This may interfere with normal
er may damage the tire pressure
that you always have your tires serv-
operation of the TPMS.
sensor.
iced by an authorized HYUNDAI
dealer.
The spare tire does not come with a
tire pressure monitoring sensor.
When the low pressure tire or the flat
tire is replaced with the spare tire,
the Low Tire Pressure LCD position
indicator will remain on. Also, the
TPMS Malfunction Indicator will illu-
minate after blinking for one minute if
the vehicle is driven at speed above
15.5 mph (25 km/h) for approximate-
ly 20 minutes.
6-18
You may not be able identify a tire
i
Information
WARNING
with low pressure by simply looking
at it. Always use a good quality tire
This device complies with Part 15 of
Tampering with, modifying, or
the FCC rules.
pressure guage to measure the tire's
disabling the Tire Pressure
inflation pressure. Please note that a
Operation is subject to the following
Monitoring System
(TPMS)
tire that is hot (from being driven) will
three conditions:
components may interfere with
have a higher pressure measure-
1. This device may not cause harmful
the system's ability to warn the
ment than a tire that is cold.
interference, and
driver of low tire pressure con-
A cold tire means the vehicle has
ditions and/or TPMS malfunc-
2. This device must accept any inter-
been sitting for 3 hours and driven for
tions. Tampering with, modify-
ference received, including interfer-
less than 1 mile (1.6 km) in that 3
ing, or disabling the Tire
ence that may cause undesired
hour period.
Pressure Monitoring System
operation.
Allow the tire to cool before measur-
(TPMS) components may void
3.
Changes or modifications not
ing the inflation pressure. Always be
the warranty for that portion of
expressly approved by the party
sure the tire is cold before inflating to
the vehicle.
responsible for compliance could
the recommended pressure.
void the user’s authority to operate
the equipment.
6
WARNING
• The TPMS cannot alert you to
severe and sudden tire dam-
age caused by external fac-
tors such as nails or road
debris.
• If you feel any vehicle instabil-
ity, immediately take your foot
off the accelerator, apply the
brakes gradually with light
force, and slowly move to a
safe position off the road.
6-19
What to do in an emergency
IF YOU HAVE A FLAT TIRE
With Spare Tire (if equipped)
Jack and tools
WARNING
Changing a tire can be danger-
ous. Follow the instructions in
this section when changing a
tire to reduce the risk of serious
injury or death.
OAD065026
CAUTION
Turn the winged hold down bolt
OAD065027
counterclockwise to remove the
Be careful as you use the jack
➀ Jack handle
handle to stay clear of the flat
spare tire.
② Jack
end. The flat end has sharp
Store the spare tire in the same com-
edges that could cause cuts.
③ Wheel lug nut wrench
partment by turning the winged hold
down bolt clockwise.
The jack, jack handle, and wheel lug
To prevent the spare tire and tools
nut wrench are stored in the luggage
from "rattling", store them in their
compartment under the luggage box
proper location.
cover.
The jack is provided for emergency
tire changing only.
6-20
Changing tires
(Continued)
• Do not start or run the engine
WARNING
while the vehicle is on the
jack.
A vehicle can slip or roll off of a
jack causing serious injury or
• Do not allow anyone to remain
in the vehicle while it is on the
death to you or those nearby.
Take the following safety pre-
jack.
cautions:
• Keep children away from the
road and the vehicle.
•
Never place any portion of
your body under a vehicle that
OLF064005
is supported by a jack.
Follow these steps to change your
If it is hard to loosen the tire hold-
•
NEVER attempt to change a
vehicle's tire:
down wing bolt by hand, you can
tire in the lane of traffic.
loosen it easily using the jack handle.
1. Park on a level, firm surface.
ALWAYS move the vehicle
1. Put the jack handle (1) inside of
completely off the road on
2. Move the shift lever into P (Park),
the tire hold-down wing bolt.
level, firm ground away from
apply the parking brake, and place
6
traffic before trying to change
the Engine Start/Stop button in the
2. Turn the tire hold-down wing bolt
a tire. If you cannot find a level,
OFF position.
counterclockwise with the jack
handle.
firm place off the road, call a
3. Press the hazard warning flasher
towing service for assistance.
button.
•
Be sure to use the jack pro-
4. Remove the wheel lug nut wrench,
vided with the vehicle.
jack, jack handle, and spare tire
•
ALWAYS place the jack on the
from the vehicle.
designated jacking positions
5. Block both the front and rear of the
on the vehicle and NEVER on
tire diagonally opposite of the tire
the bumpers or any other part
you are changing.
of the vehicle for jacking sup-
port.
(Continued)
6-21
What to do in an emergency
■ Front
■ Rear
Block
OAE066010
OAE066011
OAE066012

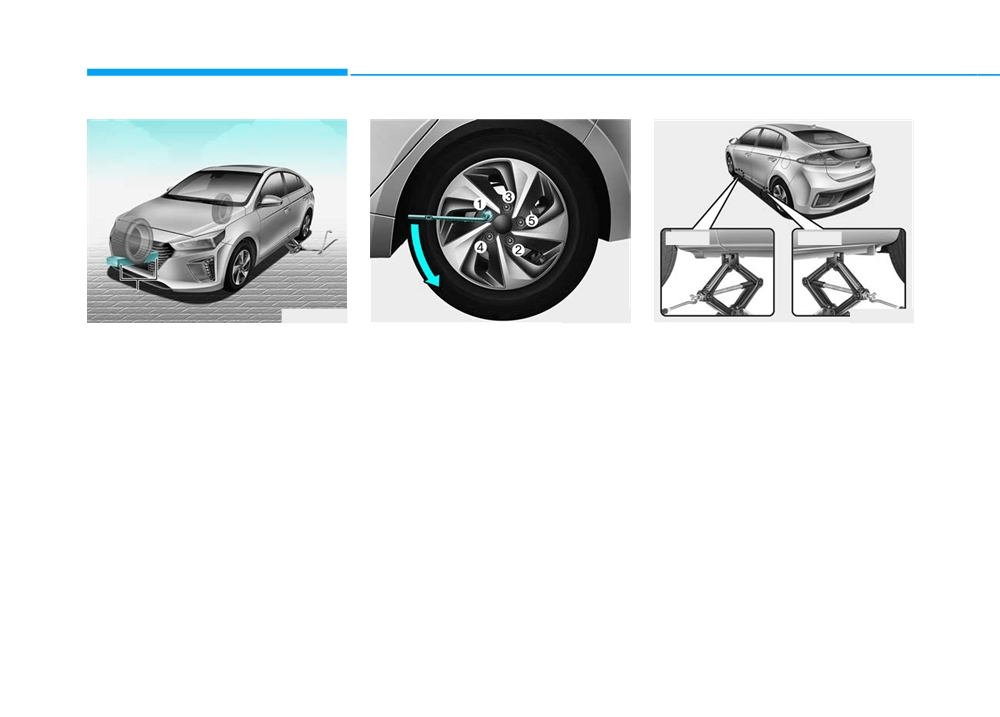

6. Loosen the wheel lug nuts coun-
7. Place the jack at the designated
8. Insert the jack handle into the jack
terclockwise one turn each in the
jacking position under the frame
and turn it clockwise, raising the
order shown above, but do not
closest to the tire you are chang-
vehicle until the tire clears the
remove any lug nuts until the tire
ing. The jacking positions are
ground. Make sure the vehicle is
has been raised off of the ground.
plates welded to the frame with
stable on the jack.
two notches. Never jack at any
other position or part of the vehi-
cle. Doing so may damage the
side seal molding or other parts of
the vehicle.
6-22
11. Tighten the lug nuts with your fin-
■ Rear
gers onto the studs with the
smaller end of the lug nuts clos-
est to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle coun-
terclockwise.

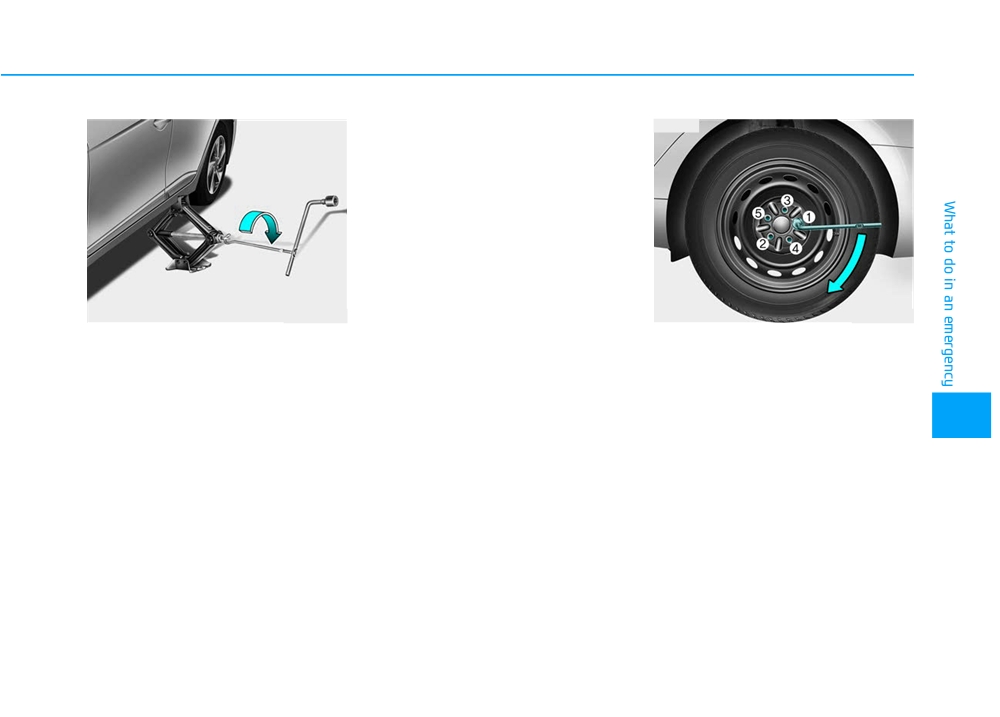

13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug
nut until they are tight. After
OAE066013
OLF064013
changing tires, have an author-
9. Loosen the lug nuts with the wheel
ized HYUNDAI dealer tighten the
If you have a tire gauge, check the
lug nut wrench and remove them
lug nuts to their proper torque as
tire pressure
(see "Tires and
with your fingers. Remove the
soon as possible. The wheel lug
Wheels" in chapter 8 for tire pressure
wheel from the studs and lay it flat
nut should be tightened to
instructions.). If the pressure is lower
on the ground out of the way.
79~94 lbf·ft (11~13 kgf·m).
or higher than recommended, drive
6
Remove any dirt or debris from
slowly to the nearest service station
the studs, mounting surfaces, and
and adjust it to the recommended
wheel.
pressure. Always reinstall the valve
cap after checking or adjusting tire
10. Install the spare tire onto the
pressure. If the cap is not replaced,
studs of the hub.
air may leak from the tire. If you lose
a valve cap, buy another and install it
as soon as possible. After changing
tires, secure the flat tire and return
the jack and tools to their proper stor-
age locations.
6-23
What to do in an emergency
NOTICE
Use of compact spare tires
When driving with the compact spare
(if equipped)
tire mounted to your vehicle:
Check the tire pressure as soon
Compact spare tires are designed for
•
Check the tire pressure after
as possible after installing a spare
emergency use only. Drive carefully
installing the compact spare tire.
tire. Adjust it to the recommended
on the compact spare tire and
The compact spare tire should be
pressure.
always follow the safety precautions.
inflated to 60 psi (420 kPa).
•
Do not take this vehicle through an
CAUTION
WARNING
automatic car wash while the com-
pact spare tire is installed.
Your vehicle has metric threads
To prevent compact spare tire
•
Do not use the compact spare tire
on the studs and lug nuts. Make
failure and loss of control pos-
on any other vehicle because this
certain during tire changing
sibly resulting in an accident:
tire has been designed especially
that the same nuts that were
•
Use the compact spare tire
for your vehicle.
removed are reinstalled. If you
only in an emergency.
•
The compact spare tire’s tread life
have to replace your lug nuts
•
NEVER operate your vehicle
is shorter than a regular tire.
make sure they have metric
over 50 mph (80 km/h).
Inspect your compact spare tire
threads to avoid damaging the
regularly and replace worn com-
studs and ensure the wheel is
•
Do not exceed the vehicle's
pact spare tires with the same size
properly secured to the hub.
maximum load rating or the
and design, mounted on the same
Consult
an
authorized
load carrying capacity shown
wheel.
HYUNDAI dealer for assistance.
on the sidewall of the com-
pact spare tire.
•
Do not use more than one compact
spare tire at a time.
•
Do not use the compact spare
If any of the equipment such as the
tire continuously. Repair or
jack, lug nuts, studs, or other equip-
replace the original tire as
ment is damaged or in poor condi-
soon as possible to avoid fail-
tion, do not attempt to change the
ure of the compact spare tire.
tire and call for assistance.
6-24
NOTICE
With Tire Mobility Kit (TMK)
CAUTION
- Type A
When the original tire and wheel
are repaired and reinstalled on the
To prevent damaging the com-
vehicle, the lug nut torque must be
pact spare tire and your vehicle:
set correctly. The correct lug nut
•
Drive slowly enough for the
tightening torque is
79~94 lbf·ft
road conditions to avoid all
(11~13 kgf·m).
hazards, such as a potholes
or debris.
•
Avoid driving over obstacles.
The compact spare tire diame-
ter is smaller than the diame-
ter of a conventional tire and
reduces the ground clearance
approximately 1 inch (25 mm).
OAE066037N
•
Do not use tire chains on the
For safe operation, carefully read
compact spare tire. Because
and follow the instructions in this
of the smaller size, a tire chain
manual before use.
6
will not fit properly.

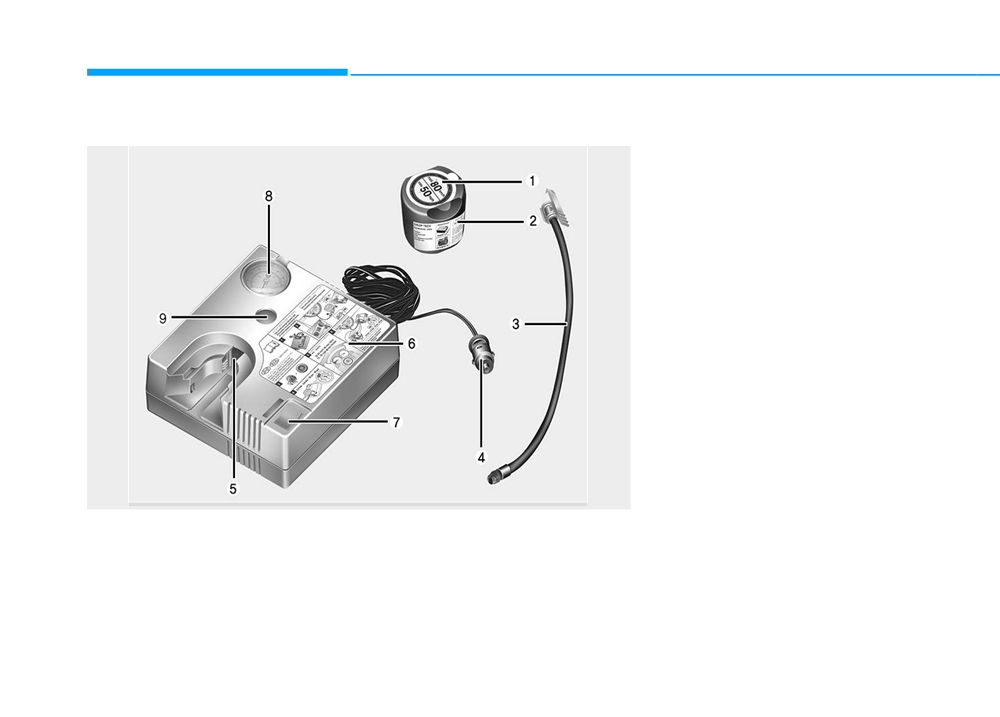

(1) Compressor
•
Do not use the compact spare
(2) Sealant bottle
tire on any other wheels, nor
should standard tires, snow
tires, wheel covers or trim
rings be used with the com-
pact spare wheel.
6-25
What to do in an emergency
The Tire Mobility Kit is a temporary fix
Introduction
WARNING
to the tire and the tire should be
With the Tire Mobility Kit you stay
inspected by an authorized HYUNDAI
mobile even after experiencing a tire
Temporary fix
dealer as soon as possible.
puncture.
Have your tire repaired as soon
The compressor and sealing com-
as possible. The tire may lose
CAUTION
pound system effectively and com-
air pressure at any time after
fortably seals most punctures in a
One sealant bottle for one tire
inflating with the Tire Mobility
passenger car tire caused by nails
Kit.
or similar objects and reinflates the
When two or more tires are flat,
tire.
do not use the tire mobility kit
because the supported one
After you ensure that the tire is prop-
sealant of Tire Mobility Kit is
erly sealed you can drive cautiously
only used for one flat tire.
on the tire (distance up to 120 miles
(200 km)) at a max. speed of (50
mph (80 km/h)) in order to reach a
service station or tire dealer for the
WARNING
tire replacement.
Tire wall
It is possible that some tires, espe-
cially with larger punctures or dam-
Do not use the Tire Mobility Kit
age to the sidewall, cannot be sealed
to repair punctures in the tire
completely.
walls. This can result in an acci-
Air pressure loss in the tire may
dent due to tire failure.
adversely affect tire performance.
For this reason, you should avoid
abrupt steering or other driving
maneuvers, especially if the vehicle
is heavily loaded or if a trailer is in
use.
6-26
The Tire Mobility Kit is not designed
•
When the tire and wheel are dam-
•
Do not use the Tire Mobility Kit if
or intended as a permanent tire
aged, do not use Tire Mobility Kit
the ambient temperature is below
repair method and is to be used for
for your safety.
-22°F (-30°C).
one tire only.
•
Use of the Tire Mobility Kit may not
•
In case of skin contact with the-
This instruction shows you step by
be effective for tire damage larger
sealant, wash the area thoroughly-
step how to temporarily seal the
than approximately
0.24 inch
(6
with plenty of water.If the irritation-
puncture simply and reliably.
mm).
persists, seek medical attention.
Read the section "Notes on the safe
Please contact the nearest
•
In case of eye contact with the
use of the Tire Mobility Kit".
HYUNDAI dealership if the tire
sealant,flush your eyes for at least
cannot be made roadworthy with
15 min-utes.If the irritation persists,
the Tire Mobility Kit.
seekmedical attention.
Notes on the safe use of the
•
Do not use the Tire Mobility Kit if a
•
In case of swallowing the
Tire Mobility Kit
tire is severely damaged by driving
sealant,rinse the mouth and drink
• Park your car at the side of the
run flat or with insufficient air pres-
plenty ofwater.However, never give
road so that you can work with the
sure.
anythingto an unconscious person
Tire Mobility Kit away from moving
and seekmedical attention immedi-
•
Do not remove any foreign objects
traffic.
ately.
such as nails or screws that have
6
• To be sure your vehicle will not
penetrated the tire.
•
Long time exposure to the sealant-
move, even when you're on fairly
may cause damage to bodily tis-
•
Provided the car is outdoors, leave
level ground, always set your park-
suesuch as kidney, etc.
the engine running. Otherwise
ing brake.
operating the compressor may
• Only use the Tire Mobility Kit for
eventually drain the car battery.
sealing/inflation passenger car
•
Never leave the Tire Mobility Kit
tires. Only punctured areas located
unattended while it is being used.
within the tread region of the tire
can be sealed using the tire mobil-
•
Do not leave the compressor run-
ity kit.
ning for more than 10 minutes at a
time or it may overheat.
• Do not use on motorcycles, bicy-
cles or any other type of tires.
6-27
What to do in an emergency
Components of the Tire Mobility Kit
1. Speed restriction label
2. Sealant bottle and label with
speed restriction
3. Filling hose from sealant bottle to
wheel
4. Connectors and cable for power
outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. ON/OFF switch
8. Pressure gauge for displaying the
tire inflation pressure
9. Button for reducing tire inflation
pressure
OAE067039
6-28
Connectors, cable and connection
Using the Tire Mobility Kit
hose are stored in the compressor
housing.
CAUTION
Strictly follow the specified sequence,
otherwise the sealant may escape
under high pressure.
WARNING
Do not use the tire sealant after
OAEPH067041L
the sealant has expired
(i.e.
pasted the expiration date on
2. Screw the filling hose (3) onto the
the sealant container). This can
connector of the sealant bottle (2).
OAE066014
increase the risk of tire failure.
3. Insert the sealant bottle into the
Detach the speed restriction
housing of the compressor (5) so
label (1) from the sealant bottle
that the bottle is upright.
6
(2), and place it in a highly visi-
WARNING
4. Ensure that the button (9) on the
ble place inside the vehicle
compressor is not pressed.
such as on the steering wheel
• Keep out of reach of children.
to remind the driver not to drive
• Avoid contact with eyes.
too fast.
• Do not swallow.
1. Shake the sealant bottle (2).
6-29
What to do in an emergency
CAUTION
Securely install the sealant fill-
ing hose to the valve. If not,
sealant may flow backward,
possibly clogging the filling
hose.
OAE067040
OAEPH067016

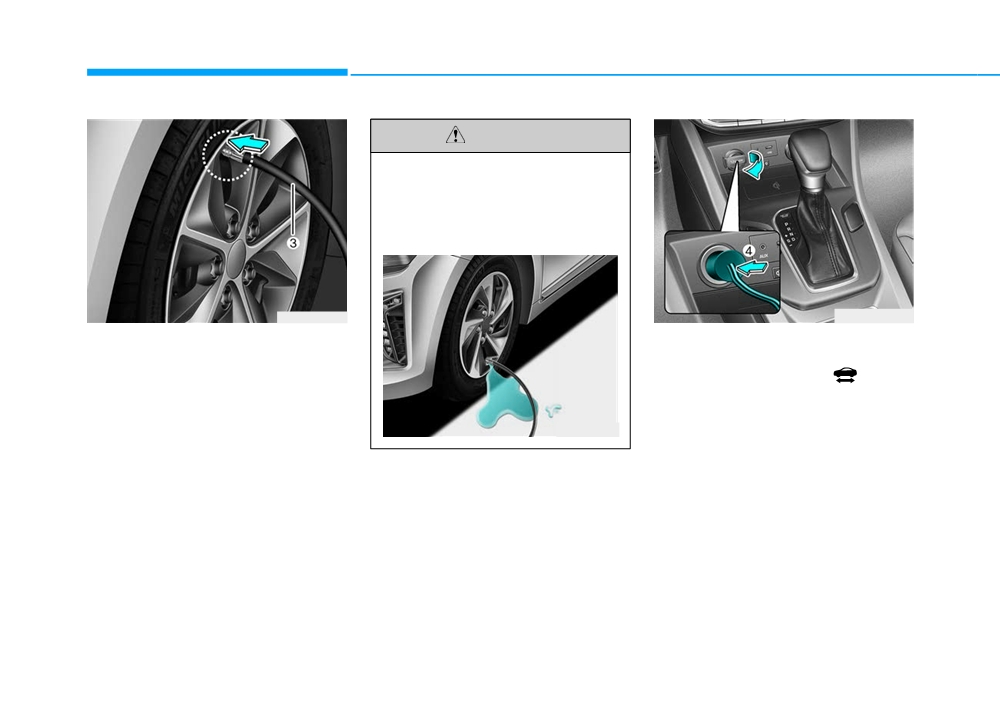

5. Unscrew the valve cap from the
7. Plug the compressor power cord
valve of the defective wheel and
(4) into the vehicle power outlet.
screw the filling hose (3) of the
8. With the vehicle ON (
indica-
sealant bottle onto the valve.
tor ON), switch on the compressor
6. Ensure that the compressor is
and let it run for approximately
switched OFF.
OAE066027
5~7 minutes to fill the sealant up
to proper pressure. (refer to the
Tire and Wheels, chapter 8). The
inflation pressure of the tire after
filling is unimportant and will be
checked/corrected later.
Be careful not to overinflate the
tire and stay away from the tire
when filling it.
6-30
