WARNING

Do not attempt to install a child

restraint system using LATCH

Lower Anchor

2

anchors in the rear center seat-

Position Indicator

ing position.There are no LATCH

anchors provided for this seat.

Using the outboard seat anchors

can damage the anchors which

may break or fail in a collision

Lower Anchor

resulting in serious injury or

OAE036063

OAE036031

death.

LATCH anchors have been provided

The lower anchor position indicator

in the left and right outboard rear

symbols are located on the left and

seating positions. Their locations are

right rear seat backs to identify the

shown in the illustration. There are no

position of the lower anchors in your

LATCH anchors provided for the cen-

vehicle (see arrows in illustration).

ter rear seating position.

The LATCH anchors are located

between the seatback and the seat

cushion of the rear seat left and right

outboard seating positions.

2-41

Safety system of your vehicle

Securing a child restraint with

NOTICE

WARNING

the LATCH anchors system

The recommended weight for the

To install a LATCH-compatible child

LATCH system is under 65 lb (30

Take the following precautions

restraint in either of the rear outboard

when using the LATCH system:

kg).

seating positions:

•

Read and follow all installation

How to determine an appropriate

1. Move the seat belt buckle away

instructions provided with

child restraint weight:

from the lower anchors.

your child restraint system.

Child weight

+ Child restraint

2. Move any other objects away from

•

To prevent the child from

weight < 65 lb (30kg)

the anchors that could prevent a

reaching and taking hold of

secure connection between the

unretracted seat belts, buckle

child restraint and the lower

all unused rear seat belts and

anchors.

retract the seat belt webbing

3. Place the child restraint on the

behind the child. Children can

vehicle seat, then attach the seat

be strangled if a shoulder belt

to the lower anchors according to

becomes wrapped around

the instructions provided by the

their neck and the seat belt

child restraint manufacturer.

tightens.

4. Follow the child restraint instruc-

•

NEVER attach more than one

tions for properly adjusting and

child restraint to a single

tightening the lower attachments

anchor. This could cause the

on the child restraint to the lower

anchor or attachment to come

anchors.

loose or break.

•

Always have the LATCH sys-

tem inspected by your author-

ized HYUNDAI dealer after an

accident. An accident can

damage the LATCH system

and may not properly secure

the child restraint.

2-42

Securing a child restraint seat

WARNING

with "Tether Anchor" system

Take the following precautions

when installing the tether strap:

2

•

Read and follow all installation

instructions provided with

your child restraint system.

•

NEVER attach more than one

child restraint to a single teth-

er anchor. This could cause

the anchor or attachment to

OAE036030

come loose or break.

To install the tether anchor:

•

Do not attach the tether strap

OAE036029N

1. Route the child restraint tether strap

to anything other than the cor-

over the child restraint seatback.

First secure the child restraint with

rect tether anchor. It may not

Route the tether strap under the

the LATCH lower anchors or the seat

work properly if attached to

head restraint and between the

belt. If the child restraint manufactur-

something else.

head restraint posts, or route the

er recommends that the top tether

•

Do not use the tether anchors

tether strap over the top of the vehi-

strap be attached, attach and tighten

for adult seat belts or harness-

cle seatback. Make sure the strap is

the top tether strap to the top tether

es, or for attaching other items

not twisted.

strap anchor.

or equipment to the vehicle.

2. Connect the tether strap hook to the

Child restraint hook holders are

tether anchor, then tighten the teth-

located on the rear of the seatbacks.

er strap according to the child seat

manufacturer's instructions to firmly

secure the child restraint to the seat.

3. Check that the child restraint is

securely attached to the seat by

pushing and pulling the seat for-

ward-and-back and side-to-side.

2-43

Safety system of your vehicle

Securing a child restraint with

To install a child restraint system on

lap/shoulder belt

the rear seats, do the following:

When not using the LATCH system,

1. Place the child restraint system on

all child restraints must be secured to

a rear seat and route the lap/

a vehicle rear seat with the lap part

shoulder belt around or through

of a lap/shoulder belt.

the child restraint, following the

restraint manufacturer's instruc-

tions.

WARNING

Be sure the seat belt webbing is

ALWAYS place a rear-facing

not twisted.

child restraint in the rear seat of

OLMB033044

the vehicle.

NOTICE

Automatic locking mode

Placing a rear-facing child

When using the rear center seat

restraint in the front seat can

Since all passenger seat belts move

belt, you should also refer to the

result in serious injury or death

freely under normal conditions and

"Rear Seat Belt - Passenger's 3-

if the child restraint is struck by

only lock under extreme or emer-

point system" section in this

an inflating air bag.

gency conditions (emergency locking

chapter.

mode), you must manually pull the

seat belt all the way out to shift the

retractor to the "Automatic Locking"

mode to secure a child restraint.

The "Automatic Locking" mode will

help prevent the normal movement

of the child in the vehicle from caus-

ing the seat belt to loosen and com-

promise the child restraint system. To

secure a child restraint system, use

the following procedure.

2-44

2

OLMB033045

OLMB033097

OLMB033098

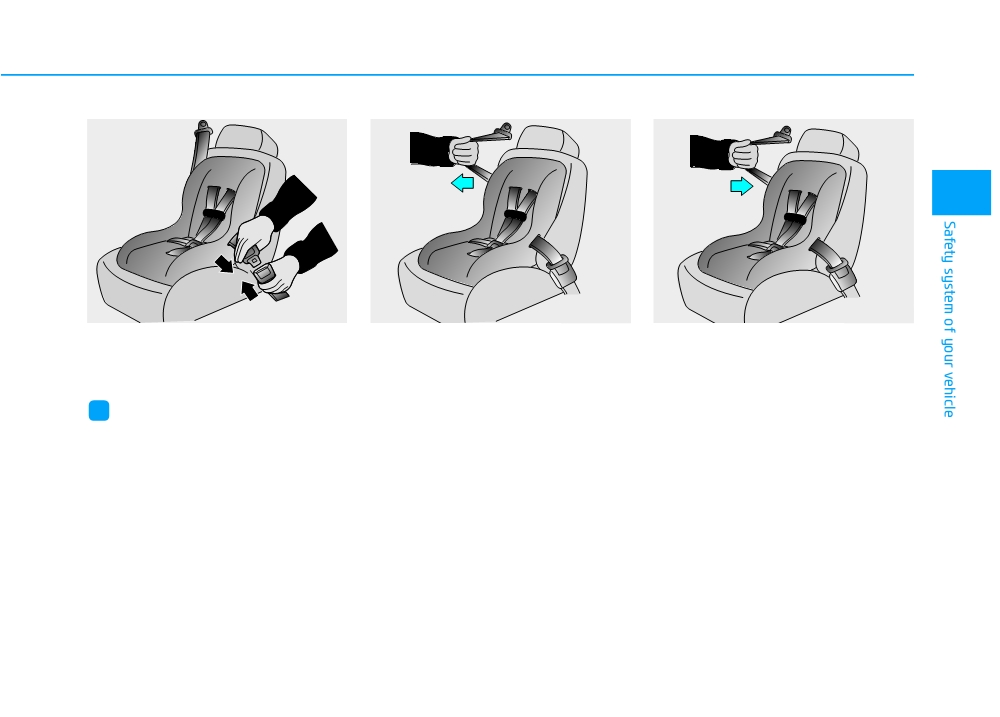

2. Fasten the lap/shoulder belt latch

3. Pull the shoulder portion of the seat

4. Slowly allow the shoulder portion of

into the buckle. Listen for the dis-

belt all the way out. When the shoul-

the seat belt to retract and listen for

tinct "click" sound.

der portion of the seat belt is fully

an audible "clicking" or "ratcheting"

extended, it will shift the retractor to

sound. This indicates that the

the "Automatic Locking"

(child

retractor is in the "Automatic

i

Information

restraint) mode.

Locking" mode. If no distinct sound

Position the release button so that it is

is heard, repeat steps 3 and 4.

easy to access in case of an emergency.

2-45

Safety system of your vehicle

5. Remove as much slack from the

NOTICE

To remove the child restraint, press

belt as possible by pushing down

the release button on the buckle and

on the child restraint system while

When the seat belt is allowed to

then pull the lap/shoulder belt out of

feeding the shoulder belt back into

retract to its fully stowed position,

the restraint and allow the seat belt

the retractor.

the retractor will automatically

to retract fully.

switch from the "Automatic

6. Push and pull on the child restraint

Locking" mode to the emergency

system to confirm that the seat

lock mode for normal adult usage.

belt is holding it firmly in place. If it

is not, release the seat belt and

repeat steps 2 through 6.

WARNING

7. Double check that the retractor is

If the retractor is not in the

in the "Automatic Locking" mode

by attempting to pull more of the

"Automatic Locking" mode, the

child restraint can move when

seat belt out of the retractor. If you

cannot, the retractor is in the

your vehicle turns or stops sud-

denly. A child can be seriously

"Automatic Locking" mode.

injured or killed if the child

restraint is not properly anchored

If your CRS manufacturer instructs or

in the car, including manually

recommends you to use a tether

pulling the seat belt all the way

anchor with the lap/shoulder belt,

out to shift the rectractor to the

refer to the previous pages for more

"Automatic Locking" mode.

information.

2-46

AIR BAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM

2

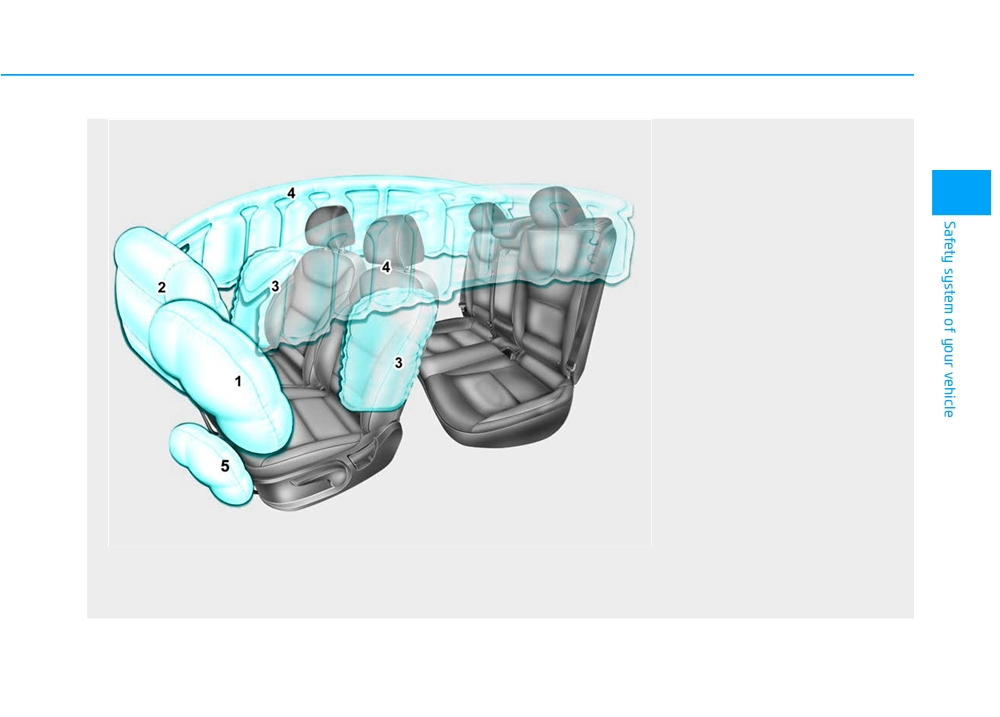

1. Driver's front air bag

2. Passenger's front air bag

3. Side air bag

4. Curtain air bag

5. Driver's knee air bag

The actual air bags in the vehicle may differ from the illustration.

OAEE036035

2-47

Where Are the Air Bags?

■ Driver's front air bag

The purpose of the SRS is to provide

the vehicle's driver and front passen-

Driver's and passenger's front

gers with additional protection than

air bags

that offered by the seat belt system

Your vehicle is equipped with a

alone. The advanced SRS offers the

2

Advanced Supplemental Restraint

ability to control the air bag inflation

System (SRS) and lap/shoulder belts

within two levels. A first stage level is

at both the driver and passenger

provided for moderate-severity

seating positions.

impacts. A second stage level is pro-

The SRS consists of air bags which

vided for more severe impacts.

OAE036032

are located in the center of the steer-

■ Driver's knee air bag

According to the impact severity, the

ing wheel, in the driver's side lower

SRS Control Module (SRSCM) con-

crash pad below the steering wheel

trols the air bag inflation. Failure to

column and the passenger's side

properly wear seat belts can

front panel pad above the glove box.

increase the risk or severity of injury

The air bags are labeled with the let-

in an accident.

ters "AIR BAG" embossed on the

pad covers.

OAE036033

■ Passenger's front air bag

OAE036036

2-49

Safety system of your vehicle

Side air bags

The side air bags are designed to

WARNING

deploy only during certain side impact

collisions, depending on the crash

To reduce the risk of serious

severity.

injury or death from an inflating

The side and curtain air bags on

front air bags, take the following

precautions:

both sides of the vehicle may deploy

if a rollover or possible rollover is

•

Seat belts must be worn at all

detected.

times to help keep occupants

positioned properly.

The side air bags are not designed to

deploy in all side impact or rollover

•

Move your seat as far back as

situations.

possible from front air bags,

OAE036037

while still maintaining control

of the vehicle.

WARNING

•

Never lean against the door or

center console.

To reduce the risk of serious

injury or death from an inflating

•

Do not allow the front passen-

side air bag, take the following

ger to place their feet or legs

precautions:

on the dashboard.

•

No objects (such as crash pad

• Seat belts must be worn at all

cover, cellular phone holder,

times to help keep occupants

cup holder, perfume or stickers)

positioned properly.

should be placed over or near

OAE036038

(Continued)

the air bag modules on the

Your vehicle is equipped with a side

steering wheel, instrument

air bag in each front seat. The pur-

panel, windshield glass, and the

pose of the air bag is to provide the

front passenger's panel above

vehicle's driver and the front passen-

the glove box. Such objects

ger with additional protection than

could cause harm if the vehicle

that offered by the seat belt alone.

is in a crash severe enough to

cause the air bags to deploy.

2-50

Curtain air bags

(Continued)

(Continued)

•

Do not allow passengers to

•

Do not place any objects

lean their heads or bodies

between the door and the

onto doors, put their arms on

seat. They may become dan-

2

the doors, stretch their arms

gerous projectiles if the side

out of the window, or place

air bag inflates.

objects between the doors

•

Do not install any accessories

and seats.

on the side or near the side air

•

Hold the steering wheel at the

bags.

9 o'clock and 3 o'clock posi-

•

Do not put any objects

tions, to minimize the risk of

between the side airbag label

OAE036041

injuries to your hands and

and seat cushion. It could

arms.

cause harm if the vehicle is in

•

Do not use any accessory

a crash severe enough to

seat covers. This could reduce

cause the air bags to deploy.

or prevent the effectiveness

•

Do not cause impact to the

of the system.

doors when the Engine Start/

•

Do not place any objects over

Stop button is in the ON posi-

the air bag or between the air

tion as this may cause the

bag and yourself. Also, do not

side air bags to inflate.

attach any objects around the

•

If the seat or seat cover is

area the air bag inflates such

OAE036042

damaged, have the vehicle

as the door, side door glass,

checked and repaired by an

Curtain air bags are located along

front and rear pillar.

authorized HYUNDAI dealer.

both sides of the roof rails above the

(Continued)

front and rear doors.

2-51

Safety system of your vehicle

They are designed to help protect the

How Does the Air Bag System

(Continued)

heads of the front seat occupants

Operate?

and the rear outboard seat occupants

•

Properly

secure

child

in certain side impact collisions.

restraints as far away from the

door as possible.

The curtain air bags are designed to

deploy only during certain side

•

Do not place any objects over

impact collisions, depending on the

the air bag. Also, do not attach

crash severity.

any objects around the area

the air bag inflates such as the

The side and curtain air bags on

door, side door glass, front

both sides of the vehicle may deploy

and rear pillar, roof side rail.

if a rollover or possible rollover is

•

Do not hang other objects

detected.

except clothes, especially

The curtain air bags are not designed

hard or breakable objects. In

to deploy in all side impact or rollover

OAEE036075N

an accident, it may cause

situations.

vehicle damage or personal

The SRS consists of the following

injury.

components:

WARNING

•

Do not allow passengers to

1. Driver's front air bag module/

lean their heads or bodies onto

Driver's knee airbag module

To reduce the risk of serious

doors, put their arms on the

injury or death from an inflating

2. Passenger's front air bag module

doors, stretch their arms out of

curtain air bag, take the follow-

3. Side

air

bag

modules/

the window, or place objects

ing precautions:

Side impact sensors

between the doors and seats.

• All seat occupants must wear

4. Curtain air bag modules

•

Do not open or repair the side

seat belts at all times to help

curtain air bags.

5. Retractor pre-tensioner assem-

keep occupants positioned

blies

properly.

6. Air bag warning light

(Continued)

7. SRS control module

(SRSCM)/

Rollover sensor

2-52

8. Front impact sensors

SRS warning light

WARNING

9. Side pressure sensors

10. Emergency Fastening Device

If your SRS malfunctions, the air

System

bag may not inflate properly dur-

2

11. Occupant classification system

ing an accident increasing the

risk of serious injury or death.

The SRS

(Supplement Restraint

If any of the following condi-

The

SRSCM

(Supplemental

System) air bag warning light on the

tions occur, your SRS is mal-

Restraint System Control Module)

instrument panel displays the air bag

functioning:

continually monitors all SRS compo-

symbol depicted in the illustration.

nents while the Engine Start/Stop

The system checks the air bag elec-

• The light does not turn on for

button is in the ON position to deter-

trical system for malfunctions. The

approximately six seconds

mine if a crash impact is severe

light indicates that there is a potential

when the Engine Start/Stop

enough to require air bag deploy-

malfunction with your air bag system,

button is in the ON position.

ment or pre-tensioner seat belt

which could include your side and

• The light stays on after illumi-

deployment.

curtain air bags used for rollover pro-

nating for approximately six

tection.

seconds.

• The light comes on while the

vehicle is in motion.

• The light blinks when the

vehicle is in the ready (

)

mode.

Have an authorized HYUNDAI

dealer inspect the SRS as soon

as possible if any of these con-

ditions occur.

2-53

You can take steps to help reduce

■ Driver’s front air bag (1)

WARNING

the risk of being injured by an inflat-

ing air bag. The greatest risk is sitting

To reduce the risk of serious

too close to the air bag. An air bag

injury or death from an inflating

needs about 10 inches (25 cm) of

2

air bag, take the following pre-

space to inflate. NHTSA recom-

cautions:

mends that drivers allow at least 10

inches (25 cm) between the center of

•

NEVER place a child restraint

the steering wheel and the chest.

in the front passenger seat.

Always properly restrain chil-

dren under age 13 in the rear

seats of the vehicle.

OHM039102N

•

Adjust the front passenger's

When the SRSCM detects a suffi-

and driver's seats as far to the

ciently severe impact to the front of

rear as possible while allow-

the vehicle, it will automatically

ing you to maintain full con-

deploy the front air bags.

trol of the vehicle.

•

Hold the steering wheel with

hands at the 9 o'clock and 3

o'clock positions.

•

Never place anything or any-

one between the air bag and

the seat occupant.

•

Do not allow the front passen-

ger to place their feet or legs

on the dashboard.

2-55

Safety system of your vehicle

■ Driver’s front air bag (2)

■ Driver’s front air bag (3)

WARNING

To prevent objects from becom-

ing dangerous projectiles when

the passenger's air bag inflates:

•

Do not install or place any

objects

(drink holder, CD

holder, stickers, etc.) on the

front passenger's panel above

OHM039104N

the glove box where the pas-

■ Passenger’s front air bag

senger's air bag is located.

OHM039103N

•

Do not install a container of

Upon deployment, tear seams mold-

liquid air freshener near the

ed directly into the pad covers will

instrument cluster or on the

separate under pressure from the

instrument panel surface.

expansion of the air bags. Further

opening of the covers allows full

inflation of the air bags.

A fully inflated air bag, in combina-

tion with a properly worn seat belt,

slows the driver or the front passen-

OLMB033057

ger forward motion, reducing the risk

After complete inflation, the air bag

of head and chest injury.

immediately starts deflating, enabling

the driver to maintain forward visibili-

ty and the ability to steer or operate

other controls.

2-56

What to Expect After an Air

Noise and smoke from inflating

(Continued)

Bag Inflates

air bag

•

Always wash exposed skin

After a frontal or side air bag inflates,

When the air bags inflate, they make

areas thoroughly with cold

it will deflate very quickly. Air bag

a loud noise and may produce

and mild soap.

smoke and powder in the air inside of

2

inflation will not prevent the driver

•

Always have an authorized

from seeing out of the windshield or

the vehicle. This is normal and is a

HYUNDAI dealer replace the

being able to steer. Curtain air bags

result of the ignition of the air bag

air bag immediately after

may remain partially inflated for

inflator. After the air bag inflates, you

deployment. Air bags are

some time after they deploy.

may feel substantial discomfort in

designed to be used only

breathing because of the contact of

once.

your chest with both the seat belt and

WARNING

the air bag, as well as from breathing

the smoke and powder. The powder

After an air bag inflates, take

may aggravate asthma for some

the following precautions:

people. If you experience breathing

• Open your windows and doors

problems after an air bag deploy-

as soon as possible after

ment, seek medical attention imme-

impact to reduce prolonged

diately.

exposure to the smoke and

Though the smoke and powder are

powder released by the inflat-

nontoxic, they may cause irritation to

ing air bag.

the skin, eyes, nose, throat, etc. If

• Do not touch the air bag stor-

this is the case, wash and rinse with

age area's internal compo-

cold water immediately and seek

nents immediately after an air

medical attention if the symptoms

bag has inflated. The parts

persist.

that come into contact with an

inflating air bag may be very

hot.

(Continued)

2-57

Content   ..  2  3  4  5   ..
