Hyundai Ioniq Electric (2019 year). Manual - part 31
CHARGING ELECTRIC VEHICLE (TRICKLE CHARGE) (CONT.)
How to Disconnect Portable Charger (ICCB: In-Cable Control Box)
Plug
Electric Outlet
OAEEQ016033N
OAEEQ016034N
OAEE046507N
1. Hold the charging connector han-
2. Make sure to install the charging
4. Disconnect the plug from the
dle and pull it while pressing the
inlet cover.
household electric outlet. Do not
release button (1).
pull the cable when disconnecting
3. Make sure to completely close the
the plug.
i
Information
charging door.
5. Close the protective cover for the
To prevent charging cable theft, the
charging connector so that foreign
charging connector cannot be discon-
material cannot get into the termi-
nected from the inlet when the doors
nal.
are locked. Unlock all doors to discon-
6. Put the charging cable inside the
nect the charging connector from the
cable compartment to protect it.
inlet. However, if the vehicle is in the
charging connector AUTO mode, the
charging connector automatically
unlocks from the inlet when charging is
completed. For more details, refer to
"Charging Connector AUTO/LOCK
Mode" in this chapter.
H40
Unlock Charging Connector in
Precautions for Portable
•
Do not let children operate or touch
Emergency
Charger (ICCB: In-Cable Control
the portable charger.
Box)
•
Keep the control box free of water.
•
Use the portable charger that is
•
Keep the normal charging connec-
certified by HYUNDAI Motors.
tor or plug terminal free of foreign
•
Do not try to repair, disassemble,
substances.
or adjust the portable charger.
•
Do not step on the cable or cord.
•
Do not use an extension cord or
Do not pull the cable or cord and
adapter.
do not twist or bend it.
•
Stop using immediately when fail-
•
Do not charge when there is light-
ure occurs.
ning.
•
Do not touch the plug and charging
•
Do not drop the control box or
connector with wet hands.
place a heavy object on the control
OAEEQ016057L
box.
•
Do not touch the terminal part of
If the charging connector does not
•
Do not place an object that can
the normal charging connector and
disconnect due to battery discharge
the normal charging inlet on the
generate high temperatures near
and failure of the electric wires, open
the charger when charging.
vehicle.
the liftgate and slightly pull the emer-
•
Do not connect the charging con-
•
Charging with the worn out or dam-
gency cable. The charging connector
nector to voltage that does not
aged household electric outlet can
will then disconnect .
comply with regulations.
result in a risk of electric shock. If
you are in doubt to the household
•
Do not use the portable charger if it
electric outlet condition, have it
is worn out, exposed, or there
checked by a licensed electrician.
exists any type of damage on the
portable charger.
•
Stop using the portable charger
immediately if the household elec-
•
If the ICCB case and normal charg-
tric outlet or any components is
ing connector is damaged, cracked,
overheated or you notice burnt
or the wires are exposed in any way,
odors.
do not use the portable charger.
H41
DRIVING ELECTRIC VEHICLE
How to Start the Vehicle
How to Stop the Vehicle
1.
Holding the smart key, sit in the
1. Hold down the brake pedal while
driver's seat.
the vehicle is parked.
2.
Fasten the seat belt before start-
2. While depressing the brake pedal,
ing the vehicle.
shift to P (Park).
3.
Make sure to engage the parking
3. While depressing the brake pedal,
brake.
engage the parking brake.
4.
Turn OFF all electrical devices.
4. While depressing the brake pedal,
press the POWER button and turn
5.
Make sure to depress and hold
off the vehicle.
the brake pedal.
OAEEQ016054
6.
While depressing the brake
pedal, shift to P (Park).
8.
When the " " indicator is ON,
7.
Depress and hold the brake while
you can drive the vehicle.
pressing the POWER button.
When the " " indicator is OFF,
you cannot drive the vehicle. Start
the vehicle again.
9.
Depress and hold the brake pedal
and shift to the desired position.
i
Information
While the charging cable is connected,
the gear cannot be shift from P (Park)
to any other gear for safety reasons.
10.Release the parking brake and
slowly release the brake pedal.
Check if the vehicle slowly moves
forward, then depress the accel-
erator pedal.
H42
Virtual Engine Sound System
Distance to Empty
The Virtual Engine Sound System
■ NORMAL/
■ SPORT mode selected
generates engine sound for pedestri-
ECO mode selected
ans to hear vehicle sound because
there is no sound while the Electric
Vehicle (EV) is operating.
• If the vehicle is moving at low
speed, the VESS will operate.
• When the gear is shifted to R
(Reverse), an additional warning
sound will be heard.
OAEEQ016055
5. Check if the "
" indicator is
OAEE046141N/OAEE046503N
turned OFF on the instrument
CAUTION
The distance to empty is displayed
cluster.
•
The vehicle does not generate
differently according to the selected
When the " " indicator is ON
a sound. Be aware of your
drive mode in the Drive Mode
and the gear is in a position other
driving environment and drive
Integrated Control System.
than P (Park), the driver can acci-
safely.
For more information, refer to "Drive
dently depress the accelerator
pedal, causing the vehicle to move
•
After you park the vehicle or
Mode Integrated Control System" in
unexpectedly.
while you are waiting at a traf-
chapter 5.
fic light, check whether there
are children or obstacles
around the vehicle.
•
Check if there is something
behind the vehicle when driv-
ing in reverse. Pedestrians
may not hear the sound of the
vehicle.
H43
DRIVING ELECTRIC VEHICLE (CONT.)
When destination is not set
•
Distance to empty that is displayed
When destination is set
on the instrument cluster after
•
On average, a vehicle can drive
When the destination is set, the dis-
completing a recharge may vary
about 120 miles (191 km). Under
tance to empty may change. The dis-
significantly depending on previ-
certain circumstances where the
tance to empty is recalculated using
ous operating patterns.
air conditioner/heater is ON, the
the information of the destination.
distance to empty is impacted,
When previous driving patterns
However, the distance to empty may
resulting in a possible distance
include high speed driving, result-
vary significantly based on traffic
range from
80~180 miles
ing in the high voltage battery
conditions, driving habits, and condi-
(130~290 km). When using the
using more electricity than usual,
tion of the vehicle.
heater during cold weather or driv-
the estimated distance to empty is
ing at high speed, the high voltage
reduced. When the high voltage
battery consumes a lot more elec-
battery uses little electricity in ECO
tricity. This may reduce the dis-
mode, the estimated distance to
tance to empty significantly.
empty increases.
•
After "---" has been displayed, the
•
Distance to empty may depend on
vehicle can drive an additional 2~5
many factors such as the charge
miles (3~8 km) depending on driv-
amount of the high voltage battery,
ing speed, heater/air conditioner,
weather, temperature, durability of
weather, driving style, and other
the battery, geographical features,
factors.
and driving style.
•
Natural degradation may occur
with the high voltage battery
depending on the number of years
the vehicle is used. This may
reduce the distance to empty.
H44
Tips for Improving Distance to
ECO Guide
Empty
• CHARGE :
•
If you operate the air conditioner
It shows the charging status of the
/heater too much, the driving battery
battery when it is being charged by
uses too much electricity. This may
the regenerative brakes (decelerat-
reduce the distance to empty.
ing or driving on a downhill road).
Therefore, it is recommended that
The more electric energy is charged,
you set the cabin temperature to
the lower the gauge level.
73°F (23°C) AUTO. This setting that
has been certified by various
assessment tests to maintain opti-
mal energy consumption rates while
keeping the temperature fresh.
OAEQ046008
Turn OFF the heater and air condi-
The ECO guide shows the energy
tioner if you do not need them.
consumption rate of the vehicle and
•
Depress and hold the accelerator
the charge/discharge status of the
pedal to maintain speed and drive
regenerative brakes.
economically.
• POWER :
•
Gradually depress and release the
It shows the energy consumption rate
accelerator pedal when accelerat-
of the vehicle when driving uphill or
ing or decelerating.
accelerating. The more electric ener-
•
Always maintain specified tire
gy is used, the higher the gauge level.
pressures.
• ECO :
•
Do not use unnecessary electrical
components while driving.
It shows the energy consumption
•
Do not load unnecessary items in
rate during normal driving condition.
the vehicle.
•
Do not mount parts that may
increase air resistance.
H45
DRIVING ELECTRIC VEHICLE (CONT.)
State of Charge (SOC) Gauge
Warning and Indicator Lights
for High Voltage Battery
(related to electric vehicle)
Ready Indicator
This indicator illuminates :
When the vehicle is ready to be driven.
- ON : Normal driving is possible.
- OFF : Normal driving is not possible,
OAEE046102
or a problem has occurred.
When there are
2~3 gauge bars
- Blinking : Emergency driving.
(near the "L (Low)" area) on the SOC
OAEE046144
gauge, the warning lamp turns ON to
When the ready indicator goes OFF
•
The SOC gauge shows the charg-
alert you of the battery level.
or blinks, there is a problem with the
ing status of the high voltage bat-
When the warning lamp turns ON,
system. In this case, have your vehi-
tery.
the vehicle can drive an additional
cle inspected by an authorized
"L (Low)" position on the indicator
12~18 miles (20~30 km) depending
HYUNDAI dealer.
indicates that there is not enough
on the driving speed, heater/air con-
energy in the high voltage battery.
ditioner, weather, driving style, and
"H (High)" position indicates that
other factors. Charging is required.
the driving battery is fully charged.
•
When driving on highways or
NOTICE
motorways, make sure to check in
When there are 1-2 gauge bars left
advance if the driving battery is
for the high voltage battery, the
charged enough.
vehicle speed is limited and then
eventually the vehicle will turn OFF.
Charge the vehicle immediately.
H46
Service Warning Light

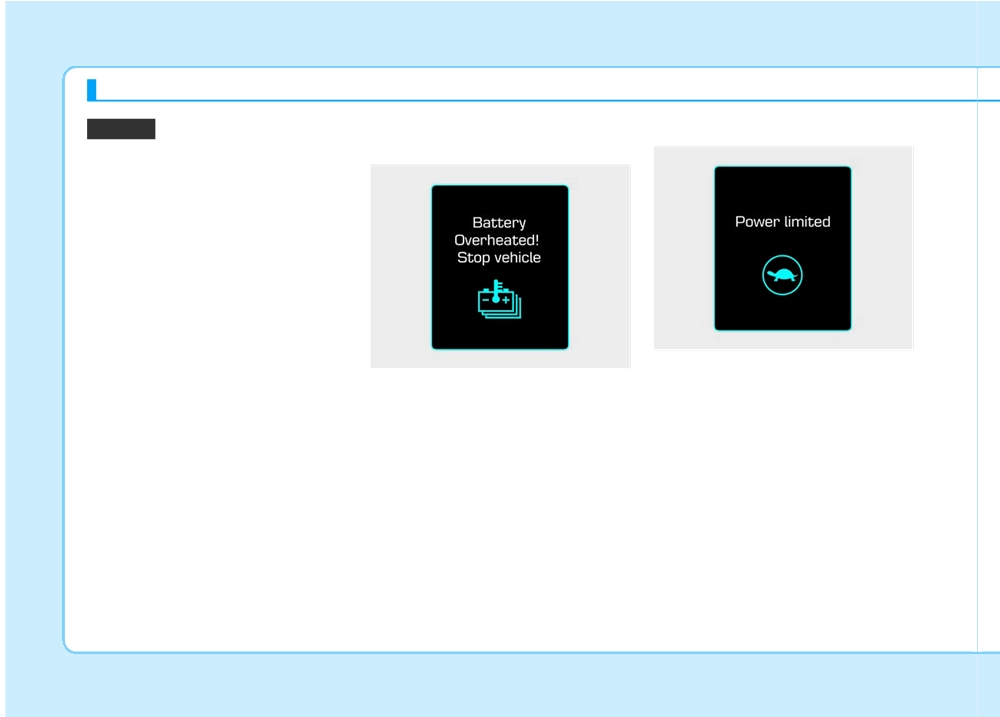

Power Down Warning
Charging Indicator Light
Light
This warning light illuminates :
This warning light illuminates :
When the power is limited for the
This warning light illuminates :
safety of the electric vehicle.
• When the POWER button is in the
•
[Red] When charging the high volt-
ON position.
The power is limited for the following
age battery.
reasons.
- It illuminates for approximately 3
seconds and then goes off.
- The high voltage battery level is
below a certain level or voltage is
• When there is a problem with relat-
decreasing
ed parts of the electric vehicle con-
trol system, such as sensors, etc.
- The temperature of the motor or
high voltage battery is too high or
too low
When the warning light illuminates
- There is a problem with the cooling
while driving, or does not go OFF
system, or a failure that may inter-
after starting the vehicle, have your
rupt normal driving
vehicle inspected by an authorized
HYUNDAI dealer.
NOTICE
Do not accelerate or start the vehi-
cle suddenly when the power
down warning light is ON.
Charge the battery immediately
when the high voltage battery
level is not enough.
H47
DRIVING ELECTRIC VEHICLE (CONT.)
High Voltage Battery
Regenerative Brake
LCD Display Messages
Level Warning Light
Warning Light

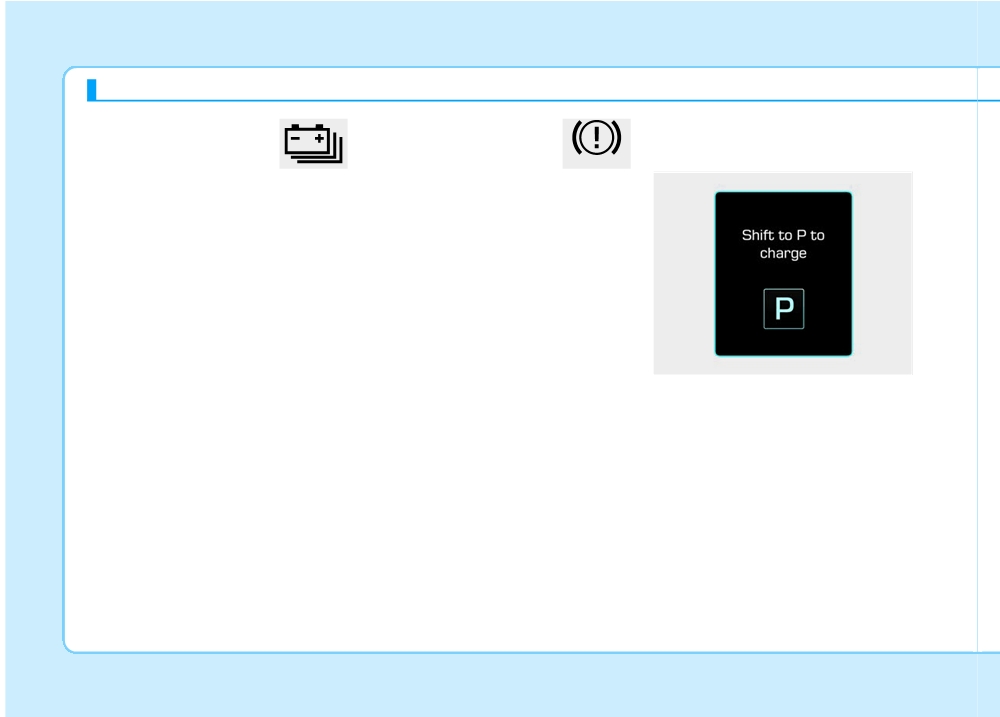

Shift to P to charge
(yellow)
This warning light illuminates :
This warning light illuminates :
When the high voltage battery level
When the regenerative brake does
low.
not operate and the brake does not
perform well. This causes the Brake
When the warning light turns ON,
Warning light (red) and Regenerative
charge the battery immediately.
Brake Warning Light (yellow) to illu-
minate simultaneously.
In this case, drive safely and have
your vehicle inspected by an author-
ized HYUNDAI dealer.
OAEE046192L
The operation of the brake pedal may
This message is displayed if you
be more difficult than normal and the
connect the charging cable without
braking distance can increase.
the gear in the P (Park) position.
Shift to P (Park) before connecting
the charging cable.
H48

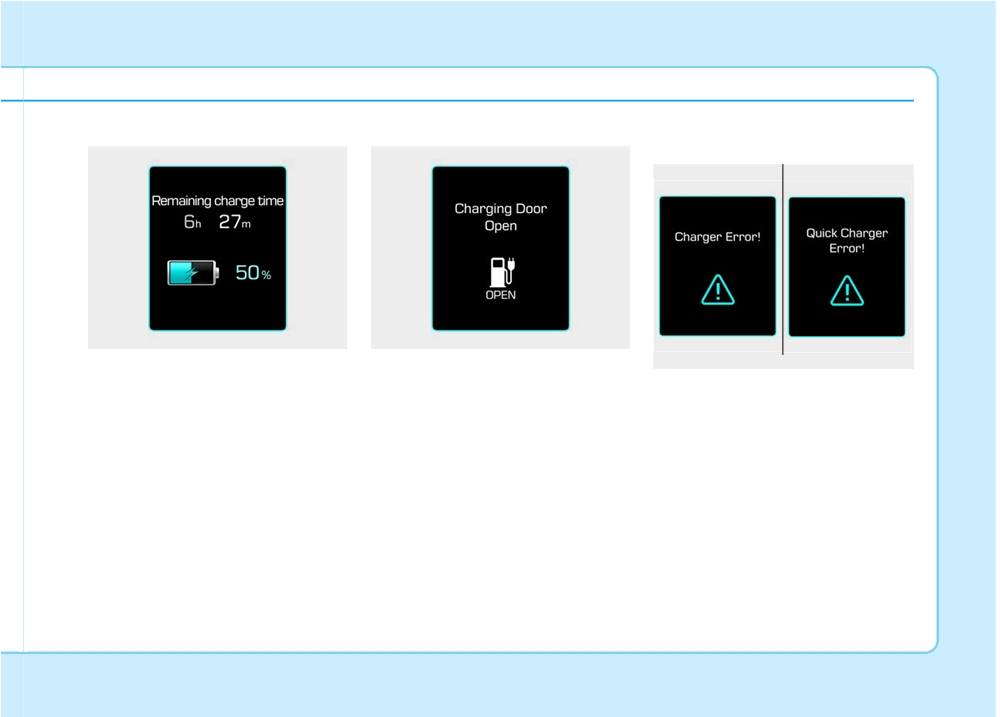

Remaining time
Charging Door Open
Charger Error! /
Quick Charger Error!
OAEE046193L
OAEE046194L
OAEE046134LOAEE046135L
This message is displayed to notify
This message is displayed when the
the remaining time to fully charge the
vehicle is driven with the charging
This warning message is displayed
battery.
door opened. Close the charging
when there is a problem with the
door and then start driving.
charger.
H49
DRIVING ELECTRIC VEHICLE (CONT.)

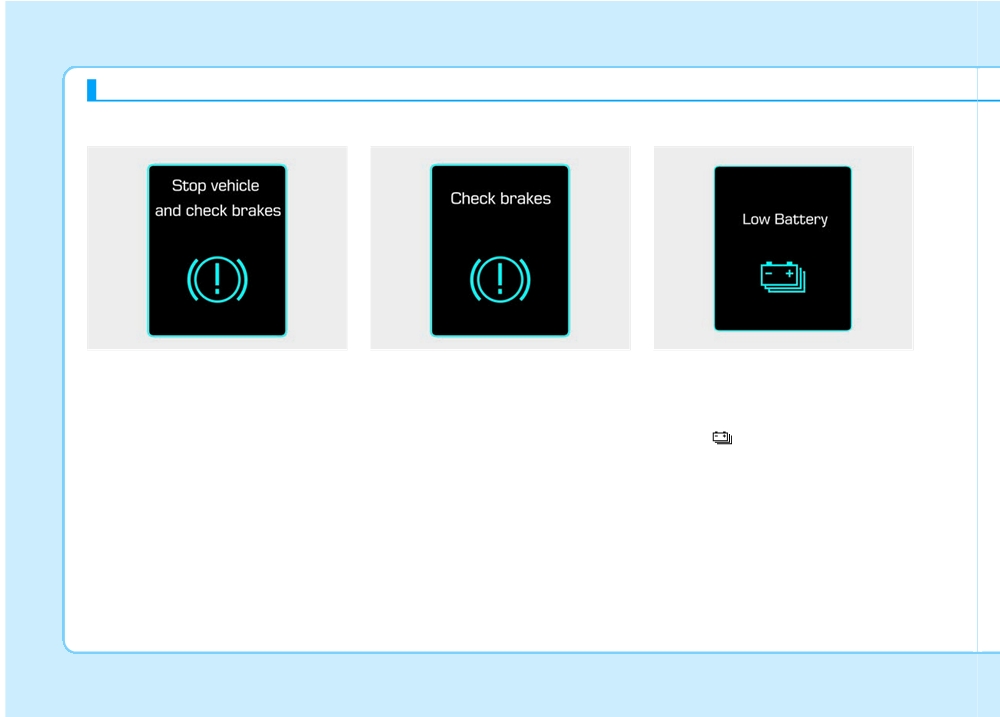

Stop vehicle and check brakes
Check brakes
Low Battery
OLFH044234L
OLFH044250L
OAEE046123L
This warning message is displayed
This warning message is displayed
When the high voltage battery level
when a failure occurs in the brake
when the brake performance is low
reaches below
13%, this warning
system.
or the regenerative brake does not
message is displayed.
work properly due to a failure in the
In this case, park the vehicle in a
The warning light on the instrument
safe location and recommend that
brake system.
cluster (
) will turn ON simultane-
you tow your vehicle to the nearest
In this case, it may take longer for the
ously.
authorized HYUNDAI dealer and
brake pedal to operate and the brak-
Charge the high voltage battery
have the vehicle inspected.
ing distance may become longer.
immediately.
H50

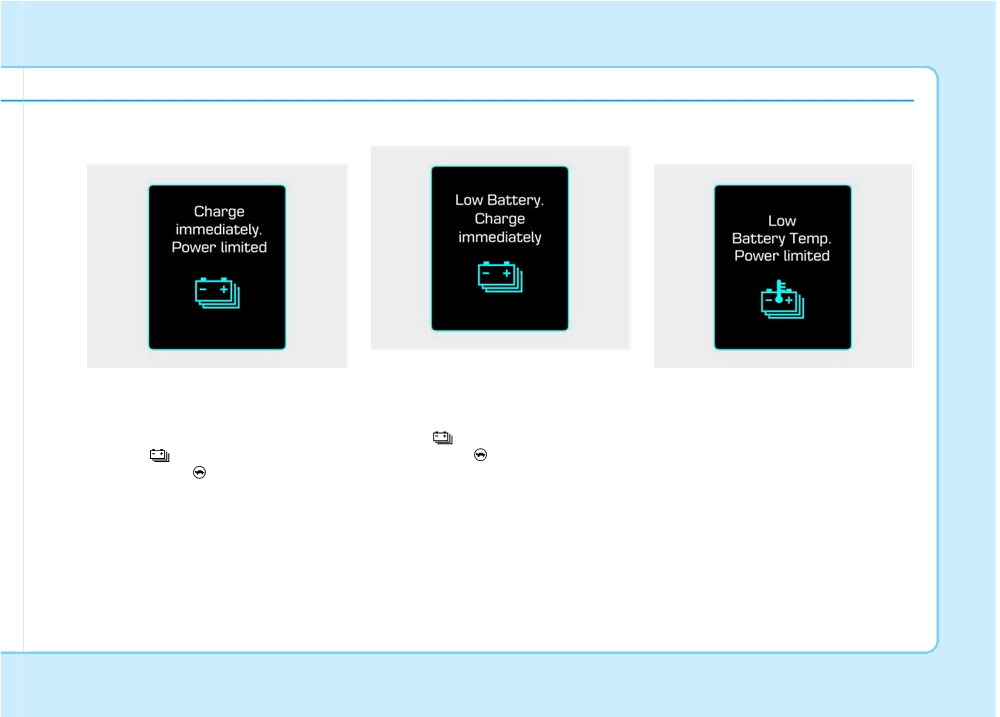

Charge immediately.
Low Battery. Charge immediately
Low Battery Temp.
Power limited
Power limited
OAEE046124L
OAEE046125L
OAEE046128L
When the high voltage battery level
When the high voltage battery level
reaches below
4%, this warning
This warning message is displayed
reaches below
5%, this warning
message is displayed.
to protect battery and electric vehicle
message is displayed.
The warning light on the instrument
system when the high voltage bat-
The warning light on the instrument
cluster
(
) and the power down
tery temperature is too low.
cluster
(
) and the power down
warning light (
) will turn ON simul-
warning light (
) will turn on simul-
taneously and the distance to empty
taneously.
gauge will be displayed as "---".
The vehicle's power will be reduced
The vehicle’s power will be reduced
to minimize the energy consumption
to minimize the energy consumption
of the high voltage battery. Charge
of the high voltage battery. Charge
the battery immediately.
the battery immediately.
H51
DRIVING ELECTRIC VEHICLE (CONT.)
NOTICE
Battery Overheated!
Power limited
Stop vehicle
If this warning message is still dis-
played even after the ambient tem-
perature has increased, have the
vehicle inspected by an author-
ized HYUNDAI dealer.
OAEE046127L
OAEE046129L
In the following cases, this warning
This warning message is displayed
message is displayed when the vehi-
to protect battery and electric vehicle
cle's power is limited for safety.
system when the high voltage bat-
• When the high voltage battery is
tery temperature is too high.
below a certain level, or voltage is
Turn off the POWER button and stop
decreasing.
the vehicle so that the battery tem-
• When the temperature of the motor
perature decreases.
or high voltage battery is too high
or too low.
• When there is a problem with the
cooling system or a failure that
may interrupt normal driving.
H52
NOTICE

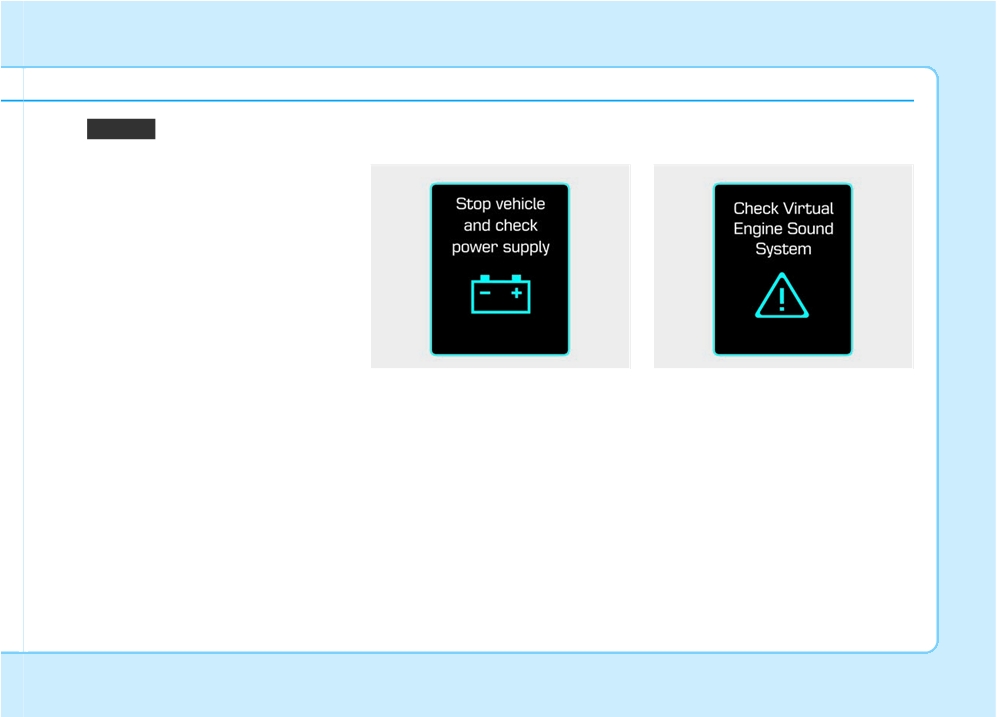

Stop vehicle and check power
Check Virtual Engine Sound
supply
System
When this warning message is
displayed, do not accelerate or
start the vehicle suddenly.
Charge the battery immediately
when the high voltage battery
level is not enough.
OLFH044230L
OLFH044543L
This warning message is displayed
This message is displayed when
when a failure occurs in the power
there is a problem with the Virtual
supply system.
Engine Sound System (VESS).
In this case, park the vehicle in a
In this case, have your vehicle inspect-
safe location and recommend that
ed by an authorized HYUNDAI dealer.
you tow your vehicle to the nearest
authorized HYUNDAI dealer and
have the vehicle inspected.
H53
DRIVING ELECTRIC VEHICLE (CONT.)

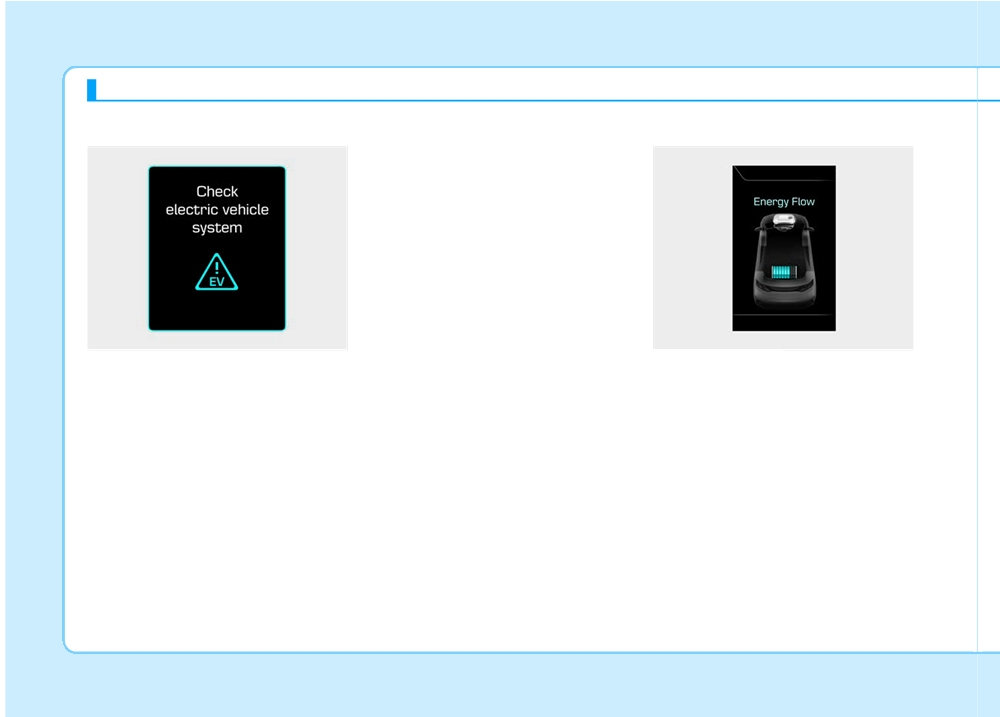

Check electric vehicle system
Energy Flow
Vehicle Stop
The electric vehicle system informs
the drivers its energy flow in various
operating modes. While driving, the
current energy flow is specified in 3
modes.
OAEE046149L
OAEQ046001L
This warning message is displayed
The vehicle is stopped.
when there is a problem with the
(No energy flow)
electric vehicle control system.
Refrain from driving when the warn-
ing message is displayed.
In this case, have your vehicle inspect-
ed by an authorized HYUNDAI dealer.
H54
EV Propulsion
Regeneration
Aux. Battery Saver+
The Aux. Battery Saver+ is a function
that monitors the charging status of
the 12 V auxiliary battery.
If the auxiliary battery level is low, the
main high voltage battery charges
the auxiliary battery.
i
Information
The Aux. Battery Saver+ function will
be ON when the vehicle is delivered. If
the function is not needed, you may
OAEQ046020L
OAEQ046002L
turn it off in the Users Settings mode
Only the motor power is used to drive
The high-voltage battery is charged
on the cluster. For more information,
the vehicle.
up by the regenerative brake system.
refer to the following page.
(Battery ➞ Wheel)
(Wheel ➞ Battery)
H55
DRIVING ELECTRIC VEHICLE (CONT.)
Mode
System Setting
i
Information
• Cycle Mode :
•
The Aux. Battery Saver+ activates
When the POWER button is in the
maximum of 20 minutes. If the Aux.
OFF position with all doors, hood
Battery Saver+ function activates
and liftgate closed, the Aux. Battery
more than 10 times consecutively
Saver+ activates according to the
when in the automatic mode, the
auxiliary battery status.
function will stop activating, judg-
• Automatic Mode :
ing that there is a problem with the
auxiliary battery. In this case, drive
When the POWER button is in the
the vehicle for some period of time
ON position with the charging con-
or if the auxiliary battery returns to
nector plugged in, the function acti-
normal, the function will start acti-
vates according to the auxiliary bat-
vating.
tery status to prevent overdischarge
OAEE048433L
of the auxiliary battery.
•
The Aux. Battery Saver+ function
The driver can activate the Aux.
cannot prevent battery discharge if
Battery Saver+ function by placing
the auxiliary battery is damaged,
the POWER button to the ON posi-
worn out, used as a power supply or
tion and by selecting:
unauthorized electronic devises are

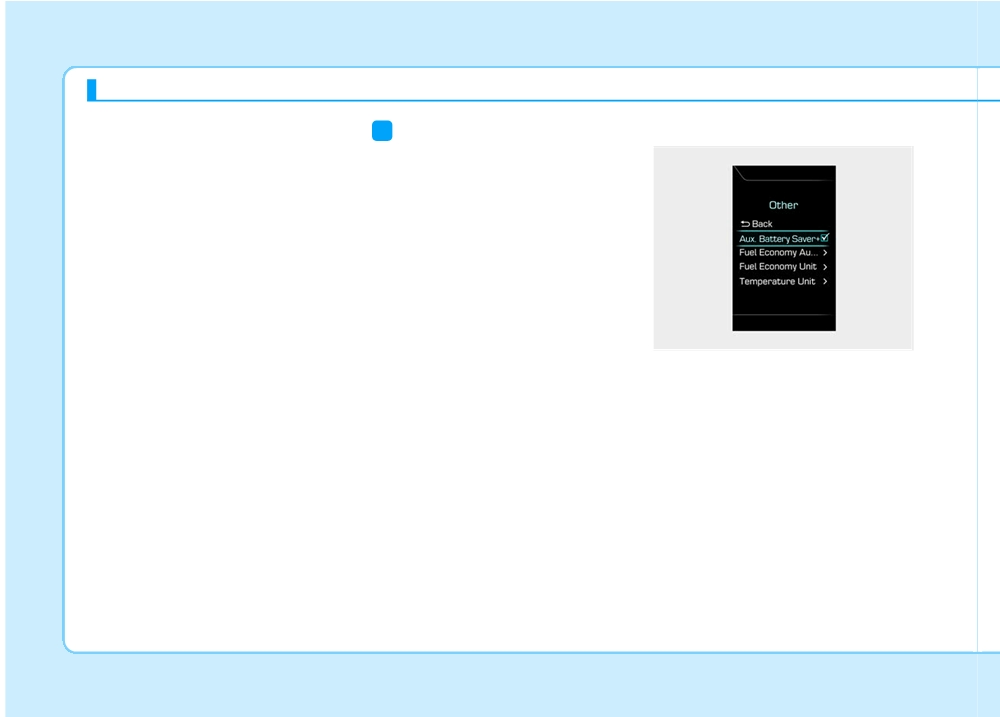

'User Settings
→ Other → Aux.
used.
Battery Saver+'
•
If the Aux. Battery Saver+ function
was activated, a message will be dis-
played on the instrument cluster
The Aux. Battery Saver+ function
and the high voltage battery level
deactivates, when the driver cancels
may have decreased.
the system setting.
H56
