Multimedia System

2. Sampling frequency (Hz)

4. Character display range (Unicode)

Information

• Filenames: Up to 64 English char-

- Using the USB Devices

acters (64 Korean characters)

•

Starting the vehicle while a USB

• Foldernames: Up to

32 English

device is connected can damage the

characters (32 Korean characters)

device. Please disconnect USB

devices before starting the vehicle.

• The sound quality of MP3/WMA

NOTICE

•

Starting the vehicle or stopping the

compressed files may vary depend-

The scroll feature can be used to

engine while an external USB device

ing on the bitrate. (A higher bitrate

display file and folder names that

is connected can result in failure of

can have better sound quality.)

are too long to display on the screen.

the external USB device to operate.

• The product only recognizes files

(if equipped)

•

Be cautious of static electricity when

with the MP3 or WMA extension.

connecting/disconnecting external

Files without one of these exten-

Languages supported (Unicode sup-

USB devices.

sions are not recognized.

port)

•

An encrypted MP3 player is not rec-

ognized when connected as an exter-

• Korean: 2,604 characters

3. Number of recognizable folders

nal device.

• English: 94 characters

and files

•

External USB devices may not be

• Common Chinese characters:

• Folders: 2,000 for USB

recognized, depending on the state

4,888 characters

• Files: 6,000 for USB

of the external USB device.

• Special symbols: 986 characters

• No recognition limit for folder hier-

•

Only products with byte/sectors for-

archies.

matted at 4 KB or lower are recog-

NOTICE

nized.

Japanese/Simplified Chinese char-

•

Only USB devices in FAT12/16/32

acters are not supported.

format are recognized; NTFS and

ExFAT file systems are not recog-

nized.

(Continued)

4-52

(Continued)

•

Some USB devices are not recog-

•

Use of USB accessories, including

•

Operation is guaranteed only for

nized due to compatibility issues.

charge and heat though the USB I/F,

standard (Metal Cover Type) USB

•

Do not touch the USB connections.

can lead to reduced product per-

Memory drives.

formance or malfunctions. Do not

•

Operation of HDD, CF, SD and mem-

•

Connecting and disconnecting USB

use USB devices or accessories for

ory stick devices is not guaranteed.

devices rapidly over a short period

these purposes.

of time can cause equipment failure.

•

DRM (Digital Rights Management)

•

Use of aftermarket USB hubs and

files cannot be played.

•

Abnormal sounds may be audible

extension cables can result in the

when the USB device is disconnected.

•

SD-type USB memory, CF-type

vehicle’s audio system failing to rec-

USB memory, and other USB mem-

•

Turn the audio off before connecting

ognize your USB device. Connect

or disconnecting external USB

ory devices that require adapters

the USB device directly to the multi-

for connection are not supported.

devices.

media port of your vehicle.

•

Proper operation of USB HDDs or

•

Recognition may take longer

•

When using high-capacity USB

USB drives with connectors that

depending on the type, capacity or

devices with logical drive divisions,

loosen due to vehicle vibrations is

file format of the external USB

only files saved on the highest level

not guaranteed. (iStick, etc.)

device. This is not a product mal-

logical drive can be played.

function.

•

USB products that are

If applications are loaded on a USB

used as key chains or

•

Use of USB devices for purposes

drive, file playback may fail.

cell phone accessories

other than playing music files is pro-

•

Some MP3 players, cell phones, dig-

may damage the USB

hibited.

ital cameras, etc. (USB devices that

jack and affect proper

•

Image display and video playback

are not recognized as mobile stor-

file playback. Please refrain from

are not supported.

age) may not operate normally

use. Use only products with plug

(Continued)

when connected.

connectors, as shown in the follow-

•

USB charging may not be supported

ing illustration.

by some mobile devices.

•

When MP3 devices or cell phones are

(Continued)

connected simultaneously through

AUX, BT Audio and USB modes, a

popping noise or malfunction may

occur.

4-53

Multimedia System

USB

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

• Press the

[MEDIA] button, and

select [USB].

Selecting songs from a list

• Connect a USB drive to the USB

Select [List] to see a list of songs

port to automatically play files on

available for play.

(1) Repeat

the USB drive.

Select and play the desired song.

Enable/disable repeat.

Changing songs

Repeat play

(2) Shuffle

• Press the [SEEK/TRACK] button

Select [Repeat] to enable or disable

Enable/disable shuffle play.

to play the previous or next song.

‘Repeat all’, ‘Repeat current song’,

• Press and hold the [SEEK/TRACK]

‘Repeat folder’ or ‘Repeat category’.

(3) List

button to rewind or fast forward the

•

Repeat all: All songs in the

currently playing song.

playlist are repeated.

View a list of all songs.

• Search songs by turning TUNE

•

Repeat current song: The cur-

knob, and press the knob to play.

rently playing song is repeated.

(4) Menu

•

Repeat folder: All songs in the

Navigate to the menu screen.

current folder are repeated.

•

Repeat category: Repeat all

(5) Album Image

songs in the current category.

View song info.

4-54

(4) Save: Save the selected file(s).

Information

Select [Menu], and select the desired

- Select the files you want to save,

The repeat folder function is available

function.

and select [Save]. This saves the

only when songs are playing from the

selected files to My Music.

[File] category under [List].

- Saving is canceled if phone calls

are received or made while saving.

Shuffle play

- Up to 6,000 files can be saved.

Select

[Shuffle] to enable/disable

- The currently playing file on the

‘Shuffle’,

‘Shuffle folder’ or

‘Shuffle

USB device cannot be changed

category’ play.

while saving.

•

Shuffle: Songs are played in

- My Music cannot be used while

random order.

saving.

•

Shuffle folder: Songs within

• Save to My Music: Songs on your

- Up to 700 MB can be saved.

the current folder are played in ran-

USB device can be saved to My

dom order

Music.

•

Information: Detailed information

on the currently playing song is dis-

•

Shuffle category: Songs within

(1) File: Select a file to save.

played.

the current category are played in

(2) Mark all: Select all files.

random order.

•

Sound Settings: Audio sound set-

(3) Unmark all: Deselect all files.

tings can be changed.

4-55

Multimedia System

(Continued)

Information

•

There may be noise if the audio sys-

•

The search and song play order in

- Using the iPod® Devices

tem is used with an iPod® or AUX

the iPod® device may be different

•

To use the audio system’s iPod® con-

external device connected to the

from the search order in the audio

trol function, use the dedicated

power jack. In these cases, discon-

system.

cable provided with your iPod®.

nect the iPod® or external device

•

If the iPod® has failed due to an

•

Connecting the iPod® to the vehicle

from the power jack.

internal defect, please reset the

during play may result in a loud

•

Play may be interrupted, or device

iPod® (consult your iPod® manual).

noise that lasts about one to two sec-

malfunctions may occur depending

•

Depending on the software version,

onds. Connect the iPod® to the vehi-

on the characteristics of your

the iPod® may fail to sync with the

cle after stopping or pausing play.

iPod®/iPhone®.

system. If the media is removed or

•

Connect the iPod® with the vehicle in

•

Play may fail if your iPhone® is con-

disconnected before recognition, the

the ACC ON state to begin charging.

nected through both Bluetooth® and

previous mode may not be restored

•

When connecting the iPod® cable,

USB. In this case, select Dock con-

(iPad® cannot be charged).

be sure to fully push the cable into

nector or Bluetooth® on your

•

Cables other than the 1-meter cable

the port.

iPhone® to change the sound output

provided with iPod®/iPhone® prod-

•

When EQ effects are enabled simul-

settings.

ucts may not be recognized.

taneously on external devices, such

•

If your software version does not

•

When other music apps are used on

as iPod®s and the audio system, the

support the communication proto-

your iPod®, the system sync func-

EQ effects may overlap, causing

col or your iPod® is not recognized

tion may fail due to malfunction of

sound quality deterioration or dis-

due to device failure, anomalies or

the iPod® application.

tortion. Deactivate the EQ function

defects, iPod® mode cannot be used.

for all external devices, if possible.

•

iPod® nano (5th generation) devices

•

Noise may occur when your iPod®

may not be recognized if the battery

or the AUX port is connected.

is low. Charge sufficiently before use.

Disconnect and store separately

(Continued)

when not in use.

(Continued)

4-56

iPod®

(6) Pause

Repeat play

Pause or play music.

Select [Repeat] to enable or disable

‘Repeat category’,

‘Repeat current

(7) Playback progress

song’.

Select to skip to the desired location.

•

Repeat category: Repeat all

songs in the current category.

Playback

•

Repeat current song: The cur-

rently playing song is repeated.

• Connect your iPod® to the audio

USB port, press the [MEDIA] but-

ton, and select [iPod].

Shuffle play

Select

[Shuffle] to enable/disable

(1) Repeat

Changing songs

‘Shuffle category’ play.

Enable/disable repeat.

• Press the [SEEK/TRACK] button

•

Shuffle category: Songs within

to play the previous or next song.

the current category are played in

random order.

(2) Shuffle

• Press and hold the [SEEK/TRACK]

Enable/disable shuffle play.

button to rewind or fast forward the

currently playing song.

• Search songs by turning the TUNE

Select [Menu], and select the desired

(3) List

knob, and press the knob to play.

function.

View a list of all songs.

• Information: Detailed info on the

Selecting songs from a list

currently playing song is displayed.

(4) Menu

Select [List] to see a list of songs

• Sound Settings: Audio sound set-

Navigate to the menu screen.

available for play.

tings can be changed.

Select and play the desired song.

(5) Album Image

View song info.

4-57

Multimedia System

When other music programs are

Playing iPod files

Information

running

•

Select

[iPod files] to play songs

- Using Bluetooth® (BT) Audio

saved on your iPod®.

•

Bluetooth® Audio mode can only be

If there are no songs saved on your

used if a Bluetooth®-enabled phone

iPod®, the [iPod files] is disabled.

is connected. Only devices that sup-

port Bluetooth® audio can be used.

•

If the Bluetooth®-enabled phone is

disconnected during play, the music

stops.

•

When the TRACK UP/DOWN but-

tons are used during Bluetooth®

When songs saved on your iPod®

audio streaming, a popping noise or

are playing through a separate music

sound interruptions may occur,

app, the following screen is dis-

depending on the cell phone device.

played.

•

Depending on the cell phone model,

(1) Play/Pause: Pause or play music.

the audio streaming function may

(2) iPod files: Play music saved on

not be supported.

your iPod®.

•

If a phone call is made or received

when music is playing in Bluetooth®

(3) Sound Settngs: Audio sound set-

Audio mode, the call may mix with

tings can be changed.

the music.

(4) Album Image: View playback info.

•

When returning to Bluetooth®

Audio mode after ending a call, play

Information

might not resume automatically for

Operation cannot be carried out cor-

some cell phone models.

rectly due to iPod® application mal-

function.

4-58

NOTICE

Bluetooth® (BT) Audio

Information

•

Bluetooth® Handsfree is a fea-

• Some cell phone models may not

ture that enables drivers to prac-

support particular functions.

tice safe driving. Connecting the

• Bluetooth® audio volume is synced

car audio system with a

with cell phone media volume.

Bluetooth® phone allows the

user to conveniently make calls,

Playback

receive calls, and manage the

• Press the

[MEDIA] button, and

phone book. Before using the

select [BT Audio].

Bluetooth® Wireless Technology,

carefully read the contents of

this user’s manual.

Changing songs

(1) Repeat

•

Excessive use or operations

• Press the [SEEK/TRACK] button

while driving may lead to negli-

Enable/disable repeat.

to play the previous or next song.

gent driving practices and be

the cause of accidents.

(2) Shuffle

Information

•

Do not operate the device exces-

Enable/disable shuffle play.

Some cell phones may not support this

sively while driving.

function.

•

Viewing the screen for pro-

(3) Menu

longed periods of time is dan-

Repeat play

Navigate to the menu screen.

gerous and may lead to acci-

Select [Repeat] to enable or disable

dents.

‘Repeat all’, ‘Repeat current song’ or

(4) Play/Pause

•

When driving, view the screen

‘Repeat category’.

only for short periods of time.

Pause or play music.

•

Repeat all: All songs in the

playlist are repeated.

•

Repeat current song: The cur-

rently playing song is repeated.

•

Repeat category: Repeat all

songs in the current category.

4-59

Multimedia System

AUX

My Music

Information

The repeat play function is engaged,

depending on the operation of the con-

nected Bluetooth® device.

Shuffle play

Select

[Shuffle] to enable/disable

‘Shuffle’, ‘Shuffle category’ play.

•

Shuffle: Songs are played in

random order.

Running AUX

•

Shuffle category: Songs within

(1) Repeat

the current category are played in

• Press the

[MEDIA] button, and

random order.

select [AUX].

Enable/disable repeat.

• Connect the external device con-

Information

nection jack to the AUX terminal to

(2) Shuffle

run AUX.

The shuffle function is engaged,

Enable/disable shuffle play.

depending on the operation of the con-

(1) Sound Settings: Audio sound set-

nected Bluetooth® device.

tings can be changed.

(3) List

View a list of all songs.

Select [Menu], and select the desired

(4) Menu

function.

Navigate to the menu screen.

• Connections: The currently connected

Bluetooth® device can be changed.

(5) Album Image

• Information: Detailed information on

View song info.

the currently playing song is displayed.

• Sound Settings: Audio sound set-

tings can be changed.

4-60

(6) Pause

Shuffle play

Pause or play music.

Select

[Shuffle] to enable/disable

‘Shuffle’, ‘Shuffle category’ play.

(7) Playback progress

•

Shuffle: Songs are played in

random order.

Select to skip to the desired location.

•

Shuffle category: Songs within

the current category are played in

Playback

random order.

Press the

[MEDIA] button, and

Selecting songs from a list

select [My Music].

• My Music cannot be selected if it

Select [List] to see a list of songs

available for play.

Select [Menu], and select the desired

does not contain music.

function.

• Check the content of your USB

Select and play the desired song.

drive before saving music to My

Music.

Repeat play

Select [Repeat] to enable or disable

Changing songs

‘Repeat all’, ‘Repeat current song’ or

Press the [SEEK/TRACK] button to

‘Repeat category’.

play the previous or next song.

•

Repeat all: All songs in the

• Press and hold the [SEEK/TRACK]

playlist are repeated.

button to rewind or fast forward the

•

Repeat current song: The cur-

currently playing song.

rently playing song is repeated.

• Delete files: You can delete files

• Search songs by turning the TUNE

from My Music.

•

Repeat category: Repeat all

knob and press the knob to play.

songs in the current category.

(1) File: Select saved file.

(2) Mark all: Select all files.

(3) Unmark all: Deselect all files.

4-61

Multimedia System

(4) Delete: Delete the selected file(s).

Phone

(Continued)

- Select the file to delete, then

•

When Bluetooth® is connected and

select [Delete] to delete it.

Information

calls are attempted through a con-

- Delete is canceled if phone calls

- Using Bluetooth® (BT) Phone

nected cell phone from outside the

vehicle, the call is connected

are received or made during

•

Bluetooth® is a near-field wireless

through the Bluetooth® Handsfree

delete.

networking technology that uses the

function of the vehicle.

• Add to playlist: Frequently played

2.4 GHz frequency to connect vari-

•

Please be sure to disconnect the

songs can be paired in a [Playlist].

ous devices within a certain distance

wirelessly.

Bluetooth® Handsfree function through

- Songs can be played from the

your Bluetooth® device or the audio

[Playlist].

•

The technology is used in PCs,

screen.

peripherals, Bluetooth® phones,

• Information: Detailed info on the

tablet PCs, household appliances

currently playing song is displayed.

and automobiles. Devices support-

• Sound Settings: Audio sound set-

ing Bluetooth® can exchange data at

tings can be changed.

high speeds without physical cable

connections.

Delete from playlist

•

Bluetooth® Handsfree devices enable

When a song in the playlist is play-

convenient access to phone functions

ing, select [Menu] and select [Delete

through cell phones equipped with

from playlist].

Bluetooth®.

Select the song to delete, then select

•

Some Bluetooth® devices may not

[Delete].

be supported by the Bluetooth®

Handsfree function.

(Continued)

4-62

Safety precautions

Precautions when connecting

•

Even if your device supports

Bluetooth® devices

Bluetooth®, a Bluetooth® connec-

•

The Bluetooth® Handsfree function

tion cannot be established if the

helps drivers to drive safely. By

•

The vehicle supports the following

device’s Bluetooth® function is

connecting a Bluetooth®-enabled

Bluetooth®

functions.

Some

switched off. Search and connect

phone to the vehicle’s audio sys-

Bluetooth® devices may not sup-

with the Bluetooth® function

tem, phone calls can be made and

port some functions.

enabled.

received through the audio system

1) Bluetooth® Handsfree phone calls

and contacts can be managed.

•

Pair or connect Bluetooth® devices

2) Operations during a call

Consult the user manual before

to the audio system with the vehi-

(Private, Switch, Mic Vol. con-

use.

cle at a standstill.

trols)

•

Excessive manipulation of controls

•

If a Bluetooth® connection is lost

3) Download call history saved to

while driving, making it difficult to

due to abnormal conditions while a

the Bluetooth® device

pay attention to the road ahead,

Bluetooth® device is connected

can lead to accidents. Do not oper-

4) Download contacts saved to the

(communication range exceeded,

ate the device excessively while

Bluetooth® device

device power OFF, communication

driving.

5) Automatic contacts/call history

errors, etc.), the disconnected

download when Bluetooth® is

Bluetooth® device is searched for

•

Looking at the screen for a pro-

connected

and automatically reconnected.

longed time increases the risk of

accidents. Keep time spent looking

6) Automatic Bluetooth® device

•

you want to disable the

at the screen to a minimum.

connection when the vehicle is

Bluetooth® device auto-connect

started

function, turn the Bluetooth® func-

tion OFF on your device. Consult

7) Bluetooth® audio streaming play-

the user manuals for individual

back

devices to see whether Bluetooth®

•

Before connecting the audio sys-

is supported.

tem to your device, make sure your

•

Handsfree call quality and volume

device supports Bluetooth®.

may vary depending on the type of

Bluetooth® device.

4-63

Multimedia System

•

Some Bluetooth® devices are sub-

Pairing a Bluetooth® device

ject to intermittent Bluetooth® con-

Information on pairing Bluetooth®

nection failures. In this case, use

devices

the following method.

• Pairing refers to the process of

1) Turn the Bluetooth® function off

pairing Bluetooth® cell phones or

on your Bluetooth® device

➟

devices with the system prior to

Turn it on and try again.

connection. This is a necessary

2) Delete the paired device from

procedure for Bluetooth® connec-

both the audio system and

tion and usage.

(1) Vehicle name: Searched name in

Bluetooth® device, then pair

• Up to five devices can be paired.

Bluetooth® device.

again.

• Pairing Bluetooth® device is not

3) Power down your Bluetooth®

allowed while vehicle is moving.

Information

device

➟ Turn it on and try

again.

The vehicle name in the image above

Pairing the first Bluetooth® device

is an example. Refer to your device for

4) Completely remove the battery

Press the [PHONE] button on the

the actual name of your device.

from your Bluetooth® device;

audio system or the [CALL] button

reinsert it, reboot, and attempt

on the steering wheel remote control

connection.

2. Search for available Bluetooth®

➟ Search for the vehicle from the

devices in the Bluetooth® menu of

5) Restart the vehicle and reat-

Bluetooth® device, and pair ➟ Enter

your Bluetooth® device

(cell

tempt connection.

the passkey on the Bluetooth®

phone, etc.).

device or approve passkey

➟

3. Confirm that the vehicle name in

Bluetooth® pairing completed.

your Bluetooth® device matches

the vehicle name shown on the

1. When the [PHONE] button on the

audio screen, then select it.

audio or the [CALL] button on the

steering wheel remote control is

pressed, the following screen is dis-

played. Devices can now be paired.

4-64

4-1. For devices that require passkey

Information

entry, a passkey entry screen is

shown on your Bluetooth®

The 6-digit passkey in the image

• Bluetooth® standby mode lasts for

device.

above is an example. Refer to your

three minutes. If a device is not

vehicle for the actual passkey.

paired within three minutes, pairing

- Enter the passkey ‘0000’, in your

is canceled. Start over from the

Bluetooth® device.

beginning.

Pairing a second Bluetooth® device

4-2. For devices that require passkey

• For most Bluetooth® devices, a con-

confirmation, the following

Press the [SETUP] button on the

nection is established automatically

screen is shown on the audio

audio system ➟ Select [Bluetooth] ➟

after pairing. Some devices, howev-

system. A 6-digit passkey input

Select [Connections] ➟ Select [Add

er, require separate confirmation

screen is shown in the

new].

when connecting after pairing. Be

Bluetooth® device.

sure to check your Bluetooth®

device after pairing to confirm that

it has connected.

- The pairing procedure from this

- After confirming that the 6-digit

point is identical to [Pairing the first

passkey on the audio screen

Bluetooth device].

and the Bluetooth® device are

identical, select

[OK] in your

Bluetooth® device.

4-65

Multimedia System

Connecting Bluetooth® devices

If there are connected devices

Accepting/rejecting phone calls

If there are no connected devices

Press the [PHONE] button on the

Receiving phone calls with Bluetooth®

audio system ➟ Select [Settings] ➟

connected.

Press the [PHONE] button on the

Select

[Connections]

➟ Select

audio system or the [CALL] button in

Bluetooth® device to connect ➟ Select

the steering wheel remote control ➟

[Connect] ➟ Connect Bluetooth®.

List of paired Bluetooth® devices ➟

Select the desired Bluetooth® device

from the list ➟ Connect Bluetooth®.

(1) Caller name: If the caller number

is in your contacts, the correspon-

ding name is displayed.

Information

(2) Incoming phone number: Incoming

phone number is displayed.

• Only one Bluetooth® device can be

connected at a time.

(3) Accept: Accept call.

• When a Bluetooth® device is con-

(4) Reject: Reject call.

nected, other devices cannot be

paired.

4-66

Operation during calls

Information

Incoming call with Bluetooth® con-

•

When the incoming call screen is

• Some Bluetooth® devices may not

nected ➟ Select [Accept].

displayed, audio mode and the set-

support the Private function.

tings screen cannot be shown. Only

• The outgoing voice volume may vary

call volume control is supported.

depending on the type of Bluetooth®

•

Some Bluetooth® devices may not

device. If the outgoing voice volume is

support the call reject function.

too high or low, adjust the

Microphone Volume.

•

Some Bluetooth® devices may not

support the phone number display

function.

Favourites

Press the [PHONE] button on the

audio system ➟ Select [Favourites]

(1) Call duration: Call duration display.

➟ Favourites list displayed.

(2) Caller name: If the caller number is

in your contacts, the corresponding

name is displayed.

(3) Incoming phone number: Incoming

phone number is displayed.

(4) Keypad: Number keypad for

Automatic Response Service input

is displayed.

(5) Private: Call is transferred to a cell

phone.

(1) Favourites list: A list of paired

favourites is displayed.

(6) Microphone Volume: Adjust out-

going voice volume.

Connect a call when selected.

(7) End: End call.

4-67

Multimedia System

(2) Add to favourites: Add a down-

Call history

Contacts

loaded phone number to

Press the [PHONE] button on the

favourites.

audio system ➟ Select [Call history]

audio system ➟ Select [Contacts] ➟

(3) Delete: Delete a saved Favourites.

➟ Call history is displayed.

Select letter (ABC) ➟ Contacts dis-

played.

Information

•

Up to 20 favourites can be paired

for each paired Bluetooth® device.

•

Favourites can be accessed when the

Bluetooth® device they were paired

from is connected.

•

The audio system does not down-

load favourites from Bluetooth®

devices. Favourites must be newly

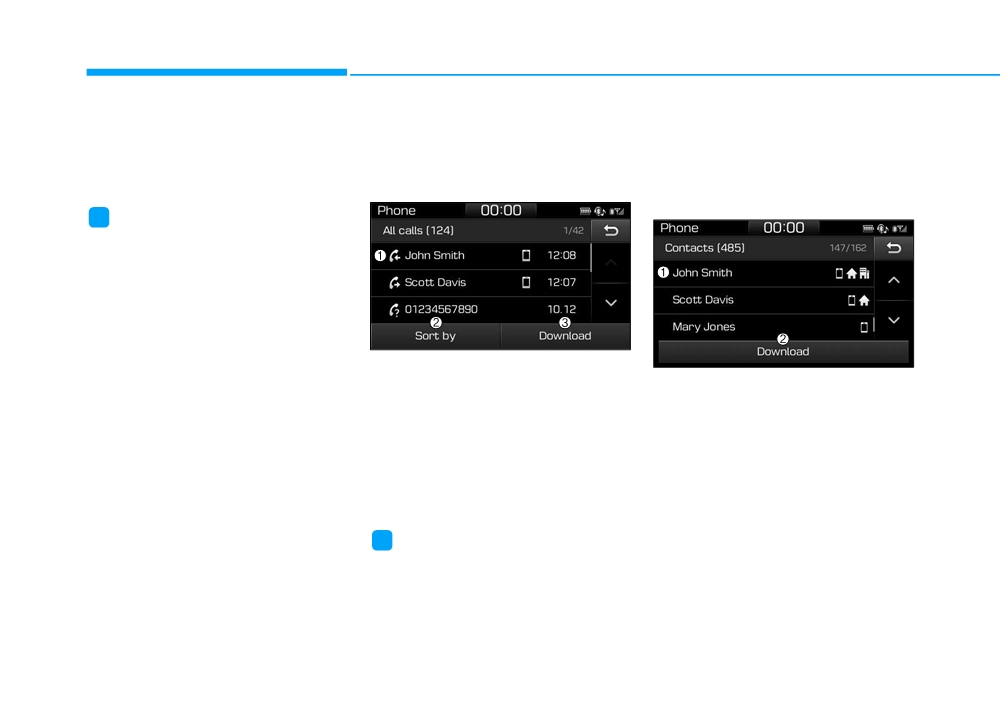

(1) Call history: Display the down-

saved before use.

loaded call history list.

(1) Contacts: Display downloaded

•

To add to favourites, contacts must

Connect a call when selected.

contacts.

be downloaded first.

Connect a call when selected.

(2) Sort by: Sort by all calls, dialed

•

Saved favourites are not updated

calls, received calls or missed

(2) Download: Download contacts from

even if the contacts of the connected

calls.

connected Bluetooth® devices.

Bluetooth® device are changed. In

(3) Download: Download call history

this case, favourites need to be delet-

from connected Bluetooth® devices.

ed and added again.

Information

• Up to 50 dialed, received and missed

calls are saved.

• When the latest call history is

received, the existing call history is

deleted.

4-68

Hyundai i30 (2018 year). Manual - part 17
