Multimedia System

Using a cellular phone or a two-

way radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with the

audio equipment. In such a case, use

the cellular phone at a place as far as

possible from the audio equipment.

NOTICE

JBM004

OJF045311L

When using a communication

•

Fading - As your vehicle moves

•

Station Swapping - As a FM signal

system such as a cellular phone

away from the radio station, the

weakens, another more powerful

or a radio set inside the vehicle, a

signal will weaken and sound will

signal near the same frequency

separate external antenna must be

begin to fade. When this occurs,

may begin to play. This is because

fitted. When a cellular phone or a

we suggest that you select another

your radio is designed to lock onto

radio set is used with an internal

stronger station.

the clearest signal. If this occurs,

antenna alone, it may interfere

•

Flutter/Static - Weak FM signals or

select another station with a

with the vehicle's electrical sys-

large obstructions between the

stronger signal.

tem and adversely affect safe

transmitter and your radio can dis-

•

Multi-Path Cancellation

- Radio

operation of the vehicle.

turb the signal causing static or

signals being received from sever-

fluttering noises to occur. Reducing

al directions can cause distortion

the treble level may lessen this

or fluttering. This can be caused by

WARNING

effect until the disturbance clears.

a direct and reflected signal from

the same station, or by signals

Do not use a cellular phone

from two stations with close fre-

while driving. Stop at a safe

quencies. If this occurs, select

location to use a cellular phone.

another station until the condition

has passed.

4-6

iPod®

iPod® is a registered trademark of

Apple Inc.

Bluetooth® Wireless

Technology

The Bluetooth® word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

such marks by HYUNDAI is under

license.

Other trademarks and trade names

are those of their respective owners.

A Bluetooth® Wireless Technology

enabled cell phone is required to use

Bluetooth® Wireless Technology.

4-7

Multimedia System

AUDIO (With Touch Screen)

■ Type A

■ Type B

(With Bluetooth® Wireless Technology)

S0H4H0000EE/S0H4H0001EE

4-8

Feature of Your Audio

(1) LCD screen

(4) POWER/VOLUME knob

• Tap the screen to select a button.

• Turn to adjust the volume.

Head unit

• Press to turn the device on or off.

■ Type A

(2) RADIO

• Start DAB/FM* and AM radio.

(5) RESET

* with DAB

• Shutdown and restart the system.

(3) SEEK/TRACK

• Search for next station in DAB/FM*

and AM radio mode.

• Change the current song in media

mode.

■ Type B

* with DAB

❈ The actual features in the vehicle

may differ from the illustration.

4-9

Multimedia System

■ Type A

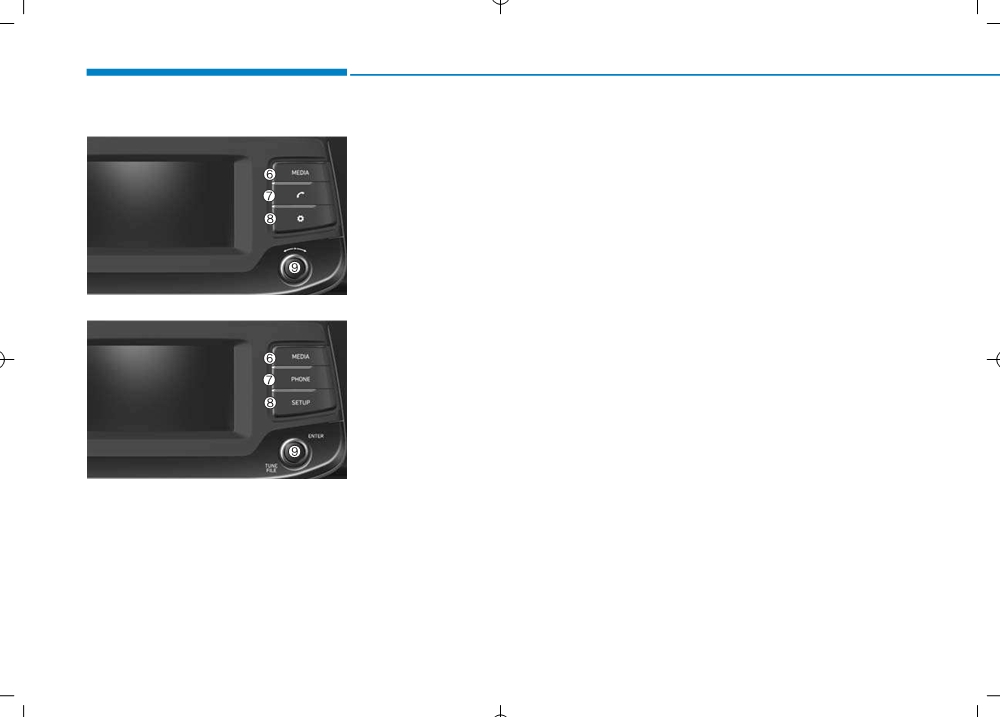

(6) MEDIA

(8) SETUP

• Select USB(iPod®), Bluetooth®(BT)

• Access Display, Sound, Date/Time,

Audio, AUX or My Music.

Bluetooth, System, Screensaver

and Display Off settings.

• Display the media menu when two

or more media are connected or

when the

[MEDIA] button is

(9) TUNE knob

pressed in media mode.

• Turn to navigate through the sta-

tions/songs list.

(7) PHONE

• Press to select an item.

• Start Bluetooth® Phone mode.

■ Type B

4-10

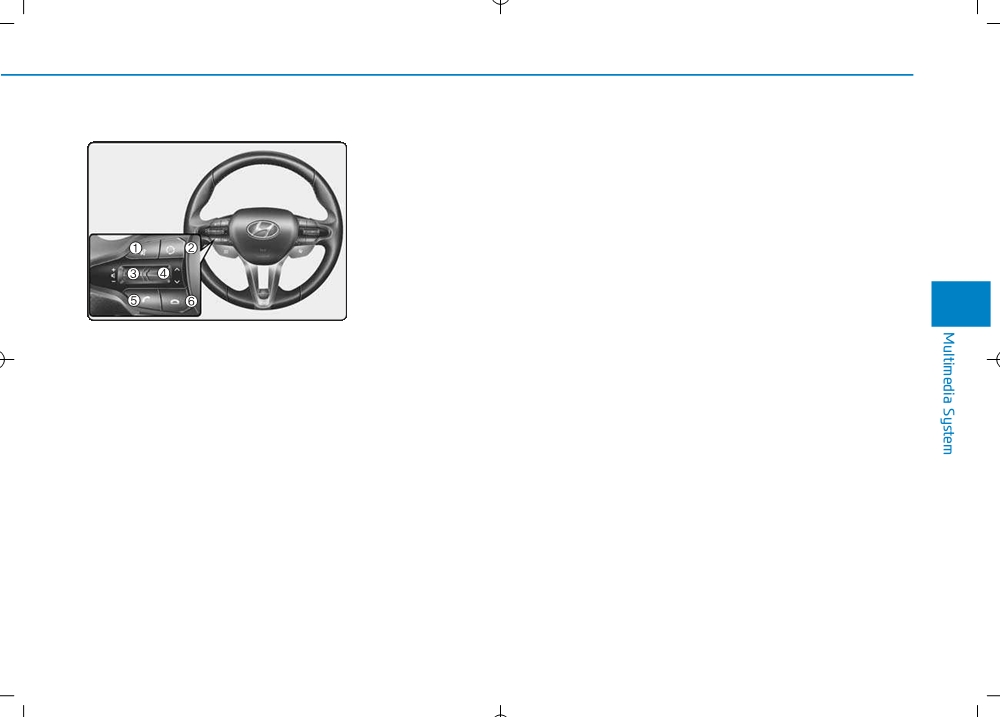

Steering wheel remote control

(4) UP/DOWN

• Pressing and holding the button

(more than 1.0 seconds)

• Press the button in radio mode to

search Presets.

- If not in Bluetooth® Handsfree

mode or receiving a phone call,

• Press and hold the button in radio

the most recently Dialled Call

mode to search frequencies.

number is dialled.

• Press the button in media mode to

- Press in Bluetooth® Handsfree

change the current song.(except

AUX)

mode to transfer the call to your

cell phone.

• Press and hold the button in media

- Press in cell phone mode to

mode to quick search through

switch to Bluetooth® Handsfree

songs.

(except Bluetooth®(BT)

mode.

Audio and AUX)

❈ The actual features in the vehicle

(6) END

(5) CALL

may differ from the illustration.

•

Pressing the button

•

Press in Bluetooth® Handsfree

mode to end the phone call.

(1) MUTE

- If not in Bluetooth® Handsfree

•

Press in the incoming call screen

mode or receiving a phone call.

• Mutes the audio.

to reject the call.

• Mutes the microphone during a

First press: Display Dial Number

screen.

call.

Second press: Automatically dis-

play the most recently Dialled

(2) MODE

Call number.

• Press the button to change the

Third press: Dial the phone num-

mode in the following order: Radio

ber entered.

➟ Media.

- Press in the Incoming Call notifi-

cation screen to accept the

(3) VOLUME

phone call.

• Press to adjust the volume.

- Press in Bluetooth® Handsfree

mode to switch to the waiting call.

4-11

Multimedia System

WARNING

(Continued)

WARNING

•

Please refrain from use if the

•

Do not stare at the screen

screen is blank or no sound

Driving while distracted can

while driving. Staring at the

can be heard as these signs

result in a loss of vehicle con-

screen for prolonged periods

may indicate product malfunc-

trol that may lead to an acci-

of time could lead to traffic

tion. Continued use in such

dent, severe personal injury,

accidents.

conditions could lead to acci-

and death. The driver’s primary

dents (fires, electric shock) or

responsibility is in the safe and

•

Do not disassemble, assem-

product malfunctions.

legal operation of a vehicle, and

ble, or modify the audio sys-

use of any handheld devices,

tem. Such acts could result in

•

Do not touch the antenna dur-

other equipment, or vehicle sys-

accidents, fire, or electric

ing thunder or lightening as

tems which take the driver’s

shock.

such acts may lead to light-

eyes, attention and focus away

•

Using the phone while driving

ning induced electric shock.

from the safe operation of a

may lead to a lack of attention

•

Do not stop or park in park-

vehicle or which are not permis-

of traffic conditions and

ing-restricted areas to operate

sible by law should never be

increase the likelihood of

the product. Such acts could

used during operation of the

accidents. Use the phone fea-

lead to traffic accidents.

vehicle.

ture after parking the vehicle.

•

Use the system with the vehi-

•

Exercise caution not to spill

cle engine turned on.

water or introduce foreign

Prolonged use with the igni-

objects into the device. Such

tion turned on only could

acts could lead to smoke, fire,

result in battery discharge.

or product malfunction.

(Continued)

4-12

NOTICE

(Continued)

•

Turn on the car engine before

•

Do not place beverages close to

•

Operating the device while driv-

using this device. Do not oper-

the audio system. Spilling bever-

ing could lead to accidents due

ate the audio system for long

ages may lead to system mal-

to a lack of attention to external

periods of time only with the

function.

surroundings. First park the

ignition turned on as such oper-

vehicle before operating the

•

In case of product malfunction,

ations may lead to battery dis-

please contact your place of pur-

device.

charge.

chase or After Service center.

•

Adjust the volume to levels that

•

Do not subject the device to

•

Placing the audio system within

allow the driver to hear sounds

severe shock or impact. Direct

an electromagnetic environment

from outside of the vehicle.

pressure onto the front side of

may result in noise interference.

Driving in a state where external

the monitor may cause damage

sounds cannot be heard may

•

Prevent caustic solutions such

to the LCD.

lead to accidents.

as perfume and cosmetic oil

•

When cleaning the device, make

from contacting the dashboard

•

Pay attention to the volume set-

sure to turn off the device and

because they may cause dam-

ting when turning the device on.

use a dry and smooth cloth.

age or discoloration.

A sudden output of extreme vol-

Never use tough materials,

ume upon turning the device on

chemical cloths, or solvents

could lead to hearing impair-

(alcohol, benzene, thinners,

ment. (Adjust the volume to a

etc.). As such materials may

suitable levels before turning off

damage the device panel or

the device.)

cause color/quality deteriora-

(Continued)

tion.

(Continued)

4-13

Multimedia System

Information on status icons

Radio

Switching between FM and AM

Icons showing audio status are shown

• Press the [RADIO] button on the

in the upper-right corner of the screen.

FM/AM (with RDS)

audio system to switch between

FM and AM.

Icon

Description

• Select

[Radio] on the screen to

Mute

Mute engaged

switch between FM and AM.

Remaining battery life of

Battery

a connected Bluetooth®

Searching stations

device

Press the [SEEK/TRACK] button to

Handsfree +

Bluetooth® Handsfree

search stations.

Audio stream-

call and audio stream-

ing connection

ing available

List

Handsfree

Bluetooth® Handsfree

A list of all available stations in the

connection

call available

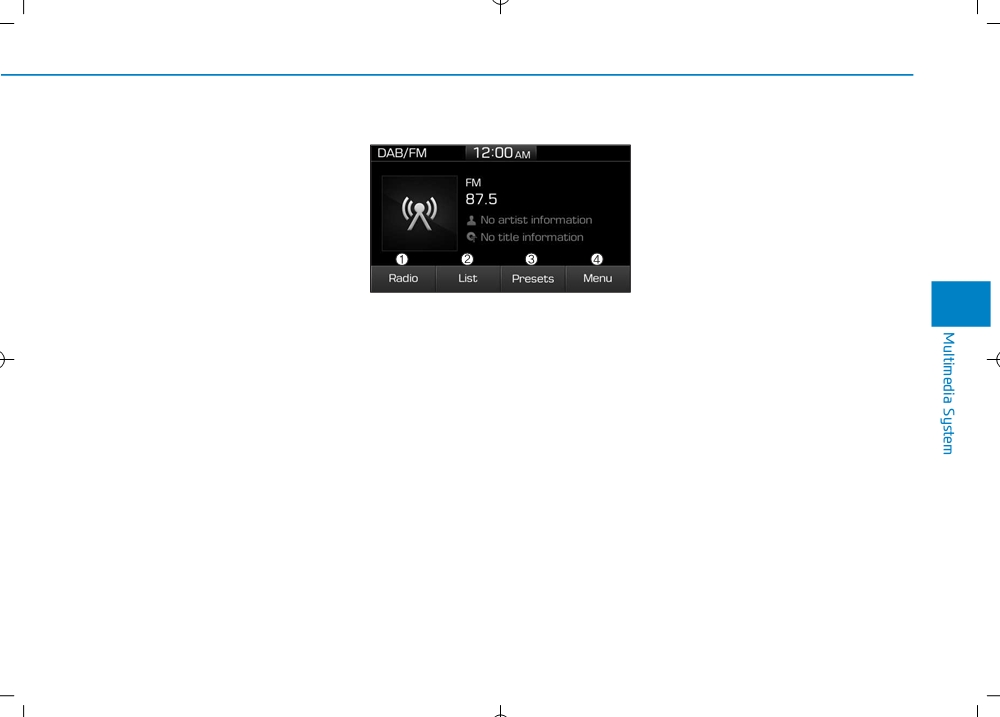

(1) Radio

vehicle’s current location is dis-

Bluetooth®

audio

Switch between FM and AM.

played. Select the desired station.

audio streaming

streaming available

Favourite stations can be saved to

Downloading contacts

(2) List

Downloading

through Bluetooth® wire-

[Presets] by selecting [+].

contacts

less communications

View all available stations.

Downloading call history

Downloading

through Bluetooth® wire-

(3) Presets

call history

less communications

View all presets.

Line busy

Phone call in progress

(4) Menu

Mic muted during a

Mute mic

call

(caller cannot

Navigate to the menu screen.

hear your voice)

Display the phone signal

Phone signal

strength for a cell phone

strength

connected by Bluetooth®

4-14

Presets

DAB/FM (with DAB)

Switching between DAB/FM and AM

Save up to 40 frequently used stations.

• Press the [RADIO] button on the

audio system to switch between

To listen to a preset, select the

DAB/FM and AM.

desired station list.

• Select

[Radio] on the screen to

Press and hold the desired slot from

switch between DAB/FM and AM.

1 through 40. This saves the current

station in the selected slot.

Searching stations

If the slot is empty, simply selecting

Press the [SEEK/TRACK] button to

saves the station to the slot.

search stations.

(1) Radio

List

Select [Menu], and select the desired

Switch between DAB/FM and AM.

A list of all available stations in the

function.

vehicle’s current location is dis-

• Traffic Announcement (TA): Enable

(2) List

played. Select the desired station.

or disable Traffic Announcements.

View all available stations.

Favourite stations can be saved to

• Scan: All available stations are

[Presets] by selecting [+].

played for five seconds each.

(3) Presets

• Sound Settings: Audio sound set-

View all presets.

tings can be changed.

(4) Menu

Navigate to the menu screen.

4-15

Multimedia System

Presets

FM/AM (without RDS)

Switching between FM and AM

Save up to 40 frequently used stations.

• Press the [RADIO] button on the

audio system to switch between

To listen to a preset, select the

FM and AM.

desired station list.

• Select

[Band] on the screen to

Press and hold the desired slot from

switch between FM and AM.

1 through 40. This saves the current

station in the selected slot.

Searching stations

If the slot is empty, simply selecting

Press the [SEEK/TRACK] button to

saves the station to the slot.

search stations.

(1) Band

List

Select [Menu], and select the desired

Switch between FM and AM.

A list of all available stations in the

function.

vehicle’s current location is dis-

• Traffic Announcement (TA): Enable

(2) Presets

played. Press the desired station.

or disable Traffic Announcements.

View all presets.

Favourite stations can be saved to

• Region : Enable or disable auto-

[Presets] by selecting [save].

matic switching between regional

(3) List

stations.

View all available stations.

• Scan: All available stations are

played for five seconds each.

(4) Menu

• Sound Settings: Audio sound set-

Navigate to the menu screen.

tings can be changed.

• Manual tune FM : Search for fre-

quencies manually.

4-16

Presets

Media

Range of supported compressed file

types

Save up to 40 frequently used stations.

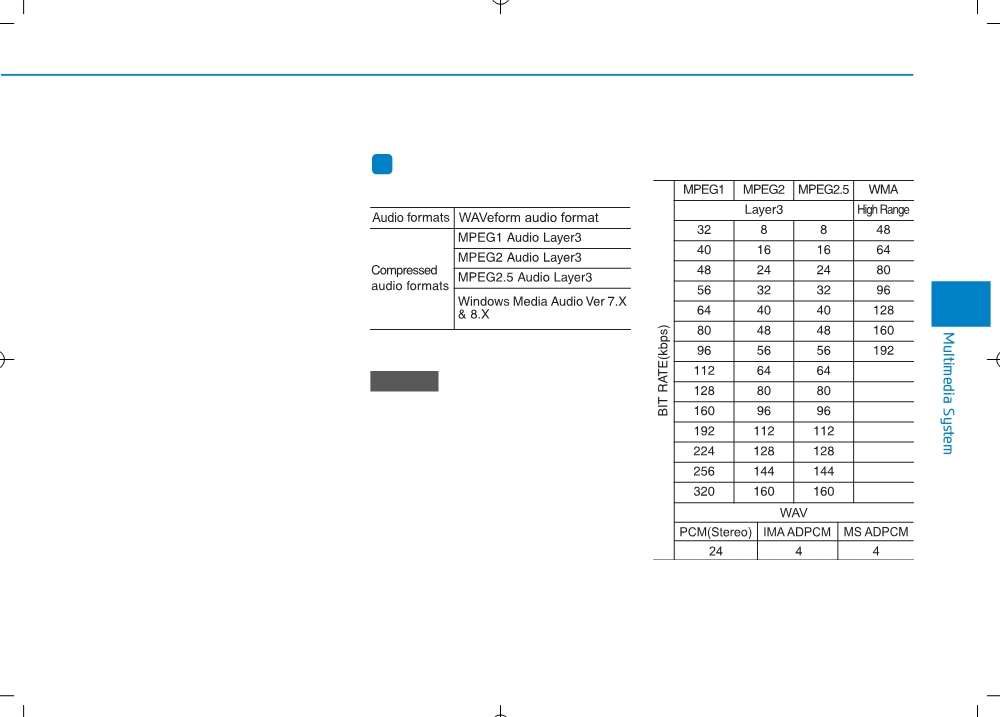

1. Bitrate range (Kbps)

To listen to a preset, select the

Information - Using MP3

desired station list.

Supported audio formats

Press and hold the desired slot from

1 through 40. This saves the current

station in the selected slot.

If the slot is empty, simply selecting

saves the station to the slot.

Select [Menu], and select the desired

function.

• Scan: All available stations are

NOTICE

played for five seconds each.

File formats other than the formats

• Sound Settings: Audio sound set-

above may not be recognized or

tings can be changed.

playable. Information such as file-

name may not be displayed.

4-17

Multimedia System

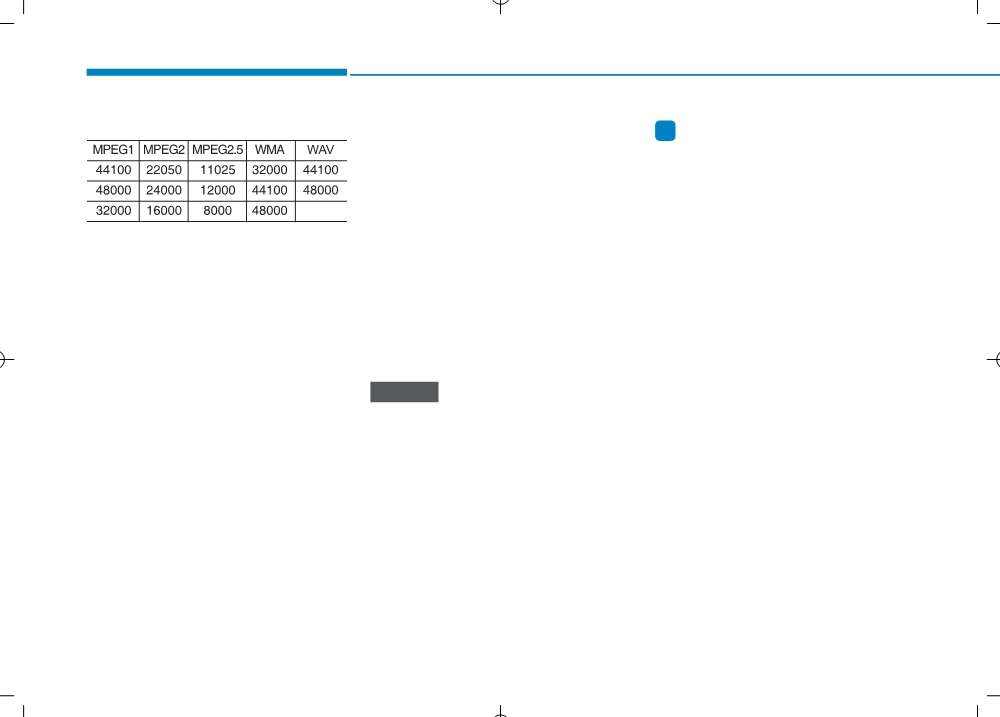

2. Sampling frequency (Hz)

4. Character display range (Unicode)

Information

• Filenames: Up to 64 English char-

- Using the USB Devices

acters (64 Korean characters)

•

Starting the vehicle while a USB

• Foldernames: Up to

32 English

device is connected can damage the

characters (32 Korean characters)

device. Please disconnect USB

devices before starting the vehicle.

• The sound quality of MP3/WMA

Languages supported (Unicode sup-

•

Starting the vehicle or stopping the

compressed and WAV files may

port)

engine while an external USB device

vary depending on the bitrate. (A

• Korean: 2,604 characters

is connected can result in failure of

higher bitrate can have better sound

the external USB device to operate.

quality.)

• English: 94 characters

• Common Chinese characters:

•

Be cautious of static electricity when

• The product only recognizes files

connecting/disconnecting external

with the MP3, WMA or WAV exten-

4,888 characters

USB devices.

sion. Files without one of these

• Special symbols: 986 characters

extensions are not recognized.

•

An encrypted MP3 player is not rec-

NOTICE

ognized when connected as an exter-

nal device.

3. Number of recognizable folders

Japanese/Simplified Chinese char-

•

External USB devices may not be

and files

acters are not supported.

recognized, depending on the state

• Folders: 2,000 for USB

of the external USB device.

• Files: 6,000 for USB

•

Only products with byte/sectors for-

• No recognition limit for folder hier-

matted at 4 KB or lower are recog-

archies.

nized.

•

Only USB devices in FAT12/16/32

format are recognized; NTFS and

ExFAT file systems are not recog-

nized.

(Continued)

4-18

(Continued)

•

Some USB devices are not recog-

•

Use of USB accessories, including

•

Operation is guaranteed only for

nized due to compatibility issues.

charge and heat though the USB I/F,

standard (Metal Cover Type) USB

•

Do not touch the USB connections.

can lead to reduced product per-

Memory drives.

formance or malfunctions. Do not

•

Operation of HDD, CF, SD and mem-

•

Connecting and disconnecting USB

use USB devices or accessories for

ory stick devices is not guaranteed.

devices rapidly over a short period

these purposes.

of time can cause equipment failure.

•

DRM (Digital Rights Management)

•

Use of aftermarket USB hubs and

files cannot be played.

•

Abnormal sounds may be audible

extension cables can result in the

when the USB device is disconnected.

•

SD-type USB memory, CF-type

vehicle’s audio system failing to rec-

USB memory, and other USB mem-

•

Turn the audio off before connecting

ognize your USB device. Connect

or disconnecting external USB

ory devices that require adapters

the USB device directly to the multi-

for connection are not supported.

devices.

media port of your vehicle.

•

Proper operation of USB HDDs or

•

Recognition may take longer

•

When using high-capacity USB

USB drives with connectors that

depending on the type, capacity or

devices with logical drive divisions,

loosen due to vehicle vibrations is

file format of the external USB

only files saved on the highest level

not guaranteed. (iStick, etc.)

device. This is not a product mal-

logical drive can be played.

function.

•

USB products that are

If applications are loaded on a USB

used as key chains or

•

Use of USB devices for purposes

drive, file playback may fail.

cell phone accessories

other than playing music files is pro-

•

Some MP3 players, cell phones, dig-

may damage the USB

hibited.

ital cameras, etc. (USB devices that

jack and affect proper

•

Image display and video playback

are not recognized as mobile stor-

file playback. Please refrain from

are not supported.

age) may not operate normally

use. Use only products with plug

(Continued)

when connected.

connectors, as shown in the follow-

•

USB charging may not be supported

ing illustration.

by some mobile devices.

•

When MP3 devices or cell phones are

(Continued)

connected simultaneously through

AUX, BT Audio and USB modes, a

popping noise or malfunction may

occur.

4-19

Multimedia System

USB

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

• Press the

[MEDIA] button, and

select [USB].

Selecting songs from a list

• Connect a USB drive to the USB

Select [List] to see a list of songs

port to automatically play files on

available for play.

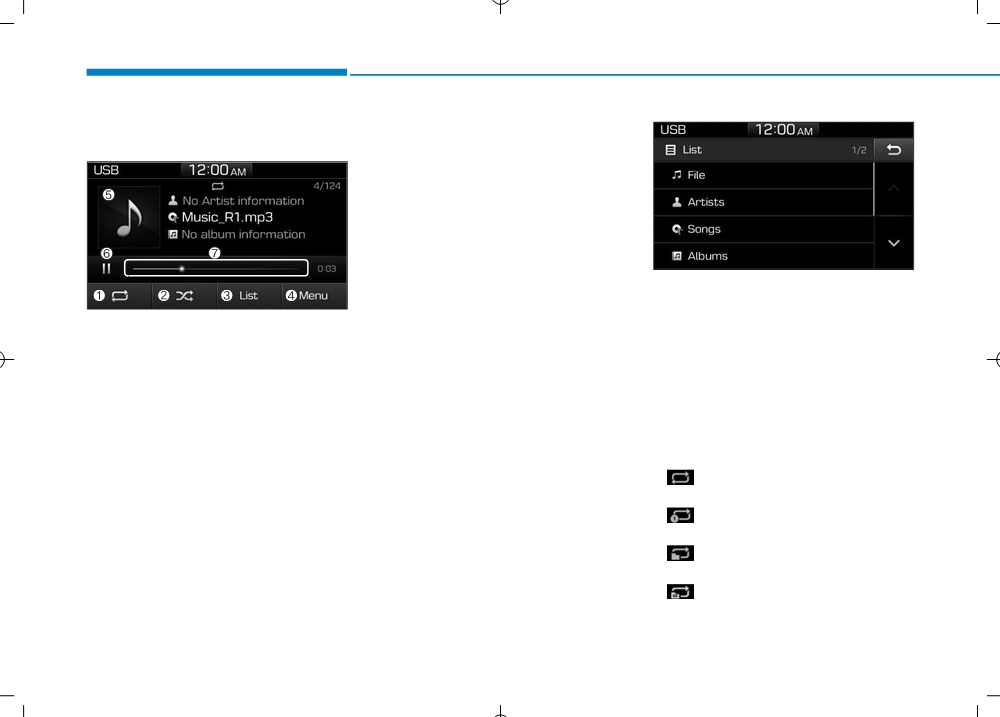

(1) Repeat

the USB drive.

Select and play the desired song.

Enable/disable repeat.

Changing songs

Repeat play

(2) Shuffle

• Press the [SEEK/TRACK] button

Select [Repeat] to enable or disable

Enable/disable shuffle play.

to play the previous or next song.

‘Repeat all’, ‘Repeat current song’,

• Press and hold the [SEEK/TRACK]

‘Repeat folder’ or ‘Repeat category’

(3) List

button to rewind or fast forward the

play.

currently playing song.

View a list of all songs.

•

Repeat all: All songs in the

• Search songs by turning TUNE

playlist are repeated.

knob, and press the knob to play.

(4) Menu

•

Repeat current song: The cur-

rently playing song is repeated.

Navigate to the menu screen.

•

Repeat folder: All songs in the

current folder are repeated.

(5) Album Image

•

Repeat category: Repeat all

View song info.

songs in the current category.

4-20

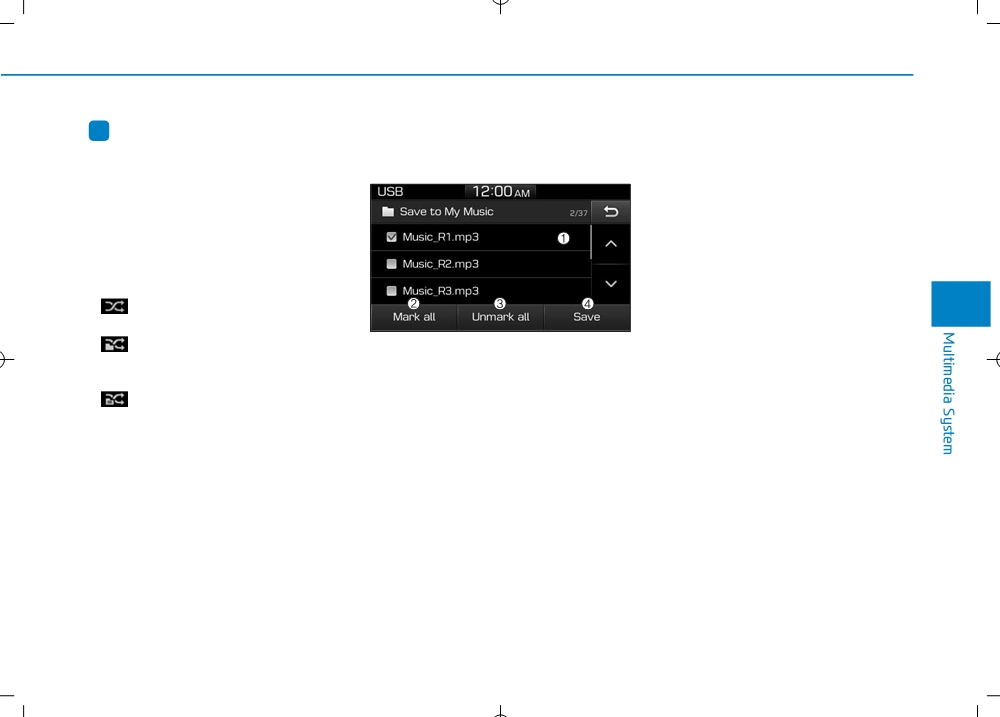

(4) Save: Save the selected file(s).

Information

Select [Menu], and select the desired

- Select the files you want to save,

The repeat folder function is available

function.

and select [Save]. This saves the

only when songs are playing from the

selected files to My Music.

[File] category under [List].

- Saving is canceled if phone calls

are received or made while saving.

Shuffle play

- Up to 6,000 files can be saved.

Select [Shuffle] to enable or disable

- The currently playing file on the

‘Shuffle’,

‘Shuffle folder’ or

‘Shuffle

USB device cannot be changed

category’ play.

while saving.

•

Shuffle: Songs are played in

- My Music cannot be used while

random order.

saving.

•

Shuffle folder: Songs within

• Save to My Music: Songs on your

- Up to 700 MB can be saved.

the current folder are played in ran-

USB device can be saved to My

dom order

Music.

•

Information: Detailed information

on the currently playing song is dis-

•

Shuffle category: Songs within

(1) File: Select a file to save.

played.

the current category are played in

(2) Mark all: Select all files.

random order.

•

Sound Settings: Audio sound set-

(3) Unmark all: Deselect all files.

tings can be changed.

4-21

Multimedia System

(Continued)

Information

•

There may be noise if the audio sys-

•

The search and song play order in

- Using the iPod® Devices

tem is used with an iPod® or AUX

the iPod® device may be different

•

To use the audio system’s iPod® con-

external device connected to the

from the search order in the audio

trol function, use the dedicated

power jack. In these cases, discon-

system.

cable provided with your iPod®.

nect the iPod® or external device

•

If the iPod® has failed due to an

•

Connecting the iPod® to the vehicle

from the power jack.

internal defect, please reset the

during play may result in a loud

•

Play may be interrupted, or device

iPod® (consult your iPod® manual).

noise that lasts about one to two sec-

malfunctions may occur depending

•

Depending on the software version,

onds. Connect the iPod® to the vehi-

on the characteristics of your

the iPod® may fail to sync with the

cle after stopping or pausing play.

iPod®/iPhone®.

system. If the media is removed or

•

Connect the iPod® with the vehicle in

•

Play may fail if your iPhone® is con-

disconnected before recognition, the

the ACC ON state to begin charging.

nected through both Bluetooth® and

previous mode may not be restored

•

When connecting the iPod® cable,

USB. In this case, select Dock con-

(iPad® cannot be charged).

be sure to fully push the cable into

nector or Bluetooth® on your

•

Cables other than the 1-meter cable

the port.

iPhone® to change the sound output

provided with iPod®/iPhone® prod-

•

When EQ effects are enabled simul-

settings.

ucts may not be recognized.

taneously on external devices, such

•

If your software version does not

•

When other music apps are used on

as iPod®s and the audio system, the

support the communication proto-

your iPod®, the system sync func-

EQ effects may overlap, causing

col or your iPod® is not recognized

tion may fail due to malfunction of

sound quality deterioration or dis-

due to device failure, anomalies or

the iPod® application.

tortion. Deactivate the EQ function

defects, iPod® mode cannot be used.

for all external devices, if possible.

•

iPod® nano (5th generation) devices

•

Noise may occur when your iPod®

may not be recognized if the battery

or the AUX port is connected.

is low. Charge sufficiently before use.

Disconnect and store separately

(Continued)

when not in use.

(Continued)

4-22

Content .. 11 12 13 14 ..
