Maintenance
OBA073014

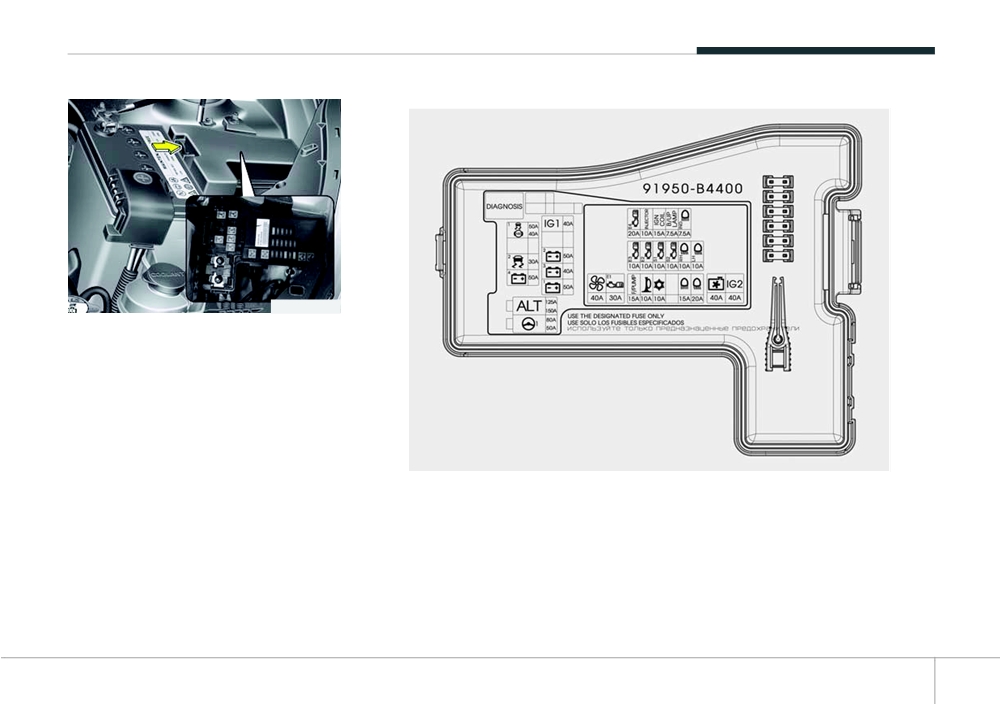

Engine compartment fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
OIA073033
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
7 65
Maintenance
Engine compartment main fuse panel
Fuse Name
Symbol
Fuse rating
Circuit Protected
MDPS
80A
MDPS Unit
MULTI
FUSE
ALT
125A (150A)
Alternator, Fuse - F3 / F4 / F6, PCB Fuse & Relay Box
4
B+4
50A
Smart Junction Box (Fuse : F1 / F2)
2
ESP 2
30A
ESP Control Module, Multipurpose Check Connector
1
ESP 1
50A
ESP Control Module
1
B+1
50A
Smart Junction Box (T/Sig Sound Relay, Fuse : F10, ARISU-LT1, IPS 3)
3
B+3
40A
Smart Junction Box (Power Window Relay, Fuse : F4, ARISU-LT2, IPS 5)
FUSE
2
Smart Junction Box (Fuse : F5 / F9 / F13 / F14 / F17, Leak Current Autocut Device
B+2
50A
Fuse : F23 / F24 / F29)
W/O Button Start : Ignition Switch
IG1
40A
With Button Start : PDM Relay Box (IG1 / ACC Relay)
FRT WIPER
7.5A
PCM, Front Wiper Motor, Multifunction Switch
BLOWER
40A
Blower Relay
E1
ECU1
30A
Engine Control Relay, Fuse : F25 / F26
7 66
Maintenance
Fuse Name
Symbol
Fuse rating
Circuit Protected
F/PUMP
15A
F/Pump 1 Relay
HORN
10A
Horn Relay, B/Alarm Horn Relay
A/CON
10A
A/CON Relay
VACUUM
VACUUM
20A
Vacuum Pump Relay
PUMP
PUMP
HEADLAMP
DIPPED
15A
Headlamp High Beam
BEAM
HEADLAMP
20A
Headlamp Low Beam
HIGH BEAM
FUSE
C/FAN
40A
C/FAN LO Relay, C/FAN HI Relay
Start Relay, Ignition Switch (W/O Button Start), PDM Relay Box (IG2 Relay) (With
IG2
40A
Button Start)
E3
ECU3
10A
PCM
E2
ECU2
10A
B3LA : PCM, Shut Off Valve #1/#2
C/FAN LO Relay, C/FAN HI Relay, A/CON Relay, Start Relay (G3LA, With ISG),
S1
SENSOR
10A
PCM, Oil Control Valve #1/#2 (IN/EX), Purge Control Solenoid Valve, Camshaft
Position Sensor #1/#2 (IN/EX)
S2
SENSOR2
10A
G3LA/G4LA : PCM
7 67
Maintenance
Fuse Name
Symbol
Fuse rating
Circuit Protected
HEADLAMP
DIPPED
10A
Head Lamp LH
BEAMS
HEADLAMP
DIPPED
10A
Head Lamp RH
BEAMS
E4
ECU4
20A
Not Used
PCM, Immobilizer Module, F/Pump 1 Relay
FUSE
INJECTOR
10A
G3LA : Injector #1/#2/#3, G4LA : Injector #1/#2/#3/#4
B3LA : Injector #1/#2/#3 (GSL), Injector #1/#2/#3 (LPI), Crash Pad Switch
G3LA/B3LA : Ignition Coil #1/#2/#3, Condenser
IGN COIL
15A
G4LA : Ignition Coil
A/T : PCM, Transaxle Range Switch, BCM, Instrument Cluster, Rear Combination
B/UP LAMP
7.5A
Lamp LH/RH
M/T : Back-Up Lamp Switch, Smart Junction Box (Fuse : F15)
HEADLAMP
7.5A
Instrument Cluster, PCB Fuse & Relay Box (Head Lamp (H) Relay)
HI INDICATOR
7 68
Maintenance
LIGHT BULBS
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
WARNING
CAUTION
difficult to replace vehicle light bulbs
Be sure to replace the burned-out
• Prior to replacing a light, depress
because other parts of the vehicle must
bulb with one of the same wattage
the foot brake, move the shift
be removed before you can get to the
lever into the P (Park, for auto-
rating. Otherwise, it may cause
bulb. This is especially true for removing
matic transaxle vehicle) or neu-
damage to the fuse or electric
the headlight assembly to get to the
tral
(for manual transaxle vehi-
wiring system.
bulb(s). Removing/installing the head-
cle), apply the parking brake,
light assembly can result in damage to
place the ignition
the vehicle.
switch in the LOCK/OFF position,
and take the key with you when
✽ NOTICE
leaving the vehicle to avoid sud-
After heavy driving, rain or washing
den movement of the vehicle and
headlight and taillight lenses could
to prevent possible electric
appear frosty. This condition is caused
shock.
by the temperature difference between
•
Be aware the bulbs may be hot
the lamp inside and outside. This is sim-
and may burn your fingers.
ilar to the condensation on your win-
dows inside your vehicle during the rain
and doesn’t indicate a problem with
your vehicle. If the water leaks into the
lamp bulb circuitry, we recommend that
the system be checked by an authorized
HYUNDAI dealer.
7 69
Maintenance
(Continued)
• If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
• Wear eye protection when chang-
ing a bulb. Allow the bulb to cool
down before handling it.
✽ NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
OBA073018
OHD076046
reinstalled, consult an authorized
Headlight, position light, turn sig-
HYUNDAI dealer.
nal light, and front fog light bulb
WARNING - Halogen bulbs
replacement
•
Halogen bulbs contain pressur-
(1) Headlight (Low/High)
ized gas that will produce flying
(2) Parking(Position) light
pieces of glass if broken.
(3) Front turn signal light
•
Always handle them carefully,
and avoid scratches and abra-
(4) Front fog light / Daytime running light
sions. If the bulbs are lit, avoid
(if equipped)
contact with liquids. Never touch
the glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated only
when installed in a headlight.
(Continued)
7 70
Maintenance

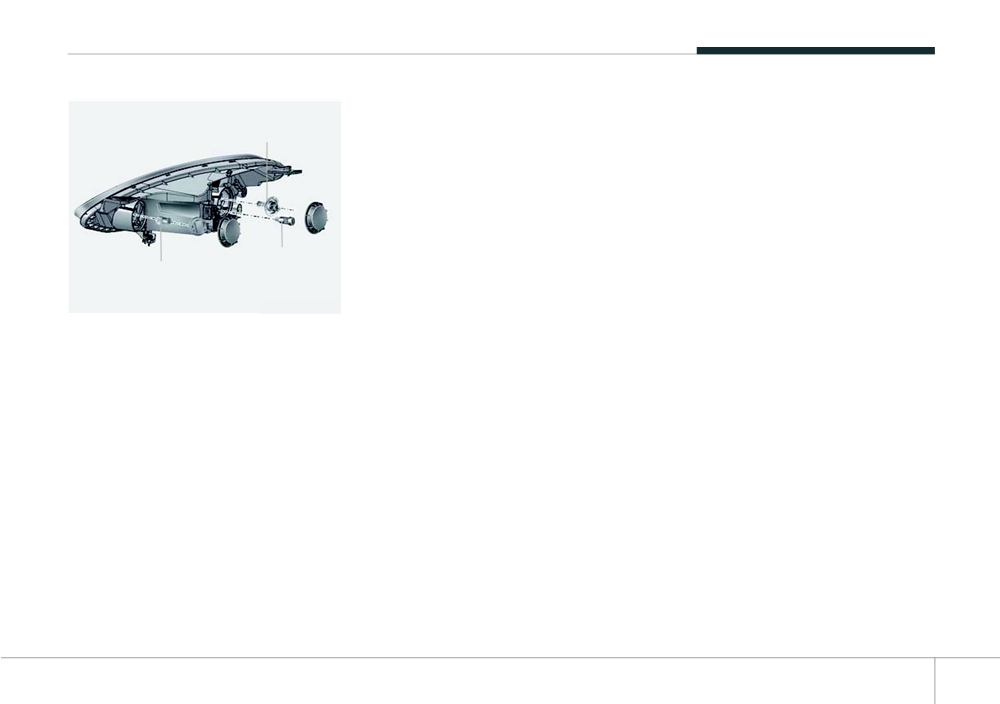

Turn signal light
Parking(Position) light
1. Remove the turn signal light bulb cover
1. Remove the socket from the assembly
Headlight
by turning it counterclockwise.
by pulling it straight out.
2. Remove the socket from the assembly
2. Remove the bulb from the socket by
by turning the socket counterclockwise
pulling it out.
until the tabs on the socket align with
3. Insert a new bulb by inserting it into the
the slots on the assembly.
socket.
3. Insert a new bulb by inserting it into the
4. Install the socket in the assembly by
socket and rotating it until it locks into
pushing it in.
Parking(Position)
place.
Turn signal light
light
4. Install the socket in the assembly by
aligning the tabs on the socket with the
OBA073047R
slots in the assembly. Push the socket
Headlight (Low/High)
into the assembly and turn the socket
1. Open the hood.
clockwise.
2. Remove the headlight bulb cover by
5. Install the turn signal light bulb cover
turning it counterclockwise.
by turning it clockwise.
3. Disconnect the headlight bulb socket-
connector.
4. Unsnap the headlight bulb retaining
wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight
assembly.
6. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket con-
nector.
8. Install the headlight bulb cover by turn-
ing it clockwise.
7
71
Maintenance
Front fog light bulb replacement
■
5 Door
1. Reach your hand into the back of the
front bumper.
2. Disconnect the power connector from
the socket.
3. Remove the bulb-socket from the
housing by turning the socket counter-
clockwise until the tabs on the socket
align with the slots on the housing.
4. Install the new bulb-socket into the
housing by aligning the tabs on the
OBA073020
socket with the slots in the housing.
■
4 Door
OBA073019R
Push the socket into the housing and
turn the socket clockwise.

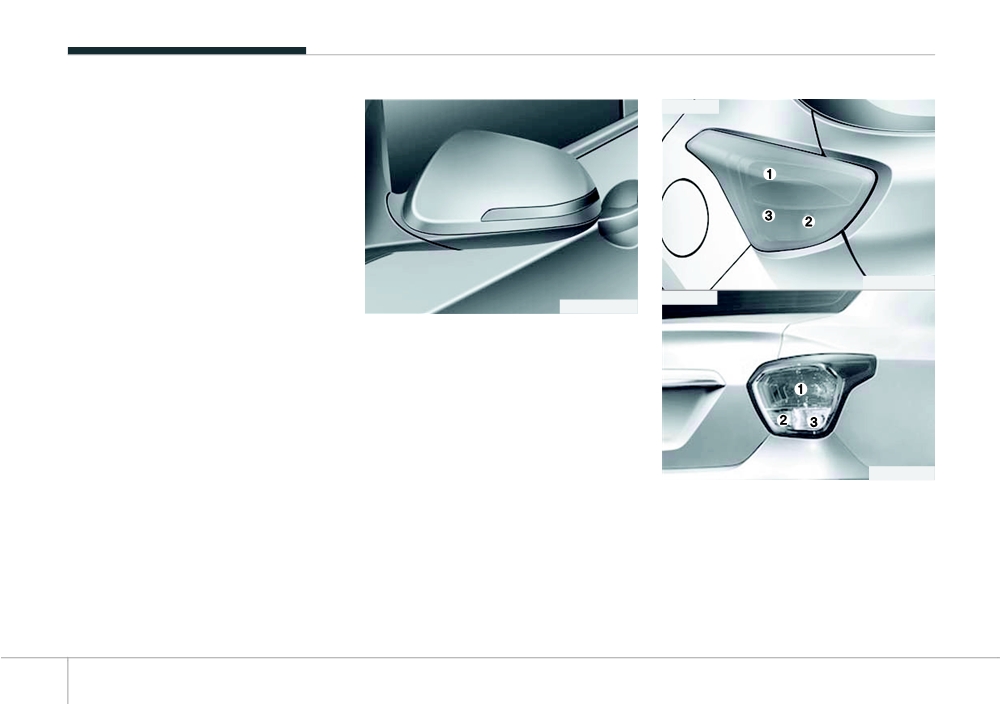

Side repeater light bulb replace-
5. Connect the power connector to the
ment
socket.
If the light bulb does not operate, we rec-
6. Reinstall the front bumper under cover.
ommend that the vehicle be checked by
an authorized HYUNDAI dealer.
OBA074049
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Back up light
(3) Rear turn signal light
7 72
Maintenance
■ 5 Door
5. Remove the bulb from the socket by

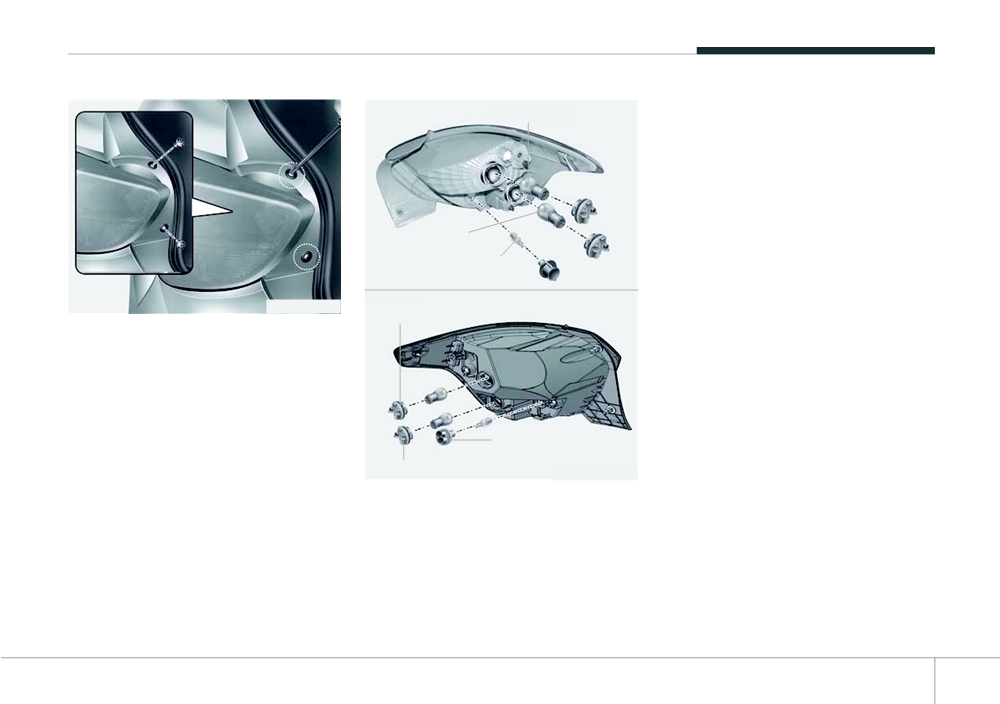

Stop and tail light
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the
socket and rotating it until it locks into
place.
Turn signal light
7. Install the socket in the assembly by
Back up light
aligning the tabs on the socket with the
slots in the assembly. Push the socket
OBA073046R
into the assembly and turn the socket
■ 4 Door
OBA073045R
clockwise.
Stop and tail light
1. Open the tailgate/trunk.
8. Reinstall the light assembly to the body
2. Loosen the light assembly retaining
of the vehicle.
screws with a cross-tip screwdriver.
3. Remove the rear combination light
assembly from the body of the vehicle.
Back up light
Turn signal light
OBA074046
4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
7 73
Maintenance
Rear fog light bulb replacement
■ 5 Door
(if equipped)
If the light does not operate, we recom-
mend that the system be checked by an
authorized HYUNDAI dealer.
OBA073021
■ 4 Door
OBA073022

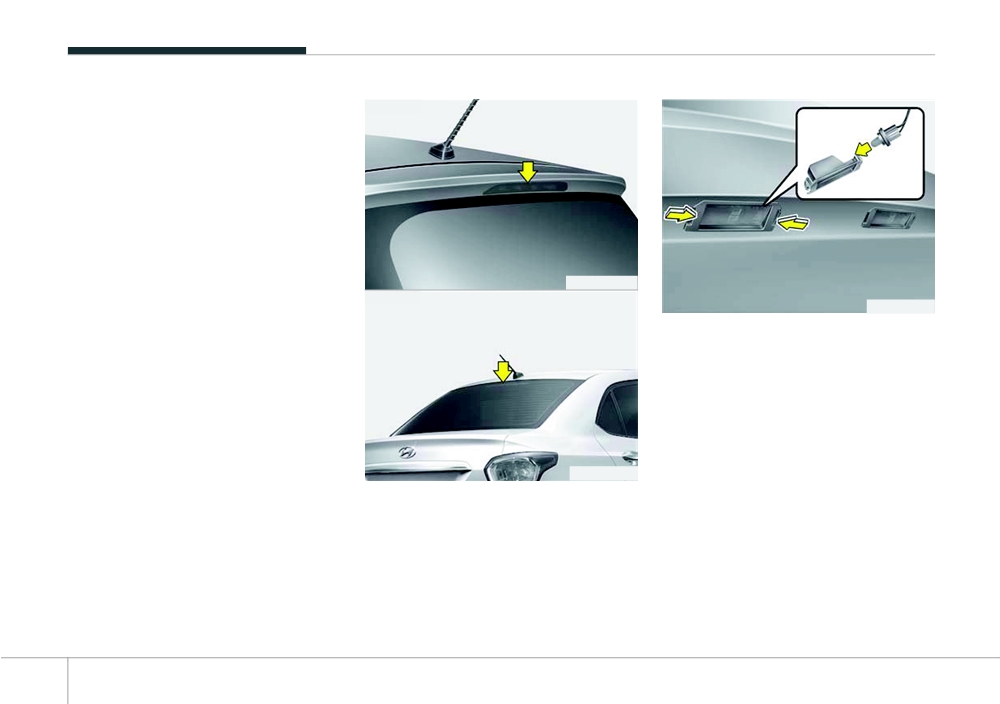

License plate light bulb replace-
ment
1. Using a flat-blade screwdriver, remove
the light assembly from the body of the
vehicle by prying the housing and
pulling the assembly out.
2. Separate the socket and the lens part
by turning the socket counterclockwise
until the tabs on the socket align with
OBA074021
the slots on the lens part.
High mounted stop light replace-
3. Remove the bulb by pulling it straight
ment
out.
If the light does not operate, we recom-
4. Insert a new bulb in the socket.
mend that the system be checked by an
5. Reassemble the socket and the hous-
authorized HYUNDAI dealer.
ing part.
6. Reinstall the light assembly to the body
of the vehicle.
7 74
Maintenance
■ Room lamp
■ Luggage room lamp
Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light hous-
ing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light
housing notches and snap the lens into
place.
CAUTION
■ Glove box lamp
OTD079037/OBA073024/OBA073023
Be careful not to dirty or damage
lens, lens tab, and plastic housings.
7 75
Maintenance
APPEARANCE CARE
Exterior care
Even prompt washing with plain water
may not completely remove all these
Exterior general caution
deposits. A mild soap, safe for use on
It is very important to follow the label
painted surfaces, may be used.
directions when using any chemical
After washing, rinse the vehicle thor-
cleaner or polish. Read all warning and
oughly with lukewarm or cold water. Do
caution statements that appear on the
not allow soap to dry on the finish.
label.
Finish maintenance
CAUTION
Washing
Do not use strong soap, chemical
To help protect your vehicle’s finish from
detergents or hot water, and do not
rust and deterioration, wash it thoroughly
wash the vehicle in direct sunlight
OJB037800
and frequently at least once a month with
or when the body of the vehicle is
lukewarm or cold water.
warm.
CAUTION
If you use your vehicle for off-road driv-
•
Water washing in the engine com-
ing, you should wash it after each off-
road trip. Pay special attention to the
WARNING - Wet brakes
partment including high pressure
removal of any accumulation of salt, dirt,
water washing may cause the fail-
After washing the vehicle, test the
mud, and other foreign materials. Make
brakes while driving slowly to see if
ure of electrical circuits located in
the engine compartment.
sure the drain holes in the lower edges of
they have been affected by water. If
the doors and rocker panels are kept
braking performance is impaired,
•
Never allow water or other liquids
clear and clean.
dry the brakes by applying them
to come in contact with electri-
cal/electronic components inside
Insects, tar, tree sap, bird droppings,
lightly while maintaining a slow for-
industrial pollution and similar deposits
ward speed.
the vehicle as this may damage
can damage your vehicle’s finish if not
them.
removed immediately.
7 76
Maintenance
Waxing
Finish damage repair
Bright-metal maintenance
Wax the vehicle when water will no
Deep scratches or stone chips in the
•
To remove road tar and insects, use a
longer bead on the paint.
painted surface must be repaired
tar remover, not a scraper or other
Always wash and dry the vehicle before
promptly. Exposed metal will quickly rust
sharp object.
waxing. Use a good quality liquid or
and may develop into a major repair
•
To protect the surfaces of bright-metal
paste wax, and follow the manufacturer’s
expense.
parts from corrosion, apply a coating of
instructions. Wax all metal trim to protect
wax or chrome preservative and rub to
it and to maintain its luster.
✽ NOTICE
a high luster.
Removing oil, tar, and similar materials
If your vehicle is damaged and requires
•
During winter weather or in coastal
with a spot remover will usually strip the
any metal repair or replacement, be sure
areas, cover the bright metal parts with
wax from the finish. Be sure to re-wax
the body shop applies anti-corrosion
a heavier coating of wax or preserva-
these areas even if the rest of the vehicle
materials to the parts repaired or
tive. If necessary, coat the parts with
does not yet need waxing.
non-corrosive petroleum jelly or other
replaced.
protective compound.
CAUTION
• Wiping dust or dirt off the body
with a dry cloth will scratch the
finish.
• Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may result in damage to the pro-
tective coating and cause discol-
oration or paint deterioration.
7 77
Maintenance
Underbody maintenance
Aluminum wheel maintenance
Corrosive materials used for ice and
WARNING
The aluminum wheels are coated with a
snow removal and dust control may col-
After washing the vehicle, test the
clear protective finish.
lect on the underbody. If these materials
brakes while driving slowly to see if
•
Do not use any abrasive cleaner, pol-
are not removed, accelerated rusting can
they have been affected by water. If
ishing compound, solvent, or wire
occur on underbody parts such as the
braking performance is impaired,
brushes on aluminum wheels. They
fuel lines, frame, floor pan and exhaust
dry the brakes by applying them
may scratch or damage the finish.
system, even though they have been
lightly while maintaining a slow for-
•
Use only a mild soap or neutral deter-
treated with rust protection.
ward speed.
gent, and rinse thoroughly with water.
Thoroughly flush the vehicle underbody
Also, be sure to clean the wheels after
and wheel openings with lukewarm or
driving on salted roads. This helps pre-
cold water once a month, after off-road
vent corrosion.
driving and at the end of each winter. Pay
•
Avoid washing the wheels with high-
special attention to these areas because
speed car wash brushes.
it is difficult to see all the mud and dirt. It
•
Do not use any acid detergent. It may
will do more harm than good to wet down
damage and corrode the aluminum
the road grime without removing it. The
wheels coated with a clear protective
lower edges of the doors, rocker panels,
finish.
and frame members have drain holes
that should not clog with dirt; trapped
water in these areas can cause rusting.
7 78
Maintenance
Corrosion protection
High-corrosion areas
Moisture breeds corrosion
Protecting your vehicle from corrosion
If you live in an area where your car is
Moisture creates the conditions in which
By using the most advanced design and
regularly exposed to corrosive materials,
corrosion is most likely to occur. For
construction practices to combat corro-
corrosion protection is particularly impor-
example, corrosion is accelerated by
sion, we produces cars of the highest
tant. Some of the common causes of
high humidity, particularly when tempera-
quality. However, this is only part of the
accelerated corrosion are road salts,
tures are just above freezing. In such
job. To achieve the long-term corrosion
dust control chemicals, ocean air and
conditions, the corrosive material is kept
resistance your vehicle can deliver, the
industrial pollution.
in contact with the vehicle’s surfaces with
owner's cooperation and assistance is
moisture that slowly evaporate.
also required.
Mud is particularly corrosive because it
dries slowly and holds moisture in con-
tact with the vehicle. Although the mud
Common causes of corrosion
appears to be dry, it can still retain mois-
The most common causes of corrosion
ture and promote corrosion.
on your car are:
High temperatures can also accelerate
• Road salt, dirt and moisture that is
corrosion of parts that are not properly
allowed to accumulate underneath the
ventilated so the moisture can be dis-
car.
persed. For all these reasons, it is par-
• Removal of paint or protective coatings
ticularly important to keep your vehicle
by stones, gravel, abrasion or minor
clean and free of mud or accumulations
scrapes and dents which leave unpro-
of other materials. This applies not only
tected metal exposed to corrosion.
to the visible surfaces but particularly to
the underside of the vehicle.
7 79
Maintenance
To help prevent corrosion
• When cleaning underneath the vehicle,
Keep paint and trim in good condition
You can help prevent corrosion from get-
give particular attention to the compo-
Scratches or chips in the finish should be
ting started by observing the following:
nents under the fenders and other
covered with "touch-up" paint as soon as
areas that are hidden from view. Do a
possible to reduce the possibility of cor-
thorough job; just dampening the accu-
rosion. If bare metal is showing through,
Keep your vehicle clean
mulated mud rather than washing it
the attention of a qualified body and paint
The best way to prevent corrosion is to
away will accelerate corrosion rather
shop is recommended.
keep your vehicle clean and free of cor-
than prevent it. Water under high pres-
rosive materials. Attention to the under-
sure and steam are particularly effec-
side of the vehicle is particularly impor-
Bird droppings : Bird droppings are high-
tive in removing accumulated mud and
tant.
ly corrosive and may damage painted
corrosive materials.
surfaces in just a few hours. Always
• When cleaning lower door panels,
remove bird droppings as soon as possi-
• If you live in a high-corrosion area —
rocker panels and frame members, be
ble.
where road salts are used, near the
sure that drain holes are kept open so
ocean, areas with industrial pollution,
that moisture can escape and not be
acid rain, etc.—, you should take extra
Don't neglect the interior
trapped inside to accelerate corrosion.
care to prevent corrosion. In winter,
Moisture can collect under the floor mats
hose off the underside of your vehicle
and carpeting and cause corrosion.
Keep your garage dry
at least once a month and be sure to
Check under the mats periodically to be
clean the underside thoroughly when
Don't park your vehicle in a damp, poorly
sure the carpeting is dry. Use particular
winter is over.
ventilated garage. This creates a favor-
care if you carry fertilizers, cleaning
able environment for corrosion. This is
materials or chemicals in the vehicle.
particularly true if you wash your vehicle
These should be carried only in proper
in the garage or drive it into the garage
containers and any spills or leaks should
when it is still wet or covered with snow,
be cleaned up, flushed with clean water
ice or mud. Even a heated garage can
and thoroughly dried.
contribute to corrosion unless it is well
ventilated so moisture is dispersed.
7 80
Maintenance
Interior care
Cleaning the upholstery and interior
Cleaning the lap/shoulder belt web-
trim
bing
Interior general precautions
Vinyl
Clean the belt webbing with any mild
Prevent caustic solutions such as per-
Remove dust and loose dirt from vinyl
soap solution recommended for cleaning
fume and cosmetic oil from contacting
with a whisk broom or vacuum cleaner.
upholstery or carpet. Follow the instruc-
the dashboard because they may cause
Clean vinyl surfaces with a vinyl cleaner.
tions provided with the soap. Do not
damage or discoloration. If they do con-
bleach or re-dye the webbing because
tact the dashboard, wipe them off imme-
this may weaken it.
diately. See the instructions for the prop-
Fabric
er way to clean vinyl.
Remove dust and loose dirt from fabric
Cleaning the interior window glass
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom-
If the interior glass surfaces of the vehi-
CAUTION
mended for upholstery or carpets.
cle become fogged (that is, covered with
Never allow water or other liquids
Remove fresh spots immediately with a
an oily, greasy or waxy film), they should
to
come in contact with
fabric spot cleaner. If fresh spots do not
be cleaned with glass cleaner. Follow the
electrical/electronic components
receive immediate attention, the fabric
directions on the glass cleaner container.
inside the vehicle as this may dam-
can be stained and its color can be
age them.
affected. Also, its fire-resistant properties
CAUTION
can be reduced if the material is not
Do not scrape or scratch the inside
properly maintained.
of the rear window. This may result
in damage to the rear window
defroster grid.
CAUTION
Using anything but recommended
cleaners and procedures may affect
the fabric’s appearance and fire-
resistant properties.
7 81
